AP 7007 - Vacuum Cleaner Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	AP 7007
Product type	Canister vacuum cleaner
Dust bag capacity	Approximately 2.5 L (microfiber bag included)
Power cord length	6 m (estimated, with yellow marking for maximum length)
Weight	Approximately 6 kg
Filtration	Washable motor protection filter + washable exhaust filter
Included accessories	Floor nozzle with selector (hard floor/carpet), 2-in-1 crevice tool with brush, upholstery nozzle
Main features	Chrome telescopic tube, manual vacuum control, suction power selector, automatic cord rewind, bag fill level indicator
Power supply	Mains (domestic outlet)
Safety	Do not vacuum liquids, do not use without bag or filter, keep away from children, unplug before maintenance
Filter maintenance	Clean with clear water, dry naturally, do not use detergent or heat
Bag replacement	Microfiber bag: insert the cardboard part into the inlet hole, remove by pulling the tab
Repairability	Filters and bag user-replaceable; for damaged cord, contact an authorized technical service
Noise level	Not specified (normal vacuum cleaner sound)
Warranty	To be confirmed with the retailer

Frequently Asked Questions - AP 7007 Orbegozo

How to assemble the vacuum cleaner?

Insert the hose into the vacuum opening until it locks. Attach the telescopic tube to the handle, then adjust the floor nozzle. To disassemble, press the hose tabs.

How to adjust the suction power?

Use the power selector on the vacuum body. For delicate materials (curtains), choose minimum power; for mattresses and carpets, medium power; for tiled floors, maximum power.

How to use the manual vacuum control?

On the handle, pull up to open the valve (reduces suction) or push down to close (increases suction). Open the valve to avoid vacuuming curtains.

How to clean the exhaust filter?

Turn off and unplug the vacuum. Open the exhaust air grille located on the top, remove the filter, rinse it with cold water, then let it dry naturally. Do not use detergent or heat.

How to change the dust bag?

Open the cover, insert the cardboard part of the new bag into the inlet hole until the tab engages. To remove the old one, pull the tab. The cover will not close if the bag is not properly installed.

What to do if suction is weak?

Check that the secondary valve is not open. Inspect the hose, tube, and nozzle for blockage. Ensure filters are properly installed and clean. If necessary, clean the filters.

The vacuum does not turn on, what to do?

Check that the plug is properly connected and the outlet works (test with another device). Check the fuse or circuit breaker. If the problem persists, contact an authorized technical service.

Can you vacuum liquids with this vacuum?

No, this vacuum is designed only for dust and dry dirt. Never vacuum water or liquid, as it could damage the appliance and cause electric shock.

How to clean the vacuum?

Unplug the appliance. Clean the housing with a damp cloth, without allowing liquid to enter inside. Do not use aggressive products. Regularly remove hair and lint from the wheels and floor nozzle.

Where to find spare parts (bags, filters)?

Microfiber dust bags and replacement filters are available from the manufacturer Orbegozo or authorized dealers. You can contact customer service at [e-mail] for more information.

USER MANUAL AP 7007 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

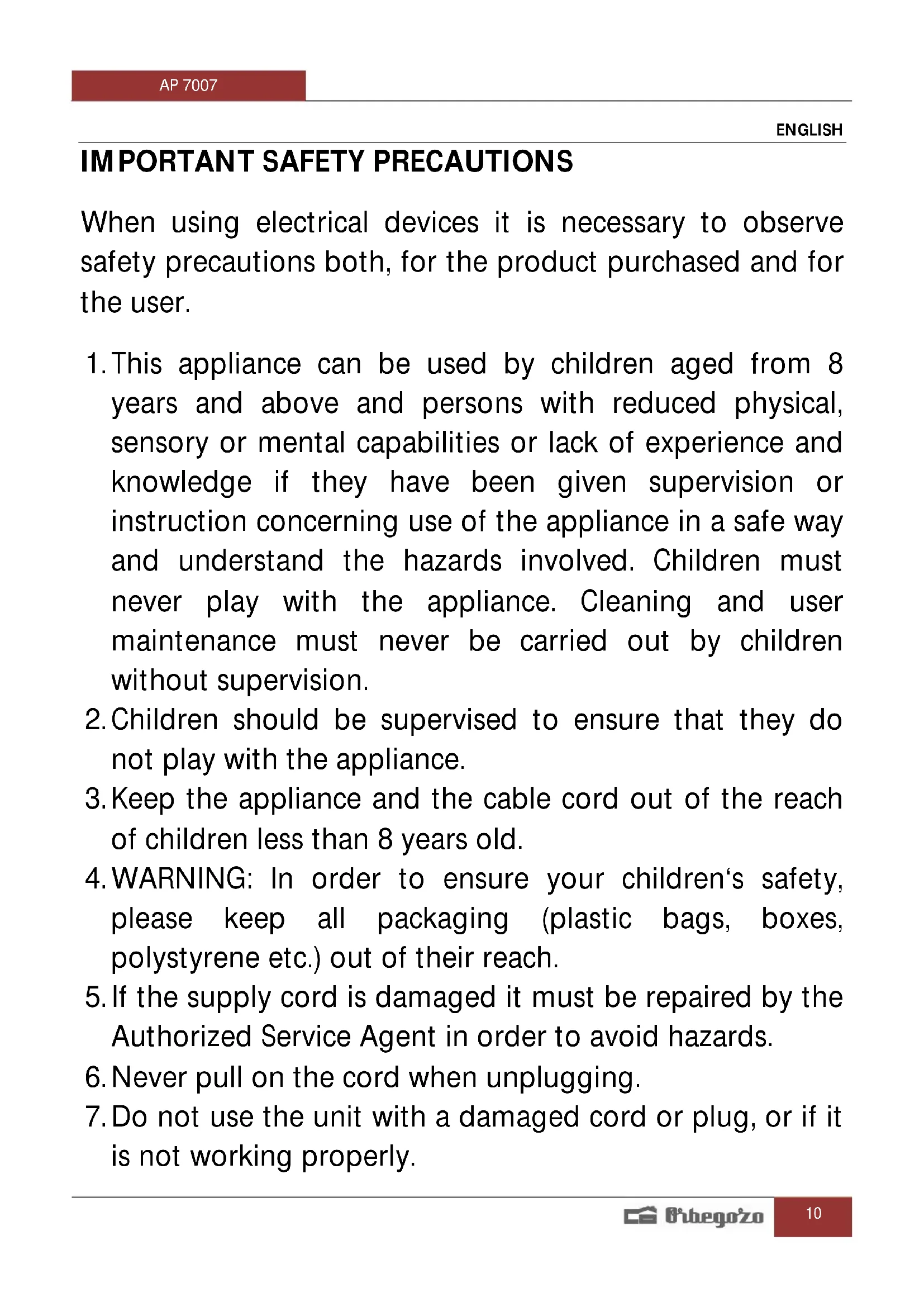

IMPORTANT SAFETY PRECAUTIONS

When using electrical devices it is necessary to observe safety precautions both, for the product purchased and for the user.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Do not use to vacuum water.

16. It is recommended that before starting the motor, you adjust the power to the minimum position and increase it to the desired power setting once the motor is in operation.

17. To reduce the risk of electric shock, do not use outdoors or on wet surfaces.

18. This appliance must be used only for domestic cleaning, to vacuum dust and dry dirt from floors, carpets, rugs and other fabrics, as described in these instructions. Any other use is considered inappropriate and dangerous.

19. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.

20. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

21. Use extra care when cleaning on stairs.
22. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.
23. Unplug before connecting the hose
24. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

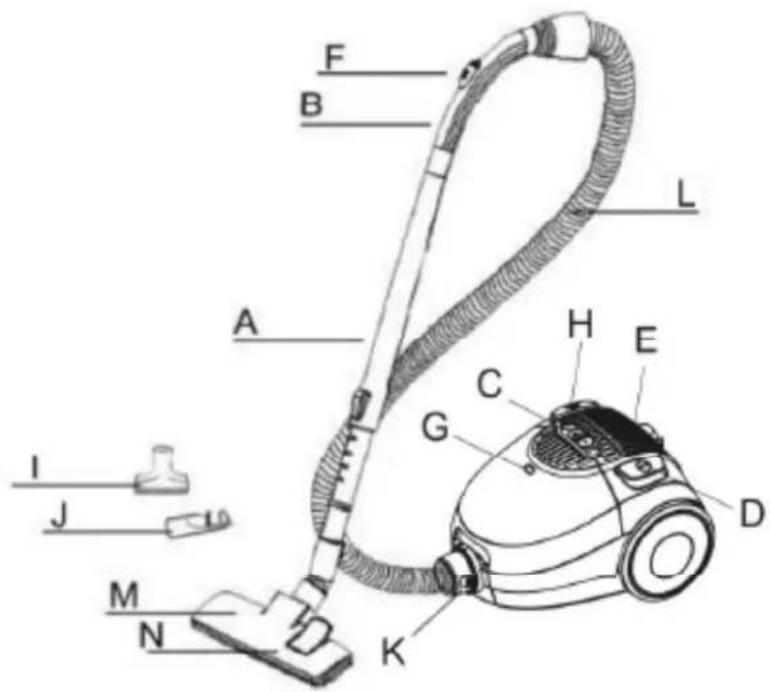

PARTS & EQUIPMENT

A. Chromed telescopic tube.
B. Handle.
C. Suction power selector
D.ON/OFF button.
E. Exhaust filter.
F. Manual vacuum control.
G.Level of dust bag filling.
H.Auto-rewind cord button.
I. Upholstery cleaning accessory.
J. 2-in-1 crevice nozzle & brush.
K. Vacuum opening.
L. Vacuum hose.
M. Floor nozzle.
N. Switch for kind of floor.

ACCESSORIES

You will receive your vacuum cleaner with 3 accessories for different applications. Each accessory can be fit onto the handle or onto telescopic tube, as required.

Floor nozzle

Probably it is the accessory which you will use most frequently. It's suitable for cleaning wide areas. This accessory has a 360^ joint, so it ensures you can reach any corner easily.

• Clean carpet and carpet floor without using frontal brush. Place nozzle switch in carpet symbol and brush will rise.
• Smooth floors as PVC, parquet or tiles are better cleaned and cared using frontal brush. To use them push the switch to set smooth floor position and brush will come out.

Upholstery nozzle

You can use this nozzle to clean dust from upholstery as sofa or chairs, also for delicate surfaces as books, pictures frames, cushions, mattresses, curtains, etc.

2-in-1 crevice nozzle & brush

This accessory is suitable for cleaning dust of folds in cloths, joint cracks and corners that cannot be reached with floor nozzle.

ASSEMBLY

Caution!

Before assembly or disassembly the accessories always ensure that vacuum cleaner is unplugged from mains.

1. Turning on your vacuum cleaner:

Assembly: insert the hose into vacuum opening. Press the tube until it blocks in its place.
- Disassembly: remove the hose from vacuum opening pressing its flanges to release it of anchorage.

1. Assembly of telescopic tube and accessories.

Put in telescopic tube onto handle.	Adjust telescopic tube to desired length. Push the flange and pull of tube to lengthen it and push to shorten it.
Fit in the floor nozzle onto telescopic tube.	Move the nozzle flange according floor to vacuum.
	Cleaning carpet Cleaning wooden floor

USING

Vacuuming

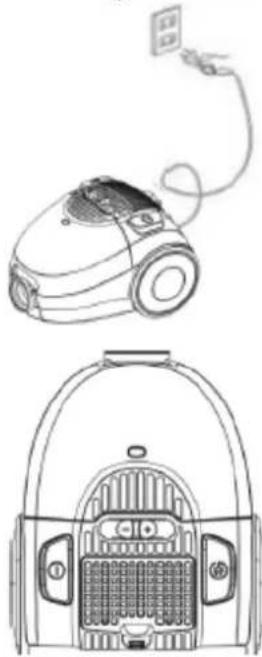

Before using the appliance unroll the desired length of power cord and plug it to the mains. The yellow mark on the cord means it has reached the maximum length, do not exceed it. To turn on the vacuum cleaner press ON/OFF button ① . Pull of vacuum cleaner behind you as a sled when you are using it.

Important: In a few cases there may be a whistling sound at the start. It is not a fault and the sound goes away after a time. Do not suck up toner, plaster, cement, stone dust or drill dust. The materials would block the filter.

Regulating of suction power

You can adjust the suction power in vacuum cleaner depending on you require with power regulator. We recommend using minimum suction power with delicate materials. Select medium suction power for mattresses, upholstered furniture and carpets. Select maximum suction power for tiled, wood and other robust floors.

Manual vacuum control

Manual vacuum control is in handle.

• Open: pull upwards
• Close: push downwards.

You can adjust the suction power using manual vacuum control. The wider you open it, the less suction power and vice-versa.

Open this valve to avoid than curtains and similar objects are sucked in.

Choose:

• Minimum suction power for curtains and delicate materials.
• Medium suction power for upholsterycushions, mattresses and carpet floors.
  Maximum suction power for tiled, wooden and robust floor surfaces with heavy soiling.

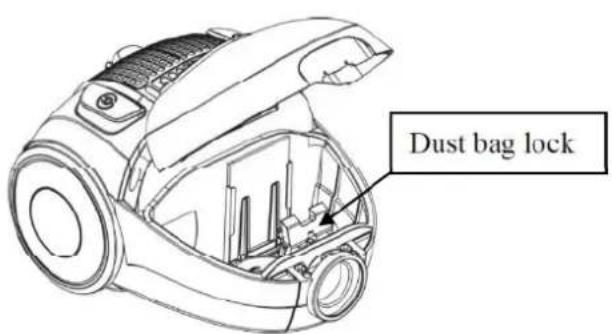

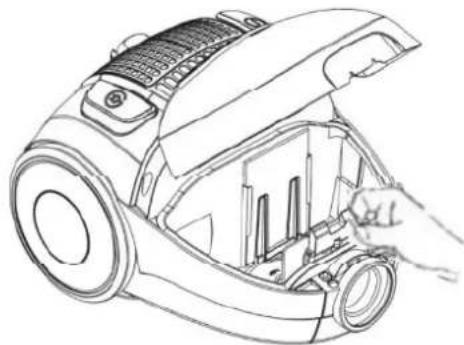

Fitting and removing of microfiber dust bag

Insert carton part of dust bag into input hole, as picture shows. Press it until the flange fit it. To remove the bag, pull of flange and pull out the dust bag.

Important: The flange prevents you use the vacuum cleaner without bag, if bag is not well installed or there isn't bag, top cover cannot be closed therefore vacuum cleaner won't work. If it happens to you ensure that bag is well placed.

VACUUM CLEANER FILTERS

Motor protection filter

Motor protection filter cleans the air that is sucked in before it enters into motor. The air is cleaned of fine dust, mites, bacteria and viruses. This prevents dirt or dust particles from getting into the motor or the surrounding air.

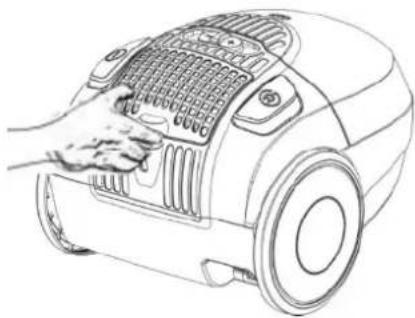

Cleaning the exhaust air filter

The exhaust air filter cleans the air at the end before it leaves the vacuum cleaner. You can clean this exhaust filter following below instructions:

1. Turn off and unplug the vacuum cleaner. Remember pull on the plug and not on the cord.
2. Open the exhaust air grill (this grill is on top side of vacuum cleaner).
3. When you open the grill, air filter will be visible.
4. Rinse the filter with cold water for a moment and after allow to dry.

Caution!

1. Always clean the filter with clear water and don't use soap or detergent. It would damage the filter.
2. Clean filter with clear water and dry it naturally. Do not dry with heat, it could deform.

CARE AND MAINTENANCE

Cleaning of vacuum cleaner

To clean the housing of device, disconnect and unplug it.

Danger! Never expose the vacuum cleaner to the effects of weather (rain, wind, etc.). No parts may be used by dish washer.

The housing, inner tank and rear outlet can be wiped with a damp cloth, always taking care that no liquids get inside vacuum cleaner. Do not use strong products to clean the device because it could corrode the plastic surface. Before to plug again vacuum cleaner ensure that all parts are thoroughly dry.

Hair and fluff may gather on the running wheels and on the floor nozzle of the vacuum cleaner in time. You should remove there to ensure that handling of the vacuum cleaner is always easy.

Note: we do not recommend using lubricant or oil on wheels because it will cause dirt and fluff to even better.

TROUBLE-SHOOOTING

Faults can occur on all electrical equipment. This must not necessarily be due to a defect in the device itself. So check first with table if the fault can be dealt with.

PROBLEM	POSSIBLE CAUSES	SOLUTIONS/ TIPS
Weak suction.	The secondary valve is open.	Close secondary valve.
	An object is blocking the suction pipe.	Check the suction tube, the handle area, suction pipe and the nozzle in use for blockages.
	Filters are not fitted properly or are blocked.	Fit filter well.
Device does not work.	Device is not properly plugged into the mains.	Check that the mains plug has been inserted properly. Also check whether the power socket is in order (e.g. use an electric torch). Check the fuses, automatic fuse in the fuse box.
The device cover does not close properly.	Dust container is not set properly.	Check the dust container fit.

Danger! Never try to repair a defective device, or a device you believe to be defective by yourself. You can put both yourself and future users in danger. Repairs may only be carried out by authorized specialists.

Disposal of old electrical appliances

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the

recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
