Product type	Rechargeable vacuum cleaner with liquid suction function
Brand	Orbegozo
Model	AP 1000
Power supply	230 V ~ 50 Hz via mains adapter
Charging type	Wall bracket with charging socket
Charging time (first use)	Approximately 16 hours
Charging time (normal use)	Approximately 8 hours
Dust container capacity	Not specified
Filter	Washable dust filter
Included accessories	Crevice nozzle, water suction accessory
Main functions	Dry and wet vacuuming
Use	Domestic only
Safety	Do not vacuum sharp objects, hot ashes; do not immerse in water
Maintenance	Empty dust container regularly, clean filter with water after several empties
Wall mounting	Wall bracket with screws and plugs provided
Warranty	Refer to the warranty card provided

Frequently Asked Questions - AP 1000 Orbegozo

How to charge the Orbegozo AP 1000 vacuum cleaner?

Remove the nozzle if installed, then place the device in the wall bracket. Make sure the mains adapter is plugged into a 230 V socket. Charging starts automatically.

What is the charging time of the vacuum cleaner?

The first charge takes about 16 hours. Subsequent charges take about 8 hours.

Can I vacuum liquids with this vacuum cleaner?

Yes, provided you use the special water suction accessory (ref. 11). Never vacuum liquid without this accessory.

How to clean the filter of the vacuum cleaner?

Remove the dust container, then the filter by turning it counterclockwise (OPEN). Shake it or wash it with water after several empties. Let it dry completely before putting it back.

How to empty the dust container?

Press the release button (2) to remove the dust container. Take it out from top to bottom and empty its contents.

Can I use the vacuum cleaner without a nozzle?

Yes, the device can operate without accessories. However, for optimal suction, use the crevice nozzle or the appropriate accessory.

What to do if the vacuum cleaner does not turn on?

Check that the device is charged. If the battery is empty, place it on the wall bracket to recharge. If the problem persists, contact technical support.

How to install the wall bracket?

Fix the wall bracket using the supplied screws and plugs, at a suitable location near a power socket. Insert the vacuum cleaner into the bracket until it clicks into place.

What types of waste should not be vacuumed with this device?

Never vacuum sharp objects (glass, needles), hot ashes or chemicals. Use the water accessory only for non-flammable liquids.

Where can I find the complete user manual?

The manual is available for free download in PDF format on notice-facile.com. You can also contact the manufacturer at [e-mail] for a copy.

USER MANUAL AP 1000 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

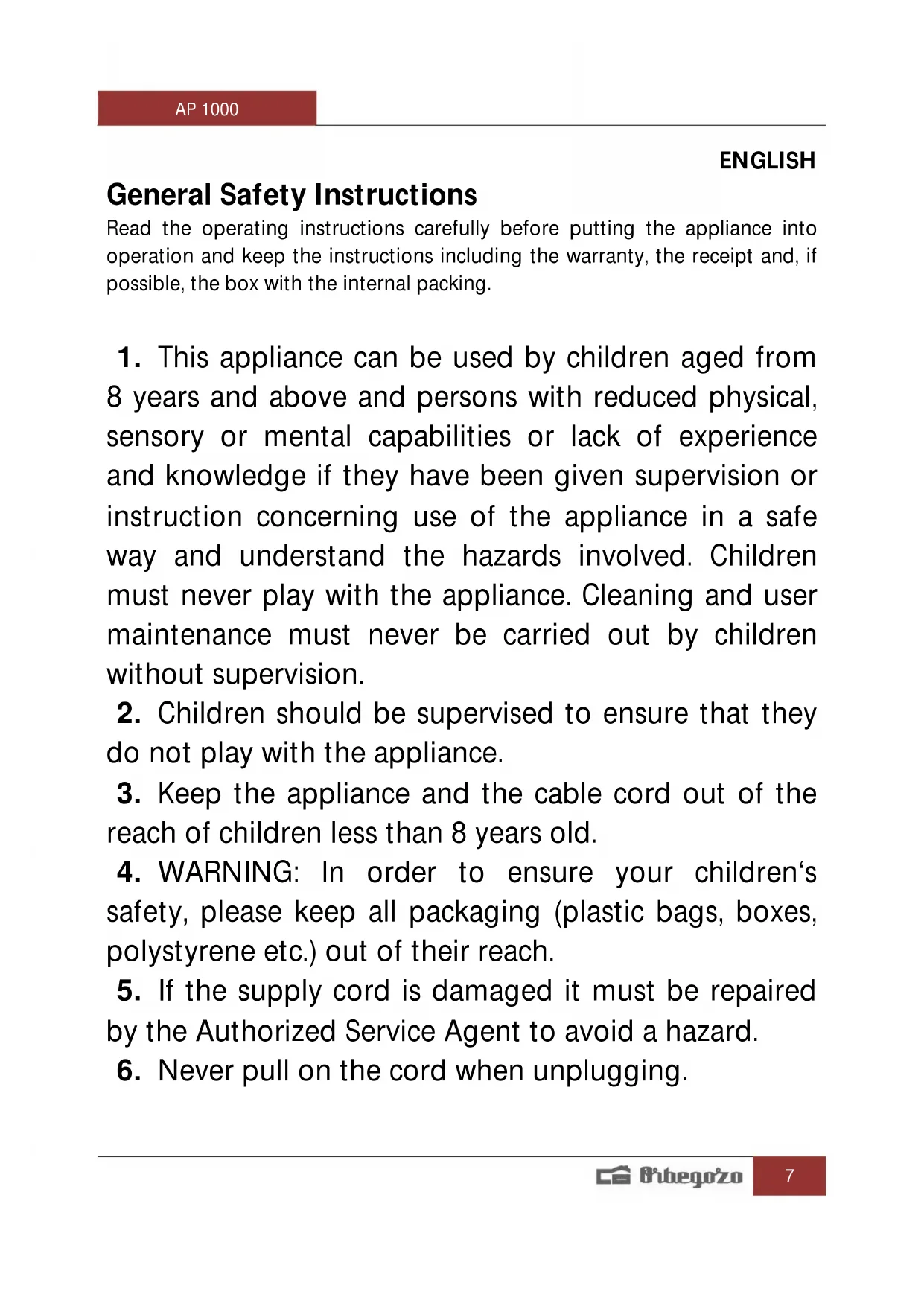

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid a hazard.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].
14. WARNING: In case of misuse, there is a risk of possible injury.

Information for this unit

• Vacuum only dust and small crumbs. Do not vacuum sharp objects or hot ashes.
• This appliance is only intended for household use and for this end has been manufactured.
• Please always use the attachment (11) for wet vacuuming.
• The appliance is to be used with the power supply unit supplied with the unit.

- The appliance must be supplied at very low voltage corresponding to that marked on the appliance.

DEVICE START-UP

Overview of the Components

1 Dust container

7 Charger

2 Dust container release button

8 Wall holder

3 Display

9 AC adapter

4 ON/OFF switch

10 Filter

5 Handle

11 Attachment for wet vacuuming

6 Motor casing

12 Crevice nozzle

Wall holder

Mount the wall holder with the supplied screws and dowels.

CHARGING THE BATTERIES

After mounting the wall holder:

• Insert the AC adapter in a duly installed 230V / 50Hz protective contact socket. The charging
  LED lights up.
• If you want to charge the batteries, first remove the nozzle attachments and then insert the device first into the upper bracket of the wall mounting.
• Then press the handle lightly until the device locks in place.
  The charging time is approximately 16 hours the first time, and then approximately 8 hours.
• Once the charging is over, unplug the AC adapter.

USING THE DEVICE

• Unplug the device and fit on the desired nozzle.
  In order to start vacuuming you have to press the ON/OFF switch (4) and keep it pressed.
• Once you have finished or when the batteries are down, connect the vacuum to the charger as described in "Charging the Batteries".
  Make sure that the plug is inserted.

NOZZLES

• Crevicne nozzle: ideal for vacuuming corners and crevices, etc.
• Use for wet vacuuming: Please ensure that you always use the attachment when vacuuming up liquids (insert the extension of the attachment into the device until the nozzle is flush).

CLEANING

Always unplug the device before cleaning!
Clean the casing with a dry cloth.
- The dust container can be released with the release knob (2) and then pulled off from the top downwards.
- Remove the dust filter (10) by turning the insert anticlockwise (OPEN) and tapping it out.
After emptying the container several times, it can also be cleaned in water. Dry well once you have finished.
- Please reassemble the device in the reverse order.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice!

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
