Product type	Multi-beverage capsule coffee maker
Brand	Bosch
Model	Tassimo Happy
Power supply	220-240 V ~, 50/60 Hz
Weight (estimated)	2.5 kg
Dimensions (W x D x H) estimated	22 x 15 x 30 cm
Water tank capacity (estimated)	0.8 L
Main functions	T DISC barcode reading, automatic extraction, stop and extend preparation, descaling program
Maintenance and cleaning	Dishwasher cleaning of removable parts, descaling with the service T DISC, cleaning of the reading window
Safety	Automatic shut-off, child safety (do not leave children under 8 years unsupervised), minimum distance of 10 cm for wearers of electronic implants
Spare parts and repairability	Only original spare parts should be used; repairs only by qualified personnel
General information	Indoor use, max altitude 2000 m, do not use demineralized water, do not use damaged T DISC or more than once

Frequently Asked Questions - Tassimo Happy BOSCH

How to prepare a beverage with the Tassimo Happy?

Fill the tank with fresh cold non-carbonated water. Place a T DISC capsule in the holder, printed side down, inserting the tab into the notch. Close the brewing system. Press the start button. The machine reads the barcode and automatically adjusts the water amount. To stop prematurely, press the button briefly. To extend, hold it down until the desired amount.

What to do if the appliance does not turn on?

Check that the appliance is properly plugged into a working electrical outlet. If no LED lights up, the appliance may be in standby mode: press the start button and open or close the brewing system. If the problem persists, unplug for 5 minutes and plug back in. Otherwise, contact customer service.

Why is the beverage not flowing?

Possible causes: the water tank is insufficiently filled (fill up to the max mark), the tank was removed during preparation, or the appliance has not been used for a long time. Run a cleaning cycle with the service T DISC. If the float is stuck, descale the appliance or move the float manually.

How to clean the appliance?

Some components (water tank, cup support, drip tray grid) can be washed in the dishwasher. Clean the T DISC reading window with a soft, damp cloth. Never use a steam or high-pressure cleaner. Follow figures 28-44 in the manual for manual cleaning.

When and how to descale the appliance?

Descale as soon as the calc light turns on. Use only a descaling solution without phosphoric acid. Follow figures 45-59: fill the water tank with the descaling solution, start the descaling program by pressing the corresponding button, then rinse with fresh water.

What to do if the T DISC barcode is not recognized?

Clean the T DISC reading window with a soft, damp cloth. Flatten the T DISC film. Make sure the T DISC is correctly positioned (printed side down, tab in the notch). If the problem persists, contact TASSIMO support.

How to open the brewing system if it is locked?

The system is locked during operation. Open it only when the status display is permanently lit. If it remains locked, contact TASSIMO support. Make sure the piercing crown and the T DISC holder are correctly engaged.

Why is there water under the cup support?

This may be due to condensation or calcified valves. Descale the appliance (see manual). If the problem persists, check that the T DISC is not damaged and the piercing crown is properly in place.

What to do if all LEDs blink?

This indicates a power supply problem. Unplug the power cord, wait 5 minutes, then plug back in. If the problem persists, contact TASSIMO support.

How to dispose of the appliance at the end of its life?

Unplug and cut the power cord. Dispose of the appliance in an environmentally friendly manner in accordance with Directive 2012/19/EU (WEEE). Ask your dealer or local authority for collection points.

USER MANUAL Tassimo Happy BOSCH

m = 311

32

13/14

34

36

38

m = 311
40

42

44

46

48

50

52

54

m = 311

56

13/14

58

59

Inhaltsverzeichnis

1.1 General information 19
1.2 Intended use 19
1.3 Restriction on user group 19
1.4 Safety information.. 19

2 Overall view 21
2.1 Control panel 21
3 Performing initial start-up 21
4 Preparing a drink 21
5 Dishwasher-safe components. 21
6 Cleaning the appliance 21
7 Descale the appliance. 21
8 Troubleshooting 22
9 Technical specifications 23
10 Disposing of old appliance 23
11 Customer Service. 23

Safety

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit. Only use this appliance:
  for preparing hot drinks.
  In private households and in enclosed spaces in a domestic environment.
  Up to an altitude of max. 2000m above sea level.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

• Keep packaging material away from children.
• Do not let children play with packaging material.
• Keep small parts away from children.
  Do not let children play with small parts.
• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
  The protective conductor system of the domestic electrical installation must be properly installed.
• Never operate a damaged appliance.
• Never operate an appliance with a cracked or fractured surface.
• Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
• If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
• Call customer services. Page 23

en Safety

Repairs to the appliance should only be carried out by trained specialist staff.
- Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
- Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.
- Only use the appliance in enclosed spaces.
- Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
- Ventilate the appliance adequately.
- Never operate the appliance in a cupboard.
- Never leave the appliance unattended while it is switched on.
- Do not use extension cables or multiple socket strips.
- Only use adapters and power cords approved by the manufacturer.
If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.
- Never open the brewing system during operation.
Only use the original Tassimo T DISCs.
Never use a damaged T DISC.
Never use a drinks T DISC more than once.
- Never touch hot appliance parts.
- Allow hot appliance parts to cool down before touching.
Leave drinks to cool down if necessary.
- Do not let escaping liquids or steam come into contact with your skin.
To avoid injuries, only use the appliance for its intended purpose.
Be careful of your fingers when inserting or cleaning the T DISC.
People with electronic implants must stand at least 10 cm away from the appliance.
- This minimum distance of 10cm must also be observed for the water tank when removed.

• To ensure hygiene, follow the cleaning instructions for the appliance.

Overall view

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

Fig. 1

1	Float
2	Calc mark
3	Max mark
4	Water tank
5	T DISC reading window
6	T DISC piercing unit
7	T DISC holder
8	Lock
9	Brewing system
10	Control panel
11	Storage compartment
12	Brief cleaning / descending instruc-tions
13	Service T DISC
14	Bowl
15	Cup stand
16	Drip grate

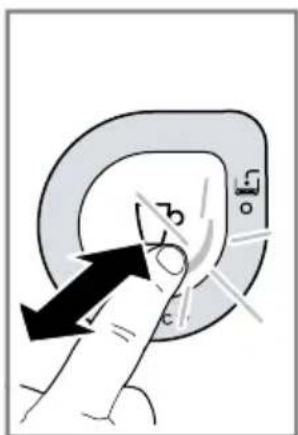

Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

○	■ Activate the appliance.
	■ Start, stop and prolong dispensing of drinks.
	■ Start service programme.
∅	Fill water tank.
/	Display status.
calc	Descale the appliance.

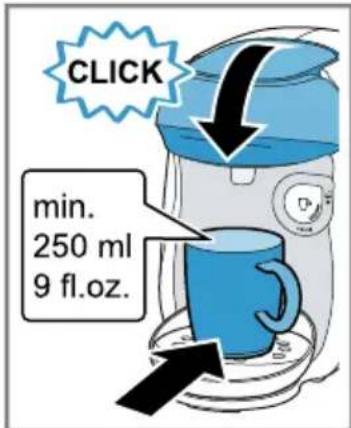

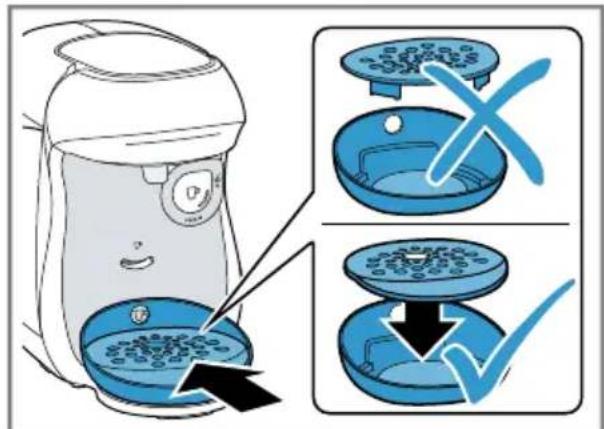

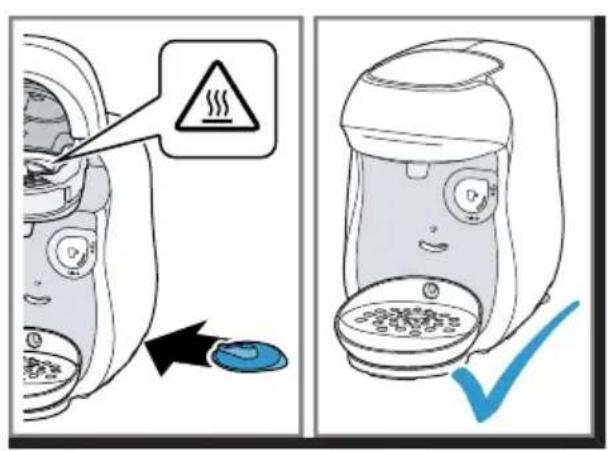

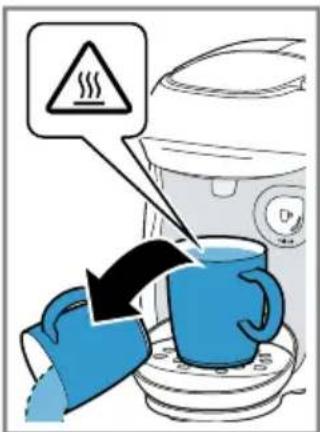

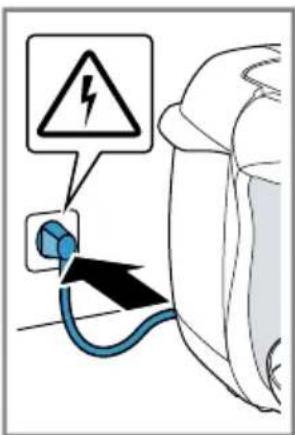

Performing initial start-up

Follow the pictorial instructions at the start of these instructions. Fig. 2 - 14

Note: You can prepare a wide range of hot beverages with the multiple hot drinks machine. When you insert a T DISC, the scanner reads the barcode and controls the flow of hot water automatically.

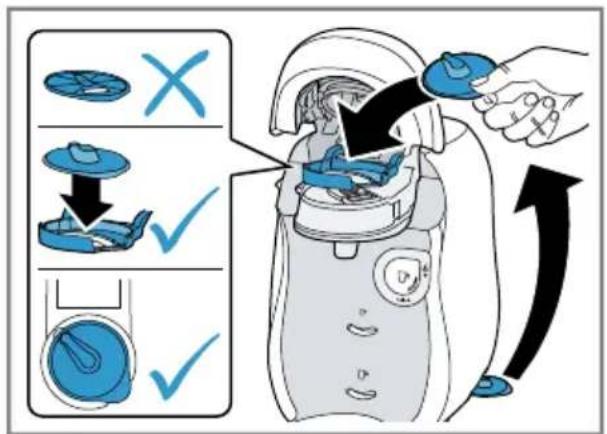

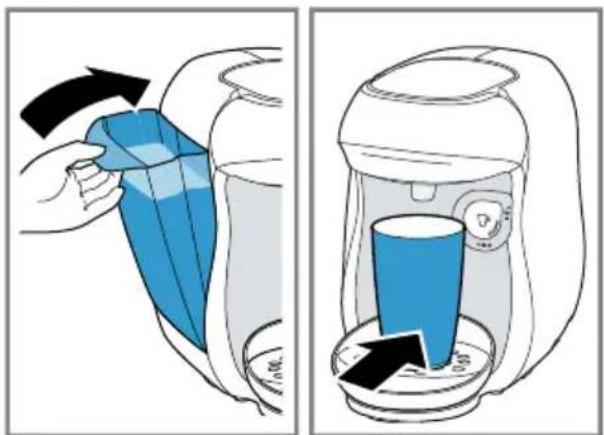

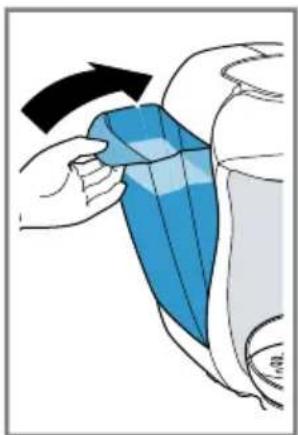

Preparing a drink

Find out how to prepare a drink of your choice. Follow the pictorial instructions at the start of these instructions.

Fig. 15 - 26

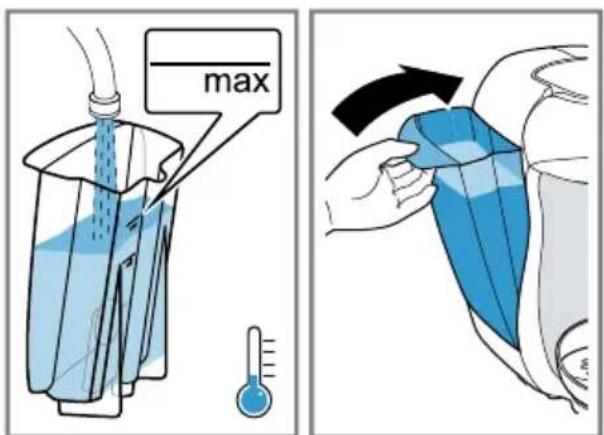

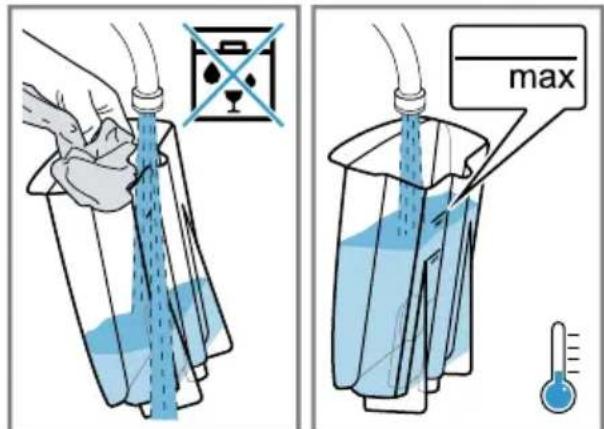

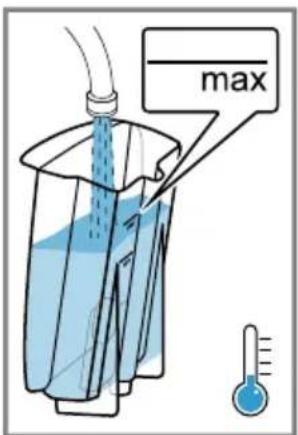

Note: Fill the water tank each day with fresh, cold, non-carbonated water.

Tips

• Do not use chemically decalcified water.
  To interrupt the dispensing process, briefly press
  To prolong dispensing, press and hold until the required quantity is reached.

Dishwasher-safe components

Here you can find an overview of the components you can clean in the dishwasher.

Fig. 27

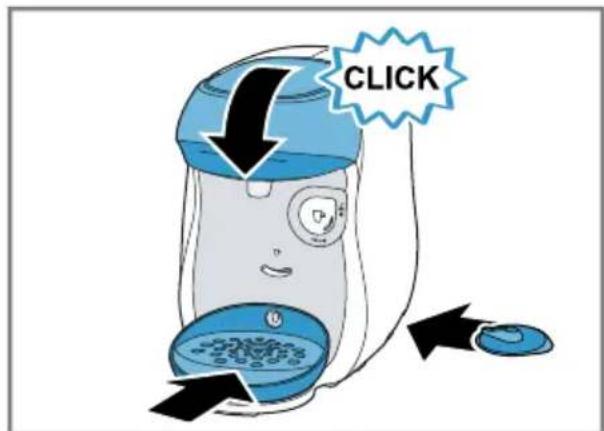

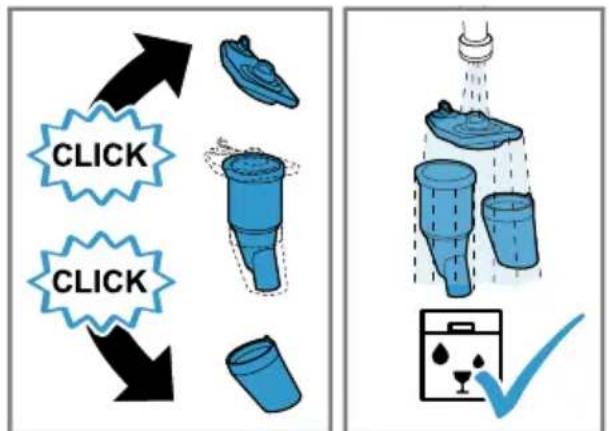

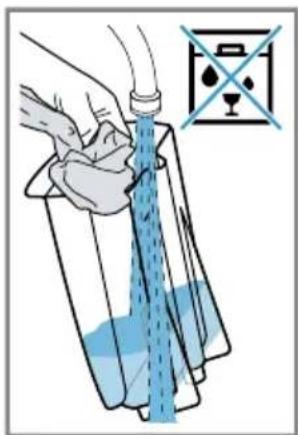

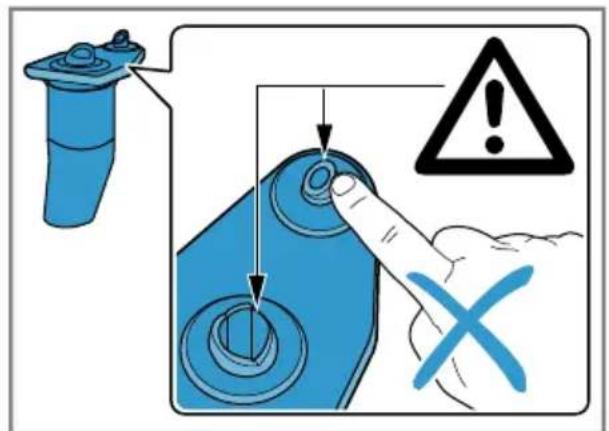

Cleaning the appliance

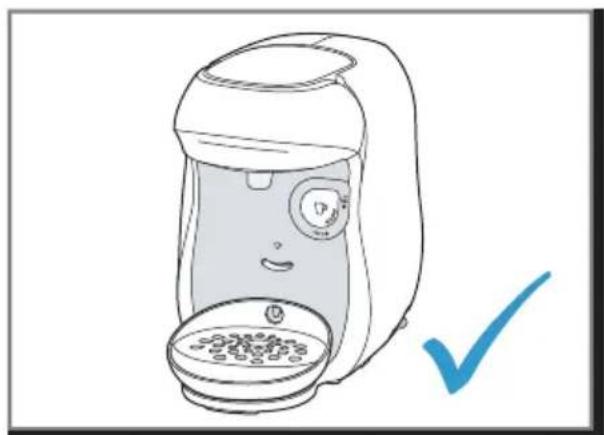

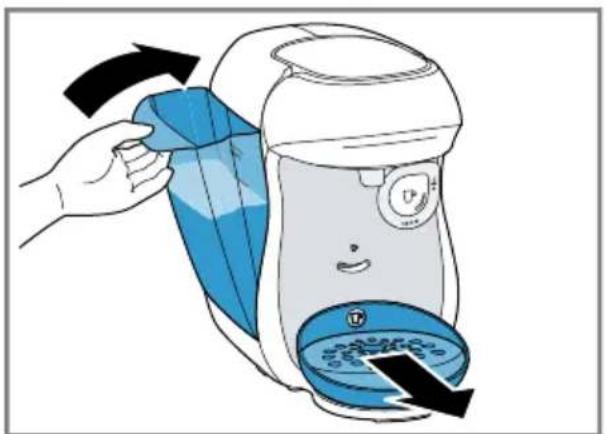

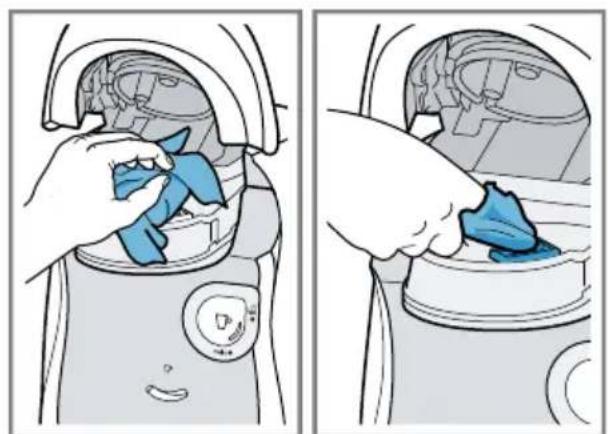

Follow the pictorial instructions at the start of these instructions.

Fig. 28 - 44

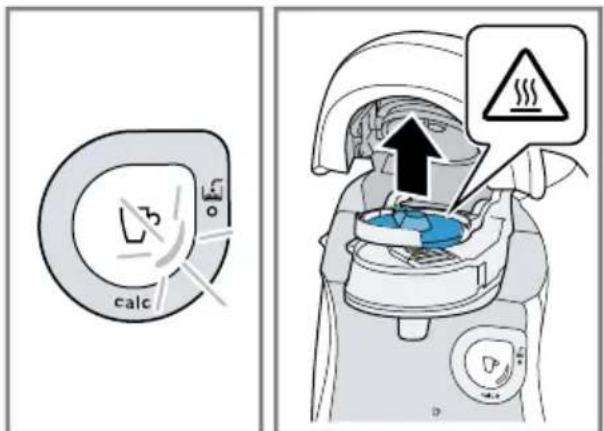

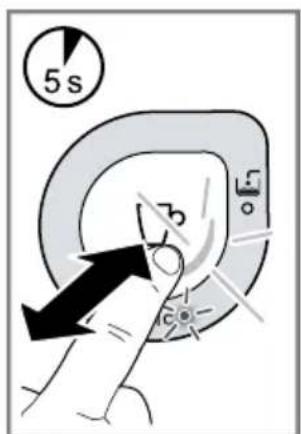

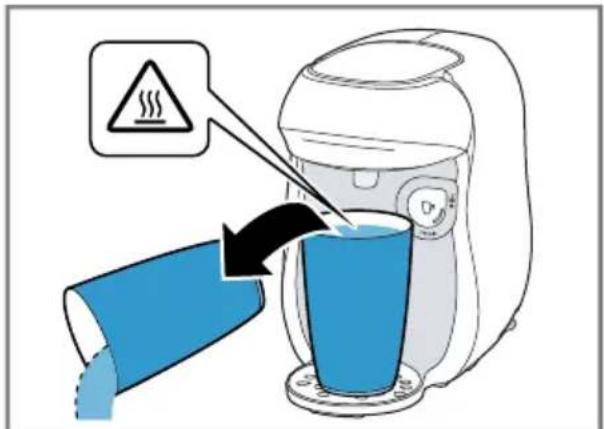

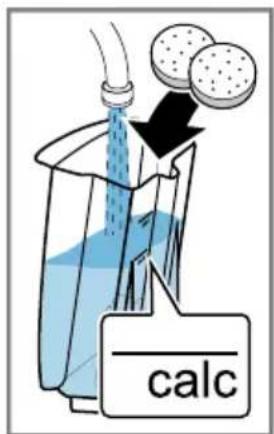

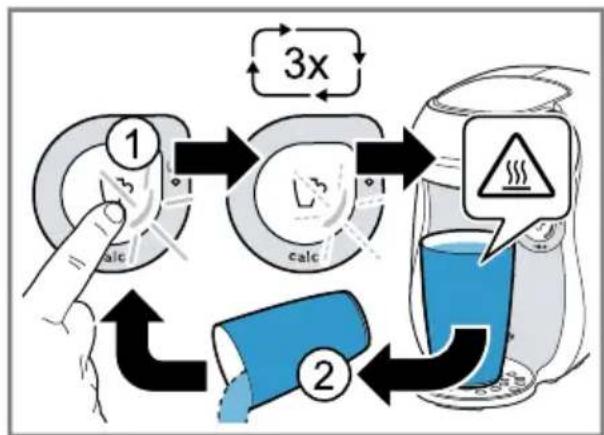

Descale the appliance

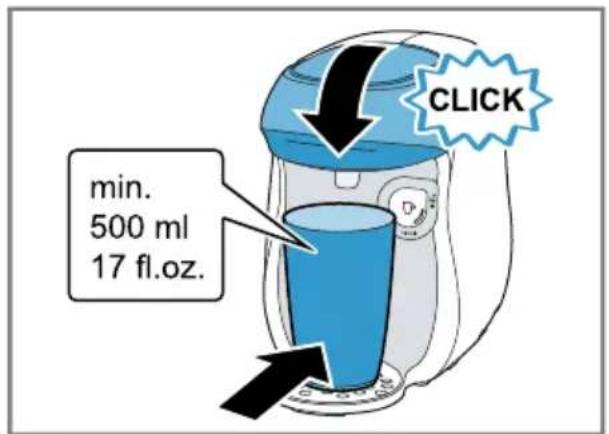

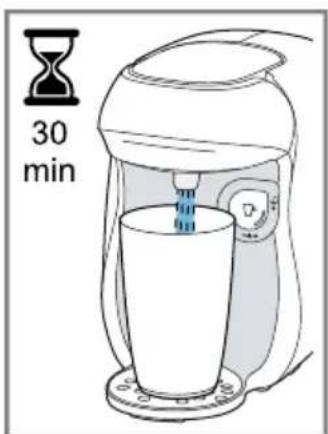

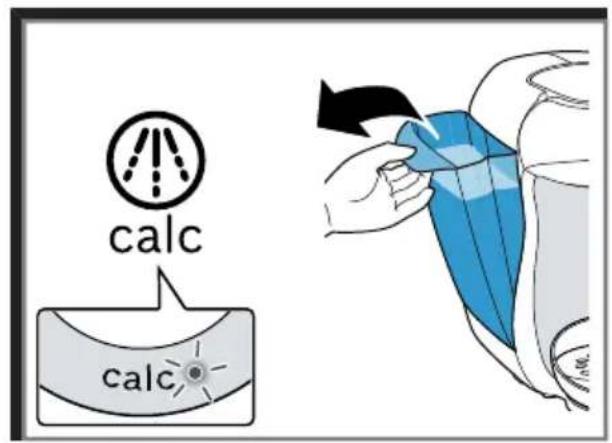

If c aots up, run the descaling programme. Follow the illustrated instructions at the beginning of this manual.

• Immediately perform the descaling process in accordance with the instructions.
• Do not use descending agent with phosphoric acid.
  Fig. 45 - 59

Troubleshooting

Repairs to the appliance should only be carried out by trained specialist staff.
- Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

The appliance is not working.

LEDs do not light up.

The appliance has no power supply.

• Check to see whether the appliance is connected to the mains.

Brewing process starts, drink is not dispensed.

Water tank was removed during brewing and inserted again or appliance has not been used for a long time.

Start cleaning with the Service T DISC.

Float is stuck in the water tank.

1. Descale the appliance.

"Descale the appliance", Page 21

1. Reach into the water tank and move the float up and down.

Brewing process does not start.

Water tank has not been sufficiently filled.

1. Fill the water tank with fresh, cold water up to the mark .max

2. Insert the water tank.

Brewing process does not start, status display lights up red.

T DISC has not been correctly inserted.

• Check whether the T DISC is inserted.

The T DISC bar code is not recognised.

• Clean the T DISC reading window with a soft, damp cloth.
  Smooth out the film of the T DISC.
  Remove the used T DISC.

• Contact the TASSIMO careline if the problem persists.
  The appliance not connected to the power supply when the T DISC was inserted.

• Connect the appliance to the power supply before inserting the T DISC.

Brewing unit cannot be closed.

T DISC piercing unit or T DISC holder is not correctly inserted.

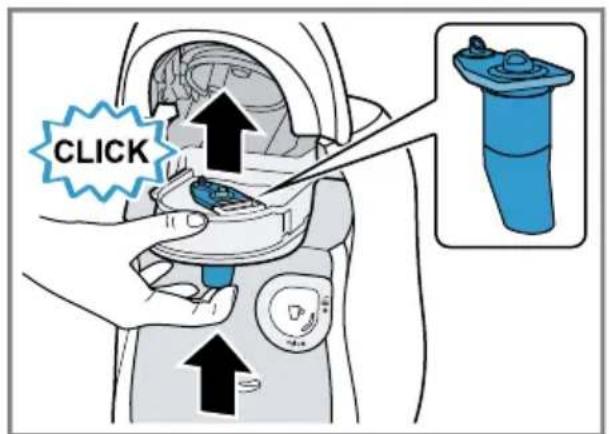

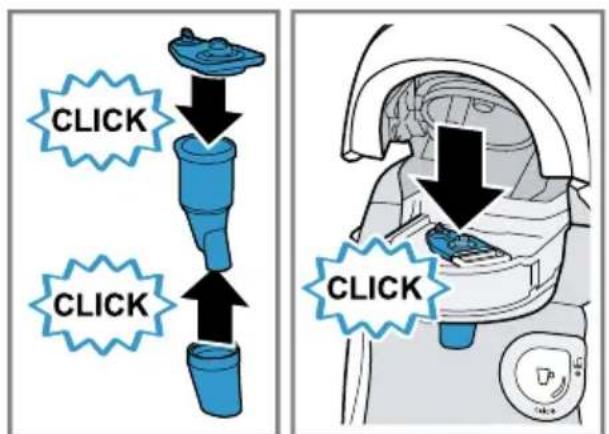

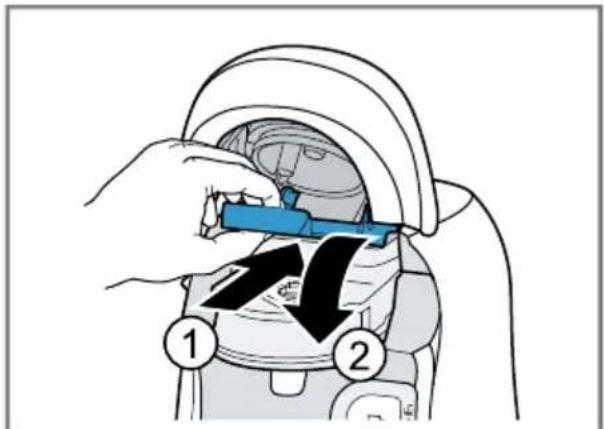

1. Press the T DISC piercing unit into the holder until it clicks audibly into place.
2. Check the position of the T DISC holder. T DISC has not been correctly inserted.
3. Insert the T DISC with the printed side facing downwards.
4. Check whether the tab of the T DISC is in the recess.

Brewing unit cannot be opened.

Brewing unit is locked.

• Only open the brewing unit when the status display remains lit continuously.
  If the brewing unit remains locked, contact the TASSIMO careline.

Water is dripping from the brewing unit.

T DISC is damaged or not correctly inserted.

Use a new T DISC.

T DISC piercing unit is not correctly inserted.

Press the T DISC piercing unit into the holder until it clicks audibly into place.

There is water under the cup stand.

Condensation has formed due to technical reasons or valves are clogged with limescale.

• Descale the appliance. "Descale the appliance", Page 21

No LED is lit.

Appliance is in idle mode.

Press or open or close the brewing system.

All LEDs flashing.

There are problems with the power supply.

1. Pull out the mains plug, wait 5 minutes and plug it back in.
2. If the problem persists, contact the TASSIMO careline.

LED lights up red even though there is enough water in the water tank.

Float is stuck in the water tank.

1. Descale the appliance. "Descale the appliance", Page 21
2. Reach into the water tank and move the float up and down.

calc LED lights up although softened water has been used.

Decalcified water still contains small amounts of lime.

• Descale the appliance. "Descale the appliance", Page 21

LED and CAED flash, brewing is not possible.

Appliance has a fault.

1. Unplug the mains plug.
2. Contact the TASSIMO careline.

Quality of beverages has deteriorated, e.g.crema or volume.

Beverage outlet is soiled.

Clean the beverage outlet.
Clean the brewing unit with the T DISC.

Build-up of limescale in the appliance.
- Descale the appliance. "Descale the appliance", Page 21

Drink volume has reduced.

Drink dispensing halts.

Water tank has not been sufficiently filled.

1. Fill the water tank with fresh, cold water up to the mark .max

2. Keep pressed until the desired fill volume is reached.

Technical specifications

Printed on 100% recycled paper 23

Voltage 220 - 240 ~V

Frequency 50 / 60 Hz

Power rating 1400 W

Disposing of old appliance

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

fr

Table des matieres

1 Sécurité 25

Puisance raccor- 1400 W dee

Mettre au rebut un apparéil usage

You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

Visit tassimo.com

for registration, accessories and more.
