USER MANUAL VCC 3870 A GRUNDIG

Cyclonic Vacuum Cleaner

User Manual

VCC 3870 A

DE-EN-TR-ES-FR-HR-PL-SV-NO-FI-DA

DEUTsCH 07-15

ENGLISH 16-20

TÜRKÇE 21-29

ESPANOL 30-35

FRANÇAIS 36-41

HRVATSKI 42-46

POLSKI 47-52

SVENSKA 53-57

NORSK 58-62

SUOMI 63-67

DANISH 68-72

DE	BETRIEB REINIGUNG UND	PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMİZLEME VE	BAKIM
ES	FUNCIONAMIENTO LIMP	EZA Y CUIDADOS
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
HR	RAD ČIŠÇENJE I ODRŽAVANJE
PL	OBSŁUGA CZYSZCZENIE	KONSERWACJA
SV	ANVÄNDNING RENGÖRING OCH SKÖTSEL
NO	DRIFT RENGJÖRING OG PLEIE
FI	KÄYTTO ČIŠÇENJE I ODRŽAVANJE
DA	BETJENING RENGÖRING	OG VEDLIGEHOLDELSE

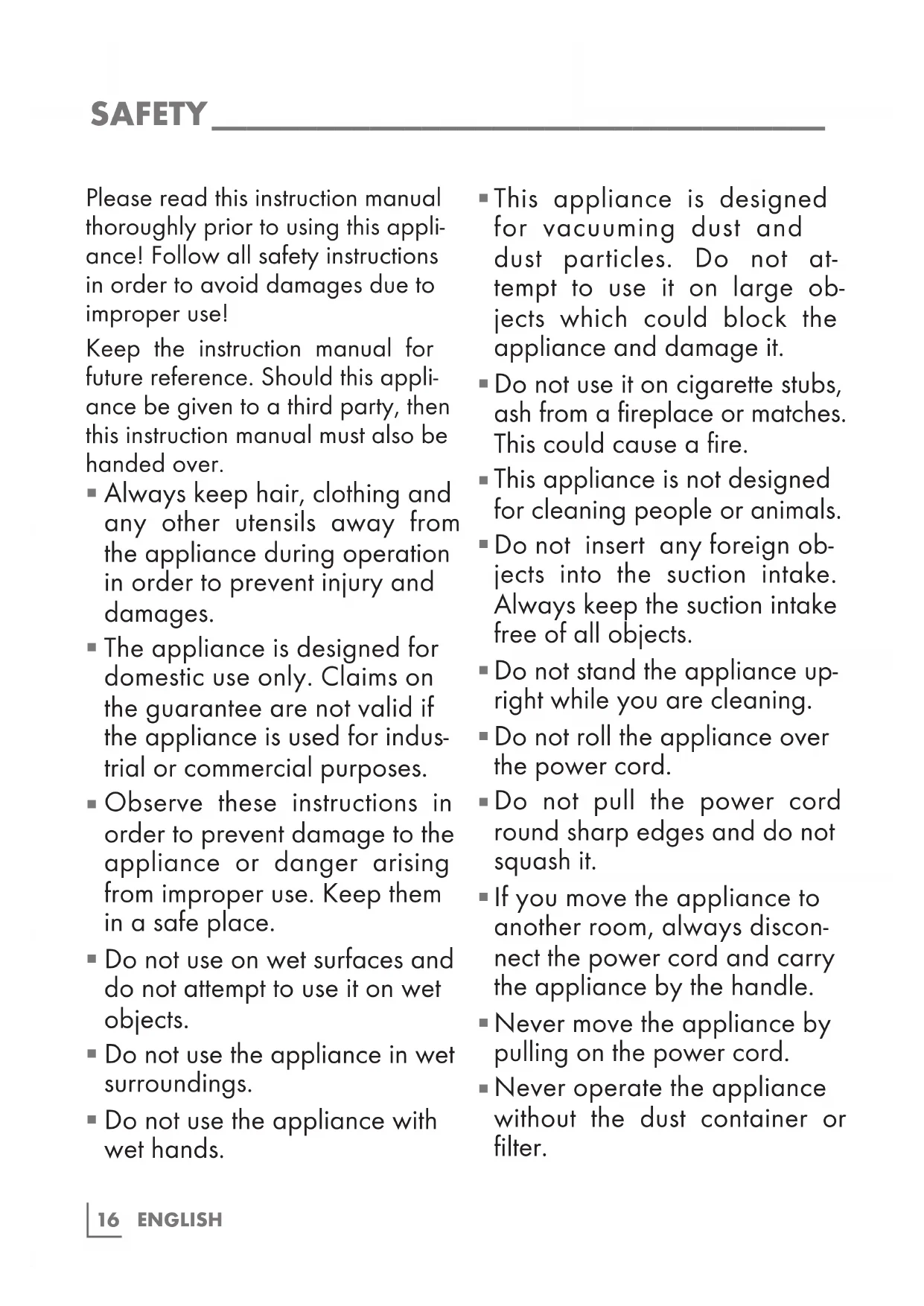

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.
The appliance is designed for domestic use only. Claims on the guarantee are not valid if the appliance is used for industrial or commercial purposes.
- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use. Keep them in a safe place.
- Do not use on wet surfaces and do not attempt to use it on wet objects.
- Do not use the appliance in wet surroundings.
- Do not use the appliance with wet hands.

This appliance is designed for vacuuming dust and dust particles. Do not attempt to use it on large objects which could block the appliance and damage it.
- Do not use it on cigarette stubs, ash from a fireplace or matches. This could cause a fire.
This appliance is not designed for cleaning people or animals.
- Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.
- Do not stand the appliance upright while you are cleaning.
- Do not roll the appliance over the power cord.
- Do not pull the power cord round sharp edges and do not squash it.
If you move the appliance to another room, always disconnect the power cord and carry the appliance by the handle.
- Never move the appliance by pulling on the power cord.
- Never operate the appliance without the dust container or filter.

• Change the filter when necessary.

• Only use original GRUNDIG accessories when exchanging parts.

• Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.

Always pull out the power cord before cleaning or carrying out any maintenance on the appliance.

• Whenever possible, insert the power cord plug directly into the socket. Avoid using extension cables or multipoint connectors.

• For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30mA . Consult your electrician for advice.

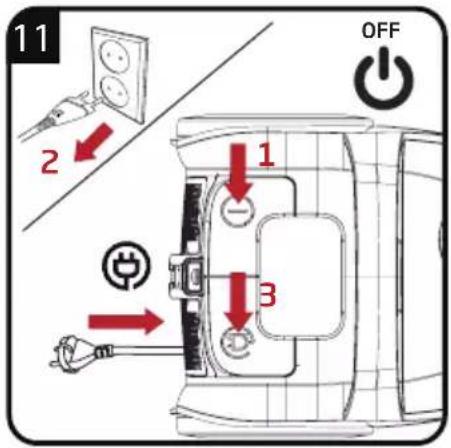

Pull out the power plug after use. Do not disconnect the plug by pulling on the cable.

• Do not close any doors on top of the power cord.

• Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact your specialist dealer if this is the case.

• Our GRUNDIG Household Appliances meet all the applicable safety standards; thus if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.

• Keep the appliance away from children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.
  The vacuum cleaner is very powerful; thus before plugging the cord into the wall socket, make sure the switch is in the 'off' position. Hold the vacuum cleaner firmly when starting and while using it.
  If the inlet, hose or telescopic tube is blocked, switch off the vacuum cleaner and remove the blockages before re-starting the vacuum cleaner.

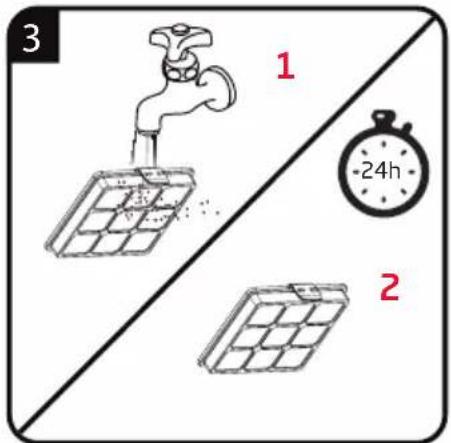

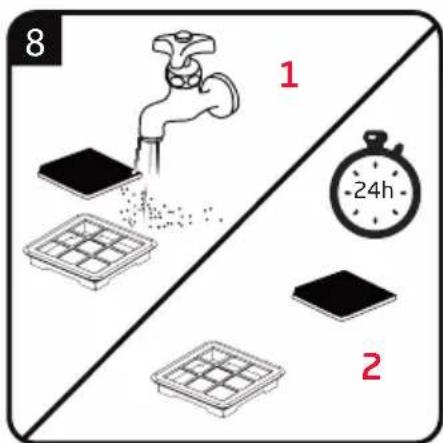

• Washing filters improves vacuum performance. Make sure all the filters are completely dry before inserting back into the vacuum cleaner.

Caution

The motor is equipped with a thermal cut-out. If for any reason, the vacuum cleaner should overheat, the thermostat will automatically turn the unit off. Should this occur, unplug the vacuum cleaner from the wall socket. Remove the dirt container and empty. Clean the filters. Allow the cleaner to cool for approximately 1 hour. Continue operating the appliance by inserting the power plug into the wall socket and switching it back on. If the appliance does not start, wait another 30 minutes and repeat the above-mentioned steps.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG Cyclonic Vacuum Cleaner VCC 3870 A.

Please read the following user notes carefully to ensure you can enjoy your quality GRUNDIG product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of

several tonnes of plastic each year - and availability of at least 5 years for all accessories.

For a future worth living.

Grundig.

EPA E12-Filter

EPA E12 stands for High Efficiency Particulate Air. EPA E12 filters are particulate air filters, which filter more than 99.9% of all dust particles larger than 0.1 to 0.3 micrometres out of the air. Viruses, respirable dusts, mite eggs and mite excrement, pollen, smoke particles, asbestos, bacteria, diverse toxic dusts and aerosols are removed from the air.

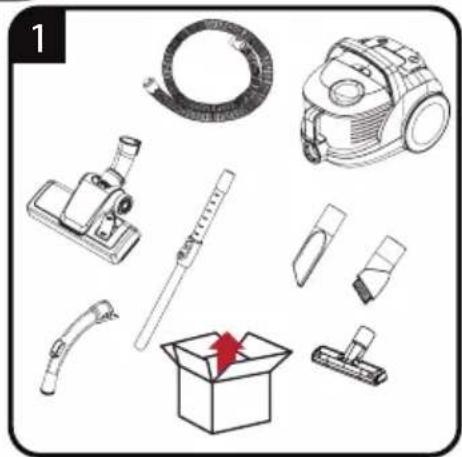

Controls and parts

See the figure on page 3.

A On/Off button

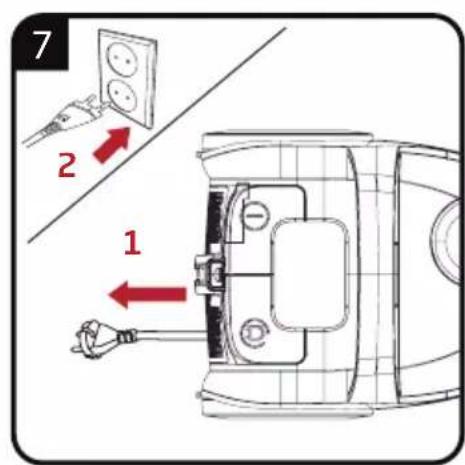

B Power cable winding button

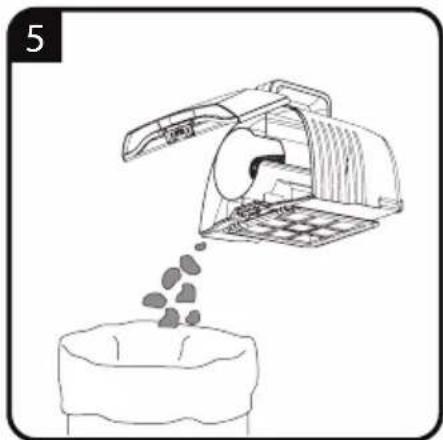

C Dust container
D Suction nozzle
Hose cap

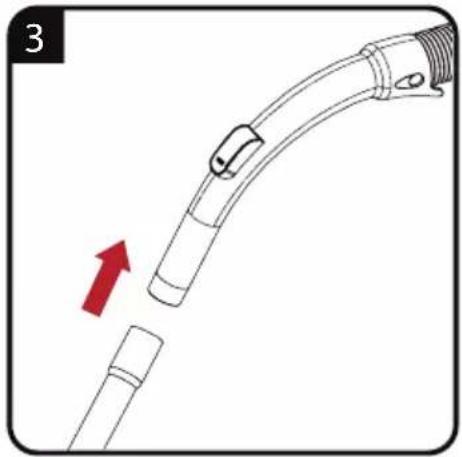

F Hose
G Dust container removal button

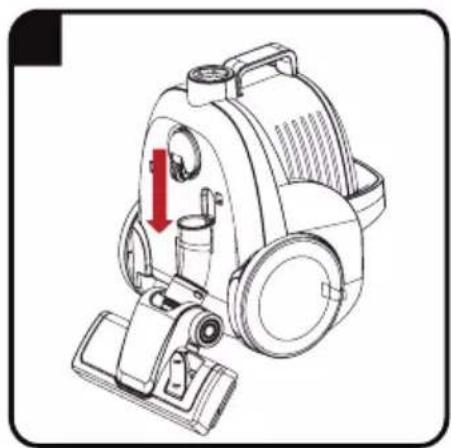

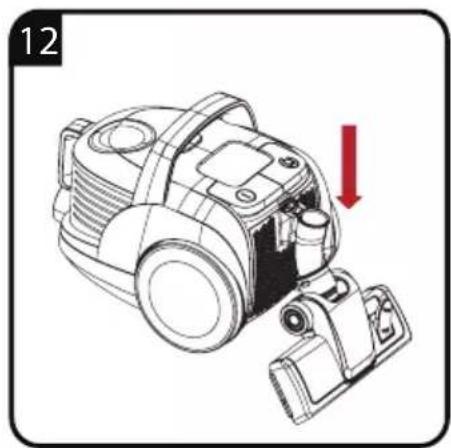

Parquet/carpet brush parking hook
Brush adjustment latch

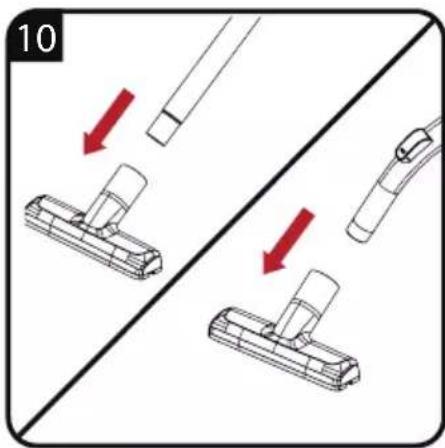

High performance parquet/carpet brush

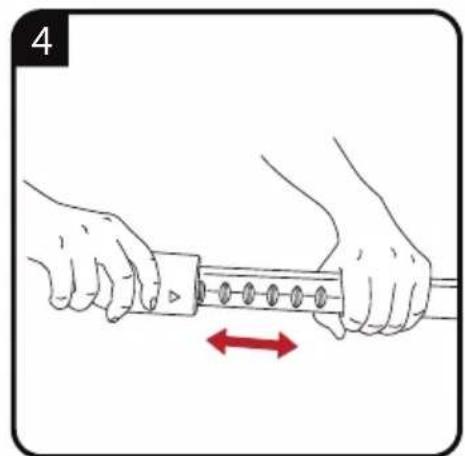

K Telescopic tube adjustment latch
Telescopic tube
M Vacuum control
N Handle
Top lid

Accessories

P Upholstery tool
Dust Brush
R Crevice tool

Usage areas of accessories

Upholstery tool: Curtains, cushions, sofas and upholstery fabrics.

Dust brush: Suitable for cleaning the curtains, and sensitive and fragile objects.

Crevice tool: Hard-to-reach areas and narrow gaps.

Cleaning and care

Switch off and unplug the appliance, before cleaning it.

Warning

• Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Storage

If you do not intend to use the appliance for a long time, store it carefully.
Unplug the appliance.
- Keep the appliance out of the reach of children.

Handling and transportation

During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
- Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
- Dropping the appliance may render it non-operational or cause permanent damage.

Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point

for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispo

se of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Supply voltage : 220-240 V ~, 50-60 Hz

Power : 800 W

Operating radius : 7.5 m

Rights to make technical and design changes are reserved.
