USER MANUAL MGK 5045 BRAUN

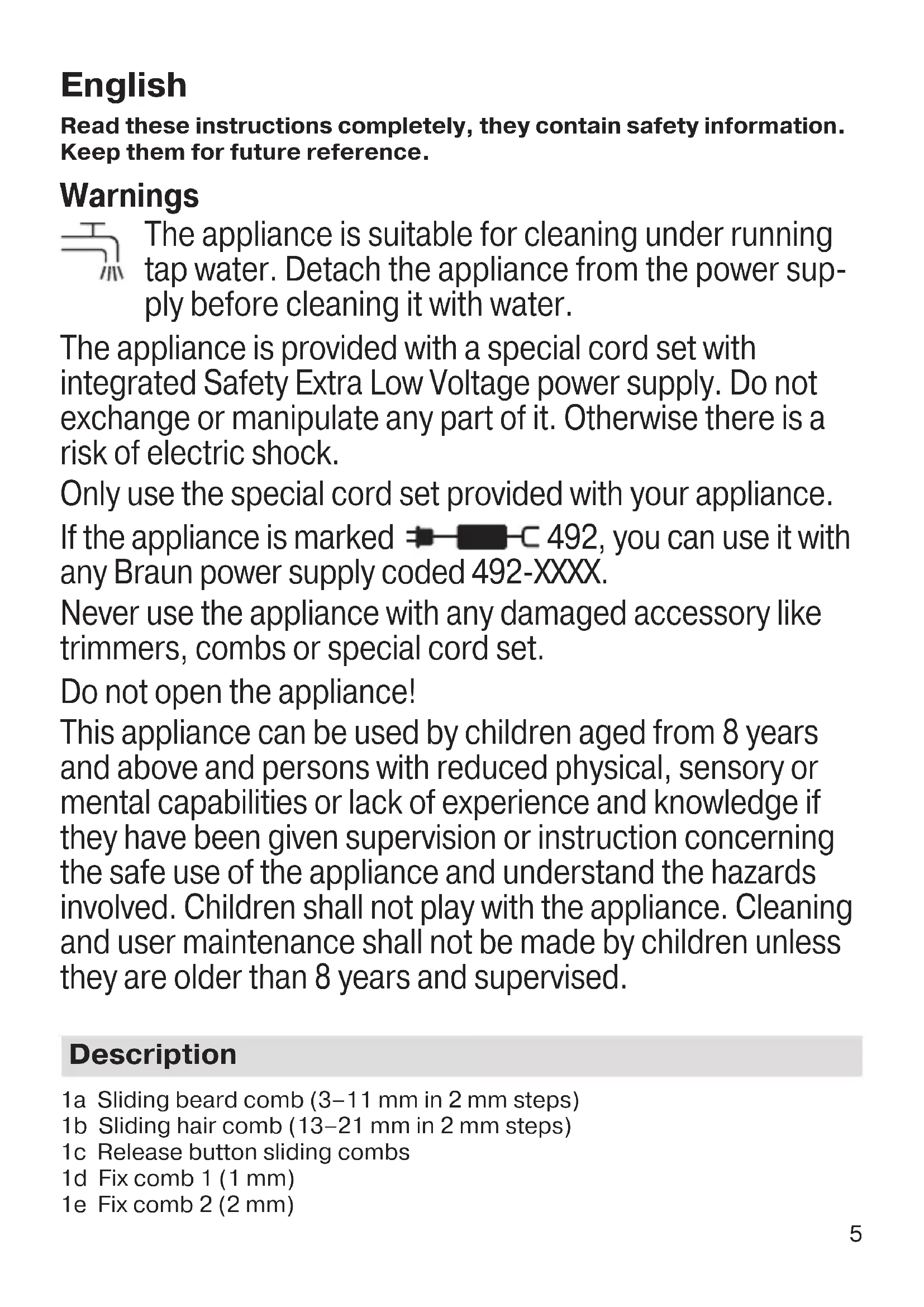

91941370_MGK5060_5045_CEEMEA.indd 491941370_MGK5060_5045_CEEMEA.indd 4 17.08.18 09:0317.08.18 09:03 Business Use - P&G AUTHORIZED POA-00063615 Rev 001 Effective Date 2018-08-20 Printed 2019-02-27 Page 4 of 765 English Read these instructions completely, they contain safety information. Keep them for future reference. Warnings The appliance is suitable for cleaning under running tap water. Detach the appliance from the power sup- ply before cleaning it with water. The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock. Only use the special cord set provided with your appliance. If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX. Never use the appliance with any damaged accessory like trimmers, combs or special cord set. Do not open the appliance! This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Description 1a Sliding beard comb (3–11 mm in 2 mm steps) 1b Sliding hair comb (13–21 mm in 2 mm steps) 1c Release button sliding combs 1d Fix comb 1 (1 mm) 1e Fix comb 2 (2 mm) 91941370_MGK5060_5045_CEEMEA.indd 591941370_MGK5060_5045_CEEMEA.indd 5 17.08.18 09:0317.08.18 09:03 Business Use - P&G AUTHORIZED POA-00063615 Rev 001 Effective Date 2018-08-20 Printed 2019-02-27 Page 5 of 766 2a Trimmer head 2b Ear & nose trimmer head* 2c Detailed trimmer head* 3 On/off button 4 Charging indicator 5 Power socket 6 Special cord set (design can differ)

• not with all models For electric specifications, see printing on the special cord set. Charging Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

• Connect the appliance (switched off) via the special cord set (6) to an electrical outlet.

• A full charge takes approx. 1 hour and provides up to 100 minutes of cordless operation time.

• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity. Charging indicator (4)

• The charging indicator blinks green when the appliance is being charged.

• It lights up permanently green for a few seconds when the battery is fully charged. During usage it shines permanently green.

• The charging indicator shines permanently red when the battery is running low. Once it flashes red, connect the appliance to the mains. Usage Exchange the attachments only when the appliance is switched off. To turn the appliance on, push the on/off button (3). Travel lock Press the on/off button (3) for 3 seconds to lock the appliance. A beep confirms that the travel lock is activated. To unlock, press the on/off button 3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or simply connect the appliance to the mains. 91941370_MGK5060_5045_CEEMEA.indd 691941370_MGK5060_5045_CEEMEA.indd 6 17.08.18 09:0317.08.18 09:03 Business Use - P&G AUTHORIZED POA-00063615 Rev 001 Effective Date 2018-08-20 Printed 2019-02-27 Page 6 of 767 Beard Trimming / Hair Clipping Sliding combs (1a, 1b): Place one of the combs over the trimmer head (2a). Press the release button (1c) and slide the comb to your desired length. Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

• Trim against hair growth by guiding the flat comb part over the skin.

• Do not force the appliance through the hair faster than it can be cut.

• Avoid clogging the comb with hair. Remove and clean it from time to time. Precision and Contour Trimming Use the trimmer head (2a) without comb attachment or the detailed trimmer head (2c) for shaping sideburns, moustaches and partial short beards. Ear/Nose Trimming

• Remove any head and click the ear & nose trimmer head (2b) onto the handle of the appliance.

• Carefully guide the appliance to the hair to be trimmed so that they reach into the cutting cage. Avoid introducing the trimmer more than 5 mm (1/4˝) into nose or ear. Cleaning and maintenance

• Switch off the appliance.

• Take off any head and attachment.

• Use the brush to clean the heads, combs and the appliance.

• The handle, the heads and combs can be cleaned under running water. Rinse until all residues have been removed. Let all parts dry completely before reassembling them.

ﺎﻴﻏﻻ نﺎﻤﻀﻟا ﺢﺒﺼﻳو .ﺔﻴﻠﺻﻷا نواﺮﺑ رﺎﻴﻏ ﻊﻄﻗ مﺪﺨﺘﺴﺗ ﻢﻟ اذإ وأ نواﺮﺑ ءاﺮﺸﻟا لﺎﺼﻳإ ﻊﻣ ﻪﻠﺳرأ وأ ًﻼﻣﺎﻛ زﺎﻬﺠﻟا مﺪﻗ ،نﺎﻤﻀﻟا ةﺮﺘﻓ لﻼﺧ ﺔﻣﺪﺨﻟا ﻰﻠﻋ لﻮﺼﺤﻠﻟ .ةﺪﻤﺘﻌﻤﻟا نواﺮﺑ ﺔﻣﺪﺧ ﺰﻛاﺮﻣ ﺪﺣﻷ ﻚﺑ صﺎﺨﻟا Country of origin: China To determine the year of manufacture, remove the head and find the 3-digit production code located inside the housing. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: “527” – The product was manufactured in week 27 of 2015. ﻦﻴﺼﻟا :ﺄﺸﻨﻤﻟا ﺪﻠﺑ ﻦﻣ بﺮﻘﻟﺎﺑ نوﺪﻤﻟاو مﺎﻗرأ ﺔﺛﻼﺛ ﻦﻣ نﻮﻜﻤﻟا جﺎﺘﻧﻹا ﺰﻣر ﻰﻟإ ﻊﺟرا ،ﻊﻨﺼﻟا ﺦﻳرﺎﺗ ﺪﻳﺪﺤﺘﻟ ﺎﻣأ .ﻊﻨﺼﻟا مﺎﻋ مﺎﻗرأ ﺮﺧآ ﻞﺜﻤﻳ جﺎﺘﻧﻹا ﺰﻣر ﻦﻣ لوﻷا ﻢﻗﺮﻟا .ﺞﺘﻨﻤﻟا عﻮﻨﻟ ﺔﻴﻧﺪﻌﻤﻟا ﺔﺣﻮﻠﻟا ﺞﺘﻨﻤﻟا اﺬﻫ ﻊﻨﺻ ﻢﺗ – ” 527“ :لﺎﺜﻣ .ﻊﻨﺼﻟا مﺎﻋ ﻦﻣ
