Technical Specifications	DIRT DEVIL Aqua Clean DD302 Steam Cleaner
Device Type	Steam Cleaner
Power	1500 W
Tank Capacity	0.5 L
Heating Time	About 30 seconds
Operating Time	Up to 20 minutes
Included Accessories	Floor brush, fabric brush, concentrated nozzle
Usage	Cleaning floors, carpets, upholstery, and hard surfaces
Maintenance	Empty the tank after use, clean accessories regularly
Safety	Equipped with a safety lock system, do not touch the hot nozzle
General Information	Lightweight and easy to handle device, ideal for quick and effective cleaning

Frequently Asked Questions - Aqua Clean DD302 DIRT DEVIL

How do I fill the water tank of the DIRT DEVIL Aqua Clean DD302?

To fill the water tank, unplug the device, remove the tank, open the cap, and fill it with clean water up to the indicated mark. Close the cap and put the tank back in place.

What should I do if the steam cleaner does not heat up?

Make sure the device is plugged in and the outlet is working. Also check that the tank is full of water. If the problem persists, let the device cool down and restart it.

How do I clean the accessories of the DIRT DEVIL Aqua Clean DD302?

Accessories can be cleaned with soapy water. Avoid using harsh chemicals. Make sure to rinse and dry the accessories thoroughly before storing them.

Why is steam escaping from the device's seals?

This may indicate a sealing problem. Check that the seals are in good condition and properly in place. If the problem persists, contact customer service for assistance.

How long does it take for the steam cleaner to be ready to use?

The DIRT DEVIL Aqua Clean DD302 usually takes between 5 and 10 minutes to heat up and be ready to use, depending on the amount of water in the tank.

Can I use the steam cleaner on all types of surfaces?

The DIRT DEVIL Aqua Clean DD302 is designed for use on most hard surfaces, but it is recommended not to use it on heat-sensitive surfaces such as untreated wood or delicate carpets.

How do I descale my steam cleaner?

To descale the device, use a solution of white vinegar and water (1:1). Fill the tank with this solution, run the device for a few minutes, then rinse thoroughly with clean water.

What should I do if the steam cleaner leaves marks on the floor?

Make sure the floor is clean before using the cleaner. Use a clean, dry cloth to wipe the marks or adjust the steam speed if possible.

Where can I find spare parts for my DIRT DEVIL Aqua Clean DD302?

Spare parts can be ordered from the official DIRT DEVIL website or from stores specializing in household appliances.

Is it normal for the steam cleaner to make noise during use?

A slight noise is normal, especially when steam is generated. If the noise is excessive or accompanied by vibrations, check that the device is stable and positioned correctly.

USER MANUAL Aqua Clean DD302 DIRT DEVIL

Operating Manual GB 2-in-1 Steam mop

• 2 Stuck (90% Polyester, 10% Polyamid)

... for purchasing the Aquaclean universal steam cleaner and for your trust.

Scope of supply (Fig. 1)

1 Handle
2 Steam button for steam mop

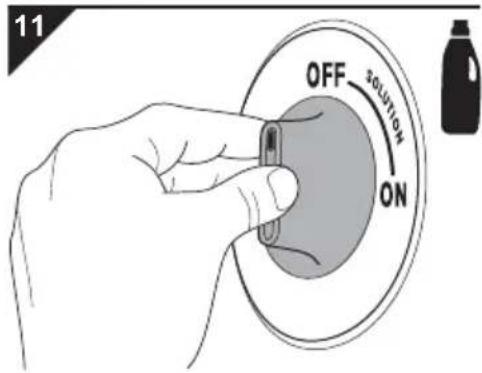

3 Detergent controller ("SOLUTION")
4 Release catch for the base
5 Jet nozzle for steam boost
6 Steam/brush base
7 Water tank
8 On/Off button for the steam jet

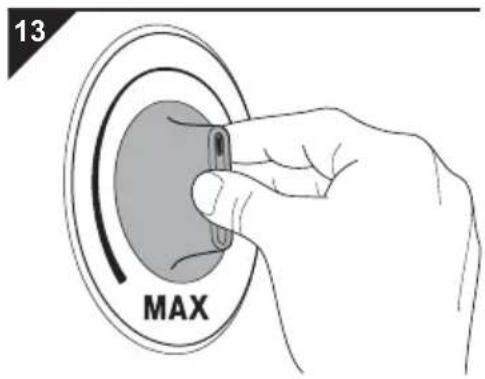

9 Steam controller ("STEAM")

• Min position: Steam jet for sealed wooden floors
• middle position: Steam jet for PVC floors or tiles
• Max position: Steam jet for carpets

10 LEDs:

• Mains control light ("
• Steam ready indicator ("")

11 Removable hand-held steam cleaner
12 Steam button for hand-held steam cleaner
13 Release catch for hand-held steam cleaner
14 Carpet glider base
15 Microfibre cleaning cloth

• 2 × (90% polyester, 10% polyamide)

16 Steam base
17 Steam boost button
18 Power cord with plug
19 Cord winding tab
20 Holders for accessories
21 Detergent tank
22 Release catch for the handle
23 Shaft
24 Clip to secure power cord
25 Accessories mount for pinpoint jet nozzle
26 Storage bag
27 Steam connection piece on steam hose
28 Large plastic brush
29 Small plastic brush
30 Pinpoint jet nozzle
31 Cotton cloth for 2in1 combo attachment
32 2in1 combo attachment
33 Steam hose
34 Steam hose adapter
35 Crevice brush
36 Jet nozzle
37 Spatula attachment
38 Wire brush

not shown/hidden:

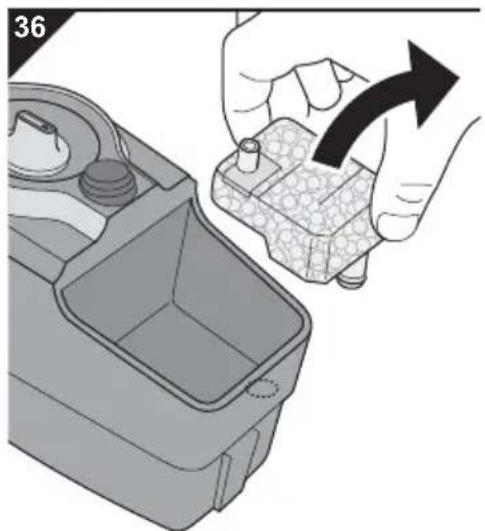

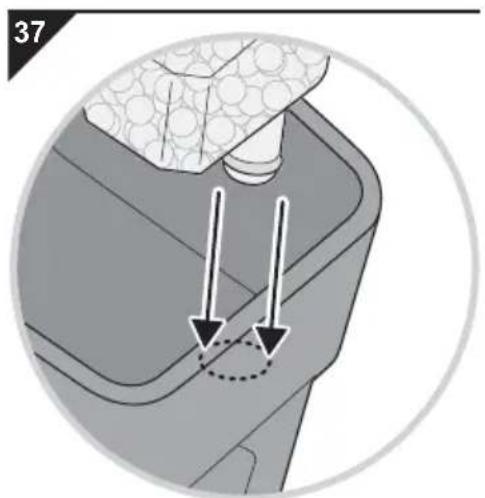

• Water filter cartridge (underneath the water tank (7))
• Operating manual

1 Safety instructions. 35

1.1 Re: Operating manual 35
1.2 Re: certain groups of people 36
1.3 Re: Hot steam and hot parts of the appliance 37
1.4 Re: Power supply 38
1.5 If you use detergents 40
1.6 Re: Proper use 41

2Assembly 43

2.1 Unpacking 43
2.2Assembly. 43

3 Filling the water tank 44

4 If you use detergents 45

4.1 Selecting detergent 45
4.2 Filling the detergent tank 46

5 Steam cleaning. 47

5.1 Before starting steam cleaning 47

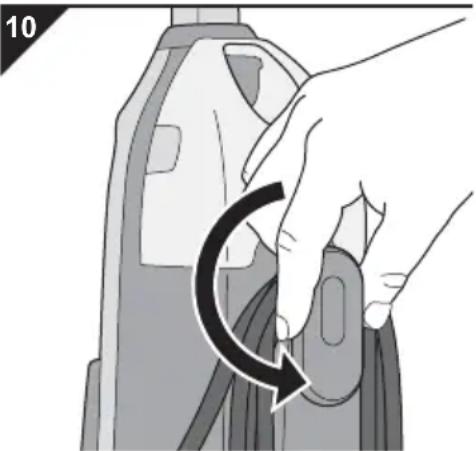

5.2 Uncoiling the power cord quickly 47

6 Cleaning floors. 48

6.1 Switching on and regulating the steam jet 48

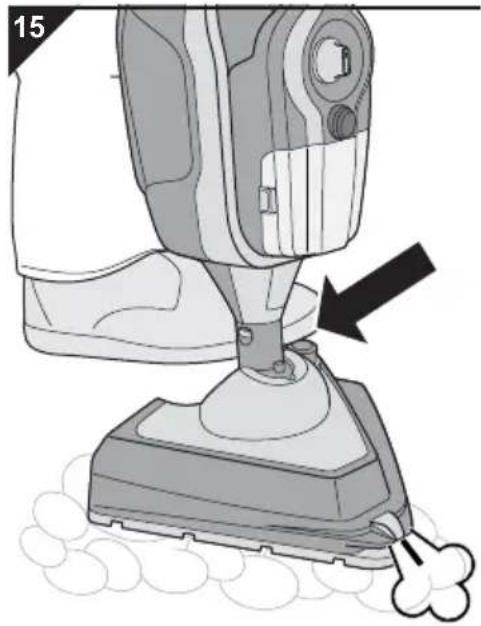

6.2 Using the steam boost 49

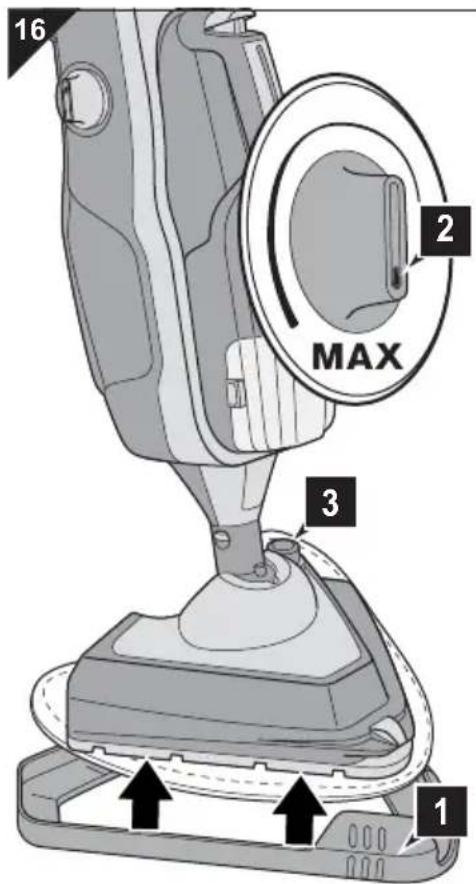

6.3 Freshening up carpets 50

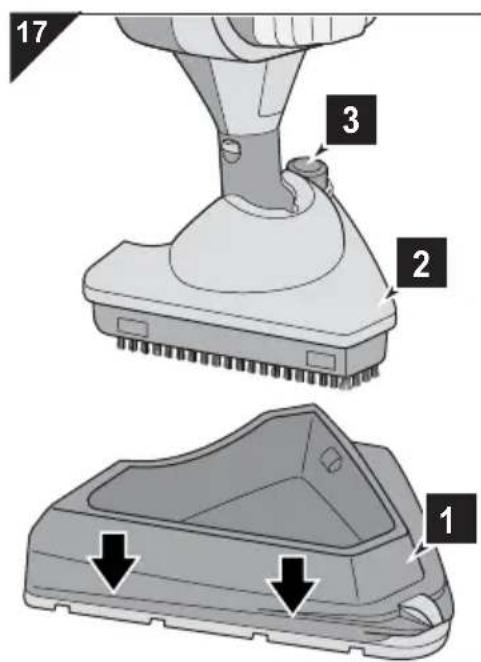

6.4 Removing stubborn soiling 50

7 Working with the hand-held steam cleaner. 51

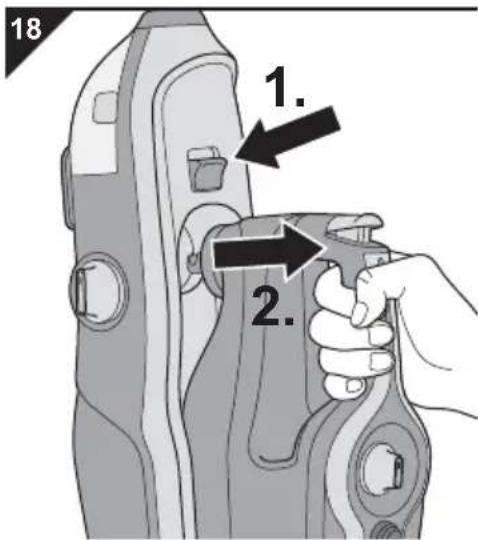

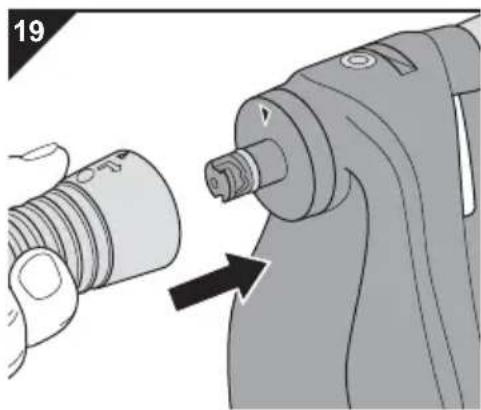

7.1 Attaching the steam hose 51

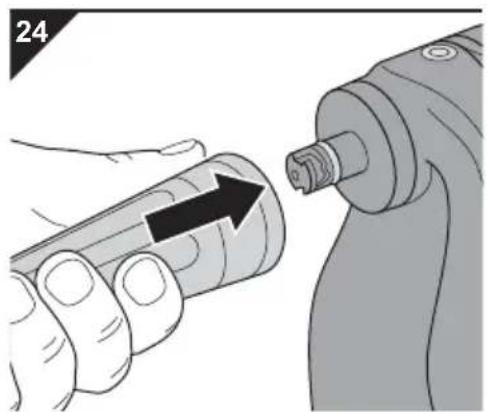

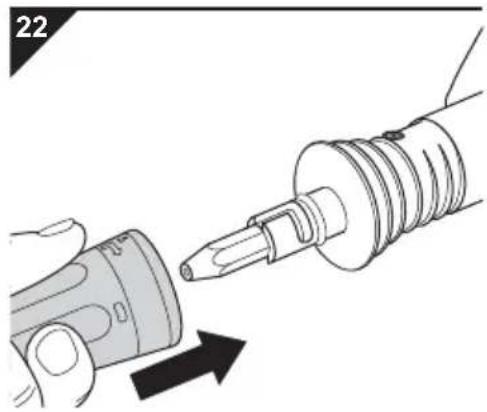

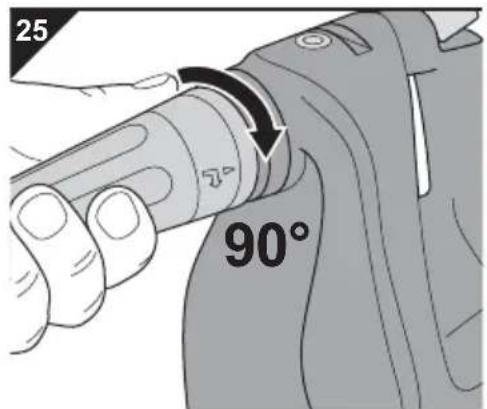

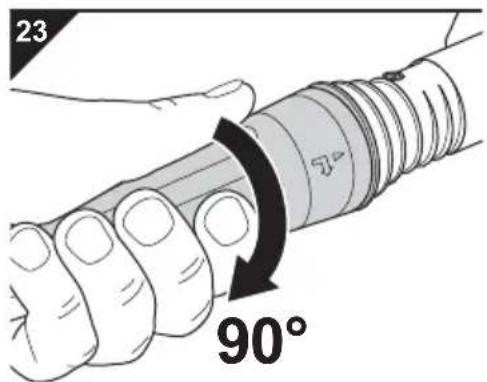

7.2 Attaching the pinpoint nozzle 52

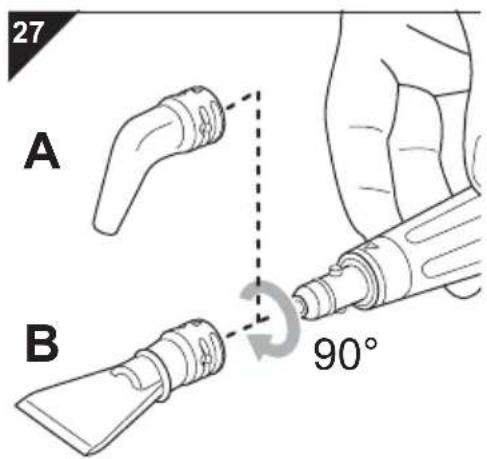

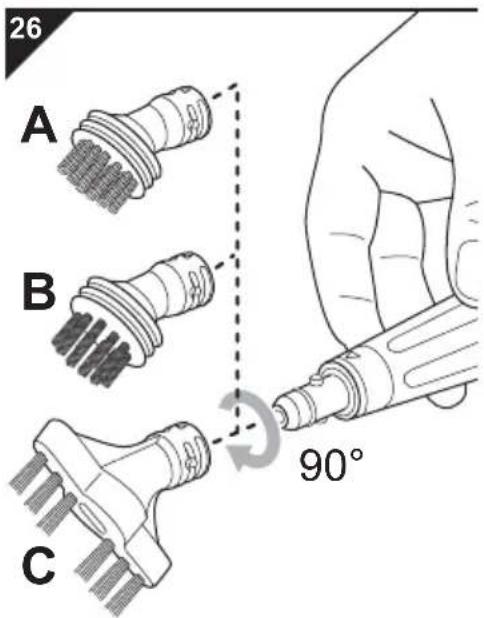

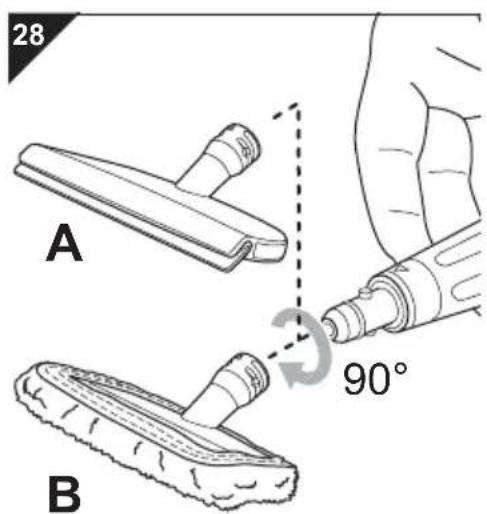

7.3 Using special nozzles 53

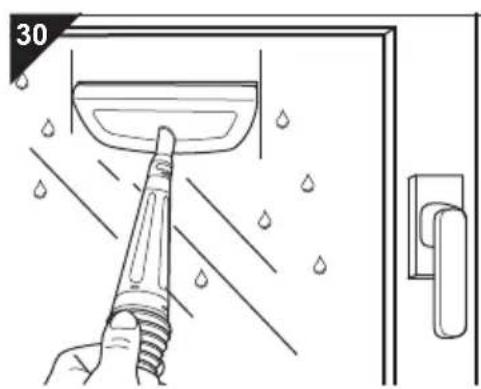

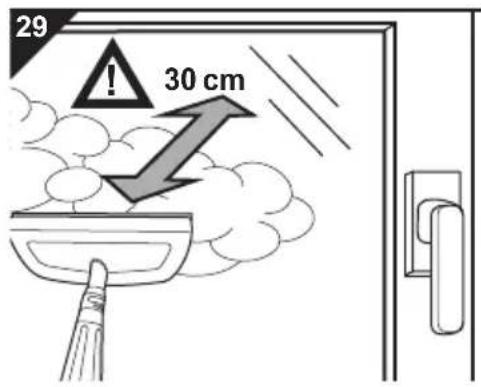

7.4 Steam-cleaning glass surfaces 54

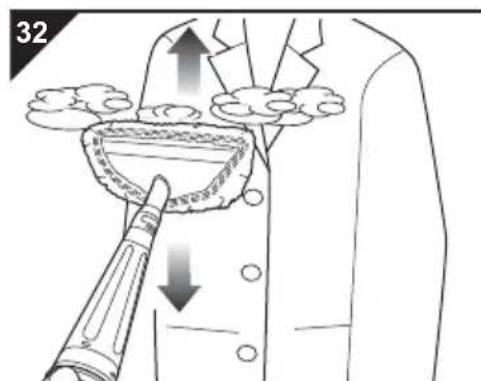

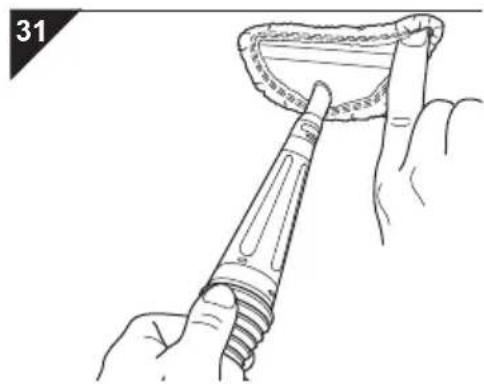

7.5 Freshening up upholstery and clothing 54

8 After use 55

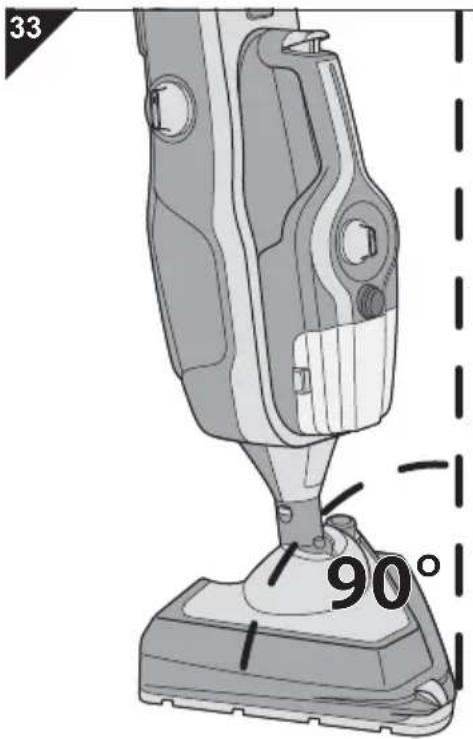

8.1 Setting the appliance to the neutral position 55

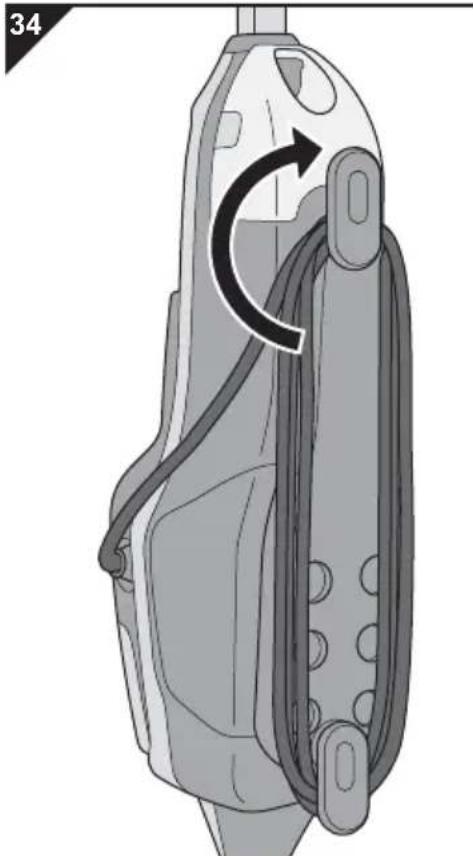

8.2 Winding up the power cord. 55
8.3 Caring for cleaning cloths 56
8.4 Cleaning the housing 56
8.5 Storing the appliance 56

9 Solving problems 57

9.1 Before you return the appliance 57

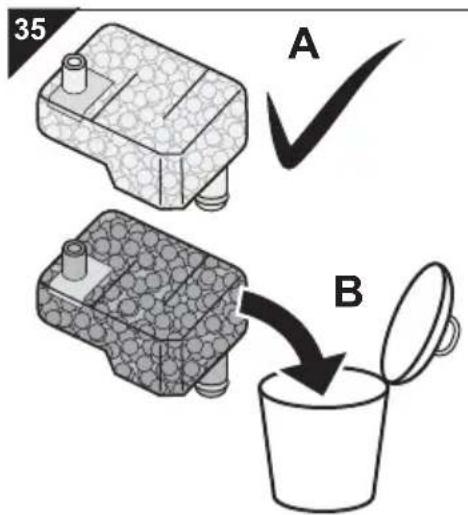

9.2 Checking/replacing the water filter cartridge 58
9.3 List of accessories and spare parts.. 59
9.4 Supply sources 59
9.5 If the appliance is faulty 59
9.6 Disposal 59
9.7 Warranty 59

Technical data

Type of appliance : 2in1 steam mop & hand-held steam cleaner

Model name : Aquaclean 2in1 steam mop & hand-held steam cleaner

Max. operating time per : approx. 30 minutes

tank filling (depending on steam use)

Steam availability : approx. 20 seconds

Water tank : approx. 280 ml

Detergent tank : approx. 150 ml

Power cord length : approx. 9 m

Weight (without accessories) : approx. 3.5 kg

and with the tanks empty)

IPX4

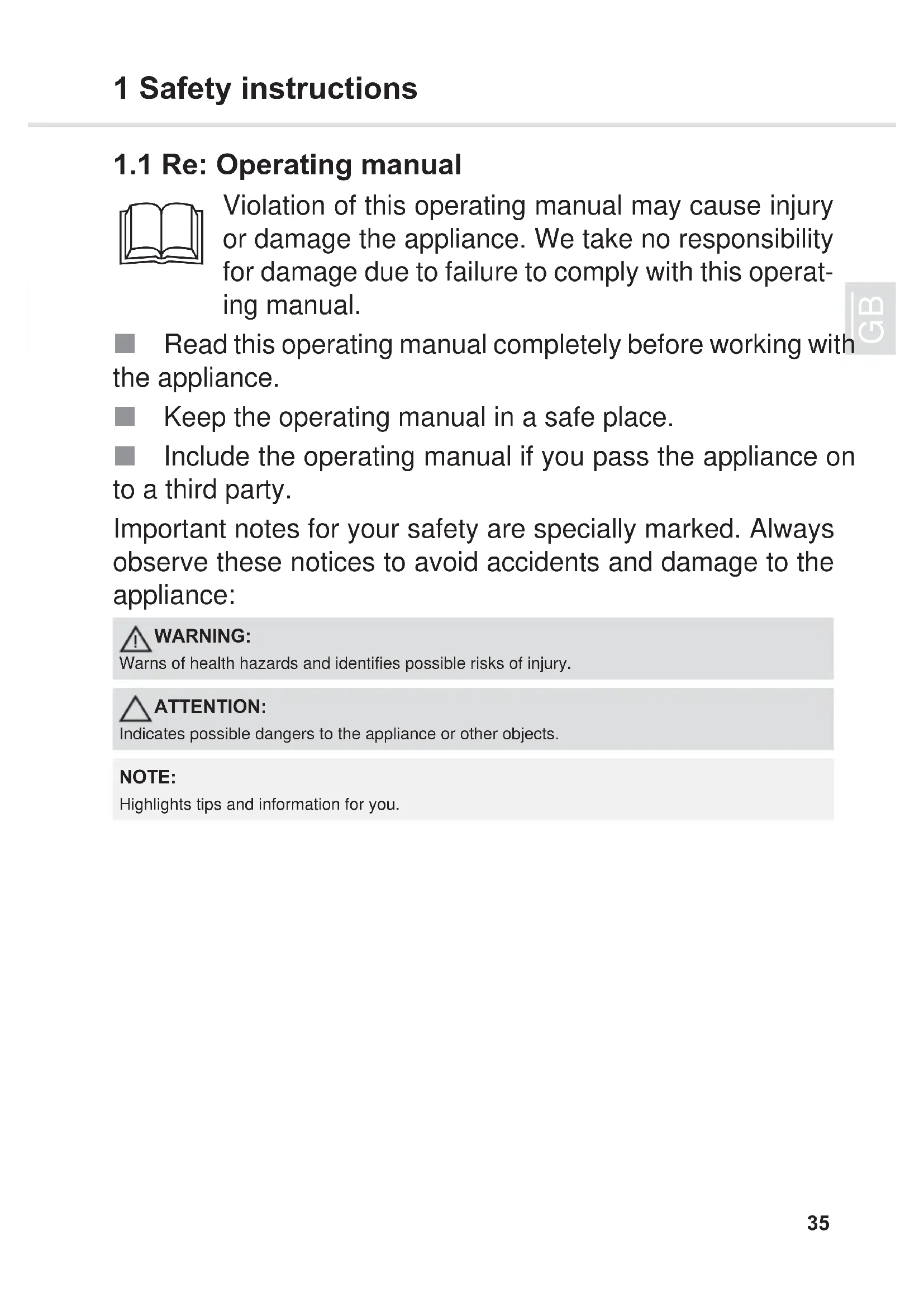

1.1 Re: Operating manual

Violation of this operating manual may cause injury or damage the appliance. We take no responsibility for damage due to failure to comply with this operating manual.

Read this operating manual completely before working with the appliance.
- Keep the operating manual in a safe place.
- Include the operating manual if you pass the appliance on to a third party.

Important notes for your safety are specially marked. Always observe these notices to avoid accidents and damage to the appliance:

WARNING:

Warns of health hazards and identifies possible risks of injury.

ATTENTION:

Indicates possible dangers to the appliance or other objects.

NOTE:

Highlights tips and information for you.

1.2 Re: certain groups of people

This appliance can be used by people with impaired physical, sensory or mental abilities or insufficient experience or knowledge if suitable supervision or clear instruction for use of the appliance is assured, and they understand the associated dangers.

Children must not play with the appliance.
Children must not perform cleaning or user maintenance tasks without supervision.
- Keep the appliance away from children when it is switched on or is cooling down.
Packaging material must not be used for playing. There is risk of asphyxiation.
If you also use a detergent with the steam, keep it out of the reach of children. If swallowed there is a risk of poisoning!
People with sensory problems, especially with reduced sensitivity to temperature differences, must use great caution when working with this appliance.

1.3 Re: Hot steam and hot parts of the appliance

WARNING - Risk of scalding

Never direct the steam at people, animals, or plants. Always point the steam downwards towards the surface to be cleaned.

Even then, make sure that parts of your body are never allowed to into the jet of steam. Never operate the appliance without wearing shoes. There is a risk of scalding.
- Never lay the appliance on its side during operation. Never use the appliance in a horizontal position or upside down. Do not leave the appliance unsupervised whilst it is connected to a socket. Never leave the appliance on and unsupervised. There is a risk of scalding.
- Do not point the steam base at electrical appliances or devices which contain electrical components, sockets, cables, etc. or inside ovens. Take particular care of sockets (or similar) embedded in the floor. There is a risk of electric shock.
- Do not use the appliance to clean pressure containers or containers where you are unsure of the content. There is a risk of rupture and explosion.
Make sure that you do not clean one spot for too long. Otherwise, the surface may become damaged.
Provide adequate ventilation during and after work.

CAUTION - hot surface

Allow hot appliances and accessories, especially the micro-fibre cleaning cloth, too cool down before touching them. Only carry the appliance by its handle.

1.4 Re: Power supply

The appliance is operated with electrical power, which means there is always a risk of electric shock. You must therefore observe the following:

Never lay the appliance on its side. Never operate the steam mop in the air. Otherwise, liquid may flow into the motor and cause a short circuit.
- Keep the steam away from the power cord. Power cords must not come into contact with any sources of heat or moisture. Otherwise there is a risk of damage to the power cord which may lead to an electric shock.
Always take hold of the plug when you wish to disconnect the plug from the mains socket. Never pull on the power cord. Never carry the appliance by its power cord. It may become damaged.
Always completely uncoil the power cord before use. Make sure that the power cord is not kinked, pinched, or rolled over and make sure it does not come into contact with heat sources.

1 Safety instructions

Never immerse the appliance in water or other liquids; keep it away from rain and moisture. Never touch the plug with wet hands.
Only operate the appliance if your mains voltage matches that indicated on the appliance's type plate. The wrong voltage can destroy the appliance.
Only connect the appliance to sockets with an earth contact.
If possible, do not use extension cords. If you must use an extension cord, use only single extension cords (no multiple-outlet power strips) with safety certification and protection from spray water which are designed for the power consumption of the appliance.
Always check the power cord for possible damage before using the appliance.
The appliance must not be used if it has fallen, if there is visible damage or if it is not leak tight.
Pull the plug from the socket immediately after use. Pull the mains plug from the mains socket before you carry out cleaning or maintenance work on the appliance.

1.5 If you use detergents

Detergent is a health hazard. Keep them away from the eyes and mucous membranes. Carefully pour it into the detergent tank.

Flush the eyes and mucous membranes thoroughly with water in case they have come into contact with detergent. If detergent is swallowed, consult a doctor.
The detergent contains perfumes and may cause allergic reactions.
- Keep the detergent out of the reach of children. If swallowed there is a risk of poisoning!
- Do not clean surfaces which come into contact with food with the steam mop or the detergent.
Use the correct batched measures of detergent. Please comply with the instructions for use on the detergent packaging.

Only use detergents which are not combustible or explosive. Otherwise there is a risk of fire or explosion!

The detergent used has to be explicitly suited for use in a steam cleaner. Never use cleaners which contain alcohol, solvents (thinners, benzene, acetone), strong acids or alkalis or any other aggressive detergents including waxes, polishes or scouring agents.
If you have any questions, contact a specialist dealer or the detergent manufacturer. If you are in any way unsure, do not use the detergent and clean using pure steam.

1.6 Re: Proper use

This appliance must only be used for domestic use. It is not suitable for industrial or commercial use.

Only use the steam cleaner in the home to clean regular dirt from surfaces which can withstand the high temperature, pressure, and moisture of hot steam. And follow the cleaning recommendations of the material manufacturers.
If you use the steam/brush base with its collar brush, for instance, to remove stubborn soiling, the floors and the surfaces must also be scratch resistant.
When the carpet glider base is fitted, the steam cleaner can also be used to freshen up short-pile carpets, rugs etc.
Used with care and skill, the steam cleaner can also be used to freshen up upholstery, curtains, clothing etc. But only if the materials and colours can withstand steam cleaning (approx. 110^ ). In the process, follow the cleaning recommendations of the manufacturer.

Any other use is considered improper use and is prohibited.

In particular, the following is prohibited:

Cleaning:

• People, animals or plants, including clothing which is still being worn.
• Surfaces which are soiled with substances which are a potential health hazard. The hot steam may dissolve and release these substances.
• Leather, furniture, walls, window panes, non-sealed, lacquered, oiled or waxed wood or parquet flooring, surfaces made of soft or shiny plastic material and textiles made of acrylic, Dralon, velvet or linen. They may become damaged.

Use:

• in the proximity of explosive and flammable materials, at pressure containers or containers where you are unsure of the content.
• as a humidifier or as a room heater.
• if not fully assembled or with accessories other than those cited in these instructions.
• on surfaces which come into contact with food.
• without the tanks inserted or with an empty water tank.
• upside down.
• without a clean cleaning cloth.
• outdoors.

Filling the water tank with liquids other than cold water. Additives in the water tank, such as the detergent, make using the appliance unsafe.

Filling the detergent tank with liquids other than mild detergent. Other products make using the appliance unsafe.

2 Assembly

2.1 Unpacking

1. Unpack the appliance and all its accessories.
2. Check the contents for completeness and possible damage. Information regarding scope of supply Page 32, "Overview".

ATTENTION:

Always dispatch the appliance in its original packaging to avoid transport damage. Keep the packaging for this purpose. Dispose of any packaging material no longer required in accordance with the applicable regulations of your country.

NOTE:

Immediately contact your dealer if you have found any transport damage.

2.2 Assembly

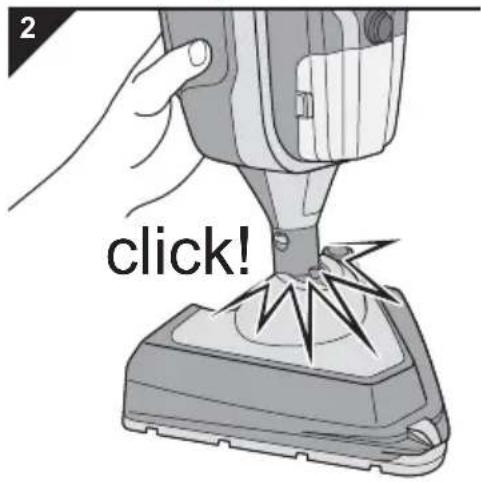

1. Slide the connection piece into the base (Fig. 2) so that the release catch audibly and visibly clicks into place.

1. Firmly insert the shaft into the intake opening (Fig. 3) so that the release catch audibly and visibly clicks into place.

NOTE:

If you wish to release the shaft again, firmly press in the release catch and pull the shaft upwards out of the appliance at the same time.

ATTENTION: First, pull the plug from the mains socket. Otherwise, the appliance may run without water and become damaged.

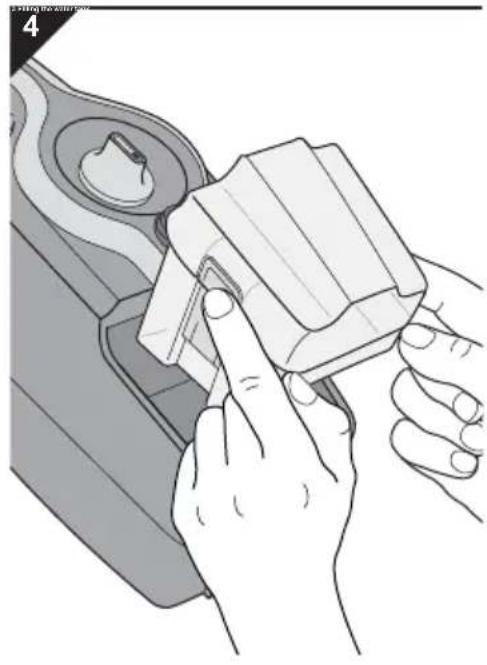

1. Press the two release catches and remove the water tank from its console (Fig. 4).

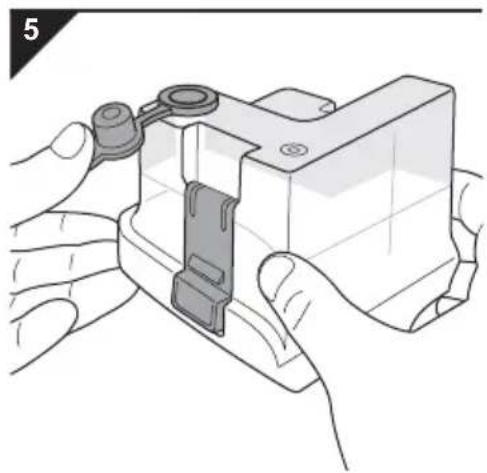

1. Open the tank stopper (Fig. 5).

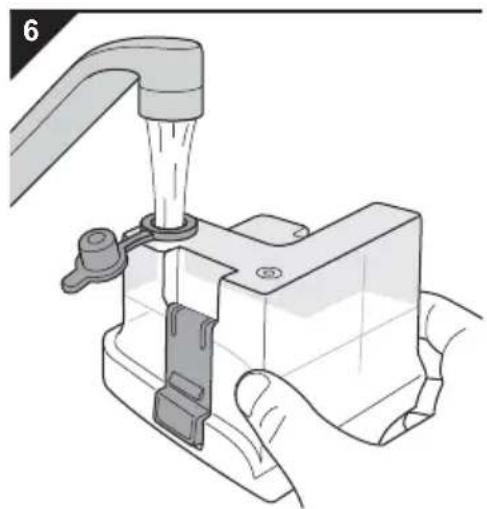

1. Fill the water tank with clear, cold tap water (Fig. 6).

WARNING: Risk of injury! Do not place any additives, such as detergent, alcohol, perfumes or chemicals, in the water tank. These make the use of the appliance unsafe.

1. Close the tank stopper (Fig. 5).

2. Firmly push the water tank back into the console (Fig. 4).

3. Check that it is firmly in place.

4.1 Selecting detergent

WARNING:

Risk of fire or explosion!

Only use a mild detergent which is not combustible or explosive.
The detergent has to be explicitly suited for use in a steam cleaner. Other products make using the appliance unsafe.
Never use cleaners which contain alcohol, solvents (thinners, benzene, acetone), strong acids or alkalis or any other aggressive detergents including waxes, polishes or scouring agents.
Please comply with the instructions for use on the detergent packaging. If you have any questions, contact a specialist dealer or the detergent manufacturer.
If you are in any way unsure, do not use the detergent and clean using pure steam.

ATTENTION:

The detergent should not foam too much. Foam creates air in the steam channels and in the pump. This reduces the performance of the pump and the production of steam.

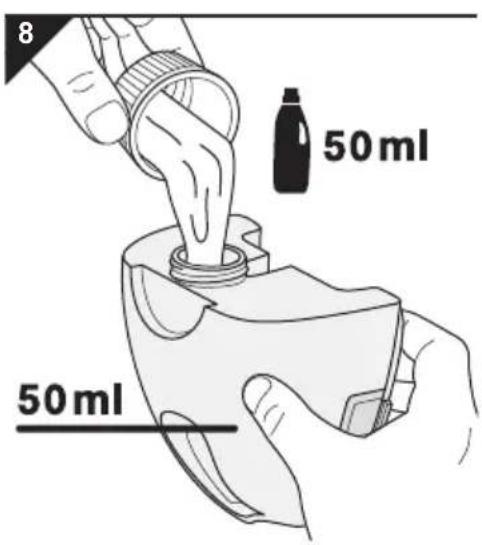

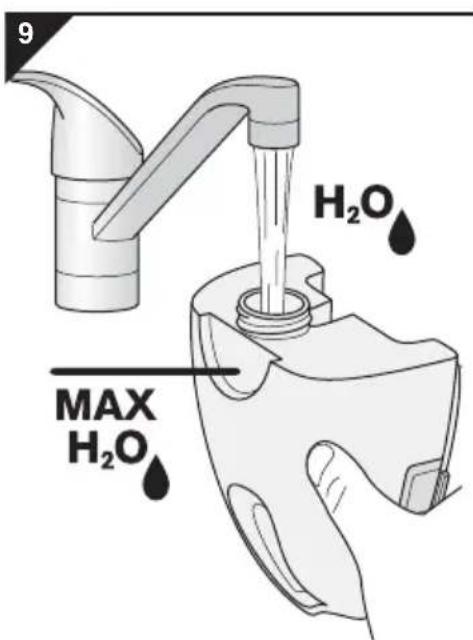

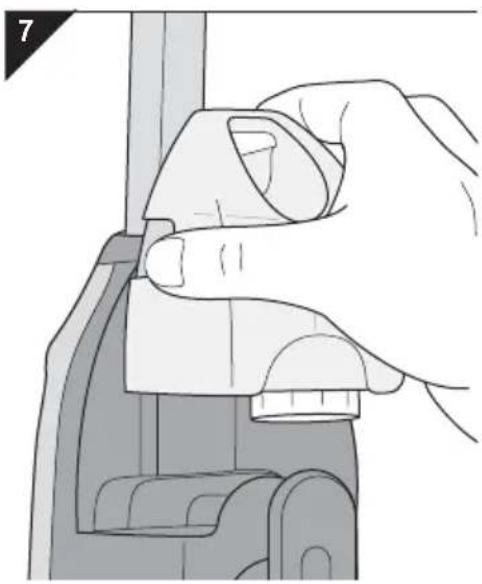

4.2 Filling the detergent tank

Fill the detergent tank as follows if you wish to mix detergent with the steam for cleaning the floor:

WARNING:

Health hazard for your children! Always make sure you store the detergent in a place which is inaccessible to children, particularly after filling the detergent tank and before steam cleaning.

NOTE:

If you do not have any detergent, simply leave the detergent tank empty.

1. Set the appliance to the neutral position by aligning the shaft so that it is positioned approximately at a right angle to the base, you can feel it click into place and the appliance can stand up without support.
2. Hold the appliance firmly by the shaft.
3. Press both release catches for the detergent tank and remove it from its console (Fig. 7).
4. Twist the tank cap anti-clockwise as far as it will go to remove it from the detergent tank.

ATTENTION:

Please comply with the instructions for use on the detergent packaging. If you have any questions, contact a specialist dealer or the detergent manufacturer.

1. Carefully add 50ml of undiluted detergent to the detergent tank (Fig. 8).
2. Then top up to the "MAX H 2O" mark with clear, cold tap water (Fig. 9).
3. Screw the tank cap all the way back on the detergent tank.
4. Firmly push the detergent tank back into the console (Fig. 7).

5.1 Before starting steam cleaning

WARNING:

Risk of injury! Check the appliance and power cord before each use. Never use a damaged appliance.

ATTENTION:

Before starting cleaning, check whether the surface to be cleaned is suitable for steam cleaning. Always follow the cleaning instructions of the manufacturer. The steam cleaner is definitely not suitable for use on non-sealed wooden floors, soft plastics or furniture. Even sealed wooden floors must only be steamed lightly (steam controller [Fig. 13] in the Min position) and never steam the same spot for too long. Cold glass surfaces may shatter as a result of heat shock.

ATTENTION:

Only ever operate the appliance with a filled water tank. Even if the appliance is fitted with overheating protection, running it without water would shorten the appliance's service life.

NOTE:

The appliance has an overheating protection circuit. It switches off automatically if it overheats (e.g. due to an empty water tank). If this happens, pull the mains plug and refill the water tank Chapter 3, "Filling the water tank". Wait for about 45 minutes. You can put the appliance back into operation once it has cooled down.

NOTE:

We recommend that you first sweep or vacuum-clean floors to remove coarse soiling before using the steam cleaner on them.

NOTE:

Provide adequate ventilation during and after work.

5.2 Uncoiling the power cord quickly

WARNING:

Risk of electric shock! Always completely uncoil the power cord. Otherwise there is a risk of underestimating the reach of the appliance, subjecting the power cord to excessive strain and possible damage.

1. Rotate the upper cord winding tab down anti-clockwise 180^ (Fig. 10).
2. Remove all the cable windings from the upper and the lower cord winding tabs.
3. Secure the cable in the clip for securing the power cord (Fig. 1/24) so that you do not run over it during operation.

6.1 Switching on and regulating the steam jet

WARNING:

Risk of scalding! Never lay the appliance on its side during operation. The appliance must not be used in a horizontal position or upside down.

ATTENTION:

Only use mains sockets with an electrical voltage which matches the voltage on the appliance's type plate. Given the high power consumption of the appliance, only use mains sockets with an earth contact and do not use extension cables or multiple-outlet power strips.

1. Check that the water tank has been filled, Chapter 3, "Filling the water tank".
2. If you wish to add detergent to the steam when cleaning the floor, set the detergent controller to "ON" (Fig. 11). Check whether the detergent tank has been filled, Chapter 4, "If you use detergents".
3. Fully unwind the power cord (Chapter 5.2, "Uncoiling the power cord quickly") and secure it in the clip for securing the power cord (Fig. 1/24).
4. Place a clean cleaning cloth on the floor so that its light side is facing upwards.
5. Now place the steam base exactly on the cleaning cloth. The cloth is thus attached to the appliance.
6. Plug the mains plug into a socket with an earth contact.

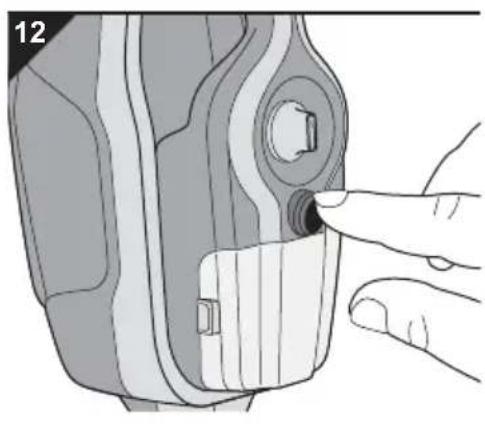

7. Switch the On/Off button for the steam jet (Fig. 12) to the "ON" position.

8. The appliance now heats up. The mains control light (" lights up.

9. Wait for about 20 seconds.

10. The steam ready indicator ("") lights up.

11. Select the steam controller position which you think is suitable for the surface you wish to clean (Fig. 13):

12. " MIN": for sealed wooden floors and laminate

13. middle position: for tiled floors and for PVC and vinyl floors
14. MAX": for short-pile carpets and rugs

NOTE:

We recommend that you begin with the lowest level ("MIN") and slowly increase the steam jet with the steam controller as required.

6.2 Using the steam boost

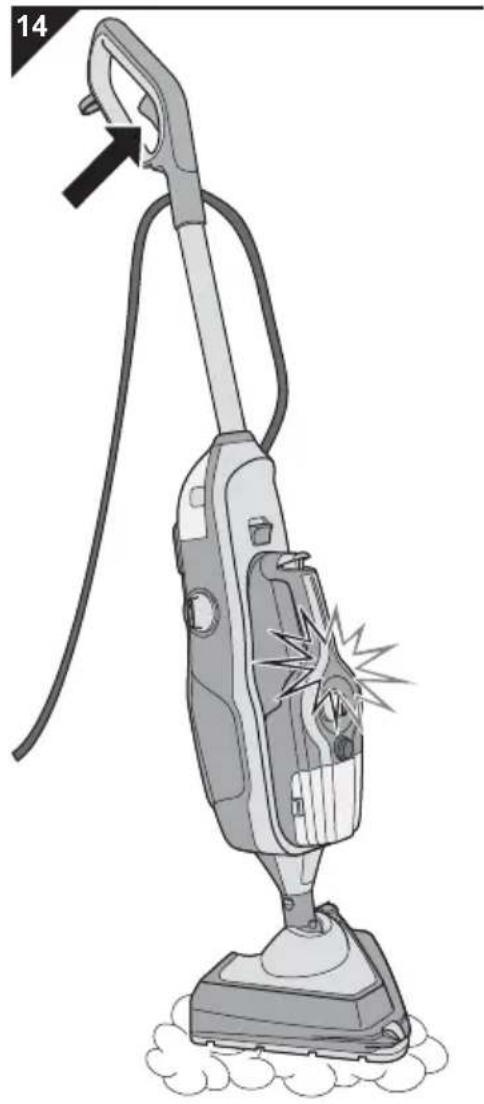

1. Press the steam button (Fig. 14/arrow) on the handle and hold it as long as you require a steam jet.
2. To steam-clean, move the appliance back and forth slowly. If you are using detergent, repeat each passage several times (at least 3 times) so that a closed film of detergent can form.

WARNING:

Risk of falling! Always be especially careful when cleaning smooth floors, steps and stairs. Only work with moderate amounts of steam when cleaning smooth floors, otherwise a film of moisture will be left on the floor. Using less steam also ensures quicker drying and reduces the risk of slipping.

ATTENTION:

Do not leave the appliance standing in one spot when in operation. Keep it moving continuously. Otherwise there is an increased risk of damage to the surface.

NOTE:

If the steam ready indicator goes out, you can continue working. You only need to release the steam button (Fig. 1/2) and wait until the steam ready indicator (Fig. 1/10) lights up again if the steam produced is no longer sufficient.

WARNING:

Risk of scalding! Never direct the steam at people, animals, or plants. Always point the steam downwards towards the surface to be cleaned. Even then, make sure that parts of your body are never allowed to into the jet of steam. Never operate the appliance without wearing shoes.

Press the steam boost button (Fig. 15/arrow) to remove dried soiling with a concentrated jet of steam.

The steam is then expelled from the jet nozzle on the steam base in concentrated form (Fig. 15).

6.3 Freshening up carpets

6.4 Removing stubborn soiling

ATTENTION:

Always comply with the cleaning instructions of the manufacturer of the carpet. Before starting cleaning, check whether the particular floor surface is suitable for steam cleaning.

NOTE:

You steam cleaner is not suitable for thorough cleaning of carpet. Even adding detergent cannot change this. To remove ingrained stains, we recommend that you apply a commercially available detergent to the soiling before using the steam cleaner, as long as this is suitable for the respective surface.

1. Place the carpet glider base (Fig. 16/1) under the steam base with a cleaning cloth attached. Otherwise you will not be able to move back and forth effectively on this surface.
2. Turn the steam controller to the "MAX" position (Fig. 16/2).
3. If necessary, use the steam boost button (Fig. 16/3).
4. Proceed as described in Chapter 6.1, "Switching on and regulating the steam jet".

ATTENTION:

Not all floors suitable for steam cleaning also withstand the powerful bristles of the collar brush. If you are unsure, consult the manufacturer of your flooring. Then test to see whether the floor can withstand this treatment without damage on a hidden part of the floor.

1. Disconnect the steam base (Fig. 17/1) from the steam/ brush base (Fig. 17/2). The collar brush is now exposed.
2. Check that the detergent tank is full. If not, fill it Chapter 4, "If you use detergents".
3. Turn the steam controller to the "MAX" position (Fig. 16/2).
4. If necessary, use the steam boost button (Fig. 17/3).
5. Proceed as described in Chapter 6.1, "Switching on and regulating the steam jet".

7.1 Attaching the steam hose

1. If you have not already done so, release the hand-held steam cleaner from its console:

2. To do so, press its release catch (Fig. 18/1).

3. Firmly pull the hand-held steam cleaner from the console at the same time (Fig. 18/2).

1. Slide the steam hose adapter onto the appliance connection piece so that the small triangle on the adapter is positioned opposite the small triangle on the appliance connection piece (Fig. 19).

1. Secure the steam hose by turning it 90^ in the direction of the arrow, pushing it simultaneously (Fig. 20).

WARNING:

Risk of burns! The tip of the steam hose becomes very hot during operation. Never operate the appliance without having fitted further attachments to the steam hose.

NOTE:

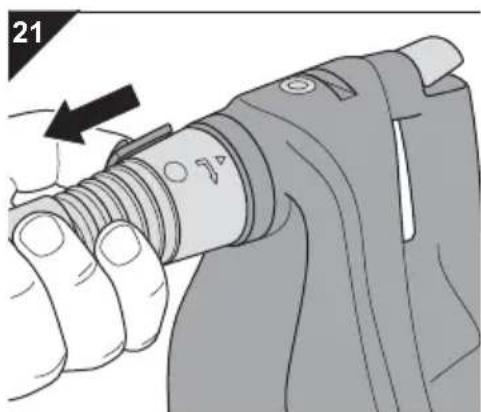

You can detach the steam hose by simultaneously pushing it in and turning it in the opposite direction (Fig. 21).

1. Now mount the pinpoint nozzle on the steam hose (Chapter 7.2, "Attaching the pinpoint nozzle").

7 Working with the hand-held steam cleaner

7.2 Attaching the pinpoint nozzle

You can use the pinpoint nozzle to powerfully and accurately steam clean crevices, Venetian blinds, toilet bowls, bathroom fixtures, etc.

NOTE:

For greater range we recommend fitting the pinpoint nozzle to the connection piece on the steam hose (Fig. 22 and Fig. 23).

If, on the other hand, you prefer to operate the hand-held steam cleaner with one hand, we recommend that you fit the pinpoint nozzle directly to the connection piece (Fig. 24 and Fig. 25).

1. If desired, fit on the steam hose as described, Chapter 7.1, "Attaching the steam hose".
2. Now slide the pinpoint jet nozzle into the nozzle of the steam hose (Fig. 22) or the appliance (Fig. 24).
3. Secure the pinpoint nozzle by pushing it and simultaneously turning it 90^ in the direction of the arrow (Fig. 23, Fig. 25).

NOTE:

You can detach the pinpoint nozzle by simultaneously pushing it in and turning it in the opposite direction.

7.3 Using special nozzles

NOTE:

All special nozzles can only be fitted to the previously installed pinpoint nozzle. All special nozzles are attached in the same way.

1. Fit the pinpoint nozzle as described, Chapter 7.2, "Attaching the pinpoint nozzle".
2. If the cleaning effect of the jet of steam alone is not sufficient for your cleaning task, select a special nozzle:

The wire brush (Fig. 26/A) is used to remove particularly stubborn soiling from non-delicate surfaces.
The plastic brushes(Fig. 26/B, large and small) are used to remove heavy soiling from scratch-resistant surfaces.
The crevice brush (Fig. 26/C) works best for removing dirt from between tiles and grooves.
The jet nozzle (Fig. 27/A) is recommended if the steam jet has to be highly concentrated like for the pinpoint jet nozzle.
The spatula attachment (Fig. 27/B) is used to scrape dirt from smooth surfaces which are not sensitive to scratching.
The 2in1 combo attachment (Fig. 28/A) is used to squeezegee previously steamed glass surfaces. To do so, follow the instructions in Chapter 7.4, "Steam-cleaning glass surfaces".
The 2in1 combo attachment (Fig. 28/B) with cotton cover is used to freshen up upholstery and clothing. To do so, follow the instructions in Chapter 7.5, "Freshening up upholstery and clothing".
3. Slide the respective special nozzle onto the pinpoint jet nozzle.
4. Secure the respective special nozzle by turning it 90^ in the direction of the arrow.

NOTE:

By turning is in the opposite direction you can release the respective special nozzle again.

7.4 Steam-cleaning glass surfaces

ATTENTION: Cold glass surfaces may shatter as a result of heat shock. Always warm glass surfaces before using steam on them. Do not work on windows and panes of glass on cold days.

1. Warm the glass surface to be cleaned by applying a widely spread jet of steam from a distance of about 30~cm (Fig. 29).
2. After a short time, reduce the distance to about 20~cm to cover the glass surface evenly with steam.
3. Stop the supply of steam by releasing the steam button.
4. Squeezee the water from the glass surface with the squeezegee lip of the 2in1 combo attachment (Fig. 30).
5. Wipe the squeezegee lip and the bottom edge of the pane of glass dry after each passage.

7.5 Freshening up upholstery and clothing

WARNING:

Risk of scalding! Never apply the steam jet directly to pieces of clothing while they are still being worn by people or animals!

ATTENTION:

Before freshening up upholstery or clothes, make sure that their material and colour is suitable for steam cleaning. And follow the cleaning recommendations of the material manufacturers.

NOTE:

We recommend always using the cotton cover (Fig. 31) when freshening up upholstery or clothing as this reduces the formation of condensation drops which can adversely affect the cleaning result.

8.1 Setting the appliance to the neutral position

8.2 Winding up the power cord

WARNING: Risk of injury! To avoid risk, keep to the following sequence at the end of the cleaning process:

1. Switch of the On/Off button for the steam jet ("OFF" position).
   2.Pull the plug.
2. Use up the steam reserves completely.
3. Set the appliance to the neutral position.
4. Allow the appliance to cool for 5 minutes.
5. Wind up the power cord.
6. Remove the cleaning cloth.

7. Dry the cleaning cloth or wash it as necessary.

8. Set the appliance to the neutral position by aligning the shaft so that it is positioned approximately at a right angle to the base (Fig. 33), you can feel it click into place and the appliance can stand up without support.

9. Wind up the power cord, Chapter 8.2, "Winding up the power cord".

WARNING:

Tripping hazard! Wind up the power cord as soon as you have finished cleaning. Otherwise the power cord represents a tripping hazard.

1. If this has not yet been done, turn the upper cord winding tab 180^ clockwise all the way to the end.
2. Now wind the power cord around the lower and upper cord winding tabs as shown (Fig. 34).
3. Remove the cleaning cloth and allow to dry or wash it as necessary, Chapter 8.3, "Caring for cleaning cloths".

8.3 Caring for cleaning cloths

WARNING: Risk of scalding! The appliance continues to run. Even after you have pulled the mains plug from the socket, hot steam is still available for some time.

ATTENTION: Remove the cleaning cloth from the steam base immediately after it has cooled down. Otherwise there is a risk of bacteria and mould.

ATTENTION: It is best to wash the cleaning cloth after each cleaning session. Follow the following care instructions in the process.

Care for the cleaning cloths as follows:

Wash normally at a maximum of 60 degrees.
Do not bleach.
Do not put in a dryer.
Do not iron.
Do not clean with chemicals.

8.4 Cleaning the housing

WARNING:

Risk of injury! Before you clean the appliance, switch off the appliance and unplug the mains plug, Chapter 8, "After use".

ATTENTION:

Do not use detergents, scouring agents or alcohol, as these may damage the housing.

Only ever clean the outside of the housing using a slightly damp cloth.

8.5 Storing the appliance

ATTENTION:

Never put away the appliance with a damp cleaning cloth. Otherwise the surface underneath may become damaged.

Always keep the appliance away from sources of heat or moisture and keep it out of the reach of children. Also make sure that the appliance is never exposed to cold or frost.
Before storage for a longer period, empty the tanks and allow them to dry completely.

9.1 Before you return the appliance

Before contacting your authorised Dirt Devil dealer, Dirt Devil service partner or appliance market, first check the following table to determine whether you can solve the problem yourself.

WARNING:

Risk of injury! Never use a faulty appliance! Always switch off the appliance, set it to the neutral position, and disconnect it from the mains before starting troubleshooting Chapter 8, "After use".

Problem Possible cause Solution
The appliance does not switch to ready for operation or suddenly stops producing steam.	The water tank has not be installed correctly.	Install the water tank again, ▷Chapter 3, “Filling the water tank”.
	The water tank is empty.	1. Switch off the appliance, ▷Chapter 8, “After use”.2. Fill the water tank, ▷Chapter 3, “Filling the water tank”.3. If the overheating protection has been triggered, wait about 45 minutes before connecting the appliance again.
	The overheating protection device has been triggered due to an empty water tank.
The appliance pump can be heard to be running but the appliance does not produce any steam.	The water filter cartridge is too dry.	1. Remove the water filter cartridge.2. Place it in water for a few minutes.3. Then reinsert the water filter cartridge, ▷Chapter 9.2, “Checking/replacing the water filter cartridge”.
	Air in the pump. 1. Remove	e the water filter cartridge.2. Press the steam button and let the appliance run for a few seconds.3. Then reinsert the water filter cartridge, ▷Chapter 9.2, “Checking/replacing the water filter cartridge”.
Cleaning performance is not satisfactory even though the appliance is working fine.	The floor has not been cleaned beforehand with a vacuum cleaner or brush.	Make sure that the floor has been cleared of loose dirt before cleaning with the steam cleaner.
	Stubborn soiling. Use the	brush/steam base with collar brush, ▷Chapter 6.4, “Removing stubborn soiling”.
	The cleaning cloth is dirty.	1. Switch off the appliance, ▷Chapter 8, “After use”.2. Wait for about 5 minutes. You can now remove the cleaning cloth once it has cooled down and replace it with a fresh one, ▷Chapter 9.2, “Checking/replacing the water filter cartridge”.
	The water filter cartridge is worn out.	Replace the water filter cartridge, ▷Chapter 9.2, “Checking/replacing the water filter cartridge”.

NOTE:

If you were unable to solve the problem following this table, contact the customer service department (▶Page 202, "International Service").

9.2 Checking/replacing the water filter cartridge

There is always a small quantity of lime in your domestic tap water. For this reason we have installed a water filter cartridge which is designed to remove the lime particles before the water passes through the appliance.

Check the water filter cartridge (Fig. 35) every time you fill the water tank, Chapter 3, "Filling the water tank".
When first supplied, the filter medium on the inside of the cartridge is a very light colour (Fig. 35/A). If, when you check it, you discover that the filter medium on the inside of the cartridge has significantly changed colour (Fig. 35/B) compared to its condition on delivery or less steam is being emitted, replace the cartridge as follows:

1. Switch off the appliance, set it to the neutral position and pull the plug from the socket, Chapter 8, "After use".
2. Remove the water tank Chapter 3, "Filling the water tank".
3. Check the colour of the cartridge. If the inside of the cartridge has changed colour considerably compared to its condition on delivery (Fig. 35/B), the cartridge has to be replaced.
4. If the water filter cartridge has to be replaced, pull it firmly upwards to remove it from the console (Fig. 36).
5. Then replace the water filter cartridge with a new one (article number: Chapter 9.2, "Checking/replacing the water filter cartridge").

NOTE:

You can dispose of the used water filter cartridge with the domestic waste.

1. Firmly push the new cartridge into the console (Fig. 37).
2. Re-insert the water tank, Chapter 3, "Filling the water tank".
3. Check it and make sure that it is firmly secured in position.

9.3 List of accessories and spare parts

Item number	Content
0302001 Water filter cartridge
0301002 Cleaning cloth set contains 2 microfibre cleaning cloths)
0301003 Fringed cloth set contains 2 fringed microfibre cloths)
0301004 Carpet glider base
0302005 2in1 combo attachment plus cotton cover
0302006 Brush set, 6-piece

9.4 Supply sources

You can order accessories and spare parts:

Page 202, "International Service"

9.5 If the appliance is faulty

Never use a faulty appliance or operate an appliance with a faulty power cord. If the power cord of the appliance is damaged, it will need to be replaced by the manufacturer, their authorised service representative, or a similarly qualified person to avoid danger.

Hand over a faulty appliance or an appliance with a faulty power cord to a specialist dealer or the Dirt Devil customer service department for repairs, Page 202, "International Service".

9.6 Disposal

Dispose of the appliance in compliance with the environmental protection laws of your country. Electrical waste must not be disposed of together with domestic waste. Use local collection points for used appliances instead.

The water filter cartridge is made from environmentally compatible material and can be disposed of with domestic waste.

9.7 Warranty

The respective implementation of EU Directive 1999/44/EC into national law applies as the minimum warranty standard, providing you acquired the appliance as a consumer within the European Union.

Merci beaucoup

• 2 stuks (90% polyester, 10% polyamide)

WAARSCHUWING - verbrandingsgevaar

Paraacularly, the above mentioned methods are used to prepare a liquid solution of the liquid phase. The liquid phase is prepared by using the following procedures: (1) adding an appropriate amount of liquid phase into the liquid phase; (2) mixing the liquid phase with the liquid phase; and (3) adding the liquid phase into the liquid phase.

Pagina 203, "International Service"

9.5 En caso de aparato defectuoso

• 2 pezzi (90% poliestere, 10% poliammide)

Pagina 203, "International Service"

Sayfa 202, "International Service"

9.5 Arizali cihazda

• € 0.14 per minute from German landlines, maximum German mobile phone tariff € 0.42 per minute.

The cost of calls from abroad—outside Germany—depend upon the current prices of the respective foreign telephone company.

FR
