USER MANUAL MultiMaster Talent FMT250QSL Fein

OBJ_BUCH-0000000243-001.book Page 2 Monday, December 14, 2015 1:12 PM3

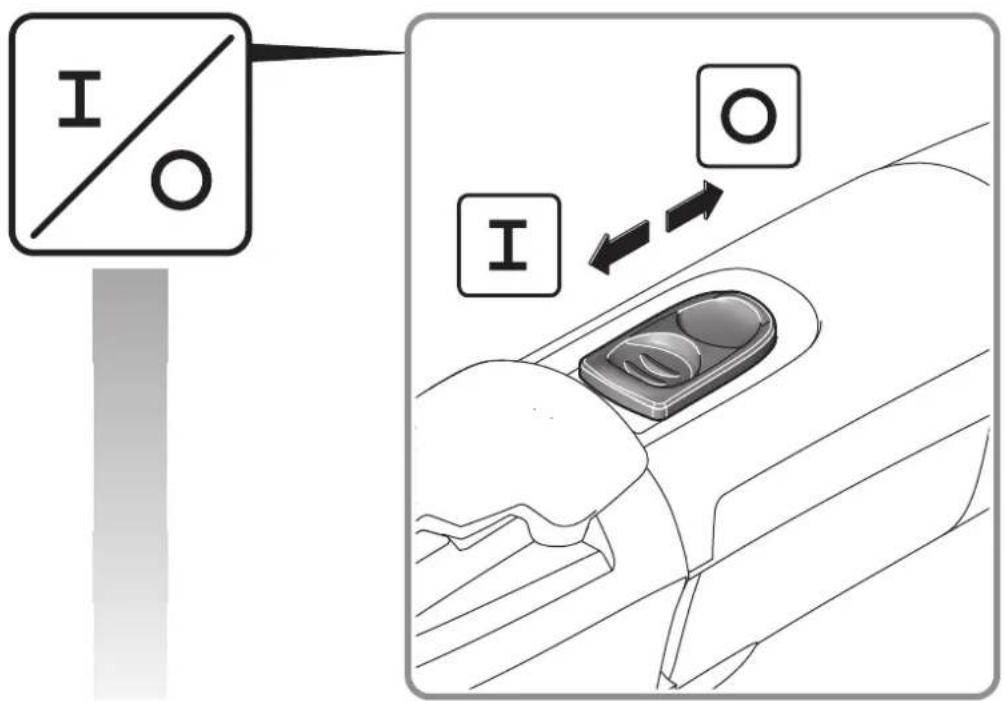

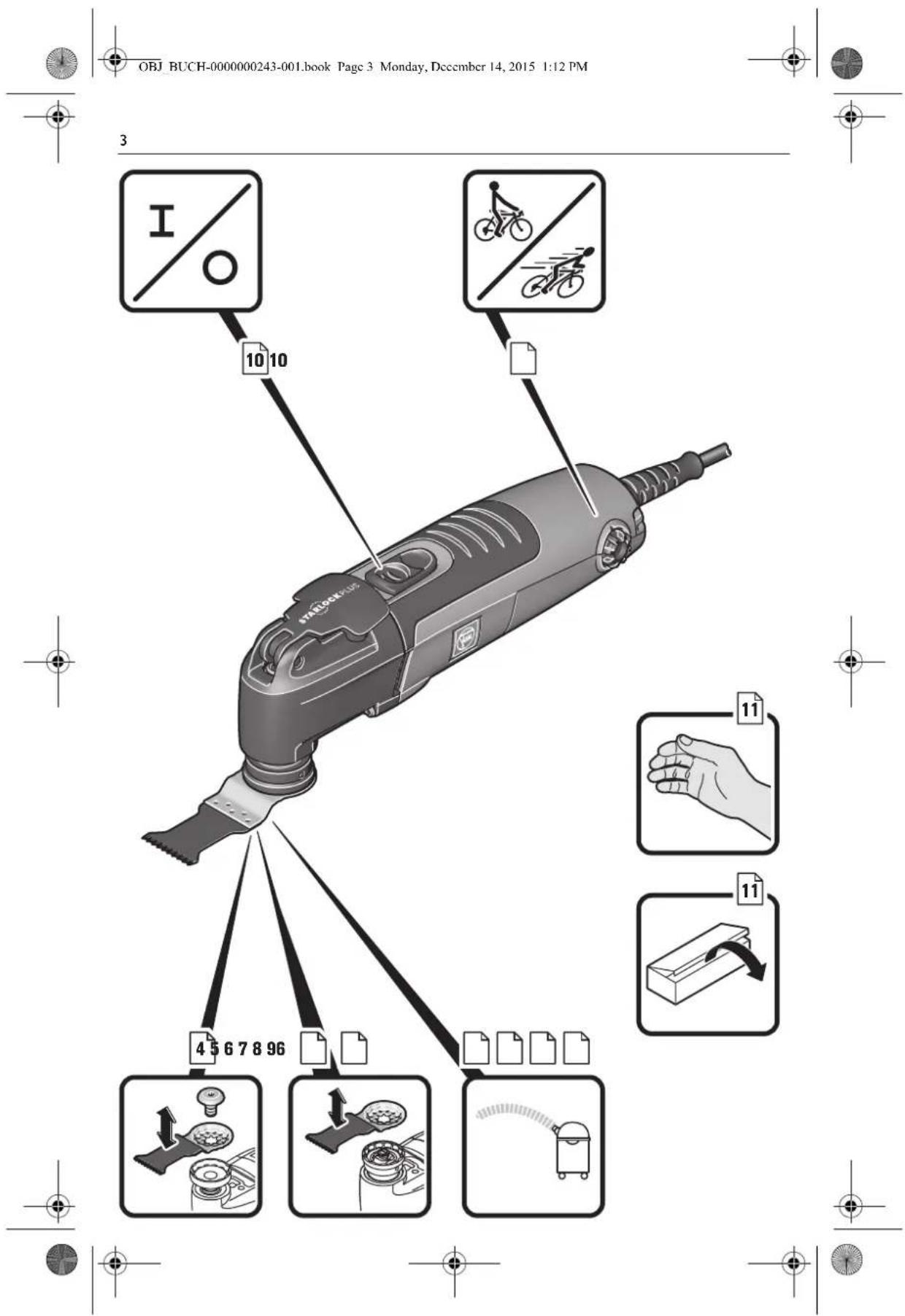

OBJ_BUCH-0000000243-001.book Page 3 Monday, December 14, 2015 1:12 PM4

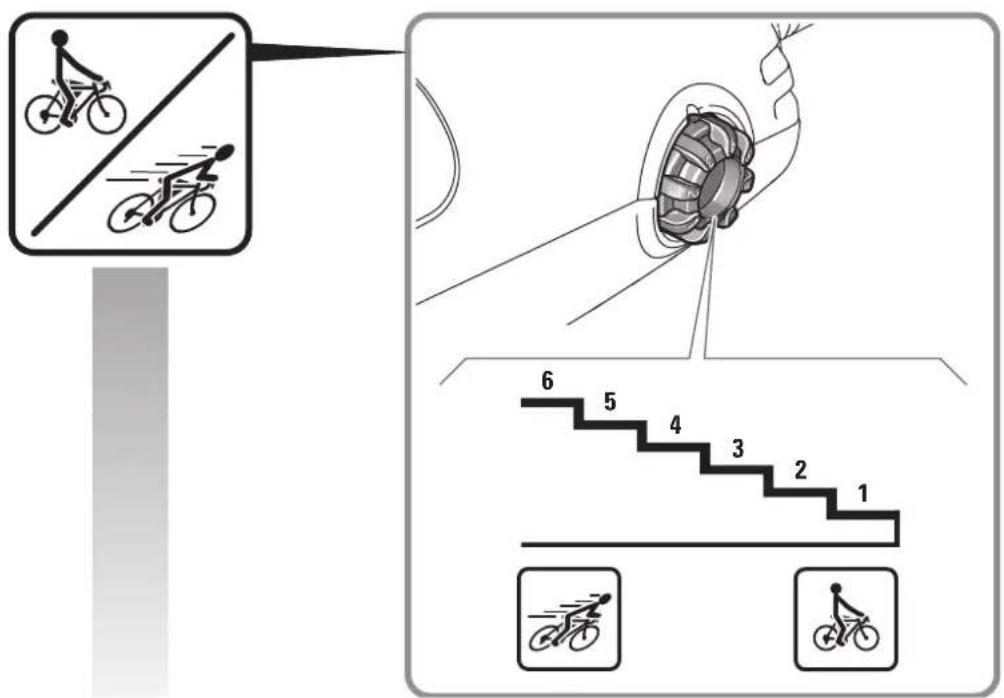

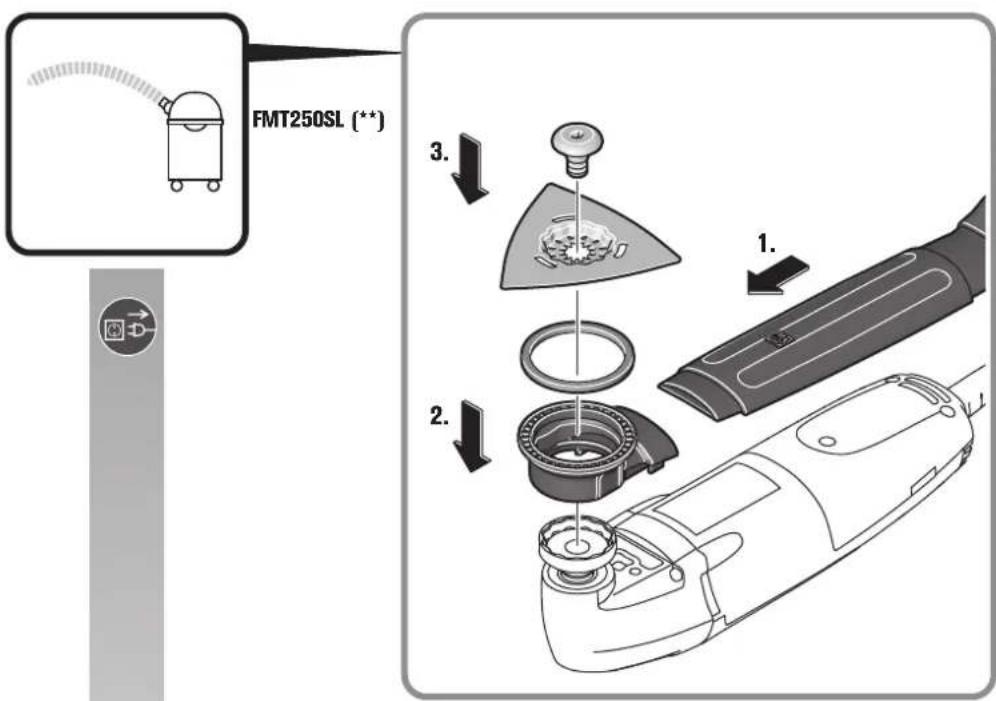

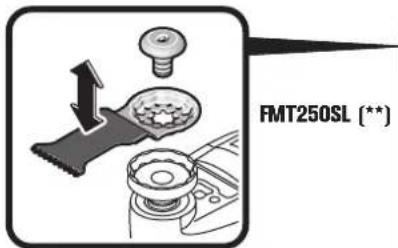

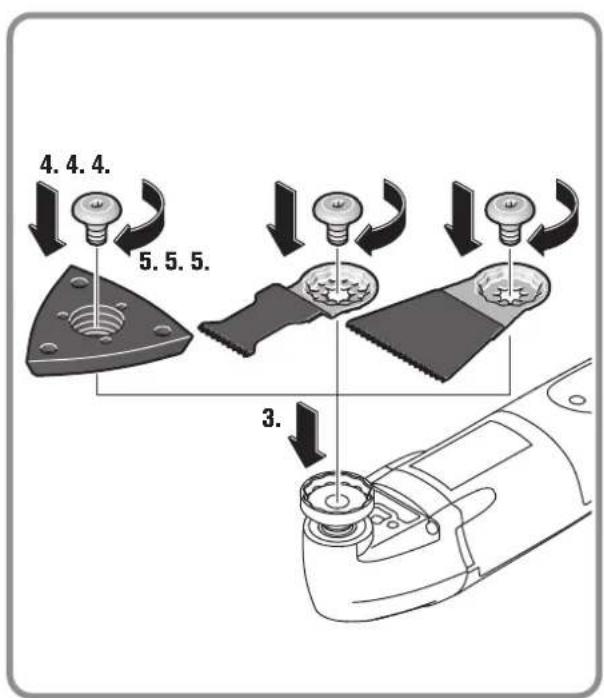

FMT250SL (**) OBJ_BUCH-0000000243-001.book Page 4 Monday, December 14, 2015 1:12 PM5

OBJ_BUCH-0000000243-001.book Page 5 Monday, December 14, 2015 1:12 PM6 180°

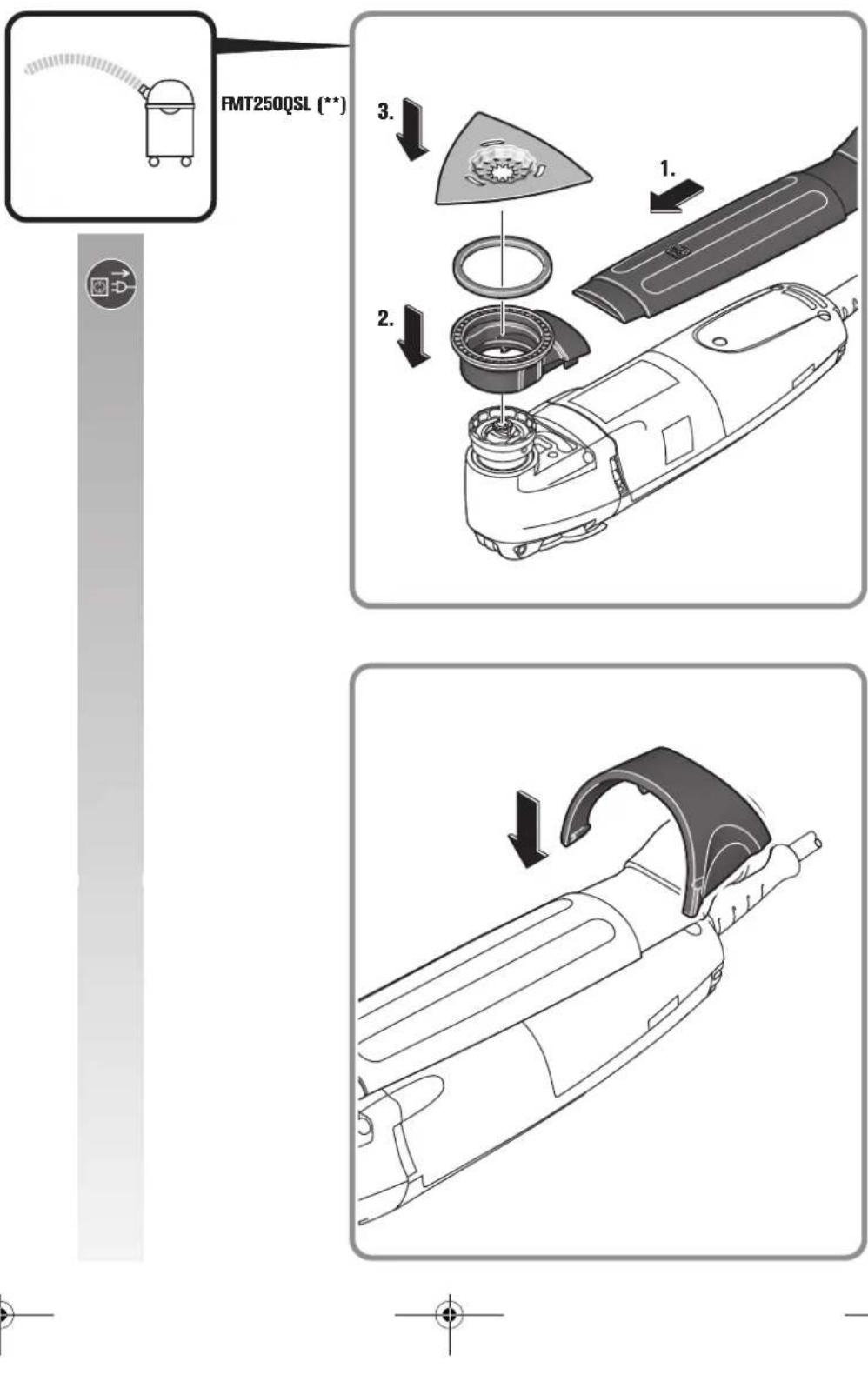

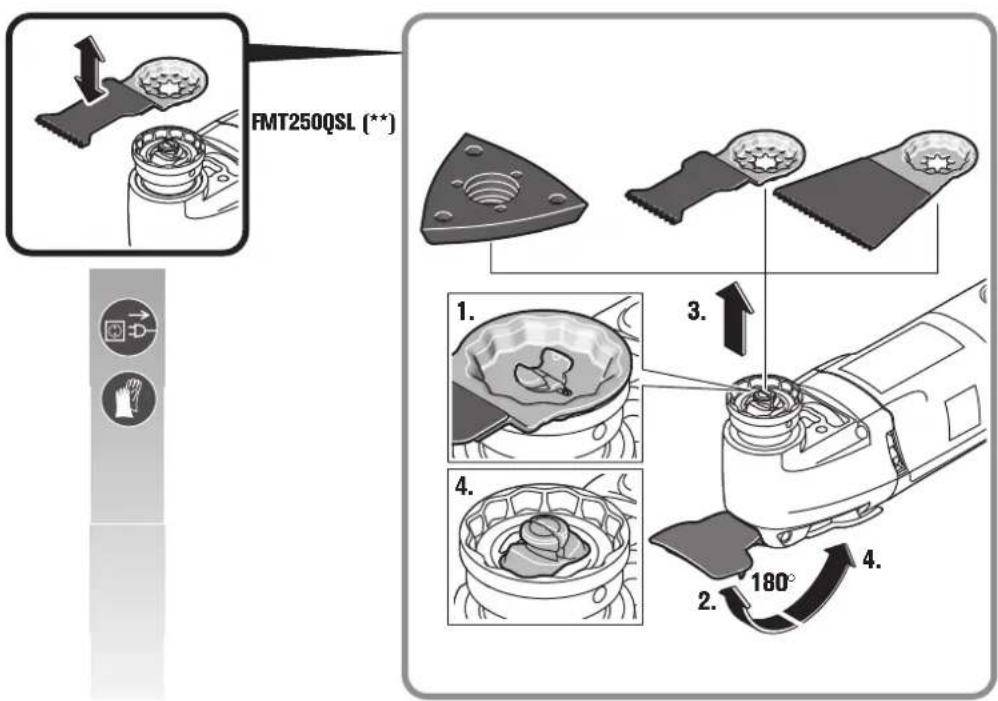

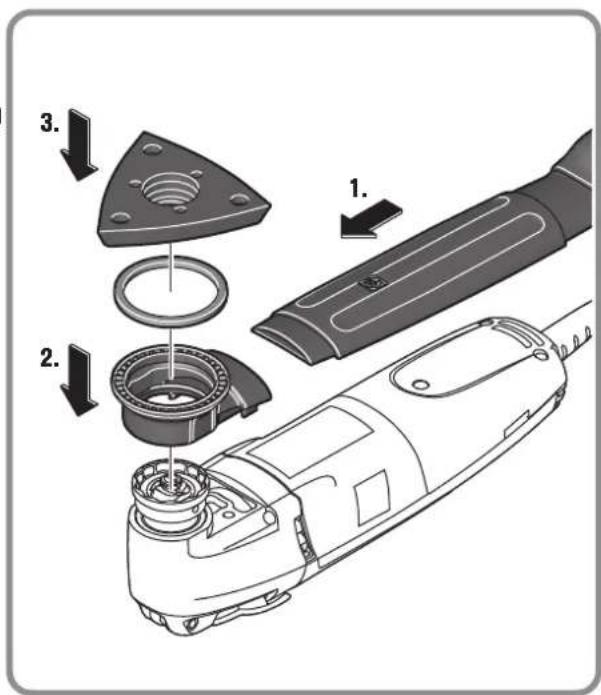

OBJ_BUCH-0000000243-001.book Page 7 Monday, December 14, 2015 1:12 PM8 FMT250QSL (**)

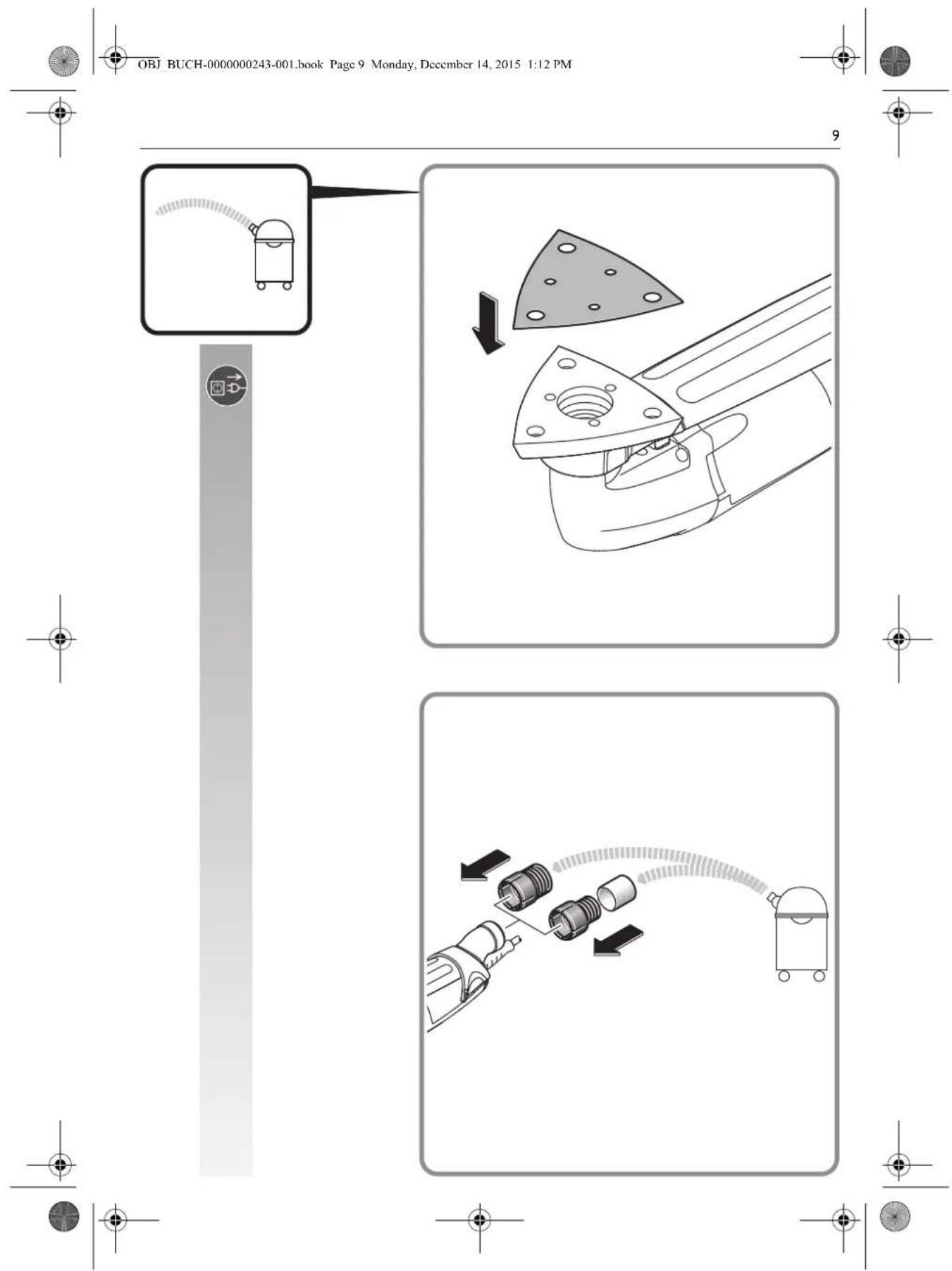

OBJ_BUCH-0000000243-001.book Page 8 Monday, December 14, 2015 1:12 PM9 OBJ_BUCH-0000000243-001.book Page 9 Monday, December 14, 2015 1:12 PM10

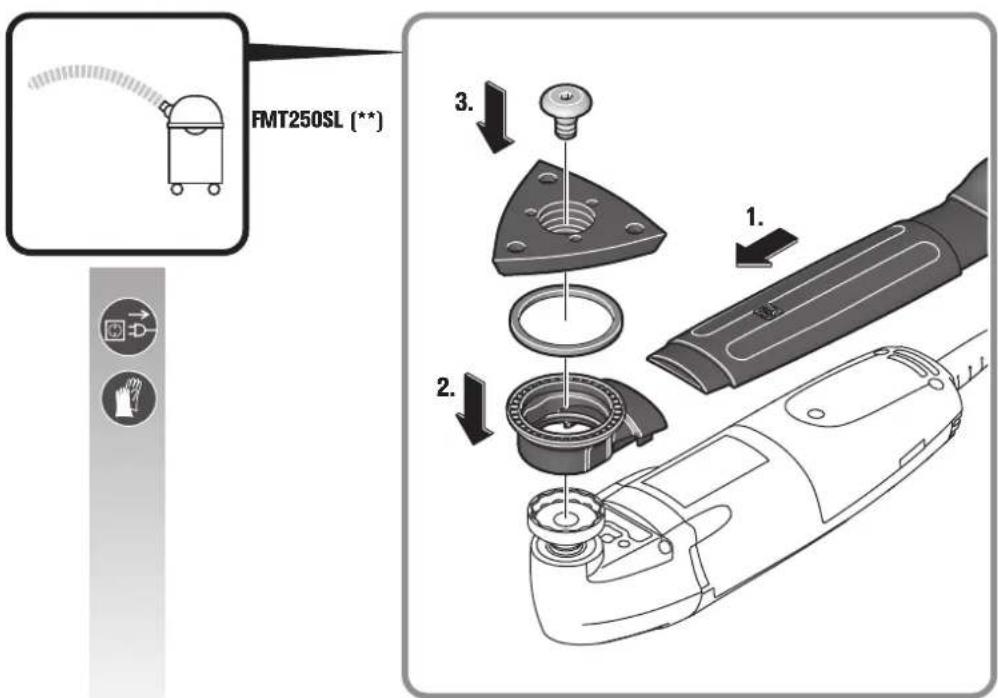

OBJ_BUCH-0000000243-001.book Page 10 Monday, December 14, 2015 1:12 PM11 FMT250SL (**) OBJ_BUCH-0000000243-001.book Page 11 Monday, December 14, 2015 1:12 PM12

Original Instructions. Symbols, abbreviations and terms used. Symbol, character Explanation Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions. Do not touch the saw blade. Danger of sharp application tools moving back and forth. Warning against sharp edges of application tools, such as the cutting edges of the cutter blades. Observe the instructions in the text or graphic opposite! General prohibition sign. This action is prohibited. Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally. Use eye protection during operation. Use ear protection during operation. Use a dust mask during operation. Use protective gloves during operation. Gripping surface Observe the information in the adjacent text! Confirms the conformity of the power tool with the directives of the European Commu- nity. This sign indicates a possible dangerous situation that could cause severe or fatal injury. Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling. Product with double or reinforced insulation Low oscillation rate High oscillation rate (**) may contain numbers and letters WARNING Character Unit of measurement, international Unit of measurement, national Explanation

W W Output U VVRated voltage f Hz Hz Frequency

, rpm, r/min /min Rated oscillation rate ° ° Oscillation angle OBJ_BUCH-0000000243-001.book Page 16 Monday, December 14, 2015 1:12 PM17

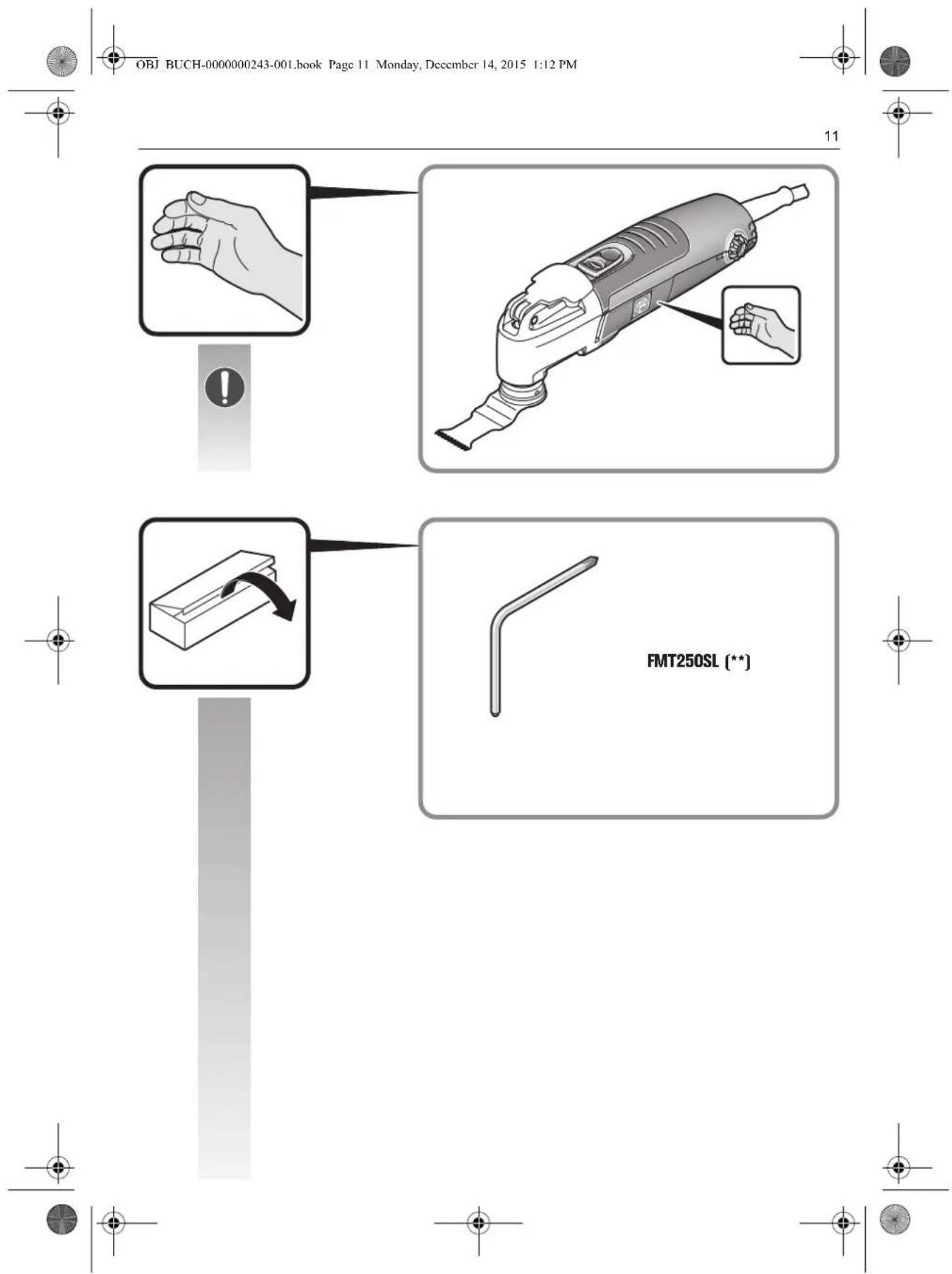

For your safety. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Do not use this power tool before you have thor- oughly read and completely understood this Instruction Manual and the enclosed “General Safety Instructions” (document number 3 41 30 054 06 1). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold. Please also observe the relevant national industrial safety regulations. Intended use of the power tool: Hand-guided oscillator for sanding small surfaces, corners and edges, for sawing thin parts of steel sheet, wood and plastic, for scraping, polishing, rasping, cutting and sepa- rating without water in weather-protected environ- ments, using the application tools and accessories recommended by FEIN. Special safety instructions. Hold power tool by the insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting acces- sory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the opera- tor an electric shock. Use clamps or another practical way to secure and sup- port the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control. Do not use accessories which are not specifically designed and recommended by the power tool manufac- turer. Safe operation is not ensured merely because an accessory fits your power tool. Grasp the power tool in such a safe manner that your body never comes into contact with the application tool, especially while working with application tools such as saw blades or other blades pointed toward the grasping range. Touching sharp tips or cutting edges can lead to injuries. Wear personal protective equipment. Depending on appli- cation, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your opera- tion. Prolonged exposure to high intensity noise may cause hearing loss. Do not direct the power tool against yourself, other per- sons or animals. Danger of injury from sharp or hot application tools. Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended. Clean the ventilation openings on the power tool at regu- lar intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accu- mulation of metallic dust can cause an electrical hazard. Before putting into operation, check the mains connec- tion and the mains plug for damage. Recommendation: The tool should always be supplied with power via a residual current device (RCD) with a rated current of 30 mA or less. Handling hazardous dusts For work procedures with this power tool where mate- rial is removed, dusts develop that can be hazardous to one’s health. Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coat- ings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and provide for good ventilation of the workplace. Leave the processing of asbestos-contain- ing materials to specialists. kg kg Weight according to EPTA-Procedure 01

dB dB Sound pressure level

pCpeak dB dB Peak sound pressure level K... Uncertainty m/s

Basic and derived units of measurement from the international system of units SI. Character Unit of measurement, international Unit of measurement, national Explanation WARNING OBJ_BUCH-0000000243-001.book Page 17 Monday, December 14, 2015 1:12 PM18

Wood and light-metal dust, hot mixtures of grinding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time, observe the material manufacturer’s working instructions, as well as the rele- vant regulations in your country for the materials being worked. Hand/arm vibrations The vibration emission level given in this information sheet has been measured in accordance with a standard- ised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the opera- tor from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. Emission values for vibration Operating Instructions. Do not use accessories not specifically intended and recommended for this power tool by FEIN. The use of non- original FEIN accessories can lead to overheating of the power tool and destroy it. Guide the power tool toward the work piece only when switched on. The application tool can be offset in 30° steps and fas- tened in the most favourable working position. Changing the tool (FMT250SL (**)) (see page 4). Screw the clamping bolt in to the stop. Changing the tool (FMT250QSL (**)) (see pages 5/6). Do not switch the power tool on while the clamping lever is open. Otherwise there is danger of crushes or contusions to the hand and fingers. Do not actuate the clamping lever while the power tool is running. Otherwise there is danger of injury. Do not reach into the area of the clamping jaws. Otherwise there is danger of crushes or contusions to the fingers. Do not operate the power tool with with open clamp- ing jaws and without an application tool! This could damage the power tool. When the clamping jaws are open before the appli- cation tool is inserted, pivot the clamping lever toward the front and then back again. The clamping jaws are closed now. The application tool can be inserted. Notes on sanding. Press the power tool with the sanding sheet briefly and firmly against a flat surface and briefly switch the power tool on. This provides for good adhesion and prevents premature wear. When only one tip or corner of the sanding sheet is worn, it can be removed again and reattached turned by 120°. Work with the entire surface of the sanding plate, not only with the edge or tip. When sanding with small triangle sanding plates, select a high oscillating frequency (electronics level 4 – 6); when sanding with the round sanding plate and the large trian- gle sanding plate, select a moderate oscillating frequency (max. electronics level 4). Sand with continuous motion applying moderate pres- sure. Applying excessive pressure does not increase the rate of removal, it only wears off the sanding sheet faster. Notes on sawing. Select a high oscillating frequency. Round saw blades can be released and clamped offset again, to allow for uni- form wearing off. Notes on scraping. Select a moderate to high oscillating frequency. Repair and customer service. When working metal under extreme operat- ing conditions, it is possible for conductive dust to settle in the interior of the power tool. The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventila- tion slots frequently with dry and oil-free compressed air, and connect a residual current device (RCD) on the line side. If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the FEIN customer service centre. Vibration Classification of FEIN application tools according to vibration class Weighted acceleration* VC0 < 2.5 m/s

• These values are based on a work cycle consisting of no-load and full-load operation of the same duration.For information on the vibration class assigned to the application tool, please see the enclosed data sheet 3 41 30 443 06 0. OBJ_BUCH-0000000243-001.book Page 18 Monday, December 14, 2015 1:12 PM19

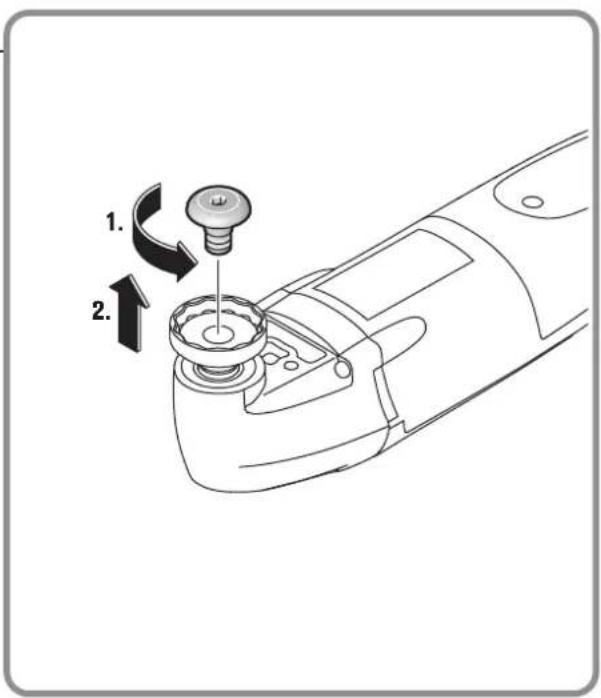

The current spare parts list for this power tool can be found in the Internet at www.fein.com. FMT250SL (**): For storage of the power tool, remove the application tool and screw the clamping bolt in to the stop. If required, you can change the following parts yourself: Clamping bolt (FMT250SL (**)), application tools Warranty and liability. The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer’s warranty declaration. The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual. Declaration of conformity. FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual. Technical documents at: C. & E. Fein GmbH, C-DB_IA, D-73529 Schwäbisch Gmünd Environmental protection, disposal. Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. OBJ_BUCH-0000000243-001.book Page 19 Monday, December 14, 2015 1:12 PM20

, rpm, r/min /min Gemeten trillingsgetal ° ° Trillingshoek OBJ_BUCH-0000000243-001.book Page 28 Monday, December 14, 2015 1:12 PM29

OBJ_BUCH-0000000243-001.book Page 55 Monday, December 14, 2015 1:12 PM56

OBJ_BUCH-0000000243-001.book Page 94 Monday, December 14, 2015 1:12 PM95

OBJ_BUCH-0000000243-001.book Page 98 Monday, December 14, 2015 1:12 PM99

OBJ_BUCH-0000000243-001.book Page 100 Monday, December 14, 2015 1:12 PM101

OBJ_BUCH-0000000243-001.book Page 102 Monday, December 14, 2015 1:12 PM103

OBJ_BUCH-0000000243-001.book Page 107 Monday, December 14, 2015 1:12 PM108

OBJ_BUCH-0000000243-001.book Page 114 Monday, December 14, 2015 1:12 PM115

OBJ_BUCH-0000000243-001.book Page 116 Monday, December 14, 2015 1:12 PM117 zh (CM)

OBJ_BUCH-0000000243-001.book Page 119 Monday, December 14, 2015 1:12 PM120 zh (CK)

OBJ_BUCH-0000000243-001.book Page 122 Monday, December 14, 2015 1:12 PM123

OBJ_BUCH-0000000243-001.book Page 133 Monday, December 14, 2015 1:12 PM134

kg kg EPTA-Procedure- 01 OBJ_BUCH-0000000243-001.book Page 134 Monday, December 14, 2015 1:12 PM135

OBJ_BUCH-0000000243-001.book Page 135 Monday, December 14, 2015 1:12 PM136

- 3 41 30 443 06 0. OBJ_BUCH-0000000243-001.book Page 136 Monday, December 14, 2015 1:12 PM137

OBJ_BUCH-0000000243-001.book Page 137 Monday, December 14, 2015 1:12 PM138
