Product Type	Virtual Reality (VR) Headset for FPV Drone
Brand	DJI
Model	Goggles Racing Edition
Housing Dimensions	195 × 155 × 110 mm
Headband Dimensions (folded)	255 × 205 × 92 mm
Housing Weight	502 g
Headband Weight	500 g
Screen Size	2 × 5 inches (12.7 cm)
Screen Resolution	3840 × 1080 (1920 × 1080 per eye)
Built-in Battery	9440 mAh
Maximum Battery Life	Approximately 6 hours
Charging Time	Approximately 4 hours
Recommended Charger	Input 100-240 V AC, output 5 V/3 A, 9 V/2 A, 12 V/4.5 A
Transmission Frequency	2.4 GHz / 5.8 GHz
Maximum Transmission Range	7 km (FCC 2.4 GHz)
Minimum Latency	50 ms (480p50 mode)
Main Functions	OcuSync video transmission, head tracking, HD video playback, compatible with DJI drones and OcuSync modules
Supported Video Playback Formats	MP4, MOV, MKV (H.264, AAC, AC-3, DTS, MP3)
Maintenance and Cleaning	Clean the lenses with a dry microfiber cloth. Avoid moisture and dust. Store in a dry place.
Safety	Do not touch the aerial unit after use (it gets hot). Follow local regulations for frequencies. Avoid interference.
Spare Parts / Repairability	Replaceable antennas (pagoda, cylindrical, dipole). Built-in battery not user-replaceable.
Operating Temperature	0 °C to 40 °C
Box Contents	DJI Goggles RE headset, headband, 3 antennas (pagoda, cylindrical, dipole), micro USB cable, charger, documentation

Frequently Asked Questions - Goggles Racing Edition DJI

What is the difference between the DJI Goggles Racing Edition and the classic DJI Goggles?

The DJI Goggles Racing Edition are specially designed for FPV drone racing. They offer ultra-low latency (50 ms), extended range (7 km) and are compatible with interchangeable antennas and the OcuSync module. Classic Goggles are more leisure-oriented with higher latency.

How to pair the DJI Goggles RE with a Mavic drone?

On the Mavic drone, press the pairing button. On the goggles, access the shortcut menu (swipe two fingers down) and select Racing Drone (Digital) > Linking Settings. Or press the pairing button on the goggles directly. Make sure the distance is less than 2 m.

Can I use the DJI Goggles RE with a third-party racing drone?

Yes, by using the DJI OcuSync air unit (sold separately). You need to install this module on your drone and pair it with the goggles. Refer to the manual for connections (power, UART, S.Bus).

What is the charging time and battery life of the goggles?

Full charge takes about 4 hours via the micro USB port. Maximum battery life is about 6 hours in normal use.

How to adjust the interpupillary distance on the DJI Goggles RE?

Use the interpupillary distance dial located under the lenses. Turn it until you get a clear and comfortable image for your eyes.

Can the DJI Goggles RE play videos from an SD card?

Yes, insert a micro SD card into the designated slot. Supported formats are MP4, MOV, MKV (H.264 codec, audio AAC, AC-3, DTS, MP3). You can play HD videos in immersion.

How to update the firmware of the DJI Goggles RE?

Connect the goggles to a computer via micro USB and launch DJI Assistant 2. Also make sure the OcuSync air unit is up to date. Download the software from the DJI website.

What to do if the image is blurry or unstable?

Check the interpupillary distance adjustment. Make sure the antennas are correctly installed. In analog transmission, scan frequencies to find a channel without interference. In digital, check distance and obstacles.

Can I use the goggles with prescription glasses?

The DJI Goggles RE are designed to be worn without glasses. If you wear glasses, space is limited. It is recommended to use contact lenses or appropriate corrective lenses (not supplied).

How to clean the lenses of the DJI Goggles RE?

Use a soft, dry microfiber cloth. Avoid chemicals. Gently clean in circular motions to avoid scratching the surface. Protect the lenses from dust by storing the goggles in their case.

USER MANUAL Goggles Racing Edition DJI

DJI Goggles Racing Edition (hereafter abbreviated as "DJI Goggles RE") are equipped with high-performance displays and an ultra-low latency video downlink for use with DJI™ aircraft, giving you a real-time First Person View (FPV) aerial experience. DJI Goggles RE can also be used to display HD videos, bringing you a more immersive high-definition viewing experience. DJI Goggles RE support head tracking, allowing both aircraft and gimbal to be controlled with head movements for a whole new style of flying. *

Precisely engineered for racing, DJ Goggles RE are compatible with DJ's advanced OCUSYNC™ video transmission module, supporting both analog and 2.4/5.8 GHz dual-band digital video signal with up to 7 km transmission distance and latency as low as 50 ms. ** DJ Goggles RE comes with a set of three compatible antennas for different scenarios. The DJ OcuSync Air System comes equipped with an array of powerful features, such as 1280×960 HD transmission, automatic Frequency-Hopping Spread Spectrum (FHSS) transmission, and access to up to 19 selectable transmission channels. This module is compatible with a variety of multi-rotor and fixed-wing aircraft.

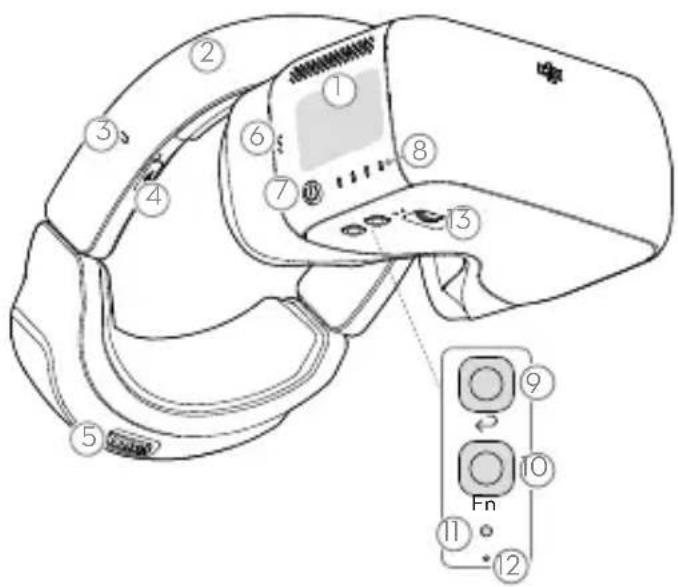

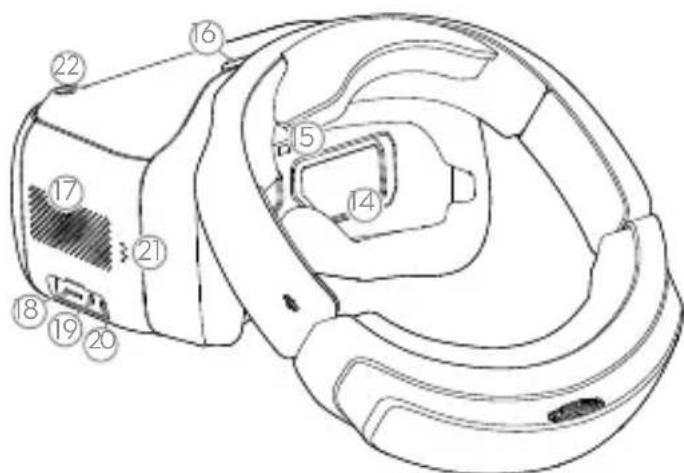

DJI Goggles RE

1. Touch Panel
2. Headband
3. Charging Status Indicator
4. Micro USB Port
5. Headband Knob
6. Speaker
7. Power Button
8. Battery Level Indicators
9. Back Button
10. Function Button
11. Link Button
12. Linking Status Indicator

13. IPD (Interpupillary Distance) Knob

14. Lens

15. Proximity Sensor
16. Headband Buckle
17. Heat Vent
18. Micro SD Card Slot
19. 3.5 mm Audio Port
    20.HDMI Type-D Port
20. Speaker
21. SMA Antenna Port

• Only some aircraft are supported. Please refer to the User Manual for specific models and operations.
  ** The DJI Goggles RE can reach their maximum transmission distance (2.4 GHz, FCC) in a wide open area with no EMI (electromagnetic interference), achieving minimum latency in 480p50 live view mode.

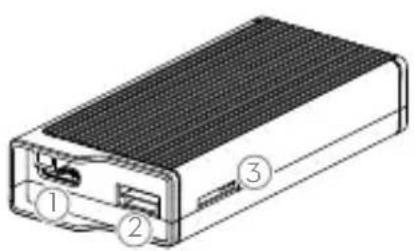

1. Camera Port* Connects to the DJOcuSync Camera.

2. S_BUS Port Connects with the 3-in-1 Cable (Power, S_BUS, UART), and connects to the power, flight controller, and OSD port based on the information below.

RED: Power

BLACK: Power GND

WHITE: UART RX (Connects to OSD TX)

GRAY: UART TX (Connects to OSD RX)

BROWN: Signal GND

YELLOW: S.Bus (Connects to Flight Controller RX)

1. Micro SD Card Slot Insert the Micro SD card to store the recorded video.

2. Note that both this port and the camera connector plug are customized Type-C interfaces, and they are not compatible with third-party equipment.

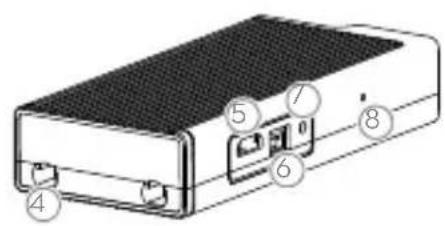

3. Antenna Ports (MMCX) Used to attach the Air Unit antennas.

4. Micro USB Port Connects to your PC for firmware updates through DJI ASSISTANTTM 2. (When the Air Unit is powered on)

5. PPM Port Connects to external devices that can handle PPM signals via the PPM Cable. Set the corresponding channel in DJGoggles RE to control the device remotely with head movements. (coming soon) RED: Power BLACK: Signal GND WHITE: PPM signal

6. Link Button Press this button to link the DJI OcuSync Air Unit with the DJI Goggles RE.

7. Linking Status Indicator Indicates the linking status of the DJI OcuSync Air Unit and the DJI Goggles RE.

Installation and Wearing

艺

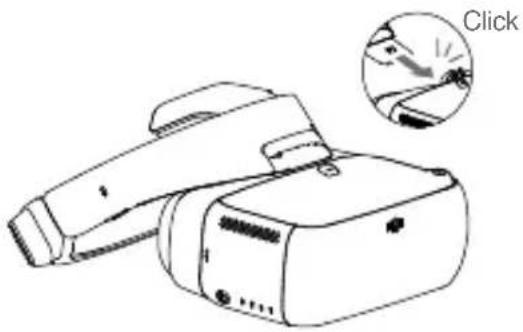

Insert the Headband Buckle into the slot above the DJ Goggles RE body.

Wear the DJ Goggles RE and adjust the Headband.

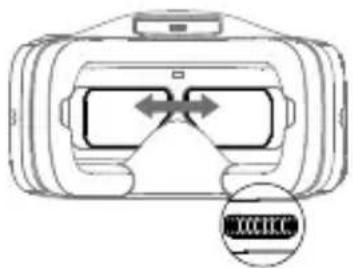

Adjust interpupillary distance.

Flip the DJG Goggles RE body to see outside.

Check the Battery Level and Charging

Press once to check the battery level.

Press once, then again and hold to turn on/off.

Power Outlet 100~240V

USB Charger Micro USB Port

The Battery is fully charged when the Charging Status Indicator or the Battery Level Indicators turn off.

Charge time: 4 hours Maximum run-time: 6 hours

Module Connections

When using with third-party racing drones, you can choose between either analog or digital video transmission. Please follow the instructions below for installation and connection. Skip this section if you plan on using the goggles with a dedicated DJI drone.

Analog Video Transmission

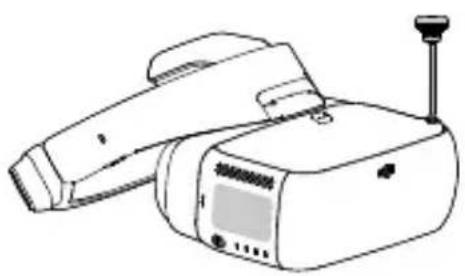

Install the Pagoda antenna (SMA interface) to the SMA Port of DJGoggles RE directly.

The analog frequency band is 5.650 GHz - 5.925 GHz, of which 5.725 GHz - 5.850 GHz are ISM frequency bands. You may use these frequencies without permission but please follow local regulatory procedures when using the other frequency bands.
The Pagoda antenna is an omnidirectional left hand circularly polarized (LHCP) antenna design. It is recommended to use the Pagoda antenna or other left hand circularly polarized antennas for analog transmitters to get the best transmission performance.

In a multi-aircraft flying environment, the adjacent frequency interval should be higher than 25 MHz to avoid the live view of your DJI Goggles RE being affected by a nearby frequency.

芸

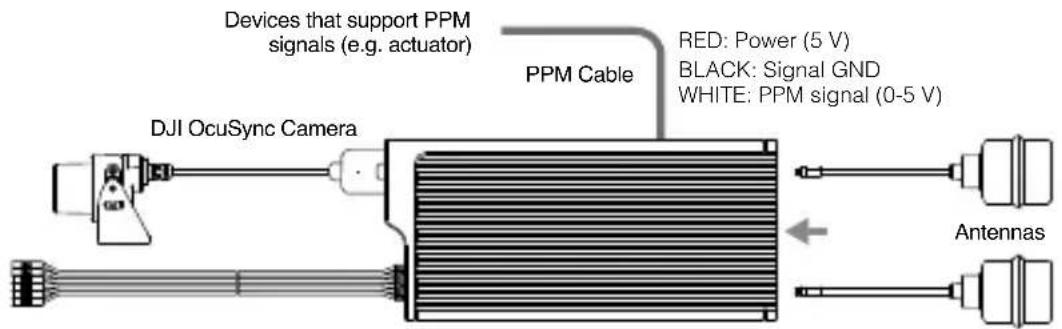

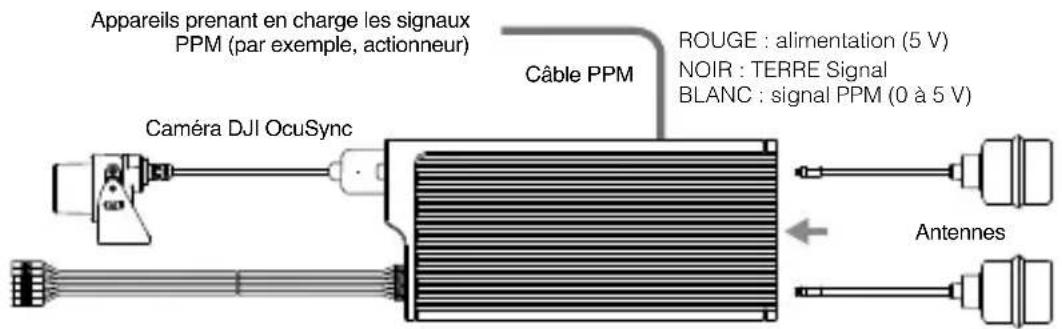

Digital Video Transmission

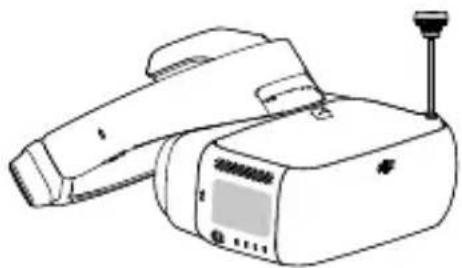

In addition to install the Pagoda antenna (SMA interface) to the SMA Port of the DJ Goggles RE, you will also need to install the DJO CcuSync Air System on a third-party racing drone to work with the goggles. Refer to the illustration below to mount and connect the modules onto your aircraft.

3-in-1 Cable (Power, S.Bus, UART)

RED: Power (9-16.8 V) WHITE: UART RX (Connects to OSD TX, 0-3.3 V)
BLACK: Power GND GRAY: UART TX (Connects to OSD RX, 0-3.3 V)
BROWN: Signal GND YELLOW: S.Bus (Connects to Flight Controller RX, 0-3.3 V)

• The S.Bus Port and the PPM Port on the Air Unit are only used when transmitting the remote control signal. These ports don't need to be connected if video downlink is used only.
• There are up to 19 channels (5.8 GHz: 12 channels, 2.4 GHz: 7 channels) for digital video transmission, and each bandwidth is 10 MHz. You can select the transmission channel manually to avoid interference from other devices.

Please be aware that the Air Unit may become very hot during, or after operation. DO NOT touch it before it has cooled down sufficiently.
- Please avoid using the Air Unit for an extended time when there is no external cooling equipment. Otherwise, it might get overheated and enter into overheat protection mode. Wait for the module to cool down and then you can restart it. It is recommended to have an external fan installed to dissipate heat.
- Place the two antennas on the Air Unit vertically and parallel to each other at least 30mm apart. Please note that you should avoid placing the antennas level with any type of conductor. Also, make sure to keep the bottom of the antenna at least 25mm away from potential conductors like cables, carbon fiber frames, batteries, and metals, etc.
If you are only using the Air Unit to transmit the downstream video signal, DO NOT use the same frequency band as the upstream control signal to avoid interference.

Antenna Description
Pagoda Antenna	5.8 GHz single frequency circular polarization omnidirectional, small size, recommended for racing. Do not use this antenna when using the 2.4 GHz frequency band.
Cylindrical Antenna	Dual-frequency circular polarization omnidirectional, providing a smooth video transmission experience.
Dipole Antenna	Dual-frequency linear polarization omnidirectional, suitable for close-up flight.

After familiarizing yourself with the digital video transmission, you can connect the trainer port of a third-party remote controller and the audio port on the DJGoggles RE through the trainer cable to transmit the control signal to the racing drone.

Activation and Connection

If you do not have a MAVIC™ series aircraft, please download the latest DJI Assistant 2 to activate them.*

When the DJI OcuSync Air Unit is powered on, connect it to your PC and run DJI Assistant 2 to activate it.*

• Ensure to update both the DJI Goggles RE and the Air Unit to the latest version after activation for the best performance.

Ensure all devices are powered on and that the aircraft is linked with the remote controller. Make sure both are updated to their latest firmware versions.

MAVIC Series

OCUSYNC

Press the Link Buttons on the Mavic aircraft and DJGoggles RE, or enter Tools > Settings > Linking Settings to connect.

Activate with

DJI GO™ 4 App

Please update the app first. DJI Assistant 2 can also be used for activation.

INSPIRETM 2 PHANTOMTM 4 Series SPARKTM

Micro USB cable

** Prepare an OTG cable and connect it to the Micro USB port of the remote controller.

INSPIRE Series
PHANTOM 4 PRO+
PHANTOM 4 ADVANCED+

HDMI cable

Live view only.

Video Play Device

HDMI cable

Activate with DJI Assistant 2

Download: www.dji.com/dji-goggles-re

DJI Assistant 2 supports Windows 7 (or later) or OS X 10.11 (or later).

Connect DJGoggles RE to your PC with Micro USB cable, then run DJI Assistant 2 to activate.

The following steps show how to link the goggles with third-party racing drones:

Analog Video Transmission

Power on the DJI Goggles RE, swipe downward with two fingers on the touch panel to enter the shortcut menu and select Racing Drone (Analog) > Frequency Scanning to search for the frequency you need.

Digital Video Transmission

1. Power on the DJI OcuSync Air Unit and press the link button on the air unit with an appropriate tool when the linking status indicator is solid green. The indicator will turn solid red when the air unit is waiting for linking.
2. Power on the DJ Goggles RE, then directly press the link button with an appropriate tool in the main menu, or just swipe downward with two fingers on the touch panel to enter the shortcut menu and select Racing Drone (Digital) > Linking Settings.
3. Make sure the distance between the googles and the Air Unit is within 2m . Both the two linking status indicators will turn solid green when successfully linked, and the video will display normally.

Controls

艺

Single Finger Touch / 5D Button*

• Swipe to scroll on the menu
  Tap to confirm

Two Fingers Touch

• Swipe forward/backward to unlock/lock the touch panel
• Swipe upward/downward to exit/enter the shortcut menu

Back Button / C2 Button*

Press to return to the previous menu, or exit the current Intelligent Flight Mode.

Function Button / C1 Button*

DJI aircraft: Press to display the cursor, then swipe forward/backward with one finger to zoom in or zoom out. Move your head then tap the touch panel to define the focus point.

Other aircraft: Press to start/stop video recording (digital video transmission only).

• When connected to Mavic series aircraft, the 5D, C1, and C2 buttons on the remote controller will be used to control the DJI Goggles RE, and their original functions will be disabled.

Somatic Control

DJI Goggles RE support head tracking, allowing aircraft and gimbal to be controlled using head movements. Multi Intelligent Flight Modes are also supported.

Only supports:

Mavic Series

Spark

Phantom 4 Series

Inspire 2

Specifications

DJI Goggles RE

Weight (Typical) DJGoggles RE Body: 502 g; Headband: 500 g

Dimensions DJGoggles RE Body: 195× 155× 110mm

Headband (folded): 255 × 205 × 92 ~mm

Screen Size 5-inch × 2

Screen Resolution 3840 × 1080 (single screen: 1920 × 1080 )

Communication Frequency 2.4 GHz / 5.8 GHz

Transmitter Power (EIRP) 2.4 GHz; 25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC)

5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 18.5 dBm (SRRC)

Live View Modes 1080p30, 720p60, 720p30

Video Format MP4 (H.264)

Supported Video Play Format MP4, MOV, MKV (Video format: H264;

Audio format: AAC-LC, AAC-HE, AC-3, DTS, MP3)

Battery Capacity 9440 mAh

Operating Temperature Range 32^ to 104^ F (0^ to 40^ C

Charger Input: 100-240 VAC, 50 / 60Hz 0.5 A

Output: 5 V

3A/9V 2A/12V 1.5A

DJI OcuSync Air System

Weight Air Unit: 43.7 g; Camera (cable included): 18.2 g

Pagoda Antenna: 9.4 g; Cylindrical Antenna: 9.4 g

Dipole Antenna: 4.2 g

Dimensions Air Unit: 72 × 33 × 14 ~mm

Camera: 29.4 × 28.2 × 22.6 ~mm

Communication Frequency 2.4 GHz / 5.8 GHz

Transmitter Power (EIRP) 2.4 GHz; 22.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC)

5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 25.5 dBm (SRRC)

Live View Modes and Min. Latency 960p50: 70 ms; 720p60: 60 ms; 480p50: 50 ms

Max. Transmission Distance 2.4 GHz: 7 km (FCC); 4 km (CE); 4 km (SRRC)

5.8 GHz: 4 km (FCC); 0.7 km (CE); 4 km (SRRC)

Recommended Frequency Band FCC: 5.8 GHz; CE: 2.4 GHz; SRRC: 5.8 GHz

Video Format MP4 (MPEG4)

I/O Interface S.Bus, Micro USB, PPM, UART, MMCX, Micro SD card slot

Supported Flight Control System F3, F4, KISS, NAZE

Supported Remote Controller X9D (Frsky), DEVO 10 (Walkera), T8FG (Futaba),

T14SG (Futaba), WTF09sII (WFLY), AT9S (RadioLink)

Operating Temperature Range 32^ to 104^ F (0^ to 40^ C

Input Power 9-16.8 V (3S-4S)

Camera Sensor: 1/3'' CMOS; Effective pixels: 1.2M

Lens: 2.65 mm, f/2.0

Lens Group: 6G + IR

Shutter: Global shutter

ISO:100-3200

FOV: 148^ (D); 111^ (H); 79.5^ (V)

认识 DJIGoggles竞速版

*日月基一
** The DJ Goggles RE是前机吉关（EMI）i不有默电的在日志用，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大，越大

1. 卜默拉托贝

DJI OcuSync kAmeLae eneelhniLd.

2.S.Bus 旦

aRae 3-in-1 (T, S.Bus, UART)ro enegehgoen, Bie HKTto Rre fOSD foet e enegehni.

凿

鍾是：

``` hello: UART RX(OSD TX)

HH:UARTTX(OSD RX)

韩朝：神启GND

NotarLck: S.Bus(1)

1. Micro SD 卡連 合用

DAIeAnTeNauuTnAaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHuaHUA

DJI Goggles RE of Oo ToTt t

일상회고목일al

Maner ern be IteTeIeT HeiHsiSiO. DJ Assistant 2D chelEChHaHs Hae Taohang houh

INSPIRE™ 2
PHANTOM™ 4 | | Ze
SPARK™ **

Micro USB 凭信

**OTG 凭伊果将中比他主中其 Micro USB 托电用

INSPIRE | | |
PHANTOM 4 PRO+
PHANTOM 4 ADVANCED+

HDMI 击伊将
丝日

同

```bash gencounts /C1 *

5.8GHz: 25.5dBm(FCC), 12.5dBm(CE), 18.5dBm(SRRC)

1080p30,720p60,720p30

通皂增MP4(H.264)

JW, MOV, MKV(通向性：H264

○DIOIHOFIG: AAC-LC, AAC-HE, AC-3, DTS, MP3)

[BaTe] 9440mAh

秋通运部 账户 0^ 40^ C (32°~104°F)

充值机 100~240VAC,50/60Hz,0.5A

舍勒：5V

3A/9V 2A/12V 15A

DJI OcuSync 电贝

用記 [E] 43.7g, [K] 18.2g

和上daAnTeN:9.4g,，

DaiIeJIeJIeJIaN4: 4.2g

3.3.1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.

Camera: 29.4 × 28.2 × 22.6 ~mm

通信季卡2.4GHz/5.8GHz

通心肌 2.4GHz:22.5dBm(FCC),18.5dBm(CE),19dBm(SRRC)

5.8GHz: 25.5dBm(FCC), 12.5dBm(CE), 25.5dBm(SRRC)

[1] 960p50:70ms, 720p60:60ms, 480p50:50ms

值 2.4GHz:7km(FCC),4km(CE),4km(SRRC)

5.8GHz: 4km(FCC), 0.7km(CE), 4km(SRRC)

韩景峰孙和永 大厦 FCC:5.8GHz,CE:2.4GHz,SRRC:5.8GHz

通皂皂MP4(MPEG4)

I/O I nter TpeHs S.Bus, Micro USB, PPM, UART, MMCX, Micro SD Kthd 吳吴

JIJI F3, F4, KISS, NAZE

Jrwnn nn X9D(Frsky), DEVO 10(Walkera), T8FG(Futaba),

T14SG(Futaba), WTF09sII(WFLY), AT9S(RadioLink)

0^ 40^ C(32^ 104^ F)

19~16.8V(3S~4S)

卡那拉 1/3日CMOS， 同

Lentz: 2.65mm, f/2.0

Lenz 6G+IR

SerTo:glRoIeBSeTeR

ISO:100~3200

FOV: 148^(D) , 111^(H) , 79.5^(V)

DJI Goggles Racing Edition

Control remoto compatible X9D (Frsky), DEVO 10 (Walkera), T8FG (Futaba),

T14SG (Futaba), WTF09sII (WFLY), AT9S (RadioLink)

Rango de temperatas de funciona 0 a 40^ (32 a 104^ )

MARRON: TERRE Signal

Cable 3-en-1 (alimentation, S.Bus, UART)

Transmission video analogue

Transmission video analogica

Transmission video analogica

supportato X9D (Frsky), DEVO 10 (Walkera), T8FG (Futaba),

T14SG (Futaba), WTF09sII (WFLY), AT9S (RadioLink)

Camera Sensor: 1/3 CMOS, effective pixels: 1.2M

Lens: 2,65 mm, f/2.0

Lensgroep: 6G + IR

Sluiter: Global shutter

ISO:100-3200

Geichtsveld: 148^ (D); 111^ (H); 79.5^ (V)

DJI Goggles Racing Edition

Controle remotocompativel X9D (Frsky), DEVO 10 (Walkera), T8FG (Futaba),

T14SG (Futaba), WTF09sII (WFLY), AT9S (RadioLink)

Faixa de temperatura operacional 32^ a 104^ F (0^ a 40^ C

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

If you have any questions about this document, please contact DJI by sending a message to [e-mail].
