Sani 400 WiFi - Heating Eurom - Free user manual and instructions

Technical Specifications	Electric heating, 400 W power, WiFi operation, built-in thermostat.
Usage	Ideal for supplementary heating in living spaces, offices, or workshops.
Maintenance and Repair	Regular cleaning of the grille and filters, checking electrical connections.
Safety	Overheat protection, automatic shut-off in case of tipping.
General Information	Compatible with remote control apps, easy installation, compact design.

Frequently Asked Questions - Sani 400 WiFi Eurom

How do I connect the Eurom Sani 400 WiFi to my Wi-Fi network?

To connect the Eurom Sani 400 WiFi to your Wi-Fi network, download the Eurom app on your smartphone, turn on the heater, then follow the on-screen instructions to connect the device to your network.

Why won't the heater turn on?

Check if the device is properly plugged into a working outlet. Also, make sure the thermostat is set to a temperature higher than the ambient temperature.

How do I set the temperature on the Eurom Sani 400 WiFi?

You can set the temperature directly on the device using the buttons or via the Eurom app on your smartphone after connecting to the heater.

The heater is making a strange noise. What should I do?

A slight noise can be normal during operation. However, if the noise is loud or unusual, turn off the device and contact customer service for assistance.

How do I reset the Eurom Sani 400 WiFi?

To reset the device, press and hold the reset button located on the back of the device for about 5 seconds until the indicator light starts flashing.

Can I use the Eurom Sani 400 WiFi in a bathroom?

The Eurom Sani 400 WiFi is designed for use in dry spaces. Avoid using it in wet areas such as bathrooms for safety reasons.

How do I update the software of the Eurom Sani 400 WiFi?

Software updates can be performed via the Eurom app. Make sure your device is connected to the internet and follow the instructions in the app.

Does the heater turn off automatically?

Yes, the Eurom Sani 400 WiFi has an automatic shut-off function for safety reasons. It will turn off if the device temperature becomes too high.

What is the power of the Eurom Sani 400 WiFi?

The Eurom Sani 400 WiFi has a power of 400 watts, making it suitable for medium-sized rooms.

Where can I find the user manual for the Eurom Sani 400 WiFi?

The user manual is available on the Eurom website in the support section or in the Eurom app under "Documents."

USER MANUAL Sani 400 WiFi Eurom

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning. To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment. Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Sani 400!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Symbol Explanation

Do not cover the device

Technical data

Type		Sani 400 wifi
Supply Voltage	V / Hz	220-240 / 50
Capacity	Watt	400
Protection class		IP24
Thermostat		+
Dimensions panel	cm	85 x 46,5 x 0,75(10)
Dimensions total	cm	84,5 x 48 x 13
Weight	kg	8,1

Is it possible to have an electric heater in the bathroom?

Yes, it is safe if you adhere to the following 3 rules when installing the Eurom bathroom heater.

Rule 1

The Eurom bathroom heater must be securely mounted in a fixed position. A movable heater may never be used in the bathroom. No matter what classification or IP value a movable heater has: a movable stove never suitable for the bathroom.

Rule 2

When choosing a permanent location for the Eurom bathroom heater, you should keep in mind that the controls of the bathroom heater may never be operated by a person in the bath or under the shower. So always keep sufficient distance between the bathroom heater and the bath and shower room.

Rule 3

The Eurom bathroom heater may be mounted in zone 3 only.

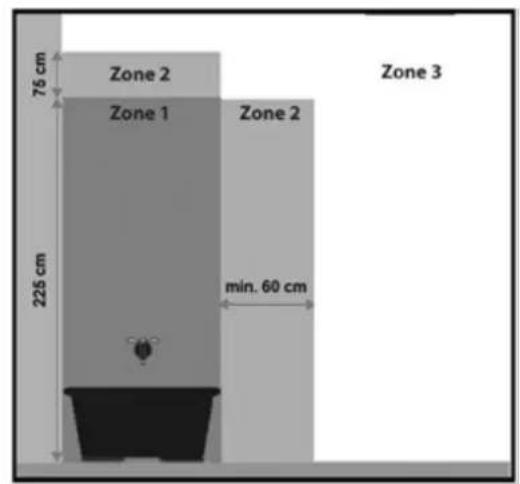

A bathroom has a zone layout with 4 different zones (see the drawing).

Zone 0 The space in the bath and in the shower tray.

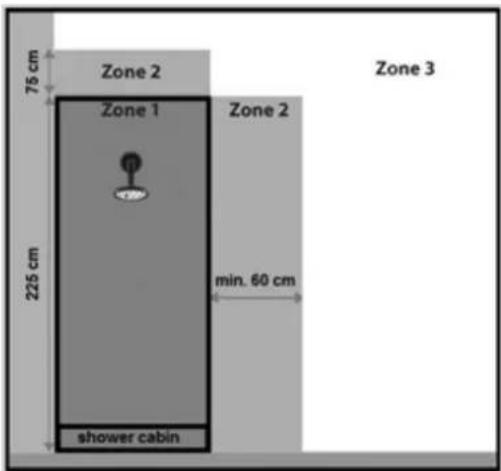

Zone 1 option 1: with shower cubicle / with bath-wall partition

The space above the bath and above the shower tray (up to a max. of 225cm from the ground)

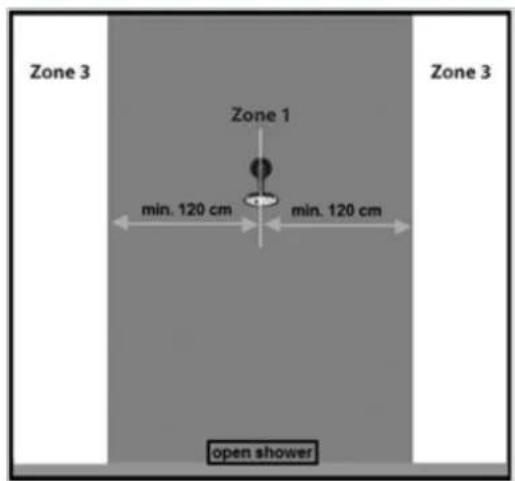

option 2: No shower cubicle / No bath-wall partition (a curtain is not a partition!)

The space above the bath and above the shower tray (up to a max. of 225~cm from the ground) plus the space next to the bath and shower tray with a radius of 120~cm . Calculated from the edge of the bath and the edge of the shower tray.

Zone 2 option 1: with shower cubicle / with bath-wall partition

The space next to the bath and shower tray with a radius of 60 cm.

Calculated from the edge of the bath and the edge of the shower tray.

option 2: no shower cubicle / no bath-wall partition (a curtain is not a partition!)

In this situation, there is no zone 2

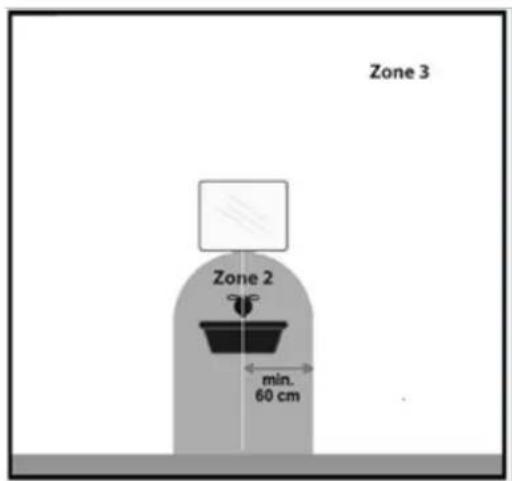

The 60 cm space around the washbasin tap

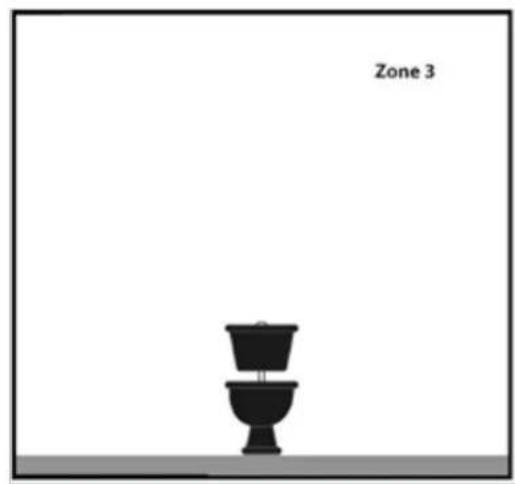

Zone 3- Other space

Warning electric cables

Safety warning - general

1. Read the user instructions carefully and completely before using (and installing) this device. Keep the instruction leaflet somewhere safe so that you can consult it and pass it on in future.
2. Before use, check your new device (including cable and plug) for any visible damage. Never use a damaged device but take it back to the supplier for a replacement.
3. In the event of incorrect usage or installation, there is a risk of electric shocks and/or a fire hazard.

Warnings device position

1. Do not use the device before it has been fully installed as set out in the user instructions. Never use the device standing up or leaning against something, or similar. Never insert the plug into the socket before the device has been correctly installed at the appropriate place.
2. When installing, the following minimum distances should be considered:

Minimum distance to ceiling: 50~cm

Minimum distance to side walls: 20 cm

Minimum distance to the ground: 10 cm

Minimum distance to the front: 50 cm

1. The air around the device must be able to circulate freely. Never install it too close to large objects and never under a shelf, cupboard, curtains or similar. The minimum distances from large objects such as shelves, cupboards, etc. to the top, sides and underneath of the device are equal to the aforementioned minimum distances to ceilings, side walls and the ground, respectively.
2. This device is, in principle, suitable for installation in damp spaces such as bathrooms, wash rooms etc. (IP24). The device may only be used in the bathroom if it is installed at a fixed point and the device is at least 60 centimetres from water-points and water reservoirs (tap, bath, shower, toilet, sink, swimming pool, etc.). Make sure that the device cannot fall into water and that it cannot be penetrated by water. If the device does get wet make sure you remove the plug from the socket! Do not use a device that is wet inside but take it to be repaired. Never immerse the device, cable

or plug in water or any other fluid and never touch device with wet hands.

1. If the device is installed in a bathroom, it must be installed such that the switches and other operating components cannot be touched by a person in the bath or shower. the ground, whether secured to the wall or ceiling.
2. The wall to which the device is secured and the ceiling and walls within 1 metre of the device must not be made of flammable materials. Materials must be resistant to temperatures of at least 125^ without burning, melting, deforming or bursting into flames. Check regularly to ensure that the wall and ceiling are not overheating; this could be dangerous!
3. Only use the device if it has been secured properly. Make sure that you always use attachment materials that are suitable for the surface you are working with; consult an expert if required.
4. With wall installation: never block the space between the device and the wall.
5. Never install this device behind a door or by an open window, where rain could get in.
6. If this device is connected directly to your electrical installation, it must be installed by a specialist, taking into account the valid regulations/legislation.
7. Do not place the device near, under or facing an electrical socket and not in the vicinity of an open fire or heat source.
8. Do not use the device nearby or facing furniture, curtains, paper or other flammable materials. Keep at least 1 metre from device!
9. Only use the towel rails to dry towels and the like. Never hang towels or the like directly on the heating panel. Ensure that the device is not completely covered.
10. Do not use the heater outdoors or in areas that are smaller than 5 m³.
11. The device contains hot and/or glowing and sparking components. Do not, therefore, use where fuels, paint, flammable fluids and/or gases are stored. Do not use the device in an environment that poses a fire risk, e.g. near gas tanks, gas pipes or aerosols. This is an explosion and fire risk!

Warnings - use

1. Do not use additions/accessories on the device that have not been supplied or approved by the manufacturer.

2. Only use the device for its intended purpose and in the manner set out in this instruction leaflet.

3. Some parts of this device will get very hot and could cause burns. You must pay particular attention to children, vulnerable persons and pets that are present near the device. Never leave them alone with a working device.
4. Never cover or block the device; it will overheat and this could lead to a fire risk. Never hang or place objects such as, blankets, cushions, paper, etc. on the device. The minimum distance of 1 metre between the device and flammable materials must always be applied. Do not let anything lean against the device!
5. Only use the towel rails to dry towels and the like. Never hang towels or the like directly on the heating panel. Ensure that the device is not completely covered.
6. The device is exclusively intended for normal, household usage. Only use for providing heat in your home.
7. The connection voltage and frequency, as given on the device, must correspond to that of the socket to be used. The electrical socket to be used must be an earthed connection. The electrical installation must be protected via a 30mA earth leakage circuit breaker. The electrical socket that you are using must be to hand at all times in order to be able to remove the plug from the socket in the event of an emergency.
8. To avoid overloading and/or fuses being blown, do not use any other equipment on the same socket or electrical group as the one used for the device.
9. Unroll the electric cable for the device fully before inserting the plug into the socket and ensure that the electrical cable does not come into contact with the fireplace or get hot. Do not run the electrical cable under carpet, cover with mats, runners or similar and do not place in areas that are walked on frequently. Ensure that it cannot be stepped on and that no furniture is placed on top of it. Do not bend the electrical cable around sharp corners and do not roll up too tightly after use! Prevent the electrical cable coming into contact with oil, solvents and sharp objects. Check the cable and plug regularly for damage. Do not bend or pinch the electrical cable and do not wind it around the device; this could damage the insulation!
10. The use of an extension cable is not advised as this can lead to overheating and fire. If the use of an extension cable is

unavoidable, make sure that it is not damaged and that it is an approved extension cable with a minimum diameter of 3 × 1.5 mm^2 and a minimum permitted capacity of 500 Watt. Always fully extend the cable in order to prevent overheating

1. Only connect the device to a fixed socket. Do not use multi-plug adapters or similar.
2. During use, the plug may begin to feel warm; this is normal. If it's really warm, there may be something wrong with the socket. Please contact your electrician.
3. Always turn off the device and remove the plug from the power socket: Never turn the device off using the plug!
4. Prevent foreign objects entering the radiation/ventilation or outlet openings on the device. This may cause electric shock, fire or damage.
5. Never leave a working device unattended but switch off and then remove the plug from the socket. Always remove the plug from the socket when the unit is not in use! Always remove plug by pulling on the plug itself; never pull on the electrical cable!
6. Apart from manual use, this device can also be operated via an app or timer. However you operate it, make sure that the safety guidelines are taken into account at all times! Do not operate the device with an additional time clock, timer, volume control or any other device that automatically turns on the device.
7. This device gets hot during use. Never touch the device when it is on or shortly thereafter; it could burn you.
8. Never operate the device with wet hands.

Who can use the device?

1. Children younger than 3 must be kept out of the vicinity of the device unless they are continuously supervised.
2. Children between the ages of 3 and 8 may only switch the device on or off if it is set up or installed at its usual location and they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards. Children between the ages of 3 and 8 may not insert the plug into the socket, adjust the device settings or clean or maintain it.

3. This device can only be used by children from the age of 8 and elderly persons and persons with diminished physical or mental capacities or a lack of experience and expertise if they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards.

4. Children may not clean or maintain the device without supervision.

5. Children may not play with the device.

Warnings for maintenance

1. Keep the device clean. Dust, dirt and/or deposits in the device often lead to overheating. Ensure that this type of build-up is regularly removed.

2. Always switch the device off, remove plug from socket and let the device cool down before you:

3. clean the device

4. users - maintain the device.

5. touch or move the device.

6. Do not use the device if the glass panel is damaged/broken.

7. Never switch the device on if you have noticed damage to the device itself, the cable or plug or if it does not work properly, makes strange noises, smells odd or you can see smoke, or if it has fallen or shows any other signs of damage. Remove the plug from the socket immediately. Take the entire device back to your supplier or a recognised electrician to be checked and/or repaired. Always ask for original parts to be used.
8. The device may only be opened and/or repaired by a competent and qualified person. Do not carry our your own repairs as this could be dangerous! Repairs carried out by unauthorised persons or changes made to the device could damage the dust/waterproof capacity of the device and will nullify the guarantee and the manufacturer's liability.
9. If the electrical cable is damaged, it must be replaced by the manufacturer, their service department or somebody with similar qualifications in order to prevent creating a hazard.

Failing to adhere to points 3,4,5,6 could lead to damage, fire and/or personal injury. They will invalidate the guarantee and the supplier, importer and/or manufacturer shall not be liable for the consequences.

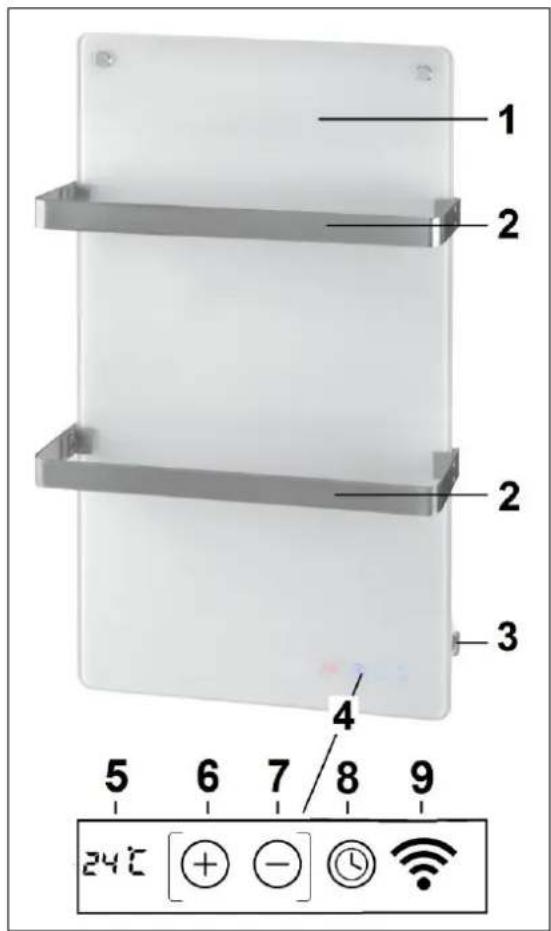

Description and Installation

1. Panel
2. Towel rail
3. ON/OFF switch with control light
4. Control panel with LCD-screen
5. Temperature display
6. • Button: 'temperature higher'
7. • Button: 'temperature lower'
8. Timer setting button
9. Wi-fi connection light

Remove all packaging material and keep out of reach of children. After removing packaging, check the appliance for damage or other signs that could indicate a fault/defect/malfunction. In case of doubt, do not use the appliance, but contact your vendor for inspection or replacement.

• Slide the towel rail over both sides of the panel, secure them to rear of the panel with the 4 × 2 nuts.
• Choose a solid, flat and completely vertical wall made of non-flammable and non-melting material on which to mount the heater (i.e. no wood, synthetic materials, etc!)
• Select a suitable location for the device taking into account all the aforementioned warnings in this manual.

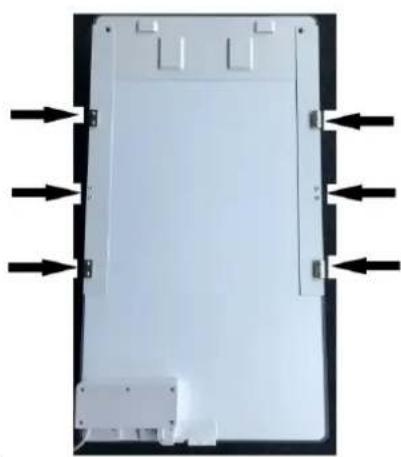

• Place the hanging support against the wall, short side with two brackets at the top, brackets facing forwards. Now mark the location of the 5 screws. Make sure that the top two are exactly horizontal!
• Drill the 5 holes and insert a plug into each.
• Screw the support securely to the wall
• Slide both the channels on the panel (at the top on the back) over the brackets and check to ensure that the heater is horizontal and securely attached.
• Secure panel and support using the nut underneath by screwing the support to the panel.
• Your heater is now ready for use.

Set-up and operation

Make sure the heater is turned off (On/Off switch to O). Now plug into an correctly functioning 220-240V / 50Hz socket.

Turn the heater on by pushing the on/off switch to 'on' (I pushed in). The control light will come on, the display will light up and the ambient temperature will show on the display.

Manual operation

• Pressing on the + or - button will display the set temperature (which will flicker for a few seconds). You can adjust this a degree higher or lower by pressing the + or - button until the desired temperature is set. If the desired temperature is set higher than the ambient temperature, the heater will start to heat. The temperature will be maintained as a result of the heater switching itself on and off.
• Pressing the timer button sets a specific time. The set time will flicker for a few seconds on the temperature display. Every time you press the button, the time will increase by 1 hour, from 0 hours (0H) to 24 hours. Pressing it again will reset it to zero.
• The LCD-screen will extinguish automatically after ± 15 seconds. When you touch the screen between the brackets again, it will light up again.

To switch off, click the ON / OFF-switch to off. The heater switches off. Unplug.

Wi-Fi and app operation

The heater can also be controlled with an app. To do this, the heater must be connected to a Wi-Fi modem.

If you switch on the heater without a WiFi connection to a smartphone, the WiFi connection light will blink. As soon as you make the connection, the light will burn continuously. Then you can set the temperature and timer using your smartphone. In principle, you can connect only a single (1) smartphone, unless you share the connection in the app (share service).

If it is not possible to connect Wi-Fi to the heater, the heater must be reset. You

can reset by pressing the timer button on the heater for 5 seconds. After this, the WiFi symbol starts flashing alternately on the stove quickly or slowly.

Smart Timer

Besides the usual count-down timer, the app also enables you to set a weekly schedule using the Smart Timer. If required, this schedule can run continuously.

Download the Eurom Smart App

• Scan the QR code below or search for 'Eurom Smart' in the App store or Google Play and follow the download instructions.

• The Eurom Smart App will be added.

• For more information about the App see: www.eurom.nl/nl/manuals.

Safety precautions App

Safety and remote operation

Your Eurom heater can be easily operated, via the same WLAN, via a different WLAN, or via a 3G or 4G mobile network. This makes it possible to operate your heater remotely, without your direct supervision. Beware that even when operating the heater remotely, all safety precautions stated in the user manual supplied must be observed. Read and understand these safety precautions and make sure that all safety precautions are taken also with remote operation.

Safety and setting the timer

The Eurom Smart App has a 'Smart Timer' with which you can create a schedule yourself with days and times on which the heater is to automatically switch itself on and off. Any timer data entered into the Eurom Smart App will be stored in the heater. This means that, once you have entered the timer data and the heater loses the connection with the Wi-Fi modem, the heater will still be able to switch itself on and off on your specified times. Storing the timer data in the heater is a safety precaution. Your set on and off times schedule will also work without a Wi-Fi connection. So the heater will not unexpectedly continue heating up if the Wi-Fi connection (temporarily) fails.

The Smart timer data will be stored, even if the heater is switched off or the plug is removed from the socket. The set Smart timer data can only be checked via the App and also only be removed via the App. Bear this in mind when entering the data into the Smart Timer. The Smart Timer data is not visible on the heater. Regularly check in the App whether the entered Smart Timer data are still correct.

You can consult an elaborate Eurom Smart App user manual with the QR code below:

or on the website: http://www.eurom.nl/nl/manuals

Safety features

In case of internal overheating, the overheating safeguard will switch the heater off. This may occur if the heater cannot give off enough heat or if it does not get enough fresh air. As mentioned above, this is generally caused by (partially) covering the heater, installing the heater too close to a wall or something similar. When the heater has cooled down sufficiently, it will in principle start again automatically, however if you do not remove the cause of the cut-off then this will probably be repeated. Regular overheating can give rise to irreparable damage. When the overheating safeguard switches the heater off, set the switch to 'O' (off), unplug and allow the heater to cool down. Remove and/or amend the cause of overheating and reuse the heater as normal. If you cannot find a cause and overheating recurs, stop using the heater, and take it in for inspection/repair.

Cleaning and maintenance

Keep the heater clean. Deposits of dust and dirt in the appliance are a common cause of overheating so these should be removed regularly. Switch off the heater, remove the plug from the socket and allow the heater to cool down before cleaning or carrying out maintenance work.

• Wipe the outside of the heater regularly with a dry or slightly damp cloth. Do not use aggressive soaps, sprays, cleaners or abrasives, waxes, polishes or chemical solutions!
• The heater contains no other parts which need maintenance.

Removal

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-statement

See page 106.

Remerciements

declares the following device in sole responsibility:

Product: Bathroom infrared panel

Brand name: EUROM

Model: Sani 400

Item number: white 350067 / 350098 (Swiss plug)

black 350135 / 350142 (Swiss plug)

Complies with the following harmonization rules:

Low Voltage Directive: LVD 2014/35/EU

Electromagnetic compatibility Directive: EMC 2014/30/EU

Radio equipment Directive: RED 2014/53/EU

Restriction of Hazardous Substances RoHS Directive:2011/65/EU&(EU)2015/863

Framework Directive Ecodesign requirements: ERP 2009/125/EC

Regulation Ecodesign requirements for

Individual room heaters: (EU) 2015/1188

Regulation Ecodesign requirements Electricity

Consumption in standby and off state: 1275/2008/EC

Applied harmonized standards:

EN 60335-2-30:2009+A11:2012

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

EN 62233:2008

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-3:2013+A1

EN IEC 61000-3-2:2019

EN 300328 V 2.2.2:2019

EN 301489-1 V 2.2.3:2019

EN 301489-17 V 3.2.2:2019

EN 62311:2008

Genemuiden, 30-06-2020

W.J. Bakker, alg. Dir.

EUROM

Kokosstraat 20

8281 JC Genemuiden

The Netherlands

[e-mail]

www.eurom.nl

300620
