Floorstand Roundbase - Heating Eurom - Free user manual and instructions

Brand	Eurom
Model	Floorstand Roundbase
Category	Supplemental heating
Product type	Floor-standing radiator
References	334012 (Roundbase), 334029 (Tip-over Roundbase)
Power supply	220-240 V ~ 50/60 Hz
Nominal power	1500-2000 W (estimate)
Total height	Approximately 80 cm
Base diameter	Approximately 35 cm
Weight	Approximately 6 kg
Material	Metal and plastic
Tip-over protection (Tip-over model)	Yes, automatic shut-off in case of tipping
Adjustable thermostat	Yes (via device switch)
Heat levels	Multiple positions (depending on attached device)
Assembly	Foot to assemble with three-part support
Maintenance and cleaning	Dust with a dry, soft cloth
Safety	Tip-over protection (Tip-over model), automatic shut-off
Spare parts	Contact Eurom or authorized distributor
Repairability	Device repairable by an authorized professional
General information	Instructions in multiple languages, keep packaging
Manufacturer	Eurom, Kokosstraat 20, 8281 JC Genemuiden, Netherlands

Frequently Asked Questions - Floorstand Roundbase Eurom

How to assemble the foot of the Eurom Floorstand Roundbase radiator?

Start by screwing the lower part of the support onto the foot using the plate and lock nut. Then, fit the central part and secure it with four screws. Add the upper part with the sliding element, then slide this element upward and lock it with the provided black screw.

What to do if the appliance tips over with the Tip-over model?

The plug equipped with tip-over protection cuts the power. Immediately unplug the appliance, check for damage, set the appliance upright, and plug it back in. Monitor carefully for 15 minutes. If a problem persists, do not use it and have it repaired.

What is the electrical power of this radiator?

The power is not specified in the manual, but for a space heater of this size, it is typically between 1500 and 2000 watts. Check the label on the appliance for the exact value.

Can I use this radiator in a bathroom?

The manual does not mention use in a bathroom. As a precaution, use it only in dry, well-ventilated rooms, away from water.

How to clean the Eurom Floorstand Roundbase radiator?

Unplug the appliance and let it cool down. Clean the exterior with a soft, dry cloth. Do not use water, abrasive products, or solvents.

Does the radiator heat up immediately?

Depending on the type of device attached to the support (oil-filled radiator, convector, etc.), the heating time may vary. Generally, an electric radiator reaches its set temperature within a few minutes.

Is it possible to adjust the temperature?

Yes, the device attached to the support has an adjustable thermostat. Turn the knob to select the desired temperature. The radiator automatically shuts off once that temperature is reached.

What to do if the radiator does not turn on?

First, check that the plug is properly connected and that the power outlet is working. For the Tip-over model, ensure the appliance is upright. If the problem persists, contact an authorized professional.

Can I get spare parts for this model?

Yes, contact Eurom or your dealer to order spare parts. Always keep the manual and packaging to facilitate procedures.

How to store the radiator out of season?

Clean it, let it dry completely, then store it in its original packaging in a dry place, away from dust and humidity.

USER MANUAL Floorstand Roundbase Eurom

Instruction manual (EN) (page 9)

Omvalbeveiling (model met Tip-over)

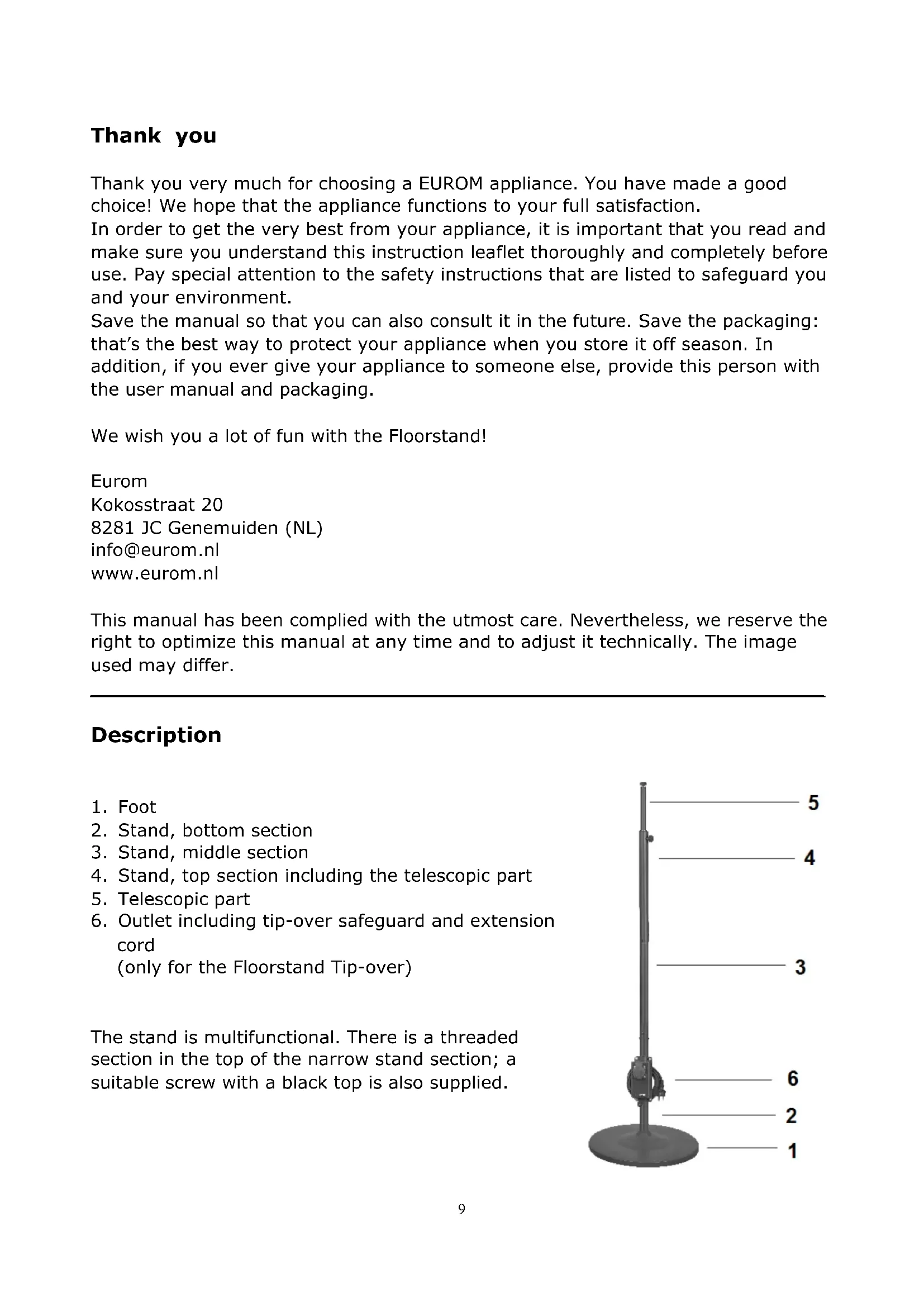

Thank you very much for choosing a EUROM appliance. You have made a good choice! We hope that the appliance functions to your full satisfaction.

In order to get the very best from your appliance, it is important that you read and make sure you understand this instruction leaflet thoroughly and completely before use. Pay special attention to the safety instructions that are listed to safeguard you and your environment.

Save the manual so that you can also consult it in the future. Save the packaging: that's the best way to protect your appliance when you store it off season. In addition, if you ever give your appliance to someone else, provide this person with the user manual and packaging.

We wish you a lot of fun with the Floorstand!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

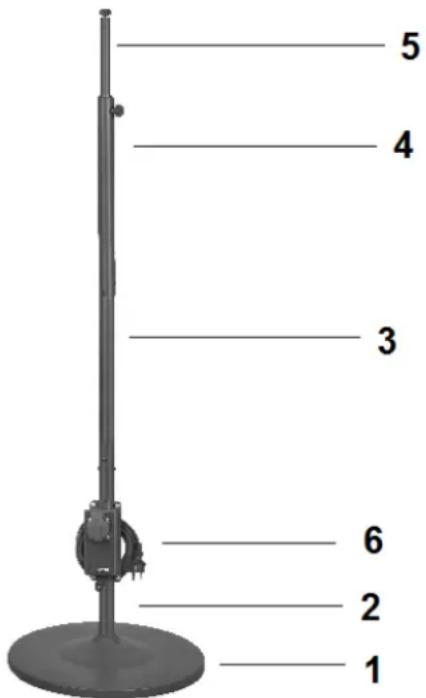

Description

1. Foot
2. Stand, bottom section
3. Stand, middle section
4. Stand, top section including the telescopic part
5. Telescopic part
6. Outlet including tip-over safeguard and extension cord

(only for the Floorstand Tip-over)

The stand is multifunctional. There is a threaded section in the top of the narrow stand section; a suitable screw with a black top is also supplied.

Assembly of the stand

For both models

• Put the bottom section of the stand (including the mounting plate) onto the foot. Invert the foot and screw the bottom section of the stand from the bottom side with the plate and the locking nut. Return the foot to an upright position. Place the protective cover over the connection.
• Push the middle section of the stand into the bottom section, screw-hole to screw-hole. Secure it with four fixing screws. In the same way, secure the top section of the stand (with the adjustable part inside) over the middle section.
• Slide the telescopic part upwards and secure it with the supplied black self-tapping screw.

For the Tip-over model

• Put the outlet including the extension cord onto the bottom section of the stand; the outlet should be at the top. Affix these items securely using the supplied brackets and screws.

For both models

• Affix the appliance to the stand using the supplied locking nut.
• Check that all connections are completely secure and that the appliance is securely positioned before using it. The appliance must be placed firmly and sturdy on an even and completely horizontal surface.

Tip-over safeguard in the Floorstand Tip-over model

The additional outlet is made including a tip-over safeguard. It automatically switches off the appliance in case it tips over in spite of your precautions. In that case, remove the plug from the outlet immediately. Meticulously check the appliance, which is attached to the stand, for damages and put it upright. Never operate a damaged appliance but bring it to your dealer or an approved service point for checking and/or repair. If you cannot find any damage, switch the appliance off, insert the plug into the outlet and put the device on again. Monitor the appliance closely for the first fifteen minutes; if any defects occur, unplug immediately and bring it to your dealer/service point to be repaired.

Removal

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.
