HalfBack 2 - Bike rack Yakima - Free user manual and instructions
Find the device manual for free HalfBack 2 Yakima in PDF.
| Product Type | Rear bike rack (on hatchback/trunk) |
| Brand | Yakima |
| Model | HalfBack 2 |
| Capacity | 2 bikes |
| Product Weight | 9.5 kg (21 lb) |
| Maximum Load per Bike | 15.9 kg (35 lb) |
| Maximum Total Load | 31.75 kg (70 lb) |
| Main Material | Steel and durable plastic |
| Attachment | Top and bottom hooks, adjustable straps |
| Vehicle Compatibility | Trunks, hatchbacks, rear doors (except power or glass hatches without adapter) |
| Features | Foldable and lockable arms, wheel safety strap, adapters available |
| Safety | Check strap tension before each use, do not open trunk with rack installed, do not use on trailer or caravan |
| Maintenance | Clean with cloth, water, and mild soap; replace worn straps |
| Included Accessories | Long safety strap |
| Optional Accessories | Locking cable (8007233), TubeTop (8002531), tie-down strap (8002623), glass hatch adapters (8002612) |
| Restrictions | Not for use with tandem or recumbent bikes, do not install on spoiler, do not go through automatic car wash |
| Manual Pages | 39 pages |
| Available Languages | French, English, Spanish |
Frequently Asked Questions - HalfBack 2 Yakima
User questions about HalfBack 2 Yakima
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Bike rack in PDF format for free! Find your manual HalfBack 2 - Yakima and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HalfBack 2 by Yakima.
USER MANUAL HalfBack 2 Yakima
- The position is relative to the lower frame and will depend on vehicle shape.
Any contact with a spoiler is not acceptable
Lower Frame:
- LOWER SUPPORT FRAME LOCATION IS EXTREMELY IMPORTANT IN SUPPORTING THE LOAD!
A common location is just above the bumper on the bottom edge of the trunk or hatch. - Use area with the greatest support.
- Do not place the lower frame on glass, plastic, or thin metal.
- Many vehicle trunks and liftgates have a large section of poorly supported metal that will dent under weight.
- Do not place HalfBack on vehicle's emblem.

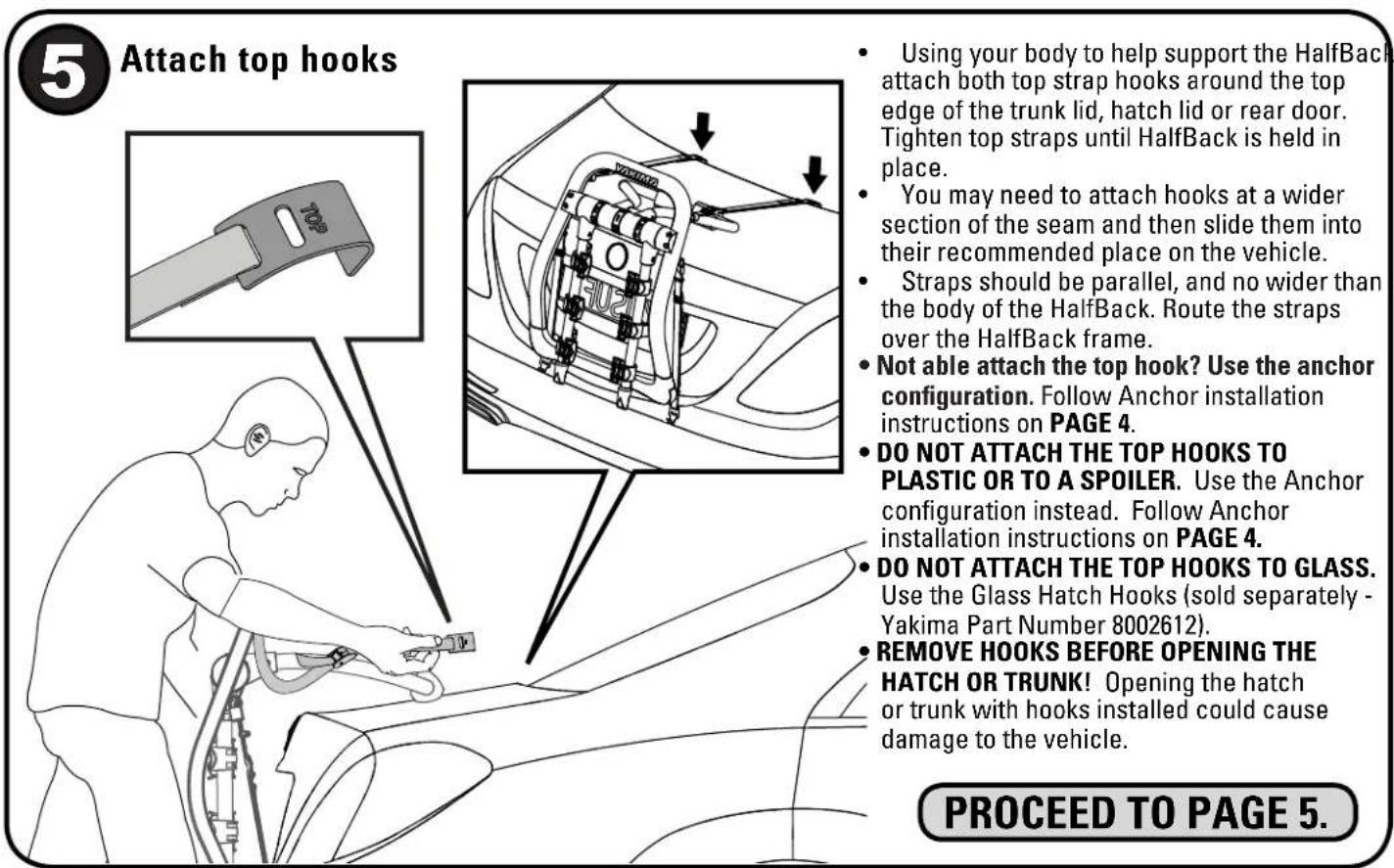

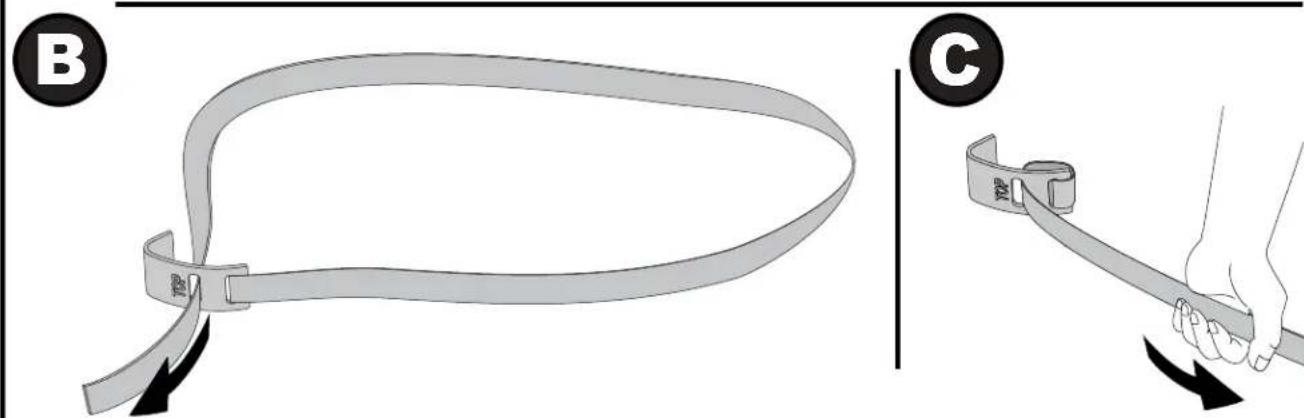

TOP HOOKS: Anchor installation instructions

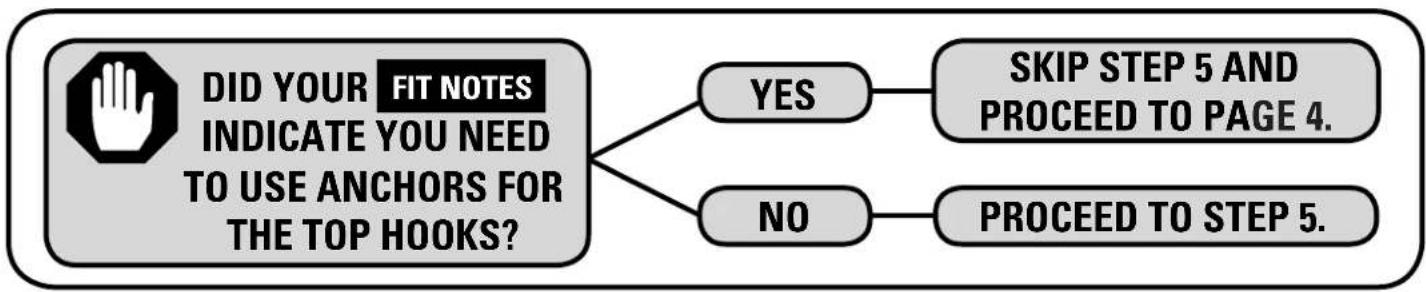

Confirmed your vehicle does not require Anchors? Skip this page.
Make sure the anchor is free from contact between hatch door and vehicle's frame

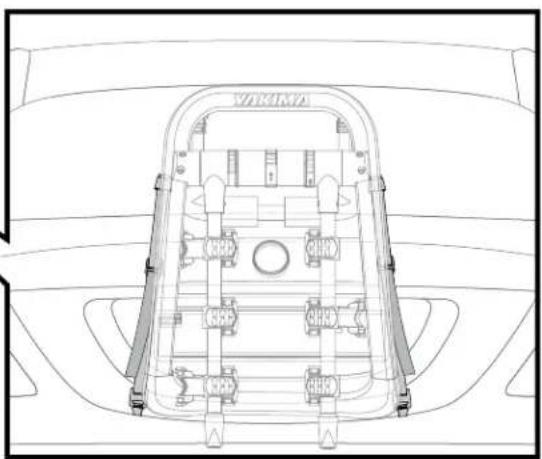

Attach bottom hooks
-
Acceptable attachment points may include the bottom edge of the trunk, hatch lid or rear door. Additionally, the tie-down hooks underneath the vehicle or the metal ledge of the bumper are acceptable. Only attach hooks to areas with sufficient support.
-
You may need to attach hooks at a wider section of the seam and then slide them into their recommended place on the vehicle.
-

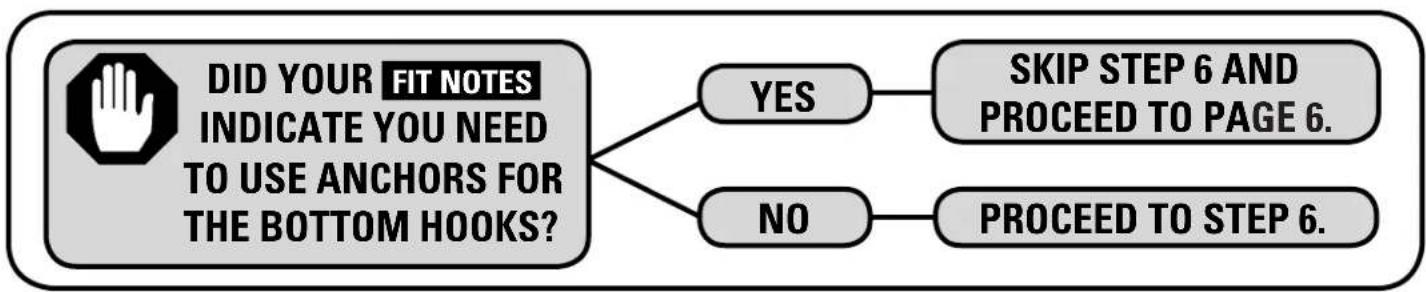

Not able to attach the bottom hooks? Use the Anchor configuration. Follow Anchor installation instructions on page 6.
DO NOT ATTACH THE BOTTOM HOOKS TO PLASTIC OR TO A SPOILER. Use the Anchor configuration instead. Follow Anchor installation instructions on page 6.
DO NOT ATTACH THE BOTTOM HOOKS TO GLASS. Use the Glass Hatch Hooks (sold separately - (Yakima Product Number 8002612).
- REMOVE HOOKS BEFORE OPENING THE HATCH OR TRUNK! Opening the hatch or trunk with hooks installed could cause damage to the vehicle.
PROCEED TO PAGE 7.
BOTTOM HOOKS: Anchor installation instructions
Confirmed your vehicle does not require Anchors? Skip this page.

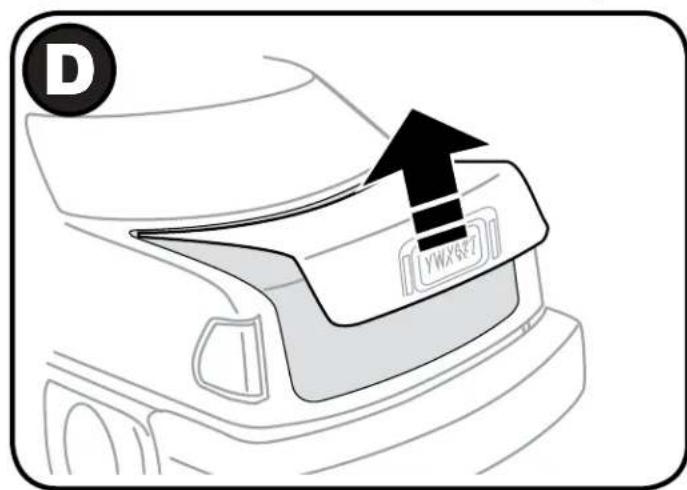

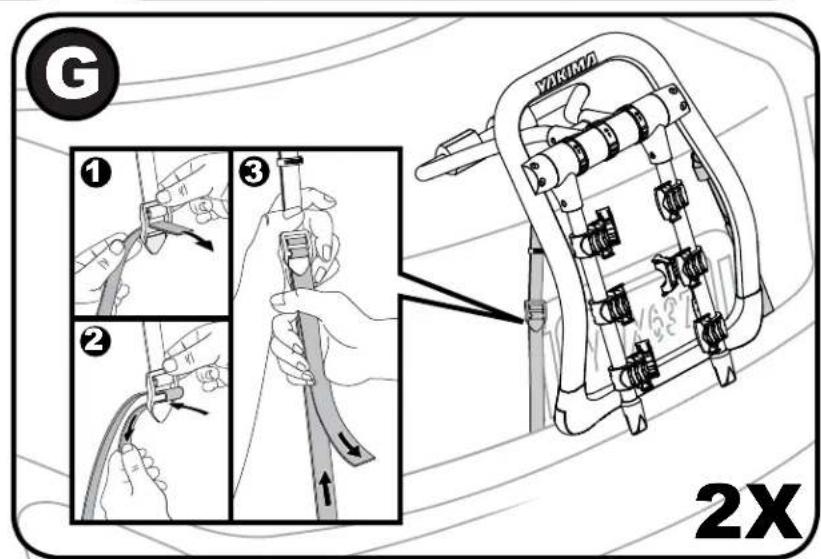

REMOVE THE CARRIER FROM THE CAR.
- Grasp the HalfBack and test that it's securely fastened to the vehicle by trying to move it in all directions. HALFBACK SHOULD NOT MOVE!
Any Contact with a spoiler is unacceptable.
LOADING · CHARGEMENT · CARGA
Raise the support arms

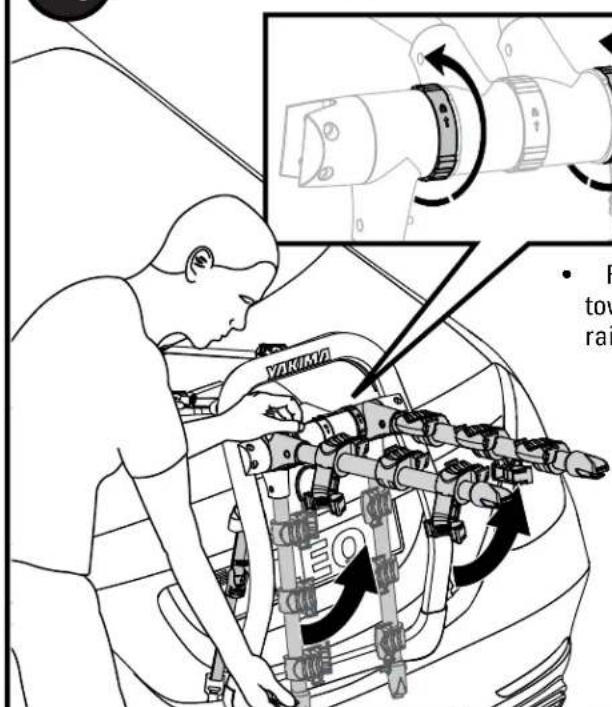

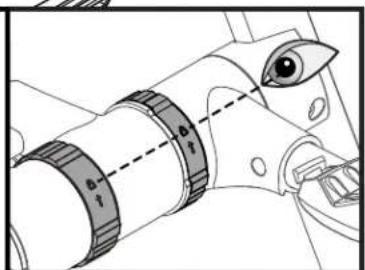

- Rotate the left and right dials toward the unlock icon and raise the support arms.

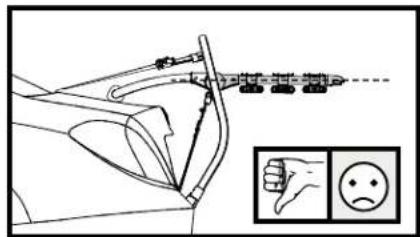

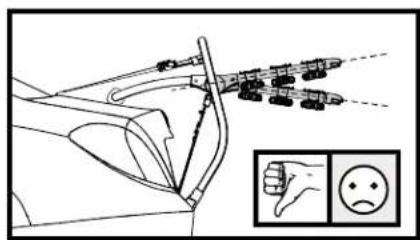

Support arms must be parallel to one another, and angled slightly upward.
Pull downward on both support arms to ensure they are locked into position. The lock icons will be aligned when locked.
Ensure that the left and right dials return to their locked positions.

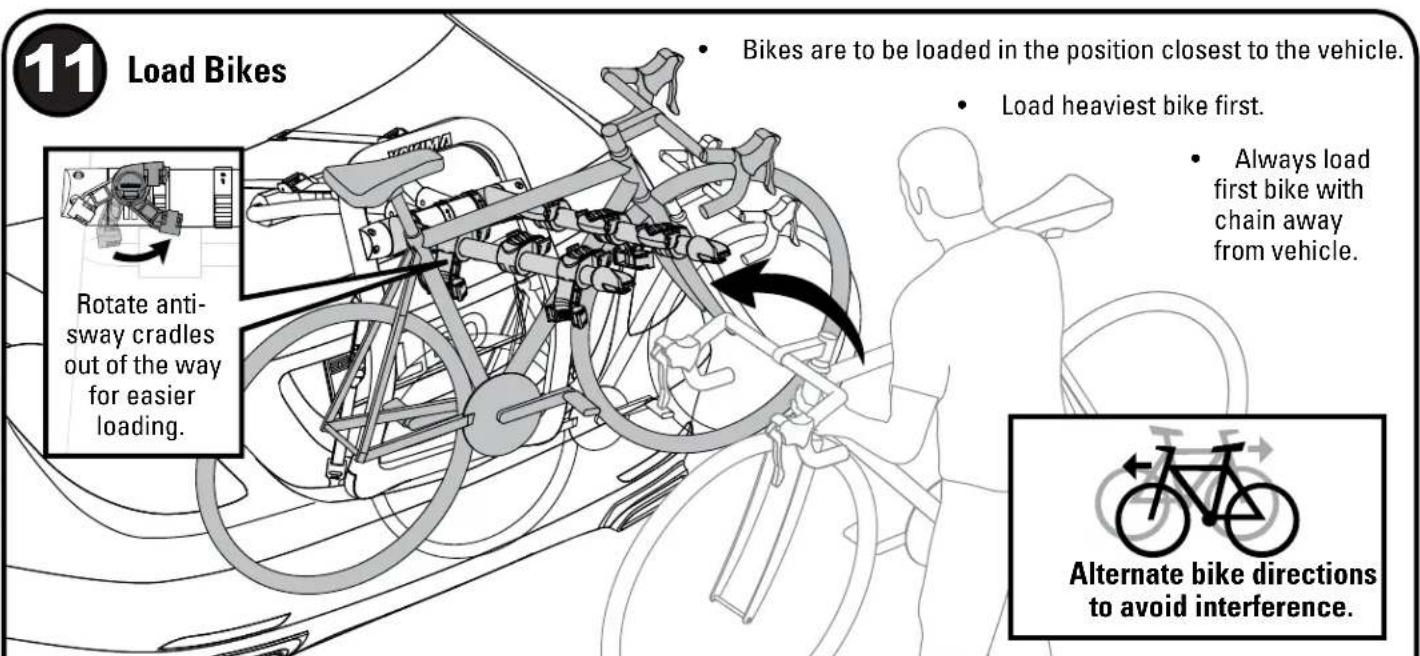

A Yakima TubeTop™ (see cover page) may be required to carry your bike safely.
Failure to load bikes properly can result in property damage, personal injury, or death.

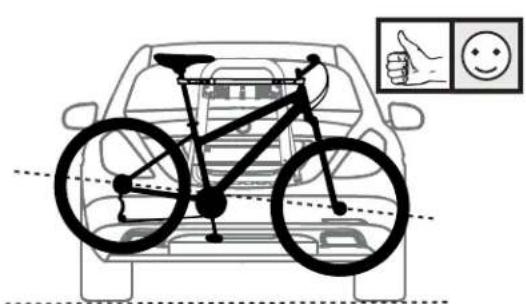

Bikes should be as level as possible to avoid ground clearance issues and possible ejections.

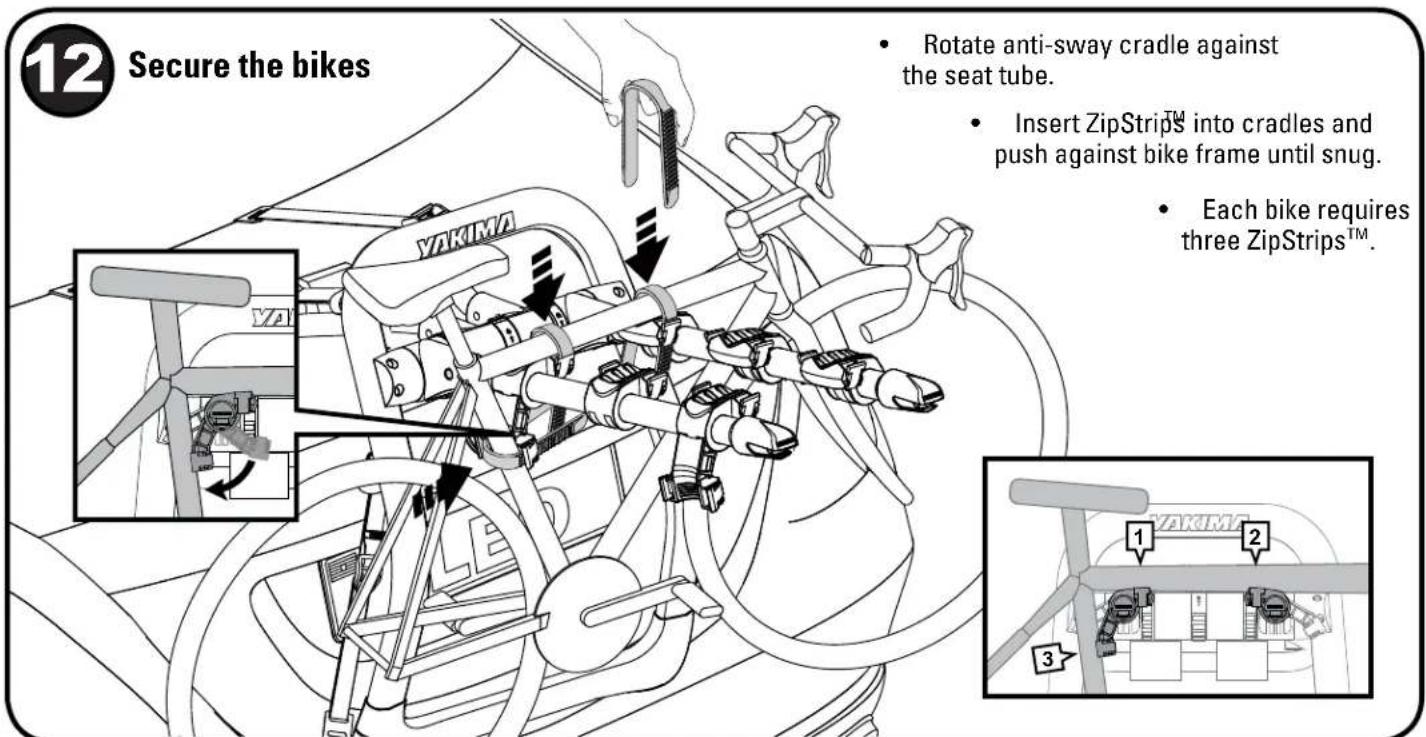

Install safety strap

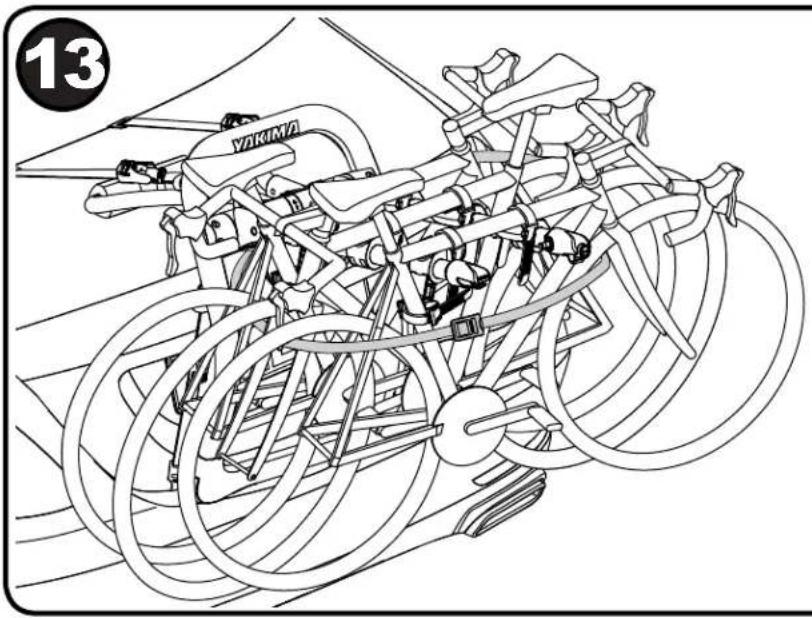

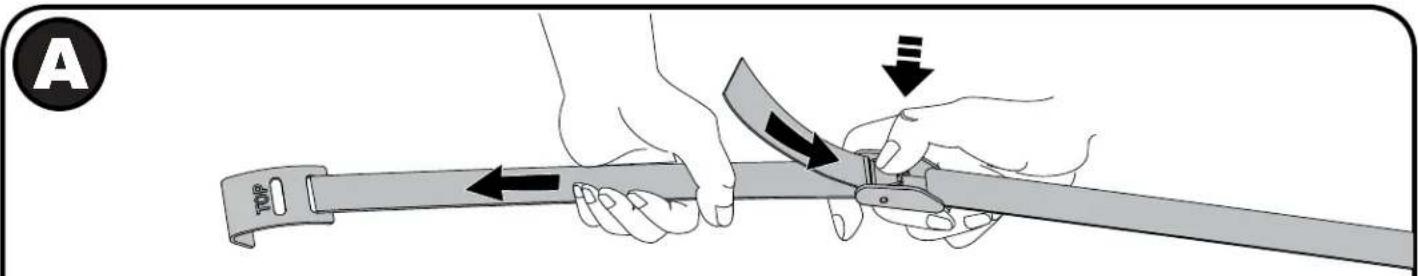

Use the included safety strap to secure your bikes to the carrier. Route the strap through each wheel, around the carrier. Feed the strap through the buckle, tighten it down, and secure the loose end.

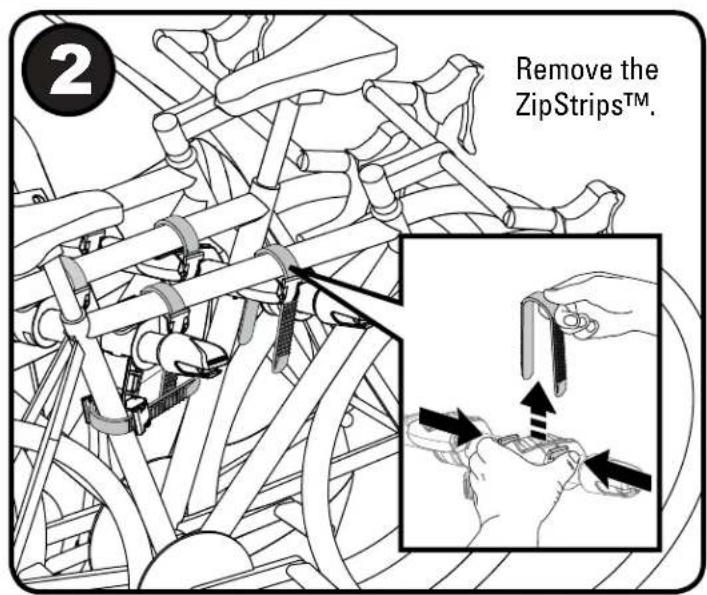

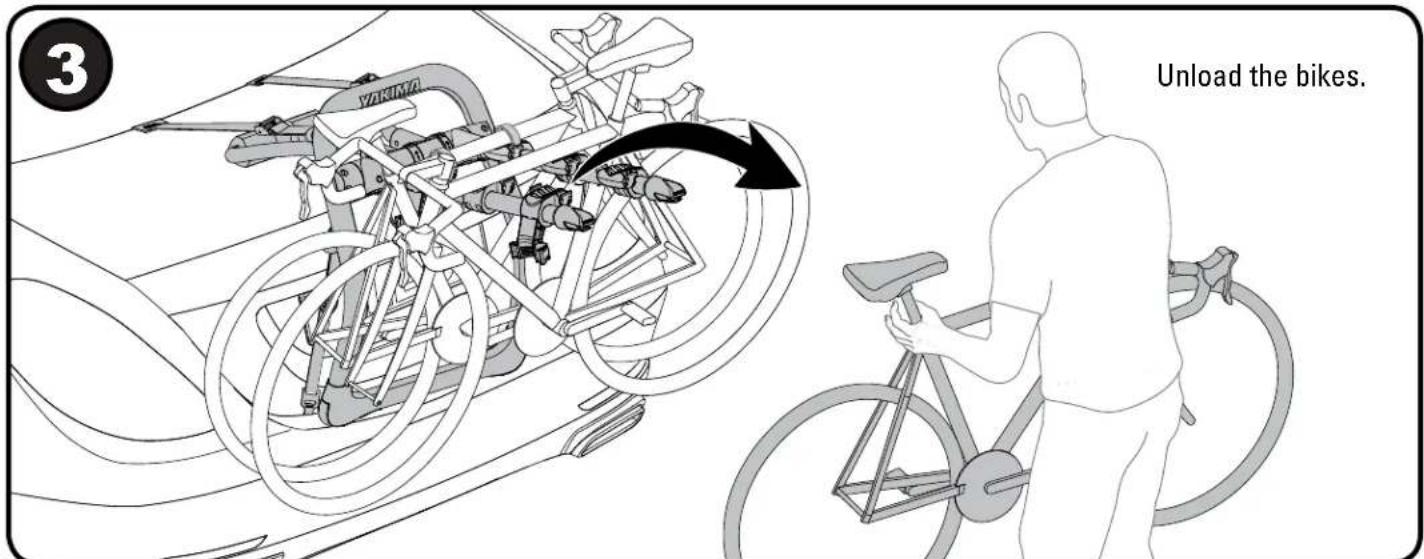

UNLOADING·DECHARGEMENT·DESCARGA

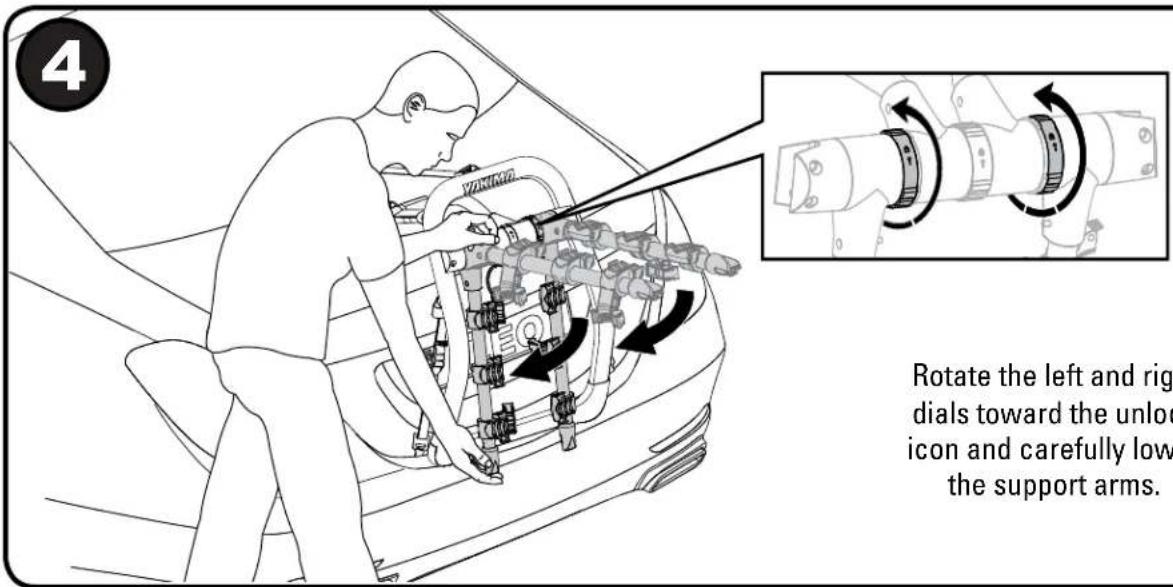

Rotate the left and right dials toward the unlock icon and carefully lower the support arms.

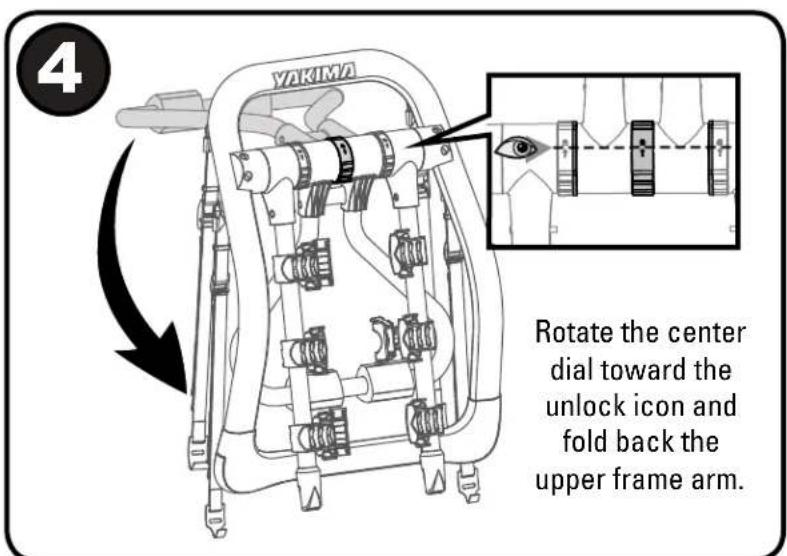

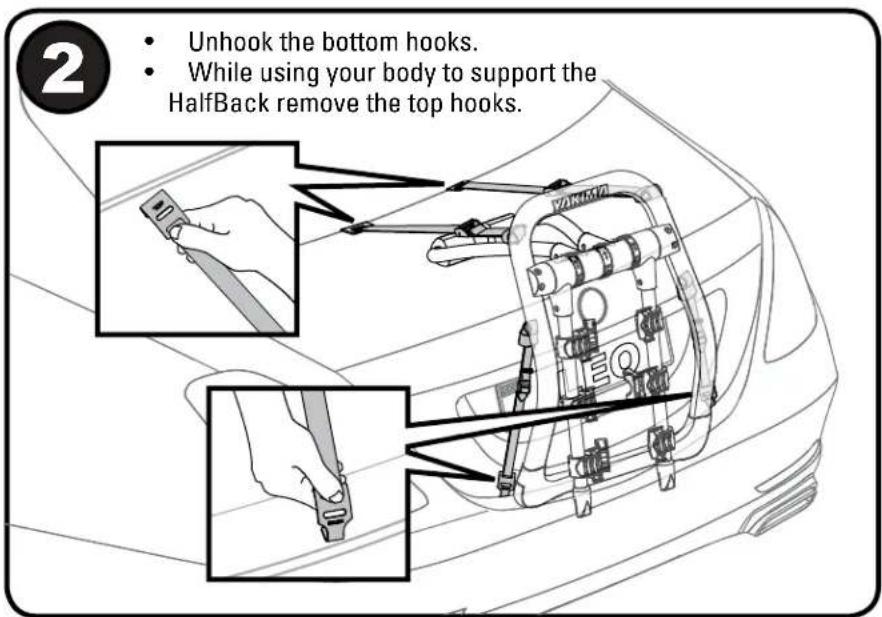

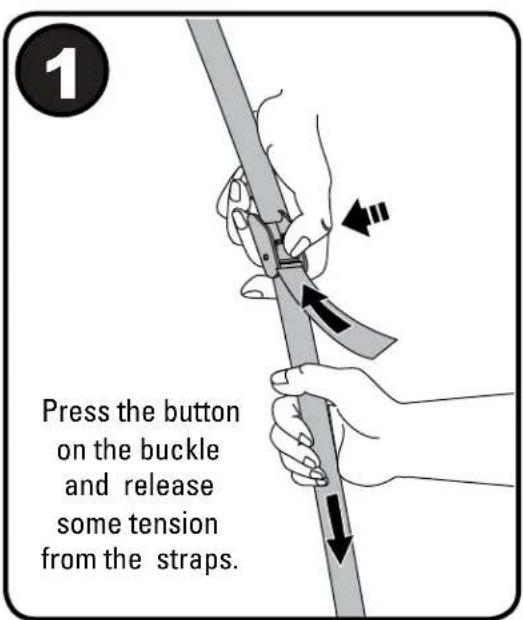

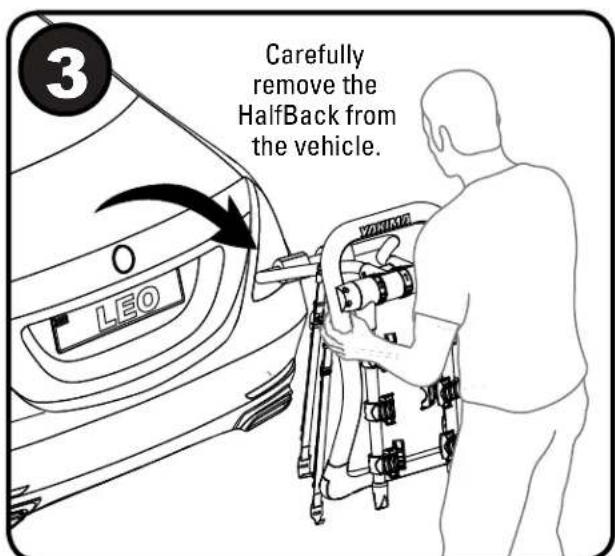

REMOVAL • DÉPOSE • DESMONTAJE

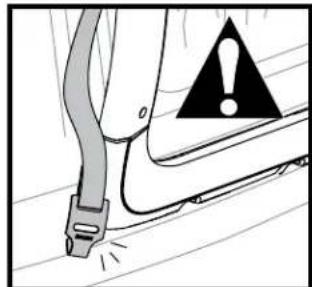

STRAP TENSION

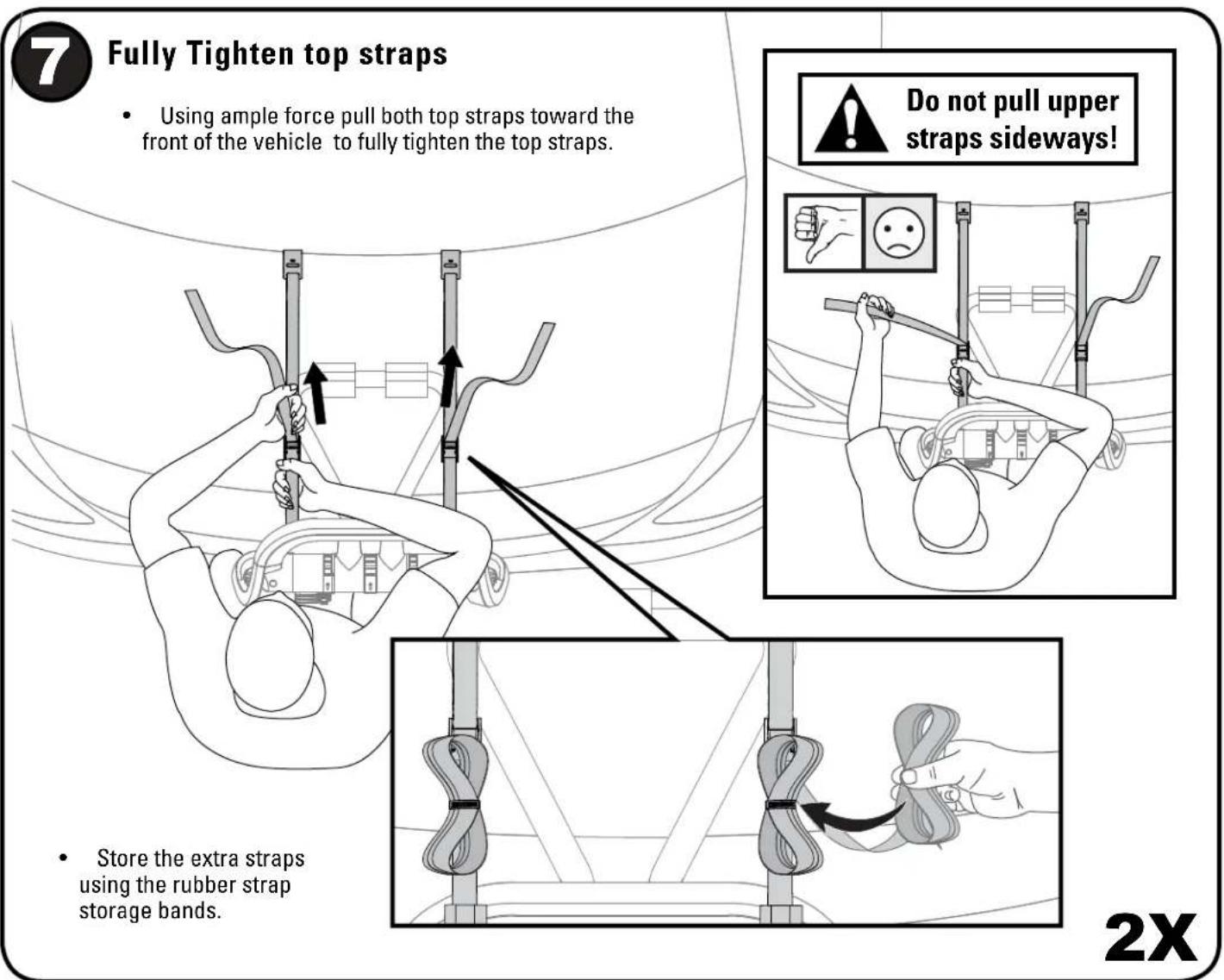

Check strap tension before each use, and while in use check strap tension often, tighten with each new load.
IMPORTANT!
Be sure to read all the warnings and warranty information contained in the insert accompanying these instructions!

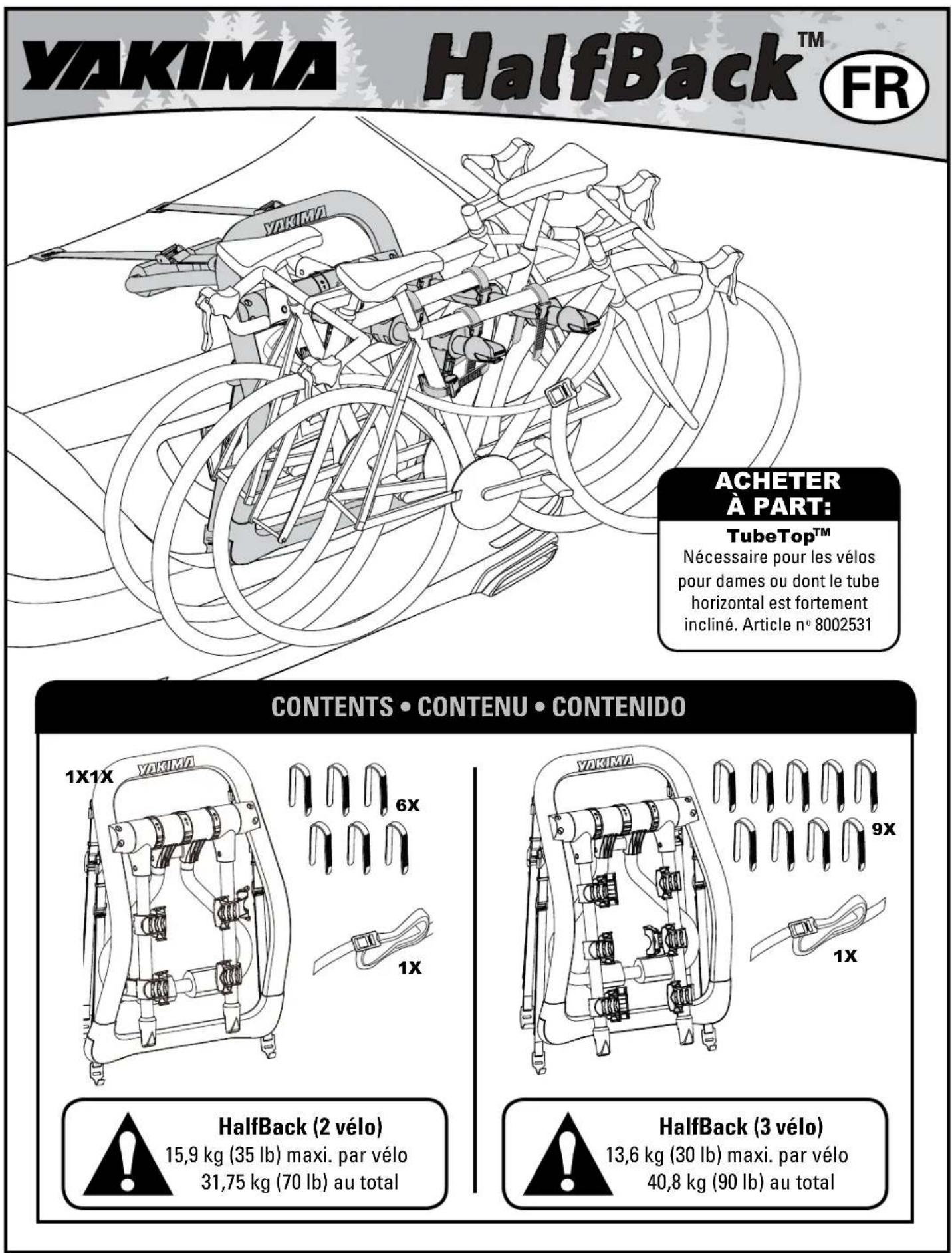

HALFBACK WEIGHT
2 Bike Rack = 21 lbs (9.5kg)
3 Bike Rack=23 lbs (10.5kg)
WEIGHT LIMITS
HalfBack (2 Bike)
35 lbs / 15.9 kg max per bike.
70 lbs / 31.75 kg total.
HalfBack (3 Bike)
30 lbs / 13.6 kg max per bike.
90 lbs / 40.8 kg total.
IMPORTANT GUIDELINES:
- CERTAIN AUTOMOTIVE AFTERMARKET PRODUCTS SUCH AS SPOILERS, ANTENNAE, ETC. MAY PREVENT ATTACHMENT OF THE CARRIER.
- EXCESSIVE TIGHTENING OF THE STRAP MAY CAUSE DAMAGE TO SOFTER BODY MATERIALS.
- NOT APPROVED FOR TANDEMS OR RECUMBENTS.
DO NOT INSTALL ONTO TRAILERS, CAMPERS, OR RVS. - NEVER OPEN TRUNK/HATCH WITH CARRIER INSTALLED. OPENING THE HATCH OR TRUNK WITH CARRIER INSTALLED COULD CAUSE DAMAGE TO THE VEHICLE.
- REPLACE ANY OF THE STRAPS THAT APPEAR WORN OR FRAYED (CONTACT YOUR DEALER).
- HALBACK/FULLBACK MAY NOT WORK ON VEHICLES WITH AUTOMATIC OR POWER LIFT GATES.
MAINTENANCE:
Use a soft cloth with water and mild detergent to clean plastic parts.
CAUTION
REMOVE HALFBACK/FULLBACK BEFORE ENTERING AN AUTOMATIC CAR WASH.
READ THE INSTALLATION CAUTIONS THAT APPLY TO YOUR VEHICLE
Rear Window Wiper
- Wiper may not be usable while carrier is installed. Do not allow wiper to contact any part of this carrier, at any time.
Vehicles with a Spoiler
If any part of the carrier contacts the spoiler, do not use this product.
Spoiler Gap
SUV's, vans, and wagons with a gap between the rear spoiler and rear window or hatch must route upper straps under the spoiler when possible. Do not allow straps to contact spoiler.
Glass Hatches
If upper or lower hooks must attach to glass, follow instructions to use Glass Hatch Hooks (sold separately).
Convertibles
- Do not allow the upper frame of the carrier to rest on car convertible top.
- Do not raise or lower top while carrier is installed.
Tight Seams
- On some vehicles the trunk/hatch seams may be too tight to easily insert hooks. Slide hooks from outside edge of trunk/hatch to appropriate location. If still to tight, open trunk/hatch, insert hooks, and close very carefully to avoid damage.
Make sure trunk/hatch is securely closed before continuing installation.
Soft Attachment Points
- Excessive tightening of the straps may cause damage to softer body materials.
RECOMMENDED ACCESSORIES (SOLD SEPARATELY)
YAKIMA 9ft Security caBle (YAKIMA PART NUMBER 8007233)
Secures your bikes to your carrier.
YAKIMA tuBetOP ^TM (YAKIMA PART NUMBER 8002531)
Recommended for bikes with slanted, or no bicycle top tubes.
TRUNK SECURITY STRAP (YAKIMA PART NUMBER 8002623) Secures your carrier to your vehicle.
GLASS HATCH HOOKsTM (IMA PART NUMBER 8002612)
Attaching Glass Hatch Hooks to upper strap will limit load to 2 bikes.
Go to www.yakima.com or contact your dealer to purchase.
www.yakima.com
YAKIMA PRODUCTS, INC.
4101 KRUSE WAY LAKE OSWEGO,OR 97035-2541
USA
KEEP THESE INSTRUCTIONS!

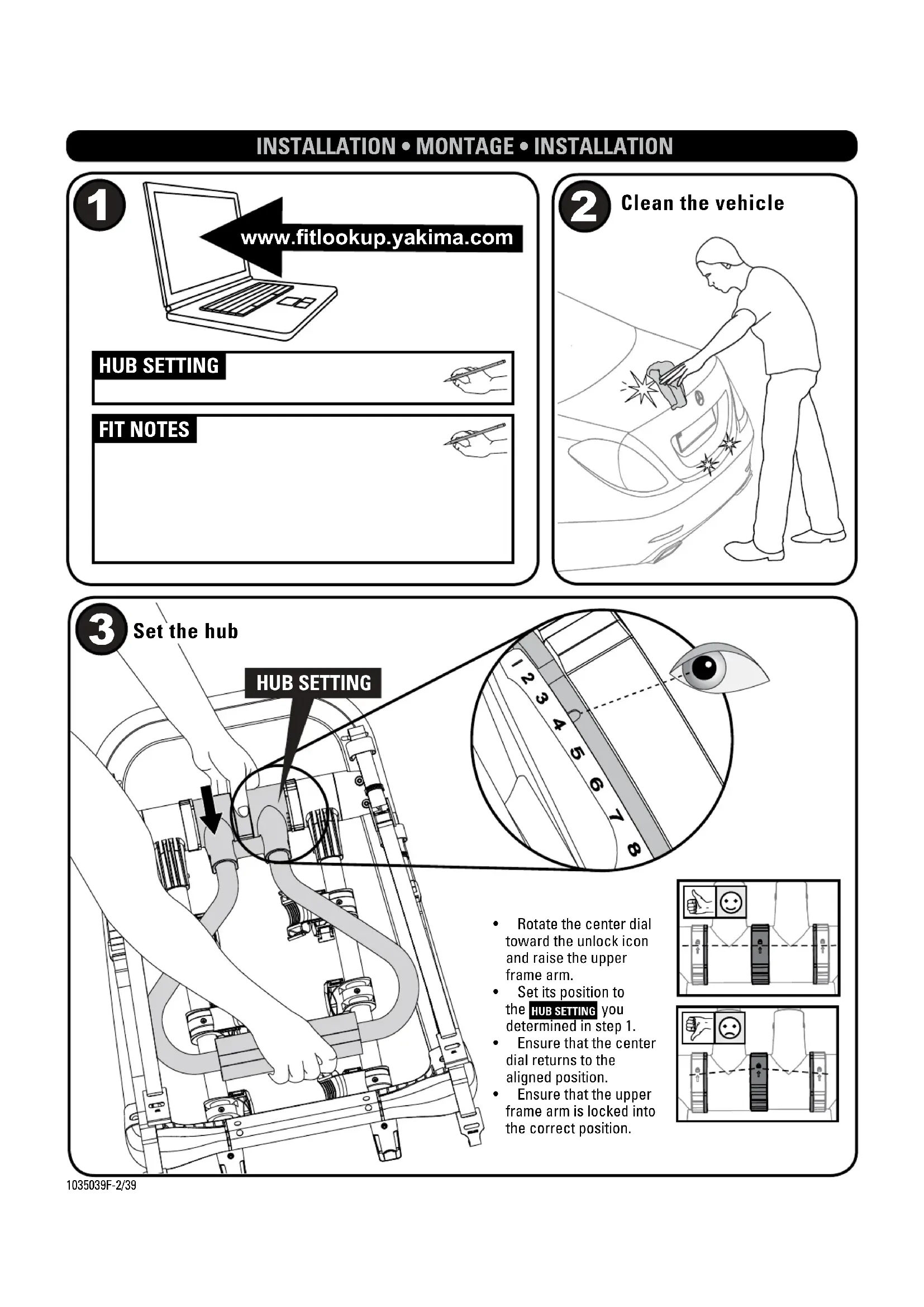

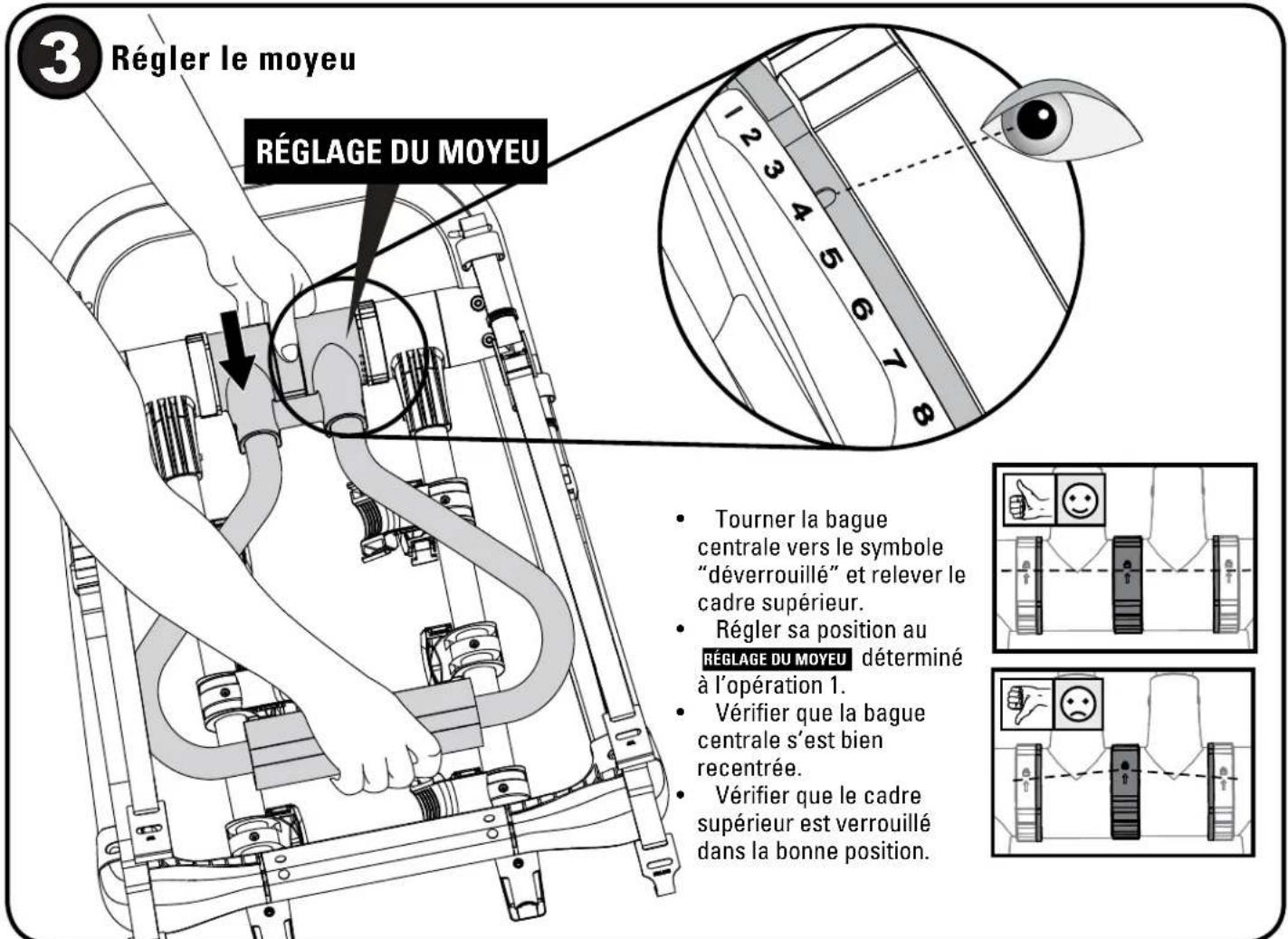

INSTALLATION • MONTAGE • INSTALLATION
