USER MANUAL Skottelbraai Paella CADAC

NOTE! PRODUCT MAY VARY FROM ILLUSTRATIONS

SKOTTEL BRAAI PAELLA BRAAI GRILL 2 BRAAI11 CAUTION For Outdoor use only! This appliance may not be used in an exterior enclosed balcony, porch or entertainment area. IMPORTANT Read these instructions carefully so as to familiarise yourself with the appliance before use. Retain these instructions for future reference.

• This Appliance complies with BS EN 498:2012 and EN 484:2019.

• This appliance shall only be used with an approved hose and regulator.

• The gas cartridge/rellable cylinder is to be used only in the upright position.

• Note: To ensure satisfactory operation when using a cartridge always start up with a full cartridge and only when the intended period of continuous operation is less than approximately 45 minutes.

• Gas appliances require ventilation for efcient performance and to ensure the safety of users and other persons in close proximity as the appliance consumes oxygen.

• The hose must be checked for wear or damage before every use and before connecting to the gas container.

• Do not use the appliance if it has a damaged or worn hose. Replace the hose.

• Do not use an appliance that is leaking, damaged or which does not operate properly. Gas Container

• Ensure that the gas container is tted or changed in a well-ventilated location, preferably outdoors, away from any sources of ignition such as naked ames, pilots, electric res and away from other people.

• Keep gas containers away from heat and ame. Do not place on a stove or any other hot surface.

• Gas cartridges/rellable cylinders are to be used only in the upright position so as to ensure proper fuel withdrawal. Failure to adhere to this may cause liquid discharge from the gas container resulting in a dangerous operating condition.

• Do not try to remove the cylinder whilst the unit is in operation.

• The gas cylinder must be disconnected from the appliance after use or when in storage.

• Not for use with a remote gas supply. Assembly and use

• Use only on a rm level surface.

• Do not move the appliance whilst the unit is in operation.22

• Do not cover up or change the burner pan (F) air holes on the base plate, as it will inuence the ow of air to the stem air holes located inside the tripod housing (J). This, in turn, will affect the performance of the product and may lead to an unstable ame

• Ensure the appliance is used away from ammable materials. Minimum safe distances are: Above the appliance 1.2m. At the rear and sides 600mm. (See Fig.1)

• Caution: Accessible parts may become very hot, the use of protective gloves is recommended.

• Keep young children away from the appliance.

• Use Outdoors Only Light back

• In the event of light back (where the ame burns back and ignites inside the burner or venturi housing), immediately turn off the gas supply by rstly closing the control valve on the gas container and then the appliance valve (M). After the ame is extinguished, remove the regulator and check the condition of the seal; replace the seal if in doubt. Re-light the appliance as described in Section 7 below. Should the ame persistently light back, return the product to your authorised CADAC repair agent. Leaks

• If there is a leak on your appliance (smell of gas), take it outside immediately into a well-ventilated ame-free location where the leak may be detected and stopped. If you wish to check for leaks on your appliance, do it outside. Do not try to detect leaks using a ame; use soapy water.

• The correct way is to smear the joints with soapy water. If a bubble or bubbles form then there is a gas leak. Immediately turn off the gas supply rstly by closing the control valve on the gas container and then the appliance valve. Check that all the connections are properly tted. Re-check with soapy water.

• If a gas leak persists, return the product to your CADAC dealer for inspection / repair.

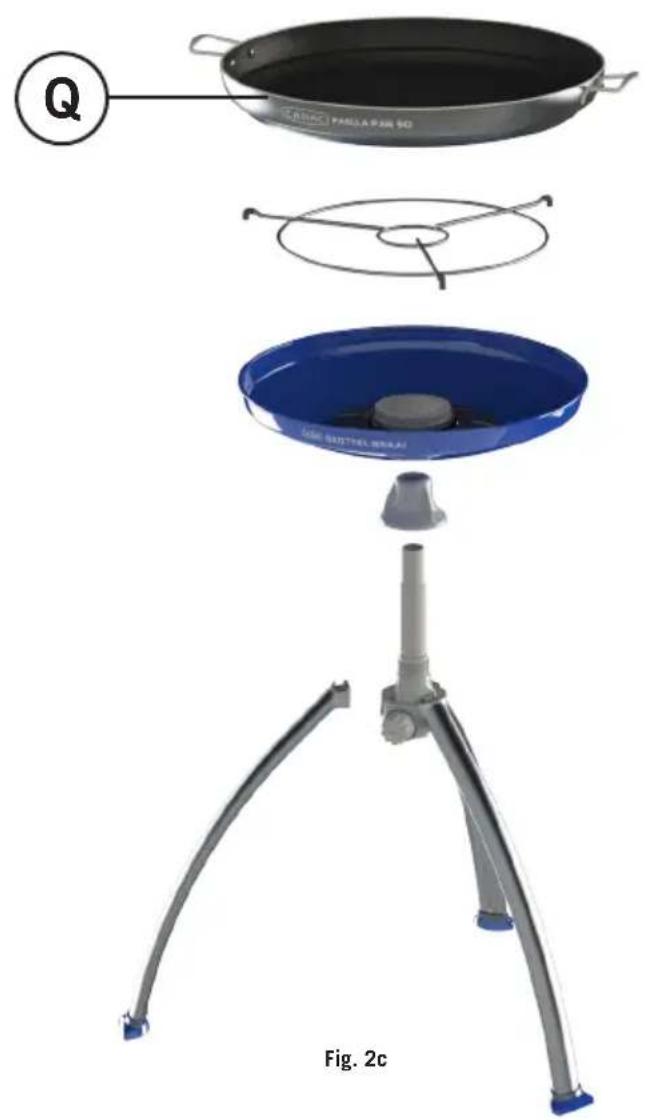

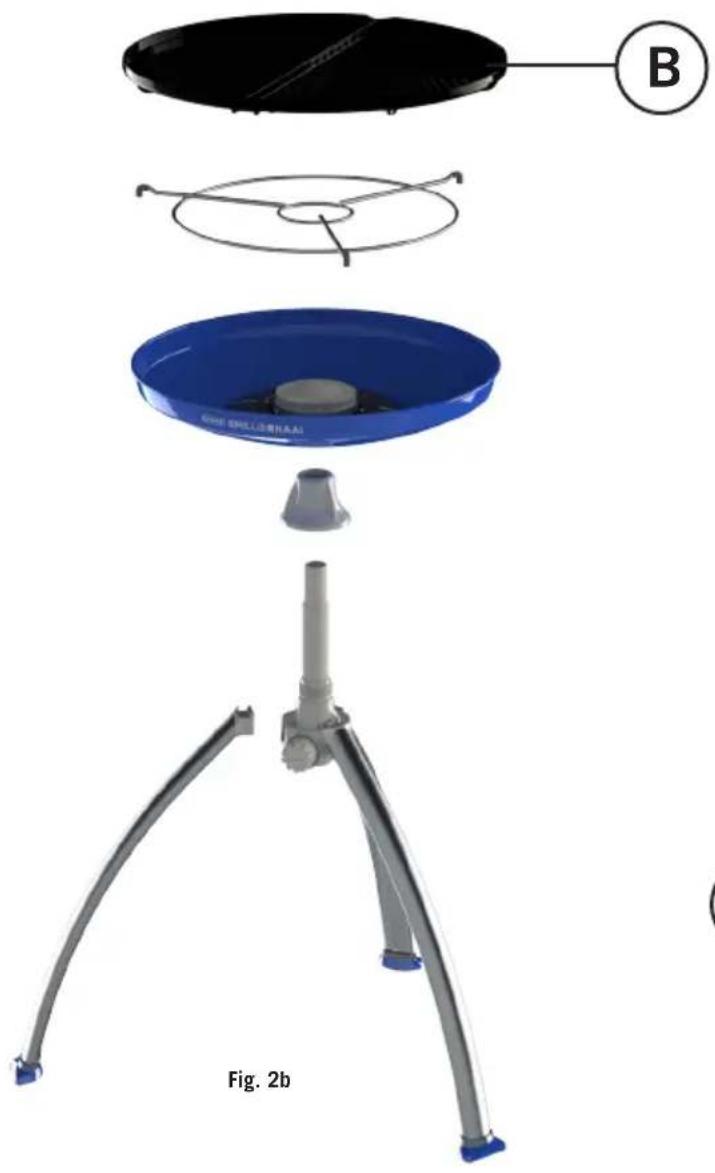

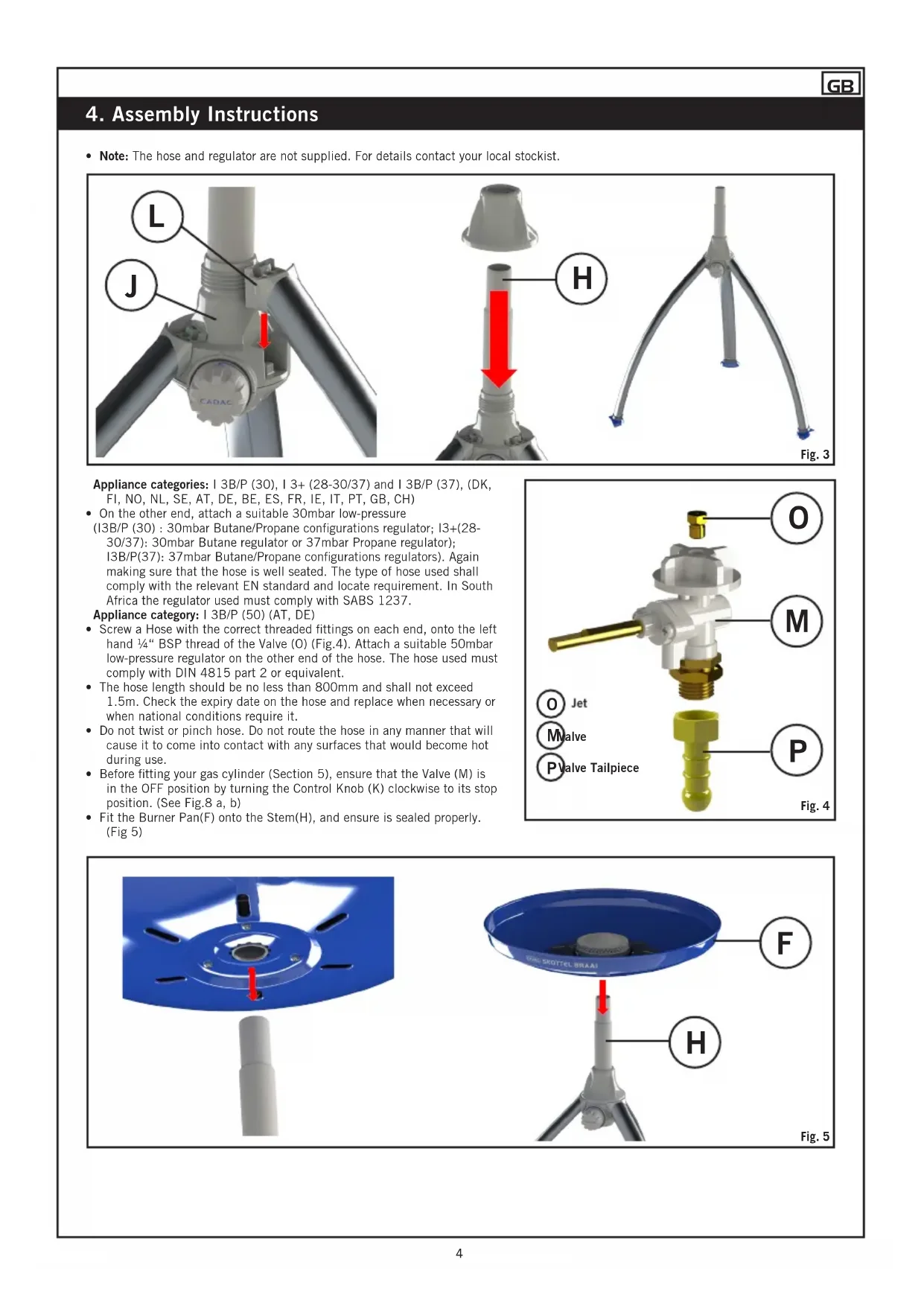

4. Assembly Instructions

• Note: The hose and regulator are not supplied. For details contact your local stockist. Appliance categories: I 3B/P (30), I 3+ (28-30/37) and I 3B/P (37), (DK, FI, NO, NL, SE, AT, DE, BE, ES, FR, IE, IT, PT, GB, CH)

• On the other end, attach a suitable 30mbar low-pressure (I3B/P (30) : 30mbar Butane/Propane congurations regulator; I3+(28- 30/37): 30mbar Butane regulator or 37mbar Propane regulator); I3B/P(37): 37mbar Butane/Propane congurations regulators). Again making sure that the hose is well seated. The type of hose used shall comply with the relevant EN standard and locate requirement. In South Africa the regulator used must comply with SABS 1237. Appliance category: I 3B/P (50) (AT, DE)

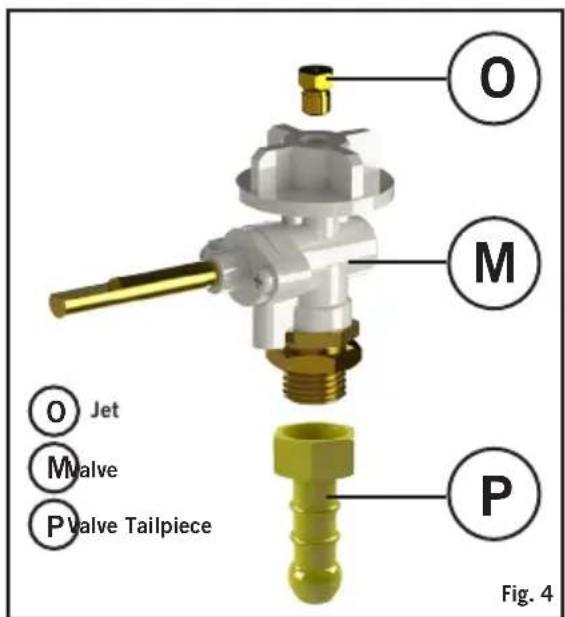

• Screw a Hose with the correct threaded ttings on each end, onto the left hand ¼“ BSP thread of the Valve (O) (Fig.4). Attach a suitable 50mbar low-pressure regulator on the other end of the hose. The hose used must comply with DIN 4815 part 2 or equivalent.

• The hose length should be no less than 800mm and shall not exceed 1.5m. Check the expiry date on the hose and replace when necessary or when national conditions require it.

• Do not twist or pinch hose. Do not route the hose in any manner that will cause it to come into contact with any surfaces that would become hot during use.

• Before tting your gas cylinder (Section 5), ensure that the Valve (M) is in the OFF position by turning the Control Knob (K) clockwise to its stop position. (See Fig.8 a, b)

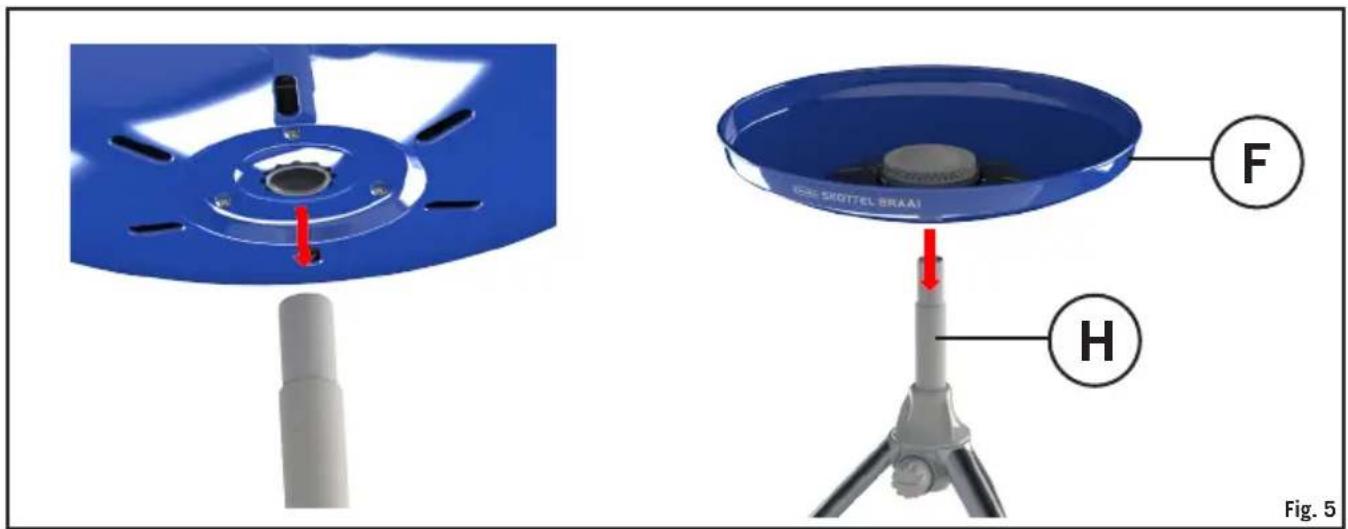

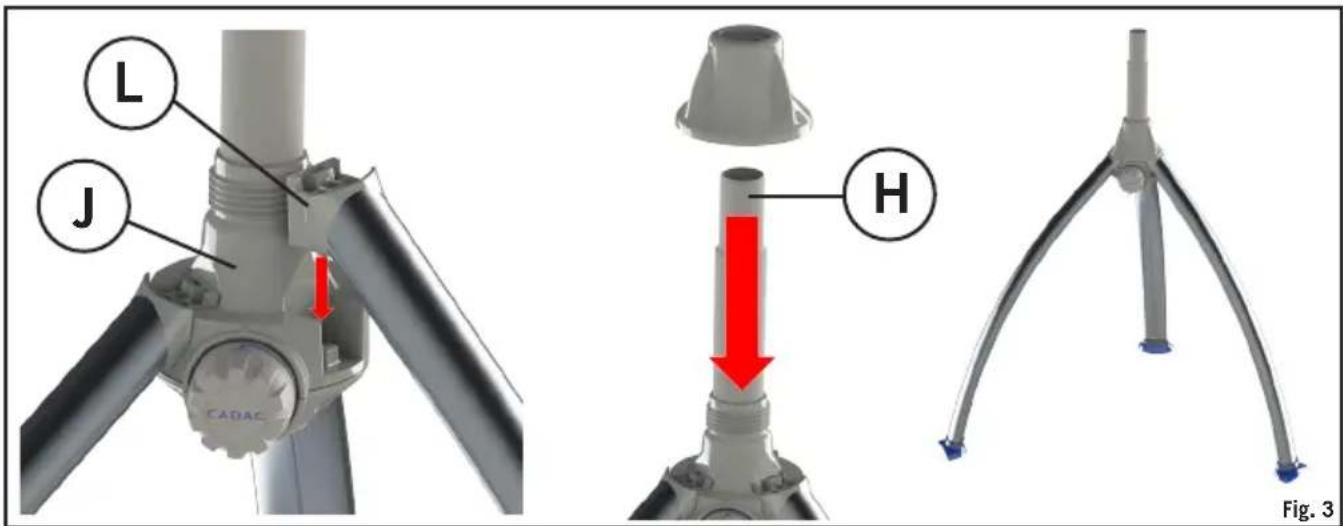

• Fit the Burner Pan(F) onto the Stem(H), and ensure is sealed properly. (Fig 5) Fig. 3

5. Fitting and Changing the Gas Cylinder

• After use, turn off the control knob to the off position (“•” - turn fully clockwise) and close the gas cylinder valve.

• Ensure that the gas cylinder is tted or changed in a well-ventilated location away from any source of ignition, such as naked ames and away from other people.

• Do not smoke while changing the cylinder.

• When you need to replace your empty cylinder, make sure that the gas is closed at the cylinder valve.

• Remove the regulator from the empty cylinder.

• Avoid twisting the hose whilst connecting the regulator to the new/replacement cylinder.

• Blow out any dust from the cylinder opening to prevent possible blockage of the jet.

• Place the full cylinder in its allocated space and attach the regulator connection to the cylinder.

• Ensure that a complete gas seal has been made (check for the smell of gas around the connection joint). Do not check for leaks with a naked ame. Use warm soapy water only, applied to the joints and connections of the appliance. Any leakage will show up as bubbles around the leakage area. If you are in doubt, contact your nearest stockist.

6. Using the Appliance

Caution: As accessible parts become very hot, the use of oven gloves is advisable. Keep young children away from the appliance.

• Assemble the tripod as described in Section 4.

• Place the burner pan (F) on the stem and tri pod assembly.

• Light the appliance as described in Section 7. For Skottel Braai

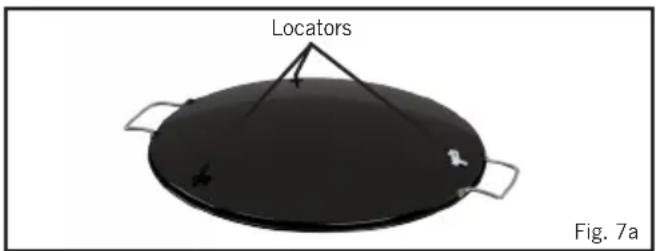

• To prepare the Skottel Braai for use place it onto the burner pan (F) so that all three locators (V) (Fig.7a) will properly mate with the lip on the circumference of the burner pan (F) thus ensuring a stable tment.

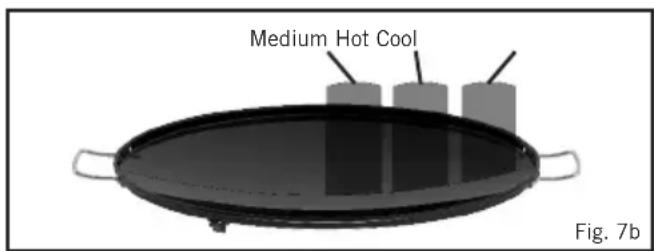

• Cooking temperatures are easily adjusted to suit your own requirements by turning the control knob (K) to regulate the degree of heat. A feature of the Skottel BBQ is that it offers various heat zones (See Fig.7b). This is very useful as some foods cook quicker than others and the food that is ready rst, can be moved to the cooler areas of the dish to keep warm whilst the balance of the food is still cooking. For Grill2Braai

• To prepare the aluminium grill plate for use, place it on the top edge of the fat pan, ensuring all locating feet are securely positioned. For Paella Pan To use the paella pan you need to place it on top of the pot stand. Do not heat paella pan on full ame with no food inside.

• Adjust the heat as required by adjusting the gas ow on the control knob and start cooking.

• After completion of cooking close the valve and remove the cooking surface after it has cooled down.

• After cooking and cleaning, pack the unit away for re-use. Medium Hot Cool Fig. 7b

7. Lighting the Appliance

Precautions to observe before lighting.

• After prolonged storage, inspect the Burner Pan air holes for insects such as spiders, which could affect gas ow. If there is any evidence of insects / nests, the Base Plate must be removed and any foreign material cleaned out. After checking, re-t all components into the prescribed position.

• Use this appliance only on a rm level surface. General

• The Control valve is closed by turning the control knob (K) clockwise to its “OFF” position and opened by pushing and turning anticlockwise.

• Adjust the ame intensity to the desired level by turning the Control knob (K) clockwise to decrease the ame and anti-clockwise to increase it (See Fig.8a & b).

• When cooking food with a high fat content, aring may occur if the selected heat setting is too high. Should this happen, turn the heat down until the aring ceases.

• Do not move the appliance when in use, apart from being an unsafe practice to move the appliance whilst lit it may cause aring.

• After use, rst close the valve on the gas container (where applicable). When the ame has extinguished, close the valve on the appliance by turning the control knob (K) fully clockwise. Lighting up using a match or BBQ lighter (See Fig. 8a and 8b)

• To light the appliance, light a match or barbecue lighter. Open up the control valve slightly (K) as described under ‘General” and light the appliance burner (G). When starting cold, the appliance may be lit from the top (See Fig.8b) prior to tting the desired cooking surface onto the burner pan (F). Fig. 7a Locators GB66

• After cooking, leave the burner on low with soapy water in the cooking dish to soften cooking residue. When satised that e xcess fat has been removed, wash the Skottel BBQ (A) in warm water using a suitable non-abrasive detergent. Do not use sharp metal objects or abrasive detergents on the vitreous enamel coated surface.

• After cleaning recondition the surface with a light wipe of oil.

• Remove the fat from the moat of the Burner Pan (F), wash it with warm water using a suitable non-abrasive detergent. Do not use sharp metal objects or abrasive detergents. For Grill2Braai & Paella Pan

• The grill plate is coated with a tough durable non-stick coating that has been used with great success on some of the best cookware in the world. Nevertheless, taking care of it can help you to enjoy extra years of healthy, easy, non-stick cooking.

• Use only low or medium heat settings to help retain the valuable nutrients in the food and maintain the non-stick surface.

• Whilst the non-stick coating is very durable, it can easily be damaged by the use of metal cooking utensils. It is therefore recommended that only plastic or wooden utensils be used when cooking.

• Do not overheat the grill plate and always add a little cooking oil to the surface before use.

• Always allow the grill plate to cool before immersing it in water.

• The use of abrasive detergents is not recommended, as this will permanently damage the non-stick surface.

• After cleaning recondition the surface with a light wipe of oil.

• Remove the fat from the moat of the Fat Pan.

• Note: For stubborn stains, oven cleaner may be used.

• Always allow the unit to cool down before packing any part into its bag.

• Always store your CADAC Braai in the supplied bags, in a dry environment, preferably off the ground. This is especially important for the Burner pan stored in the Main bag so as to prevent the ingress of dirt or insects that may affect the gas ow.

• Should the appliance operate abnormally after storage and all checks referred to in Sections 5 & 7 have not isolated any problem, the Venturi may be blocked. A blocked Venturi would be indicated by a weaker yellowish ame or no ame at all in extreme cases. Under these circumstances it will be necessary to remove the burner (G) as described under Section 8 - General Maintenance, and to check and thoroughly clean out any foreign matter which may have gathered in the venturi.

11. Returning the appliance for Repair, Service & Warranty

• Do not modify the appliance, as this could be dangerous.

• If you cannot rectify a fault by following these instructions, contact your local CADAC distributor for details on how to return the product for attention.

• Your CADAC Appliance is guaranteed by CADAC for a period of 2 years against factory fault.

8. General Maintenance

• This appliance does not require scheduled maintenance. Replacing a Blocked Jet:

• Your appliance is tted with a specic size jet (O) to regulate the correct amount of gas.

• Should the hole in the Jet (O) become blocked, this may result in a small ame or no ame at all. Do not attempt to clean the Jet (O) with a pin or other such device as this may damage the orice, which could make the appliance unsafe.

• To replace the Jet (O):. Unscrew the 3 screws on the bottom housing cover and remove cover.

• Remove Valve base plate assembly by unscrewing the six self-tapping screws xing it to the tripod housing (J) and subsequently remove the valve (M) from the housing simply by sliding it out.

• The jet (O) will now be accessible at the top of the valve (M).

• Unscrew the jet (O) from the valve (M) using a suitable spanner.

• Do not use pliers on the jet as this may damage the jet, making it unusable or impossible to remove. Screw the new jet into the valve. Do not over-tighten as this may damage the jet.

• Re-t the valve and baseplate in the reverse order of assembly. When re-tting the valve, ensure that the valve spindle aligns with slot in the tripod housing.

• Reconnect the gas supply as described in the Assembly Instructions Replacing the Hose:

• The tting of a hose is described in Section 4. Fig. 8a Fig. 8b Fig. 9

Always use genuine CADAC spares as they have been designed to give optimum performance. Item Spare No. 740-SP030 (Jet 85 28mbar) 740-SP028 (Jet 81 37mbar) 740-SP015 (Jet 74 50mbar) 8309-SP003 Item Spare No. 8309-SP001 8309-SP005 Spares Item Spare No. 370-EU 370-UK 370-ZA Item Spare No.

CADAC (Pty) Ltd hereby warrants to the ORIGINAL PURCHASER of this CADAC gas appliance, that it will be free of defects in material and workmanship from the date of purchase as follows: Valves: 5 Years Plastic parts: No Warranty Enamel parts: 5 Years Burners: 1 Year The warranty will only apply if the unit is assembled and operated in accordance with the printed instructions. CADAC may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE. This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to CADAC’s satisfaction, they are defective. Before returning any parts, contact the customer service representative in your region using the contact information provided with your manual. If CADAC conrms the defect and approves the claim, CADAC will elect to replace such parts without charge. CADAC will return parts to the purchaser, freight or postage prepaid. This Limited Warranty does not cover any failures or operating difculties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner’s manual. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not cover by this Limited Warranty. There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and tness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you. CADAC is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, to this limitation or exclusion may not apply to you. CADAC does not authorize any person or company to assume for it any obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on CADAC. This Warranty applies only to products sold at retail. To enjoy and ensure longevity of your CADAC product, please refer to the cleaning and maintenance section of the user manual with particular attention to the care of any stainless steel parts. GB99 VORSICHT Nur im Freien benutzen! Dieses Gerät darf nicht in einem umbauten Balkon, einer eingeschlossenen Veranda oder einem ähnlichen Bereich benutzt werden. WICHTIG Lesen Sie diese Anleitung bitte sorgfältig durch und machen Sie sich mit dem Gerät vor seiner ersten Anwendung vertraut. Bewahren Sie diese Anleitung zum späteren Nachsehen auf.

Riverlea Group (Pty) Ltd 2A Maui Street, Pukete, Hamilton 3200, New Zealand Tel: [phone] Email: [e-mail] www.riverleagroup.co.nz
