Hunter 8x21 - Binoculars BRESSER - Free user manual and instructions

Product Type	Binoculars
Brand	Bresser
Model	Hunter 8x21
Magnification	8x
Objective Diameter	21 mm
Focus	Central focusing wheel + diopter adjustment
Eyepiece Type	Twist-up or rubber eyecups (depending on version)
Suitable for eyeglass wearers	Yes, fold-down eyecups
Interpupillary distance adjustment	By folding at the central hinge
Lens cleaning	Microfiber cloth, glasses cleaning liquid if needed
Usage precautions	Do not look at the sun, do not expose to sunlight
Use by children	Under adult supervision
Warranty	2 years (extendable upon registration)
Customer service	www.bresser.fr, [e-mail]
Included accessories	Pouch, protective caps
Net weight (approx.)	Approx. 200 g
Power supply	None (optical binoculars)

Frequently Asked Questions - Hunter 8x21 BRESSER

How to adjust focus on the Hunter 8x21 binoculars?

Close your right eye and turn the central focusing wheel to focus the image for your left eye. Then close your left eye and turn the diopter ring for your right eye.

How to use binoculars with glasses?

If your binoculars are equipped with twist-up eyecups, fold them down. For rubber eyecups, fold them sideways downwards. This maintains the correct eye distance.

How to adjust the interpupillary distance?

Fold the binoculars at the central hinge until you see a single clear image circle. This adjustment is personal and should be memorized for future use.

What to do if the image remains blurry after focusing?

First check the interpupillary distance setting. Then refocus starting with the left eye using the central focusing wheel, then adjust the diopter setting for the right eye.

How to clean the binocular lenses?

Use a soft microfiber cloth that is lint-free. For stubborn dirt, lightly dampen the cloth with glasses cleaning liquid and wipe without pressing too hard.

Why should you never look at the sun with these binoculars?

Looking at the sun, even briefly, can cause irreversible eye damage up to blindness. Additionally, the magnifying effect can cause a fire.

How to extend the warranty of Bresser binoculars?

The standard warranty is 2 years. To benefit from the optional extension, register your product on the site www.bresser.de/warranty_terms.

What to do in case of binocular malfunction?

Never disassemble the device. Contact your dealer who will arrange for shipment to an authorized repair service.

Can children use this device?

Yes, but only under adult supervision. Packaging materials (plastic bags, rubber bands) pose a choking hazard.

How to store the binoculars after use?

After use, especially in humid environments, let the binoculars acclimate to room temperature. Place the protective caps on the lenses and store them in the provided pouch.

USER MANUAL Hunter 8x21 BRESSER

General Safety Informations!

RISK of physical injury!

Never look through this device directly at or near the sun. There is a risk of BLINDING YOURSELF!

Children should only use this device under supervision. Keep packaging materials (plastic bags, rubber bands, etc.) away from children. There is a risk of SUFFOCATION.

Fire/Burning RISK!

Never subject the device - especially the lenses - to direct sunlight. Light ray concentration can cause fires and/or burns.

RISK of material damage!

Never take the device apart. Please consult your dealer if there are any defects. The dealer will contact our service centre and send the device in for repair if needed.

Do not subject the device to temperatures exceeding 60^ C!

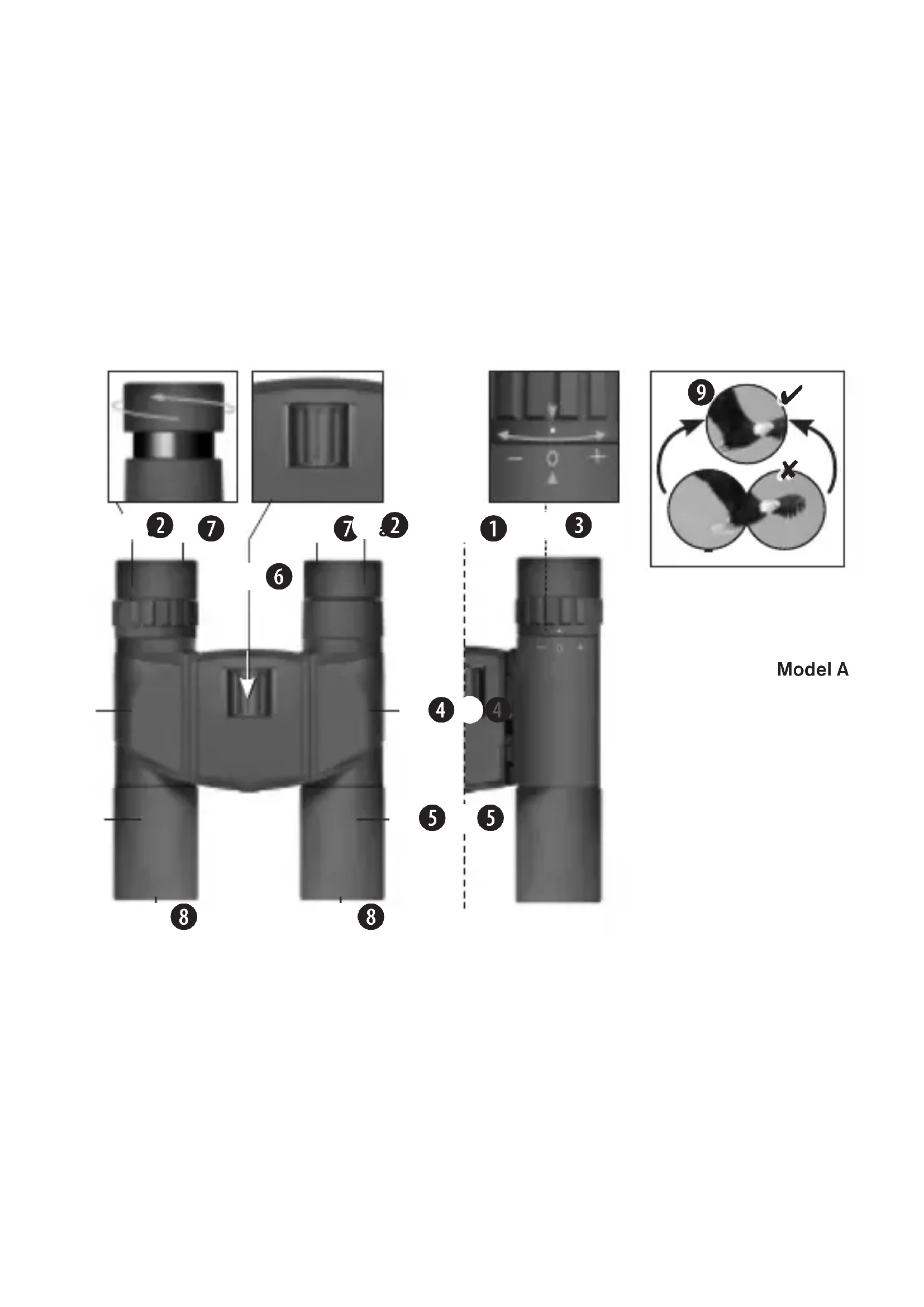

List of Parts

1 Centre axle
a Twist-up eyecups

or

Rubber eyecups
3 Dioptre adjustment
Body of the binoculars

5 Lens tube
Central focussing wheel
Eyepiece
8 Objective lens
9 Image circle with correctly set eye distance

Eyepieces for spectacle wearers

Depending on the model, your binoculars are equipped with either twist-up eyecups (2a) or rubber eyecups (2b). Since there is a larger distance between the binocular eyepiece and the pupil for those wearing glasses, both eyecup varieties can be adjusted individually.

Twist-up Eyecups (2a)

Screw in the twist-up eyecups (2a) to use the binoculars while wearing glasses. If you are not wearing glasses, unscrew the eyecups to achieve the required distance from the pupils.

OR

Rubber Eyecups (2b)

To use the binoculars while wearing glasses, turn the rubber eyecups (2b) towards the sides and down. If you are not wearing glasses, leave the eyecups in the upright position to achieve the required distance from the pupils.

Adjusting the eyepiece distance

The distance between the eyes differs between individuals. To achieve perfect interaction between your eyes and the eyepieces of your binoculars set the angle at the centre of the binoculars (1) so that you see a circular image (12). Note this setting for later use.

Adjusting the focus

Look through your binoculars with your right eye closed. Now adjust the image for your left eye using the centre wheel (6) until it is sharp and clear. Close your left eye and adjust the image for your right eye using the dioptre ring (3) until it too is sharp and clear.

TIPS on cleaning

Lenses (eyepieces and object lenses) should be cleaned with a soft, lint-free cloth (e.g. microfibre) only. Do not use excessive pressure - this may scratch the lens.

Dampen the cleaning cloth with a spectacle cleaning fluid and use it on very dirty lenses.

Protect the device against dirt and dust. Leave it to dry properly after use at room temperature. Then put the dust caps on and store the device in the case provided.

He donyckaite harpebaHn npnbopa do BbICOKo TEMpepatpy!

IpeueHb KOMnoHeHToB

1 UeHTpaJIbHaN OcB 6HOKJIa
a HABINHuaIOuIeCryokyIpyi nn
b Pe3nHOBbie OkyIpaI
3 MexaHn3M dnoontpnuecKo HABODKN
Kopnyc 6nHokJIa

Tубус obbeKTHBa
6 LcHTpaJIbHbI npNBOd (yCTaHOBka Ha pe3KoCTb)
OkyIaR
8 JINH3a 06bekTNBa
9 OTo6paKaHouaJ OkpyKHOCTb npn npaBnIbHo HacTpoEHHO rna3HO 6a3e

OkyIap dIy IOnb3OBaTeJeB OuyKaX

B 3aBnCHMOCTN OT MOdJIb 6HOKJIb OCHaUaETcra INo BO HABINHUYBaIOUIMMCRA OKyIpaMn (2a), IIn6o pe3HOBbIMN OKyIpaMn (2b).Tak KaK y noJIb3OBAteJeB B oUkax paCCTOHHne MeJdy OKyIpaMn 6HOKJIg N 3paUkamN yBeJIuYeHO, Oba HABINHUYBaIOUxxCRA OKyIpa MOrTy peYIpOBAtbcr NO OTdJIbHOCTN. HabINHUYBaIOUHeCRA OKyIpaBl (2a)

EcIn Bbl cMoTpIte uepe3 6HOKJIb B OuyKaX, BKpyTlTe HaBnHcNBAHOUHeC8 OkyJIpbl (2a). EcIn Bbl He HocHTe OUYKIN, BblkpyTlTe HaBnHcNBAHOUHeC8 OkyJIpbl dIy oBeCneueHn Heo6xOdHmOro pacCToHn Do 3paUkOB. IIN

Pe3nHOBbIe OkyJIpaI (2b)

Ecnn Bbl cmoptnte uepe3 bHOKlb B Ouykax, OTBepnTe pe3HHOBbIe OKyIaRbI (2b) C6OKy BHN3. Ecnn Bbl He HOCnte OUYK, OCTaBBte OKyIaRbI B BePTiKaJIbHOM NOJIOXeHN IJRA ObecneueHNA Heo6xOdHMOrO paCCTOHRN JDO 3paUcOB.

HactpoIka rla3HO6a3bI

PacctoHne MeKdy rla3aMn YBJIeTcN HINBnDyalbHbIM dIra KaKDoR OeNoBeka. IJRA oBeCneueHn IeAJIbHOrO cOrIaCoBaHn rla3 C OKyIpaMn 6nHOKJ erO Heo6xOdImo cOrHyTB OTHocHTeNbHO ueHTpaJIbHOJ OCN (1) TaKIM o6pa3OM, UTO6bl Chepe3 Hero 6bla BnDa OTo6paKaIOUaIg OkpyXHocTb (9). 3aONMHte HaCTpOky dIra NcNoIb3OBaHn B 6dyuem.

YctaHOBKa Ha pe3KoCTb

ПосмOTРпTe chepe3 6инokьи 3akpoIte npaBbI rla3. OtpeRyIpyIte n3O6paJxHne ДЯ ЛeBOrO rla3a C nOMoUcIbU cHTpaJIbHOrO pInBODa (6). 3akpoIte JEBi rla3И OTPeRyIpyIte pe3KocTb n3O6paJxHnAДЯ nPaBOrO rla3a C nOMOuIbO dHOnTpNHOrKOJIbUca (3).

YKA3AHN no chcTke

HcnoIb3yIe dIy uNCTKn IIN3 (OkyIpaI N oBbeKTNBbl) TOnbKO MraKyIO caIΦeTKy

H3 HeTKaHOro MaTePnAJa (HaIprIMep, MmKpOBoJokHo). He HaxkMaIte Ha caJIΦeTKy CInuKOM CInbHO, YTO6bI NCKIIOHTb BepoTHOCTb O6pa3OBaHNr ZaapanH Ha IINH3ax.

Дя удалени 60ilee cnIbHbIX 3aIrp3HeHn CMOHTe YNCTAUYO caJIfeKy B JHKIOCTN ДЯ UNCTKN OYKOB I NPOTpTe LINH3bl C HeBOLbUHM yCNIInem.

3aunuante npn6op ot nbin n Blan! Nocne nncnoB30BaHna - B ocoeHHoCTn npn BbICOKO BnaxHOCTN BO3dyxa - NoadpKHTe npn6op HeKOtOpoe BpeMa npn KOMHaT- HoTmemepaType, yTO6bl DaTb NCnapTbcra OCTaToCHoBn Blaare. HadeNbTe nbIe3a- uHThle KOJIpaUKN I NOMeCTnte npn6op BCyMKy, BXODAUYO B KOMPJIeKT NOCTaBKN.

DE

Garantie & Service

The regular guarantee period is 2 years and begins on the day of purchase. To benefit from an extended voluntary guarantee period as stated on the gift box, registration on our website is required.

You can consult the full guarantee terms as well as information on extending the guarantee period and details of our services at www.bresser.de/warranty_terms.
