Features	Details
Lens type	Standard zoom
Mount	Micro 4/3
Focal length range	14-140 mm
Maximum aperture	F3.5-5.6
Stabilization	O.I.S. (Optical Image Stabilization)
Optical construction	15 elements in 11 groups
Minimum focusing distance	30 cm
Filter diameter	58 mm
Dimensions	Approx. 76.6 x 65 mm
Weight	Approx. 265 g
Recommended use	Travel photography, portraits, landscapes
Maintenance	Clean with a soft cloth, avoid harsh chemicals
Safety	Do not expose to moisture or extreme temperatures
Additional information	Compatible with Panasonic and Olympus Micro 4/3 mount cameras

Frequently Asked Questions - Vario 14140mm F3.55.6 ASPH O.I.S. PANASONIC

How can I install the Panasonic Vario 14140mm lens on my camera?

To install the lens, align the marks on the lens and the camera body, then turn the lens clockwise until it clicks into place.

Why is my Panasonic Vario 14140mm lens not focusing?

Make sure the lens is properly mounted on the camera and that autofocus mode is enabled. Also check if the lens is in manual focus mode.

What is the weight of the Panasonic Vario 14140mm lens?

The lens weighs approximately 200 grams, making it light and easy to carry.

Is the Panasonic Vario 14140mm lens water-resistant?

This lens is not specifically designed to be water-resistant. It is recommended to use it in dry conditions and protect it from moisture.

How can I clean my Panasonic Vario 14140mm lens?

Use a blower to remove dust, then a slightly damp microfiber cloth to clean the lens. Avoid using harsh chemicals.

Is the Panasonic Vario 14140mm lens compatible with all Panasonic cameras?

The lens is compatible with Panasonic cameras with a Micro Four Thirds mount. Check your camera's compatibility before purchase.

How can I get better background blur with this lens?

For better background blur, use a wider aperture (smaller f-number). Set the aperture to f/3.5 if possible and get closer to your subject.

What accessories are recommended for the Panasonic Vario 14140mm lens?

It is recommended to use a UV filter to protect the lens, a lens hood to reduce glare, and a protective case for transport.

My Panasonic Vario 14140mm lens produces blurry images. What should I do?

Make sure the lens is clean, check the shutter speed and increase it if necessary. Also try to stabilize the camera to avoid motion blur.

How can I use the image stabilization of the Panasonic Vario 14140mm lens?

Image stabilization is enabled by default. Make sure your camera is set to use it. Consult your camera manual for specific instructions.

USER MANUAL Vario 14140mm F3.55.6 ASPH O.I.S. PANASONIC

Operating Instructions

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

Model No. H-FS14140

Lumix

Please read these instructions carefully before using this product, and save this manual for future use.

VQT4Y54 F0413KD0

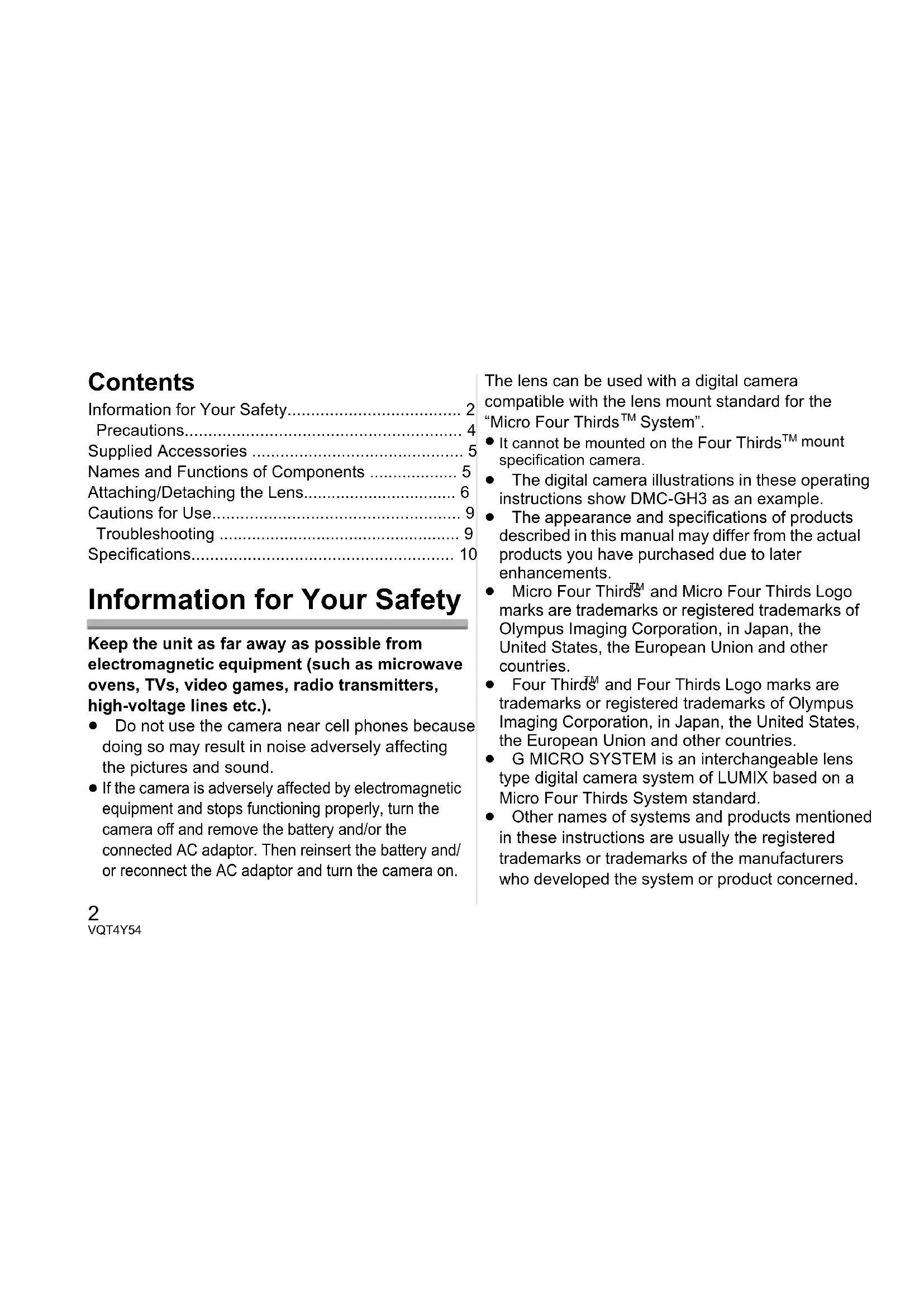

Contents

Information for Your Safety. 2

Precautions 4

Supplied Accessories 5

Names and Functions of Components 5

Attaching/Detaching the Lens. 6

Cautions for Use. 9

Troubleshooting 9

Specifications 10

Information for Your Safety

Keep the unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games, radio transmitters, high-voltage lines etc.).

• Do not use the camera near cell phones because doing so may result in noise adversely affecting the pictures and sound.
• If the camera is adversely affected by electromagnetic equipment and stops functioning properly, turn the camera off and remove the battery and/or the connected AC adaptor. Then reinsert the battery and/ or reconnect the AC adaptor and turn the camera on.

The lens can be used with a digital camera compatible with the lens mount standard for the "Micro Four Thirds™ System".

• It cannot be mounted on the Four Thirds™ mount specification camera.
  The digital camera illustrations in these operating instructions show DMC-GH3 as an example.
  The appearance and specifications of products described in this manual may differ from the actual products you have purchased due to later enhancements.
• Micro Four Third™ and Micro Four Thirds Logo marks are trademarks or registered trademarks of Olympus Imaging Corporation, in Japan, the United States, the European Union and other countries.
• Four Thirds™ and Four Thirds Logo marks are trademarks or registered trademarks of Olympus Imaging Corporation, in Japan, the United States, the European Union and other countries.
  G MICRO SYSTEM is an interchangeable lens type digital camera system of LUMIX based on a Micro Four Thirds System standard.
• Other names of systems and products mentioned in these instructions are usually the registered trademarks or trademarks of the manufacturers who developed the system or product concerned.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Precautions

Lens Care

• Sand and dust can damage the lens. Make sure that no sand or dust gets inside the lens or the terminals when using the lens on a beach, etc.
• This lens is not waterproof. If drops of water get onto the lens, wipe the lens with a dry cloth.
• Do not press the lens with excessive force.
• When there is dirt (water, oil, and fingerprints, etc.) on the surface of the lens, the picture may be affected. Lightly wipe the surface of the lens with a soft, dry cloth before and after taking pictures.

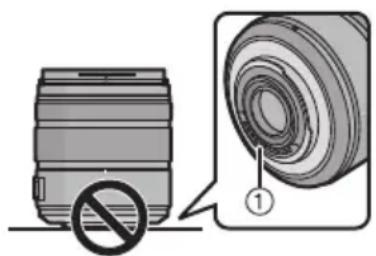

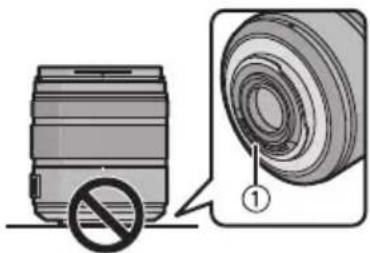

• Do not place the lens mount facing downwards.
  Do not allow the lens contact points ① to become dirty.

About Condensation (Fogging of the Lens)

• Condensation occurs when there are differences in temperature and humidity as described below. Condensation can cause the lens to become dirty and lead to mold and malfunctioning, so exercise caution in the following situations:
• When the camera is brought indoors from outside during cold weather
• When the camera is brought into an air-conditioned car
• When cold air from an air conditioner is directly blown onto the lens
  Inhumidplaces
• Put the camera into a plastic bag to allow it to acclimatize to the surrounding temperature in order to prevent condensation. If condensation occurs, turn the power off and leave it for about two hours. Once the camera acclimatizes to the surrounding temperature the condensation will go away naturally.

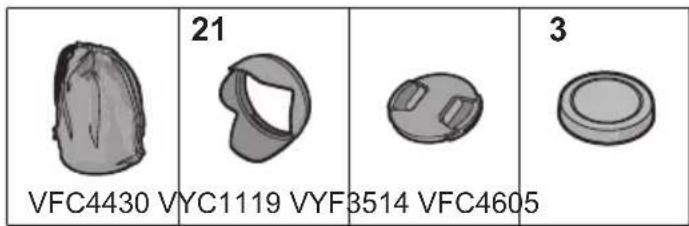

Supplied Accessories

[Inspection to be performed when you unpack the unit]

When removing the unit from its packing box, check that the main unit and the supplied accessories are there and also check their external appearance and functions to verify that they have not sustained any damage during distribution and transportation.

If you discover any trouble, contact your vendor before using the product.

Product numbers correct as of May 2013. These may be subject to change.

1 Lens Storage Bag
2 Lens Hood
3 Lens Cap
4 Lens Rear Cap (The lens rear cap and lens cap are attached to the interchangeable lens at the time of purchase.)

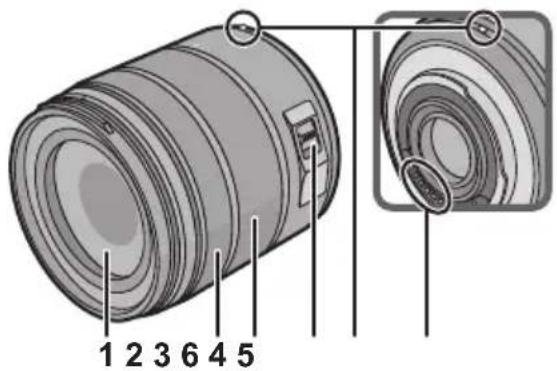

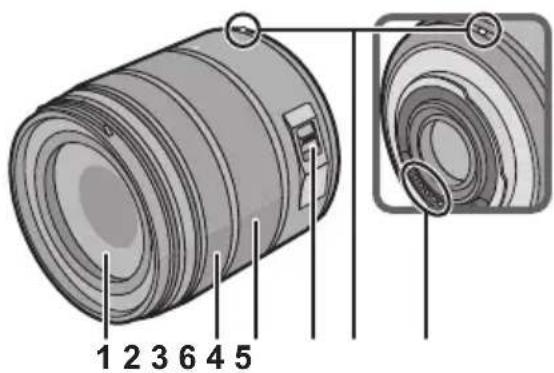

Names and Functions of Components

1 Lens surface
2 Focus ring

Rotate to focus when taking pictures with manual focus.

3 Zoom ring
Rotate the zoom ring when you wish to take large (tele) or wide (wide angle) pictures. (35 mm film camera equivalent: 28 mm to 280 mm)
4 Lens fitting mark
5 Contact points

6 [O.I.S.] switch

When the lens is attached to the camera the stabiliser function is set to activate if the [O.I.S.] switch is set to [ON].

We recommend setting the [O.I.S.] switch to [OFF] when using a tripod.
- The stabiliser function may not be effective in the following cases.

• When there is a lot of jitter.
• When the zoom magnification is high.
• When using the digital zoom.
• When taking pictures while following a moving subject.
• When the shutter speed becomes slower to take pictures indoors or in dark places.

Note

• When flash recording with a close subject, the light of the flash will be blocked by the lens and part of the picture may be dark. Check the distance from the subject when recording.
• If you zoom after focusing, focusing errors may occur. After zooming, please perform the focusing again.

Attaching/Detaching the Lens

Refer also to the camera's operating instructions for attaching and detaching the leg
- Check that the camera is turned off.
- Remove the lens rear cap from the lens.

Attaching the Lens

Align the lens fitting marks ④ on the camera body and the lens and then rotate the lens in the direction of the arrow until it clicks.

• Do not press the lens release button ⑧ when you attach a lens.
• Do not try to attach the lens when holding it at an angle to the camera body as the lens mount may get scratched.
• Check that the lens is attached correctly.
• Be sure to remove the lens cap when recording.

Detaching the Lens

While pressing on the lens release button ⑧ rotate the lens toward the arrow until it stops and then remove.

• Attach the lens rear cap so that the lens contact point does not get scratched.

• Attach the body cap to the camera so no dirt or dust will get inside the main unit.

- Attaching the Lens Hood (Supplied Accessory)

Hold the lens hood with your fingers placed as shown in the picture.

• Do not hold the lens hood in a way that twists or bends it.

1 Align the fitting mark ⑤ on the short side of the lens hood with the mark on the tip of the lens.

2 Turn the lens hood in the direction of the arrow until it stops, and align the stop mark ① on the long side of the lens hood with the mark on the tip of the lens.

7 VQT4Y54

Temporarily Storing the Lens Hood

1 Turn the lens hood in the direction of the arrow to detach it.

2 Reverse the lens hood and then attach it in the same way as shown previously.

Note

• When taking pictures with the flash with the lens hood attached, the lower portion of the screen may turn dark (vignetting effect) and the control of the flash may be disabled because the photo flash may be obscured by the lens hood. We recommend detaching the lens hood.
• When using the AF assist lamp in the dark, detach the lens hood.

Attaching Filters

Vignetting may occur if using 2 or more MC protectors (optional: DMW-LMCH58), PL filters (optional:DMW-LPL58) or ND filters (optional:DMW-LND58), or if using thick protectors and/or filters.
- The filter may become impossible to remove if excessively tightened, so please refrain from tightening it too strongly.
It is possible to attach the lens cap with the filter already attached.
- You cannot attach a conversion lens or adaptor to this lens. A filter may be used, but attaching any other element may cause damage to the lens.

Cautions for Use

Take care not to drop or knock the lens. Also take care not to put a lot of pressure on the lens.

• Take care not to drop the bag that you inserted the lens in as it may strongly shock the lens. The camera may stop operating normally and pictures may no longer be recorded. Also, the lens may be damaged.

When using pesticides and other volatile substances around the camera make sure that they do not get onto the lens.

• If such substances get onto the lens they can damage the exterior case or cause the paint to peel.

Do not carry the unit when it is still attached to the camera body.

• Under no circumstances should the unit be stored in any of the following locations since doing so may cause problems in operation or malfunctioning.
• In direct sunlight or on a beach in summer
• In locations with high temperatures and humidity levels or where the changes in temperature and humidity are acute
• In locations with high concentrations of sand, dust or dirt
  -Where there is fire
• Near heaters, air conditioners or humidifiers
• Where water may make the unit wet
  -Where there is vibration
• Inside a vehicle

Refer also to the operating instructions of the digital camera.
- When the unit is not going to be used for a prolonged period, we recommend storing with a desiccant (silica gel). Failure to do so may result in performance failure caused by mold, etc. It is recommended that you check the unit's operation prior to use.
- Do not leave the lens in contact with rubber or plastic products for extended periods of time.
- Do not touch the lens contact point. Doing so can cause failure of the unit.
- Do not disassemble or alter the unit.

Do not use benzine, thinner, alcohol or other similar cleaning agents to clean the lens glass or exterior cabinet.

• Using solvents can damage the lens or cause the paint to peel.
• Wipe off any dust or fingerprints with a soft, dry cloth.
• Use a dry, dust cloth to remove dirt and dust on the zoom ring and the focus ring.
• Do not use a household detergent or a chemically treated cloth.

Troubleshooting

A sound is heard when the camera is turned on or off.

• This is the sound of lens or aperture movement and is not a malfunction.

Specifications

Specifications are subject to change without notice.

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

"LUMIX G VARIO 14-140 mm/F3.5-5.6 ASPH./POWER O.I.S."

Focal length f=14 mm to 140 mm	(35 mm film camera equivalent: 28 mm to 280 mm)
Aperture type 7 diaphragm blades/ci	circular aperture diaphragm
Aperture range F3.5 (Wide) to F5.6 (Tele)
Minimum aperture value F22
Lens construction	14 elements in 12 groups (3 aspherical lenses, 2 ED lenses)
In focus distance	0.3 m to ∞ [from the focus distance reference line] (focal length 14 mm to 21 mm), 0.5 m to ∞ [from the focus distance reference line] (focal length 22 mm to 140 mm)
Maximum image magnification	0.25× (35 mm film camera equivalent: 0.5×)
Optical image stabiliser Available
[O.I.S.] switch Available (Switching ON/OFF)
Mount “Micro Four Thirds Mount”
Angle of view	75° (Wide) to 8.8° (Tele)
Filter diameter 58 mm
Max. diameter Approx. 67 mm
Overall length	Approx. 75 mm (from the tip of the lens to the base side of the lens mount)
Mass	Approx. 265 g

Panasonic Warranty

1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised Distributors or Dealers and only where the products are used and serviced within Australia or It's territories. Warranty cover only applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when warranty service is requested.

3. This warranty only applies if the product has been installed and used in accordance with the manufacturer's recommendations (as noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations), introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.

4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase: (a) Cabinet Part(s) (e) DVD, Blu-ray or Recordable Discs (b) Video or Audio Tapes (f) Video / Audio Heads from wear and tear in normal use (c) SD cards or USB devices (g) Information stored on Hard Disk Drive, USB stick or SD card (d) User replaceable Batteries (h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s) etc. 5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover (a) Internet and or DLNA connection / setup related problems (b) Access fees and or charges incurred for internet connection (c) The use of incompatible software or software not specifically stipulated in the product operations manual; and (d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or any other device.

5. To claim warranty service, when required, you should: Telephone Panasonic's Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre Locator for the name/address of the nearest Authorised Service Centre. Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of purchase date. Please note that freight and insurance to and /or from your nearest Authorised Service Centre must be arranged by you. Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the normal operating areas of the nearest Authorised Service Centres: -Plasma/LCD televisions / displays (screen size greater than 103 cm)

6. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, deinstallation or re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other ancillary activities), delivery, handling, freightiing, transportation or insurance of the product or any part thereof or replacement of and do not extend to, and exclude, any damage or loss occurring by reason of, duning, associated with, or related to such installation, de-installation, re-installation or transit.

Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however, coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.

THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES

If you require assistance regarding warranty conditions or any other enquiries, please visit the Panasonic Australia website www.panasonic.com.au or contact by phone on 132 60 If phoning in, please ensure you have your operating instructions available.

Panasonic Australia Pty. Limited

ACN 601 592 187 ABN 83 601 592 187
1 Innovation Road, Macquarie Park NSW 2113

01-01-2011

Inhalt

6 Interruptor [O.I.S.]

-Ecnn Bby yBnDnte TaKo cNMBON

HΦopMaunno o6paueHnO cOTxoJamn JIa CTpaH, He BXoJauNX B EbponeNcKm Co03

DeiCTBne 3TOrO cIMB0Na
pacnpoctpaHReTc TOnbKO Ha
Ebponeckn Coo3.
EcN Bblco6npaTeCb
Bbl6pocntb daHHbI npOdyKT,
y3HaIte B MeCThBX opraHax
BnaCTn INn y dInepa, KaK
CneDyET NocTyNaTb C
OTXODAM TAKOROTnA.

Ppabnla 3kcnnyataun

YxOa 3a o6bEeKTHBOM

• Pecok n nbilb Moryt npnbEcTn K nobpejdeHnO obBeKTnBa. Ipn nCnoIb3oBaHHn ObBeKTnBa Ha nIJIxHe n T.I. y6eIITecb, YTO BHyTpN ObBeKTnBa n rHe3d HET necka n nbiIN.
  -Данньи obkeTNB HeЯВяETcB BOHOHePOnHuaeMbIM.EcHnHa obkeTNB nonaIN KaJIIN BODbl, BbITpnte obkeTNB cyXoTkaHbIO.
• HeNb3a CNbHo HaxMaTb Ha 06BeKtNB.
  B cnyuae nonaadaHna nobepxHOCTb oBeKTnBa rpa3n (BObl, Macna, OTneaytKOB naIbueB nT. d.) KaueCTBO CHIMKA MOKeT yXuDunTBcR. CJeDeYeT OCTOPOXHO BItpeTb NOBepxHOCTb OBeKTnBA MmKoN cyXOn TKaHbIO nepeD cBeMKoN.
  He cTaBbTe obBeKTHM OHTaXHOI NOBepxHocTbIO Bn3.He dOnyckaTe nonaDaHne 3arpa3HeHn Ha MOHTaXHbIe NOBepxHocTn ① o6BeKTbBa.

O KOHdEhcaunn (3aNoTeBaHnn o6bekTnBa)

• KoHdEhcaunI npOcXoDnI npI pa3Hnue B TEMnepaType n BnaJxHoCTn, KaK OnUcaHO HnKe. KoHdEhcaunI MoKeT npBecTu K 3aRpa3HeHnIO o6bekTuBa, NOBLeHnIO PnCeHn I HeNCpabHocTeN, N03ToMy Heo6xOuMo CO6nIoDaTb octopoxHoCtB CNeDuOuNX cHTyaunX:
• npBHeCenKamepbIB NOMEeHne C yIuCbIB XOJODHyIO NOrOdy
• npBHeceHn KaMepb B caNoH aBTOMo6nJa, rpepa6oTaet KOHduuHOHe
  -ecnI NOTOK XOJODHOrO Bo3dyxa n3 KOHNcNoHEpa HAppaBneH npraMo Ha 06bekTNB -BO BJIaXHBIX MeCTax
• Дя пededOTbpaUeHЯ KOнdeHcaUи NOmeCTHTe KaMepy B pIaCTNKOBbI NaKeT, qTo6bl ee TempepaTypa cpaBnJaNc b TempepaTypoi OkpykaUoJero BO3duxa. Пpr Bo3HnKHOBeHIn KOHeHcaUu NblKJIIOHnte KaMepy N OCTaBBTe ee npIMepHo Ha dBa Yaca. Korda TempepaTypa KaMepbI cpaBnReTcra TEmpepaTypoi OkpykaUOeBO3duxa, 3anOTeBaHne nCue3Het ECTeCTBeHHbIM O6pa3OM.

Ha3BaHnI nФункuIN COCTaBhblx YacTei

1 NObepxHOCTb JINH3bl
2KoJIbIcOΦOKycnpoBKN

BpaaTe Inna HabeJeHna Ha pe3KocTb npn CbeMke BpeKmE cpyHOn HABoDKoN Ha pe3KocTb.

3KoIbUTo TpaHcfoKaTopa

CTapaTecb He poHrTb N He ydapraTb o6BeKTHB. Takke cTapaTecb He noDBepratb o6BeKTHB Upe3MepHomy daBHeHIO.

CneIte 3a Tem, yTo6bI He ypoHnTB B CymKy, B KOTOpYB Bbl NIOJXINN O6BeKTHB, NCKOJIbKY 3TO MOKeT npNBecTN K NOBpeKDeHNIO O6BeKTHBa. KaMepa MOKeT nepeCTaTb HOpMaJIbHO pa60TaTb, IN DaJIbHeNsa 3aNNCb CHIMKOB MOKeT OKa3aTbCBy HEBO3MOXHOH.

Pn nncnoB3ObaHnn neCTnUdoB n dpynx IeTuNX BeuecTB B6n3n KaMepbI y6eNTecb, yTO OHn He nonaAdOT Ha o6bekTnB.

• Пи пonaдани Ha obkeKTHB takne BeuecTBA MoryT NOBpeDnTB obkeKTHB nIN npNBecTN K OTCnaBaHNU KpackN.

He Hocnte yctpoiCTBO npncOeHHeHHbIM K Kopnycy foToKamepbl.

Kateropnueckn 3anpeaetcnoJb3oBaTbcf oTOBCnbIkwON nnXpaHNTbeB CJeDyUOux YCIOBnIX, TAK KAK 3TO MOKeT npNBecTu K c6oAM B pa6oTe NN HePpABNJbHO np6ote.

EU
Manufactured by: Panasonic Corporation Kadoma, Osaka, Japan
Importer: Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsberging 15,22525 Hamburg, Germany

Panasonic Corporation

Web Site: http://panasonic.net

© Panasonic Corporation 2013
