USER MANUAL G 4415 OLYMPIA

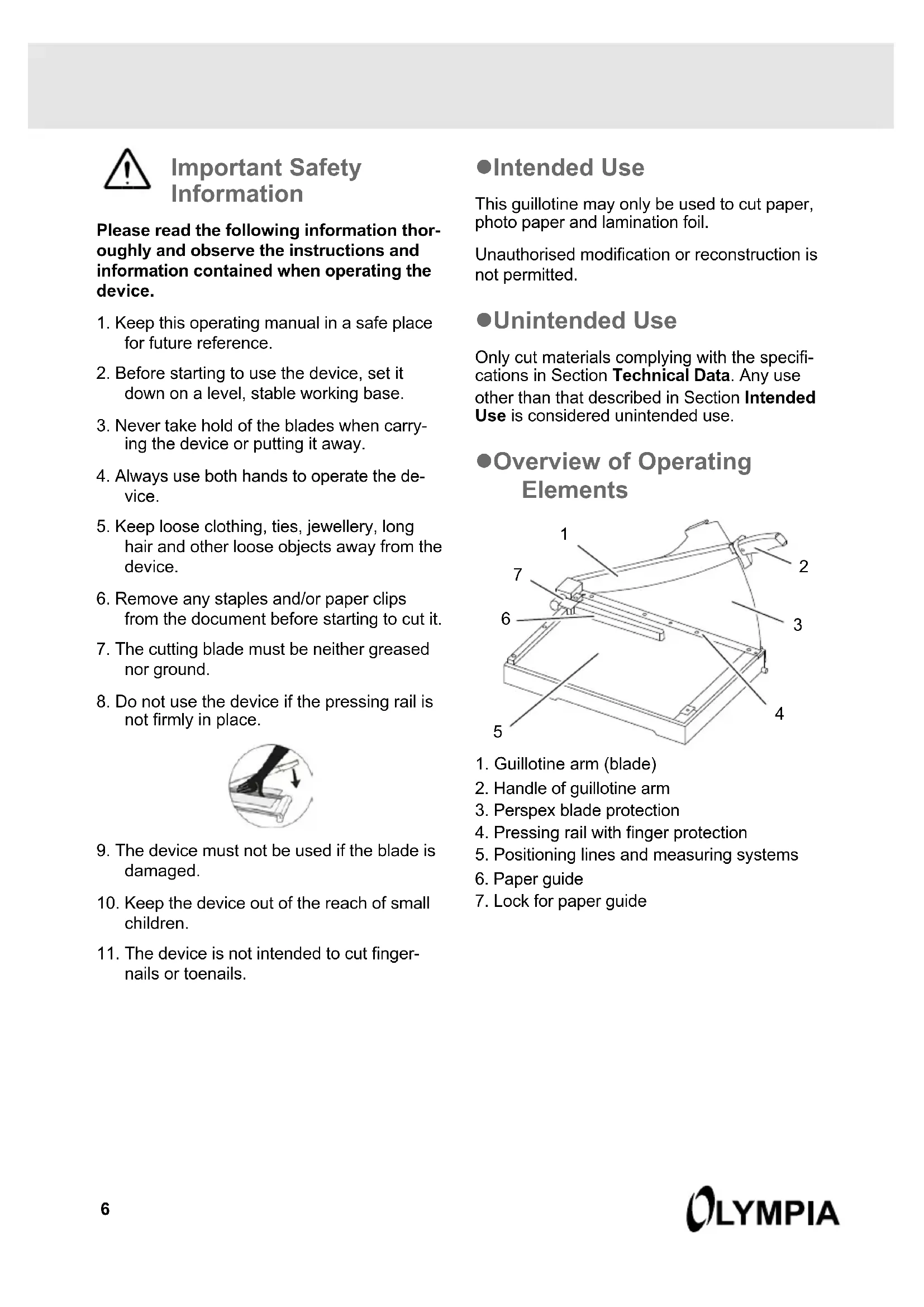

1. Keep this operating manual in a safe place

for future reference.

2. Before starting to use the device, set it

down on a level, stable working base.

3. Never take hold of the blades when carry

ing the device or putting it away.

4. Always use both hands to operate the de

5. Keep loose clothing, ties, jewellery, long

hair and other loose objects away from the device.

6. Remove any staples and/or paper clips

from the document before starting to cut it.

7. The cutting blade must be neither greased

8. Do not use the device if the pressing rail is

not firmly in place.

9. The device must not be used if the blade is

10. Keep the device out of the reach of small

11. The device is not intended to cut finger

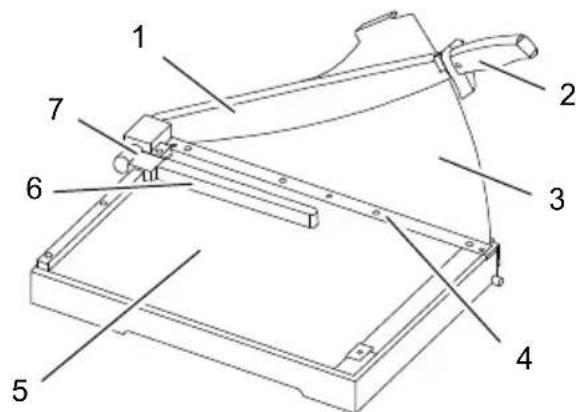

nails or toenails. Intended Use This guillotine may only be used to cut paper, photo paper and lamination foil. Unauthorised modification or reconstruction is not permitted. Unintended Use Only cut materials complying with the specifi cations in Section Technical Data. Any use other than that described in Section Intended Use is considered unintended use. Overview of Operating Elements

4. Pressing rail with finger protection

5. Positioning lines and measuring systems

7. Lock for paper guide7

1. Remove the device carefully from the

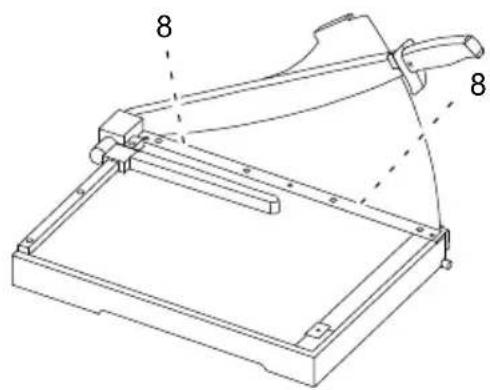

2. Remove the screws (8) from the pressing

3. Remove the protective card from the per

spex blade protection (3).

4. Unlock the guillotine arm (1) by turning the

5. Pull the guillotine arm (1) upwards a little.

Install the perspex blade protection (3) carefully, from the rear, so that the protec tion is against the blade. Note: The handle (2) is provided with a small projection which must be on the left-hand side of the perspex blade protection (3). Move the cover so that the screw holes are in line with the respective thread. Attention: Property damage! The per spex blade protection (3) could be damaged. Do not tighten the screws too tight.

6. Fix the perspex blade protection (3) in

place on the pressing rail (4) with the screws (8). Guillotine

1. Remove the device carefully from the

packaging. Attention: Risk of injury! The guillotine blade is very sharp! Never reach in towards or take hold of the guillotine blade.

2. Before starting to use the device, set it

down on a level, stable working base. Note: The guillotine arm (1) is locked on the underside of the cutting unit.

3. Unlock the guillotine arm (1) by turning the

5. Place the material to be cut in the required

position under the pressing rail (4) and press the pressing rail down.

6. Cut the material by moving the guillotine

arm (1) down using the handle (2). Attention: Risk of injury! The guillotine blade is very sharp! Never reach in towards or take hold of the guillotine blade. Note: After completing the cutting task, the guillotine arm (1) must be locked to the under side of the cutting unit.

7. Use the handle (2) to move the guillotine

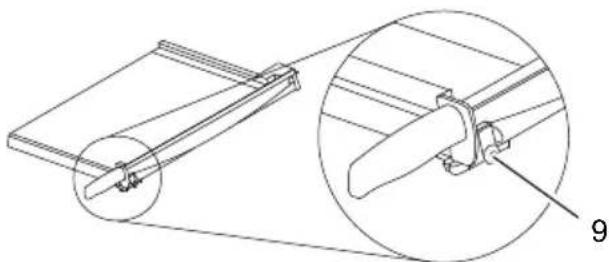

arm (1) down as far as possible. Lock the guillotine arm by turning the lock (9) anti clockwise.8 Paper Guide

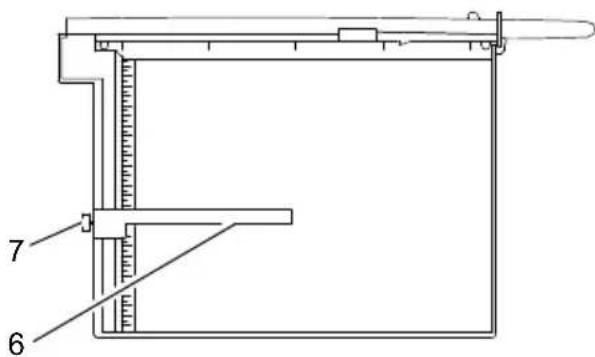

1. Release the lock (7) for the paper

2. Slide the paper guide (6) carefully on the

rail. Note: Do not slide the paper guide (6) if the lock (7) has not been released.

3. Position the paper guide (6) with the aid of

the measuring units and systems (5). Note: The paper guide (6) can be adjusted continually in the rail.

4. Lock the paper guide (6). The paper guide

serves as a stopper for the material to be cut. Adjusting the Guillotine Arm

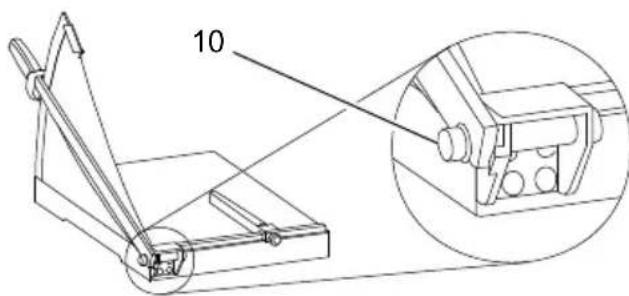

After a period of time in use, the guillotine arm (1) becomes too loose and no longer re mains in position of its own accord. The guillo tine arm (1) must then be readjusted.

1. Tighten the screw (10) slowly, using an

appropriate tool. Note: Check whether the guillotine arm re mains in position, taking the safety information into account. If the guillotine arm is too difficult to move, loosen the screw (10) slowly, using an appropriate tool. Technical Data Cutting length (mm) G 3640

G 4640 8.2 G 3120 2.7 G 4420 4.9 G 4415 4.9 G 3115 2.7 Cleaning the Device Attention: Risk of injury! The guillotine blade is very sharp! Take the utmost caution when cleaning the guillotine blade! Clean the outer surfaces of the device with a slightly damp cloth.Clean the blade carefully with a soft brush. Do not use any aggressive cleaning agents or chemicals to clean the device. Disposal In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. re cycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The symbol indicates that the device must not be disposed of in normal domestic waste! Pack aging materials must be disposed of according to local regulations
