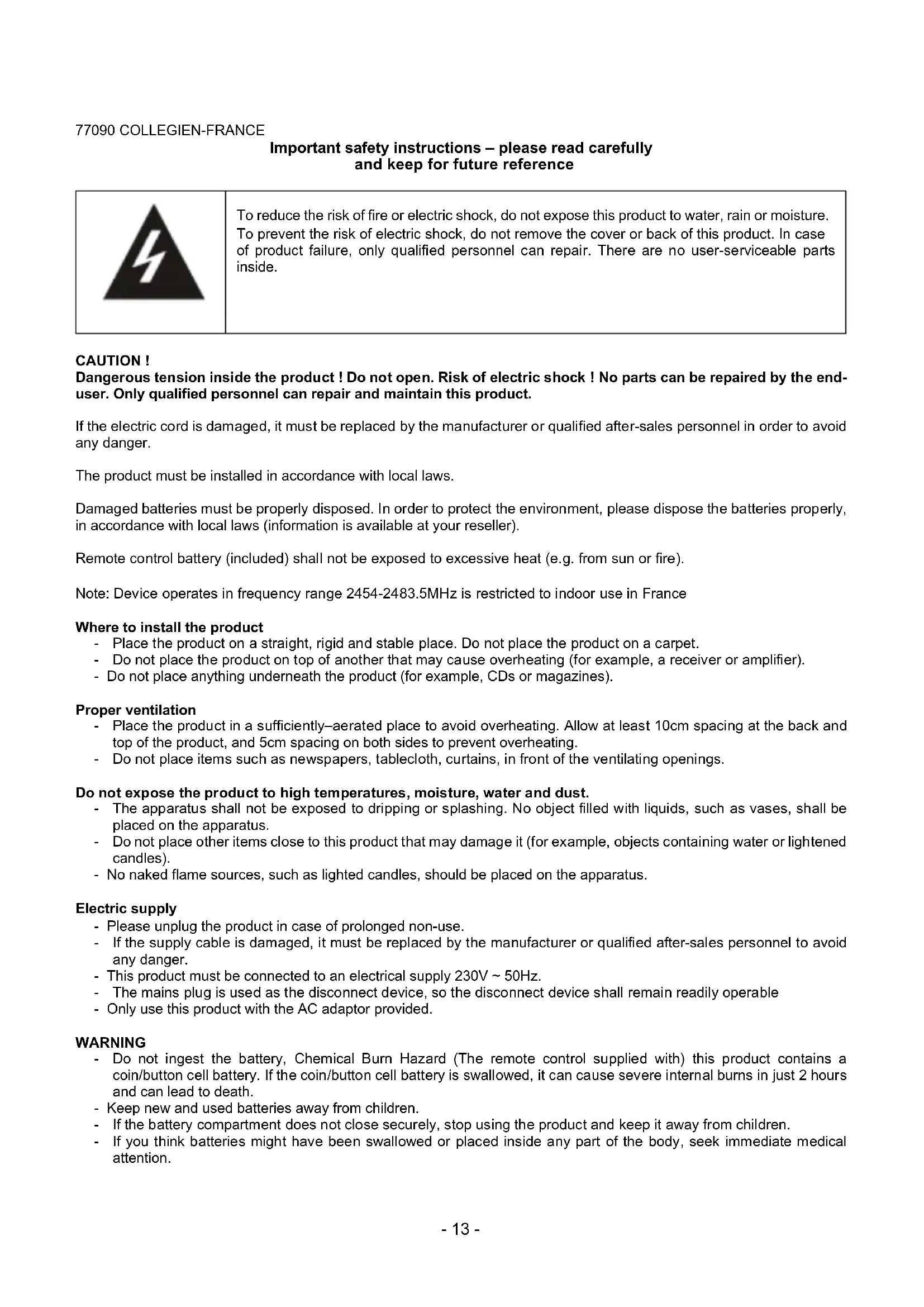

To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user-serviceable parts inside. CAUTION ! Dangerous tension inside the product ! Do not open. Risk of electric shock ! No parts can be repaired by the end- user. Only qualified personnel can repair and maintain this product. If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger. The product must be installed in accordance with local laws. Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller). Remote control battery (included) shall not be exposed to excessive heat (e.g. from sun or fire). Note: Device operates in frequency range 2454-2483.5MHz is restricted to indoor use in France Where to install the product - Place the product on a straight, rigid and stable place. Do not place the product on a carpet. - Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier). - Do not place anything underneath the product (for example, CDs or magazines). Proper ventilation - Place the product in a sufficiently–aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating. - Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings. Do not expose the product to high temperatures, moisture, water and dust. - The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus. - Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles). - No naked flame sources, such as lighted candles, should be placed on the apparatus. Electric supply - Please unplug the product in case of prolonged non-use. - If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger. - This product must be connected to an electrical supply 230V ~ 50Hz. - The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable - Only use this product with the AC adaptor provided. WARNING - Do not ingest the battery, Chemical Burn Hazard (The remote control supplied with) this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. - Keep new and used batteries away from children. - If the battery compartment does not close securely, stop using the product and keep it away from children. - If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.- 14 -

EU declaration of conformity Hereby, Admea declares that this Bluetooth sound bar is in compliance with the essential requirements and other provisions of the Radio Equipment Directive (RED) 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.schneiderconsumer.com

Technical Specification: Device: Sound bar Operation Frequency: 2402 MHz to 2480MHz (BT 4.2) RF Transmission Power: 2dBm W (power per channel) Operation Environment: 0 – 40 Deg C

- This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2012/19/EC of July 4, 2012 concerning the waste on electrical and electronic equipment (WEEE).

The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product. - Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste. - As the end user, your role is of prime importance in the cycles of re-using, recycling, and other forms of valorization of this electrical and electronic equipment. Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product. - You have the obligation to use the selective waste collection systems put in place by your local authorities.- 15 -

What’s included? Main Unit Remote Control Instruction Manual

AC Power Cable 3.5mm to 3.5mm audio cable Rubber Pad

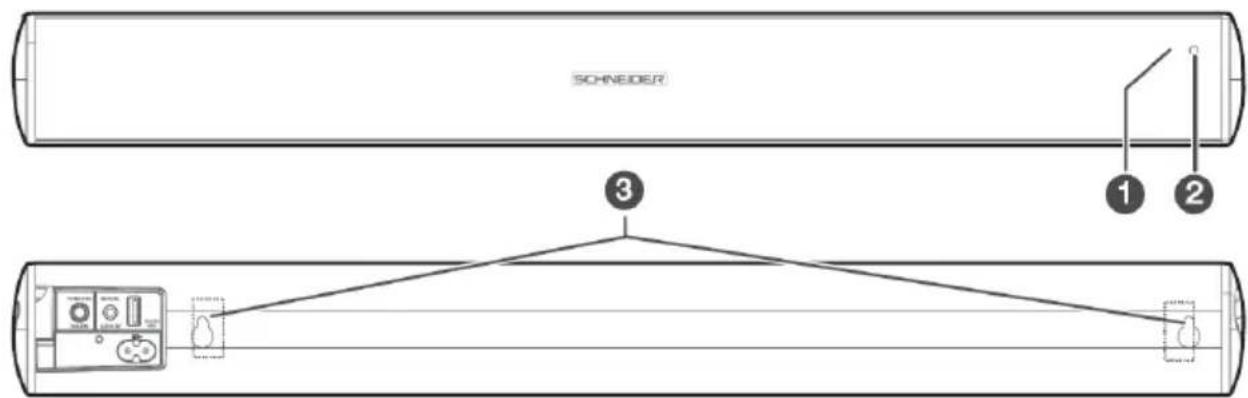

2. Overview of control

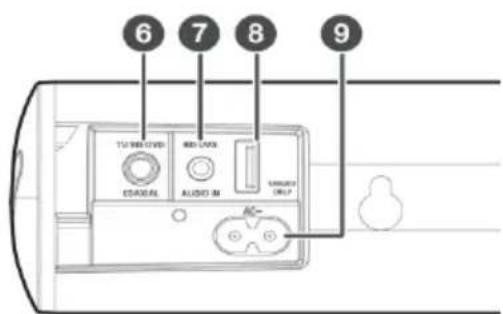

AUDIO IN Socket Connect to an external audio device.

SERVICE ONLY Socket The USB socket is for service only. It is not designed to charge smartphones, tablets or similar devices.- 16 -

AC~ Socket: Connect to power cable provided.

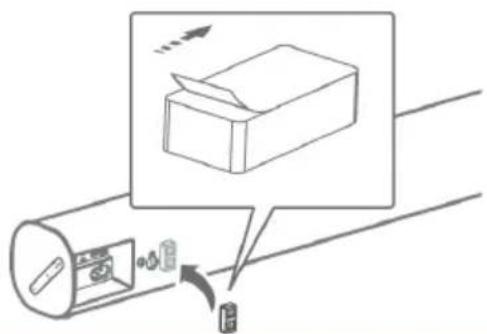

1. Pull out the battery tray and remove the old battery.

2. Place a new CR2025 battery into the battery tray with

correct polarity (+/-) as indicated.

3. Insert the battery tray back into the slot.

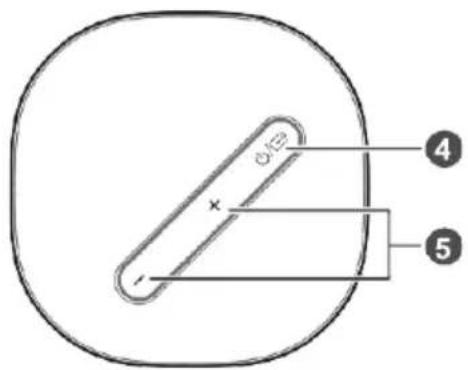

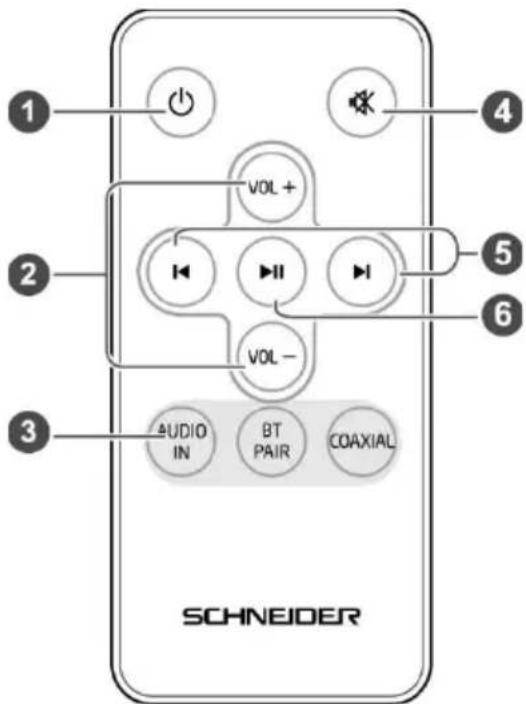

: Turn On/Off the unit 2 VOL+/VOL-: Increase/decrease the volume level. 3 AUDIO IN, BT PAIR, COAXIAL (Function buttons): Select an audio source inputs. 4 : Mute or resume the sound. 5 / : Skip to previous/next track for Bluetooth

playback. 6 : Pause/resume playback for Bluetooth playback. Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device. The unit has been pre-installed a lithium CR2025 battery. Remove the protective tab to activate the remote control battery.4. Wall mounting the sound bar

1. Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury

and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the installer’s responsibility to verify that the wall will safely support the total load of the unit and wall brackets.

2. Additional tools (not included) are required for the installation.

3. Do not overtighten screws.

4. Keep this instruction manual for future reference.

5. Use an electronic stud finder to check the wall type before drilling and mounting.

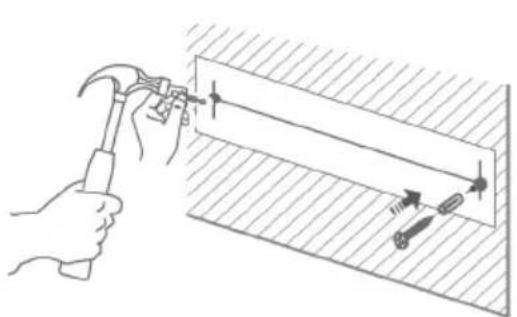

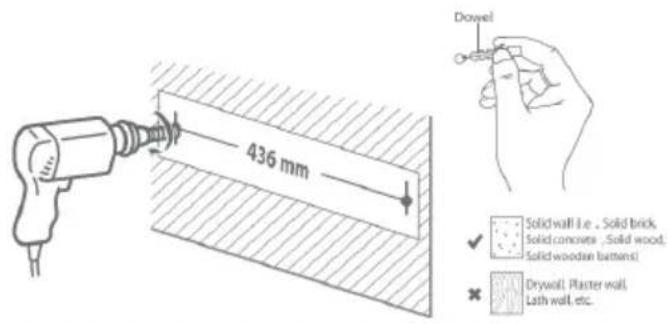

Drill 2 parallel holes (Ø 3-8 mm each according to wall type) in the wall. The distance between the holes should be 436 mm.Firmly fix 1 dowel into each hole in the wall if necessary.

Remove the backing paper from the rubber. Stick the rubber to the back of the sound bar. NOTE: Ensure the surface is clean prior to sticking the rubber to the back of the sound bar.

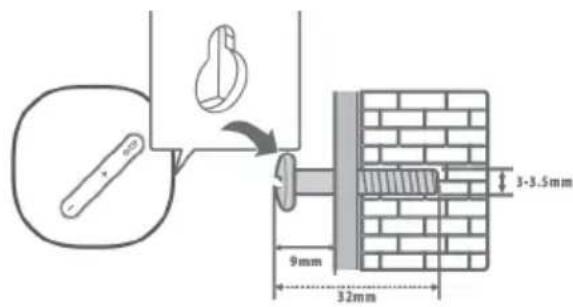

Leave a 9 mm gap between the wall and the screw’s head. Lift the sound bar over the heads of the screws and slot into place.- 18 -

(not provided). NOTE: Ensure that the TV PHONO connectors are audio OUTPUTS and not audio INPUTS. If they are INPUTS then use connection 5.3

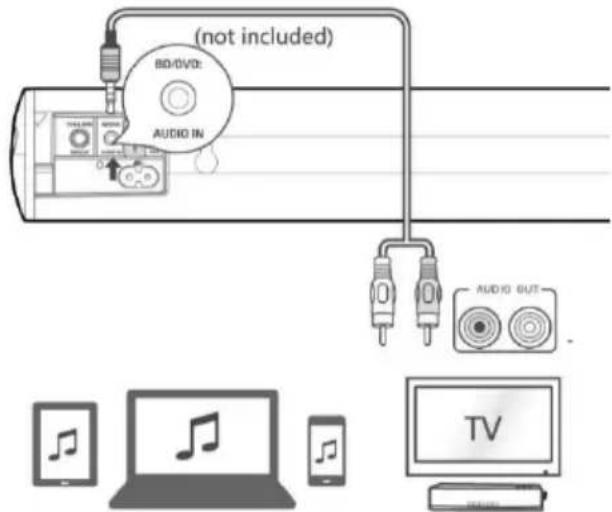

1. Connect one end of the RCA cable to the TV, DVD or CONSOLE audio output RCA sockets.

2. Connect the 3.5mm (small) end to the AUDIO IN socket on the back of the Sound bar.

NOTE: Take care to match the RED plug to the RED socket and the WHITE plug to the WHITE socket.

5.2 DIGITAL connection to a TV, DVD or Blu-ray player using the COAXIAL cable (not provided).

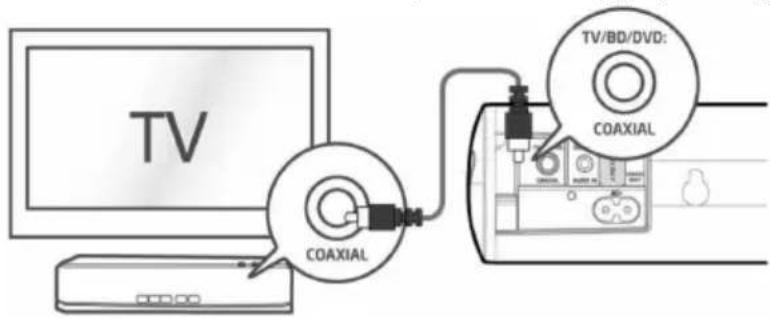

1. Connect one end of the COAXIAL cable to the TV, DVD or Blu-ray COAXIAL audio output socket.

2. Connect the other end to the COAXIAL input on the back of the Sound bar.

NOTE: You may need to activate PCM (Downmix) on your source device: TV, DVD or Blu-ray player.

5.3 Connection to a TV using the 3.5mm-3.5mm audio cable.

Connect the other end of the cable to the AUDIO IN socket on the back of the sound bar. NOTE: In some cases the Sound bar volume output is affected by the volume level on the TV. In this case adjust the TV volume to increase the audio output from the sound bar.- 19 -

7. General operation

Status LED Operation Description LED Status STANDBY Standby RED (solid) SOURCE AUDIO IN GREEN (solid) Bluetooth-ready for pairing BLUE (flash) Bluetooth paired BLUE (solid) Coaxial ORANGE (solid) VOL+/- Adjust sound volume Current input source color (blink twice) Maximum/Minimum volume Current input source color (flash three times) Mute Current input source color (flash) Standby mode

1. Short-press the / button on the unit or the button on the remote control to awake the unit from STANDBY

2. Long-press the / button on the unit or press the button on the remote control to switch the unit back to

STANDBY mode. NOTE: As part of the power saving mode the unit will enter STANDBY mode automatically after 15 minutes (approx.) of no source input. Switching inputs Follow the below steps to switch inputs among: AUDIO IN, BLUETOOTH or COAXIAL.

1. Ensure the Sound bar is powered ON.

2. Short-press the / button on the sound bar or the AUDIO IN, BT, COAXIAL buttons on the remote control

until you see the corresponding color on the indicator.

1. Ensure that the power supply voltage

corresponds to the voltage printed on the back or the underside of the unit.

2. Before connecting the AC power cord,

ensure you have completed all other connections.

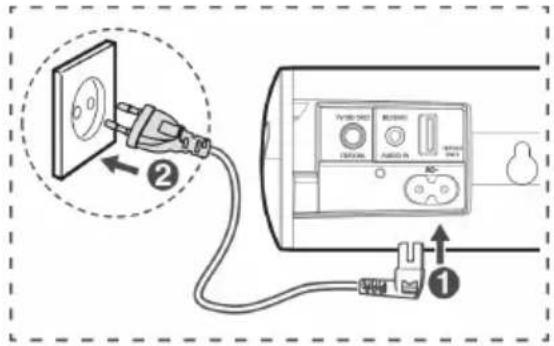

3. Connect the mains cable to the AC~ Socket

of sound bar and then into a mains socket.- 20 - Press the +/- button on the unit or VOL+/VOL- button on the remote control repeatedly to increase or decrease the volume level. Mute function

Pairing a Bluetooth device Before you can use the sound bar with your phone or other Bluetooth capable device you will need to pair the device to the sound bar.

1. Short-press the / button on the unit or the BT PAIR button on the remote control to select Bluetooth mode.

The Blue indicator will flash slowly.

2. Activate your Bluetooth device and select the mode name ‘SC300SND’ on your Bluetooth device list.

3. If you cannot find the sound bar, press and hold the BT PAIR button on the remote control or also press + and -

buttons at the same time on the unit. The system has entered pairing mode. The unit's Blue indicator will flash rapidly and prompt “Pairing“.

4. Select “SC300SND” enter “0000” for the password if necessary. The unit will voice “Paired” and the Blue indicator

will light up solidly.

5. Play music from the connected Bluetooth device.

During playback, you can:

1. Press button pause or resume playback of the selected track on the audio device.

2. Press or to skip to last or next track.

To disconnect the Bluetooth function, you can:

1. Switch to another function on the unit.

2. Disable the function from your Bluetooth device. The Bluetooth device will be disconnected from the unit after the

“Disconnected” voice prompt.

3. Press and hold the BT PAIR button on the remote control or press + and – buttons at the same time on the unit.

Bluetooth status table Operation LED Status Disconnected BLUE (flash slowly) Pairing BLUE (flash rapidly) Connected BLUE (solid) Note:

• The operation range of Bluetooth is approximately 10 meters (30 feet). Any obstacle in the path between devices may reduce this range.

• Only one Bluetooth device can be paired at a time.

In the unlikely event of difficulties with your appliance please follow the trouble shooting guide below.

PROBLEM POSSIBLE SOLUTION

• Ensure the mains plug is connected to a power supply, and is switched ON.

• Make sure there is power to the mains socket. No Sound

• When playing from the AUX input, Make sure the external source has the volume turned up and is playing a track.

• Make sure the volume is turned up.

• If using the digital coaxial cable connection ensure the source DIGITAL output is set to PCM, LPCM, PCM 2Ch stereo or PCM downmix.

• When playing in AUDIO-IN mode, Make sure the other device’s connection is output not Input

Bluetooth device not paired. Refer to “Bluetooth operation”. No response from the unit

• Unplug the power cable for 1 minute then plug back in again. Remote control does not work

• Reduce the distance between the remote and main unit.

• Check the batteries are installed correctly.

• Replace the batteries.

• Aim the remote directly at the Sound bar- 22 - Unit powers off after 15 minutes
