SC155SPKTIT - Speaker SCHNEIDER - Free user manual and instructions

Product type	Bluetooth speaker
Brand	Schneider
Model	SC155SPKTIT
Wireless technology	Bluetooth 4.1 (Class 3)
Bluetooth range	10 meters
Frequency response	120 Hz - 20 kHz
Signal-to-noise ratio	≥ 75 dB
Speaker	Diameter 40 mm, impedance 4 Ω, power 3 W
Total RMS power	3 W
Power supply	Built-in rechargeable battery 3.7 V / 450 mAh
Battery life	Approximately 3 hours
Hands-free function	Yes (built-in microphone)
Charging	USB port (cable included); 5V 500-1000 mA adapter (not included)
Operating temperature	0 °C to 40 °C
Safety	Do not expose to water, heat, or naked flames; do not block ventilation openings
Maintenance	Clean with a dry cloth; do not use chemical products
Repairability	Repair must be carried out by a qualified after-sales service
Package contents	1 speaker, 1 USB cable, 1 user manual

Frequently Asked Questions - SC155SPKTIT SCHNEIDER

How to pair the speaker with a smartphone?

Turn on the speaker by pressing and holding the power button until you hear a beep. The blue LED flashes quickly. On your smartphone, enable Bluetooth, search for the device "SC155SPK" and start pairing. No password is required, or use "0000". A deep tone confirms the connection and the blue LED flashes slowly.

How to answer a call in hands-free mode?

During an incoming call, briefly press the power button once to answer. Press again briefly to hang up. To reject a call, press the button twice briefly. To redial the last number, press the button briefly once.

What is the battery life and how to recharge it?

Battery life is approximately 3 hours. To recharge, connect the included USB cable to the speaker's USB port and to a computer or a 5V power adapter (500 mA to 1000 mA). The red light indicates charging; it turns off when the battery is full. Do not use an adapter exceeding 1000 mA.

What to do if the speaker does not turn on?

First check that the battery is charged (plug in the USB cable and wait a few minutes). If the device still does not turn on, press and hold the power button for at least 5 seconds. Make sure the product is not damaged. If the problem persists, contact after-sales service.

Is the speaker waterproof?

No, the speaker is not waterproof. It must not be exposed to dripping water or splashes. Avoid humidity and dust.

Can I use a 2A power adapter to charge the speaker?

It is not recommended to use an adapter with a current higher than 1000 mA (1 A). Too high a current may damage the device and void the warranty. Use a 5V, 500 mA to 1000 mA adapter.

How to clean the speaker?

Clean the exterior with a soft, dry cloth. Do not use chemicals, solvents, or abrasive cleaners. Do not let any liquid enter the openings.

What to do in case of malfunction?

Stop using the product immediately. Do not attempt to open or repair it yourself. Repair must be carried out by a qualified after-sales service. The after-sales service address is: ADMEA/LOGISAV, ZI du clos des charmes, 26 rue du clos des charmes, 77090 COLLEGIEN, France.

Where to find after-sales service?

After-sales service is provided by ADMEA/LOGISAV at: ZI du clos des charmes, 26 rue du clos des charmes, 77090 COLLEGIEN, France. For any questions, visit http://www.schneiderconsumer.com.

How to recycle the speaker at the end of its life?

This product is subject to the WEEE directive (2012/19/EU). Do not dispose of it with household waste. Take it to a recycling center or a collection point for electrical and electronic equipment. For more information, visit www.quefairedemesdechets.fr.

USER MANUAL SC155SPKTIT SCHNEIDER

Exterior view of a modern office building (no signage)

Table des matières

Français

1. Preparation....20
2. Operations....20
3. Technical characteristics....25

Nederland

1. Voorbereiding 30
2. Werking 31
3. Technische eigenschappen....36

Deutsch

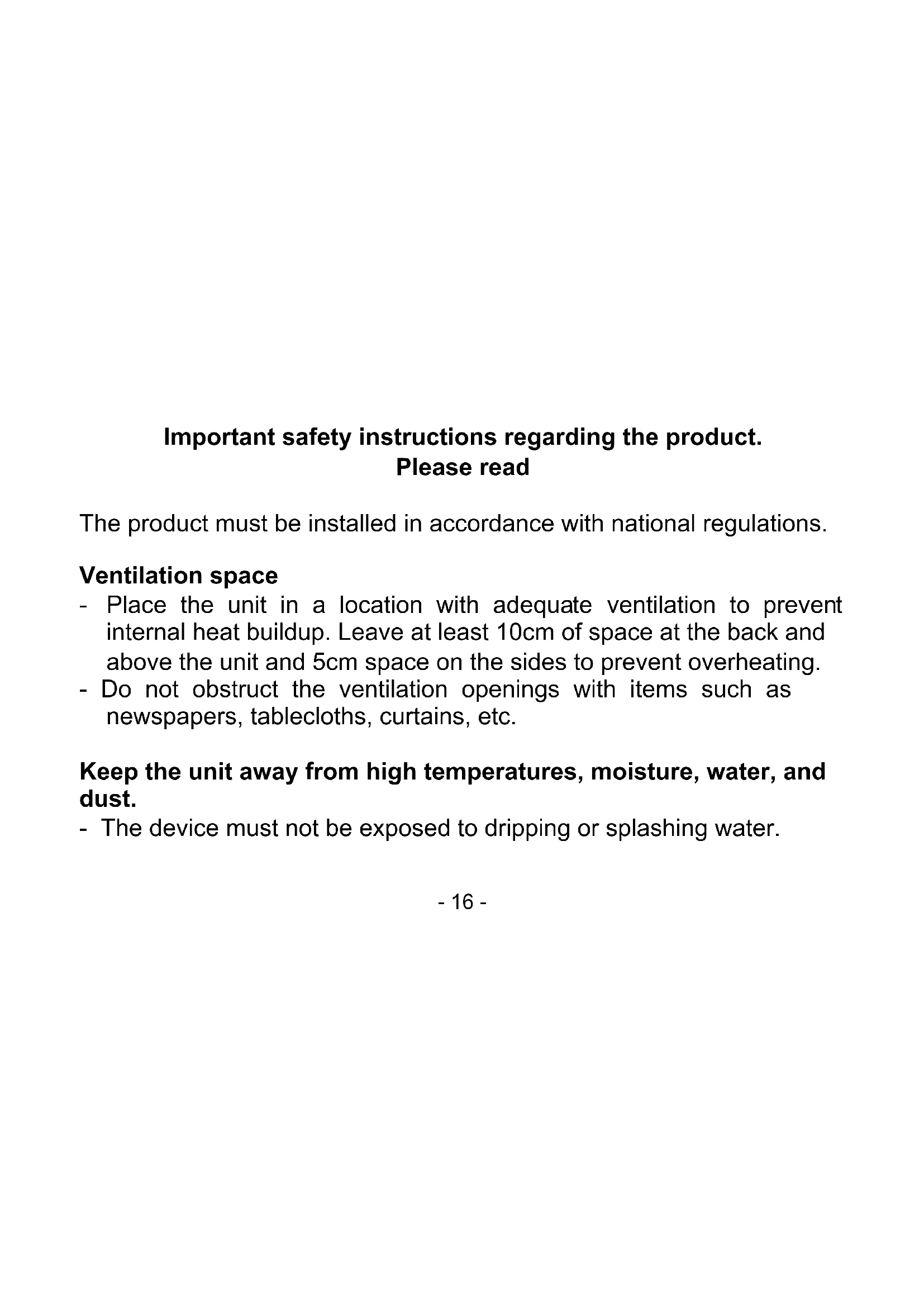

Important safety instructions regarding the product. Please read

The product must be installed in accordance with national regulations.

Ventilation space

• Place the unit in a location with adequate ventilation to prevent internal heat buildup. Leave at least 10cm of space at the back and above the unit and 5cm space on the sides to prevent overheating.
• Do not obstruct the ventilation openings with items such as newspapers, tablecloths, curtains, etc.

Keep the unit away from high temperatures, moisture, water, and dust.

- The device must not be exposed to dripping or splashing water.

• Do not place the device near open flame sources such as lighted candles.
• Only use this device with the supplied battery.
• WARNING: Danger of explosion if the battery is not replaced correctly.
• This product features a built-in rechargeable battery. In the case of failure or non-operation, stop using the product and do not attempt to repair or open it by yourself. Entrust essential repair of this product only to qualified personnel.
• Batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunshine, fire or the like.
• If the battery life is reduced by half during use, the following charging must be carried out under the supervision of the user. A damaged battery can cause significant heat buildup.

Declaration of conformity

This appliance is Bluetooth speaker complies with the essential requirements and other provisions of and the Radio Equipment Directive (RED) 2014/53/EU that goes into effect on 12 June 2016.

The declaration of conformity is available at:

http://www.schneiderconsumer.com

Technical specifications:

Product: Bluetooth speaker

Operation frequency: 2400 MHz to 2483.5MHz Class 3 (BT 4.1)

Radio Frequency transmission power: 6mW (power per channel)

Operation environment: 0 - 40°C

- This logo affixed to the product means that it is a device whose treatment as waste falls within the scope of Directive 2012/19/EU of July 4, 2012, on waste electrical and electronic equipment (WEEE).

- The presence of hazardous substances in electrical and electronic equipment may have potential effects on the environment and human health in the reprocessing cycle of this product.

- This means that when the appliance is thrown away, it must not be disposed of with unsorted municipal waste.

- As the end user, your role is crucial in the reuse cycle, recycling and other forms of recovery of the electrical and electronic equipment.

Recovery and collection systems are made available to you by local authorities (recycling centers) and distributors.

- You have an obligation to use the collection systems available to you.

1. Preparation

Package Contents

1 x Bluetooth speaker
1 x User manual
1 x Mini-USB cable

2. Operation

• 20 -

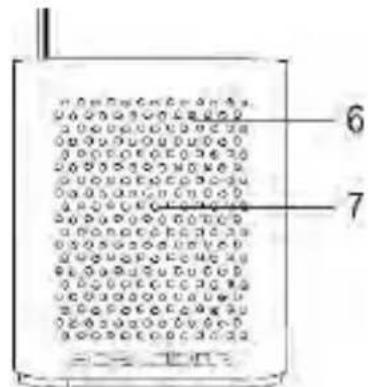

• On/Off button (mode indicator): Press and hold button to turn on or off. When Bluetooth is activated, press and hold button to cut the connection. Another long press will switch off the unit.

• VOL-: (Long press) Decrease volume / (briefly) Previous track
• VOL+: (Long press) Volume up / (briefly) Next track
• Charge indicator: When red light battery charging, light-off when the battery is fully charged.
• USB Port (Power input): connect with the USB cable (provided) to a computer or a 5V 500mA adapter (not provided) for battery charging.
• Microphone
• Speaker

2.1 Pairing with a Bluetooth device

1. Press the ⏻ key and hold to turn the unit on and activate the Bluetooth function.

2. A long beep sounds when the speaker starts. Then a lower tone sounds to indicate that Bluetooth is activated.

3. A blue indicator light will keep blinking fast when there is no Bluetooth connection.

4. Look for the "SC155SPK" device on your smartphone and start pairing.

5. The connection does not require a password, or can be established with the password "0000".

6. A low tone sounds as soon as the connection is established; the blue indicator is blinking slowly to indicate the connection has been established.

Mode	Status	Indicator LED
Bluetooth	Awaiting synchronization	Blue (flashing quickly)
	Connected / Play / Pause	Blue (blinking and slow)

2.2 Hands-free use

Your device also has a hands-free function, allowing you to call using the built-in speaker and microphone.

- Short-press the power button to answer the phone call, and short-press one more time to hang up the phone call.

- During an incoming phone call, short-press the power button twice to reject the call.

- Short pressing the power button will dial the previously called number.

During a phone call, be sure to speak very close (1 cm) to the microphone.

2.3 Battery charge

To charge your device, connect it to the USB of your computer or USB charger for your phone (5V-500mA).

Note: This unit can be powered by an AC adapter 5V/1000mA (not supplied).

Do not use an adaptor which the current is more than 1000mA, otherwise, the device will be damaged and the warranty will be void.

3. Technical characteristics

Bluetooth 4.1

Transmission distance: 10 meters

Handsfree support

Frequency band: 120 Hz to 20 KHz

Signal-to-noise ratio: ≥ 75 dB

Speaker: 40 mm diameter, internal magnetic 4Ω, 3W

Total power: 3W RMS

Power: rechargeable battery; 3.7V / 450mAh

Playback time: 3 hours

After-sales service

ADMEA/LOGISAV
