Product Type	Infrared remote control extender with smartphone/tablet control
Brand	Marmitek
Model	Invisible Control 6 XTRA | SMART
Power supply	100-240 VAC, 50/60 Hz via USB power adapter
Smart IR module dimensions	80 × 43 × 19 mm
IR receiver dimensions	15 × 13 × 11 mm
Infrared frequency	30-60 kHz
IR reception range	± 10 meters
IR reception angle	60° (±30° from center)
IR receiver cable length	3 meters
Length of IR extension cables (blaster LEDs)	3 meters
Transmission range of blaster LEDs	2 meters
Number of blaster LEDs supplied	5 (2 cables with 2 LEDs, 1 cable with 1 LED)
Smartphone/tablet connectivity	Bluetooth via Invisible Control app (iOS/Android)
Remote control compatibility	All standard IR remote controls (except Bang & Olufsen)
Number of jack sockets	1 IR input (3.5 mm), 3 IR outputs (2.5 mm)
Allowed ambient temperature	Not specified in the manual, dry indoor use
Weight	Not specified, approx. 100 g (estimate)
Maintenance and cleaning	Clean with a dry cloth, do not use chemicals
Safety	Indoor use only, avoid moisture, do not open
Warranty	Warranty void if opened or modified

Frequently Asked Questions - 6 XTRA SMART MARMITEK

What to do if the A/V device does not respond to my remote control signals?

Check that the IR receiver is in line of sight of your remote control (max. 10 meters, 60° angle). Make sure the connections are secure. If the 'IR data' indicator stays on continuously, move the receiver to avoid interference (direct sunlight, LCD/Plasma screens, compact fluorescent lamps).

How to install the IR receiver?

Place the IR receiver so that it is in line of sight of your remote control, within 10 meters. Use the provided adhesive tape. Test before permanently fixing. The cable can pass through the notch at the back.

Where to stick the blaster LEDs?

Inside the cabinet (TV), stick the LEDs connected to the 'IR OUT' output to control all A/V devices in the same compartment. The LED connected to 'IR TV' is stuck outside the cabinet, in view of the TV's IR sensor.

How to use the smartphone/tablet app?

Install the 'Invisible Control' app from the App Store or Google Play. Enable Bluetooth on your device. The app automatically connects to the Smart IR module. For help, see the 'Help' menu in the app.

What to do if the red light does not flash?

Check that the power adapter is plugged in and the Smart IR module is powered on. Make sure the IR receiver is properly connected to the 'IR IN' socket. Test with another remote control.

Can I use this system with any remote control?

Yes, with all standard infrared remote controls (30-60 kHz). To our knowledge, Bang & Olufsen remote controls are not compatible.

How to avoid interference?

Keep the IR receiver away from intense light sources (sunlight, flat screens, compact fluorescent lamps). These sources can disturb the infrared signal.

Is the product compatible with voice control?

No, this product does not support voice control. It allows control only via IR remote or via the smartphone/tablet app.

What is the maximum cable length between the receiver and the module?

The supplied IR receiver cable is 3 meters. The blaster LED extension cables are also 3 meters. You can use longer cables (not supplied) if necessary, but signal quality may decrease.

Can I install several IR receivers?

The Smart IR module only has one 'IR IN' input. You can only connect one IR receiver at a time.

USER MANUAL 6 XTRA SMART MARMITEK

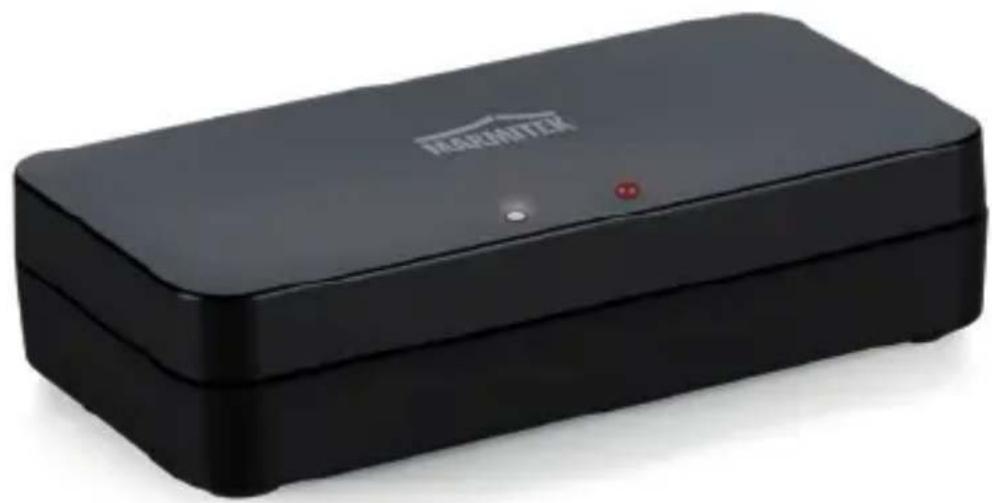

Invisible Control 6 XTRA | SMART™

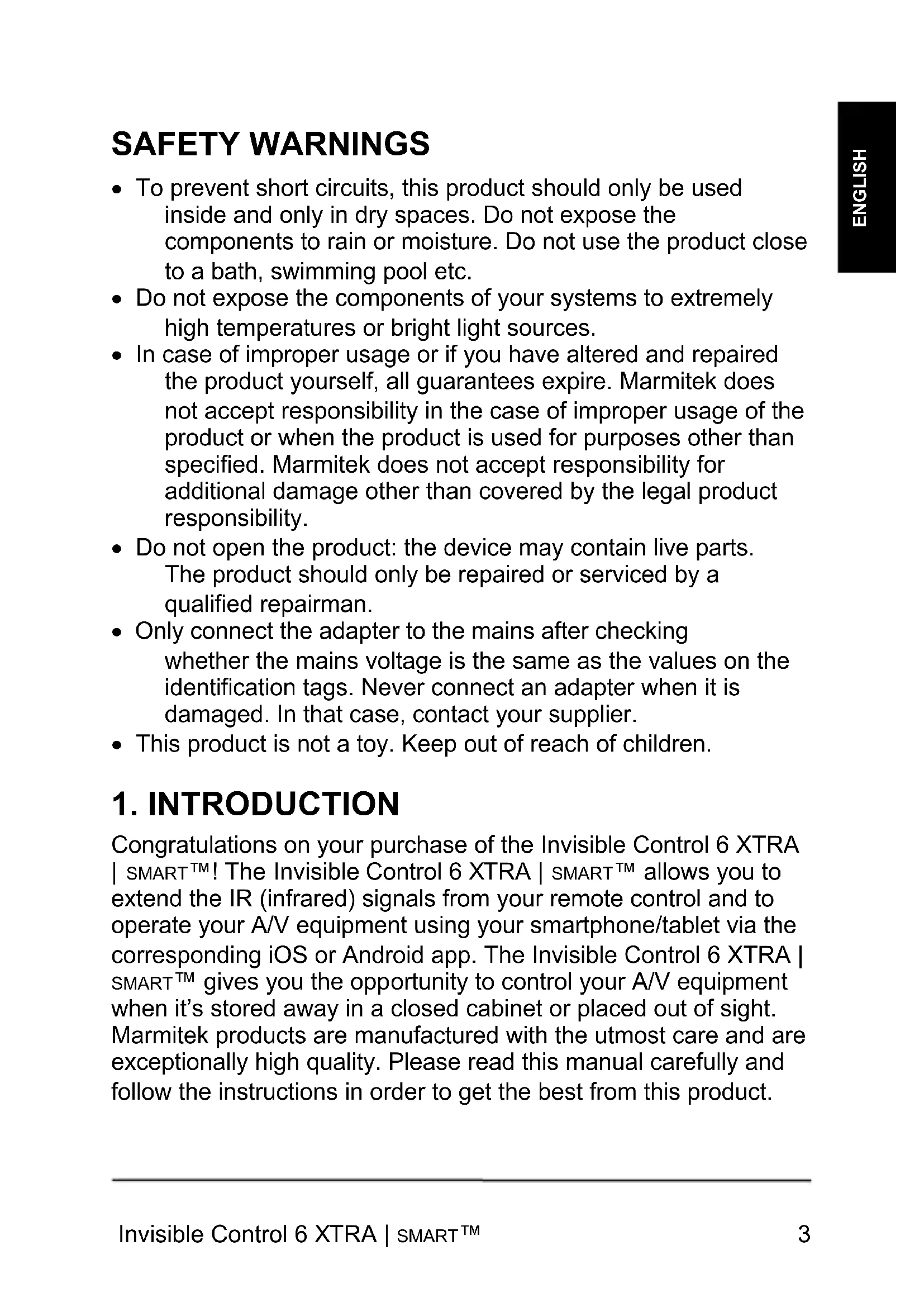

USER MANUAL 3

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• Do not open the product: the device may contain live parts. The product should only be repaired or serviced by a qualified repairman.
• Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter when it is damaged. In that case, contact your supplier.
• This product is not a toy. Keep out of reach of children.

1. INTRODUCTION

Congratulations on your purchase of the Invisible Control 6 XTRA | SMART™! The Invisible Control 6 XTRA | SMART™ allows you to extend the IR (infrared) signals from your remote control and to operate your A/V equipment using your smartphone/tablet via the corresponding iOS or Android app. The Invisible Control 6 XTRA | SMART™ gives you the opportunity to control your A/V equipment when it's stored away in a closed cabinet or placed out of sight. Marmitek products are manufactured with the utmost care and are exceptionally high quality. Please read this manual carefully and follow the instructions in order to get the best from this product.

2. SET CONTENTS

1x IR Receiver + adhesive strip
1x IR Smart module + adhesive strip
1x IR Extender cable with one IR blaster LED + adhesive strip
2x IR Extender cable with two IR blaster LEDs + adhesive strip
1x Power Adapter
1x User manual

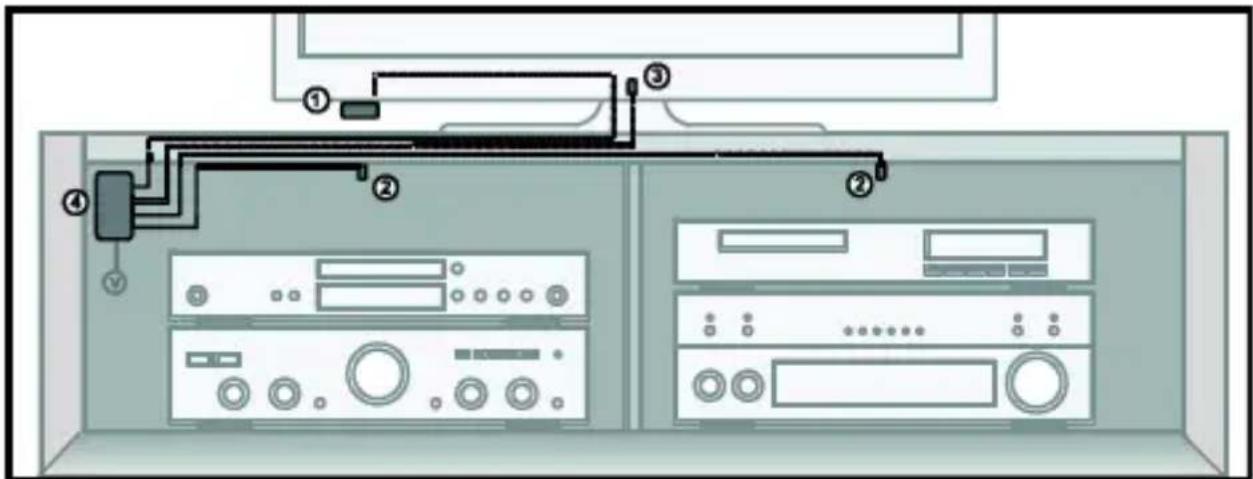

3. HOW DOES IT WORK?

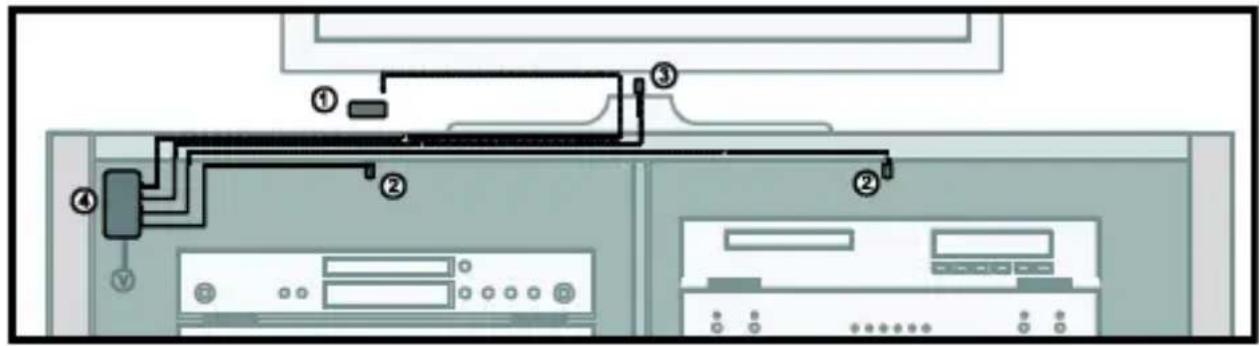

Place your A/V equipment inside a closed (TV) cabinet. The IR receiver (1) should be installed within your remote control's line of sight. Stick the Blaster LEDs (2) marked 'IR OUT' wherever you like inside the (TV) cabinet, enabling you to operate all A/V equipment in the same compartment. Stick the Blaster LED (3) marked 'IR TV' on the outside of the (TV) cabinet on or within sight of your TV's IR sensor. Then store the IR Smart Module (4) neatly away.

Point the remote at the small IR receiver to send the desired command to the 'IR OUT' Blaster LEDs (2); these will instantly transfer the infrared command to the A/V equipment inside the (TV) cabinet. The 'IR TV' Blaster LED (3) is only operated using your smartphone/tablet.

4. INSTALLATION

In order to check that the system works correctly, it is advisable to first test the set-up you had in mind. To do so, connect everything as described below but do not stick the components securely.

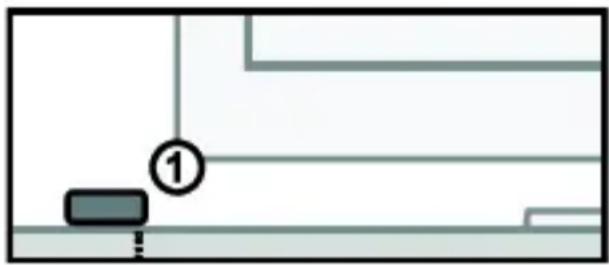

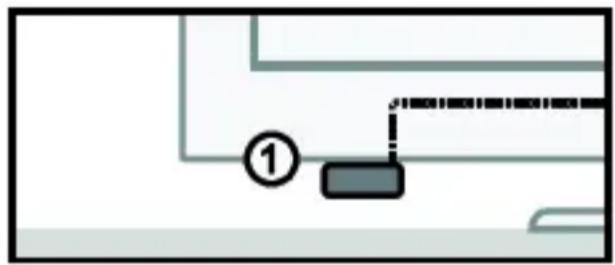

4.1 LOCATING THE IR RECEIVER

Place the very small IR receiver (1) that comes with the Invisible Control 6 XTRA | SMART™ so that it can be seen by your (infrared) remote control and receive the commands (max. 10 metres).

• The most logical location for the IR receiver is, for example, on the (TV) cabinet in which the A/V equipment is located or near the TV.
• You can run the cable underneath or behind, using the notch at the back of the IR receiver housing; this allows the cable to be hidden easily.
• Use the self-adhesive strip which is supplied to locate the IR receiver just about anywhere you please.
• Experiment with the location before you stick the IR receiver in its final position.
• Note! The sticky strip may lead to discolouration or leave glue residues on certain surfaces.

4.2 LOCATING THE IR BLASTER LED

4.2.1 Inside the (TV) cabinet

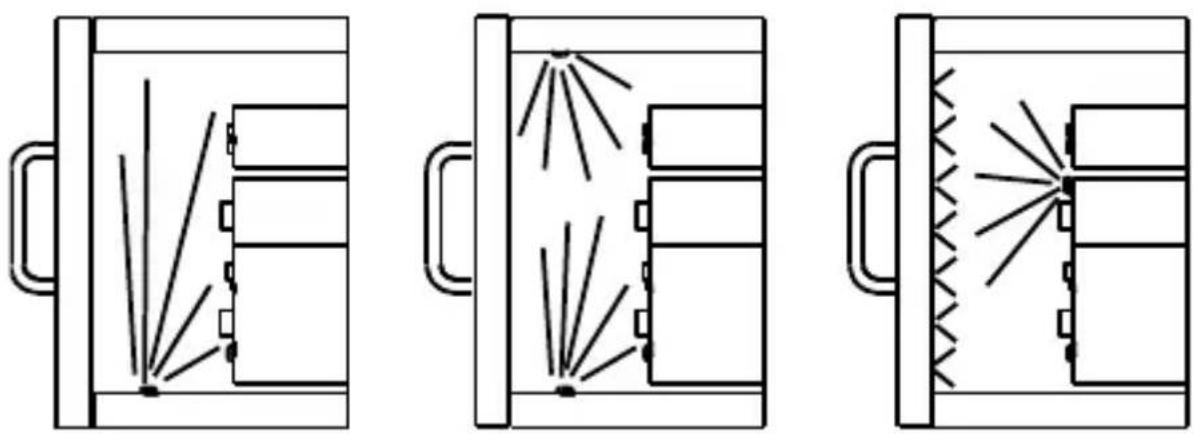

Stick the Blaster LEDs (2) that are connected to the 'IR OUT' output wherever you like inside the (TV) cabinet, enabling you to operate all A/V equipment inside the same compartment.

• With a correct placement one blaster LED can control all A/V devices placed in the same compartment.
• In some situations it is necessary to place a second blaster LED if not all A/V devices can be controlled with one blaster LED.
• Or you place the blaster LED on one of the A/V devices in the middle of the (TV) cabinet and the other equipment will be controlled as well by the reflection of the infrared signal.

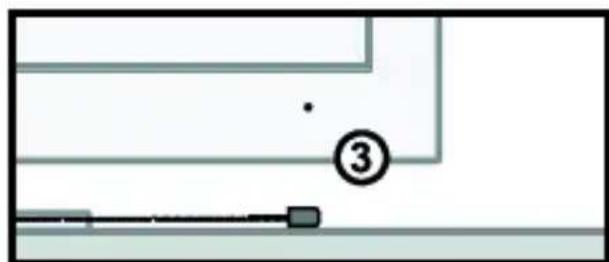

4.2.2 Outside the (TV) cabinet

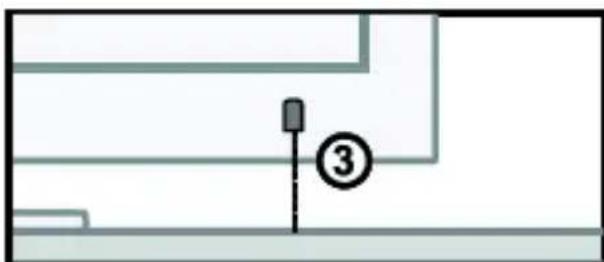

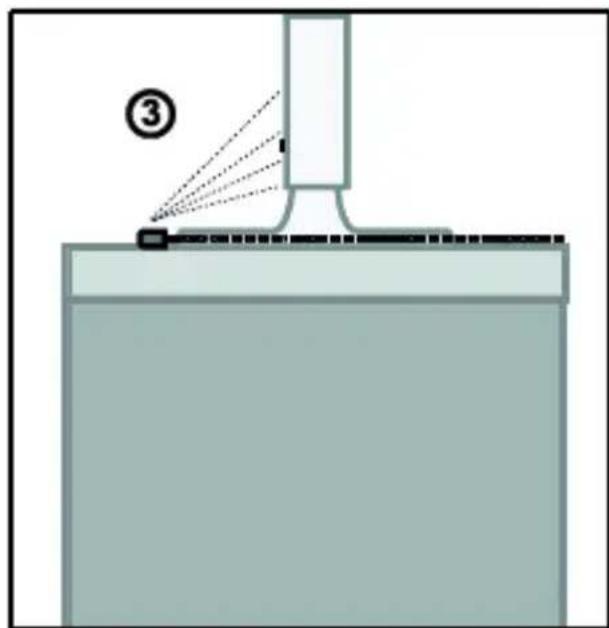

Stick the Blaster LED (3) that is connected to the 'IR TV' 'output, outside the (TV) cabinet on or within sight of your TV's IR sensor.

4.3 Positioning the IR Smart module

Place the IR Smart Module (4) in an accessible place on or next to your A/V equipment, and near an electrical outlet.

Take into account the cable length of the IR Blaster LED and the IR receiver cable.
- Note that the connectors remain accessible and that the LEDs remain visible to check for proper operation.
- The supplied adhesive strip allows placement practically anywhere.

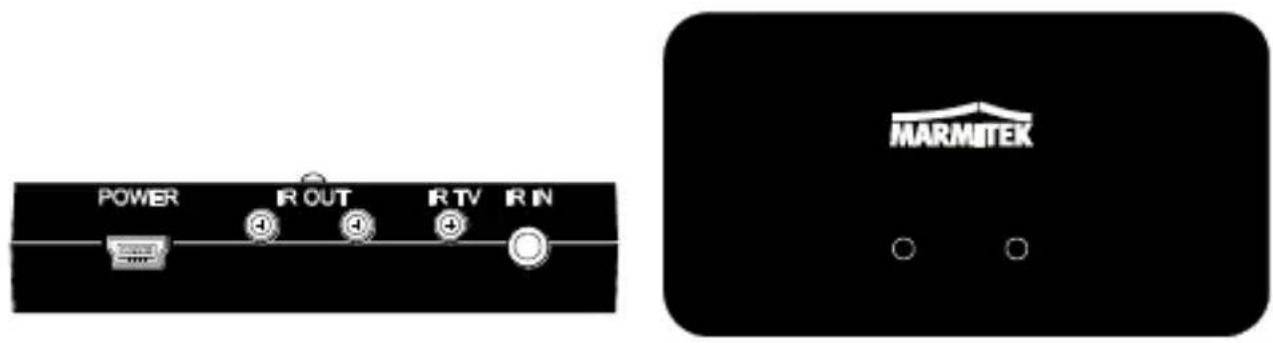

4.4 Connecting the IR Smart module

1. Connect the installed IR extension cables with two Blaster LEDs to the IR Smart Module's 'IR OUT' jack.
2. Connect the installed IR extension cables with one Blaster LED to the IR Smart Module's 'IR TV' jack.
3. Connect the installed IR Receiver cable to the 'IR IN' connection on the IR Module:
4. Connect the USB Power adapter to the 'POWER' connection on the IR Module and plug this into an electrical socket.
5. If the Invisible Control 6 XTRA | SMART™ is connected correctly, the red light on the IR Smart module will flash when a button on the (infrared) remote control is pressed while pointing the remote to the IR receiver.
6. Close the doors of your (TV) cabinet to ensure that the A/V equipment cannot receive an infrared command directly from the remote control as this can lead to operational problems.
7. You can now operate the A/V equipment via the Invisible Control 6 XTRA | SMART™ through closed cupboard doors!

4.5 Installing the Invisible Control app

When the Marmitek Invisible Control 6 XTRA | SMART™ is installed by following the steps in this manual, you can, in addition to your remote control, also use your smartphone/tablet to operate any devices outside the line of sight. First, you will need to install the Marmitek Invisible Control app and enable Bluetooth on your smartphone/tablet.

Then, the app automatically establishes a Bluetooth connection, after which you can start adding features. Check the "Help" button in the app's settings menu to learn how to best use the app.

Download the "Invisible Control" app on your smartphone/tablet:

http://goo.gl/nR2doa

http://goo.gl/iLOXIV

5. FREQUENTLY ASKED QUESTIONS

The A/V equipment does not respond to signals from my remote control.

Take the following instructions into account:

• The IR receiver has a receiving sensitivity of about 10 metres with an acceptance angle of 60 degrees. Range is also dependent on the remote control used.
• If the 'IR data' light on the IR Smart Module is continuously illuminated, the IR receiver is probably being disrupted by another infrared signal. Try to locate the IR receiver so that it encounters as little disruption as possible from, for example, direct sunlight, Flat Screen TVs, (LCD, Plasma, LED), fluorescent lighting or energy-efficient light bulbs.
• The IR receiver works with all standard (infrared) remote controls. The only exception (known to us) is Bang & Olufsen (B&O).
• Ensure that the IR receiver and the IR extender cable are correctly connected and that these are plugged in properly.

Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.com

6. TECHNICAL DATA

IR Smart module

Power supply 100-240VAC @50/60Hz,

(included) or mini USB cable

(not included).

IR Blaster LED connections: 3 × 2.5mm jack (mono).

IR Receiver connection: 1 × 3.5 mm jack (mono).

Dimensions: 80 × 43 × 19 mm .

IR receiver

Frequency range: 30-60 KHz.

IR reception range: ± 10 metres.

Length of cable: 3 metres.

IR reception angle: 60° (+30° / - 30° from centre).

Dimensions receiver bloc: 15 × 30 × 11 mm .

IR extension cable

IR blaster LEDs 2 × IR extension cable with two

Blaster LEDs.

1 x IR extension cable with one

Blaster LED.

IR transmission range: 2 metres.

3 metres.

Cable length:

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this Invisible Control 6 XTRA | SMART™ is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 2004/108/ec of the european parliament and of the council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility

Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits

Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to ecodesign requirements for no-load condition electric power consumption and average active efficiency of external power supplies
