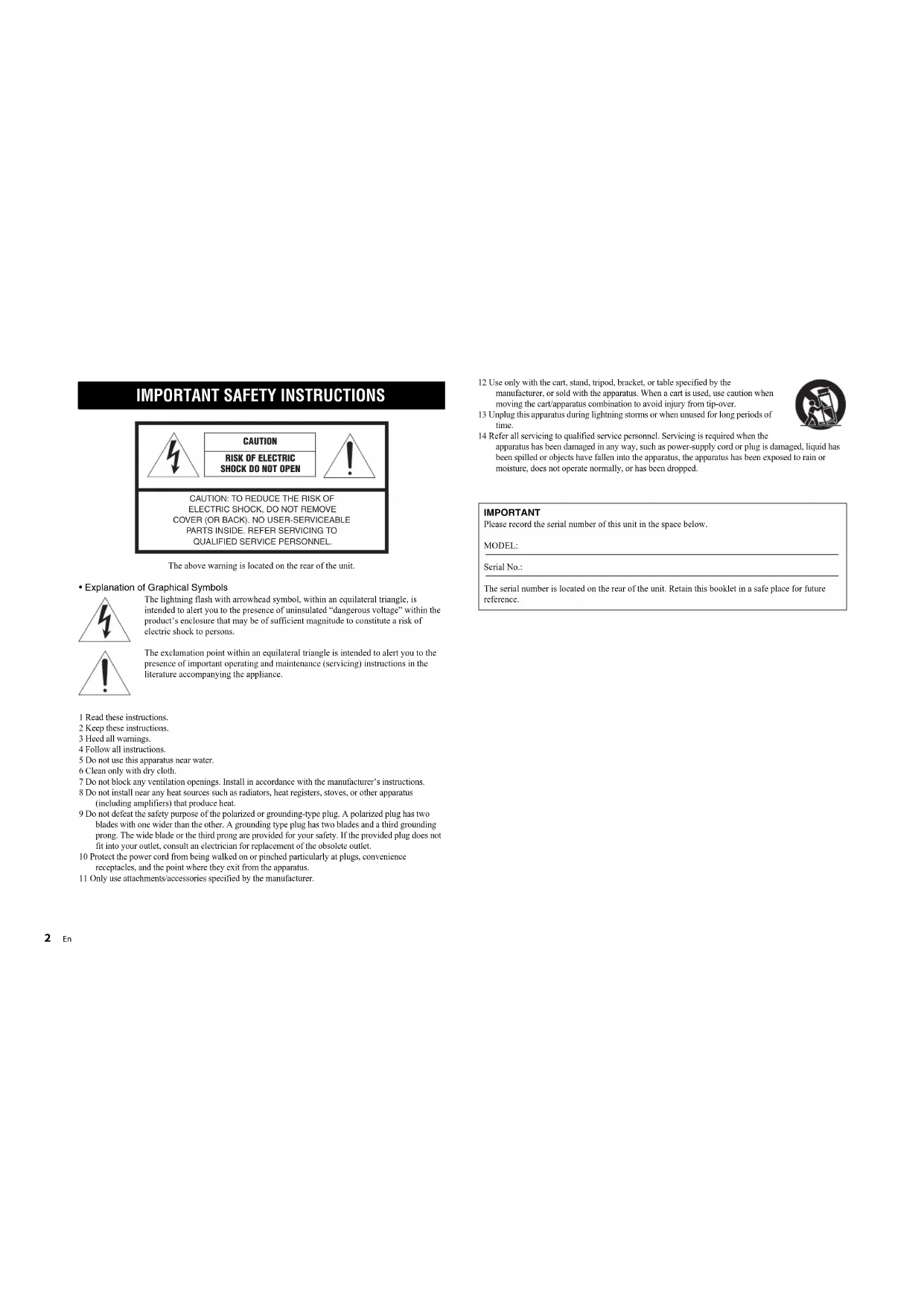

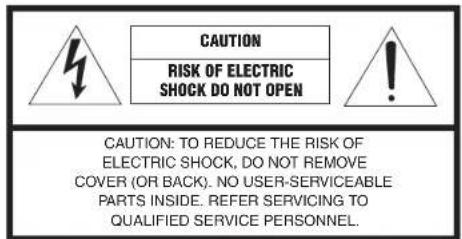

UABGLVP AV Receiver Ampli-Tuner Audio-Vidéo2 En The above warning is located on the rear of the unit.

• Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11 Only use attachments/accessories specified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13 Unplug this apparatus during lightning storms or when unused for long periods of time. 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

IMPORTANT Please record the serial number of this unit in the space below. MODEL: Serial No.: The serial number is located on the rear of the unit. Retain this booklet in a safe place for future reference.En 3

• This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. FCC/IC NOTICE (U.S.A. and Canada) This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. (for Canada) 5150-5350 MHz band is restricted to indoor operation only. High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. FCC INFORMATION (USA) 1 IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. 2 IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA. 3 NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America A/V Division, 6600 Orangethorpe Avenue, Buena Park, CA 90620, USA. The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

COMPLIANCE INFORMATION STATEMENT (DECLARATION OF CONFORMITY

PROCEDURE) Responsible Party: Yamaha Corporation of America A/V Division Address: 6600 Orangethorpe Avenue, Buena Park, CA 90620 Telephone: 714-522-9011 Type of Equipment: AV Receiver Model Name: RX-S602 CAN ICES-3(B)/NMB-3(B)4 En PRECAUTIONS

PLEASE READ CAREFULLY BEFORE USE. BE

SURE TO FOLLOW THESE INSTRUCTIONS. The precautions listed below are to prevent risk of harm to the user and others, as well as to prevent property damage, and to help the user use this unit properly and safely. Be sure to follow these instructions. After reading this manual, be sure to keep it in a safe place where it can be referenced at any time. WARNING This content indicates “risk of serious injury or death.” Power supply/power cord

• Do not do anything that could damage the power cord.- Do not place it near a heater.- Do not bend it excessively or alter it.- Do not scratch it.- Do not place it under a heavy object.Using the power cord/adaptor with the core of the cord exposed could cause electric shocks or a fire.• Do not touch the power plug or cord if there is a chance of lightning. Failure to observe this may cause electric shocks.• Use this unit with the power supply voltage printed on it. Failure to connect to an appropriate AC outlet may cause a fire, electric shocks, or malfunctions.• Check the electric plug periodically and remove any dirt or dust which may have accumulated on it. Failure to observe this may cause a fire or electric shocks.• When setting up the unit, make sure that the AC outlet you are using is easily accessible. If some trouble or malfunction occurs, immediately turn off the power switch and disconnect the plug from the AC outlet. Even when the power switch is turned off, as long as the power cord is not unplugged from the wall AC outlet, the unit will not be disconnected from the power source.• If you hear thunder or suspect approaching lightning, quickly turn off the power switch and pull the power plug from the AC outlet. Failure to observe this may cause a fire or malfunctions.• If not using the unit for long periods of time, be sure to pull the power plug from the AC outlet. Failure to observe this may cause a fire or malfunctions. Do not disassemble
• Do not disassemble or modify this unit. Failure to observe this may cause a fire, electric shocks, injury, or malfunctions. If you notice any irregularities, be sure to request an inspection or repair from the dealer where you purchased the unit or from qualified Yamaha service personnel. Water warning
• Do not expose the unit to rain, use it near water or in damp or wet conditions, or place on it any containers (such as vases, bottles or glasses) containing liquids which might spill into any openings or places where water may drop. A liquid such as water getting into the unit may cause a fire, electric shocks, or malfunctions. If any liquid such as water seeps into the device, turn off the power immediately and unplug the power cord from the AC outlet. Then, request an inspection from the dealer where you purchased the unit or from qualified Yamaha service personnel.• Never insert or remove an electric plug with wet hands. Do not handle this unit with wet hands. Failure to observe this may cause electric shocks or malfunctions. Fire warning
• Do not place any burning items or open flames near the unit, since they may cause a fire. Maintenance and care
• Do not use aerosols or spray-type chemicals that contain combustible gas for cleaning or lubrication. The combustible gas will remain inside the unit, which may cause explosion or fire. Battery use
• Do not disassemble a battery. If the contents of the battery get on your hands or in your eyes, it can cause blindness or chemical burns.• Do not dispose of batteries in fire. Doing so may result in the battery bursting, causing a fire or injury.• Do not expose a battery to high temperatures, such as direct sunlight or a fire. The battery may burst, causing a fire or injury.• Be sure to request inspections or repairs from the dealer where you purchased the unit or from qualified Yamaha service personnel.• Yamaha cannot be held responsible for injury to you or damage of the products caused by improper use or modifications to the unit, or data that is lost or destroyed.• This product is for ordinary homes. Do not use for applications requiring high reliability, such as managing lives, health care or high-value assets.En 5
• Do not attempt to recharge batteries that are not intended to be charged. Charging could cause the battery to burst or leak, which can cause blindness, chemical burns, or injury.

• If the batteries do leak, avoid contact with the leaked fluid. If the battery fluid should come in contact with your eyes, mouth, or skin, wash immediately with water and consult a doctor. Battery fluid is corrosive and may possibly cause loss of sight or chemical burns. Wireless unit

• Do not use this unit near medical devices or inside medical facilities. Radio waves from this unit may affect electro-medical devices.

• Do not use this unit within 15 cm (6 in) of persons with a heart pacemaker implant or a defibrillator implant. Radio waves from this unit may affect electro-medical devices, such as a heart pacemaker implant or defibrillator implant. If you notice any abnormality

• If any of the following abnormalities occur, immediately turn off the power and disconnect the power plug. If any of the following abnormalities occur, immediately turn off any amplifiers and receivers. - The power cord/plug is damaged. - An unusual smell or smoke is emitted from the unit. - Foreign material gets into the interior of the unit. - There is a loss of sound during use. - There is a crack or damage in the unit. Continued use could cause electric shocks, a fire, or malfunctions. Immediately request an inspection or repair from the dealer where you purchased the unit or from qualified Yamaha service personnel.

• Be careful not to drop or apply strong impact to this unit. If you suspect the unit may have been damaged due to dropping or impact, immediately turn off the power and pull the power plug from the AC outlet. Failure to observe this may cause electric shocks, a fire, or malfunctions. Immediately request an inspection from the dealer where you purchased the unit or from qualified Yamaha service personnel. CAUTION This content indicates “risk of injury.” Power supply/power cord

• Do not use an AC outlet where the power plug fits loosely when inserted. Failure to observe this may cause a fire, electric shocks, or burns.

• When removing the electric plug from the unit or an AC outlet, always hold the plug itself and not the cord. Pulling by the cord can damage it and cause electric shocks or a fire.

• Insert the power plug firmly all the way into the AC outlet. Using the unit when it is not plugged in sufficiently can cause dust to accumulate on the plug, causing a fire or burns. Installation

• Do not place the unit in an unstable position where it might accidentally drop or fall over and cause injuries.

• Do not block this unit's ventilation holes (cooling slits). This unit has ventilation holes on the top/side/bottom to prevent the internal temperature from becoming too high. Failure to observe this may trap heat inside the unit, causing a fire or malfunctions.

• When installing this unit: - Do not cover it with any cloth. - Do not install it on a carpet or rug. - Make sure the top surface faces up; do not install on its sides or upside down. - Do not use the device in a confined, poorly-ventilated location. Failure to observe the above may trap heat inside the unit, causing a fire or malfunctions. Ensure that there is adequate space around the unit: at least 30 cm (11-3/4 in) on top, 20 cm (7-7/8 in) on the sides, and 20 cm (7-7/8 in) on the rear.

• Do not install the unit in places where it may come into contact with corrosive gases or salt air . Doing so may result in malfunction.

• Avoid being near the unit during a disaster, such as an earthquake. Since the unit may turn over or fall and cause injury, quickly move away from the unit and go to a safe place.

• Before moving this unit, be sure to turn off the power switch and disconnect all connection cables. Failure to observe this may damage the cables or cause you or someone else to trip and fall.

• For proper installation of the outdoor antenna, make sure to have it done by the dealer from where you purchased the unit or by qualified service personnel. Failure to observe this may cause the installation to fall and result in injury. Installation requires special skills and experience. Hearing loss

• Do not use the unit/speakers or headphones for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.

• Before connecting the unit to other devices, turn off the power for all devices. Also, before turning the power of all devices on or off, make sure that all volume levels are set to the minimum. Failing to do so may result in hearing loss, electric shock, or device damage.

• When turning on the AC power in your audio system, always turn on the amplifier or receiver LAST, to avoid hearing loss and speaker damage. When turning the power off, the amplifier or receiver should be turned off FIRST for the same reason. Failure to observe the above may cause hearing impairment or speaker damage. Maintenance

• Remove the power plug from the AC outlet before cleaning the unit. Failure to observe this may cause electric shocks.6 En Handling caution

• Do not touch the surface having this label. Doing so may cause burns. The label on the device indicates that the surface to which the label is attached may become hot during operation.

• Do not insert your hand or fingers into the ventilation holes of this unit. Failure to observe this may cause injury.

• Do not insert foreign materials such as metal or paper into the ventilation holes of this unit. Failure to observe this may cause a fire, electric shocks, or malfunctions. If foreign material gets into the unit, immediately shut off the power and pull the power plug from the AC outlet and request an inspection from the dealer where you purchased the unit or from qualified Yamaha service personnel.

• Do not do the following: - put heavy items on top of the equipment. - place the equipment in a stack. - apply unreasonable force to buttons, switches, input/output terminals, etc.

• Avoid pulling the connected cables to prevent injuries or damage to the unit by causing it to fall. Battery use

• Always replace all batteries at the same time. Do not use new batteries together with old ones. Using new ones with old ones could cause a fire, burns, or inflammation due to fluid leaks.

• Do not use batteries other than specified batteries. Doing so cause fire, burns, or inflammation due to leakage.

• Do not mix battery types, such as alkaline batteries with manganese batteries, or batteries from different makers, or different types of batteries from the same maker, since this can cause a fire, burns, or inflammation due to fluid leaks.

• Keep batteries away from children. A child could accidentally swallow a battery. Failure to observe this may also cause inflammation due to battery fluid leaks.

• Do not put in a pocket or bag, carry, or store batteries together with pieces of metal. The battery could short, burst, or leak, causing a fire or injury.

• Always make sure all batteries are inserted in conformity with the +/- polarity markings. Failure to do so might result in a fire, burns, or inflammation due to fluid leaks.

• When the batteries run out, or if the unit is not to be used for a long time remove the batteries from the remote control to prevent possible leakage of the battery fluid.

• When storing or discarding batteries, insulate the terminal area by applying tape, or some other protection. Mixing them with other batteries or metal objects can cause a fire, burns, or inflammation due to fluid. Notice Indicates points that you must observe in order to prevent product failure, damage or malfunction and data loss. Power supply/power cord

• If not using the unit for a long period of time, be sure to pull the power plug from the outlet. Even if the z (Standby/On) switch has been turned off (the screen display is off), a minute current is still flowing. Installation

• Do not use this unit in the vicinity of other electronic equipment, such as a TV, radio, or mobile phone. Failure to observe this may cause this unit or the TV or radio to produce noise.

• Do not use this unit in a location that is exposed to direct sunlight, that becomes extremely hot, such as near a heater, or extremely cold, or that is subject to excessive dust or vibration. Failure to observe this may cause the unit's panel to become deformed, the internal components to malfunction, or for operation to become unstable.

• Install this unit as far away from other electronic equipment as possible. Digital signals from this unit may interfere with other electronic equipment.

• If using a wireless function, avoid installing this unit near metal walls or desks, microwave ovens, or other wireless network devices. Obstructions could shorten the transmission distance. Connections

• If connecting external units, be sure to thoroughly read the manual for each unit and connect them in accordance with the instructions. Failure to properly handle a unit in accordance with the instructions could cause malfunctions.

• Do not connect this unit to industrial units. Digital audio interface standards for consumer use and industrial use are different. This unit has been designed to connect to a consumer-use digital audio interface. Connections to an industrial-use digital audio interface could not only cause this unit to malfunction, but could also damage the speakers. Handling

• Do not place vinyl, plastic, or rubber products on this unit. Failure to observe this may cause discoloration or deformation in the panel of this unit.

• If the ambient temperature changes drastically (such as during unit transportation or under rapid heating or cooling) and there is a chance condensation may have formed in the unit, leave the unit for several hours without turning on the power until it is completely dry before use. Using the unit while there is condensation can cause malfunctions.En 7 Maintenance

• When cleaning the unit, use a dry, soft cloth. Using chemicals such as benzine or thinner, cleaning agents, or chemical scrubbing cloths can cause discoloration or deformation. Batteries

• Be sure to discard used batteries in accordance with local regulations. Information About content in this manual

• The illustrations and screens in this manual are for instructional purposes only.

• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

• Software may be revised and updated without prior notice. Wireless communication functions [U.K. and Europe models] Bluetooth Radio Frequency (Operational Frequency): 2402 MHz to 2480 MHz Maximum Output Power (EIRP): 7.27 dBm Wi-Fi (2.4 GHz) Radio Frequency (Operational Frequency): 2412 MHz to 2472 MHz Maximum Output Power (EIRP): 19.98 dBm Wi-Fi (5 GHz) Radio Frequency (Operational Frequency), Maximum Output Power (EIRP): 5170 to 5250 MHz, 22.30 dBm 5250 to 5330 MHz, 22.27 dBm 5490 to 5710 MHz, 24.56 dBm 5735 to 5835 MHz, 13.96 dBm

• Wireless devices transmitting over a 5 GHz frequency band can only be used indoors. Use of such devices outdoors is prohibited by law. (weee_battery_eu_en_02) Information for users on collection and disposal of old equipment and used batteries: These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation.By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. For business users in the European Union:If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.Information on Disposal in other Countries outside the European Union:These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.Note for the battery symbol (bottom two symbol examples):This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the EU Battery Directive for the chemical involved.8 En Introduction

• This unit is a product for enjoying music and video at home.

• This document explains basic speaker system setup and unit configuration, followed by step-by-step instructions. Basic operations, such as playing Blu-ray Discs, DVDs, and radio content, are also explained. The unit is equipped with a number of other functions not described in this document. For more information about this product, refer to the Owner’s Manual on the Yamaha website. Follow one of the methods described below to view the latest Owner’s Manual. In HTML format

• Scan the QR code found on the front cover of this document.

• Visit the following website. http://avpro.global.yamaha.com/manual/avr/rxs602 In PDF format

• Visit the following website. http://download.yamaha.com/ [For U.S. customers only] Visit the following website for additional information, FAQ’s, downloads such as “Owner’s Manual” and product updates. http://usa.yamaha.com/support/ Features The unit is also capable of the following, which are not described in this document. See the Owner’s Manual to help you get the most out of the unit.

• Playing music files stored on a media server (PC or NAS)

• Playing iTunes music or iPhone/iPad/iPod touch music over a network (AirPlay)

• Playing music in multiple rooms (Zone function)

• Configuring system settings (ADVANCED SETUP menu) For more information, see “What you can do with the unit” in the Owner’s Manual. Trademarks and trade names used in this document are those of their respective owners. See the Owner’s Manual for more information.

AV SETUP GUIDE is an app that guides you through the process of connecting a TV or playback device, such as a BD/DVD or CD player, and speakers to the AV receiver. Search “AV SETUP GUIDE” on the App Store or Google Play for details.En 9

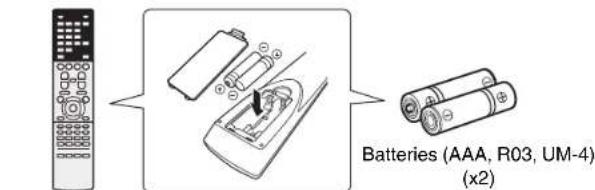

Preparation Confirming package contents Preparing cables The following cables (not supplied) are required to build the system described in this document.

• Speaker cables (depending on the number of speakers)

• Network cable (x1) (when connecting to a router via a network cable) Remote control Batteries (AAA, R03, UM-4) (x2) AM antenna (Except for U.K., Europe, and Australia models) FM antenna (Except for U.K., Europe, and Australia models)One of the above is supplied depending on the region of purchase. Quick Start Guide (this booklet) YPAO microphoneDAB/FM antenna (U.K., Europe, and Australia models)10 En

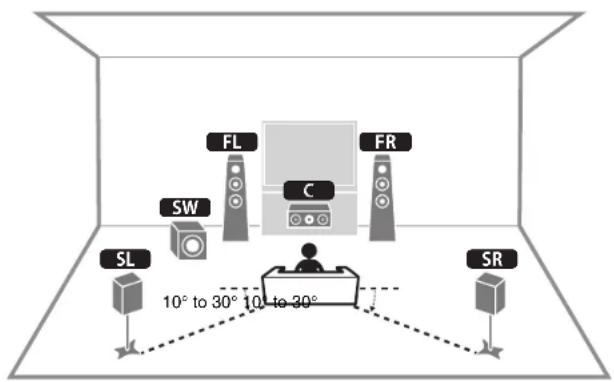

Connecting speakers/subwoofer Positioning speakers Use the diagram as a reference for positioning speakers. 1 / 2 Front speaker (L/R) 3 Center speaker 4 / 5 Surround speaker (L/R) 9 Subwoofer When connecting 6-ohm speakers Set the unit’s speaker impedance to “6 Ω MIN”. For details, see “Setting the speaker impedance” under “Connecting speakers” in the Owner’s Manual. Precautions for connecting speaker cables

• Be sure that the unit and subwoofer are turned off.

• Prepare speaker cables in a place away from the unit, to avoid accidentally dropping wire strands into the unit's interior which could result in a short circuit or malfunction of the unit.

• Improper connection of speaker cables could cause a short circuit resulting in damage to, or malfunctioning of, the unit or speakers. – Carefully remove approximately 10 mm (3/8") of insulation from the speaker- connection ends of the cables, and twist the bare wires of each speaker cable together firmly. – Do not allow the bare wires of separate speaker cables to come into contact with one another. – Do not allow speaker cable bare wires to come into contact with metal parts on the unit (rear panel and screws). If “Check SP Wires” is shown on the front display when the unit is turned on, turn off the unit and be sure that speaker cables have not caused a short circuit.

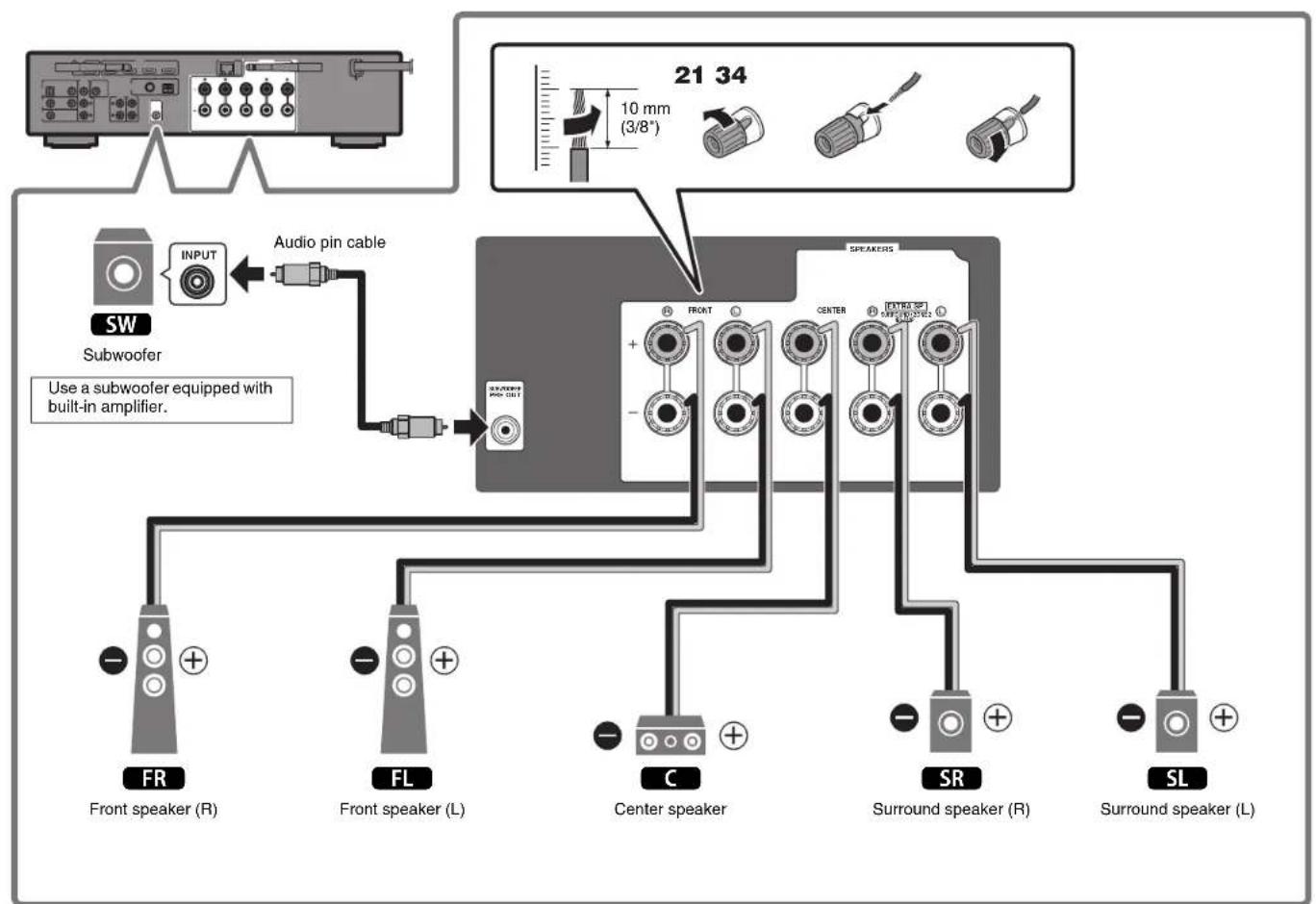

10° to 30° 10° to 30°10 mm(3/8")En 11

Front speaker (R) 10 mm (3/8")

Center speaker Use a subwoofer equipped with built-in amplifier. Audio pin cable

Surround speaker (R)

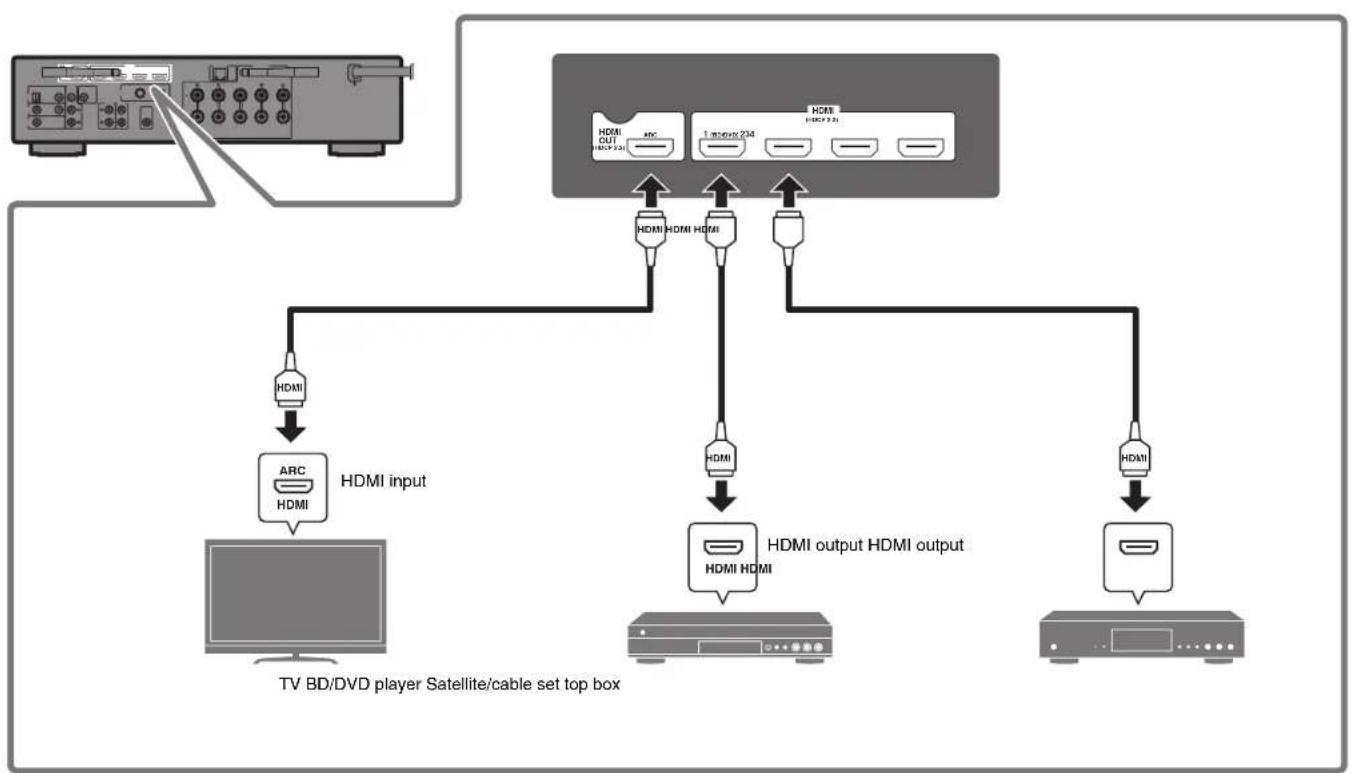

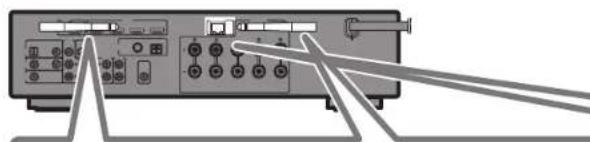

Connecting external devices HDMI ARC

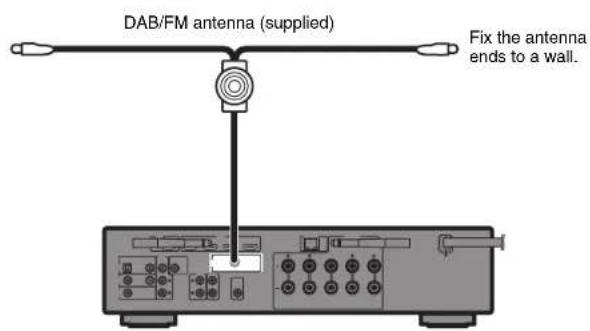

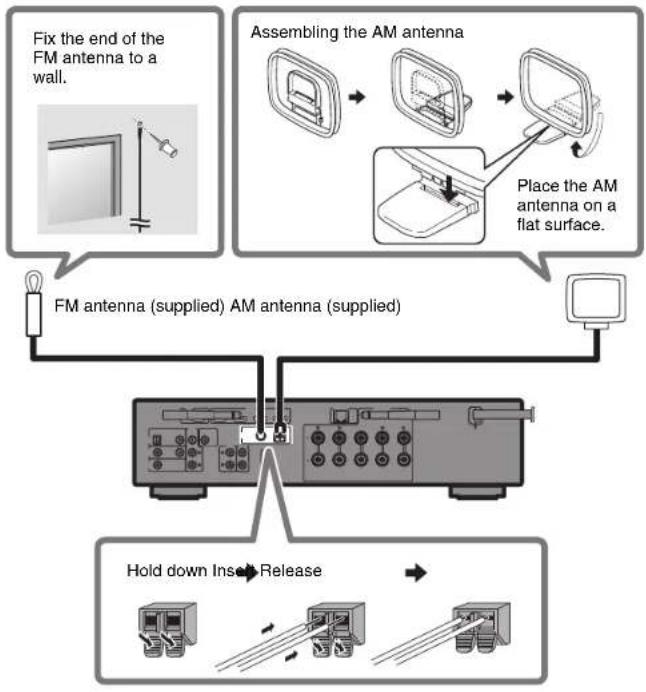

Connecting the radio antennas FM/AM antennas (Except for U.K., Europe, and Australia models) DAB/FM antenna (U.K., Europe, and Australia models) FM antenna (supplied) AM antenna (supplied)Hold down Insert ReleaseAssembling the AM antennaPlace the AM antenna on a flat surface.Fix the end of the FM antenna to a wall.DAB/FM antenna (supplied)Fix the antenna ends to a wall.14 En

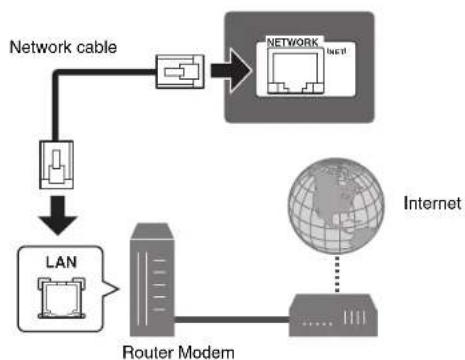

Preparing a network connection Prepare a wired or wireless network connection in accordance with your network environment. Note The wireless antenna must be raised if the unit will be connected to a Bluetooth device.NETWORK

LAN Raise the wireless antenna so that it is standing up straight. (Procedures for connecting the unit to a wireless router are described in step

Notice Do not apply excessive force on the antenna. Doing so may damage it. Wireless network connection InternetNetwork cableRouter Modem Wired network connectionEn 15

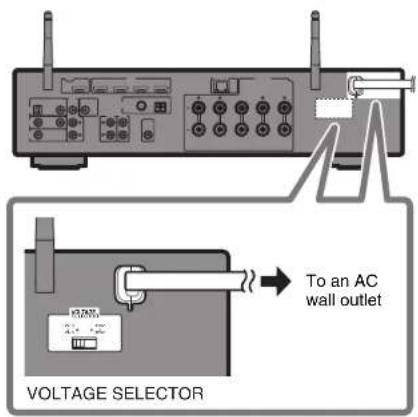

Connecting the power cable to an AC wall outlet, and turning on the unit 1 Plug the power cable into an AC wall outlet. 2 Press z (receiver power) to turn on the unit. 3 Turn on the TV and switch the TV input to display video from the unit (HDMI OUT jack). The Network Setup screen shown below will be displayed on the TV when the unit is turned on for the first time after purchase. It may take several tens of seconds for the screen to be displayed (WAC: Wireless Accessory Configuration).See “Setting up a wireless connection using an iOS device” under “Connecting to a network wirelessly” in the Owner’s Manual when using this function to connect the unit to a network.This document explains wireless connection using the Music Cast CONTROLLER app installed on your mobile device. Follow the procedure described under “8 Setting MusicCast” (p. 18). Note This screen will not be displayed if the unit is connected to a router via its NETWORK jack (wired connection). Warning Before connecting the power cable (Taiwan, and Central and South America models only)Set the switch position of VOLTAGE SELECTOR according to your local voltage.Voltages are AC 110–120/220–240 V, 50/60 Hz. 220V 240V 110V 120V VOLTAGESELECTORVOLTAGE SELECTORTo an AC wall outlet

CANCEL RETURN Network Setup WAC You can share the network’s wireless (Wi-Fi) setting with this device using a device with iOS7 or later. ↓ NEXT To perform network setup using another method, press ENTER. Language <English>16 En

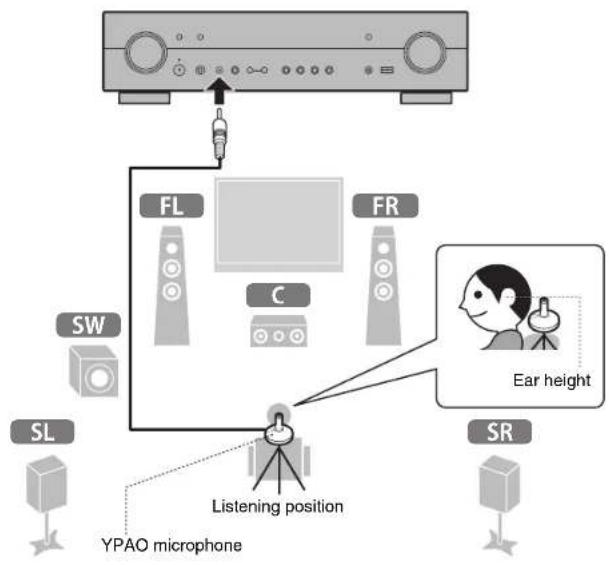

Optimizing the speaker settings automatically (YPAO) The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker connections, measures the distances from them to your listening position(s), and then automatically optimizes the speaker settings, such as volume balance and acoustic parameters, to suit your room.

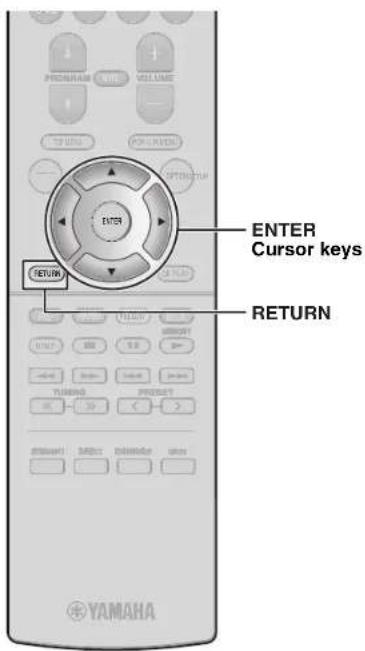

ENTER RETURN Note the following regarding YPAO measurement

• Test tones are output at high volume and may surprise or frighten small children.

• Test tone volume cannot be adjusted.

• Keep the room as quiet as possible.

• Stay in a corner of the room behind the listening position so that you do not become an obstacle between speakers and the YPAO microphone.

• Do not connect headphones. Ear height Listening position YPAO microphone Cursor keysEn 17 1 Turn on the subwoofer and set the volume to half. If the crossover frequency is adjustable, set it to maximum. 2 Place the YPAO microphone at your listening position and connect it to the YPAO MIC jack on the front panel. The screen below appears on the TV. Note Place the YPAO microphone at your listening position (same height as your ears). We recommend the use of a tripod as a microphone stand. You can use the tripod screws to stabilize the microphone. 3 Press ENTER. The measurement will start in 10 seconds. It takes about 3 minutes to measure. The screen below appears on the TV when the measurement finishes. Note If an error message (such as E-1) or warning message (such as W-2) appears, see “Error messages from YPAO” or “Warning messages from YPAO” in the Owner’s Manual. 4 Confirm the results displayed on the screen and press ENTER. 5 Use the cursor keys to select “SAVE” (Save) and press ENTER. 6 Disconnect the YPAO microphone from the unit. This completes optimization of the speaker settings. VOLUMECROSSOVER/HIGH CUTMIN MAXMIN MAX18 En

Setting MusicCast What is MusicCast MusicCast is a brand new wireless musical solution from Yamaha, allowing you to share music among all of your rooms with a variety of devices. You can enjoy music from your smartphone, PC, NAS drive and music streaming service anywhere in your house with one easy-to-use app. For more details and a lineup of MusicCast compatible products, refer to the following site:http://www.yamaha.com/musiccast/• Seamlessly control all MusicCast compatible devices with the dedicated app “MusicCast CONTROLLER”.• Play back music from music streaming services. (The compatible music streaming services may differ depending on your region and product.)• Configure wireless network settings of MusicCast compatible devices. Note See the Owner’s Manual for information on other wireless connection methods if the MusicCast CONTROLLER app will not be used. Using MusicCast CONTROLLER To use the network features on the MusicCast compatible device, you need the dedicated app “MusicCast CONTROLLER” for the operation. Search for the free app “MusicCast CONTROLLER” on the App Store or Google Play and install it to your device. Adding the unit to the MusicCast network Perform the following procedure to add the unit to the MusicCast network. You can also configure the unit’s wireless network settings at once. Note The SSID and security key for your network will be needed. 1 Tap the “MusicCast CONTROLLER” app on your mobile device and tap “Setup”. Note If you have already connected other MusicCast compatible devices to the network, tap “Settings” and then “Add New Device”. 2 Follow the app’s on-screen instructions.En 19 3 Press and hold the CONNECT button on the front panel of the unit for 5 seconds, as instructed by the app. 4 Follow the app’s on-screen instructions to configure network settings. When a connection has been established, “Completed” will be displayed in the front display of the unit. Network connection with the MusicCast CONTROLLER app is now complete, and the unit has been registered as a MusicCast-enabled device.

PHONESSILENT CINEMAYPAO MICSTRAIGHT(CONNECT)PROGRA

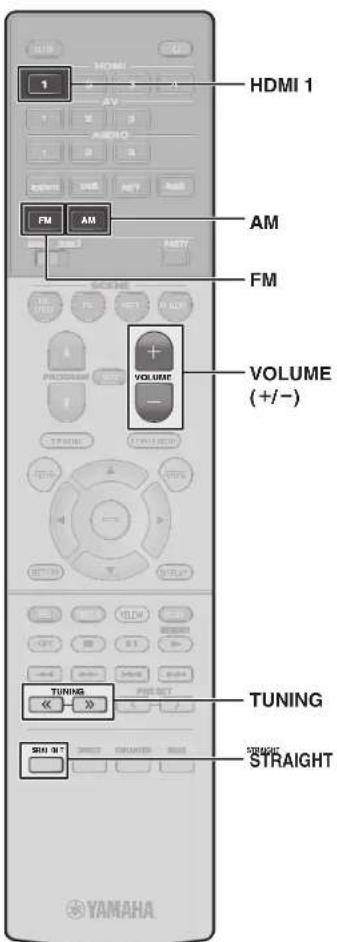

M20 En Playback This section describes basic operations such as playing Blu-ray Discs and DVDs, and tuning into radio stations. Most operations can be performed using the remote control. Basic playback functions BASSENHANCERDIRECTSTRAIGHT BASS ENHANCER DIRECT STRAIGHT BASSENHANCERDIRECTSTRAIGHT

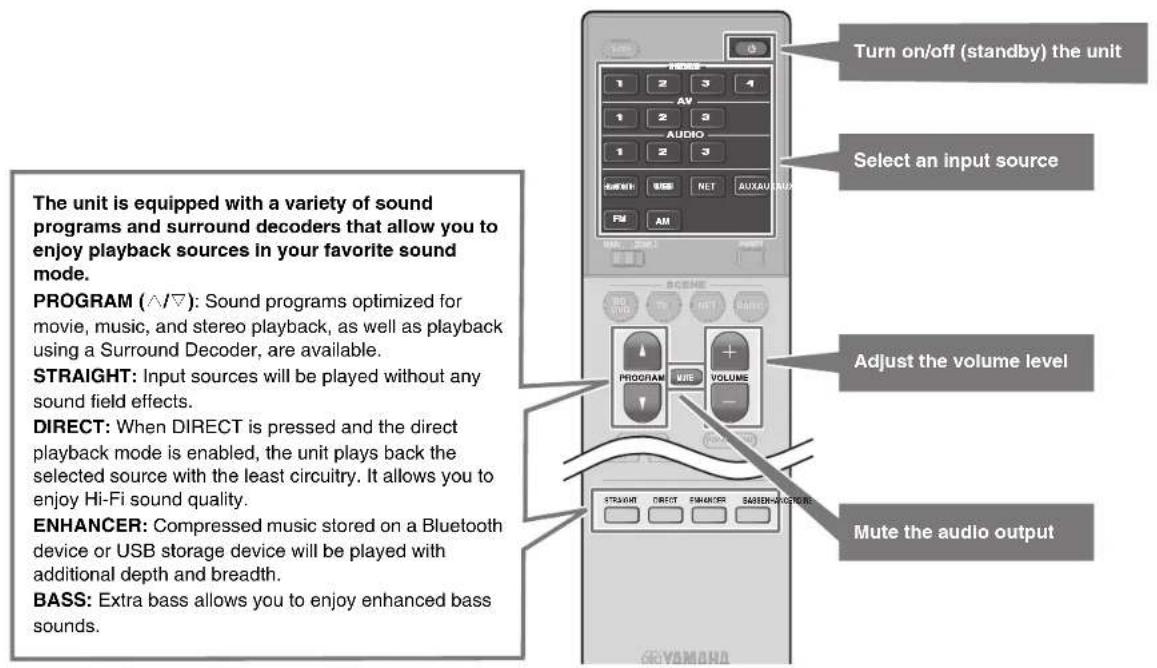

PARTY PARTYPARTYPARTYPARTYPARTYPARTY Adjust the volume level Mute the audio output Turn on/off (standby) the unit The unit is equipped with a variety of sound programs and surround decoders that allow you to enjoy playback sources in your favorite sound mode. PROGRAM (q/w): Sound programs optimized for movie, music, and stereo playback, as well as playback using a Surround Decoder, are available. STRAIGHT: Input sources will be played without any sound field effects. DIRECT: When DIRECT is pressed and the direct playback mode is enabled, the unit plays back the selected source with the least circuitry. It allows you to enjoy Hi-Fi sound quality. ENHANCER: Compressed music stored on a Bluetooth device or USB storage device will be played with additional depth and breadth. BASS: Extra bass allows you to enjoy enhanced bass sounds. Select an input sourceEn 21 Playing a BD/DVD We recommend playing back multichannel audio (5.1-channel or more) to feel surround sound produced by the unit. 1 Turn on the BD/DVD player. 2 Press HDMI 1 to select “HDMI 1”. The name of the connected device such as “BD player” may be displayed. 3 Start playback on the BD/DVD player. 4 Press STRAIGHT to select “STRAIGHT”. Note When “STRAIGHT” (straight decode) is enabled, each speaker produces each channel audio signal directly (without sound field processing). 5 Press VOLUME to adjust the volume. Note When sound is not heard, or no sound is output from a specific speaker, see “Troubleshooting” (p. 26). Listening to FM/AM radio (Except for U.K., Europe, and Australia models) 1 Press FM or AM to select “TUNER” as the input source. 2 Press TUNING to set a frequency. Hold down the key for about a second to search stations automatically.“TUNED” lights up when the unit is receiving an FM/AM radio station signal.“STEREO” lights up when the unit is receiving a stereo FM radio signal.MUTEENHANCERSTEREOTUNEDSLEEP ECO CHARGE ADAPTIVE DRC VIRTUAL BD Player VOL. OUT Input source Device nameSetting the frequency steps(Asia, Taiwan, and Central and South America models only)At the factory, the frequency step setting is set to 50 kHz for FM and 9 kHz for AM.Depending on your country or region, set the frequency steps to 100 kHz for FM and 10 kHz for AM.1 Set the unit to standby mode.2 Hold down STRAIGHT on the front panel and press z (power).3 Press PROGRAM on the front panel repeatedly to select “TU”.4 Press STRAIGHT on the front panel to select “FM100/AM10”.5 Press z (power) to set the unit to standby mode and turn it on again. ENHANCER LINK ECO MASTER OUT

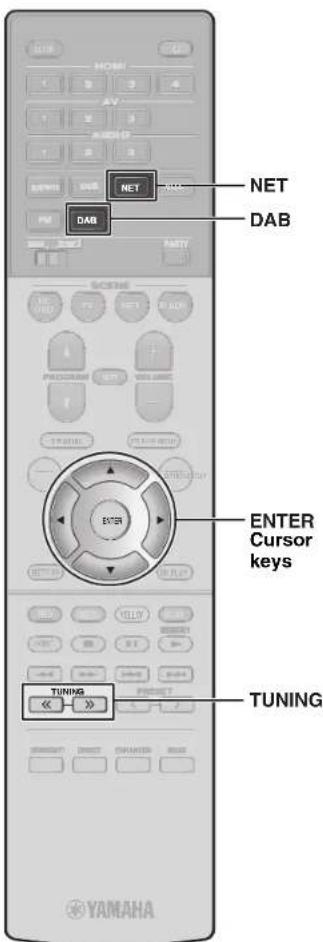

TUNING22 En Listening to DAB radio (U.K., Europe, and Australia models) 1 Press DAB to select the DAB band. The following message appears on the front panel if you have not performed an initial scan yet. 2 Press ENTER to start an initial scan. When the initial scan finishes, the unit automatically tunes into the first DAB radio station as stored in station order. 3 Press TUNING repeatedly to select a DAB radio station. Listening to Internet radio 1 Press NET repeatedly to select “NET RADIO” as the input source. The browse screen is displayed on the TV. 2 Use the cursor keys to select an item and press ENTER. When an Internet radio station is selected, playback starts and the playback screen is displayed. Note Internet radio stations can also be selected using the MusicCast CONTROLLER app installed on your mobile device.ENHANCERLINKECOMASTER OUT

BBC Radio 4 Listening to music from streaming servicesThe MusicCast CONTROLLER app installed on your mobile device can be used to receive streaming services.1 Select a streaming service on the MusicCast CONTROLLER app screen.2 Select a station. Note The following may be required, depending upon the streaming service used.• Install the streaming service app on your mobile device• Register a streaming service accountNotes on streaming services• Streaming services may be changed or discontinued without notice.• Supported streaming services may vary by the country or region of use.PRESETTUNINGMEMORYBLUE YELLOWGREEN

PARTY PARTYPARTYPARTYPARTYPARTYPARTY AUX AUXAUXAUX DAB NET TUNINGENTERCursor keysEn 23 SCENE function Unit input sources and settings that have been assigned to SCENE keys can be selected with a single touch (SCENE function). When a SCENE key is pressed, the unit turns on automatically if it is in standby mode.By default, the following settings have been assigned toeach SCENE key when the MAIN/ZONE2 switch is set to MAIN.Main ZoneRegistering a sceneThe settings assigned to each SCENE key by default can be changed to suit individual preferences.1. Play an input source.2. Apply settings for functions such as Sound programs and Compressed Music Enhancer.3. Press and hold a SCENE key until “SET Complete” appears on the front display. Playing music stored on a Bluetooth

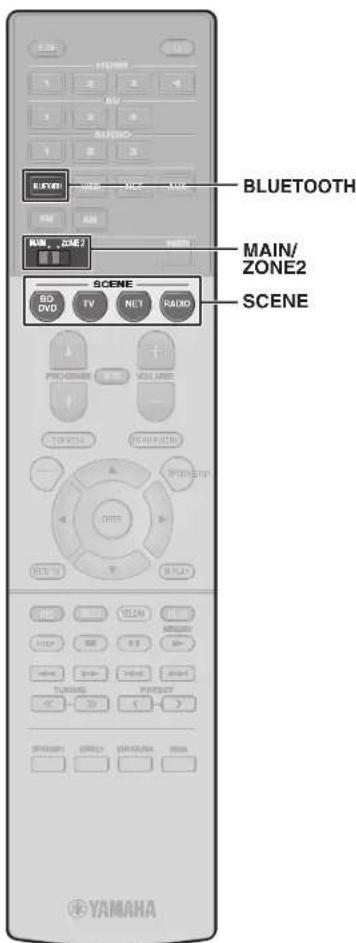

device 1 Press BLUETOOTH to select “Bluetooth” as the input source. 2 Select the unit (network name of the unit) from the available device list on the Bluetooth device. If the passkey is required, enter the number “0000”.When the connection is established, the indicator will glow in the front display. 3 Select a song and start playback on the Bluetooth device. SCENE keyInput HDMI1 AV1 NET RADIOTUNERSound program Sci-FiSTRAIGHT 5ch Stereo 5ch StereoCompressed Music EnhancerOff On On OnSCENE link playbackOn On Off Off

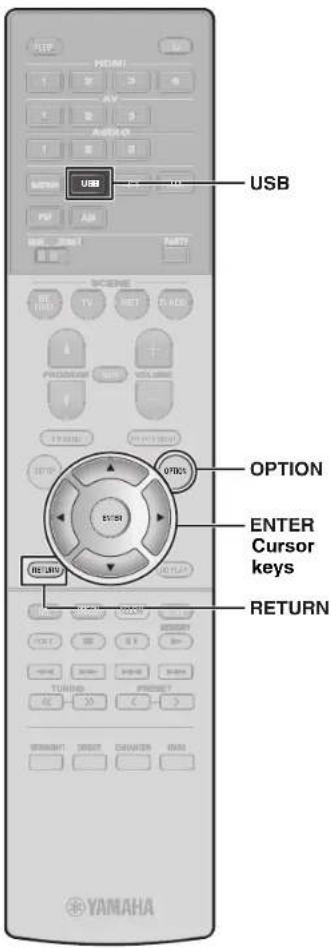

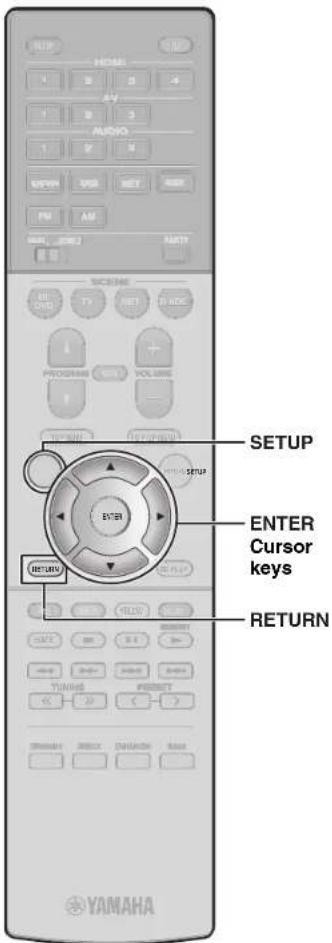

PARTY PARTYPARTYPARTYPARTYPARTYPARTY AUX AUXAUXAUX USB OPTIONENTERRETURN Playing music stored on a USB flash drive 1 Connect the USB flash drive to the USB jack. Note Connect the USB flash drive directly to the USB jack. Do not use an extension cable. 2 Press USB to select “USB” as the input source. The browse screen is displayed on the TV. 3 Use the cursor keys to select an item and press ENTER. When a song is selected, playback starts and the playback screen is displayed. Basic operation of the Option menu This section explains basic operation of the Option menu. The Option menu can be used to configure the unit’s playback functions according to the input source. 1 Press OPTION. The Option menu is also displayed on the TV screen. 2 Use the cursor keys to select an item and press ENTER. To return to the previous screen during menu operations, press RETURN. 3 Use the cursor keys to select a setting. 4 Press OPTION. For more information, see “Configuring playback settings for different playback sources (Option menu)” in the Owner’s Manual. AUX AUDIO

• The power cables of the unit, TV and playback devices (such as BD/DVD players) are connected to AC wall outlets securely.

• The unit, subwoofer, TV and playback devices (such as BD/DVD players) are turned on.

• The connectors of each cable are securely inserted in to jacks on each device. If there is no problem with the power and cables, refer to the instructions shown in the table below. If the problem you are experiencing is not listed or if the instructions do not help, turn off the unit, disconnect the power cable, and contact the nearest authorized Yamaha dealer or service center. Problem Cause Remedy The power does not turn on. The protection circuitry has been activated three times consecutively. When the unit is in this condition, the standby indicator on the unit’s front panel blinks if you try to turn on the power. As a safety precaution, capability to turn on the power is disabled. Contact your nearest Yamaha dealer or service center to request repair. The power turns off (standby mode) immediately. The unit was turned on while a speaker cable was shorted. Twist the bare wires of each speaker cable firmly and reconnect to the unit and speakers (p. 10). The unit is not reacting. The internal microcomputer is frozen, due to an external electric shock (such as lightning or excessive static electricity) or to a drop in the power supply voltage. Hold down z on the unit’s front panel for more than 15 seconds to initialize and reboot the unit. (If the problem persists, disconnect the power cable from the AC wall outlet and plug it again.) No sound. Another input source is selected. Select an appropriate input source with the input selection keys. Signals that the unit cannot reproduce are being input. Some digital audio formats cannot be played back on the unit. To check the audio format of the input signal, use “Signal Info.” in the “Option” menu (p. 24). For details, see “Checking information about the video/audio signals” in the Owner’s Manual. No sound is coming from a specific speaker. The playback source does not contain a signal for the channel. Use “Signal Info.” in the “Option” menu (p. 24) to check the audio signal. For details, see “Checking information about the video/audio signals” in the Owner’s Manual. The currently selected sound program/decoder does not use the speaker. Use “Test Tone” in the “Setup” menu (p. 25) to check the speaker output. For details, see “Outputting test tones” in the Owner’s Manual. Audio output of the speaker is disabled. Perform YPAO (p. 16). Use “Configuration” in the “Setup” menu to change the speaker settings. For details, see “Configuring the speaker settings” in the Owner’s Manual.En 27 No sound is coming from the subwoofer. The playback source does not contain LFE or low- frequency signals. Enable the Extra Bass function using the BASS key (p. 20). Subwoofer output is disabled. Perform YPAO (p. 16). Set “Subwoofer” in the “Setup” menu to “Use” (p. 25). For details, see “Setting the use of a subwoofer” in the Owner’s Manual. No video. Another input source is selected on the unit. Select an appropriate input source with the input selection keys. Another input source is selected on the TV. Switch the TV input to display the video from the unit. No video from the playback device connected to the unit with HDMI. The input video signal (resolution) is not supported by the unit. To check the information about the current video signal (resolution), see “Checking the current video and HDMI signal information” in the Owner’s Manual. For information about video signals supported by the unit, see “HDMI signal compatibility” in the Owner’s Manual. The TV does not support HDCP (High-bandwidth Digital Content Protection). Refer to the instruction manuals for the TV and check the TV’s specifications. If you want to play back contents that require HDCP 2.2-compatible devices, both the TV and playback device must support HDCP 2.2. Cannot make the connection settings on MusicCast CONTROLLER. The mobile device is not connected to the wireless router at your home. Connect the mobile device to the wireless router and use MusicCast CONTROLLER. It takes time for the app to detect the unit. Wait a moment while making sure that your mobile device will not be in the sleep mode. Access to the network is restricted by the firewall settings of the wireless router (access point). Check the firewall setting and the MAC address filter of the wireless router (access point). Problem Cause Remedy28 En Specifications The contents of this manual apply to the latest specifications as of the publishing date. Refer to the Owner’s Manual on the Yamaha website to confirm specifications other than described above and obtain the latest information of the unit. Bluetooth Supported profile A2DP, AVRCP Supported codec SBC, AAC Bluetooth version Ver. 4.2 Wireless output Bluetooth Class 2 Maximum communication distance 10 m (33 ft) without interference Supported content protection method SCMS-T Network Wi-Fi function Radio Frequency Band 2.4 GHz, 5 GHz band Wireless LAN Standards: IEEE 802.11 a/b/g/n/ac*

• 20 MHz channel bandwidth only Security Method: WEP, WPA2-PSK (AES), Mixed Mode Capable of WPS by PIN Method and Push-Button-Method Capable of sharing with iOS devices by wireless connection Tuner FM/AM Tuning Range U.S.A. model [FM] 87.5 MHz to 107.9 MHz [AM] 530 kHz to 1710 kHz Asia, Taiwan, and Central and South America models [FM] 87.5/87.50 MHz to 108.0/

[AM] 530/531 kHz to 1710/ 1611 kHz Other models [FM] 87.50 MHz to 108.00 MHz [AM] 531 kHz to 1611 kHz DAB/FM Tuning Range U.K., Europe, and Australia models [DAB] 174 MHz to 240 MHz (Band III) [FM] 87.50 MHz to 108.00 MHz General Power Supply U.S.A. model AC 120 V, 60 Hz Central and South America models AC110 to 120/220 to 240 V, 50/60 Hz Taiwan model AC110 to 120/220 to 240 V, 50/60 Hz China model AC 220 V, 50 Hz Australia model AC 240 V, 50 Hz U.K. and Europe models AC 230 V, 50 Hz Asia model AC 220 to 240 V, 50/60 Hz Power Consumption 190 W Standby Power Consumption HDMI Control Off, Standby Through Off

Maximum Power Consumption Taiwan, and Central and South America models 400 W Dimensions (W x H x D) 435 x 111 x 328 mm (17-1/8” x 4-3/8” x 12-7/8”) Reference Dimensions (with wireless antenna upright)

CANCEL RETURN Network Setup WAC You can share the network’s wireless (Wi-Fi) setting with this device using a device with iOS7 or later. ↓ NEXT To perform network setup using another method, press ENTER. Language <English>42 Fr

Hereby, Yamaha Music Europe GmbH declares that the radio equipment type [RX-S602] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://europe.yamaha.com/en/support/compliance/doc.html

Important Notice: Guarantee Information for customers in EEA* and Switzerland For detailed guarantee information about this Yamaha product, and Pan-EEA* and Switzerland warranty service, please either visit the website address below (Printable file is available at our website) or contact the Yamaha representative office for your country.
