Features	Details
Device type	Portable air conditioner
Cooling capacity	12,000 BTU
Recommended area	Up to 35 m²
Energy class	A
Noise level	65 dB
Functions	Cooling, dehumidification, ventilation
Dimensions (W x D x H)	30 x 34 x 70 cm
Weight	30 kg
Power consumption	1,200 W
Refrigerant type	R290
Usage	Ideal for living rooms, offices, etc.
Maintenance	Regular filter cleaning
Safety	Overheat protection
Warranty	2 years

Frequently Asked Questions - PAC 12.2 Eurom

How do I install the Eurom PAC 12.2 air conditioner?

To install the Eurom PAC 12.2 air conditioner, place the unit near a window to vent hot air. Make sure the exhaust hose is properly installed and the unit is level.

What is the noise level of the Eurom PAC 12.2?

The noise level of the Eurom PAC 12.2 is about 65 dB, which is comparable to the background noise of an office.

Can I use the Eurom PAC 12.2 air conditioner in a large room?

The Eurom PAC 12.2 is designed for rooms up to 35 m². For larger spaces, it is recommended to use multiple units.

How do I clean the filter of the Eurom PAC 12.2?

To clean the filter, remove it from the unit, rinse it with lukewarm water, and let it dry completely before reinstalling.

What is the power consumption of the Eurom PAC 12.2?

The Eurom PAC 12.2 has a power consumption of about 1.2 kW in cooling mode.

Can the Eurom PAC 12.2 air conditioner be used as a heater?

Yes, the Eurom PAC 12.2 has a heating function that allows the unit to be used during cooler months.

What should I do if the air conditioner is not cooling properly?

Check if the filter is dirty, if the exhaust hose is blocked, or if the set temperature is lower than the ambient temperature.

Is there a warranty for the Eurom PAC 12.2?

Yes, the Eurom PAC 12.2 usually comes with a 2-year warranty, but this may vary depending on the seller.

How do I set the temperature on the Eurom PAC 12.2?

Use the control panel or the supplied remote control to adjust the desired temperature.

Where can I find spare parts for the Eurom PAC 12.2?

Spare parts can be ordered from Eurom customer service or authorized dealers.

USER MANUAL PAC 12.2 Eurom

EN These symbols on your device mean:

• This appliance is filled with Propane gas R 290. FollowStrictly the manufacturer's instruction concerning use and repairs!
  Before using the machine, carefully read this entire instruction manual.
• Do not install, operate or store the device in a room smaller than 15m^2

Many thanks for choosing this EUROM equipment: you have chosen an excellent device that you will be able to enjoy for many years to come!

In order to ensure it works as efficiently as possible, we advise you to read these instructions carefully before using; the leaflet contains important safety information, recommendations etc. and will help you get the very best from your equipment!

We recommend that you keep the instruction booklet and the packaging in a safe place; the leaflet can then be used as reference material and the packaging can be used to store your equipment at the end of the season.

Finally, we hope your air conditioner / dehumidifier perfectly meets your requirements!

TECHNICAL SPECIFICATIONS

MODEL	EUROM PAC12.2	EUROM PAC14.2
Cooling capacity	12000 BTU/hr3500 Watt	14000 BTU/hr4000 Watt
Max. power usage	1345 Watt	1538 Watt
Air displacement max.	450 m³ / hr	450 m³ / hr
Connected power	220–240V / 50Hz	220–240V / 50Hz
Sound power level	65dB(A)	65dB(A)
Cooling fluid	R290/210gr.	R390 / 210 gr.
Class of insulation	IP20	IP20
Fan settings	3	3
Operating temperature	18 - 35°C	18 - 35°C
Waste pipe	Ø 150 mm x 1500 mm.	Ø 150 mm x 1500 mm.
Net weight	26 kg.	26 kg.
Dimensions	44 x 33,5 x 71,5 cm (I x b x h)

SAFETY INSTRUCTIONS

General Safety:

• This unit is exclusively intended for household use.
• Always ensure (even during transport!) that the unit remains upright. If the unit has been lying on its side, wait 2 hours before using. This time is required in order for the compressor to function correctly.
• Ensure that the unit is always placed on a sturdy, flat and horizontal surface.
• Ensure that the unit has a free space of at least 50~cm on each side.
• Make sure that the plug and socket remain visible and accessible at all times.
• Do not place any objects in front of the air conditioning unit.
• Never leave a functioning device unsupervised, not even for a moment!
• Do not use the air conditioning unit in the vicinity of flammable or explosive substances or fuels. Never use any paint, cleaning sprays, anti-insect sprays or similar near the unit; this could deform the plastic or cause electrical damage.

• Never block the grilles for incoming or outgoing air (not even partially). Never insert objects such as pens into the device via the grilles and ensure that the ventilator does not become blocked.
  Children, disabled persons and pets should be supervised to ensure that they don't play with the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Avoid children coming into contact or playing with the device.

• Do not turn on the appliance if you have discovered damage to the appliance, cord or plug, if the appliance is malfunctioning, if it has been dropped or if there are signs of any other defect. Return the complete product to the vendor or to a certified electrician for inspection and/or repair. Always ask for original parts. The appliance (incl. cord and plug) may only be opened and/or repaired by properly authorised and qualified persons.

Electrical safety:

• The air conditioning unit is only suitable for indoor use.
• Only use the plug that is installed on the device in the factory and no other form of connector!
• The appliance shall be installed in accordance with national wiring.
• Before use, check whether the socket voltage that you will be using corresponds to the specification plate on the unit. Damage caused by incorrect voltage is not covered by the guarantee!
• If the air conditioning unit is not in use or you are cleaning or carrying out maintenance on it, turn it off and remove the plug from the socket. Always turn off first and then remove the plug!
• Also, when you are going to use the device: first insert the plug into the socket, then switch the device ON and then use the control button!
• Do not use the air conditioning unit in a damp or wet environment and never splash water, oil or any other liquid onto the device.
• Avoid the use of extension cables if you can. If this is unavoidable, use a cable with sufficient capacity (at least 3 × 1.5 ~mm^2 ) and do not let it cross any walking routes! Do not move the unit by tugging on the electric cable and never remove the plug from the socket by pulling the cable. Do not damage/deform/change the electrical cable and/or plug. This may damage the device or cause electrocution.
• Switch the device off immediately and pull the plug out of the socket if you hear strange sounds, smell odours or see smoke. Do not use the unit if the electrical cable, plug or device is damaged or broken. The device, plug and/or cable must be repaired/replaced by an electrician or another suitably qualified person. Repairs by unqualified persons will result in the guarantee becoming null and void and could lead to dangerous situations!

Safety in relation to coolant R290:

• Read these warning carefully.
• This device contains the coolant R290. R290 is a coolant that complies with the relevant European Directives. Never perforate the coolant circuit. R290 is flammable (GWP 3)!
• Never use substances other than those recommended by the manufacturer for the defrosting process.
• This device must be used and stored in a room that does not contain sources of ignition, such as open flames or gas and electrical devices in operation.
• Do not perforate any of the components of the cooling circuit and do not set light to the device.
• If the device is installed, working or stored in an un-ventilated you must take measures to prevent fire or explosions caused by leaked coolant. Ensure that there are absolutely no

sources of ignition (such as fire, heaters, sparking electrical equipment, lit cigarettes, etc.) in the same room!

• The device must be stored in such a way that mechanical defects are prevented.
• Do not install, operate or store the device in a room smaller than 15m^2
  R290 is odourless, which means that you cannot smell leaks!
• Persons working on the cooling circuit must be in possession of the correct qualifications that state the person in question is competent to use coolant in accordance with a special evaluation that is recognised by the sector association.
• The repairs must be executed on the grounds of the recommendations of the manufacturer of the device. Maintenance and repairs that require the assistance of other qualified persons must be executed under supervision of someone who is specialised in the use of flammable coolant.

For maximum effect:

• Never exceed the recommended area to be cooled.
• Do not place the unit in the vicinity of a heat source, not in the same room as a tumble dryer and not in direct sunlight.
• Close windows and doors.
• Keep curtains or hatches closed during the sunniest hours in the day
• Keep filters clean
• Modify temperature and ventilation settings once the area has reached the required condition.

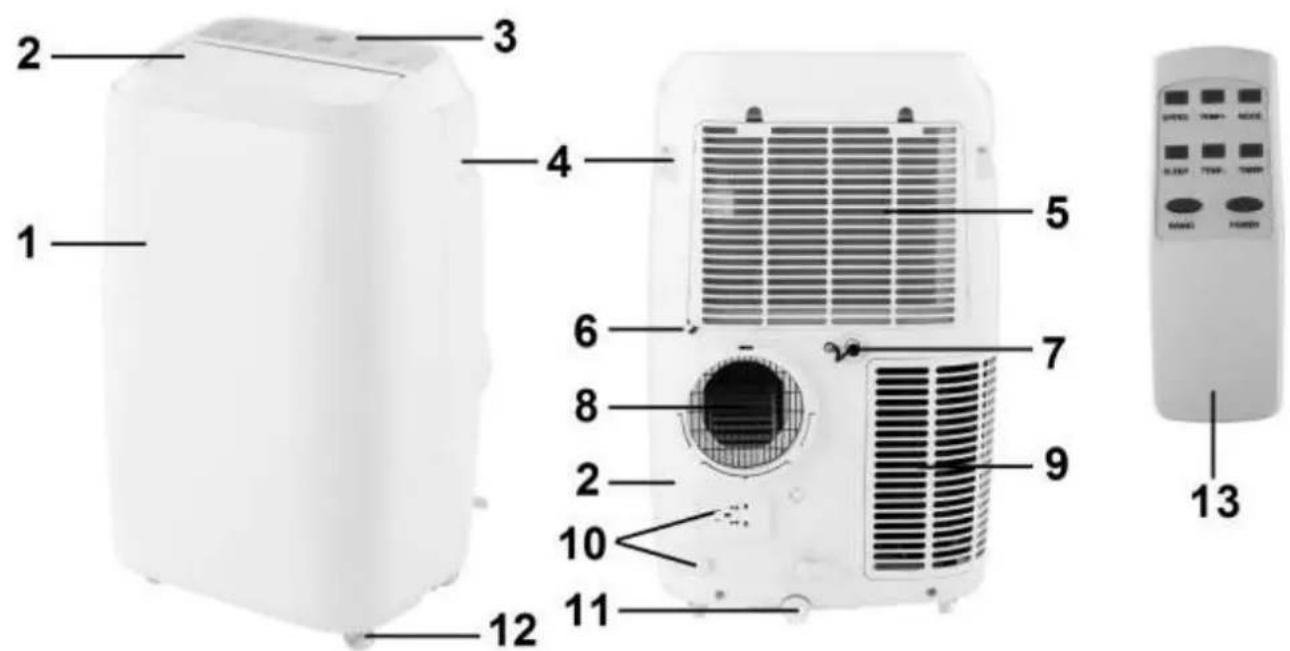

DESCRIPTION

1 - front panel
2-air outlet
3 - control panel
4 - handle
5-air inlet
6 - electrical cable with plug
7 - water drain - constant

8 - hot air exhaust hose connector
9-air inlet
10 - storage point for electrical cable and plug
11 - water drainage point
12 - castors
13 - remote control

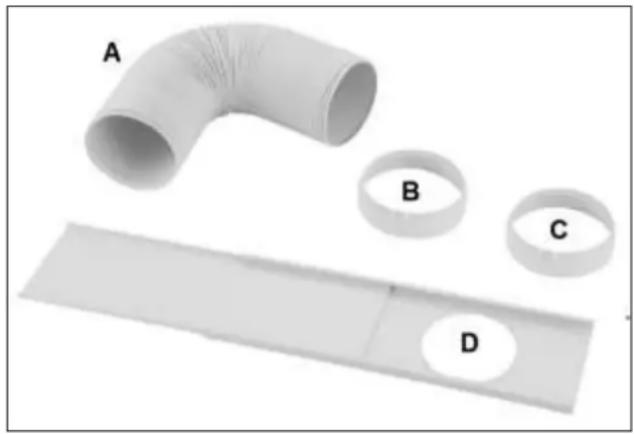

Accessories:

A- Outlet hose hot air
B - Connector window panel
C - Connector air conditioner
D-Window panel

INSTALLATION

The EUROM PAC12.2/14 is a mobile air conditioning/dehumidifying unit that can be moved from room to room. Install as follows:

• Remove all packaging material and ensure that the unit remains in an upright position.
• Before use, check that all accessories are present and that there is no damage to the accessories or the unit itself. Do not use a damaged unit; take it back to your supplier!
• Place the unit on a sturdy, flat, dry and horizontal base near an electrical socket and a discharge point for hot air, e.g. a window that can be opened slightly. Make sure that the unit has at least 50~cm of free space on all sides and take all safety instructions into account.
• To dehumidify you now connect a water drainage hose to the water drain - constant (7). This hose should lead to a bucket or drain. The hose should not run upwards! Your unit is now ready for use.
  In order to use the cooling function, you do not need to connect the water drainage hose. Place window panel in the window opening, see diagram. The length of the window panel can be adjusted from 67.5 to 123cm .
• Screw on the connector for the air conditioner on one end and the connector for the window panel on the other end of the outlet hose.
• Slide the connector for the air conditioner into the appropriate slot on the rear of the unit.

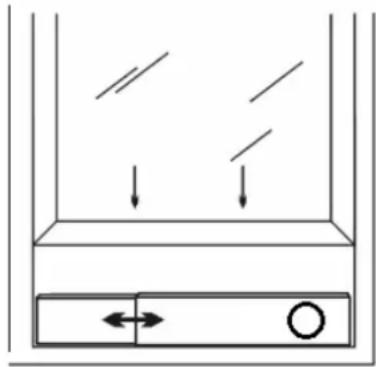

• Secure the other end of the outlet hose in the window panel opening so that it can remove hot air outside.
• You can also hang the outlet hose out of an open window; this method is less efficient however.
• Avoid bends or pinches in the pipe. These will lead to a build up of damp, waste air which can cause leaks, overheating or lead to the air conditioning unit switching off.
• Warning! Do not use your air conditioning unit until it has been installed according to the instructions above!
• Warning! Ensure that water cannot penetrate the device!
• Warning! The length of the discharge pipe corresponds to the technique that is used in this air conditioning unit. Do not replace or extend it using another pipe as this could have a negative impact on the effectiveness of the unit. The hose can be stretched but must be kept as short as possible in order to ensure optimum functioning.

Don't forget about preventing access to burglars!

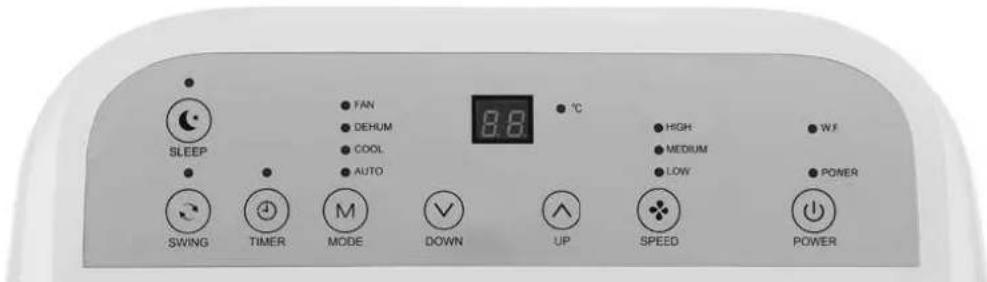

The control panel and remote control have the same buttons. This means that they give the same commands. The control panel also has lights that indicate the mode set. The control panel also has a W.F. light (water tank full) and a display that shows the temperature and timer settings.

Before using the air conditioner, check:

• That it has been installed according to safety instructions
• That it is not damaged or broken
• That the electrical socket that you wish to use has the same voltage as is given on the unit's specification plate (220-240V / 50Hz)
• That no other devices are connected to the same socket

If this has all been checked, you can insert the plug into the socket. Start the unit by pressing on the POWER button.

Use the MODE button to choose a specific function: automatic function, cooling, dehumidifying or ventilate. Every time you press the button, the function changes. The light on the control panel shows which function is active. If you are cooling or dehumidifying, wait for up to 3 minutes after switching on or off before switching the unit on or off again. The compressor needs this time to recover.

Automatic cooling:

Press MODE until the AUTO indicator lights up.

The device will, depending on the ambient temperature, automatically select a desired temperature with the accompanying function: cool, dehumidification or ventilation. This indicator light will also activate.

Ambient temperature	< 23°C	23°C ≤ amb. temp ≤ 26°C.	≥ 26°C
Mode	Ventilation (fan)	Dehumidification (dehum)	Cooling (cool)
Desired temperature	21°C	23°C	25°C

Cooling:

Press MODE until the COOL indicator lights up.
Press TEMP_+ / TEMP - ( / V) to set the required temperature (from 16^ to 31^ )
Press SPEED to select desired fan speed (low, medium or high).

Dehumidifying:

Check that the water outlet hose is correctly connected, see page 6!
Press MODE until the DEHUM indicator lights up.
The temperature will be automatically set to 2 degrees below room temperature (16°C to 31°C).
The fan speed will be automatically set to 'LOW'.

Ventilation:

Press MODE until the FAN light is lit

Press SPEED to select the desired air speed (low, medium or high).

When operating in the 'cooling' and 'dehumidification' modes, the device will occasionally stop to allow the radiators to defrost. The device will start again after several minutes. DO not use substances to accelerate this process and do not change the settings!

If you set the apparatus to 'cooling' or 'dehumidifying', it will continuously operate unless:

• The room temperature becomes lower than the set temperature.
• The timer is set to a final time.

Timer:

The Timer button allows you to automatically start or stop the air conditioner at a set time. Automatic starting: Switch the device on and set the function (MODE) and temperature. Now switch the device off again. Press the timer button and choose the moment that you would like to start working using the temperature buttons: each time you press (up) the hour will increase, each time you press V (down), the hour will decrease. If, for example, the display shows 5 hours, the air conditioner will switch on in 5 hours.

Automatic stopping: the air conditioner is on. Press the timer button and choose the moment that you would like it to stop working using the temperature buttons: each time you press (up) the hour will increase, each time you press V (down), the hour will decrease. If, for example, the display shows 2 hours, the air conditioner will switch off in 2 hours. The timer can be set to between 1 to 24 hours.

Swing

Pressing the SWING button during operation will make the flaps (and thereby the air stream) move up and down. Press again to stop the swing action.

Sleep

Select the 'cooling' MODE (COOL) and set the desired temperature.
Press the 'SLEEP' button – the device will automatically increase the desired temperature by one degree after one hour, and by a second degree after a second hour. The device will continue to operate at this setting.
Cancel the command by pressing 'SLEEP' again.

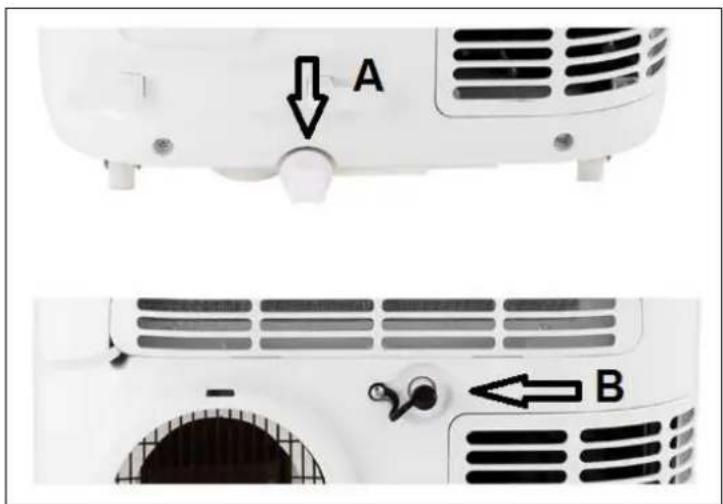

Water outlet

During the cooling process, the device removes water from the air. This largely evaporates but any excess water is collected in the water reservoir. If the water reservoir in the device is full, the compressor and the motor will stop automatically and the 'water tank full' light (W.F.) will come on. In this event, switch the air conditioning unit off and remove the plug from the socket.

Empty the water tank by unscrewing cap A off the water drainage point and emptying the tank into a pit or a container or similar vessel. Remember to screw the cap back on to the drainage point afterwards!

You can then use the air conditioner as normal again.

The dehumidification extracts more water from the air. This is why we recommend connecting a hose to the water drainage - constant B during dehumidification and leading it to a (lower) water drainage point (constant - drainage).

If the water pump is defective but you would still wish to use the device, connect a hose for constant drainage to one of the water drainage points. It will be possible for the device to work normally.

Safety

The PAC12.2 / 14 is fitted with an overheating safeguard that switches the unit off if it overheats. If this should occur, you must remove the plug from the socket and leave the PAC12.2 / 14 to cool for at least 30 minutes. Remove the cause of overheating - has the device been (partially) covered? Is it too close to a wall or another obstacle, preventing it sucking in or dispelling sufficient air?

You can then use the device normally again but keep an eye on it for the first 30 minutes to ensure there are no further problems. If the device is showing signs of problems or the overheating recurs, even though there is no obvious assignable cause, ask your supplier or a recognised electrician to check/repair the unit.

CLEANING AND MAINTENANCE

Note! Before cleaning or carrying out maintenance work on the air conditioning unit, always switch off and remove the plug from the socket! Regular cleaning is vital in order to keep the unit in good working order!

Cleaning the housing

Use a soft, damp cloth to wipe the housing.

Never use aggressive cleaning products, petrol, detergent, chemically-impregnated cloths or other cleaning solutions. These could damage the housing. Never spray the unit and ensure that water never penetrates the device! Dry the unit with a soft cloth.

Cleaning the filters

Clean the filters once every two weeks; a unit with dirty filters will never work properly.

• Open the grill of the air inlet and remove the filter.

• Clean the filter in lukewarm water (max. 40^ ), possibly with a neutral cleaning agent. Allow the filter to dry thoroughly in the shade.

• Put the filter back into the grill and the grill back into the device.

Take care! Never use the air conditioning unit without the filters!

End of season cleaning

If the device is to be stored for a long period, you must take the following measures!

• Open the water drainage point (11) and allow the condensed water to drain out completely. Run the unit for a few hours on fan function so that the unit is completely dry inside.
  Then switch the air conditioning unit off, remove the plug from the socket and:
• Clean the filter and either put it back or replace it.
• unscrew the waste pipe from the device in order to prevent damage;
• pack the air conditioning unit in its original packaging or in a plastic bag and place in a dry place for storage, not smaller than 10m^2 . Never place a heavy object on the unit.

TROUBLESHOOTING

If your device is faulty, you can try to solve the problem by taking the following actions. If this is not the case, the repairs must be executed by a recognised electrical engineer. Never attempt to execute repairs independently!

The unit does not start if I press the ON/OFF button

Is the plug in the socket?
- Is the earth leakage circuit breaker engaged? No power?
Is the water tank full? Empty it.
- The room temperature is lower than the set temperature; amend the set temperature.

The unit doesn't seem to be very effective

Is the temperature set too high?
- Is there direct sunlight? Shut the curtains.
- Are windows or doors open? Shut them.
- Are there too many people in the room? They produce heat!
Is the space too big?
- Is there an object in the room that is generating (a great deal of) heat? Switch it off or remove it.
Is the filter dusty or covered in dirt? Clean it.
- Is the air inlet or outlet (hose) blocked? Make sure there is free air flow.

The unit is making a noise

Is the surface underneath the machine sturdy and even?
- The flow of coolant in the unit also produces a little noise. This is perfectly normal.

The unit switches itself off

• The overheating safeguard may have switched the unit off. See 'Safety'.

Error code E0

• The temperature sensor is broken. Have it replaced. The unit works without temperature setting.

Error code E2

• The water tank is full. Switch the unit off and empty it manually. Switch it on again.

NEVER ATTEMPT TO REPAIR THE DEVICE YOURSELF!

REMOVAL

be recycled.

In the EU this symbol indicates that this product not may be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can

DANKE!
