Features	Details
Product type	Portable speaker
Output power	122 dB
Battery life	up to 40 hours
Charging time	3.5 hours
Connectivity	Bluetooth 5.0, AUX input
Dimensions	68 x 32 x 32 cm
Weight	7.5 kg
Water resistance	IP65
Recommended use	Outdoor events, parties, concerts
Maintenance	Regular cleaning, checking connections
Safety	Avoid prolonged exposure to moisture
Included accessories	Charging cable, user guide
Warranty	2 years

Frequently Asked Questions - 2 SOUNDBOKS

How do I charge my SOUNDBOKS 2?

To charge your SOUNDBOKS 2, use the supplied charger and plug it into the power socket located on the back of the speaker. Make sure the charging indicator lights up during charging.

Why won\u0027t my speaker turn on?

First, check that the battery is sufficiently charged. If it\u0027s empty, plug the speaker into the charger. If the speaker still won\u0027t turn on after charging, try resetting the device.

How do I connect my SOUNDBOKS 2 to a Bluetooth device?

Turn on your SOUNDBOKS 2, then enable Bluetooth on your device. Hold down the Bluetooth button on the SOUNDBOKS until the indicator light flashes. Select \"SOUNDBOKS 2\" from the list of available devices on your device.

How do I adjust the volume on my SOUNDBOKS 2?

Use the volume buttons located on top of the SOUNDBOKS 2 to increase or decrease the volume. You can also adjust the volume from the connected device.

What should I do if the sound is distorted?

Check the volume level. If the volume is too high, it can cause distortion. Try lowering the volume on the SOUNDBOKS 2 and on the connected device. If the problem persists, restart the speaker.

Is the SOUNDBOKS 2 waterproof?

The SOUNDBOKS 2 is not waterproof. Avoid exposing it to water or moisture to prevent potential damage.

How do I reset my SOUNDBOKS 2?

To reset your SOUNDBOKS 2, hold down the power button for about 10 seconds until the speaker restarts.

How long does the SOUNDBOKS 2 battery last?

The SOUNDBOKS 2 battery can last up to 40 hours, depending on volume and usage settings.

Can I use my SOUNDBOKS 2 outdoors?

Yes, the SOUNDBOKS 2 is designed for outdoor use. Just make sure to protect it from the elements.

How do I know if my battery needs to be replaced?

If you notice a significant reduction in battery life or if the speaker no longer charges, it may be time to replace the battery.

USER MANUAL 2 SOUNDBOKS

Please read this user manual before using the SOUNDDBOKS.

Welcome to the community!

The SOUNDDBOKS team

CONTENTS

1.SOUNDBOKS5
2. BATTERYBOKS 8
3.CHARGER 9
4. GETTING STARTED 10
5. TECHNICAL SPECIFICATIONS 10
6. MARKING 12
7. CONSUMER INFORMATION 12
8.DISCLAIMER 12
9. INTANGIBLE RIGHTS 13
10. FINAL REMARKS 13
11. WARNING, CAUTION & NOTICE 14

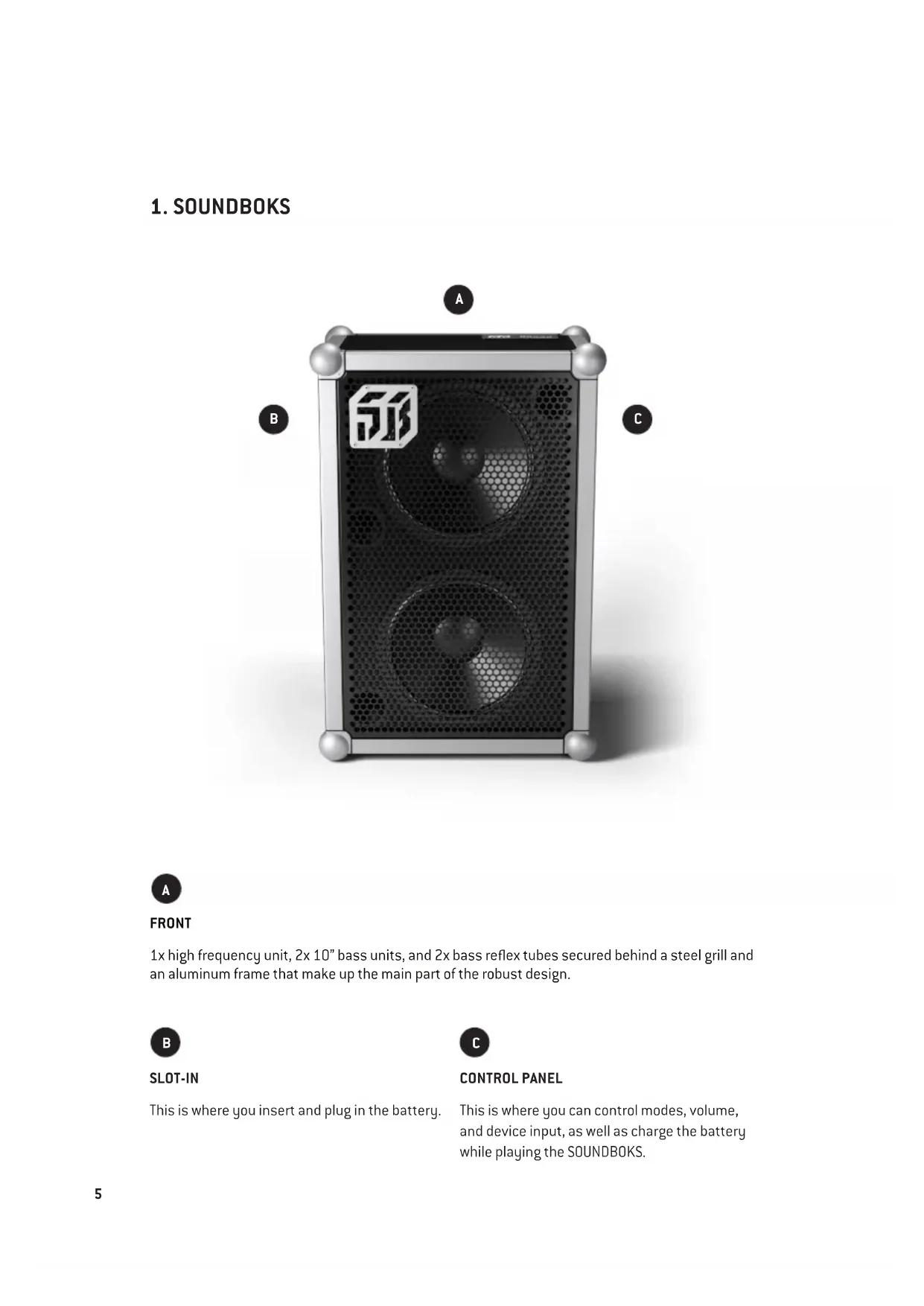

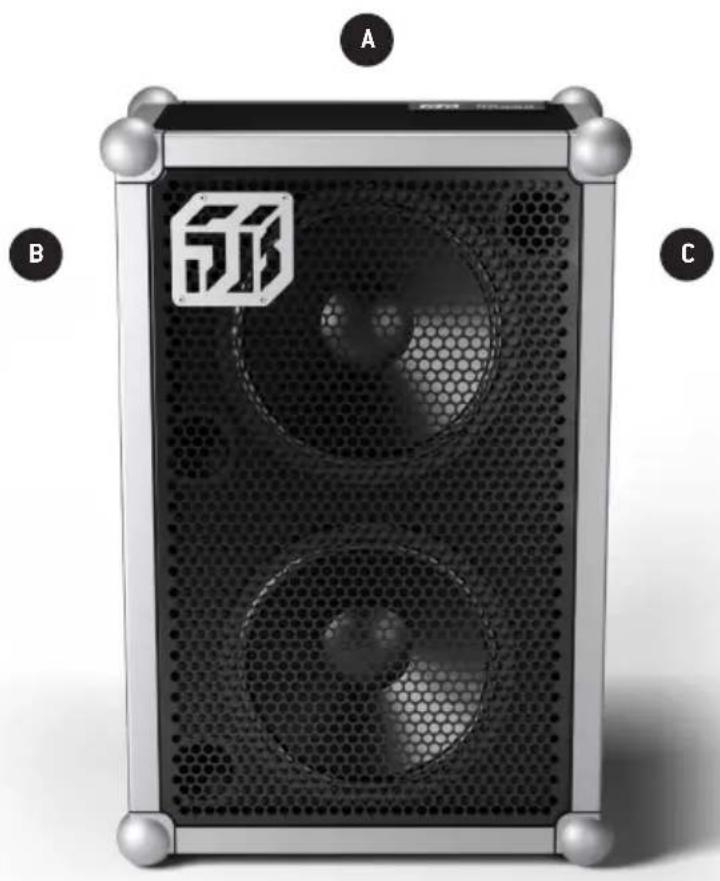

1. SOUNDBOKS

FRONT

1x high frequency unit, 2x 10" bass units, and 2x bass reflex tubes secured behind a steel grill and an aluminum frame that make up the main part of the robust design.

SLOT-IN

This is where you insert and plug in the battery.

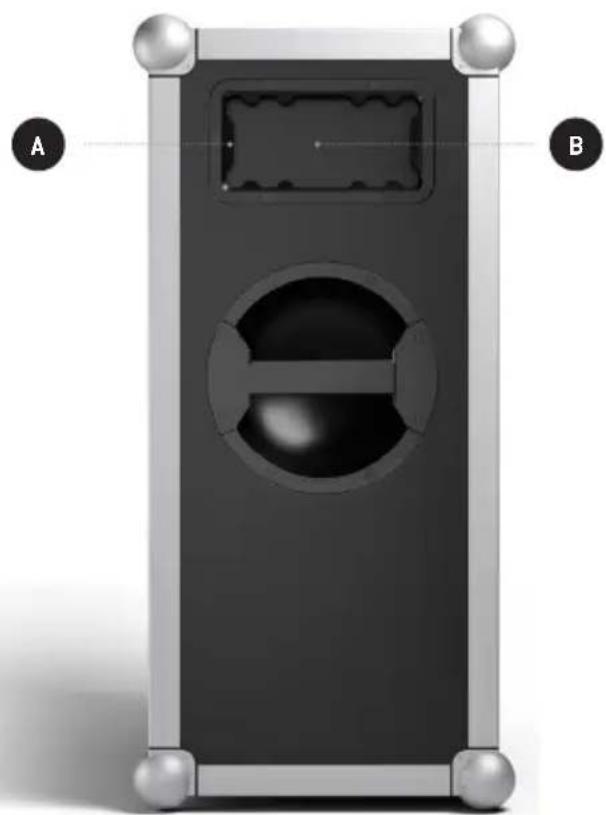

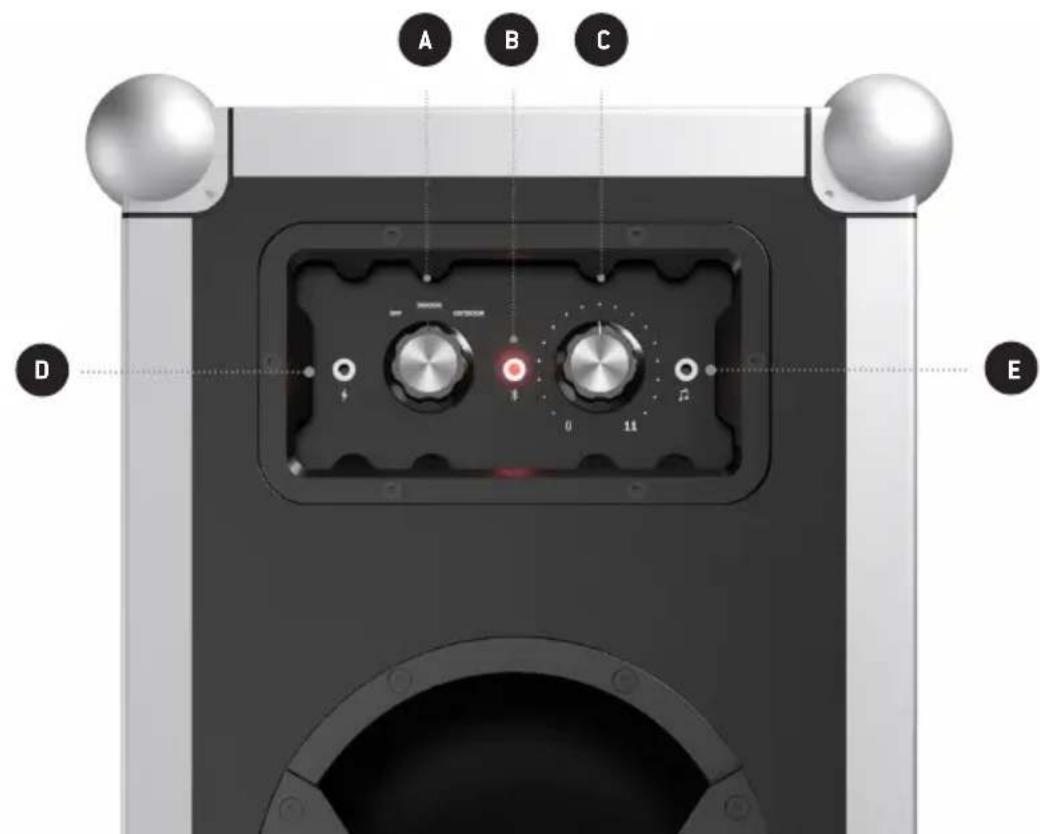

CONTROL PANEL

This is where you can control modes, volume, and device input, as well as charge the battery while playing the SOUNDDBOKS.

DC INPUT

This is where the battery cable is plugged in for connecting and locking the battery in the slot-in.

SLOT-IN

This is where you insert the battery for simple plug-n-play functionality.

POWER KNOB

The power knob has three steps:

Step 1: OFF

Step 2: Indoor - this mode is perfectly optimized for indoors with adjusted bass performance. It is also the most energy efficient mode with the longest battery life.

Step 3: Outdoor - this mode increases loudness and enhances bass performance, but reduces battery life.

LED

The LED color indicates the mode on the SOUNDDBOKS. Indoor Mode is indicated by a green light and Outdoor Mode is indicated by a blue light. A constant red light indicates an empty battery.

DC INPUT

This input allows you to plug the charger directly into the SOUNDBOKS. That way you can charge the battery while playing the SOUNDBOKS or play the SOUNDBOKS directly from the charger. Please note that if you play the SOUNDBOKS directly from the charger without the battery, it cannot play at maximum volume.

VOLUME CONTROL

This one goes to 11!

AUX/JACK INPUT

This is where you plug in your music device using the 3,5mm AUX/jack cable if Bluetooth is not your cup of tea.

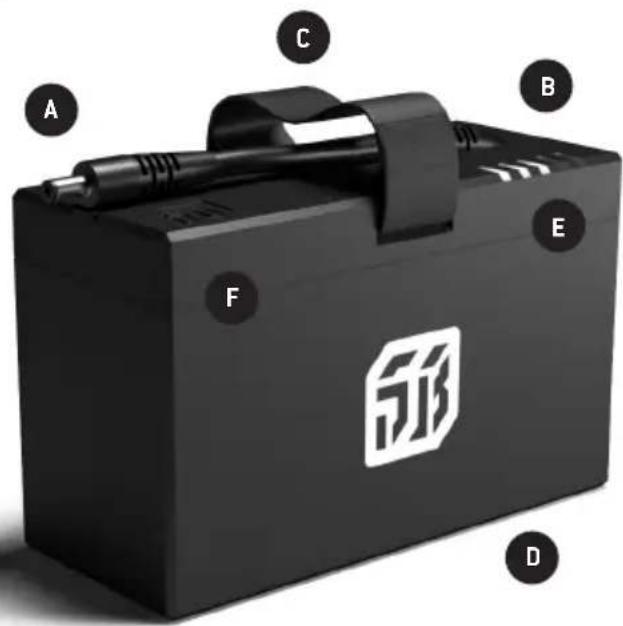

2. BATTERYBOKS

1. When you receive your SOUNDDBOKS, make sure to charge the battery for 4 hours before using it. If you have ordered more than one battery, please note that each of them has to be charged for 4 hours.
2. Never let the battery charge for more than 6 hours. Please unplug it as soon as it has been fully charged and the LED indicator light on the charger is green.
3. Please be aware that the SOUNDDBOKS may shut down if the battery is low and the speaker is playing at maximum volume. In that case, please swap your empty battery for a fully charged one and restart your SOUNDDBOKS.

BATTERY DC PLUG

The plug goes into the DC input in the slot-in for connecting and locking the battery.

CARRYING STRAP

The strap makes it possible to easily slide the battery in, pull it out, and take it with you.

BATTERY INDICATOR LIGHTS

There are five indicator lights on each battery showing how much battery life is left. Each light equals 20% of the battery's capacity, so if there is only one light glowing, you should charge your battery.

DC CABLE

The cable cannot be used for carrying around the battery - that's what the carrying strap is for.

UNDERSIDE

This is where you will find all the relevant info about the battery. It is required to be visible by law and enables us to ship the batteries.

INDICATOR BUTTON

By pressing this button you will be able to see how much battery life is left.

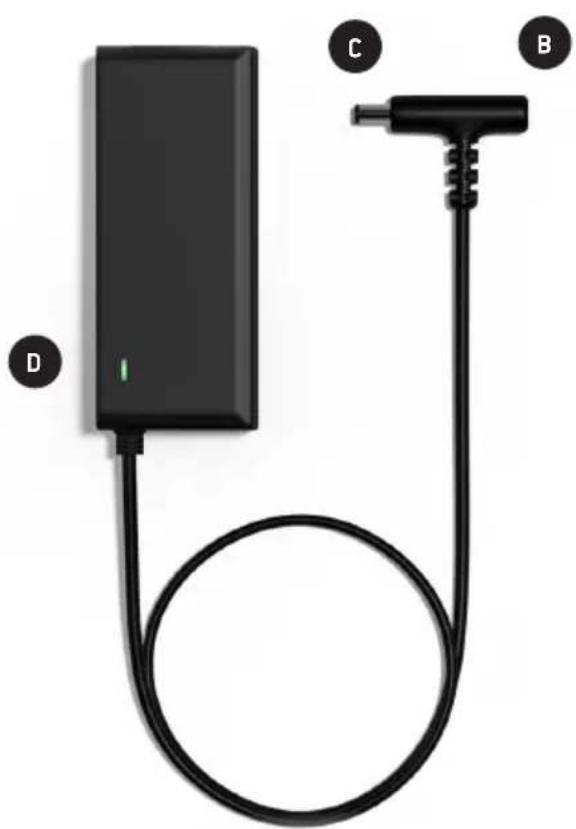

3. CHARGER

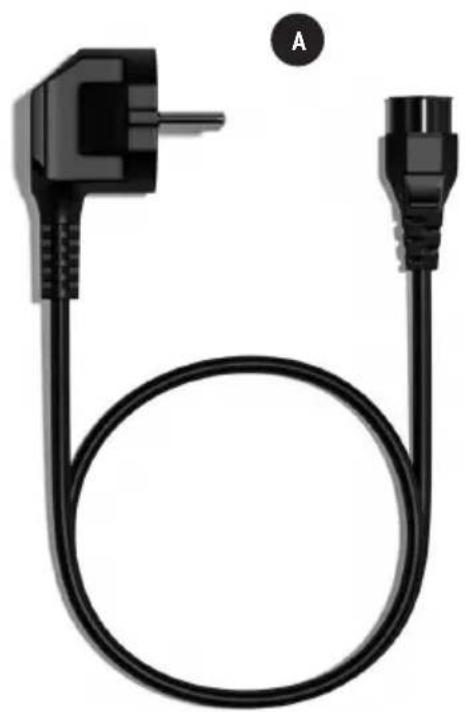

POWER SUPPLY CABLE

Goes into the wall socket to power the charger. Comes with both US and EU plugs.

BATTERY DC INPUT

This is where you insert the battery DC plug for charging the battery separately from the SOUNDDBOKS.

SOUNDBOKS DC PLUG

Plugs into the DC input in the control panel for charging and playing the SOUNDDBOKS.

LED INDICATOR LIGHT

It is red while charging and green when fully charged.

4. GETTING STARTED

Once you have received your SOUNDBOKS, please keep the original packaging as this will allow you to ship it back to us in case of a return or a repair. It is also important to have the original packaging and have the SOUNDBOKS in its original condition in order to be eligible for a full refund.

1 FULLY CHARGE YOUR BATTERY BEFORE USE FOR AT LEAST 4 HOURS
2 PLUG YOUR BATTERY INTO THE BATTERY SLOT-IN AND CONNECT THE DC PLUG
3 TURN THE POWER KNOB TO EITHER INDOOR MODE OR OUTDOOR MODE
4 CONNECT YOUR MUSIC DEVICE VIA CABLE OR BLUETOOTH.A CONSTANT BLUE OR VIOLET LIGHT WILL INDICATE WHEN IT ISCONNECTED
ENJOY THE MUSIC!

5. TECHNICAL SPECIFICATIONS

DIMENSIONS

Rechargeable and removable 12.8v 7.8 Ah LiFeP04 battery

WEIGHT

31.97 lb 14.5 kg

CONNECTION

Bluetooth 3.0 3.5mm Stereo Jack

MATERIALS

Ply wood Aluminum frame

HARDWARE

3 x 72w class D amplifier with integrated Boost converter
2 x 96 dB custom 10" woofers
1 x 96 dB high quality soft dome tweeter

BATTERY

SPL	LEVEL	BATTERY LIFE SOUND PRESSURE COMPARISON
122dB		MAX	8 HOURS PER BATTERY	LIVE CONCERT
113 dB		LOUD	30 HOURS PER BATTERY	BAR / NIGHTCLUB
104 dB		MEDIUM	100 HOURS PER BATTERY	MOTOR BIKE

3,000 CYCLES Regular Li-Ion is 250

QUICK RECHARGE 4 hours for full recharge

25% MORE TEMPERATURE RESISTANT
Resistant from -4 to +122°F
[-20 to +50 °C]

ZERO TOXIC ELEMENTS Better for the environment

LIFEPO4 TECHNOLOGY Much safer than Li-Ion

AMPLIFIER

Please note that if the volume knob is set to max, the amplifier might in rare cases automatically shut down in order to protect the SOUNDDBOKS. This shutdown mechanism may occur in cases where distortion is heard during playback of music, and can be avoided by turning down the volume. Please note that it will not damage the speaker, since the amplifier shuts down just to protect the components.

CLASS D AMPLIFIER TECHNOLOGY Allows battery life of 30 hours at high volume [113 dB]

INTEGRATED DSP Optimizes the frequency response for outdoor use and crystal clear sound

3.0 BLUETOOTH MODULE
Enables you to play music from up to 60 feet/20m away

OUTDOOR MODE 5 Allows maximum volume of approx. 122 dB

INTEGRATED PSYCHO ACOUSTIC CHIP Delivers a booming bass, which is optimized for outdoor usage

6 HIGH-END ANALOG SIGNAL INPUT Enables a crystal clear signal when using the 3.5mm AUX/jack cable

6. MARKING

The SOUNDDBOKS and its batteries are electrical and electronic equipment and have therefore been marked with the following pictogram.

This labeling means that the SOUNDDBOKS products are obliged to follow Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE Directive), and batteries and accumulators in the products are obliged to follow Directive 2006/66/EC of the European Parliament and of the Council of 6 September 2006 on batteries and accumulators and waste batteries and accumulators. Such products may not be disposed with unsorted household waste but must be taken care of individually. See more about this in the section "CONSUMER INFORMATION".

Finally our batteries are capacity marked in regards to the relevant IEC-standards. The capacity markings show possible outlet from the battery in given situations, as eg temperature change, charging, and recharging. These markings will be visible on the product itself.

7. CONSUMER INFORMATION

Batteries contain substances that can be harmful to human health and damage the environment if they are not handled properly.

Batteries that are not integrated in the speaker and labeled with a pictogram must not be disposed with unsorted household waste. It must be disposed of separately.

Speakers and integrated batteries are electrical and electronical equipment. Such equipment contains materials, components, and substances that can be harmful to human health and the environment if the waste is not handled properly.

As the final user of such equipment, it is important that you dispose of your used batteries and all electrical and electronic equipment at an established recycling service. This way, you are helping to ensure that the equipment is recycled in accordance with the law and thus treating the environment with respect.

In all municipalities you will find a recycling service that accepts all electrical and electronic equipment as well as portable batteries, or you will find that they can pick it up directly at your home. To learn more please ask your local technical administration in your municipality.

8. DISCLAIMER

Under no circumstances can SOUNDDBOKS' board and/or the company owners be held accountable for direct, indirect, special, random, or consequential damages (including but not limited to financial loss, personal damages, and loss of assets and property), which is caused by careless and inexpedient usage of the product.

Under no circumstances can SOUNDBOKS' board and/or the company owners be held accountable for direct, indirect, special, random or consequential damages (including but not limited to financial loss, personal damages, and loss of assets and property), which is caused by wrong usage of the SOUNDBOKS products, according to this manual.

SOUNDBOKS needs to in connection with the aforementioned draw special attention to the fact that the following actions will exempt

SOUNDBOKS from any responsibility:

• Wrongly plugging in the batteries and the speaker
• Using SOUNDDBOKS products in rain
• Using SOUNDDBOKS products for other purposes than what they are regularly used for
• Using other chargers than the one produced and delivered by SOUNDDBOKS
• Using other batteries than the ones produced and delivered by SOUNDDBOKS
• Moderating or rebuilding the SOUNDDBOKS products in any way

9. INTANGIBLE RIGHTS

Names and logos in this user manual or on the product packagings are trademarks owned by SOUNDBOKS. These may not be copied nor used without the permission of SOUNDBOKS.

10. FINAL REMARKS

We hope that you'll have an awesome time with your SOUNDDBOKS, and please feel free to reach out to us with questions, ideas, or anything else. We'd love to talk to you!

Business Address:

SOUNDBOKS Inc.

2711 Centerville Road,

Suite 400, Wilmington,

New Castle County, Delaware 19808.

For rest of the World:

SOUNDBOKS ApS

CVR:36457597

Silkegade 11, 3rd floor, 1113 Copenhagen C

Denmark

[e-mail]

11. WARNING, CAUTION & NOTICE

WARNING

CAUTION

NOTICE

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE is used to address practices not related to physical injury

Your SOUNDDBOKS is designed to be rugged, portable, and loud. However, in order to continue to enjoy your speaker and to protect your equipment, you must read this manual completely and read the warnings including the following:

WARNING

• To reduce the risk of injury due to tipover, always use on a stable surface. Do not place the SOUNDDBOKS where it might fall and injure someone.
• This is an outdoor speaker. It is extremely loud. Be cautious when standing in front of or near the speaker during broadcast as it can result in hearing damage.
• To avoid the risk of shock or product damage, always use the SOUNDDBOKS with the approved charger such as the one provided with the unit.
• If you notice any signs of possible damage such as melted plastic, abnormally high temperatures, or off odors coming from your speaker, contact SOUNDDBOKS immediately.
• Be sure to read the accompanying warnings and instructions for the charger cable.

Handling rechargeable batteries improperly may lead to fire or explosion!

• Keep the rechargeable battery away from paper clips, coins, keys, screws, or

other metallic objects that could bridge the contacts. Short circuiting caused by bridged rechargeable battery contacts may result in burns or fire.

• A normal car battery charger is not suitable.
• Never carry the rechargeable battery by the poles.
• Avoid bumps and abrupt stresses.
• Avoid electrostatic charge or discharge. Never use synthetic cloths or sponges to clean the rechargeable battery; instead only use cloths moistened with water without any additives.

If used incorrectly, corrosive battery acid may leak out of the rechargeable battery.

• Avoid any contact with it.
  In the event of accidental contact, immediately rinse with plenty of water and seek medical attention.
• The power cord and AC adapter are for indoor use only.
• Never open the device housing. Repairs may only be carried out by an authorized specialist workshop. In the process, only parts that correspond to the original device data may be used.
• Only use the accessory products specified by the manufacturer.
• If water or other debris ends up

penetrating the housing, immediately pull the main plug and remove the rechargeable battery. Then contact our customer service.

• If the device emits smoke, smells burnt, or produces unusual sounds, immediately disconnect it from the mains or the battery and do not operate it further.
• Never modify the device. Unauthorized interventions may affect safety and functionality.

An unstable base may cause the unit to tip and injure or even kill a person; children are particularly at risk. You can prevent a large number of accidents by taking the following precautions:

• If the SOUNDDBOKS is not securely mounted, do not use it in vehicles, in unstable locations, on wobbly tripods or furniture, with insufficient brackets, etc.
• Place the SOUNDDBOKS in such a way that it cannot be knocked over inadvertently and make sure that the cables do not pose a trip hazard.
• When storing the SOUNDDBOKS, also ensure that it stands safely and that it cannot be knocked down or over.
• Never allow children to operate electrical devices unsupervised.
• This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

CAUTION

Extended listening at high volumes may lead to hearing loss. To avoid damage to health, avoid extended listening at high volumes.

NOTICE

Gross misuse and incorrect care are the main reasons for damage to high-performance rechargeable batteries.

• Avoid deep discharge of under 20% for optimal rechargeable battery power.
• Recharge your rechargeable battery frequently.
• Store your rechargeable battery in a cool, but frost-free area, ideally at 15^ . Higher temperatures result in a higher rate of self-discharge and shorten the intervals between charges.
• Do not expose the rechargeable battery to direct sunlight or other sources of heat.
• A deep discharge damages the rechargeable battery cells. The most frequent cause of deep discharge is prolonged storage or failure to use a partially discharged rechargeable battery. Only store the rechargeable battery once it is fully charged.
• If the SOUNDDBOKS is subjected to warm temperatures after being cold (e.g. after transport), condensation may occur inside of it.
• In this case, wait at least 2 hours before you connect and activate the SOUNDDBOKS.
• Be sure to contact SOUNDDBOKS if you have any concerns or if you notice melting plastic or odors coming from your SOUNDDBOKS.
• Do not place open fire sources such as burning candles or similar on the SOUNDDBOKS.
• Do not place the SOUNDDBOKS near heat sources (e.g. heaters, ovens).

• Ensure sufficient ventilation.

• Do not cover the vents with curtains, blankets, posters or similar. The buildup of heat inside the SOUNDDBOKS can shorten its lifetime.

• If the SOUNDDBOKS is to be unattended for a prolonged period (e.g. when on vacation), power down and disconnect the unit. Be sure to secure your SOUNDDBOKS in a clean, dry, and sheltered location.

Some of our products are labeled with the chemical name Hg (Mercury), Cd (Cadmium) or Pb (Lead). These are particularly hazardous substances, and it is important that they are removed from normal household waste and disposed at a recycling center. If the battery contains one or more of these hazardous substances, it will be marked beneath the pictogram shown above.

SOUNDBOKS

BENUTZERHANDBUCH

VIELEN DANK!

Holz Aluminium-Rahmen

HARDWARE

2711 Centerville Road,

Suite 400, Wilmington,

New Castle County, Delaware 19808.

Silkegade 11, 3rd floor, 1113 Copenhagen C

Denmark

[e-mail]

11. WARNHINWEIS UND ZUSÄTZLICHE INFORMATIONEN

WARNING

25% MERE TEMPERATURDYGTIG

2711 Centerville Road,

Suite 400, Wilmington,

New Castle County, Delaware 19808.

Silkegade 11, 3rd floor, 1113 Copenhagen C

Denmark

[e-mail]

11. ADVARSEL, FORSIGTIGHED OG BEKENDTGÖRELSE

WARNING

CAUTION

NOTICE

WARNING indikerer en farlig situation der, hvis den ikke undviges, kan resultere i ddo ell er serios skade.

CAUTION indikerer en farlig situation der, hvis den ikke undviges, kan resultere i mindfulness aller moderat skade.

NOTICE bruges til at adressere praksis, der/DD er relateret til fysisk skade.

2711 Centerville Road,

Suite 400, Wilmington,

New Castle County, Delaware 19808.

Silkegade 11, 3rd floor, 1113 Copenhagen C

Denmark

[e-mail]

11. WAARSCHUWINGEN EN GEVAREN

WARNING

CAUTION

NOTICE

2711 Centerville Road,

Suite 400, Wilmington,

New Castle County, Delaware 19808.

Pourle restedu Monde:

SOUNDBOKS ApS

CVR:36457597

Silkegade 11, 3rd floor, 1113 Copenhagen C

Denmark

[e-mail]

11. AVERTISSEMENT, ATTENTION & AVIS

WARNING

CAUTION

NOTICE
