Go - Speaker SOUNDBOKS - Free user manual and instructions

Product Type	Portable wireless speaker
Brand / Model	SOUNDBOKS Go
Dimensions (H × W × D)	32 × 46 × 27 cm (12,6 × 18,1 × 10,1 inches)
Weight	9,2 kg (21 lb)
Materials	ABS and polycarbonate, rubber bumper, silicone handle
Battery type	Lithium iron phosphate (LiFePO4) rechargeable, 12.8 V, 7.8 Ah, 99.84 Wh
Battery life	Up to 40 h at half volume, 10 h at full volume
Charging time	Approximately 3 h 30
Power supply	Mains charger 100-240 V ~ 50/60 Hz, output 14 V ⎓ 3.3 A
Amplifier	Infineon MERUS™ patented multi-level amplifier
Speaker units	1 × 10" woofer 96 dB bass-reflex, 1 × 1" tweeter 102 dB horn-loaded
Wireless connectivity	Bluetooth 5.0, TeamUp (SKAA) up to 5 speakers
Wired connectivity	3.5 mm AUX jack
Main features	DSP bass boost, volume control with On/Off, Host/Join TeamUp mode, battery LED indicator
Included accessories	BATTERYBOKS battery, mains charger (EU/US/UK/CH plugs), Velcro strap
Maintenance and cleaning	Clean with a slightly damp cloth without additives. Do not use solvents or synthetic sponges.
Safety	Do not expose to water or liquids. Use only the SOUNDBOKS charger and battery. Do not open the housing.
Spare parts and repairability	User-replaceable battery. For repair, contact SOUNDBOKS or an authorized workshop.
Warranty	2-year limited warranty (see terms at SOUNDBOKS.com/help)
General information	Compliant with CE, FCC, IC. Manufactured by SOUNDBOKS ApS, Denmark.

Frequently Asked Questions - Go SOUNDBOKS

How to charge the SOUNDBOKS Go battery?

The battery can be charged inside or outside the speaker. Insert the DC plug of the battery into the charger, then plug the charger into the mains. The full charging time is about 3h30. Do not exceed 6 hours of continuous charging.

What is the actual battery life of the speaker?

Battery life varies depending on volume: up to 40 hours at half volume (Power mode) and 10 hours at full volume. At moderate volume, you can expect 20 to 30 hours of battery life.

How to connect my phone via Bluetooth?

Turn on the speaker. Open the Bluetooth settings on your phone. Search for 'SOUNDBOKS #YourTeamID' (the Team ID is on the left side of the speaker). Select it to pair. The blue LED indicator lights up when the connection is established.

Can I connect multiple SOUNDBOKS Go speakers together?

Yes, thanks to the TeamUp feature (based on SKAA). You can connect up to 5 speakers wirelessly. Press the TeamUp (Bond) button twice to enter Join mode, or use the SOUNDBOKS app for stereo setup.

Is the SOUNDBOKS Go waterproof or water resistant?

No, the speaker is not designed to resist water or humidity. Avoid any exposure to liquids, rain, or high humidity. Do not place it near water sources.

How to clean my SOUNDBOKS Go?

Use a slightly damp cloth (without additives) to wipe the exterior. Never use solvents, synthetic sponges, or abrasive products. For the battery, use only a damp cloth.

Can I use the speaker while charging?

Yes, you can use the speaker when it is connected to the charger and the battery is in place. However, never use the speaker without the battery by connecting the charger directly.

What to do if the speaker does not turn on?

Check that the battery is correctly inserted and the DC plug is connected. Make sure the battery is charged. If the problem persists, contact SOUNDBOKS via [e-mail].

How to use the AUX input?

Plug an AUX cable (not included) into your audio source and the AUX jack on the left side of the speaker. The speaker will automatically switch to AUX mode when the source is detected.

Where to find the serial number?

The serial number is inside the battery compartment, on the label. It is useful for warranty or support requests.

USER MANUAL Go SOUNDBOKS

You've got your SOUNDBOKS Go. Now here are some tips to get going.

Simple line drawing of a staircase with an arched window and a circular label containing letter A (no text or symbols on the diagram itself)

01 Charge your BATTERYBOKS fully for \~3.5 hours for optimal performance.

02 Once charged, slide (don't force) your BATTERYBOKS LED-side-down until it fits snugly into the battery slot. Then plug in the DC connector.

Never plug the charger directly into your speaker without the battery.

Simple line drawing of a mechanical device inside a circular frame, no text or symbols present

03 You can play your SOUNDBOKS while charging. Just connect the battery to the charger and insert the combo plug into the speaker.

Circular icon depicting a washing machine with control knobs and a 500Ω label (no readable text or symbols beyond basic design)

04 Power up your speaker by firmly pressing the volume knob. When the LEDs around the volume knob light up, you're ready to connect.

05 To connect, go to your device's Bluetooth settings, find and select SOUNDBOKS #YourTeamID. Your unique Team ID is located on the left side of your speaker.

06 Choose your favorite song, turn up, go out and Break Through the Noise.

SOUNDBOKS GO1. 05

1.1 Overview // 1.2 Specifications // 1.3 This is the SOUNDBOKS Go //
1.4 LED behavior // 1.5 SKAA & Bond Button

07BATTERYB

2.1 Overview // 2.2 Charging the BATTERYBOKS // 2.3 Warranty Information

1. INTENDED USE 13
2. SAFETY WARNINGS 13
3. DISPOSAL INFORMATION 14
4. WARRANTY AND SERVICE 14
5. LIMITATION OF LIABILITY 15
6. COMPLIANCE 15
7. FINAL REMARKS 16

1. SOUNDBOKS Go // 1.1 Overview

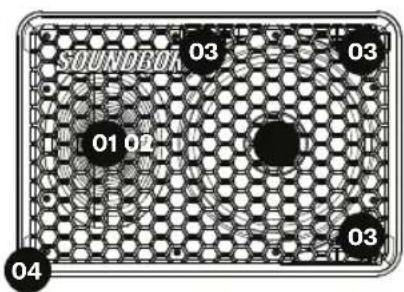

01 Tweeter // 02 Bass Driver // 03 Reflex Ports // 04 Rubber Bumper

Pure mechanical component diagram without any text, numbers, or symbols

13 Team ID

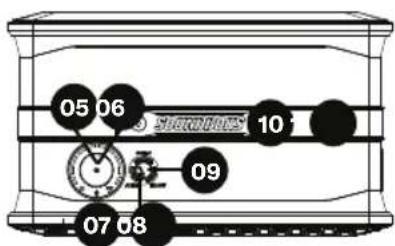

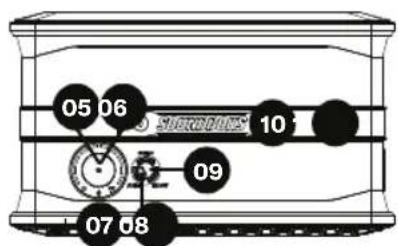

05 Power Button // 06 Volume Knob // 07 Bluetooth LED Indicator // 08 Bond Button // 09 Connect Button // 10 Handle // 11 Loop Velcro Strap

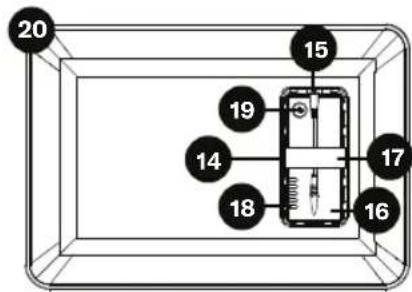

14 Battery Port // 15 DC Input // 16 BATTERYBOKS // 17 Strap // 18 LED Battery Life Indicator // 19 Battery Level Status Button // 20 Rubber Bumper

Pure technical line drawing of a cylindrical mechanical component with no text or symbols

12 AUX Connector

Technical line drawing of a mechanical cage or enclosure with no visible text or symbols

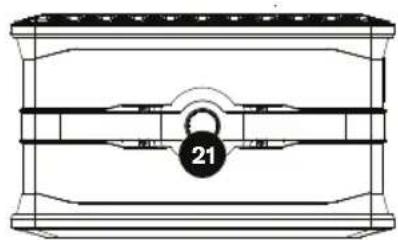

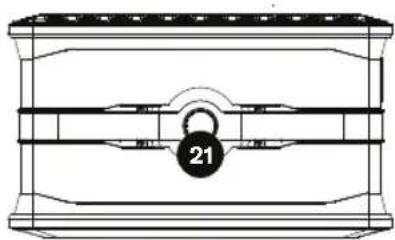

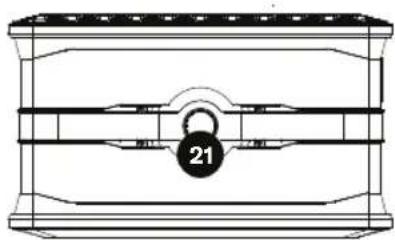

21 Pole Mount

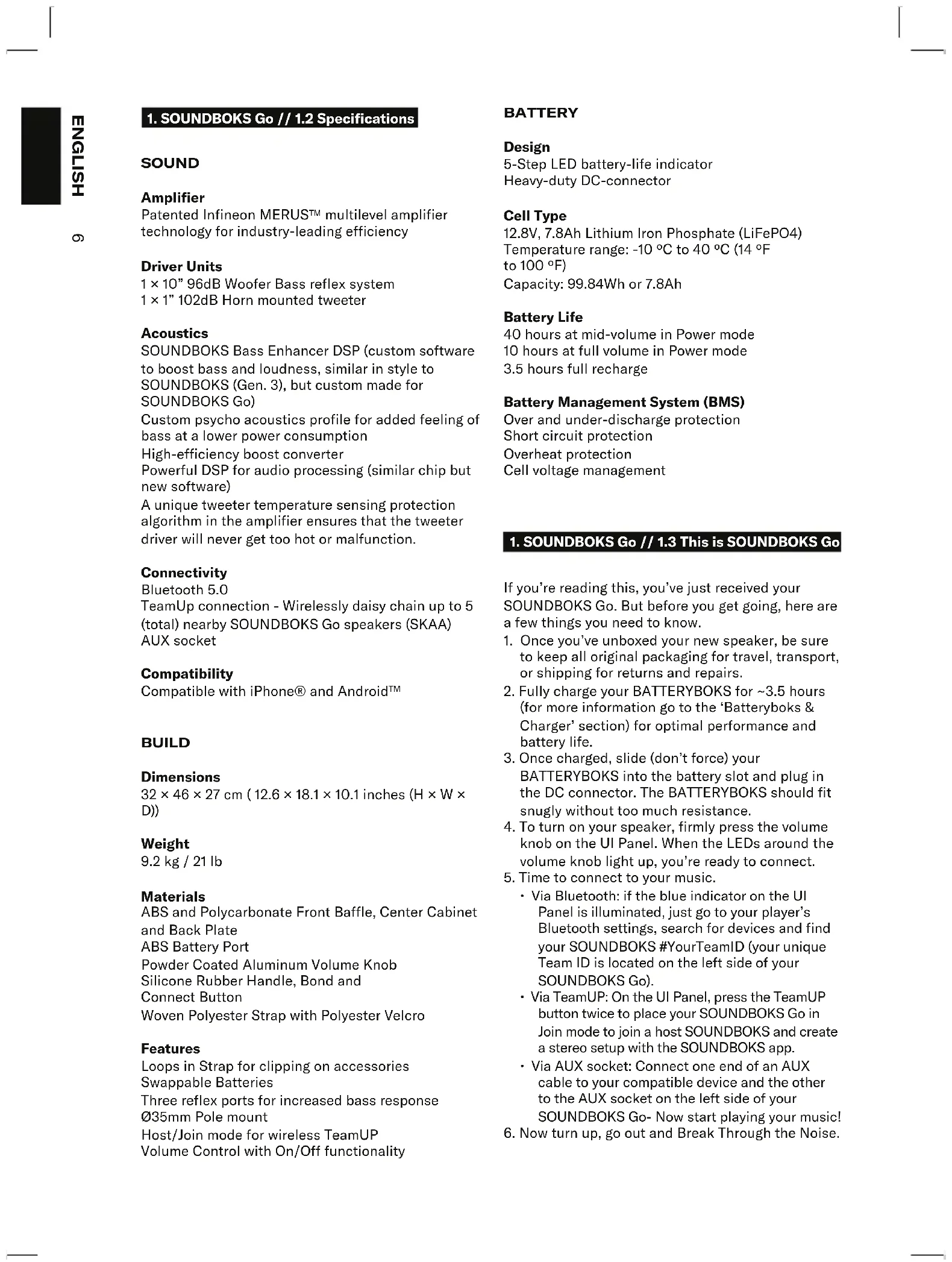

1. SOUNDBOKS Go // 1.2 Specifications

SOUND

Amplifier

Patented Infineon MERUS™ multilevel amplifier technology for industry-leading efficiency

Driver Units

1 × 10" 96dB Woofer Bass reflex system 1 × 1" 102dB Horn mounted tweeter

Acoustics

SOUNDBOKS Bass Enhancer DSP (custom software to boost bass and loudness, similar in style to SOUNDBOKS (Gen. 3), but custom made for SOUNDBOKS Go)

Custom psycho acoustics profile for added feeling of bass at a lower power consumption

High-efficiency boost converter

Powerful DSP for audio processing (similar chip but new software)

A unique tweeter temperature sensing protection algorithm in the amplifier ensures that the tweeter driver will never get too hot or malfunction.

Connectivity

Bluetooth 5.0

TeamUp connection - Wirelessly daisy chain up to 5 (total) nearby SOUNDBOKS Go speakers (SKAA) AUX socket

Compatibility

Compatible with iPhone® and Android™

BUILD

Dimensions

32 × 46 × 27 cm ( 12.6 × 18.1 × 10.1 inches (H × W × D))

Weight

9.2 kg / 21 lb

Materials

ABS and Polycarbonate Front Baffle, Center Cabinet and Back Plate

ABS Battery Port

Powder Coated Aluminum Volume Knob

Silicone Rubber Handle, Bond and

Connect Button

Woven Polyester Strap with Polyester Velcro

Features

Loops in Strap for clipping on accessories Swappable Batteries

Three reflex ports for increased bass response ∅35mm Pole mount

Host/Join mode for wireless TeamUP

Volume Control with On/Off functionality

BATTERY

Design

5-Step LED battery-life indicator

Heavy-duty DC-connector

Cell Type

12.8V, 7.8Ah Lithium Iron Phosphate (LiFePO4) Temperature range: -10 °C to 40 °C (14 °F to 100 °F)

Capacity: 99.84Wh or 7.8Ah

Battery Life

40 hours at mid-volume in Power mode

10 hours at full volume in Power mode

3.5 hours full recharge

Battery Management System (BMS)

Over and under-discharge protection Short circuit protection

Overheat protection

Cell voltage management

1. SOUNDBOKS Go // 1.3 This is SOUNDBOKS Go

If you're reading this, you've just received your SOUNDBOKS Go. But before you get going, here are a few things you need to know.

1. Once you've unboxed your new speaker, be sure to keep all original packaging for travel, transport, or shipping for returns and repairs.

2. Fully charge your BATTERYBOKS for \~3.5 hours (for more information go to the 'Batteryboks & Charger' section) for optimal performance and battery life.

3. Once charged, slide (don't force) your BATTERYBOKS into the battery slot and plug in the DC connector. The BATTERYBOKS should fit snugly without too much resistance.

4. To turn on your speaker, firmly press the volume knob on the UI Panel. When the LEDs around the volume knob light up, you're ready to connect.

5. Time to connect to your music.

- Via Bluetooth: if the blue indicator on the UI Panel is illuminated, just go to your player's Bluetooth settings, search for devices and find your SOUNDBOKS #YourTeamID (your unique Team ID is located on the left side of your SOUNDBOKS Go).

- Via TeamUP: On the UI Panel, press the TeamUP button twice to place your SOUNDBOKS Go in Join mode to join a host SOUNDBOKS and create a stereo setup with the SOUNDBOKS app.

- Via AUX socket: Connect one end of an AUX cable to your compatible device and the other to the AUX socket on the left side of your SOUNDBOKS Go- Now start playing your music!

1. Now turn up, go out and Break Through the Noise.

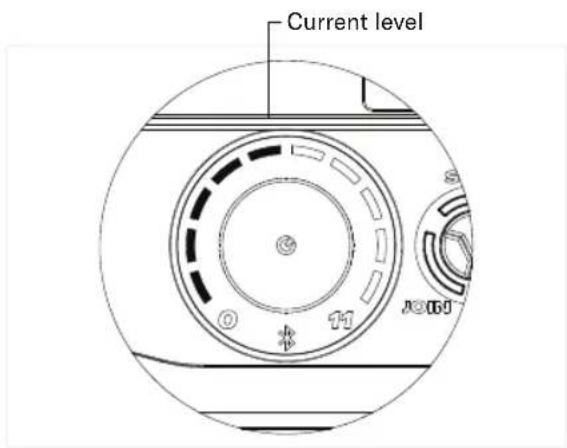

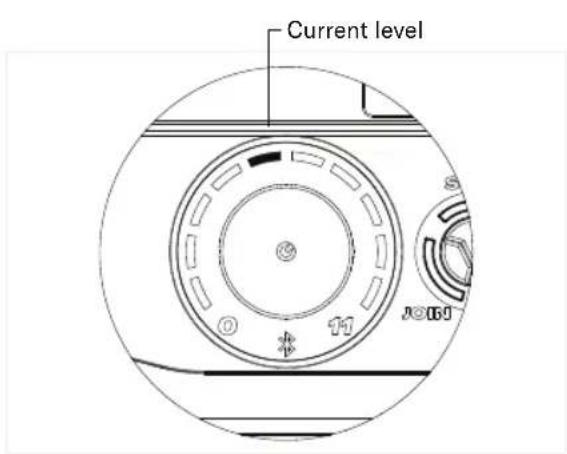

1. SOUNDBOKS Go // 1.4 LED behavior

Your SOUNDBOKS Go will preserve power by deactivating trailing LEDs after 10 seconds of constant volume level.

2. BATTERYBOKS & Charger // 2.1 Overview

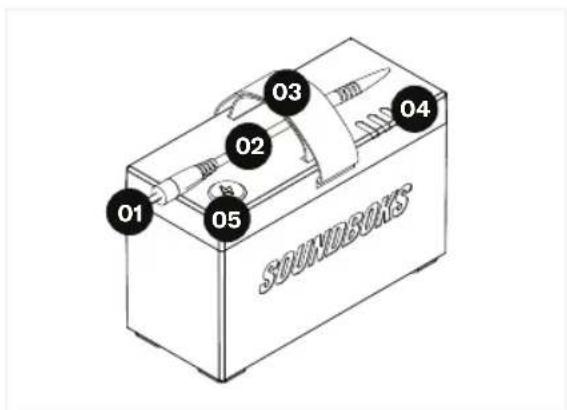

01 Battery DC Plug // 02 DC Cable // 03 Carry Strap // 04 LED Battery Life Indicator // 05 Battery Level Status Button

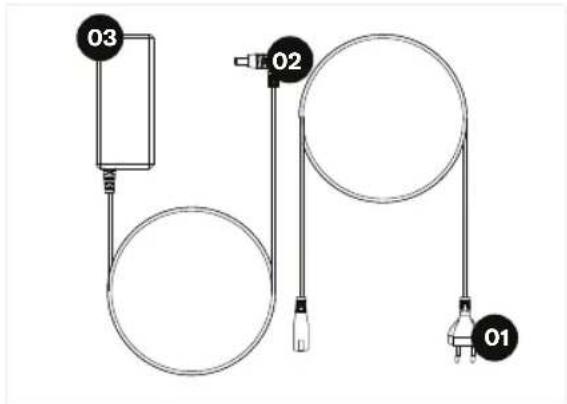

01 Power Supply Cable - EU (standard), US (standard), UK and CH plugs available // 02 Battery DC Input // 03 Charger DC Plug

1. SOUNDBOKS Go // 1.5 SKAA & Bond Button

The following is the official SKAA RECEIVER USER'S GUIDE. It describes in detail how to operate and troubleshoot the Bond Button, located on the top of your SOUNDBOKS Go. The Bond Button is the control button for JOIN-mode through the wireless daisy chaining feature, TeamUP. Each SKAA® receiver has a Green List which remembers your favorite transmitters. A Green Indicator on your receiver means you are listening to a favorite or hunting for one. Your receiver can also explore to find new transmitters—an Amber Indicator means you are exploring for transmitters that are not on your Green List. A Cluster is a product with two or more pieces that behave as one. The Bond Button lets you select which transmitter you're listening to. The Bond Button has the logo consisting of two arrows.

1. SOUNDBOKS Go // 1.5 SKAA & Bond Button

	Command	IndicatorBond Button Meaning
Hold a few seconds	Add / Delete Manually add / delete the current transmitter to / from your Green List.	• to •• flash	AddedDeleted
Hold a few seconds	Auto Add SKAA will automatically add the current Amber transmitter to your Green List if you listen to it for 30 minutes.	• to •	Added
1 Click	Green Mode Rotate through your list of favourite transmitters (Green List) — when a favourite transmitter is found, the search stops and audio plays from that transmitter.	• dim• flash• bright	HuntingNext oneBonded
2 Clicks Amber Mode Explore for new, unknown transmitters(ones which are not already on your Green List).		• dim• bright	HuntingBonded
3 Clicks	Mute do again to Unmute; any Click command will first Unmute and then do its function.	• , • or •slow flash	Muted
4 Clicks	Red Mode If you have 2 or more transmitters on your Green List, power on just the one you want to hear and it plays automatically.	• dim• bright	HuntingBonded
6 Clicks	Factory Reset Clear Green List. Start over!	• flash	Reset done
Hold during power on	Make a Cluster of Receivers:1 Power off all transmitters and receivers2 Power on the Master receiver while holding down its Bond Button—hold the button down until the Indicator begins to flash red3 With the remaining receivers within 3 meters of the Master receiver, power on the first on, wait for its indicator to flash red and then power on the second one; continue until all of them are powered on4 Once all of the indicators stop flashing (turn solid red), power off all of the receivers.	• flash• bright	Receiver has entered Cluster Up mode.The Cluster has been successfully made

The SKAA Compatible Badge found on the Product certifies that this Product has been tested and is fully compliant with all of the requirements of the SKAA Standard and has been granted SKAA Certification. This Product will work seamlessly with other products in the SKAA ecosystem of audio transmitting and receiving devices. For more information on the SKAA Standard, please visit www.SKAA.com. The SKAA® name as well as its associated marks, logos and icons are trademarks or registered trademarks of Eleven Engineering Incorporated.

2. BATTERYBOKS & Charger // 2.2 Charging the BATTERYBOKS

As mentioned in the GETTING STARTED section, the BATTERYBOKS needs to be charged for 3.5 hours before first use out of the box. Remember to unplug your battery after it has been fully charged and never to leave it charging for more than 6 hours at a time, as this can potentially damage the battery. Here are the two ways of charging your BATTERYBOKS:

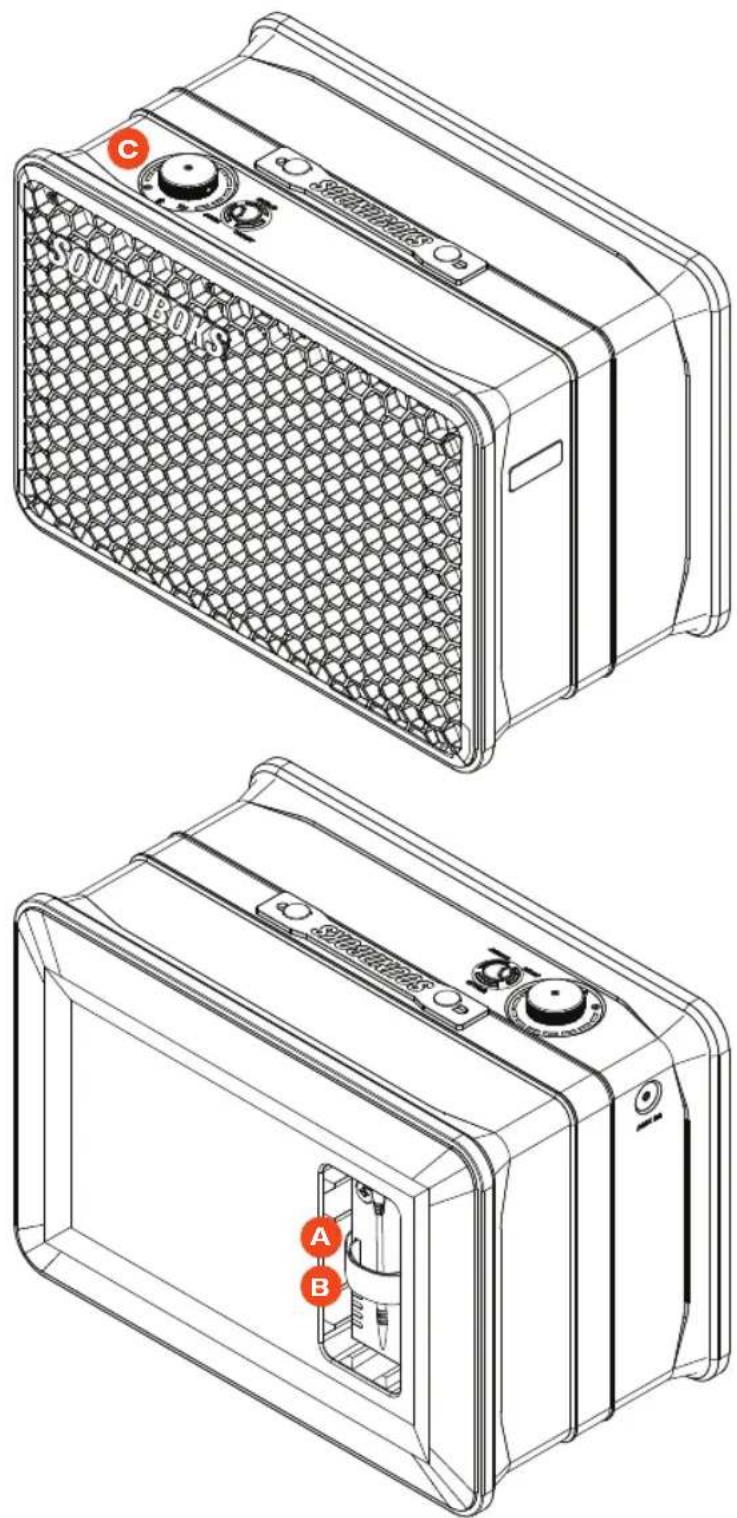

Charge the battery outside of the SOUNDBOKS Go Insert the BATTERYBOKS DC Plug into the DC Input of your charger and plug the charger's power supply cable into your nearest power outlet.

Charge the battery while it's in the SOUNDBOKS Go Slide your BATTERYBOKS into the Battery Port on the back of your SOUNDBOKS Go. Once inserted, plug the DC Plug of the battery into the DC input on the top side of the battery compartment. Then attach the DC input of your charger to the DC Plug of your BATTERYBOKS.

IMPORTANT

Please note that you can still use your SOUNDBOKS Go, when both the BATTERYBOKS and the charger are connected. Never use the SOUNDBOKS Go without a BATTERYBOKS, i.e. by plugging the charger directly to the SOUNDBOKS Go.

2. BATTERYBOKS & Charger // 2.3 Warranty Information

At SOUNDBOKS (collectively, SOUNDBOKS APS and SOUNDBOKS, Inc.), we know that you have probably been waiting with excitement to get your SOUNDBOKS speaker and turn it up to 11. But, before you become the envy of all your friends, we've been told by some lawyers that you should read this really interesting text. Basically, this explains all the fun legal stuff about your brand-spanking-new SOUNDBOKS speaker. We aren't promising a thrilling read, but it is pretty important and we'd appreciate you having a quick look through it. Then go amplify the neighborhood all you want! THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS, WHICH VARY FROM STATE TO STATE. WE LIMIT THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY. SOME U.S. STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

SPECIFICATIONS - BATTERYBOKS

Li-Ion Rechargeable Battery

7.8Ah | 12.8V

99.84Wh

LiFePO4

4IFpP6/65/134-2

Output: 12.8V =7.8A Input: 14.5V 3.0A

Battery meets the regulations of UN manual of test and criteria part III, Subsection 38.3

P/N SB201 - TG 5565D4

BATTERYBOKS

SPECIFICATIONS - CHARGER

Input: 100–240V \~ 50–60Hz, 1.2A MAX Output: 14.0V =3.3A

WARRANTY AND SERVICE

SOUNDBOKS WARRANTS ("LIMITED WARRANTY") THAT THE SOUNDBOKS PRODUCT IS FREE OF DEFECTS IN MATERIALS AND WORKMANSHIP AT THE TIME OF THE ORIGINAL PURCHASE BY THE END-USER (THE "CUSTOMER" OR "YOU"). THIS LIMITED WARRANTY COVERS THE FUNCTIONALITY OF THE SOUNDBOKS PRODUCT FOR ITS NORMAL, INTENDED USE IN AN ENVIRONMENT AS SPECIFIED BELOW ONLY AND DOES NOT COVER MALFUNCTIONS THAT RESULT FROM IMPROPER OR UNREASONABLE USE OR MAINTENANCE AS FURTHER SPECIFIED BELOW IN SECTION 4, AS WELL AS ANY UNAUTHORIZED REPAIR, NORMAL WEAR AND TEAR, OR EXTERNAL CAUSES SUCH AS ACCIDENTS, ABUSE, OR OTHER ACTIONS OR EVENTS BEYOND OUR REASONABLE CONTROL. This Limited Warranty is issued to the Customer who buys a new SOUNDBOKS product directly from SOUNDBOKS. This Limited Warranty cannot be assigned or transferred to any subsequent purchaser or user. Any SOUNDBOKS product purchased from an authorized retailer is covered by the warranty terms provided by such authorized retailer. The Limited Warranty is limited to the repair or replacement of the SOUNDBOKS product at SOUNDBOKS' discretion, and neither costs for transportation, removal, nor installation of a SOUNDBOKS product is covered by this Limited Warranty.

This Limited Warranty extends to TWO (2) YEARS

from the Customer's original purchase of the SOUNDBOKS product.

If SOUNDBOKS receives, during the applicable warranty period, a valid notice of a defect of any SOUNDBOKS product covered by SOUNDBOKS' warranty, for a list of covered products go to SOUNDBOKS.com/help. SOUNDBOKS will, at SOUNDBOKS' option,

a) within reasonable time after being notified of the defect:
b) repair the defect at no charge, using new or refurbished replacement parts, or
c) replace the product.

Response time may vary from country to country and is, among other things, subject to availability of parts, labor and transport.

To obtain service:

visit SOUNDBOKS.com/help

LIMITATION OF LIABILITY THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF THIS LIMITED WARRANTY. OUR LIABILITY SHALL UNDER NO CIRCUMSTANCES EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE PRODUCT, NOR SHALL WE UNDER ANY CIRCUMSTANCES BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT. SOME U.S. STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

MARKING

The SOUNDBOKS and its batteries are electrical and electronic equipment and have therefore been marked with the following pictogram.

This labeling means that the SOUNDBOKS products are obliged to follow Directive 2012/19/EU of the European Parliament and of the Council of 4 July

2012 on waste electrical and electronic equipment (WEEE Directive), and batteries and accumulators in the products are obliged to follow Directive 2006/66/EC of the European Parliament and of the Council of 6 September 2006 on batteries and accumulators and waste batteries and accumulators. Such products may not be disposed with unsorted household waste but must be taken care of individually. See more about this in the section "CONSUMER INFORMATION".

Finally, our batteries are capacity marked in regard to the relevant IEC-standards. The capacity markings show possible outlet from the battery in given situations, for example, temperature change, charging, and recharging. These markings will be visible on the product itself.

CONSUMER INFORMATION

Batteries contain substances that can be harmful to human health and damage the environment if they are not handled properly.

Batteries that are not integrated in the speaker and labeled with a pictogram must not be disposed with unsorted household waste. They must be disposed of separately.

Speakers and integrated batteries are electrical and electronic equipment. Such equipment contains materials, components, and substances that can be harmful to human health and the environment if the waste is not handled properly.

As the final user of such equipment, it is important that you dispose of your used batteries and all electrical and electronic equipment at an established recycling service. This way, you are helping to ensure that the equipment is recycled in accordance with the law and thus treating the environment with respect.

In all municipalities you will find a recycling service that accepts all electrical and electronic equipment as well as portable batteries, or you will find that they can pick it up directly at your home. To learn more, please ask your local technical administration in your municipality.

DISCLAIMER

Except as provided by the Limited Warranty and to the extent permitted by law, in no event and under no circumstances can SOUNDBOKS, its employees, affiliates, its board of directors, any of and/or the company owners, or its third party suppliers be held accountable for direct, indirect, special, random, or consequential damages (including but not limited to financial loss, personal damages, and loss of assets and property) whether based on contract, tort or any other legal theory, hereunder but not limited to direct, indirect, special, random, or consequential damages caused by careless, wrong and inexpedient usage of the product.

SOUNDBOKS needs to, in connection with the aforementioned, draw special attention to the fact that the following actions will exempt SOUNDBOKS from any responsibility:

• Wrongly plugging in the batteries and the speaker
• Prolonged exposure of the SOUNDBOKS product to any form of precipitation
• Submerging any part of the SOUNDBOKS product in any form of liquid
• Using SOUNDBOKS products for other purposes than what they are regularly used for
• Using other chargers than the one produced and delivered by SOUNDBOKS
• Using other batteries than the ones produced and delivered by SOUNDBOKS
• Unsanctioned modification, rebuilding or repurposing of any parts of any SOUNDBOKS product, with the exception of the removal and customization of the SOUNDBOKS grill, using the provided hex key

TRADEMARKS

Names and logos in this user manual or on the

product packagings are trademarks owned by SOUNDBOKS. These may not be copied nor used without the permission of SOUNDBOKS.

COMPLIANCE

Hereby, SOUNDBOKS ApS declares that this SOUNDBOKS is in compliance with the essential requirements and other relevant provisions of the following EU Compliance Directive Information. Conforms to European Union Low Voltage Directive 2014/35/EU;

European Union EMC Directive 2014/30/EU; European Union Radio Equipment Directive (RED) 2014/53/EU.

European Union Eco-Design Directive 2009/125/EC; European Union WEEE Directive 2012/19/EU; European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EU; European Union Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Directive 2006/121/EC;

This product contains batteries that are covered under the 2006/66/EC European Directive, which cannot be disposed of with normal household waste. Please follow local regulations.

You may obtain a free copy of the Declaration of Conformity by contacting your dealer, distributor, or SOUNDBOKS ApS worldwide headquarters. Contact information can be found here: www.SOUNDBOKS.com

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

CAUTION:

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

RF exposure warning

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Industry Canada statement:

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Radio Frequency (RF) Exposure Information

The radiated output power of the Wireless Device is below the Innovation, Science and Economic Development Canada (ISED) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the ISED RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body).

WARNING, CAUTION & NOTICE

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to injury address practices not related to physical.

Your SOUNDBOKS speaker is designed to be rugged, portable, and loud. However, in order to continue to enjoy your speaker and to protect your equipment, you must read this manual completely and read the warnings including the following:

WARNING

• This is an outdoor speaker. It is extremely loud. Be cautious when standing in front of or near the speaker during broadcast as it can result in hearing damage.
• To avoid the risk of shock or product damage, always use the SOUNDBOKS speaker with the approved charger, such as the one provided with the unit.
• If you notice any signs of possible damage, such as melted plastic, abnormally high temperatures, or of odors coming from your speaker, turn off your product and contact SOUNDBOKS immediately via [e-mail].
• Be sure to read the accompanying warnings and instructions for the charger cable.
• Handling rechargeable batteries improperly may lead to fire or explosion.
• Keep the rechargeable battery away from paper clips, coins, keys, screws, or other metallic objects that could bridge the contacts. Short-circuiting caused by bridged rechargeable battery contacts may result in burns or fire.
  • A normal car battery charger is not suitable.
• Never carry the rechargeable battery by the poles.
• Avoid bumps and abrupt stresses.
• Avoid electrostatic charge or discharge. Never use synthetic cloths or sponges to clean the rechargeable battery; instead only use cloths moistened with water without any additives.
• If used incorrectly, corrosive battery acid may leak out of the rechargeable battery, avoid any contact with it. In the event of accidental contact, immediately rinse with plenty of water and seek medical attention.
• The power cord and AC adapter are for indoor use only.
• Never open the device housing. Repairs may only be carried out by an authorized specialist workshop. In the process, only parts that correspond to the original device data may be used.
• Only use the accessory products specified by the manufacturer.
• If water or other debris ends up penetrating the housing, immediately pull the main plug and remove the rechargeable battery. Then contact our customer service at [e-mail] or SOUNDBOKS.com/help.
• If the device emits smoke, smells burnt, or produces unusual sounds, immediately disconnect it from the mains or the battery and do not operate it further.
• Never modify the device. Unauthorized interventions may affect safety, functionality and warranty.
• To reduce the risk of injury due to tip-over, always use on a stable surface. Do not place the SOUNDBOKS speaker where it might fall and injure someone.

• An unstable base may cause the unit to tip and injure or even kill a person; children are particularly at risk. You can prevent a large number of accidents by taking the following precautions:

• If the SOUNDBOKS speaker is not securely mounted, do not use it in vehicles, in unstable locations, on wobbly tripods or furniture, with insufficient brackets, etc.

• Place the SOUNDBOKS speaker in such a way that it cannot be knocked over inadvertently and make sure that the cables do not pose a trip hazard.
• When storing the SOUNDBOKS speaker, also ensure that it stands safely and that it cannot be knocked down or over.
• Never allow children to operate electrical devices unsupervised.
• This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

CAUTION

Extended listening at high volumes may lead to hearing loss. To avoid damage to health, avoid extended listening at high volumes.

NOTICE

Gross misuse and incorrect care are the main reasons for damage to high-performance rechargeable batteries.

• Avoid deep discharge of under 20% for optimal rechargeable battery power.
• Recharge your rechargeable battery frequently.
• Store your rechargeable battery in a cool, but frost-free area, ideally at 15^ / 59^ . Higher temperatures result in a higher rate of self-discharge and shorten the intervals between charges.
• Do not expose the rechargeable battery to direct sunlight or other sources of heat.
• A deep discharge damages the rechargeable battery cells. The most frequent cause of deep discharge is prolonged storage or failure to use a partially discharged rechargeable battery. Only store the rechargeable battery once it is fully charged.
• If the SOUNDBOKS product is subjected to warm temperatures after being cold (e.g. after transport), condensation may occur inside of it. In this case, wait at least 2 hours before you connect and activate the SOUNDBOKS product.
• Be sure to contact SOUNDBOKS if you have any concerns or if you notice melting plastic or odors coming from your SOUNDBOKS product.
• Do not place open fire sources such as burning candles or similar on the SOUNDBOKS speaker.
• Do not place SOUNDBOKS products near heat sources (e.g. heaters, ovens).
• Ensure sufficient ventilation.
• Do not cover the vents with curtains, blankets, posters or similar. The buildup of heat inside any SOUNDBOKS product can shorten its lifetime.
• If the SOUNDBOKS product is to be unattended for a prolonged period (e.g. when on vacation),

power down and disconnect the unit. Be sure to secure your SOUNDBOKS product in a clean, dry, and sheltered location.

Some of our products are labeled with the chemical name Hg (Mercury), Cd (Cadmium) or Pb (Lead).

These are particularly hazardous substances, and it is important that they are removed from normal household waste and disposed at a recycling center. If the battery contains one or more of these hazardous substances, it will be marked beneath the pictogram shown above.

3. Intended Use

This product is a loudspeaker intended for playing music and sound in connection with a music device such as a smartphone, tablet, or other compatible devices. This product must not be used for any other purposes. Any other use or use under other operation conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.

4. Safety Warnings

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to injury address practices not related to physical.

WARNING

• Only power your SOUNDBOKS Go using power sources supplied by SOUNDBOKS. Any power source above 12V can cause severe damage to the product.
• To reduce the risk of injury due to tip-over, always use on a stable surface. Do not place the SOUNDBOKS Go where it might fall and injure someone.

• This is an outdoor speaker. It is extremely loud. Be cautious when standing in front of or near the speaker during broadcast as it can result in hearing damage.

• To avoid the risk of shock or product damage, always use the SOUNDBOKS Go with the approved charger such as the one provided with the unit. If you notice any signs of possible damage such as melted plastic, abnormally high temperatures, odors coming from your speaker, contact SOUNDBOKS immediately, via [e-mail].

• Be sure to read the accompanying warnings and instructions for the charger cable.
• Handling rechargeable batteries improperly may lead to fire or explosion.
• Keep the rechargeable battery away from paper clips, coins, keys, screws, or other metallic objects that could bridge the contacts. Short-circuiting caused by bridged rechargeable battery contacts may result in burns or fire.
• A normal car battery charger is not suitable.
• Never carry the rechargeable battery by the poles.
• Avoid bumps and abrupt stresses.
• Avoid electrostatic charge or discharge. Never use synthetic cloths or sponges to clean the rechargeable battery; instead only use a cloth moistened with water without any additives.

If used incorrectly, corrosive battery acid may leak out of the rechargeable battery. Avoid any contact with it. In the event of accidental contact, immediately rinse with plenty of water and seek medical attention.

The power cord and AC adapter are for indoor use only.

NEVER OPEN THE DEVICE HOUSING – Repairs may only be carried out by an authorized specialist workshop. In the process, only parts that correspond to the original device data may be used.

Only use the accessory products specified by the manufacturer. If water or other debris penetrates the product housing, immediately pull the main plug and remove the rechargeable battery. Then contact our customer service at [e-mail] or SOUNDBOKS.com/help.

If the device emits smoke, smells burnt, or produces unusual sounds, immediately disconnect it from the mains or the battery and do not operate it further.

NEVER MODIFY THE DEVICE IN ANY MANNER – Unauthorized interventions may affect safety and functionality.

An unstable base may cause the unit to tip and injure or even kill a person; children are particularly at risk. You can prevent a large number of accidents by taking the following precautions:

• If the SOUNDBOKS Go is not securely mounted, do not use it in vehicles, in unstable locations, on wobbly tripods or furniture, with insufficient brackets, etc.
• Place the SOUNDBOKS Go in such a way that it cannot be knocked over inadvertently and make sure that the cables do not pose a trip hazard.
• When storing the SOUNDBOKS Go, also ensure that it stands safely and that it cannot be knocked down or over.
• Never allow children to operate electrical devices unsupervised.
• This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

CAUTION

- Extended listening at high volumes may lead to hearing loss. To avoid damage to health, avoid extended listening at high volumes.

NOTICE

Gross misuse and incorrect care are the main reasons for damage to high-performance rechargeable batteries.

• Avoid deep discharge of under 20% for optimal rechargeable battery power.
• Recharge your rechargeable battery frequently.
• Store your rechargeable battery in a cool, but frost-free area, ideally at 15^ / 59^ . Higher temperatures result in a higher rate of self-discharge and shorten the intervals between charges.
• Do not expose the rechargeable battery to direct sunlight or other sources of heat., or to sources of water or other liquids.
• A deep discharge damages the rechargeable battery cells. The most frequent cause of deep discharge is prolonged storage or failure to use a partially discharged rechargeable battery. Only store the rechargeable battery once it is fully charged.
• If the SOUNDBOKS Go is subjected to warm temperatures after being cold (e.g. after transport), condensation may occur inside of it. In this case, wait at least 2 hours before you connect and activate the SOUNDBOKS Go.
• Be sure to contact SOUNDBOKS if you have any concerns or if you notice melting plastic or odors coming from your SOUNDBOKS Go.
• Do not place open fire sources such as burning candles or similar on the SOUNDBOKS Go.
• Do not place the SOUNDBOKS Go near heat sources (e.g. heaters, ovens).
• If the SOUNDBOKS Go is to be unattended for a prolonged period (e.g. when on vacation), power down and disconnect the unit. Be sure to secure your SOUNDBOKS Go in a clean, dry, and sheltered location.

Some of our products are labeled with the chemical name Hg (Mercury), Cd (Cadmium) or Pb (Lead). These are particularly hazardous substances, and it is important that they are removed from normal household waste and disposed of at a recycling center. If the battery contains one or more of these hazardous substances, it will be marked beneath the pictogram shown above.

5. Disposal Information

This SOUNDBOKS product is electronic equipment and has therefore been marked with the following pictogram relevant in the EU.

This labeling means that the SOUNDBOKS products are obliged to follow Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE

Directive). Such products may not be disposed with unsorted household waste but must be taken care of individually.

If outside of the EU, be aware that this SOUNDBOKS product is electronic equipment. Such equipment contains materials, components, and substances that can be harmful to human health and the environment if the waste is not handled properly. Dispose equipment only as required by your local laws, and at an established recycling service.

The packaging for this product is marked with the recycle symbol. As the final user, it is important that the disposal of the packaging happens at an established recycling service.

This way, you are helping to ensure that the material is recycled in accordance with the law and thus treating the environment with respect.

6. Warranty and Service

THE TERMS AND CONDITIONS FOR THE PURCHASE OF THE SOUNDBOKS PRODUCTS SPECIFY THE WARRANTY FOR DEFECTS AND CONFORMITY, AND A POSSIBLE ADDITIONAL COMMERCIAL WARRANTY, THAT IS GRANTED BY SOUNDBOKS. THE TERMS AND CONDITIONS FOR CONSUMERS (B2C) AND FOR BUSINESS PURCHASERS (B2B) CAN BE FOUND AT (LINK/URL). SPECIFIC TERMS AND CONDITIONS APPLY IN CASE THE PRODUCT IS USED FOR RENTAL ACTIVITY. THE RIGHTS UNDER THE RESPECTIVE WARRANTIES, THEIR CONDITIONS, LIMITATIONS AND REMEDIES ARE SPECIFIED IN THESE TERMS AND CONDITIONS. WE ADVISE YOU TO READ OUR TERMS AND CONDITIONS. CONSUMERS WITH RESIDENCE IN THE EU ARE REMINDED THAT THEY ARE ENTITLED TO A LEGAL GUARANTEE.

How to obtain warranty service or make a warranty claim: In Europe: Contact SOUNDBOKS ApS, Esromgade 15, 2200 Copenhagen N, Denmark, CVR nr. 36457597, Phone: [phone]; E-Mail: [e-mail].

Contact the service provider and follow the procedures specified by the service provider. In the US and Canada: Contact SOUNDBOKS INC, 1725 Berkeley Street, Santa Monica, CA 90404, USA, Phone:[phone]; E-Mail: [e-mail].

Contact the service provider and follow the procedures specified by the service provider.

7. Limitation of Liability

THE REMEDIES DESCRIBED IN OUR TERMS AND CONDITIONS ARE YOUR SOLE AND EXCLUSIVE REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF WARRANTY. OUR LIABILITY SHALL BE LIMITED AS STATED IN OUR TERMS AND CONDITIONS. WE ADVISE YOU TO READ OUR TERMS AND CONDITIONS.

The serial number of your SOUNDBOKS Go can be found on the inside of the battery compartment.

8. Compliance

EU, UNITED KINGDOM

CE

Hereby, SOUNDBOKS ApS, the manufacturer of the SOUNDBOKS Go, declares that this SOUNDBOKS Go is in compliance with the essential requirements and other relevant provisions of the following EU Compliance Directive Information.

Conforms to European Union Low Voltage Directive 2014/35/EU;

European Union EMC Directive 2014/30/EU; European Union Radio Equipment Directive (RED) 2014/53/EU.

European Union Eco-Design Directive 2009/125/EC; European Union WEEE

Directive 2012/19/EU; European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EU; European Union Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Directive 2006/121/EC.

This product contains batteries that are covered under the 2006/66/EC European Battery Directive, amended by Directive 2013/56, which cannot be disposed of with normal household waste. Please follow local regulations.

You may obtain a free copy of the Declaration of Conformity by contacting your dealer, distributor, or SOUNDBOKS ApS worldwide headquarters. Contact information can be found here: www.SOUNDBOKS.com

UNITED STATES

Importer:

SOUNDBOKS INC

1725 Berkeley Street

Suit 200

Santa Monica, CA 90404, USA

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

- This device may not cause harmful interference, and

- this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

RF exposure warning

This equipment must be installed and operated in accordance with provided instructions, and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

End-users and installers must provide antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

CANADA

Industry Canada statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

This device may not cause interference,

This device must accept any interference, including interference that may cause undesired operation of the device.

Radio Frequency (RF) Exposure Information

The radiated output power of the Wireless Device is below the Innovation, Science and Economic Development Canada (ISED) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the ISED RF Exposure limits under mobile exposure conditions (antennas are greater than 20 cm from a person's body.

The Bluetooth® trademark and logos are registered trademarks owned by Bluetooth SIG, Inc. and the use thereof is under license.

iPhone® is a registered trademark of Apple, Inc.

Android ^TM is a trademark of Google, Inc.

9. Final Remarks

We hope that you'll have an awesome time with your SOUNDBOKS product, and please feel free to reach out to us with questions, ideas, or anything else. We'd love to talk to you!

Business Address:

SOUNDBOKS Inc.

2711 Centerville Road,

Suite 400, Wilmington,

New Castle County, Delaware 19808.

United States of America

[phone]

[e-mail]

For rest of the World:

SOUNDBOKS ApS

CVR: 36457597

Esromgade 15, 1107

2200 Copenhagen N

Denmark

[phone]

[e-mail]

SOUNDBOKS GO1. 18

Pure technical line drawing of a cylindrical mechanical component with no text or symbols

13 Team ID

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

12 AUX-Anschluss

Technical line drawing of a mechanical cage or enclosure with no visible text or symbols

21 Ständerhalterung

Akkumanagementsystem (BMS)

2711 Centerville Road,

Suite 400, Wilmington,

New Castle County, Delaware 19808.

United States of America

[phone]

[e-mail]

Pure mechanical component diagram without any text, numbers, or symbols

13 Team ID

Pure technical line drawing of a mechanical component with no text or symbols

12 Fiche AUX

Technical line drawing of a mechanical cage or enclosure with no visible text or symbols

Batterie Li-Ion rechargeable

7.8Ah | 12.8V

99.84Wh

LiFePO4

4IFpP6/65/134-2

Sortie: 12.8V 7.8A Entrée: 14.5V 3.0A

Contactez SOUNDBOKS ApS, Esromgade 15, 2200

2711 Centerville Road,

Suite 400, Wilmington,

New Castle County, Delaware 19808.

United States of America

[phone]

[e-mail]
