By C6T RF - Camera EZVIZ - Free user manual and instructions

Feature	Details
Device type	Surveillance camera
Video resolution	1080p Full HD
Night vision	Yes, with infrared
Viewing angle	87.5° panoramic
Connectivity	Wi-Fi 2.4 GHz
Storage	MicroSD card up to 128 GB (not included)
Mobile app	EZVIZ App available on iOS and Android
Power supply	Power adapter included
Dimensions	80 x 80 x 120 mm
Weight	300 g
Maintenance	Regular lens cleaning recommended
Security	Data encryption for privacy protection
Warranty	1 year

Frequently Asked Questions - By C6T RF EZVIZ

How to set up the EZVIZ C6T RF camera for the first time?

To set up your EZVIZ C6T RF camera, download the EZVIZ app on your smartphone, create an account or log in, then follow the on-screen instructions to add your camera by scanning the QR code.

What to do if the camera does not connect to Wi-Fi?

Make sure you enter the correct Wi-Fi password and that your network is 2.4 GHz, as the camera does not support 5 GHz. Restart your router and try connecting again.

How to reset the EZVIZ C6T RF camera?

To reset the camera, press and hold the reset button for about 10 seconds until the LED light flashes red; this will restore factory settings.

Why does the camera not detect motion?

Check that the motion detection feature is enabled in the app settings. Also, ensure the camera is positioned correctly and nothing is blocking the sensor.

How to access recorded videos?

To access recorded videos, open the EZVIZ app, select your camera, then go to the 'Gallery' tab to view and download videos.

The image quality is poor, what to do?

Check the camera's internet connection and ensure it is sufficiently lit. You can also adjust the image quality settings in the EZVIZ app.

Does the camera work at night?

Yes, the EZVIZ C6T RF camera is equipped with night vision. Make sure night mode is enabled in the app settings.

How to update the camera firmware?

Firmware updates are done automatically via the EZVIZ app. Ensure your camera is connected to the internet and check for updates in the settings.

What to do if the EZVIZ app does not load?

Check your internet connection and try restarting the app. If the problem persists, uninstall and reinstall the app.

The camera does not turn on, what to do?

Check that the camera is properly powered. Try plugging the adapter into another outlet. If the camera still does not turn on, contact technical support.

USER MANUAL By C6T RF EZVIZ

Colorful abstract logo with four overlapping leaves in blue, green, magenta, and orange (no text or symbols)

ezviz

PT Camera Series

Quick Start Guide

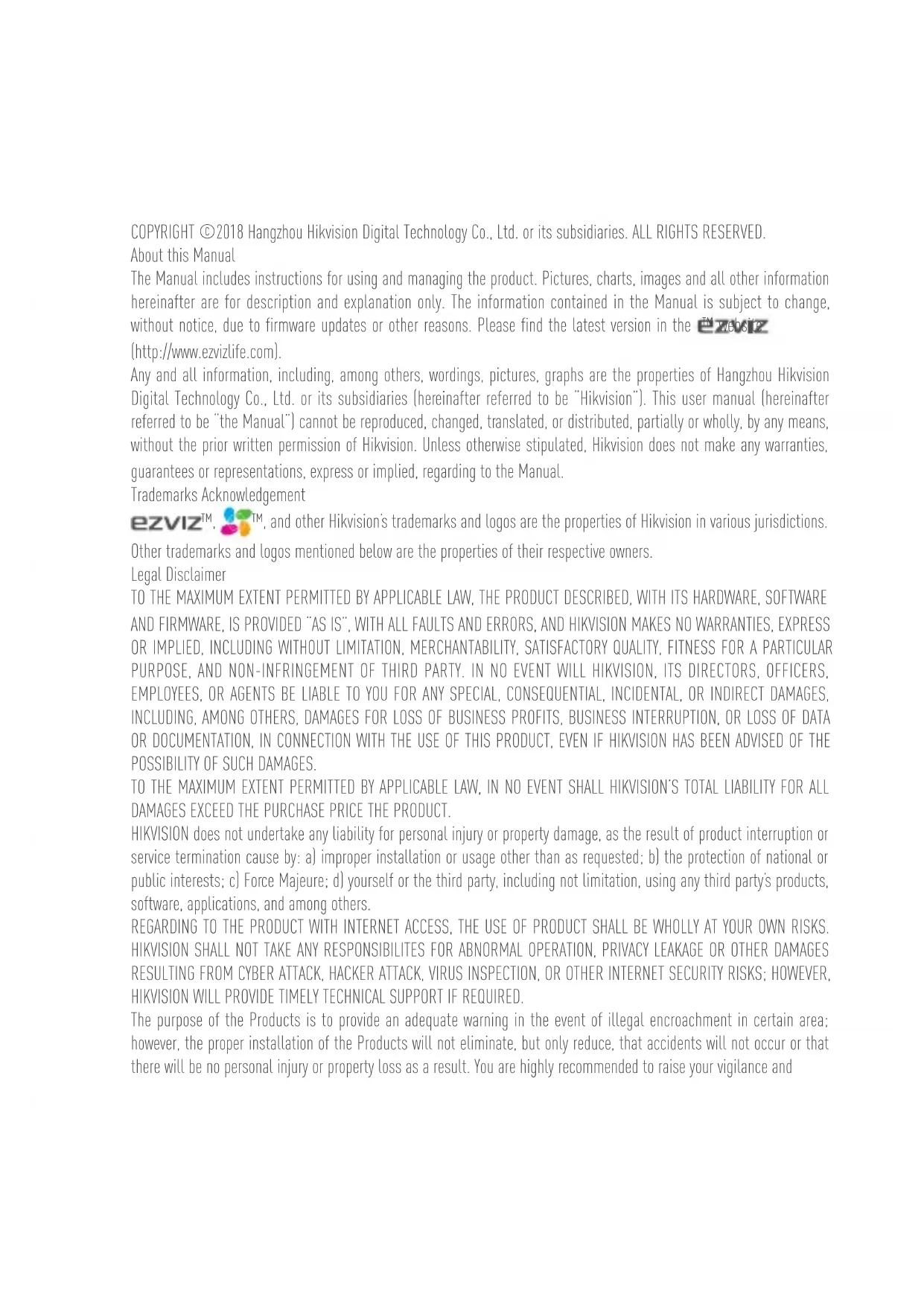

COPYRIGHT ©2018 Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries. ALL RIGHTS RESERVED.

About this Manual

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the website (http://www.ezvizlife.com).

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be "Hikvision"). This user manual (hereinafter referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

Trademarks Acknowledgement

ezviz™, and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions.

Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HIKVISION'S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE PURCHASE PRICE THE PRODUCT.

HIKVISION does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage other than as requested; b) the protection of national or public interests; c) Force Majeure; d) yourself or the third party, including not limitation, using any third party's products, software, applications, and among others.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

The purpose of the Products is to provide an adequate warning in the event of illegal encroachment in certain area; however, the proper installation of the Products will not eliminate, but only reduce, that accidents will not occur or that there will be no personal injury or property loss as a result. You are highly recommended to raise your vigilance and

strengthen the safety awareness in the daily life.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. YOU FUTHER AGREE THAT THIS PRODUCT IS ONLY FOR CIVIL USE, AND HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES, SUCH AS THIRD PARTY RIGHTS INFRINGEMENT, MEDICAL TREATMENT, SAFETY EQUIPMENT OR OTHER SITUATIONS WHERE THE PRODUCT FAILURE COULD LEAD TO DEATH OR PERSONAL INJURY, OR WEAPON OF MASS DESTRUCTION, CHEMINICAL AND BIOLOGICAL WEAPON, NUCLEAR EXPLOSION, AND ANY UNSAFE NUCLEAR ENERGY USES OR ANTI-HUMANITY USAGES. YOU SHOULD UNDERTAKE ALL RESPONSIBILITIES FOR LOSSES OR DAMAGES RESULTING FROM THE ABOVE USAGES WHATSOEVER.

IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than

that necessary for successful communication.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

EC DECLARATION OF CONFORMITY

Hereby, Hangzhou Hikvision Digital Technology Co., Ltd. declares that the radio equipment type [CS-CV248, CS-K2-A, CS-T2-A] is in compliance with Directive 2014/53/EU.

The full text of the EC DECLARATION OF CONFORMITY is available at the following web link:

http://www.ezvizlife.com/declaration-of-conformity.

Safety Instruction

CAUTION: THE PRODUCT IS BUILT IN A REPLACEABLE BATTERY. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package.

SAVE THIS MANUAL FOR FUTURE REFERENCE

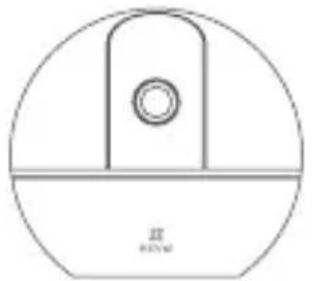

Box Content

Simple line drawing of a circular object with a central hole and a base plate, no text or symbols present.

ZV62 3.5

eVE

Camera (x1) Wireless Magnetic Contact (x1) Remote Control (x1)

Simple line drawing of a circular object with three circular elements and a small rectangular base (no text or symbols)

Simple circular diagram with three marked points, no text or symbols present

Coiled cable with two connectors (no text or symbols visible)

Base (x1) Drill Template (x1) Power Cable (x1)

Simple line drawing of five cylindrical objects arranged in a row (no text or symbols)

Screw Kit (x1) Power Adapter (x1) Quick Start Guide (x1)

Foam Sticker (x2)

Setup

EN

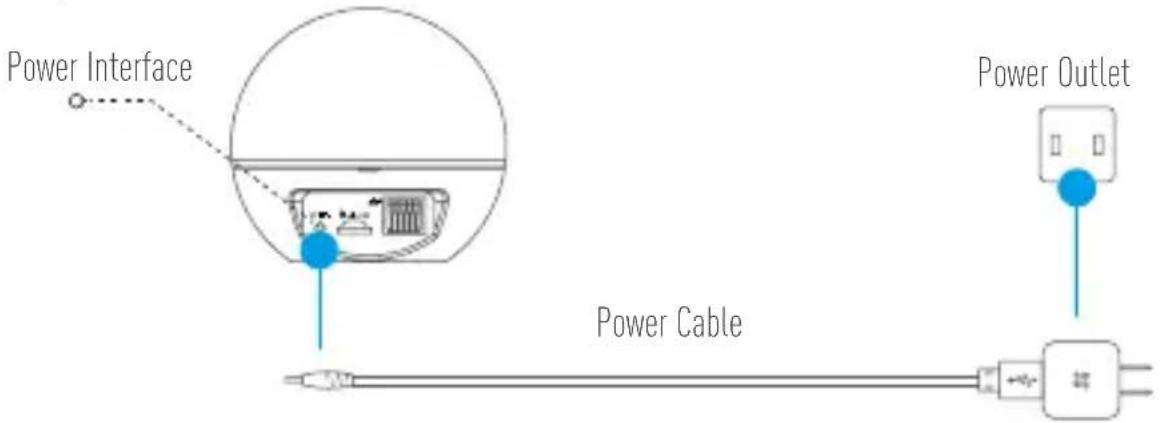

Step 1 Power-on

Plug the power cable into the camera, and then plug the power adapter into an outlet as shown in the figure below. The LED indicator will flash red and blue when the camera is ready for setup.

Power Interface Power Outlet Power Cable

LED Indicator LED Indicator

LED Indicator Status

• Flashing Blue: The network is properly connected.
  Solid Red: The device is activating.

Slowly Flashing Red: Invalid network connection.

Fastly Flashing Red: MicroSD card or other error occurred.

- Flashing Blue and Red: Camera is ready for Wi-Fi setup.

Turn on the camera and let it power up. The camera will completely rotate side-to-side and tilt up-and-down once.

Step 2 Camera Setup

1. Create a user account

• Connect your mobile phone to Wi-Fi using your 2.4GHz network.
• Search for "EZVIZ" in the App Store or Google Play ^TM .
• Download and install the EZVIZ app.
• Launch the app.
• Create, and register an EZVIZ user account by following the startup wizard.

2. Adding a camera to EZVIZ

• Log in to your account using the EZVIZ app.

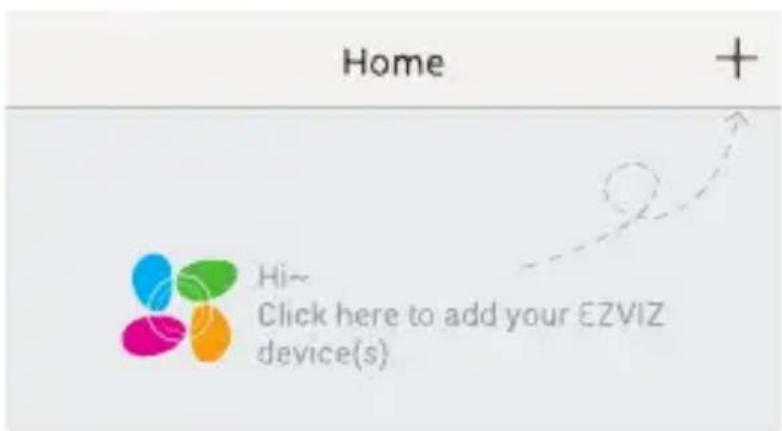

• Tap "+" on the Home page to go to the Scan QR Code interface.

Home + Hi~ Click here to add your EZVIZ device(s)

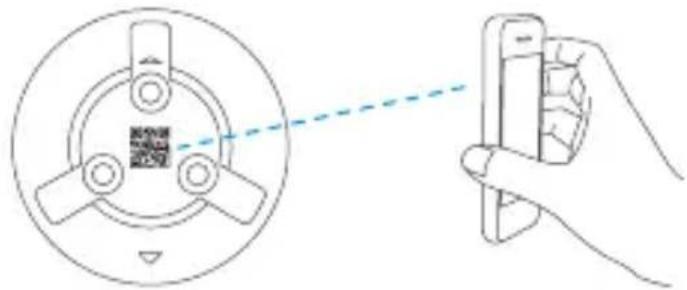

- Scan the QR Code on the camera.

Diagram showing a hand holding a smartphone with a QR code inside a circular frame, alongside a magnified inset of the device's screen (no text or symbols present)

• Enter the password for your Wi-Fi network.
• Select the correct time zone and DST information.
• Tap "Finish" to finish setup.

Reset Button

EN

i

• If the camera fails to connect to your Wi-Fi network, press and hold the Reset button for 10s and repeat Step 2.2.
• To select another Wi-Fi network, press and hold the Reset button for 10s to reboot the device. When the LED indicator flashes red and blue, you can choose a new Wi-Fi network.

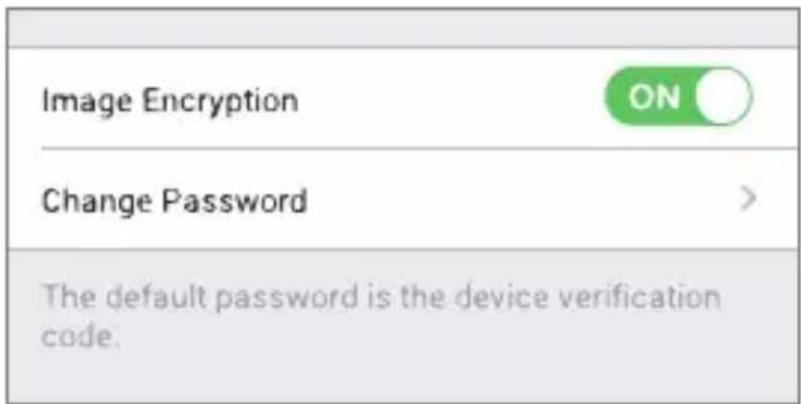

3. (Optional) Enable the Image Encryption

After enabling it, your video and image can be encrypted in transmission.

You can also change the default password.

• Go to the camera settings.
• Tap "Change Password".

Image Encryption ON Change Password > The default password is the device verification code.

• Tap "Edit".
• Enter the original verification code located on the label of the camera.
• Enter new password (6 to 12 characters and numbers).

4. Angle Adjustment

You can adjust the camera via the EZVIZ app to get an optimum angle. The panning angle ranges from 0^ to 340^ , and the tilting angle ranges from -10^ to 80^ .

Step 3 Link Wireless Magnetic Contact with Camera via EZVIZ APP

1 Slide the rear cover off from the detector and then open the battery cover, as shown below.

Simple line drawing of a computer mouse with a blue arrow pointing to the left side (no text or symbols)

Simple line drawing of a remote control device with a blue arrow indicating left-side motion (no text or symbols)

2 Pull out the insulation sheet from the battery slot, and then put the battery cover back.

CMOSA V

Insulation Sheet

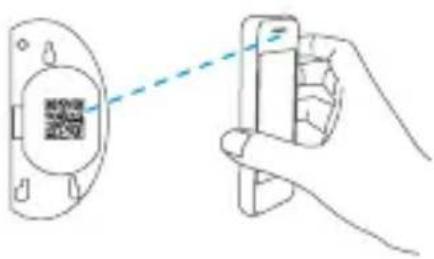

3 Log in the EZVIZ app. Tap + and scan the QR code of the detector. Tap Link to link the camera and the detector.

Mobile phone screenshot showing three image thumbnails with a plus button icon above them

Diagram showing a hand holding a smartphone with a QR code inside a device, connected to a magnified view.

4 Put the rear cover back.

Step 4 Link Remote Control or Detectors with Camera

EN

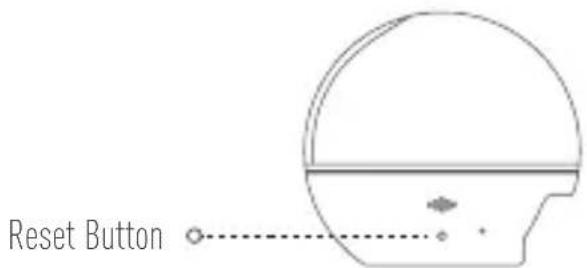

1 Hold down the Reset button for 1 second.

Reset Button

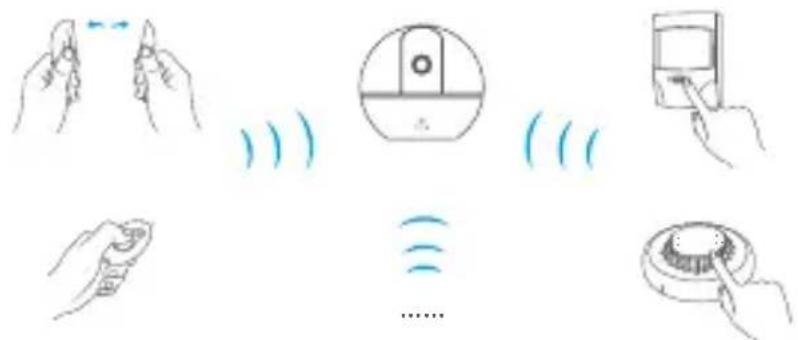

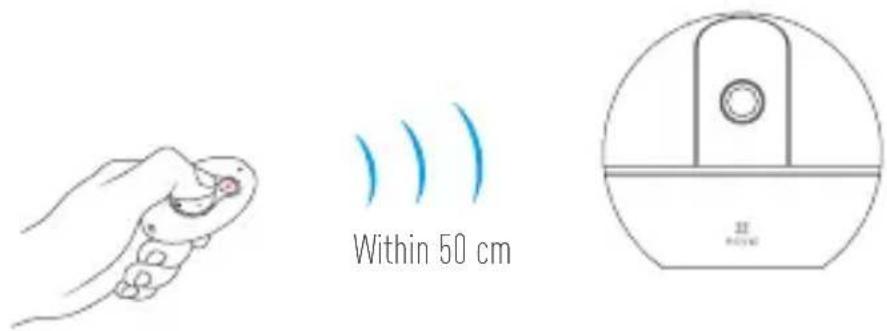

2 When you hear the voice prompt, take the remote control or other detector close to the camera and press any button on the remote control or the detector to send registration signal to the camera.

i Pull out the insulation sheet from the battery slot before you use the remote control.

Within 50 cm

i You can link more detectors with the camera by following the steps above.

Diagram illustrating four different smart home control methods: holding a pen, using a device, interacting with a screen, and inserting a fan.

3 Press Reset button in the camera for 1 second to exit and finish the operation.

SD Card Management

• Insert a MicroSD card into the slot before mounting.
• MicroSD card not included in the Box Contents. Recommended compatibility: Class 10, Max.128GB.

macro-3D

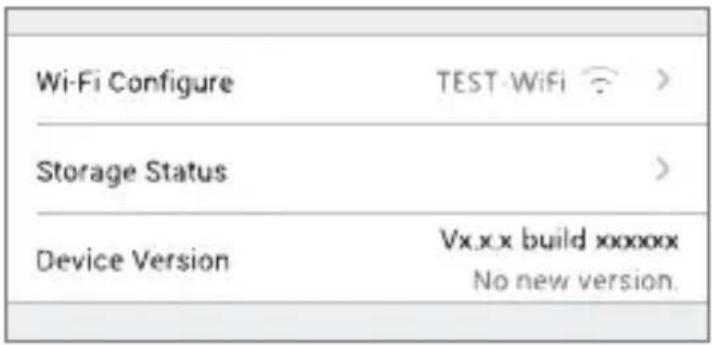

1. In the EZVIZ app, tap the Storage Status in the Device Settings interface to check the SD card status.

Wi-Fi Configure TEST-WiFi Storage Status Device Version Vx.xx build xxxxx No new version.

1. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal and it can store videos and/or pictures.

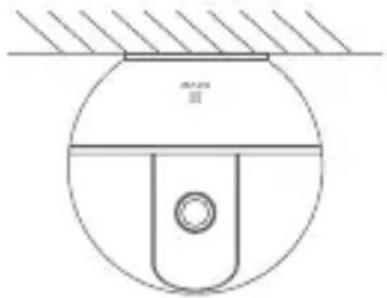

Camera Mounting (Optional)

EN

The camera can be mounted on the wall or ceiling.

• Make sure the wall/ceiling is strong enough to withstand three times the weight of the camera and the mounting.
  • Camera should stay away from any reflective objects such as mirrors.

• Place drill template onto the surface you have chosen to mount the camera.

• (For cement wall/ceiling only) Drill screw holes according to the template and insert three expansion screws.
• Use three metal screws to fix the camera base according to the template.

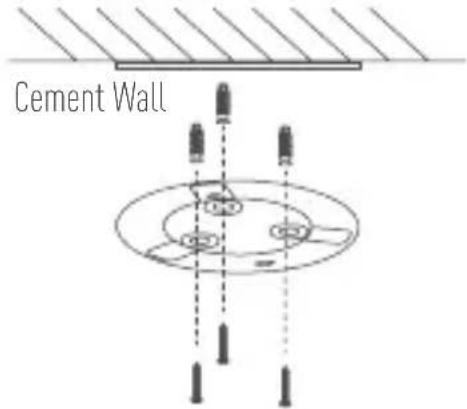

Cement Wall

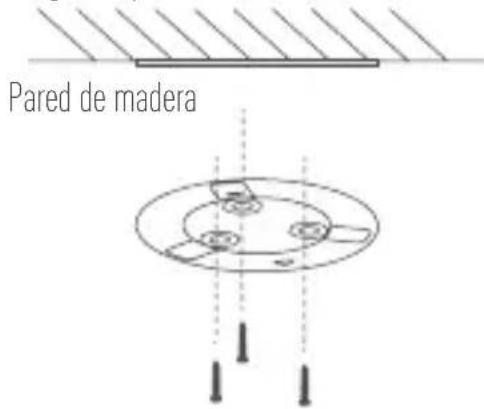

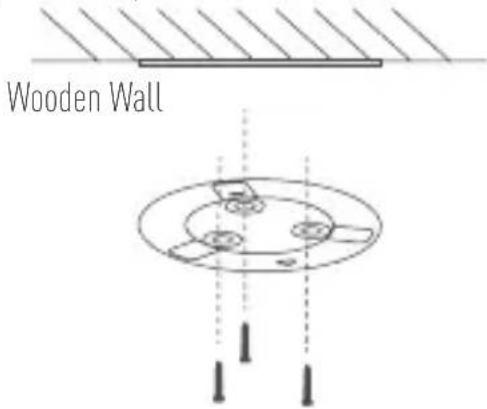

Wooden Wall

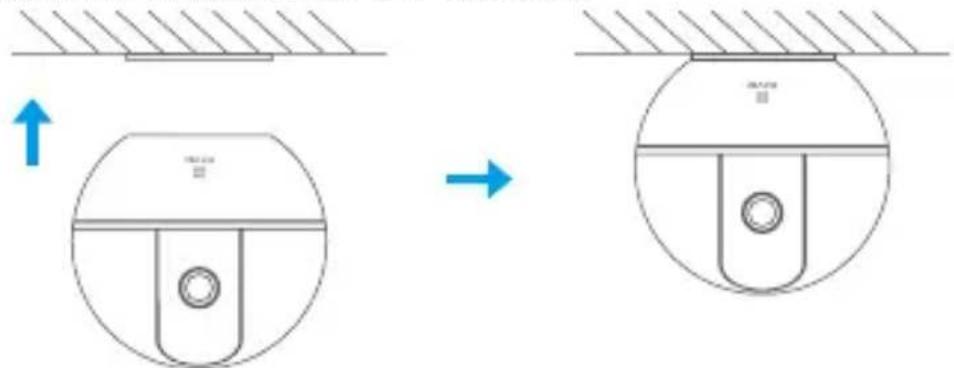

1. Install the camera on the base, and turn it 15^ to secure it.

Diagram illustrating the change in mechanical components from a circular component to a spherical device, with directional arrows indicating movement.

1. Connect the power cable to the camera. If the camera was previously connected to the Wi-Fi network, it will automatically connect to the same Wi-Fi network.

Wireless Magnetic Contact Installing

• The installation place should with no strong magnetic field nearby.
- To ensure the detection effect, the distance of two parts should be as small as possible (within 5mm) when you install them.

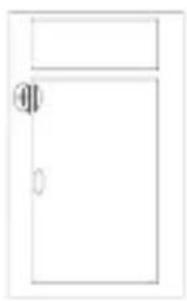

1. Selecting the Installation Position

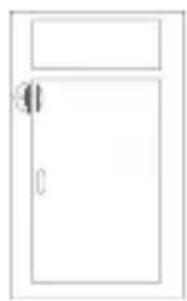

You can install the detector on the door or window, as shown below.

Line drawing of a double door with two square cutouts and a side lock (no text or symbols)

Door Window

Simple line drawing of a door with a handle and label (no text or symbols)

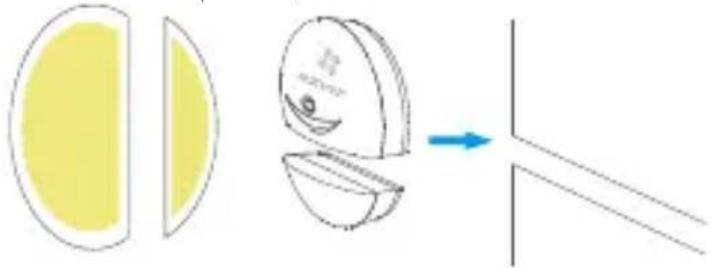

2. Installing

Make sure the door or window is closed. Paste the foam sticker to the bottom of the two parts and then fix them on the selected position, as shown below.

Diagram showing a light source splitting into two halves with a magnified view of the lens (no text or symbols)

You are recommended to install the main body of the contact on the immovable place (such as door frame) in case it falls down when you open and close the door or window.

Magnetic Contact Introduction

EN

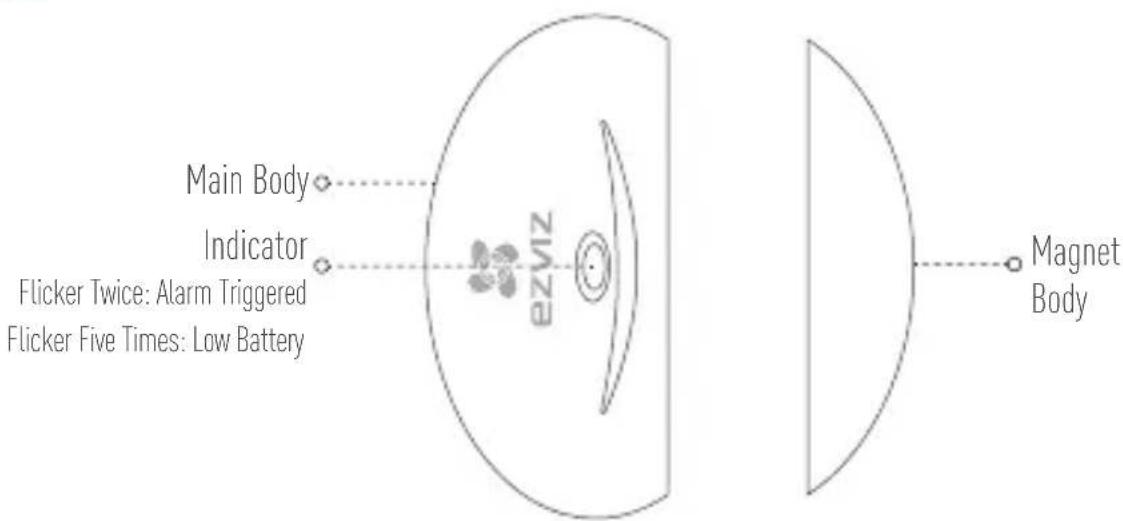

Basics

Main Body Indicator Flicker Twice: Alarm Triggered Flicker Five Times: Low Battery Magnet Body

Functions

Based on the magnetism, when the distance between main body and the magnet body exceeds 3 cm, it sends an alarm signal to the EZVIZ app.

Maintenance

When the battery runs out, a low battery warning will be sent to the EZVIZ account to remind you to change the battery.

- If you install the main body on the left, push the main body upwards and take it off from the rear cover; if you install the main body on the right, pull the main body downwards and take it off from the rear cover.

• Open the battery cover and then change the battery.
• Install the main body back to the rear cover.

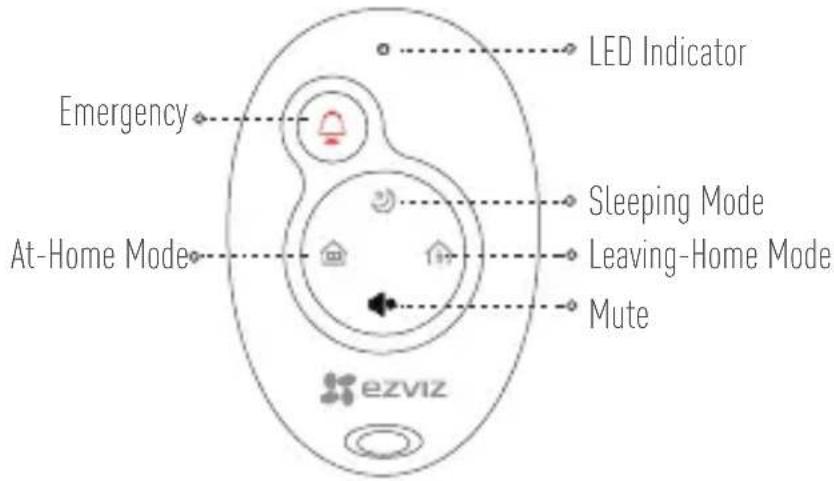

Remote Introduction

LED Indicator Emergency Sleeping Mode At-Home Mode Leaving-Home Mode Mute ezviz

Name Description

LED Indicator Flicker when any button is pressed.

Press to send emergency alarm to EZVIZ platform.

If anyone is at home or you are going to enter the house, you need to disarm the alarm system. Press the button to activate the At-Home mode.

When you are at home and still want to feel protected: only the perimeter parts of the house (doors and windows) are armed. The Sleeping mode is appropriate during the day or at night. Press the button to activate the Sleeping mode.

If no one is at home, you need to activate the alarm system to protect it from intruders. The Leaving-Home mode is appropriate. Press the button to activate the Leaving-Home mode.

Press to turn off the voice prompts.

The above descriptions for arming mode are the default settings. You can switch the arming mode in the EZVIZ app.

Packungsinhalt

Simple line drawing of a circular object with a central hole and a base plate, no text or symbols present.

Zvezda

Simple line drawing of a circular object with three circular features and a central rectangular shape (no text or symbols)

Simple circular diagram with three marked points at the center (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of three black cylindrical objects arranged in a row, no text or symbols present

Home Hi~ Click here to add your EZVIZ device(s)

Diagram showing a QR code scanning through a circular device and a hand holding a smartphone, with a dashed line indicating the scanning direction.

Simple line drawing of a helmet with a horizontal line and a small star symbol at the base (no text or labels)

Image Encryption ON Change Password > The default password is the device verification code.

Simple line drawing of a computer mouse with a blue arrow pointing to the left side (no text or symbols)

Line drawing of a mobile phone with a blue arrow and QR code on the screen (no text or symbols)

Technical line drawing of a remote control casing with no visible text or symbols

Isolierfolie

Mobile phone screenshot showing three video thumbnails with a plus button icon above them

Diagram showing a QR code scanning into a device, with a hand holding the device's screen.

Simple line drawing of a helmet with a horizontal bar and star symbol (no text or labels)

Simple line drawing of a hand holding an object (no text or symbols)

)) Maximal 50 cm

Simple line drawing of a circular object with a central hole and a horizontal base (no text or symbols)

Diagram showing five different devices with Chinese labels, including phone, monitor, remote control, and keyboard.

Diagram showing a circular object with a blue arrow pointing to a labeled diagram, possibly indicating a measurement or navigation step.

Diagram illustrating the change in mechanical components from a circular component to a spherical device, with directional arrows and labels.

Line drawing of a double door with two square cutouts and a handle (no text or symbols)

Tür Fenster

Simple line drawing of a door with a handle and a small circular mark on the left side (no text or symbols)

2. Installation

Diagram showing a device transitioning from a yellow lens to a blue arrow pointing to a vertical line (no text or symbols present)

Simple line drawing of a circular object with a central hole and a base plate (no text or symbols)

1 cámara

ZM02 35

Simple line drawing of a circular object with three circular ports and a central knob (no text or symbols)

Simple concentric circle diagram with three marked points (no text or symbols)

Coiled cable with connector and connector icon (no text or symbols)

Simple line drawing of five cylindrical objects arranged in a row (no text or symbols)

Home + Hi~ Click here to add your EZVIZ device(s)

Diagram showing a hand holding a smartphone with a QR code inside a circular frame, alongside a magnified inset of the device (no text or symbols present)

Simple line drawing of a helmet with a horizontal bar and dotted line indicating alignment or measurement (no text or symbols)

ES

Image Encryption ON Change Password > The default password is the device verification code.

Simple line drawing of a computer mouse with a blue arrow pointing to the left side (no text or symbols)

Line drawing of a mobile phone with a blue arrow indicating speed (no text or symbols)

Technical diagram of a remote control casing with labeled components and a dashed line indicating a reference point.

Mobile phone screenshot showing three image thumbnails with a plus button icon above them

Diagram showing a hand holding a smartphone with a QR code inside a wall-mounted device (no text or symbols present)

Simple line drawing of a hand holding an object (no text or symbols)

A menos de 50 cm

Simple line drawing of a circular object with a central hole and a horizontal base (no text or symbols)

Pared de cemento

Pared de madera

Diagram showing a circular component with a central hole and directional arrows, no text or symbols present.

Technical line drawing of a circular mechanical component with a central hub and hatched top surface (no text or symbols)

Line drawing of a double door with two square cutouts and a handle (no text or symbols)

Puerta Ventana

Simple line drawing of a door with a handle and label (no text or symbols)

2. Instalación

Diagram showing a yellow lens and its internal components before and after an optical or mechanical setup, with no visible text or symbols.

Simple line drawing of a circular object with a central hole and a base plate (no text or symbols)

ZV423 mm

真elvez

Simple line drawing of a circular object with three circular features and a small rectangular object at the bottom (no text or symbols)

Simple circular diagram with two concentric rings and three small symbols at the center (no text or labels)

Coiled cable with two connectors, no text or symbols visible

Simple line drawing of five vertical bars arranged in a row (no text or symbols)

Home Hi~ Click here to add your EZVIZ device(s)

Diagram showing a hand holding a smartphone with a QR code inside a circular device, alongside a magnified view of the device's internal structure.

Simple line drawing of a helmet with a horizontal line and a small star symbol at the base (no text or labels)

i

Image Encryption ON Change Password > The default password is the device verification code.

Simple line drawing of a computer mouse with a blue arrow pointing to the left side (no text or symbols)

Line drawing of a mobile phone with a blue arrow indicating speed (no text or symbols)

FR

Line drawing of a remote control device with a circular dial and pointer (no text or symbols)

Feuille d'isolation

Screenshot of a smartphone displaying three images with a plus button icon, likely for app or messaging interface.

Diagram showing a hand holding a smartphone with a QR code inside a wall, connected to a dashed line indicating scanning direction.

Diagram showing five different devices with Chinese labels and signal icons, likely illustrating a smart home control or digital interface.

Diagram illustrating the change in mechanical components from a circular component to a spherical device, with directional arrows and labels.

Line drawing of a double door with two square cutouts and a side lock (no text or symbols)

Porte Fenêtre

Simple line drawing of a door with a handle and a small circular mark on the left side (no text or symbols)

Diagram showing a light source splitting into a lens and then interacting with a screen (no text or symbols present)

Simple line drawing of a circular object with a central hole and a base plate (no text or symbols)

ZV62 3.5

eIVE

1 Telecamera 1 Contatto magnetico wireless 1 Telecomando

Simple line drawing of a circular object with three circular elements and a small rectangular base (no text or symbols)

Simple circular diagram with three marked points, no text or symbols present

Coiled cable with connectors, no visible text or symbols

Simple line drawing of five cylindrical objects arranged in a row (no text or symbols)

Home + Hi~ Click here to add your EZVIZ device(s)

Diagram showing a hand holding a smartphone with a QR code inside a circular frame, alongside a magnified inset of the device (no text or symbols present)

Image Encryption ON Change Password > The default password is the device verification code.

Simple line drawing of a computer mouse with a blue arrow pointing to the left side (no text or symbols)

Line drawing of a mobile phone with a blue arrow indicating speed (no text or symbols)

Mobile phone screenshot showing three photo thumbnails with a plus button icon in the corner

Diagram showing a hand holding a smartphone with a QR code inside a device, connected to a wall-mounted device.

Diagram illustrating wireless signal transmission and reception with labeled icons for devices, sensors, and meters

Diagram illustrating the change in mechanical components from a circular component to a spherical device, with directional arrows and labels.

Line drawing of a double door with two square cutouts and a side lock (no text or symbols)

Porta Finestra

Simple line drawing of a door with a handle and label (no text or symbols)

2. Installazione

Diagram showing a light source splitting into a mirror and then interacting with a surface, with no text or symbols present.

Simple line drawing of a circular object with a central hole and a base plate, no text or symbols present.

ZV420

耳B2V6

Camera (x1) Draadloze magneetcontact (x1) Afstandsbediening (x1)

Simple line drawing of a circular object with three circular features and a central rectangular base (no text or symbols)

Simple circular diagram with two concentric rings and three small plus symbols at the center (no text or labels)

Coiled cable with two connectors (no text or symbols visible)

Simple line drawing of five different screw or screw components arranged in a row (no text or symbols)

Set schroeven (x1) Netadapter (x1) Snelstartgids (x1)

Schuimsticker (x2)

Installatie

Stap 1 Inschakelen

Home Hi~ Click here to add your EZVIZ device(s).

NL

Diagram showing a hand holding a smartphone with a QR code inside a circular device, alongside a magnified view of the device's screen.

Simple line drawing of a helmet with a horizontal bar and dotted line at the bottom (no text or symbols)

i

Image Encryption ON Change Password > The default password is the device verification code

Simple line drawing of a computer mouse with a blue arrow pointing to the left side (no text or symbols)

Line drawing of a mobile phone with a blue arrow indicating speed (no text or symbols)

Line drawing of a remote control device with a blue arrow pointing to the center (no text or symbols)

Isolatievelletje

NL

Screenshot of a mobile phone showing three video thumbnails with a plus button icon above them

Diagram showing a QR code scanning into a device, with a hand holding the device and a dashed line indicating the scanning direction.

Diagram showing various hand gestures and icons with Chinese labels, including recording, reading, and control functions.

Diagram illustrating the change in mechanical components from a circular component to a spherical device, with directional arrows indicating movement.

Line drawing of a double door with two square cutouts and a handle (no text or symbols)

Deur Raam

Simple line drawing of a door with a handle and a small circular mark on the left side (no text or symbols)

NL

2. Installeren

Diagram illustrating the process of lens imaging, showing light path through a lens and resulting cross-section.

Simple line drawing of a circular object with a central hole and a base plate, no text or symbols present.

Kamera (x1)

ZM20 0

Simple line drawing of a circular object with three circular ports and a central knob (no text or symbols)

Simple concentric circle diagram with three marked points (no text or symbols)

Simple line drawing of five cylindrical objects arranged in a row (no text or symbols)

Coiled cable with two connectors (no text or symbols visible)

Home + Hi~ Click here to add your EZVIZ device(s)

Diagram showing a hand holding a smartphone with a QR code inside a circular device, connected to a dashed line indicating scanning direction.

Image Encryption ON Change Password > The default password is the device verification code.

PL

Simple line drawing of a computer mouse with a blue arrow pointing to the left side (no text or symbols)

Line drawing of a mobile phone with a blue arrow indicating speed (no text or symbols)

Mobile phone screenshot showing a photo collage with a plus button icon, likely for app or messaging interface

Diagram showing a hand holding a smartphone with a QR code inside a device, connected to a wall-mounted screen.

Simple line drawing of a hand holding an object (no text or symbols)

Maks. 50 cm

Simple line drawing of a circular object with a central hole and base plate (no text or symbols)

PL

Simple line drawing of two hands holding a vertical object with an arrow pointing to the top (no text or symbols)

Simple line drawing of a circular object with a central hole and horizontal base, no text or symbols present.

Diagram illustrating the change in mechanical components from a circular component to a spherical device, with directional arrows indicating movement.

Line drawing of a double door with two doors and a handle (no text or symbols)

Drzwi Okno

Simple line drawing of a door with a handle and label (no text or symbols)

2. Instalacja

Diagram illustrating the process of lens imaging, showing light path through a lens and resulting cross-section.

Simple line drawing of a circular object with a central hole and a base plate (no text or symbols)

Камера, 1 шт.

ZEN 100

Simple line drawing of a circular object with three circular features and a central rectangular block (no text or symbols)

Основание, 1 шт.

Simple concentric circle diagram with three marked points (no text or symbols)

Line drawing of a cable with two connectors and a connector plug (no text or symbols)

RU

Simple line drawing of five screws arranged in a row (no text or symbols)

Home Hi~ Click here to add your EZVIZ device(s).

RU

- Отсканируйте QR-код на камере.

Diagram showing a hand holding a smartphone with a QR code inside a circular device, alongside a magnified view of the device's screen.

Simple line drawing of a helmet with a horizontal line and a small star symbol at the base (no text or labels)

i

Image Encryption ON Change Password > The default password is the device verification code.

Simple line drawing of a computer mouse with a blue arrow pointing to the left side (no text or symbols)

Line drawing of a mobile phone with a blue arrow indicating speed (no text or symbols)

Simple line drawing of a remote control device with no text or symbols

Mobile phone screenshot showing three video thumbnails with a plus button icon above them

Diagram showing a QR code scanning into a smartphone screen, with a hand holding the device.

Simple line drawing of a hand holding an object (no text or symbols)

( ) He более 50 cm

Simple line drawing of a circular object with a central hole and a base plate (no text or symbols)

Diagram illustrating four different smart home control methods: remote, digital display, handheld device, and remote control.

Diagram showing a magnified view of a device with a blue arrow pointing to it, alongside a separate image of a USB flash drive.

Diagram illustrating the change in mechanical components from a circular component to a spherical device, with directional arrows and labels.

Line drawing of a door with two square cutouts and a handle (no text or symbols)

Дверь Окно

Simple line drawing of a door with a handle and a small circular mark on the left side (no text or symbols)

RU

2. Установка

Diagram showing a yellow circular object splitting into two halves with a magnified inset of the lid and a blue arrow indicating direction (no text or symbols)

Simple line drawing of a circular object with a central hole and a base plate (no text or symbols)

Simple line drawing of a lens with a central aperture and two curved sides (no text or symbols)

Eeve

Simple line drawing of a circular object with three circular elements and a small rectangular base (no text or symbols)

Simple concentric circle diagram with three small symbols at the center (no text or labels)

Coiled cable with two connectors (no text or symbols visible)

Simple line drawing of five cylindrical objects arranged in a row (no text or symbols)

Home Hi~ Click here to add your EZVIZ device(s)

Diagram showing a hand holding a smartphone with a QR code inside a circular device, alongside a magnified view of the device's internal structure.

Image Encryption ON Change Password > The default password is the device verification code.

GR

Simple line drawing of a computer mouse with a blue arrow pointing to the left side (no text or symbols)

Line drawing of a mobile phone with a blue arrow indicating speed (no text or symbols)

Simple line drawing of a remote control device with no text or symbols

Φύλλο μόνωσης

Mobile phone screenshot showing three video thumbnails with a plus button icon in the corner

Diagram showing a hand holding a smartphone with a QR code scanning through it, alongside a circular device with a label.

Simple line drawing of a helmet with a horizontal bar and star-shaped mark, no text or symbols present

Πλήκτρο Επαναφοράς

Simple line drawing of a hand holding an object (no text or symbols)

Εντός 50 εκ.

Simple line drawing of a circular object with a central hole and a base, no text or symbols present.

GR

Simple line drawing of two hands holding a small object, with no text or symbols present.

Simple line drawing of a bowl with a lid and a small circle inside, next to three faint lines (no text or symbols)

Diagram illustrating the change in mechanical components from a circular component to a spherical device, with directional arrows indicating movement.

Line drawing of a double door with two square cutouts and a handle (no text or symbols)

Simple line drawing of a door with a handle and label (no text or symbols)

Πόρτα Παράθυρο

1. Εγκατάσταση

Diagram showing a light source splitting into a lens and then interacting with a mirror (no text or symbols present)

Simple line drawing of a circular object with a central hole and a base plate (no text or symbols)

Kamera (1×)

Zvezda ±0.1

Simple line drawing of a circular object with three circular features and a central rectangular block (no text or symbols)

Simple circular diagram with two concentric rings and three small symbols at the center (no text or labels)

Simple line drawing of five cylindrical objects arranged in a row (no text or symbols)

Coiled cable with connector and plug (no text or symbols visible)

Home Hi~ Click here to add your EZVIZ device(s).

CZ

Diagram showing a hand holding a smartphone with a QR code inside a circular device, connected to a dashed line indicating scanning direction.

Image Encryption ON Change Password > The default password is the device verification code

Simple line drawing of a computer mouse with a blue arrow pointing to the left side (no text or symbols)

Simple line drawing of a handheld device with a blue arrow and QR code on the cover (no text or symbols)

Line drawing of a remote control device with a circular dial and pointer (no text or symbols)

Izolační fólie

Screenshot of a smartphone displaying two images with a plus button icon, likely for image processing or messaging.

Diagram showing a hand holding a smartphone with a QR code and a dashed line indicating scanning direction.

Simple line drawing of a hand holding an object (no text or symbols)

Simple line drawing of a circular object with a central hole and a base plate (no text or symbols)

Diagram illustrating the use of a smart device with labeled icons and signal waves

Diagram showing a magnified view of a device with a blue arrow pointing to it, alongside a separate image of a USB flash drive.

Diagram illustrating the change in mechanical components from a circular component to a spherical device, with directional arrows and labeled parts.

Line drawing of a double door with two square cutouts and a side lock (no text or symbols)

Dveře Okno

Simple line drawing of a door with a handle and a small circular mark on the left side (no text or symbols)

1. Montáž

Diagram showing a light source splitting into a lens and then adding light to a screen, with no text or symbols present.

Thank you for purchasing EZVIZ products. This limited warranty gives you, the original purchaser of the EZVIZ product, specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. The disclaimers, exclusions, and limitations of liability under this limited warranty will not apply to the extent prohibited by applicable law. No distributor, reseller, agent, or employee is authorized to make any medication, extension, or addition to this limited warranty.

Your EZVIZ product is warranted for a period of one (1) year from the date of purchase against defects in materials and workmanship, or such longer period as may be required by law in the country or state where this product is sold, when used normally in accordance with user manual.

You can request warranty service by emailing us at [e-mail].

For any defective EZVIZ products under warranty, HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ("the Company") will, at its option, (i) repair or replace your product free of charge; (ii) exchange your product with a functional equivalent product; (iii) or refund the original purchase price, provided you provide the original purchase receipt or copy, brief explanation of the defect, and return the product in its original packaging. At the sole discretion of the Company, repair or replacement may be made with a new or refurbished product or components. This warranty does not cover the postal cost, insurance and any other incidental charges incurred by you in returning the product.

Except where prohibited by applicable law, this is your sole and exclusive remedy for breach of this limited warranty. Any product that has either been repaired or replaced under this limited warranty will be covered by the terms of this limited warranty for the longer of ninety (90) days from the date of delivery or the remaining original warranty period.

This warranty does not apply and is void:

• If the warranty claim is made outside the warranty period or if the proof of purchase is not provided.
• For any malfunction, defect or failure caused by or resulting from the evidence of impact, mishandling ,tampering, use contrary to the applicable instruction manual, incorrect power line voltage, accident, loss, theft, fire, flood or other Acts of God, shipping damage or damage resulting from repairs performed by unauthorized personnel.
• For any consumable parts, such as batteries, where the malfunction is due to the normal aging of the product.
  • Cosmetic damage, including but not limited to scratches, dents and broken plastic on ports.
  • Any software, even if packaged or sold with EZVIZ hardware.
  • For any other damages free from defects in material or workmanship.
  • Routine cleaning, normal cosmetic and mechanical wear and tear.

Please do not hesitate to contact your seller, or send e-mails to us [e-mail], with any questions. COPYRIGHT ©2018 HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ALL RIGHTS RESERVED.

BESCHRÄNKTE GARANTIE

[e-mail].

Colorful abstract logo with four overlapping petal shapes in blue, green, magenta, and orange (no text or symbols)

ezviz
