Features	Details
Product type	Radio
Radio frequencies	FM, AM
Connectivity	Bluetooth, AUX
Power supply	Mains, Rechargeable battery
Dimensions	Compact dimensions for easy use
Weight	Lightweight, easy to carry
Usage	Ideal for listening to radio, music via Bluetooth
Maintenance	Clean with a soft cloth, no abrasive products
Safety	Do not expose to water, use in a dry environment
Warranty	Check warranty conditions with the seller

Frequently Asked Questions - Meisterstück SO610 SONORO

How do I set the time on the SONORO Meisterstfcck SO610?

Press and hold the 'Clock' button for a few seconds until the display blinks. Use the adjustment buttons to set the time, then press 'Clock' again to confirm.

Why does my radio not receive FM stations?

Check that the antenna is properly extended and oriented. Also ensure you are in an area with good radio coverage. You can try performing an automatic station search.

How do I connect my phone to the SONORO Meisterstfcck SO610?

Enable Bluetooth on your phone and put the radio in Bluetooth mode. Search for available devices and select 'SONORO Meisterstfcck SO610' to establish the connection.

What should I do if the sound is too low?

Check the radio volume level and make sure it is not set too low. If the sound is still low, check if the speakers are obstructed or if equalizer settings need adjustment.

How do I reset the SONORO Meisterstfcck SO610 to factory settings?

Press and hold the 'Power' and 'Mode' buttons simultaneously for about 5 seconds until the screen displays a reset message.

Does the radio turn off automatically?

Yes, the SONORO Meisterstfcck SO610 has an automatic power-off function. You can adjust the timer in the settings to change the duration before the radio turns off.

How do I update the radio firmware?

Connect the radio to your Wi-Fi network and go to settings. If an update is available, a message will appear and you can follow the on-screen instructions to download and install it.

The radio does not turn on, what should I do?

Check if the device is properly plugged in or if the batteries are correctly installed. Try changing the power source or replacing the batteries if necessary.

How do I use the alarm function on the SONORO Meisterstfcck SO610?

Press the 'Alarm' button to access alarm settings. Set the alarm time and choose the audio source (radio or ringtone) for your alarm.

USER MANUAL Meisterstück SO610 SONORO

www.spotify.com/connect/third-party-licenses

17 Sleeptimer (Schlummerfungtion)

• [NetRemote PIN-Setup]

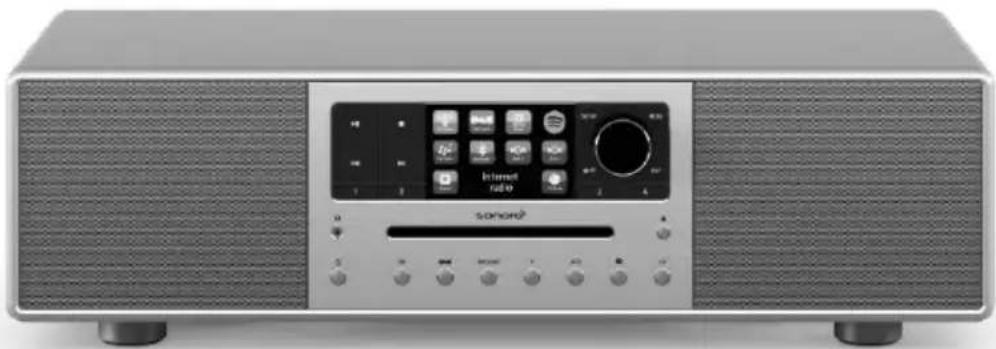

2.1 stereo music system

Operating manual

Table of contents

1 Introduction 64

1.1 Contact data 64
1.2 Intended use 65

2 Getting to know your MEISTERSTUCK 65

2.1 Scope of delivery 65
2.2 Controls and ports 66
2.3 Technical data 71
2.4 Marks of approval and certificates 72

3 Getting started 73

3.1 Unpacking MEISTERSTUCK 73
3.2 Inserting the battery in the remote control 73
3.3 Using the antennas 74
3.4 Performing initial setup 75

4 Basic operation. 77

5 Using the menus. 79

6 Display icons. 80

7 FM Radio mode 81

7.1 Operation 81
7.2 Setup menu 82

8 DAB Radio mode 83

8.1 Operation 83
8.2 Setup menu 84

9 Internet Radio mode 86

9.1 Operation 86
9.2 Setup menu 87
9.3 Station List. 87
9.4 Using the web portal 89

10 Spotify mode 90

10.1 Operation 90
10.2 Setup menu 91

11 My Music mode 92

11.1 Operation 92
11.2 Setup menu 93

12 Bluetooth mode 95

12.1 Pairing 95
12.2 Operation 95
12.3 Setup menu 96

13 AUX In 1 mode. 97

13.1 Operation 97
13.2 Setup menu 97

14 AUX In 2 mode. 98

14.1 Operation 98
14.2 Setup menu 98

15 Optical mode 99

15.1 Operation 99
15.2 Setup menu 99

16 CD mode 100

16.1 Operation 100
16.2 Setup menu 101

17 Sleep timer 102
18 System Settings 103

18.1 Accessing the system settings 103
18.2 Equalizer 103
18.3 Network 103
18.4 Time/date 104
18.5 Inactive standby 105
18.6 Language 105
18.7 Factory Reset 105
18.8 Software update 105
18.9 Setup Wizard 105
18.10 Info 105
18.11 Backlight 105
18.12 Multi-Room 106

19 Using UNDOK™ app to control MEISTERSTUCK 107
20 Troubleshooting 109
21 Cleaning 111
22 Warranty 112

1 Introduction

Thank you for purchasing MEISTERSTÜCK. This operating manual and the safety manual provide all the information required for trouble-free and safe operation of MEISTERSTÜCK.

• Read the operating manual and the safety manual in their entirety before using MEISTERSTÜCK.
• Keep the operating manual and safety manual for future reference.
• If you pass MEISTERSTÜCK on to a third party, please provide them with the operating manual and safety manual as well.
• Failure to follow the operating manual and safety manual can result in serious injury or damage to MEISTERSTÜCK.
• We assume no liability for damage resulting from failure to observe the instructions in this operating manual and safety manual.

The images in this operating manual are intended to illustrate the actions necessary to operate MEISTERSTÜCK.

Enjoy your MEISTERSTUCK!

1.1 Contact data

Address	sonoro audio GmbH, Nordkanalallee 94, 41464 Neuss, Germany
Phone	[phone]
Fax	[phone]
E-mail	[e-mail]
Internet	www.sonoro.de

1.2 Intended use

MEISTERSTÜCK is intended for personal use only. It is not intended for commercial use. MEISTERSTÜCK is solely intended for the following tasks:

• Playback of FM/DAB+/Internet radio and Spotify streaming service.
• Playback of 12cm audio CD and MP3/WMA CD disc.
• Audio playback from external devices connected via AUX In, USB port or Optical Input.
  Audio playback from Bluetooth-enabled devices (e.g. mobile phones).
• Music stream to Bluetooth headphone devices.
• Charging of external devices that are connected via the USB port.

Any other use is considered improper use and is prohibited. We assume no liability for damages resulting from improper use.

2 Getting to know your MEISTERSTÜCK

2.1 Scope of delivery

In addition to the MEISTERSTÜCK itself, the following accessories are also included in the scope of delivery:

Remote control
One button cell (CR2032, 3 V)
Power cable
FM/DAB cable antenna
FM/DAB telescopic antenna
External WiFi antenna
Quick start guide
- Operating manual
Safety manual
Greeting card
- sonoro audio collection flyer
- Spotify flyer
Service address sheet
Gloves

2.2 Controls and ports

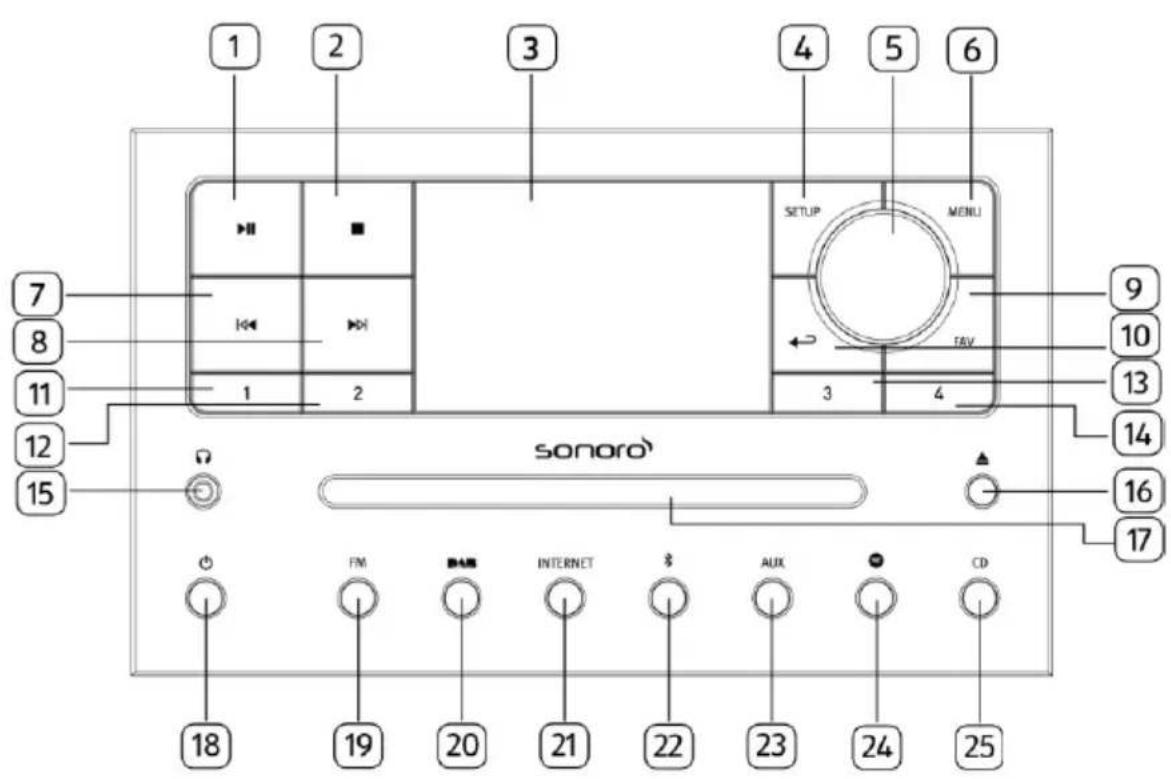

Front view

1. Play/pause button (▶II)

2. Preset 4 button (4)

3. Stop button ( 15. Headphone jack ( )

1. Display

2. CD eject button (▲)

3. Setup button (SETUP) 17. CD slot

4. Volume knob, navigation knob 18. Standby button () OK button (press the knob) 19. FM Radio mode (FM)

1. Menu button (MENU) 20. DAB radio mode ()

7.Left button,skip previous (

1. Internet Radio mode (INTERNET)

2. Right button, skip next ( 22. Bluetooth mode ()

1. Favourite button (FAV)

2. Auxiliary input 1/2 mode (AUX)

3. Back button (←)

4. Spotify mode (

5. Preset 1 button (1)

6. CD mode (CD)

7. Preset 2 button (2)

8. Preset 3 button (3)

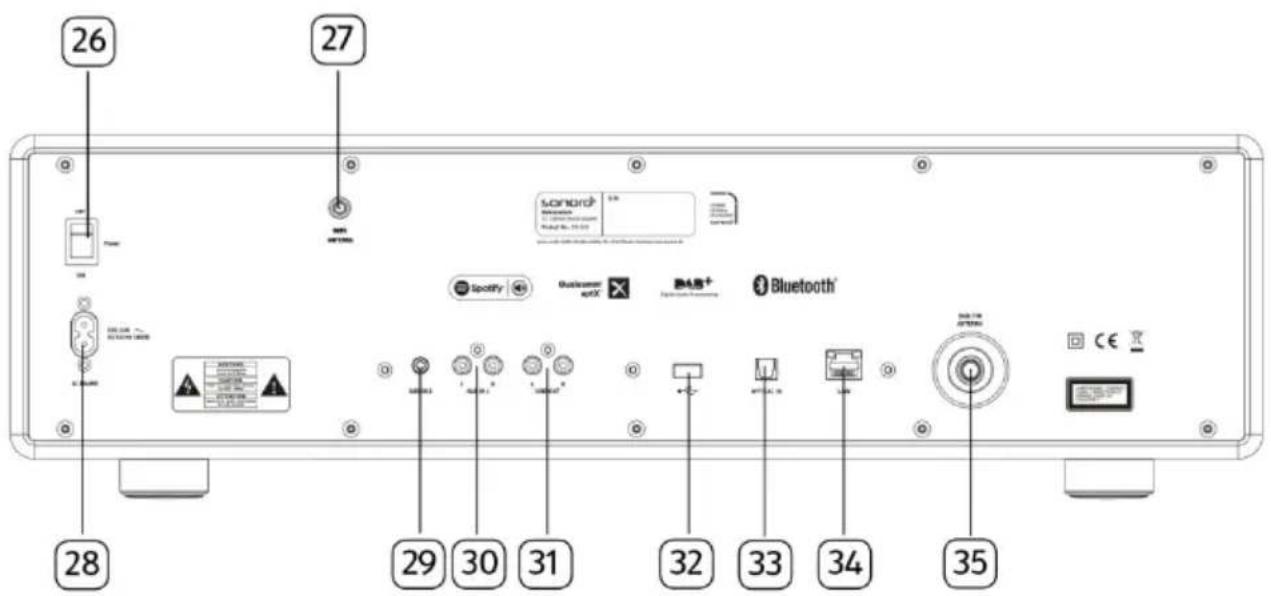

Rear view

1. Main ON/OFF switch
2. External WiFi antenna jack
3. AC socket
4. Auxiliary input 2 (3.5mm)
5. Auxiliary input 1 (RCA)
6. Line-output (RCA)
7. USB port
8. Optical port
9. LAN RJ45 Jack
10. FM/DAB antenna jack

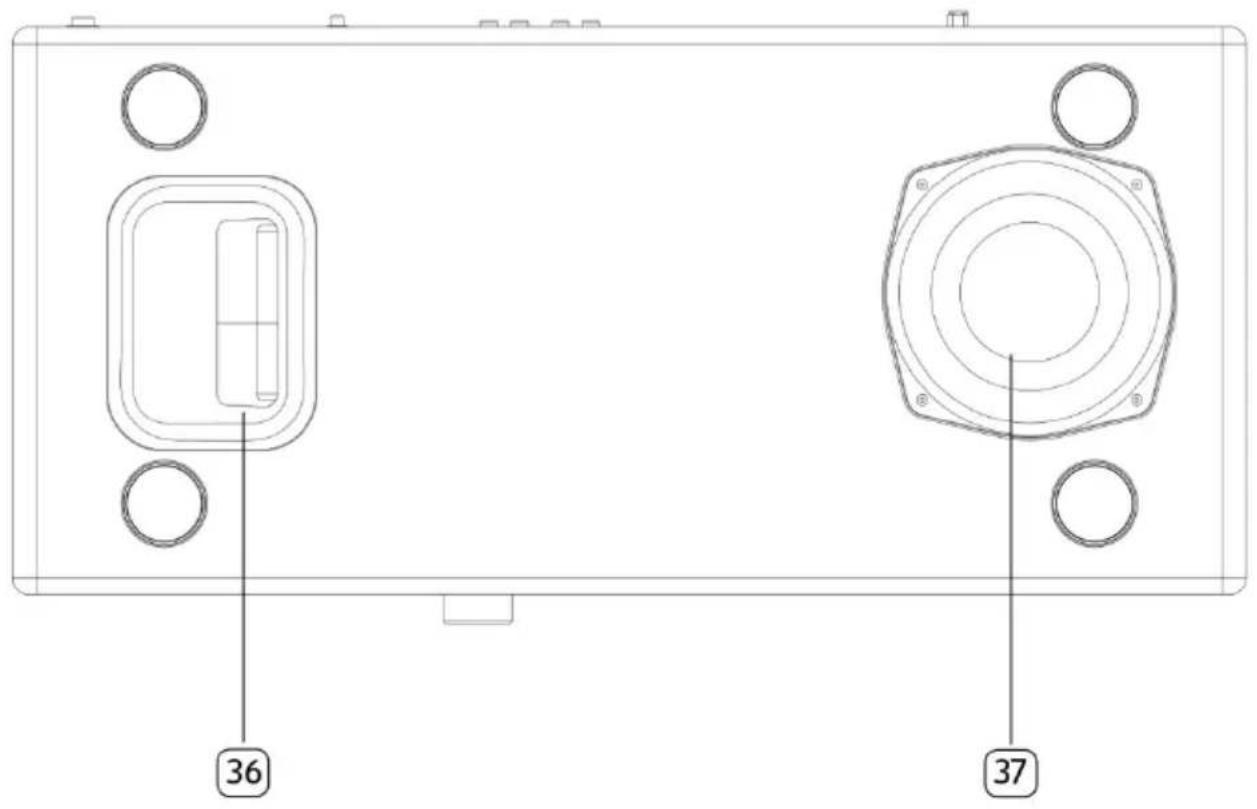

Bottom view

1. Bass reflex opening
2. Subwoofer driver

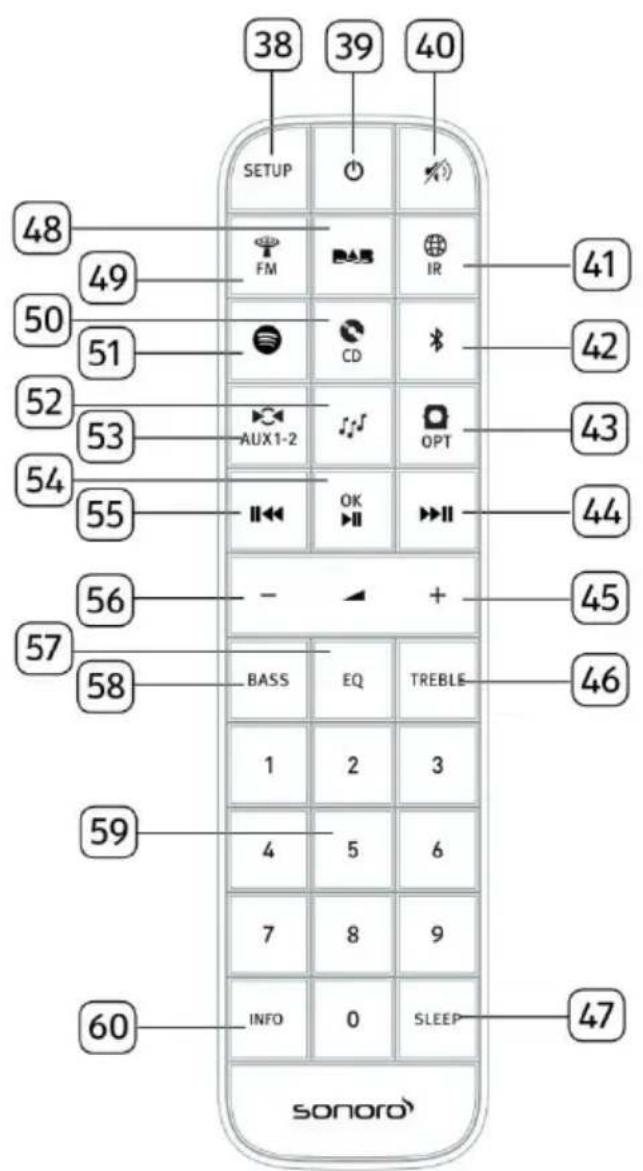

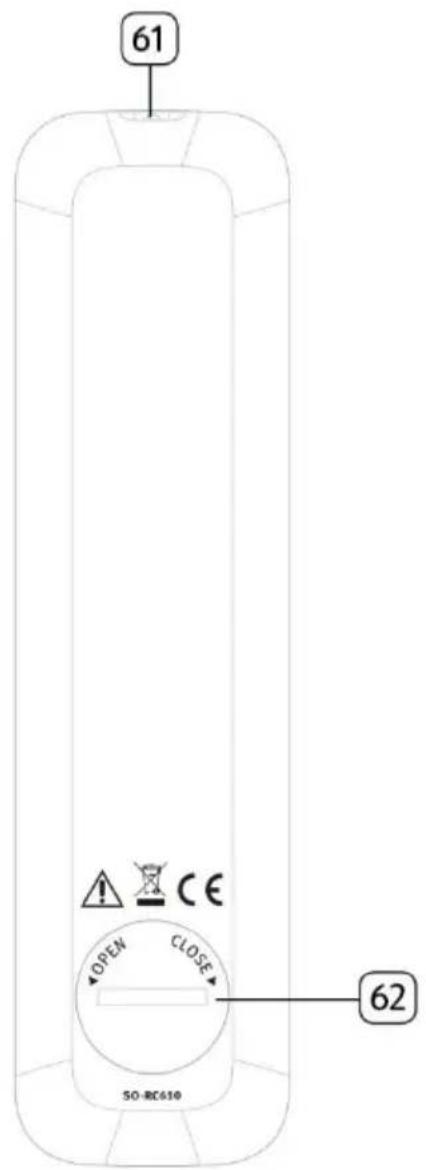

Remote control

1. Setup button (SETUP)
2. Standby button (O)
3. Mute button (
4. Internet Radio mode (
5. Bluetooth mode (*)
6. Optical input mode (OPT)
7. Right button, skip next (▶II)

8. Volume up button (+)

9. Treble button (TEREBLE)

10. Sleeper timer button (SLEEP)
11. DAB Radio mode (AAS)
12. FM Radio mode (FM)
13. CD mode (CD)
14. Spotify mode (
15. My Music mode (

16. Auxiliary input 1/2 mode (AUX1-2)

17. Play/pause button (▶II), OK button
    55.Left button,skip previous

18. Volume down button (一)^*
19. Equalizer setting button (EQ)
20. Bass setting button (BASS)
21. Preset station buttons (1-9)
22. Information button (INFO)
23. Infra-red transmitter
24. Battery compartment

Specification	Value
Dimensions (W×D×H)	approx. 570 x 262 x 165 mm
Weight	approx. 9 kg
Display	2.8" TFT colour display
Frequency range, FM	87.50 MHz-108.00 MHz
DAB/DAB+	Band III, 174.928 MHz-239.200 MHz
Internet radio	More than 25,000 stations worldwide
Station presets	40 for each FM | DAB/DAB + | Internet radio, 10 for Spotify
CD support formats	CD-DA (12cm), CD-R*, CD-RW*Audio CD, MPEG 1 Layer 3 (MP3), Windows Media Audio (WMA, DRM not supported)Sampling rate 16KHz~48KHz, bit rate max. 320kbps(* Playback dependent on quality of recording and medium)
USB charging	Output: DC 5V = 2.1A
USB playback	Compatibility system: FAT 16, FAT 32 (not compatible with NTFS or other systems)
AUX-IN	Port 1 : 3.5mm jack Sensitivity: 300 mVPort 2 : 3.5mm jack Sensitivity: 1000 mV
Optical In, TOSLINK	Supports linear PCMSample rate: 28KHz-216KHzChannel: Stereo 16 bit, 24bit
Streaming	Bluetooth | Spotify | DLNA | UPnP
My music supportmedia formats	AAC, AAC+, MP3, WAV, WMA, FLACMax. 16 bits, 2 channels, sample rate 48KHz
Network supported	IEEE 802.11 a/b/g/n, 2.4 & 5GHz bands, Ethernet2.412GHz-2.472GHz / 5.18GHz - 5.32GHz / 5.50GHz-5.70GHz
Max. transmitted power	< 20dBm
Encrypted key	WEP, WPA, WPA2 (PSK), WPS
Multi-room function	Maximum of 5 speakers in a group (4 client and 1 server)
Bluetooth	Version 3.0Profile : AVRCP v1.4, A2DP 1.2, HSP v1.22.402GHz-2.480GHz
Max. transmitted power	< 10dBm
Battery	CR2032 (remote control)
Standby Power	< 1.0W
Network Standby	< 2.0W

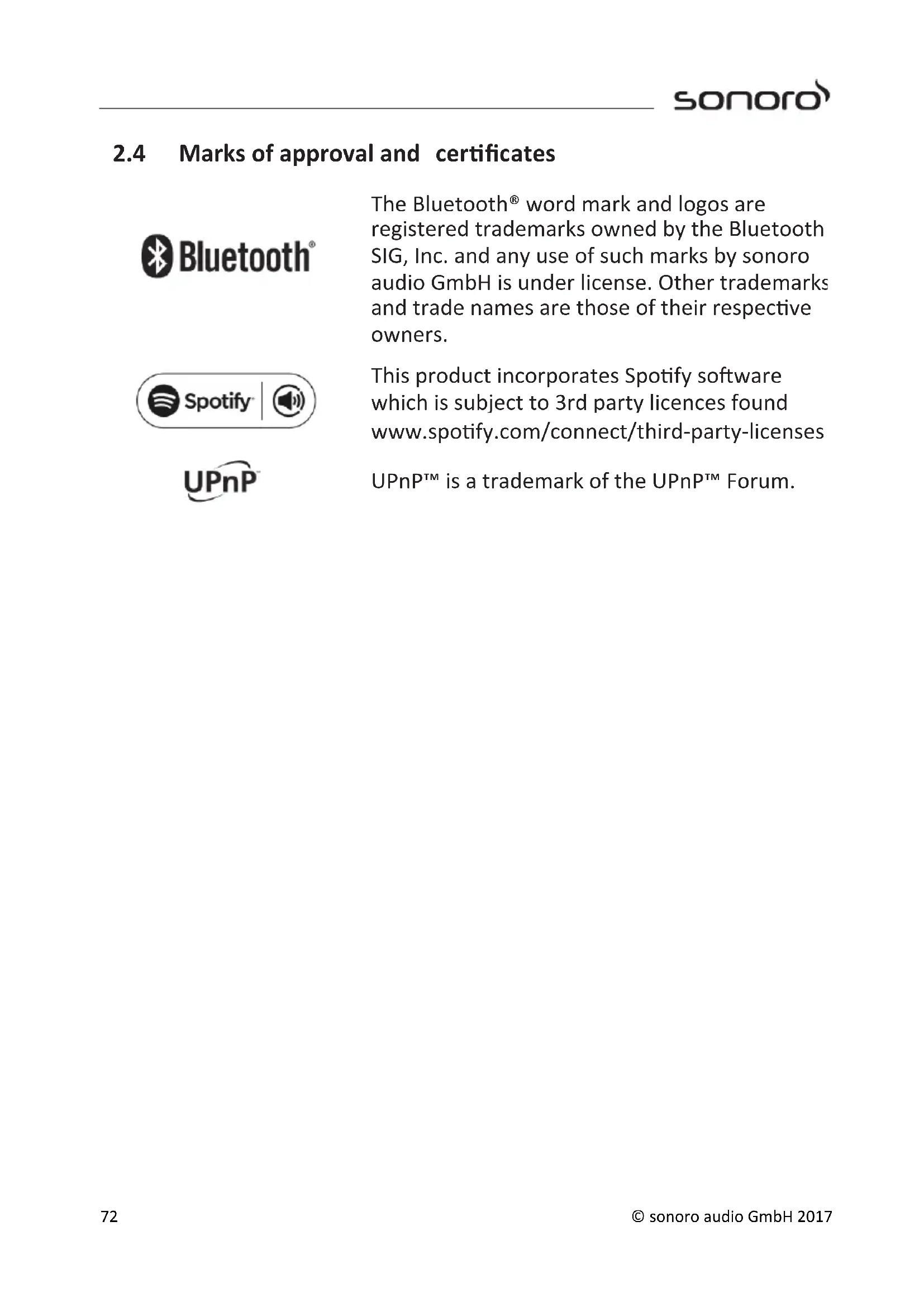

2.4 Marks of approval and certificates

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by sonoro audio GmbH is under license. Other trademarks and trade names are those of their respective owners.

Spotify

This product incorporates Spotify software which is subject to 3rd party licences found www.spotify.com/connect/third-party-licenses

UPnP™ is a trademark of the UPnP™ Forum.

3 Getting started

3.1 Unpacking MEISTERSTUCK

1. Take MEISTERSTÜCK out of the packaging and check whether MEISTERSTÜCK or the individual parts exhibit damages. If this is the case, do not use MEISTERSTÜCK. Should you detect any damage, contact your dealer or sonoro audio GmbH customer support immediately.
2. Check to make sure that the delivery is complete (see chapter "Scope of delivery").
3. Place MEISTERSTUCK at a suitable location.
4. Remove the protective film from the display.
5. Remove the protective card from the subwoofer driver.

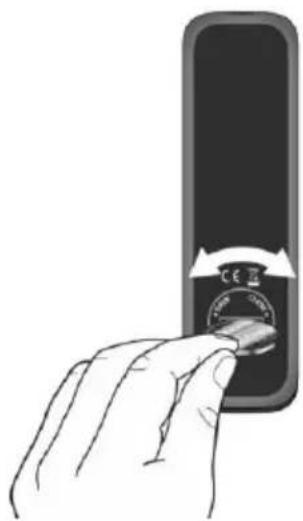

3.2 Inserting the battery in the remote control

1. Open the battery compartment cover on the back of the remote control by turning it anticlockwise using a small coin.
2. Insert the supplied batteries (CR2032, 3 V) with the label (+) side up.
3. Replace and close the battery compartment cover by turning the cover clockwise using a small coin.

i Do not block the infra-red sensor on the MEISTERSTUCK and the infra-red transmitter on the remote control during use.

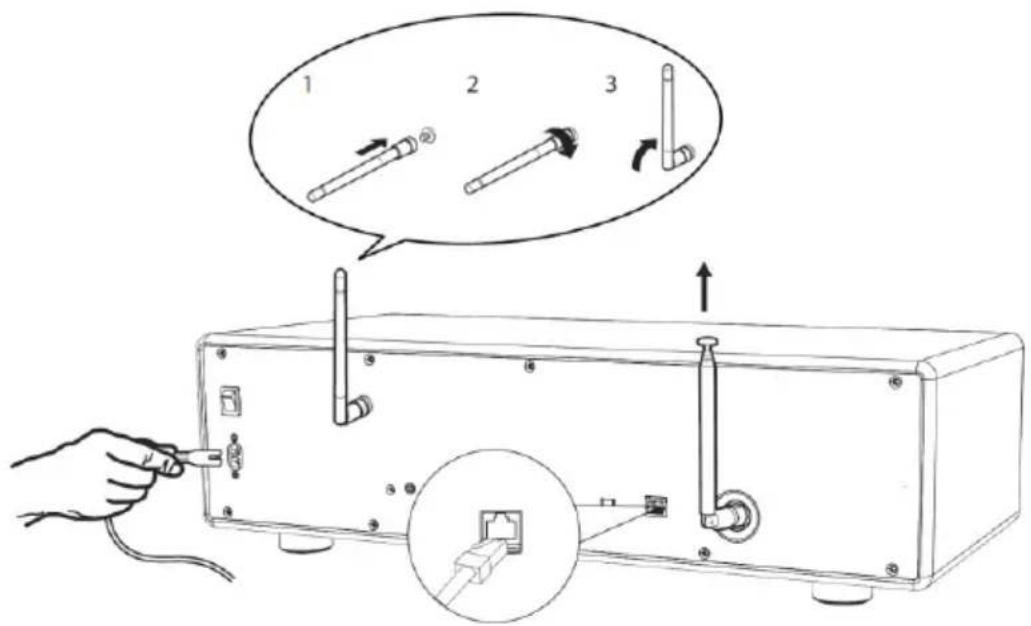

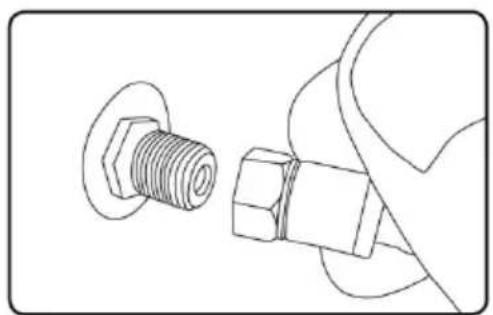

3.3 Using the antennas

1. The scope of supply contains a cable antenna and a rod antenna. For optimum radio reception, one of the two antennae must be used.
2. Screw the desired antenna located on the back of MEISTERSTUCK to the FM/DAB antenna connector.

1. If you are using the cable antenna, unfold the cable antenna and align the antenna so that you have the best possible reception.

i

For good FM/DAB radio reception, the two ends of the cable antenna should form a 'T' (dipole) with the connection cable.

A:Recommended alignment for FM

B: Recommended alignment for DAB

For even better reception, attach the cable to a suitable house antenna.

1. If you are using the rod antenna, pull the arms of the rod antenna apart and align the antenna so that you have the best possible reception.

2. Screw the desired Wi-Fi antenna located on the back of MEISTERSTUCK to the WiFi antenna connector. Lift Wi-Fi antenna upwards.

3. If you want to connect MEISTERSTÜCK to your network using an Ethernet cable, connect an Ethernet cable from LAN port on the back of MEISTERSTÜCK to your router.

1. Plug-in the AC power cord.

3.4 Performing initial setup

When MEISTERSTÜCK is powered on for the first time, the "Setup wizard" appears on the display. Follow the instructions below to configure some basic settings.

1. When the "Setup Wizard" is displayed, press + or - on the remote control (or rotate the navigation knob) to select "YES" and then press OK to start the setup.

1. You are then prompted to select:

Language (to be used in the display)

Time format (12 or 24-hour),

Source of auto update (Update from Radio, Internet or no update).

Depending on the selection you have made, follow the instructions on the display to further set up date and time, time zone, daylight saving

or wireless network. Rotate the navigation knob on MEISTERSTÜCK or press the navigation buttons on the remote control to make selections and then press OK to confirm (see chapter "Using the menus").

When update from Internet is selected, Wi-Fi connection must be first established. When entering the key of your wireless network, rotate the navigation knob on MEISTERSTUCK or press the navigation buttons on the remote control to select a character and then press OK to confirm. To delete the last entry, select [BKSP]. To cancel entering the key, select [CANCEL]. To confirm the entered key, select [OK].

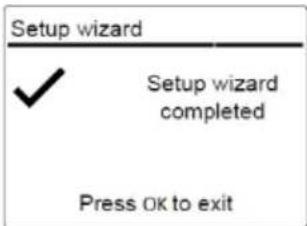

1. When "Setup wizard completed" appears, press OK to exit the setting.

1. Alternative, use the Ethernet (LAN) connection to your router (with automatic configuration), select the [Wired] menu item in the available network.

i

To run the setup wizard again, go to [System Settings] and then select [Setup Wizard] (See chapter "System Settings").

4 Basic operation

To turn on,	Press ☐ MEISTERSTÜCK starts operation from the last selected playback mode.
To turn off (standby mode),	Press ☐ The time and date (if set) are displayed. MEISTERSTÜCK will automatically turn off without playback and operation after 15 minutes.
To select a playback mode,	Press MENU once, then ↓←r (or>hotate the navigation knob) to select a playback mode and then press OK to confirm. Mode sequence: FM Radio > DAB Radio > Internet Radio > Spotify > My Music > Bluetooth > Aux In 1 > Aux In 2 > Optical > CD
To directly select a playback mode,	Press the direct operation mode key on the remote control or the front panel to directly switching from one operation mode to the other.
To playback a CD	Insert CD disc in CD slot and MEISTERSTÜCK starts playing the CD.
To control the volume,	Press + or - on the remote control or rotate the volume knob on MEISTERSTÜCK.
To pair with a Bluetooth headphone	All operation modes except the Bluetooth mode, press and hold key on MEISTERSTÜCK or remote control. Or, press SETUP once, then + or - (or rotate the navigation knob) to select [Bluetooth headphone], then select [Bluetooth pairing] and then press OK to confirm. The small Bluetooth headphone icon blinking and indicating that MEISTERSTÜCK is ready for pairing. The Bluetooth headphone icon stops blinking when pairing is completed. The paired Bluetooth headphone device name is temporarily shown in the display. Note: The pairing process is auto completion between MEISTERSTÜCK and Bluetooth headphone. Make sure that your Bluetooth headphone is already in discovery mode and ready for pairing, for detail please refers to your Bluetooth device instruction manual.
To disconnect a paired Bluetooth headphone	Press SETUP once, then + or - (or rotate the navigation knob) to select [Bluetooth headphone], then select [Bluetooth disconnect] and then press OK to confirm.

5 Using the menus

There are three types of menus in MEISTERSTÜCK.

• Setup menu (For specific settings in a playback mode, e.g. [FM Auto Search] in FM mode)
  System Settings (For general settings, e.g. time/date, language etc.)
• Main menu (For accessing the playback modes and sleep time)

To access the menus,	Press SETUP. Contents of the menus may differ in different playback modes.
To select an option in the menus,	Rotate the navigation knob on MEISTERSTÜCK or press + or - on the remote control.
To confirm a selection in the menus,	Press OK. (On MEISTERSTÜCK, press the navigation knob)
To go back one level in the menu,	Press ↦.

6 Display icons

Refer to the table below for the meanings of the display icons when they show on the display.

Wi-Fi connection is established (with signal strength).

Wi-Fi connection is disconnected.

LAN connection is established.

LAN connection is unplugged.

A Bluetooth device is connected.

A Bluetooth headphone is connected.

The radio station is in the preset list.

FM RDS information is received.

Radio signal is being received (with signal strength).

Repeat all playback mode is active.

Repeat one playback mode is active

Repeat folder playback mode is active

Shuffle playback mode is active.

Repeat all and shuffle playback mode is active.

Sleep timer is active.

Stereo sound broadcast is available.

Sound output is muted.

A USB device is connected.

Playback is paused.

7 FM Radio mode

7.1 Operation

To access the FM Radio mode,	Press key on MEISTERSTÜCK or remote control. Or, press MENU once, then rotate the navigation knob to select the FM Radio mode and then press OK to confirm.
To manually tune the frequency,	Press . ✔️ Or, press and hold the navigation knob to active the manual tune.
To automatically tune to the next available station,	Press and hold . ✔️ Or, press the navigation knob to start the automatic tuning.
To store a radio station in the preset list,	A maximum of 40 radio stations can be stored. 1. Press and hold the FAV key on MEISTERSTÜCK until the preset list is shown. 2. Press + or - (or rotate the navigation knob) to select a preset station number and then press OK to confirm.
To directly store a radio station in the preset list (1-9),	Tune to a station and then press and hold a preset station button (1-9) to directly store it in the preset list.
To recall a radio station in the preset list,	1. Press FAV. 2. Press + or - (or rotate the navigation knob) to select a radio station in the preset list and then press OK to confirm. Or, press preset station button (0-9) to access a stored preset station (1-40).
To browse the radio station information (if available),	Press INFO repeatedly.
To mute or restore the sound output,	Press or button.

7.2 Setup menu

Press SETUP in the FM mode to access the setup menu (see chapter "Using the menus"). The following options are available and the current settings (if applicable) are marked with an asterisk (^*) .

[FM Auto Search]

To auto store all available radio stations in the preset list.*

• All existing preset stations will be erased.

[FM Scan Setting]

To decide if only stations with strong signals are scanned when performing automatic tuning.

[FM Reception Setting]

To listen radio in stereo or mono sound output.

• [Bluetooth headphone]

To connect or disconnect with a Bluetooth headphone, see chapter "Basic operation".

System Settings]

See chapter "System Settings".

[Main menu]

To access other playback modes or sleep timer.

8 DAB Radio mode

8.1 Operation

To access the DAB Radio mode,	Press the key on MEISTERSTÜCK or remote control. Or press MENU once, then rotate the navigation knob) select the DAB Radio mode and then press OK to confirm.
To search for DAB radio stations,	The first time you select the DAB mode, or if the station list is empty, MEISTERSTÜCK will automatically perform a full scan and store all available stations in the station list.
To tune to a station,	Press . ➔
To store a radio station in the preset list,	A maximum of 40 radio stations can be stored. 1. Press and hold the FAV key on MEISTERSTÜCK until the preset list is shown. 2. Press + or - (or rotate the navigation knob) to select a preset station number and then press OK to confirm.
To directly store a radio station in the preset list (1-9),	Tune to a station and then press and hold a preset station button (1-9) to directly store it in the preset list.
To recall a radio station in the preset list,	1. Press FAV. 2. Press + or - (or rotate the navigation knob) to select a radio station in the preset list and then press OK to confirm. Or, press a preset station button (0-9) to access a stored preset station (1-40).
To browse the radio station information* (if available),	Press INFO repeatedly.
To mute or restore the sound output,	Press or button.

*DAB information (if available) includes: Station name, Dynamic Label Segment (DLS), Signal strength, Program type (PTY), Ensemble Name, Frequency, Signal error rate, Bit rate and audio status, Codec, and Time and date.

8.2 Setup menu

Press SETUP in the DAB mode to access the setup menu (see chapter "Using the menus"). The following options are available and the current settings (if applicable) are marked with an asterisk (^*) .

[Station List]

To display all available stations.

[Scan]

To scan and store all available stations.

• [Manual Tune]

To manually tune the frequency. The list of available digital radio ensembles is shown.

[Prune invalid Stations]

To remove all invalid stations from the station list.

[DRC]

Some DAB broadcasts offer dynamic range compression (DRC).

Compressing the dynamic range of a radio signal can increase the volume of quiet sounds and reduce the volume of loud sounds. You can select high, low or off level. High level is recommended for noisy environment.

[Station Order]

To define how the stations are listed when browsing the station list. Options are:

• [Alphanumeric]: Arrange the stations in alphabetical order,
• [Ensemble]: List groups of stations that are broadcast together on the same ensemble, and

• [Valid]: List valid stations first, then off-air stations.

• [Bluetooth headphone]

To connect or disconnect with a Bluetooth headphone, see chapter "Basic operation".

• [System Settings]

See chapter "System Settings".

[Main menu]

To access other playback modes or sleep timer.

9 Internet Radio mode

9.1 Operation

Wi-Fi or Ethernet Internet connection must be established first to use the Internet radio (see chapters "Performing initial setup" and "Network").

To access the Internet Radio mode,	Press the INTERNET key on MEISTERSTÜCK or remote control IR key. Or, press MENU once, then rotate the navigation knob) to select the Internet Radio mode and then press OK to confirm. MEISTERSTÜCK starts connecting to the previously connected network and then the last listened station.
To tune to a radio station or podcast,	See chapter “Station List”.
To store a radio station in the preset list,	A maximum of 40 radio stations can be stored. 1. Press and hold the FAV key on MEISTERSTÜCK until the preset list is shown. 2. Press + or - (or rotate the navigation knob) to select a preset station number and then press OK to confirm.
To directly store a radio station in the preset list (1-9),	Tune to a station and then press and hold a preset station button (1-9) to directly store it in the preset list.
To recall a radio station in the preset list,	1. Press FAV key. 2. Press + or - (or rotate the navigation knob) to select a radio station in the preset list and then press OK to confirm. Or, press preset station buttons (0-9) to access a stored preset station (1-40).
To browse the station information* (if available),	Press INFO repeatedly.
To mute or restore the sound output,	Press button.

*Station information (if available) includes: Artist and track name, Station description, Station genre and location, Signal reliability, Codec and sampling rate, Playback buffer, and Date.

9.2 Setup menu

Press SETUP in the Internet Radio mode to access the setup menu (see chapter "Using the menus"). The following options are available and the current settings (if applicable) are marked with an asterisk (^*) .

• [Last listened]

To tune to your last listened radio stations.

[Station List]

To tune to any available Internet radio stations (See chapter "Station list").

• [Bluetooth headphone]

To connect or disconnect with a Bluetooth headphone, see chapter "Basic operation".

• [System Settings]

See chapter "System Settings".

[Main menu]

To access other playback modes or sleep timer.

9.3 Station List

The following menus and sub-menus are available in the [Station List]:

[My Favourites]

To browse and tune to the Internet radio stations that you have added to "My favourites" on the web portal (See chapter "Using the web portal").

• [Local (name of your location)]

To browse and tune to any radio stations available in your area. The stations are grouped into several categories.

[Stations]

• [Location]: To browse and tune to radio stations by location.
• [Genre]: To browse and tune to radio stations by genre.
• [Search stations]: To search for any available radio stations by entering keywords.
• [Popular stations]: To browse and tune to the most popular Internet radio stations.
• [New stations]: To browse and tune to the latest Internet radio stations.

[Podcasts]

• [Location]: To browse and tune to podcasts by location.
• [Genre]: To browse and tune to podcasts by genre.
• [Search podcasts]: To search for any available podcasts by entering keywords.

[My Added Stations]

To browse and tune to the radio stations that you have added to "My added stations" on the web portal (See chapter "Using the web portal").

[Help]

• [Get access code]: To get the access code of MEISTERSTUCK.
  [FAQ]: To get help when the Internet radio does not work properly.

9.4 Using the web portal

The Frontier Silicon Internet Radio portal website allows you to organise your "My favourites" and add new Internet radio stations on a computer. To do so, you need to first register at the web portal.

1. In the Internet Radio mode, press SETUP and then go to [Station List] > [Help] > [Get access code]. Write down the access code.

2. Go to www.wifiradio-frontier.com on the web browser of your computer.

3. Register a new account with the access code.

4. Following the instructions in the web portal, use the "My favourites" and "My added stations" features to add radio stations.

The added stations in "My favourites" can be accessed through [My favourites] in the Internet Radio mode of MEISTERSTUCK.

The added stations in "My added stations" can be accessed through [My added stations] in the Internet Radio mode of MEISTERSTÜCK.

10 Spotify mode

i

To play back music available from "Spotify", you need to install the "Spotify" application onto your mobile phone, set up an account and purchase the premium version (fee-charging). Also your mobile phone must be registered in the same Wi-Fi network as this MEISTERSTUCK.

For the most up-to-date instructions on how to setup Spotify: www.spotify.com/connect

10.1 Operation

Your mobile phone with Spotify must be registered in the same Wi-Fi network as MEISTERSTÜCK.

To access the Spotify mode,	Press the key on MEISTERSTÜCK or remote control. Or, press MENU once, then ↓r (d) rotate the navigation knob) to select the Spotify mode and then press OK to confirm.
To select an item (song, album etc.) and start playback in Spotify,	Use the Spotify application on your mobile phone to browse and select a playback item.
To play back Spotify through MEISTERSTÜCK,	Play a song on Spotify and hit ' DEVICES AVAILABLE'. Choose "MEISTERSTUECK" from the list of available devices and music will start playing out loud.
To pause or resume playback,	Press ▶I.
To skip to the previous or next playback item,	Press ▶I . ▶I
To store a playback item in the preset list,	A maximum of 10 playback items can be stored. 1. Press SETUP until the save to preset is shown then press OK to confirm. 2. Press + or - (or rotate the navigation knob) to select a preset item number and then press OK to confirm.
To directly store a playback item in the preset list (1-9),	Select a playback item and then press and hold a preset station button (1-9) to directly store it in the preset list.
To recall a playback item in the preset list,	1. Press FAV key. 2. Press + or - (or rotate the navigation knob) to select a playback item in the preset list and then press OK to confirm. Or, press preset station buttons (0-9) to directly access a preset playback item (1-10).
To browse the information (if available) of the playback item,	Press INFO repeatedly.

10.2 Setup menu

Press SETUP in the Spotify mode to access the setup menu (see chapter "Using the menus"). The following options are available and the current settings (if applicable) are marked with an asterisk (^*) .

• [Bluetooth headphone]

To connect or disconnect with a Bluetooth headphone, see chapter "Basic operation".

System Settings]

See chapter "System Settings".

[Main menu]

To access other playback modes or sleep timer.

11 My Music mode

NOTICE!

Risk of damage!

Improper handling of the MEISTERSTUCK may cause damage.

• Do not connect the MEISTERSTÜCK directly to the USB port of a computer or other external storage media such as external hard disk.

i

My Music mode can play back audio files stored on a connected USB memory stick or from a media server (UPnP) sharing the same Wi-Fi network with the MEISTERSTUCK.

11.1 Operation

To access the My Music mode,	Press the key on the remote control. Or, press MENU once, then rotate the navigation knob) to select the My Music mode and then press OK to confirm.
To play back audio files stored on a USB memory stick,	Connect the USB memory stick to the USB port of MEISTERSTÜCK. Then press SETUP and select [USB Playback] from the setup menu (see chapter “Setup menu” on next page).
To pause or resume playback,	Press▶
To skip to the previous or next audio file,	Press▶.▶
To quickly search backward or forward within an audio file,	During playback, press and hold▶r.▶
To add an audio file to “My Playlist”,	Press and hold ➔ the navigation knob when the file is highlighted in the selection menu.
To select a playback mode,	Press FAV repeatedly. • = Repeat all • = Repeat one • = Shuffle • = Repeat all and shuffle
To browse the information (if available) of the audio file,	Press INFO repeatedly.

11.2 Setup menu

Press SETUP in the My Music mode to access the setup menu (see chapter "Using the menus"). The following options are available and the current settings (if applicable) are marked with an asterisk (^*) .

[Shared Media]

To search for audio files on the Wi-Fi or Ethernet network.

Once a media server has been found, a selection menu will show for selection of audio files for playback from MEISTERSTUCK.

• [USB Playback]

To search for audio files on the connected USB memory stick.

Once a USB memory stick has been found, a selection menu will show for selection of audio files for playback from MEISTERSTUCK.

[My Playlist]

To browse and play back audio files stored in "My playlist".

• [Repeat]

To turn on or off the repeat playback mode of the current folder/ playlist.

[Shuffle]

To turn on or off the shuffle playback mode of the current folder/ playlist.

[Clear My Playlist]

To clear entries from "My Playlist".

• [Prune Servers]

If this setting is set to "YES", inactive media servers will be displayed. You can then select a media server and "wake it up" (WOL "wake on LAN" function) in order to play back audio files from MEISTERSTÜCK.

• [Bluetooth headphone]

To connect or disconnect with a Bluetooth headphone, see chapter "Basic operation".

• [System Settings]

See chapter "System Settings".

• [Main menu]

To access other playback modes or sleep timer.

12 Bluetooth mode

MEISTERSTÜCK can connect to Bluetooth-enabled players (e.g. mobile phone) within a range of approximately 10 meters (30 feet).

12.1 Pairing

1. Press key on MEISTERSTUCK or remote control. Or, press SETUP once, then + or - (or rotate the navigation knob) to sele the Bluetooth mode and then press OK to confirm.

The small Bluetooth icon is blinking, indicating that MEISTERSTUCK is ready for pairing.

1. On your Bluetooth-enabled player, turn on the Bluetooth function and search for available Bluetooth devices.

2. Select "MEISTERSTUECK" in the list of available Bluetooth devices to start pairing.

3. The Bluetooth icon stops blinking when pairing is complete.

12.2 Operation

To access the Bluetooth audio mode,	Press key on MEISTERSTUCK or remote control. Or, press MENU once, then rotate the navigation knob to select the Bluetooth mode and then press OK to confirm.
To start playback,	Select an audio file from your Bluetooth-enabled player and start playback.
To pause or resume playback,	Press▶.
To skip to the previous or next audio file,	Press▶.▶
To quickly search backward or forward within an audio file,	During playback, press and hold▶.▶
To disconnect the Bluetooth connection,	• Switch to another playback mode, or • Select [BT disconnect] from the setup menu (see below), or • Press and hold
To browse the information (if available) of the audio file,	Press INFO repeatedly.

12.3 Setup menu

Press SETUP in the Bluetooth audio mode to access the setup menu (see chapter "Using the menus"). The following options are available and the current settings (if applicable) are marked with an asterisk (^*) .

• [Bluetooth disconnect]

To disconnect the Bluetooth connection.

[View Details]

• [Bluetooth Info]: To get the existing Bluetooth connection status.

• [Connected Device]: To get the existing connected Bluetooth device name.

• [System Setting]

See chapter "System Settings".

[Main menu]

To access other playback modes or sleep timer.

13 AUX In 1 mode

13.1 Operation

Your external player (e.g. Blu-ray player) must be connected to the auxiliary input jack 1 of MEISTERSTÜCK with an audio cable (with RCA connector, not supplied).

To access the AUX In 1 mode,	Press key on MEISTERSTÜCK or remote control to toggle AUX In. 1 mode. Or, press MENU once, then rotate the navigation knob) to select the AUX In 1 mode and then press OK to confirm.
To start and control playback,	Perform all playback operations on the external player.
To mute or restore the sound output,	Press or button.

13.2 Setup menu

Press SETUP in the AUX In 1 mode to access the setup menu (see chapter "Using the menus"). The following options are available and the current settings (if applicable) are marked with an asterisk (^*) .

• [Bluetooth headphone]

To connect or disconnect with a Bluetooth headphone, see chapter "Basic operation".

System Settings]

See chapter "System Settings".

[Main menu]

To access other playback modes or sleep timer.

14 AUX In 2 mode

14.1 Operation

Your external player (e.g. mp3 player) must be connected to the auxiliary input jack 2 of MEISTERSTUCK with an audio cable (with 3.5 mm connector, not supplied).

To access the auxiliary input 2 mode,	Press key on MEISTERSTÜCK or remote control to toggle AUX In. 2. Or, press MENU once, then rotate the navigation knob) to select the AUX In 2 mode and then press OK to confirm.
To start and control playback,	Perform all playback operations on the external player.
To mute or restore the sound output,	Press for button.

14.2 Setup menu

Press SETUP in the AUX In 2 mode to access the setup menu (see chapter "Using the menus"). The following options are available and the current settings (if applicable) are marked with an asterisk (^*) .

• [Bluetooth headphone]

To connect or disconnect with a Bluetooth headphone, see chapter "Basic operation".

System Settings]

See chapter "System Settings".

[Main menu]

To access other playback modes or sleep timer.

15 Optical mode

15.1 Operation

Your external player (e.g. audio amplifier) must be connected to the optical input jack of MEISTERSTUCK with an audio cable (with optical connector, not supplied).

To access the Optical mode,	Press okey on the remote control. Or, press MENU once, then II (o)vtate the navigation knob) to select the Optical mode and then press OK to confirm.
To start and control playback,	Perform all playback operations on the external player.
To mute or restore the sound output,	Press or button.

15.2 Setup menu

Press SETUP in the optical input mode to access the setup menu (see chapter "Using the menus"). The following options are available and the current settings (if applicable) are marked with an asterisk (^*) .

• [Bluetooth headphone]

To connect or disconnect with a Bluetooth headphone, see chapter "Basic operation".

System Settings]

See chapter "System Settings".

[Main menu]

To access other playback modes or sleep timer.

i

The optical input is only supporting for the linear PCM, 2 channels 16 bit or 24bit music source.

16 CD mode

NOTICE!

Risk of damage!

Improper handling of the MEISTERSTUCK may cause damage.

• Do not insert any mini-CD or not supporting format disc to the MEISTERSTÜCK.

16.1 Operation

MEISTERSTUCK can playback audio files stored on an audio CD, CD-R and CD-RW. The playback is also depending on the disc quality.

To access the CD mode,	Press key on MEISTERSTUCK or remote control. Or press MENU once, thenII (Rotate the navigation knob) to select the CD mode and then press OK to confirm.
To pause or resume playback,	PressII
To stop playback,	Press■
To skip to the previous or next audio file,	PressII . II
To quickly search backward or forward within an audio file,	During playback, press and holdII . II
To select a playback mode,	Press FAV repeatedly. • = Repeat all • = Repeat one • = Shuffle
To browse the information (if available ) of the audio file,	Press INFO repeatedly.

16.2 Setup menu

Press SETUP in the CD mode to access the setup menu (see chapter "Using the menus"). The following options are available and the current settings (if applicable) are marked with an asterisk (*).

• [Bluetooth headphone]

To connect or disconnect with a Bluetooth headphone, see chapter "Basic operation".

System Settings]

See chapter "System Settings".

[Main menu]

To access other playback modes or sleep timer.

17 Sleep timer

The sleep timer sets the duration of time before MEISTERSTÜCK turns off automatically.

1. Press SETUP in any playback mode and then select [Main menu] and then [Sleep].
   Or, direct press SLEEButton to turn the sleep timer on or off.
2. Press + or - (or rotate the navigation knob) to select a sleep timer (5, 10, 15, 30, 45, 60, 90, 105 or 120 min).
3. Press OK to confirm the selection.

When the sleep timer is active, the sleep timer icon ( ) and the remaining time will be shown. To cancel the sleep timer, select [Sleep OFF].

18 System Settings

18.1 Accessing the system settings

• Press SETUP in any playback mode and then select [System Settings]
  Refer to the chapters below for details of each setting option. The current settings (if applicable) are marked with an asterisk (^*)
• See chapter "Using the menus" for browsing and making selections in the system settings.

18.2 Equalizer

Select one of the sound equalizer options to adjust the sound according to your taste.

[3D Sound]

3D Sound on, it extends the stereo area, thus improving the depth of the music playback.

• [Loudness]

Loudness on, it adapts the treble and bass levels to suit the current volume, so that delicate sounds can still be heard clearly when you listen to your music quietly.

[Bass]

Adjust the bass level to tailor the sound of the audio playback.

[Treble]

Adjust the treble level to tailor the sound of the audio playback.

• Select one of the pre-defined sound equalizer options including: [Flat], [Pop], [Rock], [Jazz] and [Classic].

18.3 Network

[Network wizard]

To establish network connection.

[WPS WLAN Setup]

Select this option if your wireless router supports both WPS and PBC setup methods.

• [View Settings]

To view the current network information.

[WLAN Region]

To select a WLAN region.

• [Manual Settings]

Under the [Wireless] option, select [DHCP enable] to allocate IP address automatically or [DHCP disable] to do it manually.

• [NetRemote PIN setup]

To set up a NetRemote PIN.

• [Network Profile]

To display a list of networks saved by MEISTERSTUCK.

• [Clear Network Setting]

To clear all network settings.

• [Keep Network Connected]

To keep the WiFi network connected or not. If [YES] is selected, this allows you to wake MEISTERSTUCK from standby using a remote app. If [NO] is selected, this will switch OFF the WiFi network connection in standby mode.

18.4 Time/date

[Set Time/Date]

To set time and date.

• [Auto Update]

To select a source (Radio, Internet network or no update) for automatic time update.

If you are updating time from a source (Radio - FM/DAB), the daylight saving setting has no effect.

If you are updating time from the Internet network, set your time zone.

• [Set Format]

To set 12 or 24-hour time format.

[Set Timezone]

To set a time zone.

• [Daylight Savings]

To enable or disable daylight saving time.

18.5 Inactive standby

• This option sets the duration of time before MEISTERSTÜCK turns off automatically. Options include: Off, 2, 4, 5 and 6 hours.

18.6 Language

• This option sets the menu language. Options include: English, German, Danish, Spanish, French, Italian, Dutch, Norwegian, Polish, Portuguese, Finnish, Swedish and Turkish.

18.7 Factory Reset

• This option clears all user-defined settings and replaces them with the original default settings.

18.8 Software update

[Auto check]

To set to periodically check for update.

Check now]

To check for update immediately.

If a new software is available, MEISTERSTÜCK will ask if you want to proceed with an update.

Before software upgrade, make sure that MEISTERSTÜCK is connected to a stable power connection. Disconnecting power during a software update may damage MEISTERSTÜCK.

18.9 Setup Wizard

• To perform initial setup (see chapter "Performing initial setup").

18.10 Info

This shows the current software version, Spotify version, radio ID and friendly name.

18.11 Backlight

• [Dimmer level]

To select the brightness level of the display. Options include: [High], [Medium], [Low] or [Auto].

If [Auto] is selected, the brightness level is automatically adjusted according to the ambient light sensor at the front of MEISTERSTÜCK.

18.12 Multi-Room

Your MEISTERSTUCK can be used with other compatible products as part of a multi-room system. Products under the same Wi-Fi network and synchronised in the same multi-room group can play the same content around your home. You may also create multiple groups for different areas of the home or for different users.

You can configure the multi-room groups in the system settings with the following options:

• [View Details]

To view your current multi-room status:

[Ungrouped]: MEISTERSTÜCK is not part of a group.
- [Server]: MEISTERSTÜCK sends audio content to other group members.
- [Client]: MEISTERSTÜCK receives audio content from another product in the group.

[Create New Group]

To create a new multi-room group.

[Add to Group]

To add other compatible products to a current multi-room group.

• [List Current Clients]

To view the list of compatible products receiving audio contents from MEISTERSTUCK.

• [Leave Group]

To remove compatible products from a multi-room group.

• [Dissolve Group]

To dissolve a multi-room group. Each product in the group will then be operated individually.

19 Using UNDOK™ app to control MEISTERSTUCK

MEISTERSTUCK is compatible with the Frontier Silicon's UNDOK™ app. The app offers comprehensive remote control functionality for FS based audio modules with an iOS or Android smart device.

To install and use the UNDOK™ app:

1. Download the UNDOK™ app from "App Store" or "Google play" and install it on your iOS or Android smart device.

1. Connect your smart device to the same Wi-Fi network as MEISTERSTUCK.

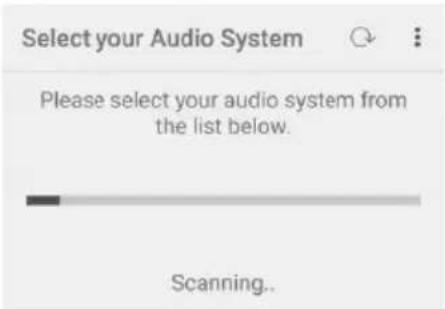

2. Launch the UNDOK™ app on your smart device. The app will search for compatible audio systems. You may also tap on "Set up audio system" to start searching for audio systems.

1. Select "Meisterstueck" from the list of available audio systems.

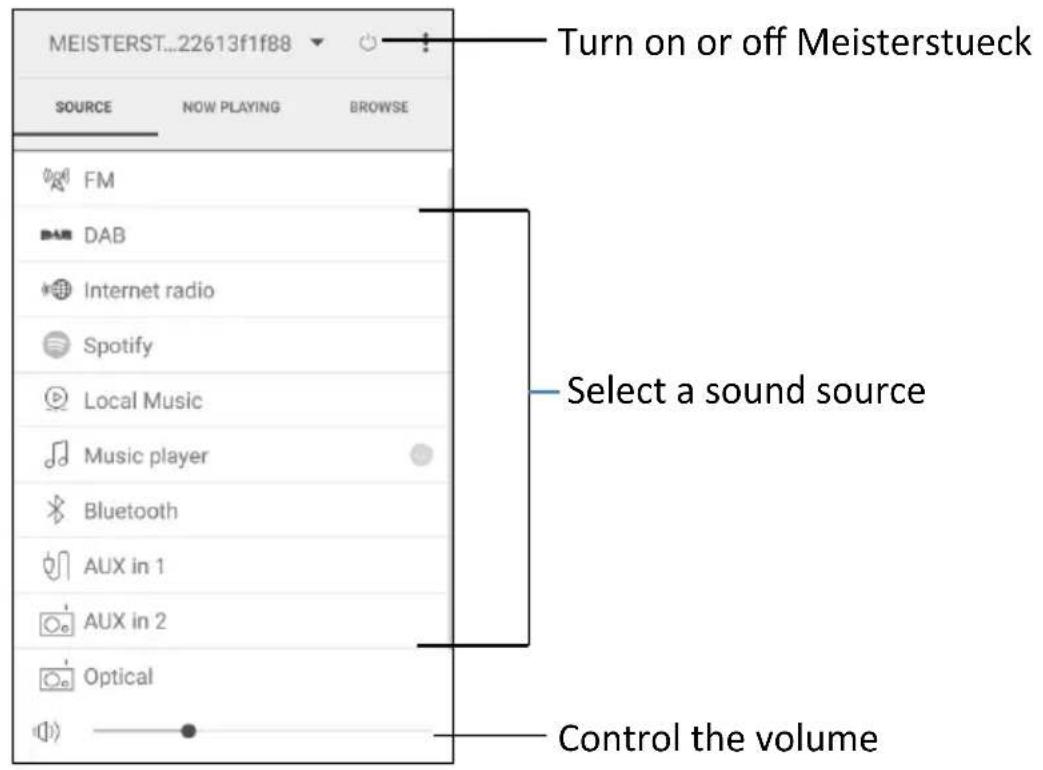

1. Control Meisterstueck through the UNDOK™ app.

Your MEISTERSTÜCK can be used with other compatible products as part of a multi-room system. You can use the UNDOK™ app to manage the multi- room groups. To do so:

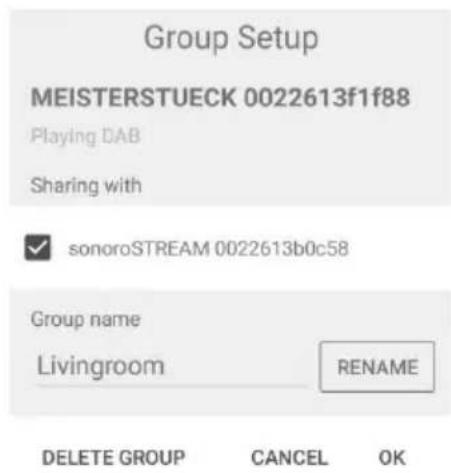

1. Tap on the edit group icon ( in the list of available audio system.

1. Add or remove MEISTERSTÜCK to or from multi-room groups, change a group name or delete a group as required.

20 Troubleshooting

Malfunctions can occur with any electrical equipment. This is not necessarily due to MEISTERSTÜCK defect. As such, you should check the following table to see if you can eliminate the problem yourself.

Malfunction	Possible cause	Solution
No power	Power cable is not properly connected.	Connect the power cable properly.
No response from MEISTERSTÜCK	There is an error in MEISTERSTÜCK.	Disconnect and reconnect the power plug. Then turn MEISTERSTÜCK on again.
Remote control does not work, or only works sporadically	Distance to MEISTERSTÜCK is too large.	Reduce the distance between the remote control and MEISTERSTÜCK.
	Battery is empty.	Replace the battery.
No sound or poor sound	Sound is turned off.	Adjust the volume.
	MEISTERSTÜCK is not set to the correct playback mode.	Select another playback mode.
	Headset is plugged in.	Pull the headset out of the jack.
	FM/DAB or Internet reception is poor.	Extend/adjust the FM/DAB antenna or check the Wi-Fi connection.
	There is radio interference.	Keep MEISTERSTÜCK away from other electronic devices.
	Optical Input no sound	Select PCM as output source in the external device.
Insufficient Wi-Fi signal strength	The router is too far or blocked.	Place MEISTERSTÜCK closer to the router or adjust the position of the Wi-Fi antenna.
Cannot connect to your Wi-Fi network	Router is not switched on or working properly.	Switch on your router or check the router conditions.
	Setup method is incorrect.	Check if your router supports WPS and uses the correct setup method (PBC or PIN).
		Configure the Wi-Fi settings again.
Internet radio station does not work sometimes.	Some stations only support a limited number of listeners.	Try again later.
	Station is not broadcasting.	Try again later.
Some Internet radio stations disappear from the station list.	The station is removed from the list when it stops broadcasting.	Check again later. If the station broadcasts again, it will be brought back to the list.
CD playback does not start.	CD format is not supported.	Insert correct CD format in the CD slot.
	CD is dirty.	Clean the CD.
	CD is damaged.	Insert a different CD in the CD slot.
USB device does not work.	USB playback is not support.	Check the files and file system on the USB device.
	USB device is not charging.	Check the USB cable.

21 Cleaning

NOTICE!

Material damage due to improper cleaning!

Improper cleaning can result in damage to MEISTERSTUCK or cause certain functions to stop working.

• Never use abrasive or solvent-based cleaning agents, as these may damage the surface of MEISTERSTÜCK.
• Never use hot or compressed air to dry MEISTERSTUCK.
• The edges and corners of MEISTERSTÜCK are vulnerable to pressure. Protect these areas to prevent them from being subjected to excessive pressure.

Cleaning off fingerprints and light soiling

Clean MEISTERSTUCK only from the outside with a soft, dry cloth.

Cleaning off heavy soiling

• Clean MEISTERSTÜCK only from the outside with a slightly damp cloth and then dry MEISTERSTÜCK with a soft, dry cloth.

22 Warranty

When submitting warranty claims, the following applies without restricting your legal rights:

• Warranty claims can only be asserted within a period of max. 2 years (1 year in North America and Australia), calculated from the date of purchase.
• sonoro audio GmbH shall, at its own discretion, repair or replace MEISTERSTÜCK free of charge any defects caused by material or manufacturing defects within the warranty period.
  In case of a complaint, please contact our customer service department. You can find contact details under "Contact data" or at www.sonoro.de.
• No new warranty period begins following repair or replacement of MEISTERSTUCK. The warranty period of 2 years (1 year in North America and Australia) from date of purchase remains applicable.
• Excluded from the warranty are batteries, damage caused by improper use, normal wear and tear, as well as defects which only minimally affect the value or usability of MEISTERSTUCK. The warranty also expires in case of any modifications not made by our authorised service centre.

sonoro.de

sonoro audio GmbH

Nordkanalallee 94

41464 Neuss

Allemagne

Telephone: [phone]

Fax: [phone]

E-mail: [e-mail]

www.spotify.com/connect/third-party-licenses

• [Configuration PIN NetRemote]

Pour configurer un NIP NetRemote.

[Profil réseau]

[WPS WLAN-installingen]

• [NetRemote PIN set-up]

[FM Reception Setting]

• [Bluetooth headphone]

For at tilslutte eller frakoble en Bluetooth hovedtelefon, se kapitlet "Grundlaeggende Funktion".

• [System Settings]

Se kapitlet "Systemindstlinger".

[Main menu]

Giver adgang til andre afspilningstilstande eller sleep timeren.

8 DAB radio

8.1 Funktion

• [Bluetooth headphone]

For at tilslutte eller frakoble en Bluetooth hovedtelefon, se kapitlet "Grundlaeggende Funktion".

• [System Settings]

Se kapitlet "Systemindstillinger".

[Main menu]

For at fà adgang til andre afspilningstilstande eller sleep timeren.

9 Internet radio

9.1 Funktion

• [Bluetooth headphone]

For at tilslutte eller frakoble en Bluetooth hovedtelefon, se kapitlet "Grundlaeggende Funktion".

System Settings]

Se kapitlet "Systemindstilling".

[Main menu]

Giver adgang til andre afspilningstilstande eller sleep timeren.

9.3 Stationsliste

• [Bluetooth headphone]

For at tilslutte eller frakoble en Bluetooth hovedtelefon, se kapitlet "Grundlaeggende Funktion".

• [System Settings]

Se kapitlet "Systemindstlinger".

[Main menu]

For at fä adgang til andre afspilningstilstande eller sleep timeren.

11 Min musik

ADVARSEL!

Risiko for skader!

• [Bluetooth headphone]

For at tilslutte eller frakoble en Bluetooth hovedtelefon, se kapitlet "Grundlaeggende Funktion".

• [System Settings]

Se kapitlet "Systemindstillinger".

[Main menu]

For at fà adgang til andre afspilningstilstande eller sleep timeren.

12 Bluetooth

• [Bluetooth headphone]

For at tilslutte eller frakoble en Bluetooth hovedtelefon, se kapitlet "Grundlaeggende Funktion".

• [System Settings]

Se kapitlet "Systemindstilling".

[Main menu]

For at fà adgang til andre afspilningstilstande eller sleep timeren.

14 AUX In 2

14.1 Funktion

• [Bluetooth headphone]

• [Bluetooth headphone]

For at tilslutte eller frakoble en Bluetooth hovedtelefon, se kapitlet "Grundlaeggende Funktion".

• [System Settings]

Se kapitlet "Systemindstilling".

[Main menu]

For at fà adgang til andre afspilningstilstande eller sleep timeren.

i

Den optiske indgang understørter kun den lineere PCM, 2 kanaler 16 bit erer 24 bit musikkilde.

16 CD

ADVARSEL!

Risiko for skader!

• [Bluetooth headphone]

For at tilslutte eller frakoble en Bluetooth hovedtelefon, se kapitlet "Grundlaeggende Funktion".

• [System Settings]

Se kapitlet "Systemindstillinger".

[Main menu]

• [NetRemote PIN setup]

Opret en NetRemote PIN.

• [Network Profile]

• [Keep Network Connected]

• [List current clients]
