Technical Specifications	Leica DG Summilux 15mm f/1.7 ASPH. wide-angle lens
Maximum Aperture	f/1.7
Optical Construction	9 elements in 7 groups, including 1 aspherical element
Angle of View	84°
Minimum Focusing Distance	0.15 m
Filter Diameter	46 mm
Dimensions	Approx. 63 mm diameter x 30 mm length
Weight	Approx. 120 g
Usage	Ideal for landscape, street, and portrait photography
Maintenance	Clean with a soft cloth, avoid abrasive products
Safety	Avoid exposure to extreme temperatures and humidity
General Information	Compatible with Micro 4/3 cameras

Frequently Asked Questions - Leica DG Summilux 15mm f1 7 ASPH PANASONIC

What type of mount does the PANASONIC Leica DG Summilux 15mm f1.7 ASPH lens use?

The lens uses a Micro Four Thirds mount.

Is the lens compatible with Panasonic and Olympus cameras?

Yes, the lens is compatible with all cameras equipped with a Micro Four Thirds mount, including Panasonic and Olympus.

What is the maximum aperture of the lens?

The maximum aperture of the lens is f/1.7.

How can I clean the lens without damaging it?

Use a blower to remove dust, then a microfiber cloth slightly dampened with lens cleaner to clean the surface.

Is this lens weather-resistant?

The lens is not fully weather-resistant; it is recommended to use it with caution in wet or dusty conditions.

What is the weight of the PANASONIC Leica DG Summilux 15mm f1.7 ASPH lens?

The lens weighs approximately 120 grams.

What is the minimum focusing distance of this lens?

The minimum focusing distance is 0.15 m.

Does the lens support autofocus?

Yes, the lens supports autofocus on compatible cameras.

How can I manually focus with this lens?

To manually focus, switch your camera to manual focus mode and use the focus ring on the lens.

Does the lens come with a lens hood?

Yes, the lens typically comes with a dedicated lens hood.

USER MANUAL Leica DG Summilux 15mm f1 7 ASPH PANASONIC

Operating Instructions

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

Model No. H-X015

LUMIX

Please read these instructions carefully before using this product, and save this manual for future use.

MICRO FOURTHMARS

LEICA

DG SUMMILUX

NANO

SURFACE

COATING

SQT0244

F0414KD0

Contents

Information for Your Safety. 2

Precautions. 3

Supplied Accessories 4

Names and Functions of Components 5

Attaching/Detaching the Lens. 6

Cautions for Use. 9

Troubleshooting 9

Specifications 10

Limited Warranty (ONLY FOR AUSTRALIA) 11

Information for Your Safety

Keep the unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games, radio transmitters, high-voltage lines etc.).

• Do not use the camera near cell phones because doing so may result in noise adversely affecting the pictures and sound.
• If the camera is adversely affected by electromagnetic equipment and stops functioning properly, turn the camera off and remove the battery and/or the connected AC adaptor. Then reinsert the battery and/or reconnect the AC adaptor and turn the camera on.

The lens can be used with a digital camera compatible with the lens mount standard for the "Micro Four Thirds™ System".

• It cannot be mounted on the Four Thirds™ mount specification camera.
  The digital camera illustrations in these operating instructions show DMC-GM1 as an example.
  The appearance and specifications of products described in this manual may differ from the actual products you have purchased due to later enhancements.
• Micro Four Thirds™ and Micro Four Thirds Logo marks are trademarks or registered trademarks of Olympus Imaging Corporation, in Japan, the United States, the European Union and other countries.
• Four Third™ and Four Thirds Logo marks are trademarks or registered trademarks of Olympus Imaging Corporation, in Japan, the United States, the European Union and other countries.
  G MICRO SYSTEM is an interchangeable lens type digital camera system of LUMIX based on a Micro Four Thirds System standard.
• LEICA is a registered trademark of Leica Microsystems IR GmbH. SUMMILUX is a registered trademark of Leica Camera AG. The LEICA DG lenses are manufactured using measurement instruments and quality assurance systems that have been certified by Leica Camera AG based on the company's quality standards.
• Other names of systems and products mentioned in these instructions are usually the registered trademarks or trademarks of the manufacturers who developed the system or product concerned.

-If you see this symbol

Disposal of Old Equipment Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly,

you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

ENGLISH

Precautions

Lens Care

• Sand and dust can damage the lens. Make sure that no sand or dust gets inside the lens or the terminals when using the lens on a beach, etc.
• The lens is neither waterproof nor splashproof. If drops of water get onto the lens, wipe the lens with a dry cloth.
• Do not press the lens with excessive force.
• When there is dirt (water, oil, and fingerprints, etc.) on the surface of the lens, the picture may be affected. Lightly wipe the surface of the lens with a soft, dry cloth before and after taking pictures.

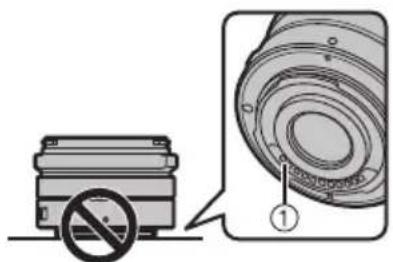

• Do not place the lens mount facing downwards.
  Do not allow the lens contact points ① to become dirty.

About Condensation (Fogging of the Lens)

• Condensation occurs when there are differences in temperature and humidity as described below. Condensation can cause the lens to become dirty and lead to mold and malfunctioning, so exercise caution in the following situations:
• When the camera is brought indoors from outside during cold weather
• When the camera is brought into an air-conditioned car
• When cold air from an air conditioner is directly blown onto the lens
  Inhumidplaces
• Put the camera into a plastic bag to allow it to acclimatize to the surrounding temperature in order to prevent condensation. If condensation occurs, turn the power off and leave it for about two hours. Once the camera acclimatizes to the surrounding temperature the condensation will go away naturally.

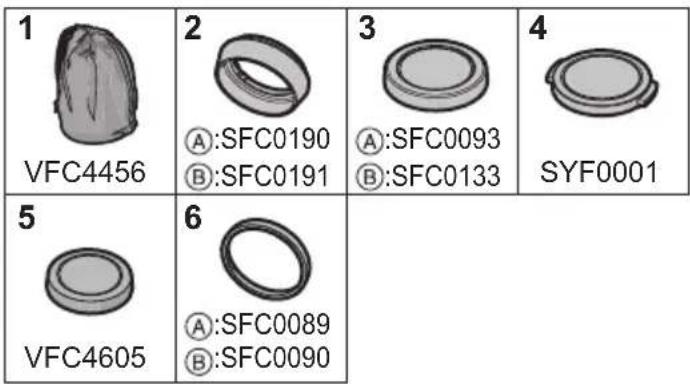

Supplied Accessories

[Inspection to be performed when you unpack the unit]

When removing the unit from its packing box, check that the main unit and the supplied accessories are there and also check their external appearance and functions to verify that they have not sustained any damage during distribution and transportation. If you discover any trouble, contact your vendor before using the product.

Product numbers correct as of April 2014. These may be subject to change.

1 Lens Pouch 4 Lens Cap
2 Lens Hood A: Black B: Silver	5 Lens Rear Cap
3 Lens Hood Cap A: Black B: Silver	6 Decoration ring A: Black B: Silver

• The lens cap, lens rear cap, and decoration ring are attached to the lens at the time of purchase. In addition, the lens hood cap is attached to the lens hood.

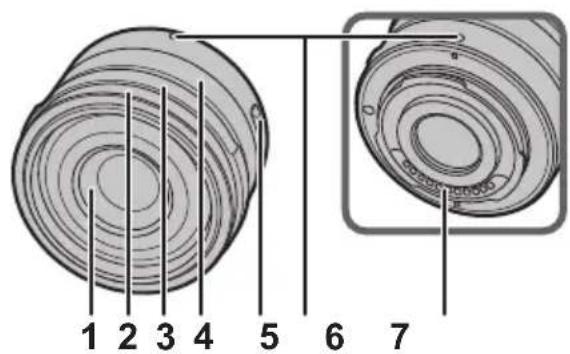

Names and Functions of Components

1 Lens surface
2 Decoration ring

Remove this cover when using the lens hood.

3 Aperture ring

Rotate this to adjust the aperture value.

• If you set the camera to Aperture-Priority AE Mode or Manual Exposure Mode, the aperture value of the ring will be enabled.
• If you set the position of the aperture ring to [A], the aperture value of the camera will be enabled.
• When the aperture ring is enabled, check if the aperture value has changed after attaching or removing the decoration ring.

4 Focus ring

Rotate to focus when taking pictures with manual focus (MF).

5 [AF/MF] switch

This allows you to switch between Auto Focus (AF) and Manual Focus (MF). If you set [MF], you can use the focus ring to adjust the focus.

• When either the [AF/MF] switch of the lens or the setting of the camera is set to [MF], Manual Focus (MF) is enabled.
  6 Lens fitting mark
  7 Contact points

Note

• When using this lens and the flash to record a subject very close to the camera, it is possible that a darker shadowed area may appear in the lower portion of the picture. This situation is not a malfunction and is caused when the flash is partially blocked by the lens. This situation may be worsened when the lens hood is used.
• In very quiet situations Auto Focus operating sounds may be recorded during motion picture recording. This is not a malfunction. In such situations, switching to Manual Focus will improve the situation.
• The aperture can be adjusted with the aperture ring only when a Panasonic digital camera is attached to the lens. (As of April 2014)

6

SQT0244

Attaching/Detaching the Lens

Check that the camera is turned off.

• Remove the lens rear cap from the lens.

Attaching the Lens

Align the lens fitting marks ④ on the camera body and the lens and then rotate the lens in the direction of the arrow until it clicks.

• Do not press the lens release button ⑧ when you attach a lens.
• Do not try to attach the lens when holding it at an angle to the camera body as the lens mount may get scratched.
• Check that the lens is attached correctly.
• Be sure to remove the lens cap when recording.

Detaching the Lens

While pressing on the lens release button B, rotate the lens toward the arrow until it stops and then remove.

• Attach the lens rear cap so
  that the lens contact point does not get scratched.
• Attach the body cap to the camera so no dirt or dust will get inside the main unit.

■ Attaching the Lens Hood (Supplied Accessory)

• Before attaching the lens hood, make sure to remove the lens cap. The lens hood cannot be attached unless you remove the lens cap.

1 Rotate the decoration ring ⑥ in the direction of the arrow to remove it.

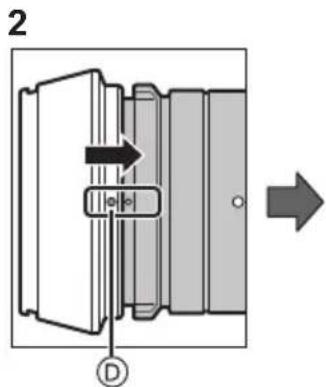

2 Align the mounting index ① on the lens hood with the mark on the tip of the lens.

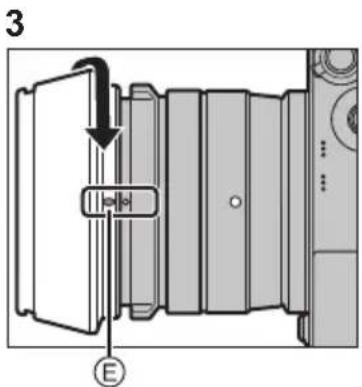

3 Rotate the lens hood in the direction of the arrow until it clicks into place, and align the stop position ⑤ on the lens hood with the index on the tip of the lens.

Note

• When using this lens and the flash to record a subject very close to the camera, it is possible that a darker shadowed area may appear in the lower portion of the picture. This situation is not a malfunction and is caused when the flash is partially blocked by the lens. This situation may be worsened when the lens hood is used.
• When using the AF assist lamp in the dark, detach the lens hood.
• Make sure to remove the lens hood cap when recording an image.

Attaching the decoration ring

• Before attaching the decoration ring, make sure to remove the lens cap.

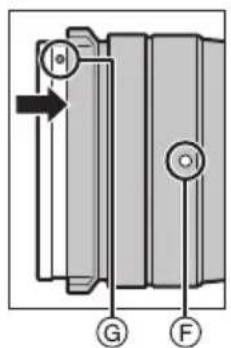

1 Align the mounting position ⑥ on the decoration ring with a position approximately 90^ away from the lens fitting mark F to fit the decoration ring into place.

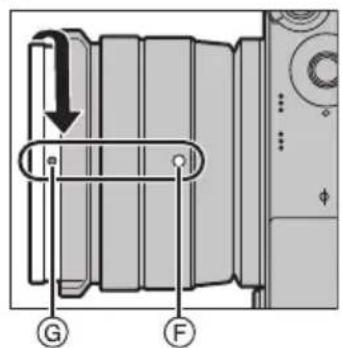

2 Rotate the decoration ring in the direction of the arrow to align the mounting position ⑥ on the decoration ring with the lens fitting mark F.

1

2

Attaching Filters

• Vignetting may occur if using 2 or more MC protectors (optional: DMW-LMC46), PL filters (optional: DMW-LPL46) or ND filters (optional: DMW-LND46), or if using thick protectors and/or filters.
• The filter may become impossible to remove if excessively tightened, so please refrain from tightening it too strongly.
  It is possible to attach the lens cap with the filter already attached.
• When the lens hood is attached to this lens, you cannot attach a filter to it.
• You cannot attach a conversion lens or adaptor to this lens. A filter may be used, but attaching any other element may cause damage to the lens.

Cautions for Use

Take care not to drop or knock the lens. Also take care not to put a lot of pressure on the lens.

• Take care not to drop the bag that you inserted the lens in as it may strongly shock the lens. The camera may stop operating normally and pictures may no longer be recorded. Also, the lens may be damaged.
• When carrying the digital camera with the lens attached, hold both the digital camera and the lens. When using pesticides and other volatile substances around the camera make sure that they do not get onto the lens.
• If such substances get onto the lens they can damage the exterior case or cause the paint to peel.

Do not point the lens at the sun or other strong light sources.

• This could cause the lens to collect an excessive amount of light, resulting in fire and malfunction.

• Under no circumstances should the unit be stored in any of the following locations since doing so may cause problems in operation or malfunctioning.

• In direct sunlight or on a beach in summer

• In locations with high temperatures and humidity levels or where the changes in temperature and humidity are acute
• In locations with high concentrations of sand, dust or dirt
  -Where there is fire
• Near heaters, air conditioners or humidifiers
• Where water may make the unit wet
  -Where there is vibration

- Inside a vehicle

Refer also to the operating instructions of the digital camera.
- When the unit is not going to be used for a prolonged period, we recommend storing with a desiccant (silica gel). Failure to do so may result in performance failure caused by mold, etc. It is recommended that you check the unit's operation prior to use.
- Do not leave the lens in contact with rubber or plastic products for extended periods of time.
- Do not touch the lens contact point. Doing so can cause failure of the unit.
- Do not disassemble or alter the unit.

Do not use benzine, thinner, alcohol or other similar cleaning agents to clean the lens glass or exterior cabinet.

• Using solvents can damage the lens or cause the paint to peel.
• Wipe off any dust or fingerprints with a soft, dry cloth.
• Use a dry, dust cloth to remove dirt and dust on the focus ring and the aperture ring.
• Do not use a household detergent or a chemically treated cloth.

Troubleshooting

When I turn on or off the camera or when I shake the lens, I hear a sound, for example a rattling sound. When I take pictures of a bright subject, such as a subject outside, or when I take pictures with a large aperture value, the lens makes a sound.

• This is the sound of lens or aperture movement and is not a malfunction.

Specifications

Specifications are subject to change without notice.

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

"LEICA DG SUMMILUX 15 mm/F1.7 ASPH."

Focal length f=15 mm	(35 mm film camera equivalent: 30 mm)
Aperture type 7 diaphragm blades/circular aperture diaphragm
Maximum aperture F1.7
Minimum aperture value F16
Lens construction	9 elements in 7 groups (3 aspherical lenses)
Nano surface coating Yes
In focus distance	0.2 m to ∞ [from the focus distance reference line]
Maximum image magnification	0.1× (35 mm film camera equivalent: 0.2×)
Optical image stabiliser Not available
[AF/MF] switch Available (Switching AF/MF)
Mount "Micro Four Thirds Mount"
Angle of view 72°
Filter diameter	46 mm
Max. diameter	Approx. 57.5 mm
Overall length	Approx. 36 mm (from the tip of the lens to the base side of the lens mount)
Mass	Approx. 115 g

Panasonic Warranty

1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised Distributors or Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when warranty service is requested.

3. This warranty only applies if the product has been installed and used in accordance with the manufacturer's recommendations (as noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorized persons (including unauthorized alterations), introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.

4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase: (a) Cabinet Part(s) (e) DVD, Blu-ray or Recordable Discs (b) Video or Audio Tapes (f) Video / Audio Heads from wear and tear in normal use (c) SD cards or USB devices (g) Information stored on Hard Disk Drive, USB stick or SD card (d) User replaceable Batteries (h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s) etc.

5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover (a) Internet and or DLNA connection / setup related problems (b) Access fees and or charges incurred for internet connection (c) The use of incompatible software or software not specifically stipulated in the product operations manual; and (d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or any other device.

6. To claim warranty service, when required, you should: Telephone Panasonic's Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre Locator for the name/address of the nearest Authorised Service Centre. Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of purchase date. Please note that freight and insurance to and /or from your nearest Authorised Service Centre must be arranged by you. Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the normal operating areas of the nearest Authorised Service Centres: Plasma/LCD televisions / displays (screen size greater than 103 cm)

7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, deinstallation or re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other ancillary activities), delivery, handling, freightiing, transportation or insurance of the product or any part thereof or replacement of and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation, de-installation, re-installation or transit.
   Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however, coverage will vary dependant on product. For advice on exact Authorised Service Centre

In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a major failure. If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.

THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES

If you require assistance regarding warranty conditions or any other enquiries, please visit the Panasonic Australia website www.panasonic.com.au or contact by phone on 132 60 If phoning in, please ensure you have your operating instructions available.

Panasonic Australia Pty. Limited

ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113

PRO-031-F11 Issu:40

Inhalt

1 VFC4456	2 A:SFC0190 B:SFC0191	3 A:SFC0093 B:SFC0133	4 SYF0001
5 VFC4605	6 A:SFC0089 B:SFC0090

1 VFC4456	2 A:SFC0190 B:SFC0191	3 A:SFC0093 B:SFC0133	4 SYF0001
5 VFC4605	6 A:SFC0089 B:SFC0090

-Ecnn Bby yBnDnte TaKo cNMBON

1 VFC4456	2 A:SFC0190 B:SFC0191	3 A:SFC0093 B:SFC0133	4 SYF0001
5 VFC4605	6 A:SFC0089 B:SFC0090

2 DeKopaTnBHOe KOJIbUO

CHIMMTE3Ty KpbIbIKy npn IcNoIb3OBAHm6IeHdbIO6bEkTINBa.

3KoJIbUO DnauΦpaRMbI

TobopauBaIte 30To KOJIbO dIa HAcTpOuKn NokaTeIaDpaarMbI.

• Ecnn yctaHOBnTb Ha KaMepe pexm npnopTeTa dnaqparMbI A3 nnn pexm pyHoi 3Kcno3nInn, aKTNBpPyETc Noka3aTeJb DnaqparMbI KOJbua.

• Ecπu yctahOBnTB KOJIbUO DnaΦpaRMbI B NOLOXeHne [A],akTNBupyETcnoKa3aTeNb DnaΦpaRMbI KaMepbl.

Korpaaba KOnbua Dnaaparmbla AKTBNPOBaHa, npOBepbTe,IMeHnIcra NIOkA3aTeNb DnaaparmblnoCne npIKpePnEHHNCHrTHNe DEkopaTNBHOKOJIbua.

4KoJIbUOΦOKyCnPOBKn

I IOBOPaUNBaNTe InHabeENHnФOKyCa npN BbINOnHeHn CHIMKOB B pexmpeynoФOKycnpOBKn (MF).

5 NepekeHouaTeIb [AF/MF]

I03B0JraTnepeKJIIOUaTbcM MeKdypeKIMOM ABTOΦOKcUPOBKN (AF) n pyuHoi ΦOKcUPOBKN (MF). Ecnn yCTaHOBnTB [MF], nla HAcTpoKnΦOKyCa MOKHO NcNOJIb3OBA Tb KOJIbIoΦOKcUPOBKN.

• Ecnn yctaHOBnTb nepeKJIIOuHaTeJIb [AF/MF] OobekTNBa HnH HAcTpOy KAmepbHa [MF], BKJIIOUaETCpEKIMpyHOrΦOKcnpOBKn (MF).

6 MoHTaXHaI NOBepXHocTb

7 MeTka yCTaHOBKn 06bekTNBa

Приимechanicals

• Ppi NcNoJIb3OBAHm DaHHORo 06BeKTbNA B CnblIKN DnAaNCn 06BeKTA, OueHb 6nI3KO paCNOJoxEHORo K Kamepe, Bo3MOxHO NOBJIeHne 6OJee TEMHO yactKa B HxKHeu qACTn N3OpaXeHn. 3TO He RJIaETcR HeNCpABHOCTbIO N Bbl3BaHO TEM, YTO 06BeKTHB qACTNuHO 3aropaxNBaET CBET BCblIKN. Takar cHTyaUN MoKeT yxydUnTBcR npi NCNoJIb3OBAHm 6IeHDbI 06BeKTHBa.

B OueH TnxO O6ctaHOBKe BO Bpemn BuDeOCbEMKMOKeT 3aNcTaBcra paOCh 3ByK abTOΦOKcnpOBKn. 3To He RaJIeTc HEnCnPaBHOCTbIO.B TaKnx CnyaX CNTyauHOMoKHo yNyUHTb NepeKJIIOueHHeM Ha pexkM pyHOnΦOKcnpOBKn.

Hactpoika Dnapparmbic NOMOUBIO KOJbca Dnaoparmbl BO3MOXHa TOnbKO B Cnyae npKpenHeN OsbekTnBa K cnpboB o foToKaMepe Panasonic. (No coctOHHIO Ha anpeIb 2014 r.)

YctaHOBka/ChyTne obBeKtNbA

Y6eHITecb, qTO kamepa BbIKIOUyeHa.

• CHIMNE 3aДHIOU KpbIuKy obBeKtNaBa.

YcTaHOBka 06bKeKTHBa

COBmecHTe
yCTaHOBOUHyO
MeTKy OBeKTHBa A
Ha Kopnyce
ΦOTOKaMEpbI C
MeTKoH
OBeKTHBe N 3aTeM
IOBepHnTe
OBeKTHB B

HanpaBHeHH CTpeJKN Do eJyKa.

He Haxmaite KONky OTKpbTna OBeKTnBa B npOecce yCTaHOBKn OBeKTnBa.
He npTaIteCb ycTaHOBnTB oBeKTHN NOJ yRIOMK KopnyCy KamepbI, NockoJIbKy 3TO MOKeT npNBecTI K NOBpeXdEHNIO KpenJIeHnO sbekTnBa.
- y6eINTEcB, yTo o6bekTNb YcTaHOBJIeH npaBnJIbHO.
- 06a3aTeNbHO CHIMITE KpbIuKy o6beKtNa nepei 3aPiNCbIO.

ChTne o6bekTNBa

YdepxBaHaKaToH KHOKy ⑧ npOBepHnTe OBeKTHB Do yNopa B HApBaJIeHn CTpeJKN, a NOTOM CHMNTe.

-ПрикpenTe 3aHIOKpbIswkyObbektuBa,HTO6bI N36eKaTb capaNNMOHTaxHOJNOBepxHOCTNObbektuBa.
-ПикpenTe KКampe KpbIuKy Kopnyca BO n36eKaHne nonaHaHn rpa3n N nbIIN BHyTpB OCHOBHOrO yCTPOINCTBa.

Manufactured by: Panasonic Corporation

Kadoma, Osaka, Japan

Importer for Europe: Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Panasonic Corporation

Web Site: http://panasonic.net

© Panasonic Corporation 2014
