USER MANUAL AH 665 MEDISANA

Water filler opening

Housing lower section

Ultrasonic transducer

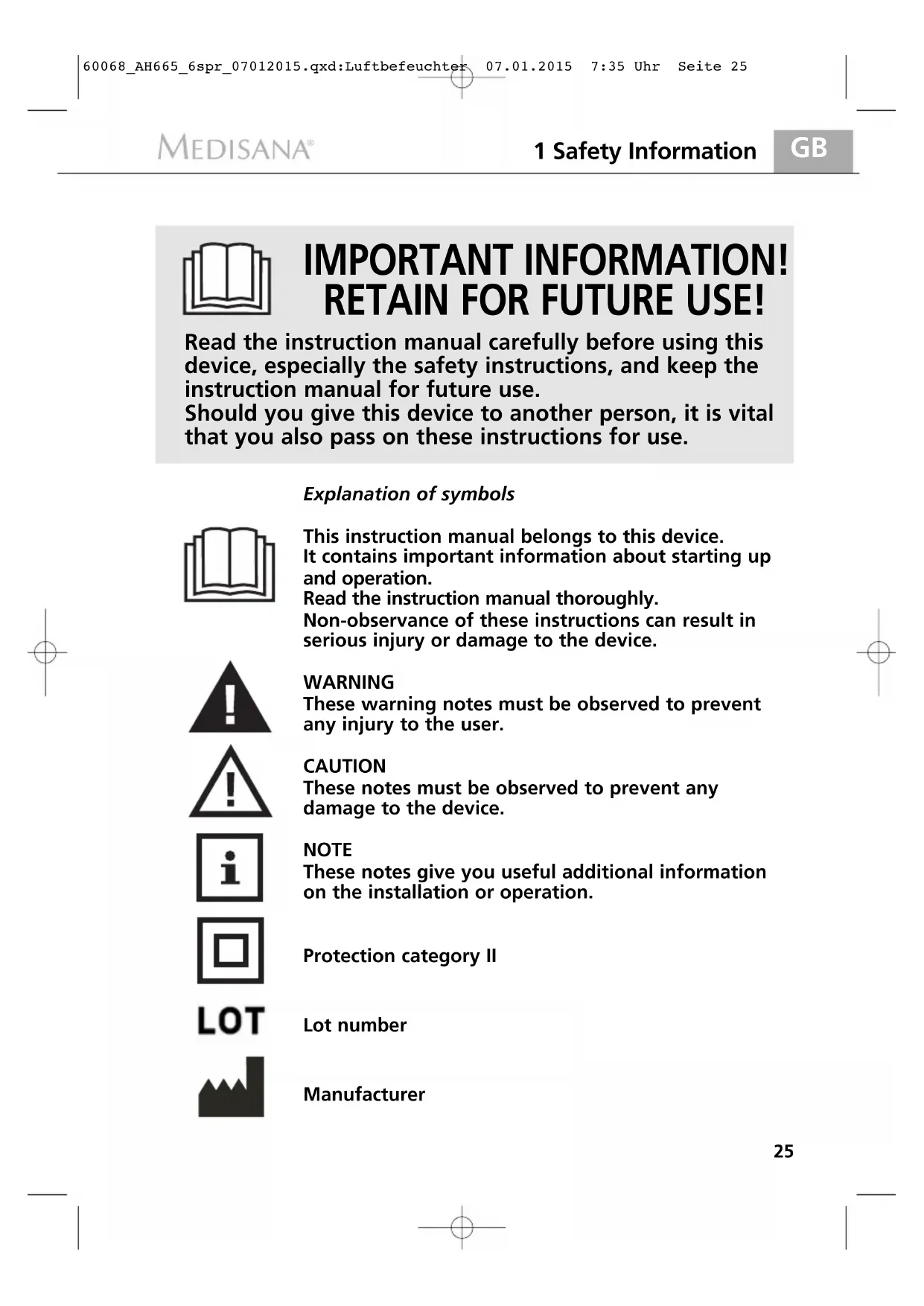

1 Safety Information IMPORTANT INFORMATION! RETAIN FOR FUTURE USE! Explanation of symbolsThis instruction manual belongs to this device. It contains important information about starting upand operation. Read the instruction manual thoroughly.Non-observance of these instructions can result inserious injury or damage to the device.WARNINGThese warning notes must be observed to preventany injury to the user.CAUTIONThese notes must be observed to prevent any damage to the device. NOTE These notes give you useful additional informationon the installation or operation.Protection category IILot numberManufacturer

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use. 60068_AH665_6spr_07012015.qxd:Luftbefeuchter 07.01.2015 7:35 Uhr Seite 2526

• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.

• Only connect the mains plug to the wall socket when the device is switched off.

Never carry, pull or turn the device by the electricity cable and do not squeeze the cable.

• Position the mains cable so as to avoid the danger of falling.

• Do not touch the mains plug when you are standing in water and always take hold of the plug with dry hands. For special people

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

• In the event of an allergic respiratory problem, consult your doctor before using the appliance.

• Should you experience medical complaints during use talk to your doctor. Should this be the case, stop using the device immediately. Operating the device

• The device is not determined for commercial use.

• Only use the device for its intended use as in the instruction manual. If misused, all guarantee rights shall become null and void.

• Do not use the device if it or the power supply cable is damaged, if it does not work properly or if it has been dropped or fallen into water.

• Keep the device and its power cable away from hot surfaces.

• If the power supply cable is damaged, it may only be replaced by MEDISANA, an authorised dealer or by qualified personnel. In order to prevent hazards, always send the unit in to the service centre.

• Do not take hold of a device if it falls into water. Unplug the mains cable immediately.

• Do not use the device if the water tank is empty or does not contain enough liquid.

Do not use distilled oils (e.g. eucalyptus or menthol), since these could damage the device.

• Keep the ventilation slits on the underside of the unit free of dust and impurities.

• Switch off all functions after use and remove the plug from the mains supply. Maintenance and cleaning

• You may only clean the device yourself. If the device malfunctions do not repair it yourself as this leads to the automatic expiry of all guarantee rights. Ask your specialist dealer and have repairs carried out by the MEDISANA service.

• Cleaning and user maintenance shall not be made by children without supervision.

• Do not immerse the device in water or other fluids.

• If, nonetheless, liquid should penetrate the device, unplug the mains cable immediately.

• Store the unit in a dry place. Thank you for your confidence in us and congratulations on your purchase! You have acquired a quality product with your purchase of the MEDISANA personal humidifier AH 665. To ensure the best results and long-term satisfaction with your MEDISANA personal humidifier AH 665, we recommend that you read the following operating and maintenance instructions carefully.

2.1 Items supplied and packaging

Please check first of all that the device is complete and is not damaged in any way. In case of doubt, do not use it and contact your supplier or your service centre. The following parts are included: • 1 MEDISANA personal humidifier AH 665 • 1 Cleaning brush

• 1 Instruction manual • Water filter (built-in)The packaging can be reused or recycled. Please dispose properly of any packaging material no longerrequired. If you notice any transport damage during unpacking, please contact your supplier without delay.WARNINGPlease ensure that the polythene packing is kept away from the reach of children! Risk of suffocation! 2 Useful Information 60068_AH665_6spr_07012015.qxd:Luftbefeuchter 07.01.2015 7:35 Uhr Seite 2728

Very dry air increases susceptibility to infection and respiratory diseases and leads to fatigue and lackof concentration. Healthy air should have a relative atmospheric humidity of 40 to 55 %. The quiet,energy saving ultrasound technology of the personal humidifier uses oscillation to convert water intoa fine mist that increases the moisture level of the air. This improves the air quality and prevents themucous membranes and skin from drying out.The capacity of the device is suitable for a room with a maximum area of 30 m . You can adjust thelevel of humidity to the size of the room using the buttons of the control panel

Pay special attention to the notes on cleaning and care.CAUTION Over-intensive operation can result in saturating the room with moisture, which can affect the walls, windows and objects in the room. Therefore, use a hygrometer at regular intervals to check that the level of relative air humidity does not exceed 55%CAUTION Make sure that the MEDISANA air humidifier is operated on a surface which is resistant to water, and that it cannot tip over. In particular, when operated with mineralised water / aromatic essences, condensation /residues may be produced. You can turn the the mist outlet . Make sure thatthe mist being issued is not directed towards electronic appliances, furniture orwalls . Keep distance of at least 2 m.

Before starting up for the first time, allow the device to adjust to room temperature for half an hour,particularly if the outside temperature is less than 5°C.We recommend using the device at a temperature between 5 and 40°C with a relative humidity ofbelow 80%.Do not use water that is above 40°C.Check the water canister ; make sure that this is empty.

3.2 Filling and emptying the water tank

Detach the water tank from the device and turn it over. Unscrew the cap . Rinse out the watertank and then fill it up above the water filler opening with a maximum of 4.5 l drinking water. Sealthe tank again by screwing the cap back in. Turn the water tank over again and place it back in thedevice so that it audibly engages. Insert the mist outlet in the opening at the top of the water tank.Do not move the unit when the water chamber is full. Dispose of the leftover water after use and rinseout the tank with fresh drinking water. Before using again, fill the tank with fresh drinking water.When you have switched off the unit and do not intend to use it for an extended period of time, removeand empty the water tank.CAUTION Only use fresh drinking water in the device. You can also use demineralised water, if the water is very hard and calciferous. Clean the deviceat regular intervals and remove lime and other deposits, to maintain its efficiency.Never operate the device when the water tank is empty.

1. Insert the plug into a socket and press the ON/OFF button to switch the device on. The LED display

2. ON/OFF: ON/OFF: Use this button to switch the device on and off. Pressing the ON/OFF button once

activates the display, the device operates at the lowest mist output. At the same time the fan motorstarts to operate. Pressing the ON/OFF button again switches off all functions and the display goes out.

3. PRESET: This button enables you to select a period after which the device automatically activates.

Press this button when the device is in stand-by mode. A period of time between 1 and 24 hours canbe preset. The selected time is shown in the control panel display in minute increments. Once thepreset time period has counted down to zero, the device starts to operate. The starting time (preset)can be combined with the timer.

4. MIST: Four different output levels can be set for the mist output from low, middle, strong to highest.

The corresponding outputs are 13-16 W (L), 17-20 W (M), 21-24 W (S) to 25-30 W (H). The selectedoutput level is shown in display as an illuminated graphic.

5. TIMER: This button enables you to select a period after which the device automatically switches off.

A period of time between 1 and 24 hours can be preset. 0 means that all presets are deleted. 3seconds after entering your preset, the time period starts counting down. The elapsing time isdisplayed in minute increments with the current humidity level at intervals of 5 seconds if a humiditylevel (humidistat) has been set. The time can be combined with the start time (preset).

6. HUMIDISTAT: This button can be used to set a required level of relative humidity in a room in 5%

increments from 40 to 95%. 0 means that all presets are deleted. 3 seconds after entering yourpresent, the humidity controller starts to operate. It stops operating as soon as the current airhumidity exceeds the preset value. The fan motor runs for another 5 minutes. As soon as the currentair humidity drops to 2% below the preset value, the humidity controller starts operating again. Thecurrent humidity level is shown in the display, at intervals of 5 seconds alternating with the elapsingtime, if a setting has been made using the timer.

7. ANION: Press the ANION button if the device is in stand-by mode and presets have been made for

the humidity controller. The air purifier function (ionisation) switches on. At the same time the fanmotor starts to operate. Press the ANION button again to switch off the air purifier function. The fanmotor continues to run all the time the humidity controller is active.

8. Protection against empty tank: As soon as the tank runs empty, the display flashes waterless ("tank

is empty"). The device switches off automatically. The timer and humidistat (humidity controller) settings are also deleted. Once the device has been refilled with water, the function settings can beentered again.

3.4 Faults and Fault Remedying

• Device will not switch on (LED not illuminating): Plug in the plug; Check power circuit, socket and fuse.

• No mist (LED lights up red): Fill water tank.

No mist although tank full:Increasing mist intensity;Place device on a level surface; Clean atomiser and generator using provided brush and fill tank with clean water; Rinse device with clean water.

• White deposits: Use clean water or at least 1/2 distilled water / 1/2 fresh tap water. If a fault cannot be remedied using the described method, please contact your service centre.

4.1 Cleaning and maintenance

• During everyday use it is advisable to give the device a thorough cleaning at least every three days. Also clean device before and after long storage periods.

• Before cleaning the device, make sure that it is turned off and the mains plug is removed from the socket.

• Remove the water tank from the device and empty it.

• Clean the outside of the unit with a soft, damp cloth.

• Please do not use any aggressive substances for cleaning, such as scouring cream or other detergents, as these may damage the surfaces and reduce the atomisation effect.

• You can rinse out the water tank with hot water (>65 °C) or an alcohol of at least 75 % vol. The atomiser chamber should be cleaned using an alcoholsoaked cloth and cotton bud. Take care to ensure that no water gets inside the humidifier.

• The ultrasound generator is the most sensitive component in the device. It is important for it to be kept clean and handled with care. Please use the pro-vided brush to remove deposits and dirt particles from the outlets. Never clean the ultrasound generator using metal objects.

• If you do not intend to use the unit for an extended period of time, empty any remaining water from the tank and dry off the unit.

• When cleaning the unit, rinse the filter in clean water. If you are not using the unit for an extended period, store the filter separately so that it can dry.

• Store the unit in a cool, dry place, preferably in its original packaging.

• Remove cap from underside of the water tank and store separately to prevent sleeve gasket from sticking.

Water filter / Descaling Water filter The humidifier AH 665 is equipped with a water filter. This filter assists in cleaning and demineralisation of water. Depending on the hardness of the water used, the filter should be changed at least once per month if the device is used daily. Proceed as follows: Screw the lid off of the water tank and turn the filter out of the lid anti-clockwise. Turn the new filter in the reverse direction back into the lid. Descaling When using hard water, or water with a high mineral content, the device must be regularly descaled. Please use only citric acid for descaling (powder preparation from the chemist). Do not use any liquid descaler, descaling tablets or vinegar! - Empty out the device completely (tank and lower section). Ensure that no liquid runs into the air outlet of the lower section. - Place 4 tablespoons (approx.100g) of pure citric acid in the tank and fill up with 2000ml of water at 60 °C. Screw the tank shut and gently shake until the citric acid powder has dissolved. - Place the tank on the lower section. DO NOT SWITCH ON THE DEVICE! - Allow the descaling solution to cool in the tank/device (at least 3 hours). - Remove the tank from the device and, with a suitable brush (bottle brush or similar), scrub the interior and the mist chamber. Empty the contents of the tank and rinse well. - Empty the lower section. Make sure no liquid gets into the air outlet. Rub off persistent lime scale - using the brush supplied, a cloth or cotton buds. Take care around the ultrasonic transducer! - Rinse the lower section well (Ensure that no liquid runs into the air outlet of the lower section). 60068_AH665_6spr_07012015.qxd:Luftbefeuchter 07.01.2015 7:35 Uhr Seite 3031

This product must not be disposed of together with domestic waste. All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner. Consult your local authority or your supplier for information about disposal.

4.4 Technical specifications

Name and model : MEDISANA personal humidifier AH 665 Current supply : 220 - 240 V~, 50/60Hz, protection category II Output : approx. 30 W Tank contents : approx. 4.5 l Atomizer capacity : maximum approx. 300 ml/h Dimensions W x H x D : approx. 24 x 17 x 36 cm Weight : approx. 1,3 kg Storage conditions : clean and dry Item number : 60068 EAN number : 40 15588 600685 Accessories : pack of 2 replacement water filters Art.-Nr. 60069 / EAN 40 15588 600692 In accordance with our policy of continual product improvement, we reserve the right to make technical and visual changes without notice. The current version of this instruction manual can be found under www.medisana.com

4.5 Warranty and repair terms

Please contact your supplier or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is. The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a

warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.

2. Defects in material or workmanship will be corrected free of charge within the warranty period.

3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement

4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. nonobservance of the user instructions. b. All damage which is due to repairs or tampering by the customer or unauthorised third parties. c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre. d. Accessories which are subject to normal wear and tear.

5. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage

to the unit is accepted as a warranty claim. MEDISANA AG Jagenbergstraße 19 • 41468 NEUSS • GERMANY The service centre address is E-Mail: info@medisana.de • Internet: www.medisana.de shown on the attached leaflet
