USER MANUAL AH 675 MEDISANA

Please read carefully!

A litre attentivement s.v.p!.

1 Safety Information. 13
2 Useful Information. 16
3 Operating 17
4 Miscellaneous 21
5 Warranty 24

FR Mode d'emploi

GB ① Vent outlet, turnable

Digital display
3 Handle
Water tank
Control panel
6 Base
Infrared LED
Select atomiser level
9 Warmth
10 Select switch off time for humidifier L
1 Select humidity %
On-/Off-switch
Night mode
Tank cover with filter
Floating switch
Air vent
17 Ultrasonic transducer
Ground switch

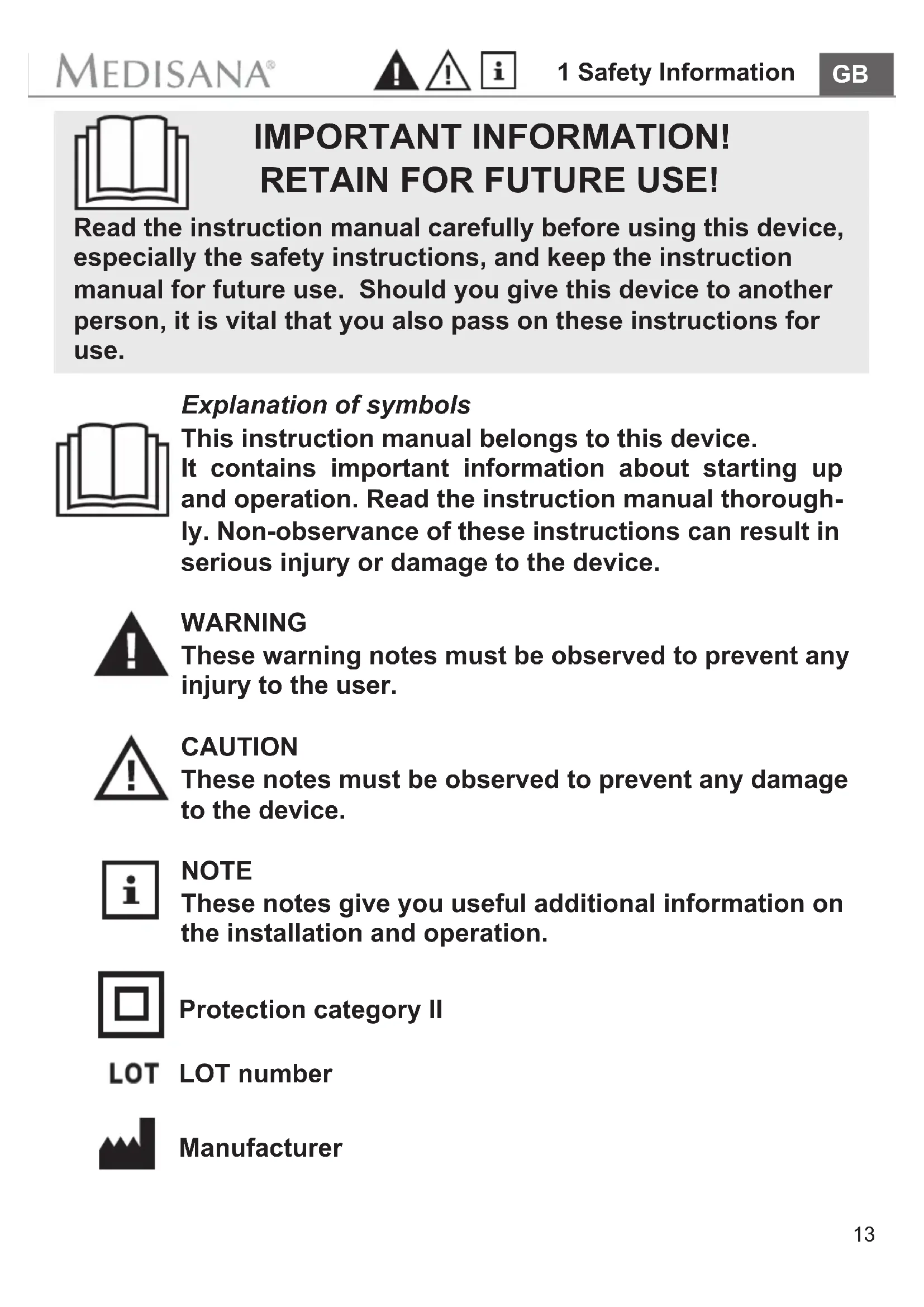

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use.

Explanation of symbols

This instruction manual belongs to this device.

It contains important information about starting up and operation. Read the instruction manual thoroughly. Non-observation of these instructions can result in serious injury or damage to the device.

WARNING

These warning notes must be observed to prevent any injury to the user.

CAUTION

These notes must be observed to prevent any damage to the device.

NOTE

These notes give you useful additional information on the installation and operation.

Protection category II

LOT LOT number

Manufacturer

Power supply

• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
• If unusual noises or smells are noticed or if the device shows other atypical behavior, stop using it and immediately disconnect the power supply to prevent fire or accidents.
• Only connect the mains plug to the wall socket when the device is switched off.
• Switch the device off prior to disconnecting the power.
• Never carry, pull or turn the device by the electricity cable and do not squeeze the cable.
• Position the mains cable so as to avoid the danger of falling and that the risk of strangulation is completely excluded.
• Do not touch the mains plug when you are standing in water and always take hold of the plug with dry hands.
• If the mains cable of this device is damaged, it needs to be replaced by a special mains cable, which is available from the manufacturer or its customer service.
• Do not use the device if it or the power supply cable is damaged, if it does not work properly or if it has been dropped or fallen into water.
• Keep the device and its power cable away from hot surfaces.
• If the power supply cable is damaged, it may only be replaced by MEDISANA, an authorised dealer or by qualified personnel. In order to prevent hazards, always send the unit in to the service centre.

For special people

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.

• In the event of an allergic respiratory problem, consult your doctor before using the appliance.

• Should you experience medical complaints during use talk to your doctor. Should this be the case, stop using the device immediately.

Operating the device

• The device is not determined for commercial use.
• Only use the device for its intended use as in the instruction manual. If misused, all guarantee rights shall become null and void.
• Keep pets away from the device.
• Place the device on a firm, floor area which is insensitive to moisture when in use so that it cannot tip over.
• Keep the device away from direct sunlight and heat sources.
• Place the appliance at least 2 meters away from TV or radio devices to avoid interferences.
• Do not take hold of a device if it falls into water. Unplug the mains cable immediately.
• Do not use the device if the water tank is empty or does not contain enough liquid. The water inside the tank must not be frozen or hot.
• Never block the mist or the air outlet.
• Always make sure that the device is switched off and unplugged from the socket when transporting, filling and emptying the water tank.
• Never insert metallic objekts into the appliance.
• Switch off all functions after use and remove the plug from the mains supply.
• Keep the ventilation slits on the underside of the unit free of dust and impurities.

Please note the following in particular concerning electrical equipment:

Only use the unit in enclosed spaces!

Maintenance and cleaning

• You may only clean the device yourself. If the device malfunctions do not repair it yourself as this leads to the automatic expiry of all guarantee rights. Ask your specialist dealer and have repairs carried out by the MEDISANA service.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not disassemble the device - there is danger of eletric shock and fire.
• Do not immerse the device in water or other fluids.
• If, nonetheless, liquid should penetrate the device, unplug the mains cable immediately.
• Store the unit in a dry place.
• If the water is not renewed and the water tank is not thoroughly cleaned on a regularly base, microorganisms may breed inside the water tank and may get into the ambient air, which is a serious health risk.

2 Useful Information

2.1 Please check first of all that the device is complete and is not damaged in Scope any way. In case of doubt, do not use the appliance and contact your sup- of de- plier or your service centre.

livery

and The following parts are included:

pack- 1 MEDISANA air humidifier AH 675 incl. remote control
aging - 1 Battery CR2025 for remote control
- 1 Instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required. If you notice any transport damage during unpacking, please contact your supplier without delay.

WARNING Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

2.2 Ultra-sound technology

Very dry air increases susceptibility to infection and respiratory diseases and leads to fatigue and lack of concentration. Healthy air should have a relative atmospheric humidity of 40 to 55% . The quiet, energy-saving ultrasound technology of the personal humidifier uses oscillation to convert water into a fine mist that increases the moisture level of the air. This improves the air quality and prevents the mucous membranes and skin from drying out.

CAUTION

Over-intensive operation can result in saturating the room with moisture, which can affect the walls, windows and objects in the room. Therefore, check that the level of relative air humidity does not exceed 55% .

3 Operating

CAUTION

Make sure that the MEDISANA air humidifier is operated on a surface which is resistant to water, and that it cannot tip over. In particular, when operated with mineralised water, condensation / residues may be produced. Make sure that the mist being issued is not directed towards electronic appliances, furniture or walls.

3.1 Filling the water tank

Before you switch on the device for the first time, leave it for half an hour at room temperature. Also the device should only be filled up if it is placed on a level and stable surface and can not tip over. The protruding pin of the ground switch must touch the base and activate the switch.

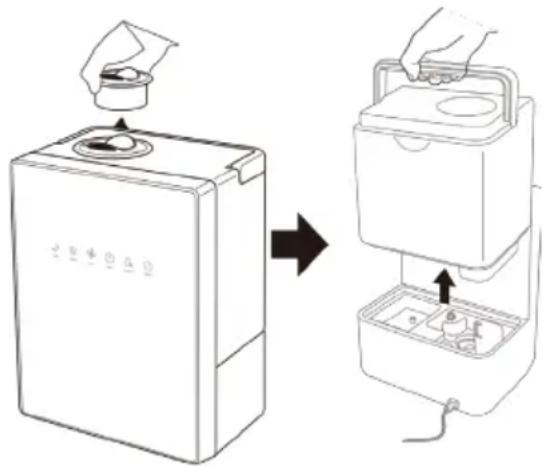

1. Remove the vent outlet the water tank 4

1 and lift

3.1 Filling the water tank

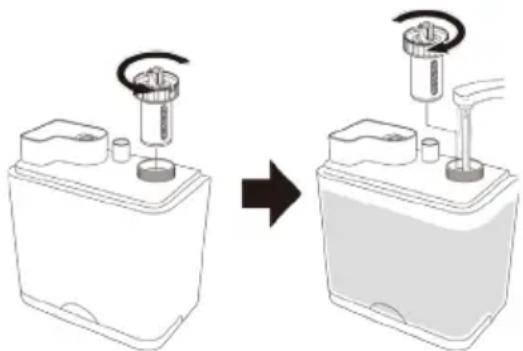

1. Unscrew the tank cover with filter 14 in anti-clockwise direction and fill the water tank 4 with fresh drinking water or distilled water. Maximum capacity approx. 5.2 litres.

1. If you wish to use a water-soluble aroma essence, add 5 drops of the essence to the fully filled water tan. If you add the aroma essence to the water tank, sediment may form around the device during use. Aroma essences are commercially available. Follow the manufacturers instructions.
2. Screw the tank cover with filter 14 back onto the thread and place the water tank 4 back on the appliance and reinstall the vent outlet 1.

CAUTION

Only use fresh drinking water in the device. You can also use demineralised water, if the water is very hard and calciferous.

Clean the device at regular intervals and remove lime and other deposits, to maintain its efficiency.

Never operate the device when the water tank is empty.

1. Insert the mains plug into a wall socket. The device is now ready for operation.

3.2 Changing the battery (remote control)

Before you can use the device, you may need to remove the insulation foil from the battery compartment of the remote control. If the air humidifier no longer responds to the remote control, the battery needs to be replaced. Press the locking tab in the direction of the arrow and pull out the battery holder.

Replace the used battery with a new one (CR 2025 lithium battery). Make sure, that the polarity is correct ("+") facing upwards. Slide the battery holder all the way back in, until it clicks into place.

WARNING - BATTERY SAFETY INFORMATION

• Do not disassemble batteries!
• Clean the battery and device contacts if necessary before putting in the battery!
• Remove discharged batteries from the device immediately!
• Increased risk of leakage, avoid contact with skin, eyes and mucous membranes! If battery acid comes in contact with any of this parts, rinse the affected area with copious amounts of fresh water and seek medical attention immediately!
• If a battery has been swallowed seek medical attention immediately!
• Only replace with a battery of the same type!
• Insert the battery correctly, observing the polarity!
• Keep the battery compartment well sealed!
• Remove the battery from the device if it is not going to be used for an extended period!
• Keep batteries out of children's reach!
• Do not attempt to recharge batteries! There is a danger of explosion!
• Do not short circuit! There is a danger of explosion!
• Do not throw into a fire! There is a danger of explosion!
• Keep unused batteries in their packaging away from metal objects in order to prevent short circuiting!

3.3 Use

1. Briefly press the button 12 on the remote control or 0 on the control panel 5 of the device to switch on the appliance.
2. The button on the device resp. the button on the remote control enable the following functions:

Press 1x (1 transverse bar is displayed

low level = little mist

Press 2x (2 transverse bars are displayed

medium level = medium quantity of mist

Press 3x (3 transverse bars are displayed

high level = a lot of mist.

The digital display 2 indicates the current adjusted level in form of 1 to 3 bars.

1. You may preset the desired air humidity with the button 1 on the remote control or the button on the control panel 5 in the range of 40% to 75% . Each press of the button changes the value by 5% . The display 2 indicates the adjusted value flashing for a short time, afterwards it will proceed to the current air humidity indication. Depending on the setting, the device now switches the nebulization on or off in order to achieve / maintain the desired preset value.

3.3 Use

1. During nebulization, press button on device or button 10 on the remote control to activate the automatic switch off function of the device. The adjusted preset time (1 to 9 hours) shortly flashes in the display 2 .
2. The button resp. 9 activates / deactivates the warmth function. With activated warmth function "Hybrid" appears in the display 2 and the device will nebulize warm mist.
3. Turn the vent outlet 1 to change the direction of mist output.
4. Press the button on the device resp. the button 13 on the remote control to activate the night-mode. The - symbol appears in the display, but will go off after 5 seconds. The nebulization continues while the display will be switched off. Press the -button to switch on the display again shortly and press the - button another time to deactivate the night-mode.
5. Press the button 12 on the remote control or on the control panel 5 of the device to switch off the nebulization. It will stop immediately, but the fan of the device is still running for about 30 seconds.

NOTES:

• If you touch or press a button during normal operation or during night-mode, the current state of the function will be displayed first. You may change the function with further presses only. An exception to this is the -button.
• The device features a memory function. If you switch on the appliance, it will start running using the last adjusted settings for level and humidity value.
• If too less water is in the tank or if the tank is not correctly mounted or the appliance is placed on an uneven area (so that the ground switch 18 is triggered), a red warning light will light up and the device will stop the nebulization.

3.4 After use

1. Switch the device off and remove the mains plug from the socket.
2. Remove the vent outlet 1 and the watertank 4. Pour out any remaining water. Rinse out the tank with fresh water.
3. Dry the water tank and the vent outlet if necessary with a soft, absorbent cloth.
4. If you do not intend to use the appliance for a prolonged period: Also pour away any remaining water in the base ⑥ by tipping it over a wash basin.

CAUTION! Water must not get into the air vent 16! You can use a soft, absorbent cloth to remove any moisture left inside.

3.5 Faults and Fault remediying

• Unusual smell: Polluted or stagnant water, clean the tank and fill up with fresh water.
  Unusual noise: Insufficient water in the tank, fill up with water/device is not on a solid surface, place on a stable and level surface.

If a fault cannot be remedied using the described method, please contact your service centre.

4 Miscellaneous

4.1 Cleaning and maintenance

• During everyday use it is advisable to give the device a thorough cleaning at least every three days. After prolonged non-use, empty the device and the tank to prevent contamination / algae from the outset. From time to time disinfect with alcohol. Also clean the device before and after long storage periods.
• Before cleaning the device, make sure that it is turned off and the mains plug is removed from the socket.
• Remove the water tank 4 from the device and empty it.
• Clean the outside of the unit with a soft, damp cloth.
• Please do not use any aggressive substances for cleaning, such as scouring cream or other detergents, as these may damage the surfaces and reduce the atomisation effect.
• You can rinse out the water tank with hot water (>65^) or an alcohol of at least 75% vol. The atomiser chamber with the ultrasonic transducer should be cleaned using an alcoholsoaked cloth and cotton bud. Take care to ensure that no water gets inside the humidifier.
• The ultrasonic transducer ① is the most sensitive component in the device. It is important for it to be kept clean and handled with care. Use e.g. a cleaning brush to remove all the residue and dirt particles. Never clean the ultrasound generator using metal objects.

4.1 Cleaning and maintenance

• Pay attention, that mains cable and plug are not contaminated by dust or dirt to avoid electrical disturbances.
• If you do not intend to use the unit for an extended period of time, empty any remaining water from the tank 4 and dry off the unit.
• Store the unit in a cool, dry place, preferably in its original packaging.
• Remove cap from underside of the water tank and store separately to prevent sleeve gasket from sticking.

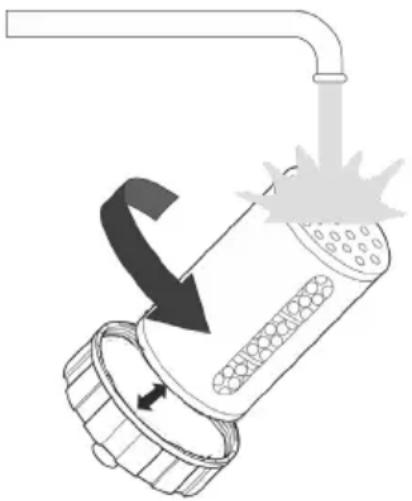

4.2 Cleaning the filter

The filter element contains ceramic balls inside. Rinse under running, warm water. If you have not used the device for a long time, you can also remove the balls, rinse them individually, let it dry well and reinsert them afterwards. The filter cartridge can be unscrewed (in anti-clockwise direction) from the tank cap and may be replaced then.

Depending on the water used, the cartridge should be replaced at the latest after 6 months.

4.3 Any limescale residue may be removed using a descaler (citric acid) :

De- 1. Remove the filter.

scaling 2. Use the descaler according to the manufacturer's instructions.

1. Pour a small amount into the tank chamber and leave for a few minutes to take effect.
2. Pour out the descaler and rinse several times with clear water.

CAUTION! Water must not get into the air vent 16! Take care that there is no more descaler left inside the appliance.

4.4 Disposal

This product must not be disposed of together with domestic waste. All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner. Consult your municipal authority or your dealer for information about disposal.

Please remove the battery before disposing of the device/unit. Do not dispose of old batteries with your household waste, but at a battery collection station at a recycling site or in a shop.

4.5 Technical specifications	Name and model	: MEDISANA Air humidifier AH 675
	Power supply	: 220-240V~ 50/60Hz
	Output	: max. 116 W
	Tank contents	: approx. 5,200 ml
	Atomizer capacity	: cold mist max. approx. 300 ml/h / warm mist max. approx. 400 ml/h
	Duration	: max. approx. 9 hours via timer setting max. approx. 23 hours at minimum setting
	Dimensions	: approx. 28 x 22 x 35 cm
	Weight	: approx. 2.4 kg
	Connection cable length	: approx. 150 cm
	Storage conditions	: clean and dry, at +10°C to +40°C
	Item number	: 60025
	EAN number	: 40 15588 60025 8
	Accessory parts	: Replacement filter, item number 60026 EAN 40 15588 60026 5

In accordance with our policy of continual product improvement, we reserve the right for technical and design changes without notice.

The current version of this instruction manual can be found under www.medisana.com

Warranty and repair terms

Please contact your supplier or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be corrected free of charge within the warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.
4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observation of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA GmbH

Jagenbergstraße 19

41468 NEUSS

Germany

The service centre address is shown on the attached leaflet.
