HD 50 Cosy - Heated blanket BEURER - Free user manual and instructions

Frequently Asked Questions - HD 50 Cosy BEURER

USER MANUAL HD 50 Cosy BEURER

Instruction for Use. 9

Cape chauffante

Couverture chauffante

Mode d'emploi 15

Mantoelectrico

Manta électrique

1. Items included in the package 10
   1.1 Description 10
2. Important instructions Retain for future use 10
3. Intended use 12
4. Operation 12
   4.1 Safety 12
   4.2 Initial use 12
   4.3 Switching on. 12

4.4 Setting the temperature 12
4.5 Switching off 13
4.6 Automatic switch-off 13

1. Cleaning and maintenance. 13
   6.Storage 14
   7.Disposal. 14
   8.What if there are problems? 14
2. Technical data 14

Explanation of symbols

	Read the instructions!	30	Machine-washable on an extra-delicate cycle at 30°C
			Do not bleach
	Do not insert pins! Do not double dry
					Do not iron
	Do not use folded or rucked!		Do not dry-clean
0-3	Not to be used by very young children (0 - 3 years).	OEKO-TEX® CONFIDENCE IN TEXTILES STANDARD 100 FIRE AND HONGKONG 06.0.43510 HONGKONG HONGKONG Tried for harmful substances, www.yoko-ko.com/standard/100	The textiles used for this device meet the stringent human ecological requirements of Oeko Tex Standard 100, as verified by Hohenstein Research Institute.
	WARNING: Warning of risks of injury or health hazards

CAUTION: Safety information about possible damage to appliance/accessories.

NOTE: Important information.

1. Items included in the package

1 Electric cape/Thermal Overblanket
1 Controller
1 Instructions for use

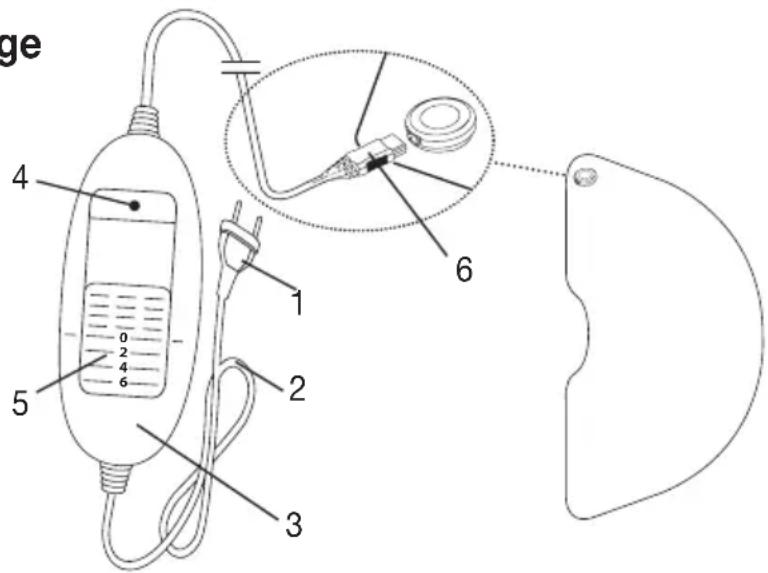

1.1 Description

1. Mains plug
2. Mains cable
3. Controller
4. Indicator lamp
5. Sliding switch for ON/OFF and temperature settings
6. Plug-in coupling

Please note: The HD 50 can be used as either an electric overblanket or an electric cape. The term "electric overblanket" is used in the following instructions for use to refer to both uses. The instructions apply equally to the use as an electric cape.

2. Important instructions Retain for future use

WARNING

• Non-observation of the following instructions may result in personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. For this reason, pay attention to these safety notes and include these instructions for use when handing over the product to others.
• This electric overblanket may not be used by people with reduced sensitivity to heat or by other very vulnerable people as they are unable to respond to overheating (e.g. diabetics, persons with skin changes related to illness or persons with scarred skin in the area where the pad is to be applied, after taking any pain-relieving medication or alcohol).

• This electric overblanket may not be used by very young children (0-3 years old) as they are unable to respond to overheating.

• This electric overblanket may not be used by young children (3-8 years old) unless the controller has been set by a parent or responsible adult and the child has been given adequate instructions on how to use the electric overblanket safely.

• This electric overblanket may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the electric overblanket safely, and are fully aware of the consequent risks of use.

• Children must not play with the electric overblanket.

• Cleaning and user maintenance must not be performed by children unless supervised.

• This electric overblanket is not designed for use in hospitals.

• Do not insert needles.

• Do not use when folded or bunched up.

• Do not use if wet.

• This electric overblanket may only be used in conjunction with the controller specified on the label.

• The electrical and magnetic fields emitted by this electric overblanket may interfere with the function of a pacemaker. However, they are still well within the limits: electrical field strength: max. 5000V / m , magnetic field strength: max. 80A / m , magnetic flux density: max. 0.1 millitesla. Please consult your doctor and the manufacturer of your pacemaker before using this electric overblanket.

• When this electric overblanket is switched on

• do not place any objects on it (e.g. suitcase or washing basket)

• Heat sources, such as hot water bottles, heating pads or similar, must not be placed on the pad.

• The electronic components in the controller warm up when the electric overblanket is in use.

For this reason, the controller must never be covered or placed on the electric overblanket when it is in use.

• Do not pull, twist or make sharp bends in the cables.

• Please check this electric overblanket frequently for signs of wear and tear or damage.

If any such signs are evident, if the electric overblanket has been used incorrectly or if it no longer heats up, it must be checked by the manufacturer before being switched on again.

• If the mains cable of the electric overbanket is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person to avoid any risk.

• Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).

• If you should have any questions about using our devices, please contact Customer Services.

3. Intended use

CAUTION

This electric overblanket is only designed to warm up the human body.

The electric overblanket is shaped so that it can be worn as a cape. The dark surface of the overblanket/cape must face towards the body. The electric cape can be closed using poppers at the front. There are also further poppers in the area of each arm to ensure a better fit to the body (see image).

4. Operation

4.1 Safety

CAUTION

The electric overblanket is fitted with the SAFETY SYSTEM. This electronic sensor technology provides protection against overheating across the entire surface of the electric overblanket with an automatic switch-off if there is a fault.

Please note that, for safety reasons, the electric overblanket can no longer be operated after a fault has occurred and must be sent to the specified service address.

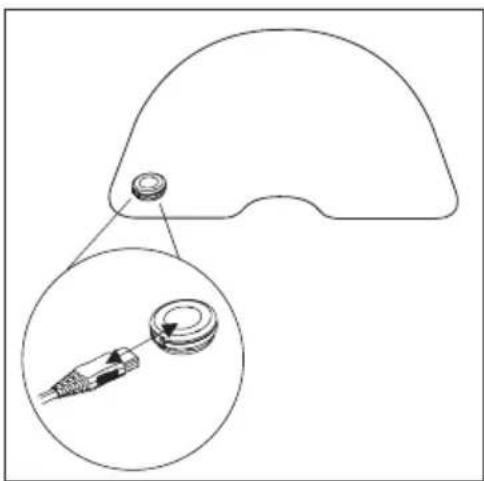

4.2 Initial use

• First, connect the controller to the electric overblanket by inserting the plug-in coupling.
• Then plug the mains plug into the socket.

4.3 Switching on

To switch the electric overblanket on, set the sliding switch for ON/OFF and temperature settings to setting 1, 2, 3, 4, 5 or 6.

When it is switched on, the indicator lamp (4) lights up.

4.4 Setting the temperature

Level 0: OFF

Level 1: minimum heat

Setting 2 - 5: individual heat setting

Level 6: maximum heat

WARNING

If the electric overblanket is being used over several hours, we recommend that you set the lowest temperature setting on the controller to avoid overheating the person using the blanket.

NOTE

The fastest way to warm up the electric overblanket is to initially set the highest temperature setting.

4.5 Switching off

To switch off the electric overblanket, slide the sliding switch for ON/OFF and temperature settings to the OFF (0) position.

NOTE

If the electric overblanket is not being used for several days, slide the sliding switch for ON/OFF and temperature settings to the OFF (0) position and remove the mains plug from the socket.

Then disconnect the controller from the electric overblanket by unplugging the plug-in coupling.

4.6 Automatic switch-off

This electric overblanket switches off automatically after 3 hours. Once the electric overblanket has switched off, it is no longer heated and the indicator lamp flashes.

To switch on the electric overblanket again, first set the sliding switch for ON/OFF and temperature settings to the OFF (0) position for 5 seconds. After about 5 seconds it is possible to switch it on again.

5. Cleaning and maintenance

WARNING

Before cleaning, always remove the mains plug from the socket first. Then disconnect the controller from the electric overblanket by unplugging the plug-in coupling. Otherwise there is a risk of electric shock.

CAUTION

• The controller must never come into contact with water or other liquids, as this may cause damage.

To clean the controller, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.

Small marks on the electric overblanket can be removed with a damp cloth or sponge and, if necessary, with a little liquid detergent for delicate laundry.

CAUTION

• Please note that the electric overblanket may not be chemically cleaned, wrung out, tumble dried, put through a mangle or ironed.

Set the washing machine to a particularly gentle wash cycle at 30^ (wool cycle).

Use a delicate laundry detergent and measure it out according to the manufacturer's instructions.

CAUTION

• Please note that frequent washing of the electric overblanket has a negative effect on the product.

The electric overblanket should therefore be washed in a washing machine a maximum of 5 times during its life. Immediately after washing, reshape the electric overblanket to its original dimensions while it is still wet and spread it out flat over a clothes horse to dry.

CAUTION

• Do not use pegs or similar items to attach the electric overblanket to the clothes horse. Failure to do so may damage the electric overblanket.
• Do not reconnect the controller to the electric overblankest until the plug-in connector and electric overblankest are completely dry. Failure to do so may damage the electric overblankest.

WARNING

• Never switch the electric overblanket on to dry it! Otherwise there is a risk of electric shock.

6. Storage

If you do not plan to use the electric overblanket for a long period of time, we recommend that you store it in the original packaging. For this purpose, disconnect the controller from the electric overblanket by unplugging the plug-in coupling.

CAUTION

Allow the electric overblanket to cool down before folding. Otherwise the electric overblanket may be damaged. Do not crease the electric overblanket by placing items on top of it during storage.

7. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispos of the unit at a suitable local collection or recycling point. Dispos of the device in accordance with EC Directive - WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

8. What if there are problems?

Problem Cause Solution
The indicator lamp is not illuminated while - the controller is properly connected to the electric overblanket - the mains plug is connected to a working socket - the sliding switch for ON/OFF and temperature settings is set to 1, 2, 3, 4, 5 or 6	The safety system has switched the electric overblanket off perma- nently.	Send the electric overblanket and the controller for servicing.

9. Technical data

See the type plate label on the electric overblanket.
