Technical Features	ROINTE Kyros electric inertia heater, variable power, modern design, programmable.
Dimensions	Compact dimensions suitable for domestic use.
Usage	Ideal for heating living spaces, silent operation, remote control available.
Maintenance	Easy maintenance, clean the surface with a soft cloth, regularly check electrical connections.
Safety	Equipped with safety devices, overheat protection, automatic shutdown in case of failure.
General Information	Manufacturer warranty, compliance with current safety standards, energy label.

Frequently Asked Questions - Kyros ROINTE

How do I set the temperature on the ROINTE Kyros heater?

To set the temperature on the ROINTE Kyros heater, use the adjustment knob located on the control panel. Turn it clockwise to increase the temperature and counterclockwise to decrease it.

The heater won't turn on, what should I do?

First, check if the heater is properly plugged in and if the outlet is working. Also, make sure the circuit breaker hasn't tripped. If the problem persists, contact customer service.

How do I clean the ROINTE Kyros heater?

To clean the heater, unplug it and use a soft, damp cloth to wipe the surface. Avoid abrasive products that could scratch the coating.

Is the ROINTE Kyros heater energy efficient?

Yes, the ROINTE Kyros heater is designed to be energy efficient, with features such as temperature regulation and optimized operating modes.

How do I program the operating schedules of the heater?

To program the operating schedules, access the programming menu on the control panel. Follow the displayed instructions to set your preferred times.

The heater makes a strange noise, what should I do?

A strange noise may be due to moving parts or dust accumulation. Check if the heater needs cleaning. If the noise persists, contact technical support.

What are the safety settings of the ROINTE Kyros heater?

The ROINTE Kyros heater is equipped with several safety features, including overheat protection, a safety thermostat, and automatic shutdown in case of failure.

How do I reset the ROINTE Kyros heater?

To reset the heater, unplug it for about 10 minutes, then plug it back in. This can resolve some minor issues.

What is the warranty for the ROINTE Kyros heater?

The ROINTE Kyros heater typically comes with a 2-year warranty. Please refer to the user manual for specific warranty details.

USER MANUAL Kyros ROINTE

MANUEL D'INSTRUCTIONS

MONTAGE, INSTALLATION, MISE EN

MARCHE ET FONCTIONNEMENT

MANUAL DE INSTRUÇões

MONTAGEM, INSTALLACAO, LIGACAO

E FUNCIONAMENTO

Thank you very much for choosing the low consumption KYROS digital electric radiators with an exclusive electronic time and temperature programmer, made with maximum quality components especially for you. The low consumption KYROS digital electric radiators have passed the strictest quality controls to satisfy the most rigorous safety and energy efficiency requirements. Thanks to the FUZZY LOGIC ENERGY CONTROL, exclusive to the ROINTE SYSTEM, the low consumption KYROS digital electric radiators achieve the maximum energy saving.

Before using the low consumption KYROS digital electric radiators, we recommend that you read this instruction manual in order to ensure correct operation.

ESPANOL 15

1.DESCRIPTION OF THE "KYROS RADIATOR
1.1. Front panel parts

TFT DISPLAY

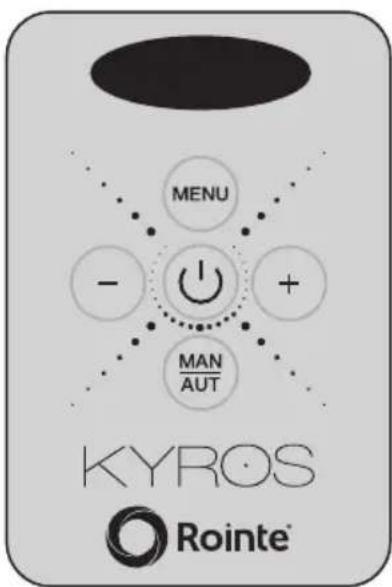

CONTROL PANEL

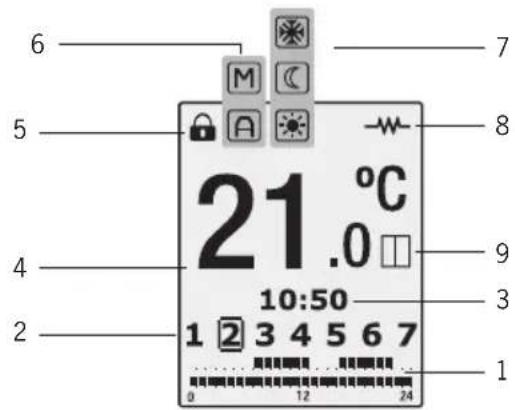

1.1.1. TFT display symbols

SEGMENT INDICATION
1	PROGRAMMING
2	DAYS OF THE WEEK
3	TIME OF DAY
4	TEMPERATURE SELECTED
5	LOCKING THE CONTROL PANEL
6	MANUAL/AUTOMATIC FUNCTION
7	COMFORT/ECONOMY/ANTI-FROST MODE
8	RADIATOR ON
9	OPEN WINDOW FUNCTION

1.2. Switching On & Off (stand-by)

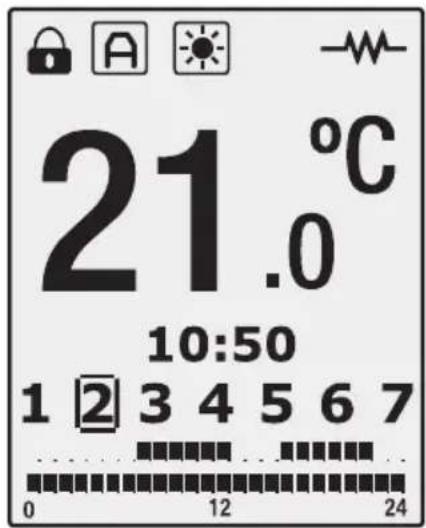

By pressing the key, we can switch the radiator on or off. The following image will appear on the screen when switched on:

The screen will automatically go into sleep mode if no button is pushed for 10 seconds. By pushing the button again the radiator will go into standby mode with the word "Standby" appearing followed by the Rointe logo.

KYROS

1.3. Setting the day and time

By pressing the button for 3 seconds, we can access the time and date adjust feature to adjust the time and date of our radiator.

Pressing the button, flashes up the hours, minutes and days of the week according to the number of times it is pressed. With the buttons and we can alter the current settings.

To leave the time and date adjust feature, wait 30 seconds or press after the date select.

1.4. Blocking the control panel

By pressing the keys and , at the same time for 3 seconds, we block the control panel, the control panel symbol is activated, and the keys will not respond when pressed. The following symbol will appear on the screen if any button is pushed:

To unblock, press again the keys and , at the same time for 3 seconds.

1.5. Temperature selection

By pressing or we change the temperature. When the room temperature is lower than the one set, the radiator comes on, the symbol appearing.

1.6. Manual/Automatic functions

By pressing we change between the Manual and Automatic functions.

When the Manual function is selected, the symbol appears on the display. When the Automatic function is selected, the symbol appears on the display.

1.6.1. Manual function

This enables to choose between the modes of operation COMFORT, ECO and ANTI-FROST, changing the temperature as indicated in Section 1.5.

ICON MODE TEMPERATURE RANGE
○	COMFORT 20°C – 30°C
○	ECO 15°C – 19,5°C
○	ANTI-FROST 8°C

1.6.2. Automatic function

This mode activates the programming set on the radiator.

1.7. Menu/Programming function

By repeatedly pressing we can see the programming that is saved in the radiator for each day. Pressing only once shows day one, twice shows day two and so on.

Pressing for 3 seconds allows you to program the radiator directly:

1. Select the CONFORT temperature setting (20^ to 30^) , using and . The symbol and the temperature will flash.

2. Press and we can select using and the ECO temperature [15°C to 19.5°C]. The symbol and the temperature will flash.

3. After pressing the button once again, the numbers of the week will start flashing and show as SEL1, SEL2, SEL3.... We can go forwards and backwards using the button and +. Press to select the day that we wish to program.
4. Pressing + , takes us to the hour we wish to program. To change the hours use the - or + , buttons. The hours selected will show as [0h, 1h, 2h,] . By pressing the button, we can select hour by hour the mode required: CONFORT, ECO or OFF.
5. To finish the programming press or leave it for 30 seconds without pressing any buttons.

1.8. "Open Window" function

This function is activated when the probe detects a reduction of 4^ in respect of the set temperature during 30 minutes. On activation the following image will appear on the radiator display for 5 seconds:

When the "Open window" function is activated, the following screen will appear showing that the anti-frost mode is activated:

This function will be active for 2 hours. If the button is pushed during this period the radiator will switch off. Pushing the button again will switch on the radiator without the "Open window" function being switched on.

1.9. Screen brightness function

You can change the brightness of the screen by pushing the button for 3 seconds when the product is in manual mode. Entering this mode you will see the following screen:

KYROS

In ON mode you can increase or decrease the brightness of the screen by using the and + buttons.

You can change the "Standby" mode brightness by pushing the button to move the frame to the "STAND-BY" position. You can then adjust the brightness by pushing the same and keys.

To finish the programming wait for 10 seconds without pressing any buttons.

2. INSTALLATION & MOUNTING

The radiator must never be installed immediately below a power point.

In bathrooms, the radiator must never be installed where the switches and other devices may be within the reach of someone in the shower or bathtub.

2.1. Mounting

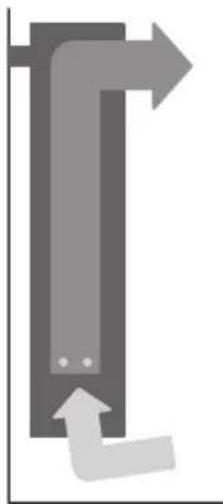

The KYROS radiator works by means of natural air convection (Figure 1). In order to achieve optimal functioning and an even distribution of heat, the lower part of the radiator, once mounted on the wall, must be at least 10 to 12cm from the floor, and 30cm at the most.

Fig. 1

Fig. 2

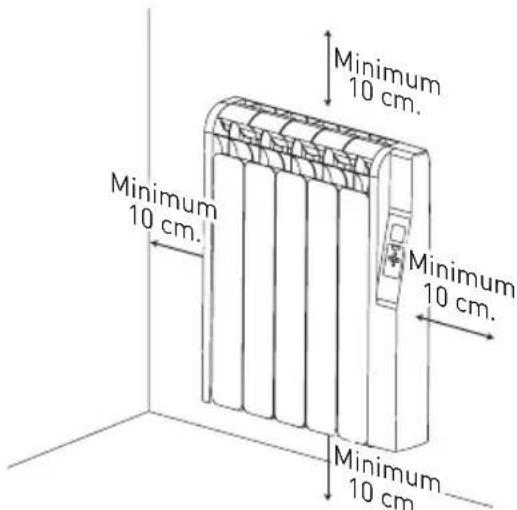

As for the sides and above, a minimum distance of between 10-12 cm must be left from any wall or brickwork in order for it to function correctly (Figure 2).

2.2. Fixing the supports

Inside the packaging you will find a fixing kit.

• Choose the right part of the wall.
• Place the mounting stencil on the wall, marking the places for the holes.
• Remove the stencil and make the holes in the wall.
  Fix the support brackets using the plugs and screws provided, or others suitable for the wall type.
• Place the radiator in the top supports.

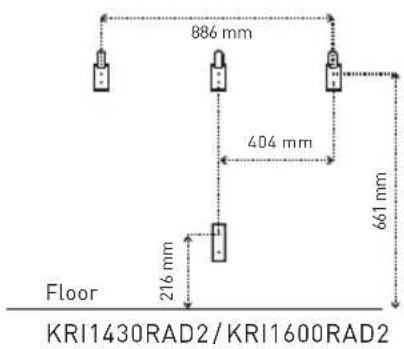

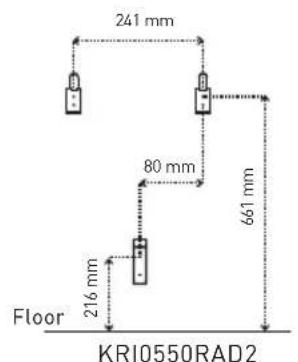

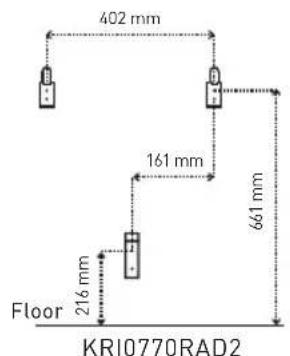

Installing template measures depending on the model:

KYROS

3. MAINTENANCE & CLEANING

The radiator does not require any type of maintenance. We recommend that all parts of the radiator are kept clean (behind, underneath, upper fins etc.). Do not use any abrasive product on the aluminium. Clean it with a damp cloth and a pH neutral soap, and the stencil with a dry cloth.

4. INSTALLATION & SAFETY PRECAUTIONS (EN 60335 STANDARDS)

Before switching on the radiator, please read the "Installation & Safety Precautions" in detail first, to ensure the correct operation of the radiator.

4.1. Installation precautions

The radiator is designed for household or residential use. You are advised to have the radiator installed by an authorized dealer or personnel. Make sure the radiator is properly connected to 220V - 230V, and is earthed.

4.2. Safety precautions

This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision. Children must be supervised at all times to ensure that they do not play with the product.

This radiator heater is filled with a precise amount of special oil that does not need any maintenance. Any repairs requiring the opening of the oil tank must only be done by ROINTE or its after-sales service, who should also be notified should an oil leak be noticed. The regulations on discarding oil when the heater is being disposed of must be observed. If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or authorized personnel in order to avoid any damage.

WARNING! In order to avoid overheating, don't cover the heater. Don't insert any kind of object in the air vents. Never use with wet hands. Don't place any containers with water, such as glasses, vases, etc. on the radiator. Don't use insecticides, paints or aerosols on the radiator. Don't sit on the radiator or place anything in front of it.

European Directive 2012/19/EC

Under the European Directive 2012/19/EC on waste electrical and electronic equipment (WEEE), the apparatus cannot be disposed in the usual council bins and containers. They must be separated to optimize the recovery and recycling of all of the components and materials and reducing the impact to human health and the environment. The symbol of the container crossed out over a horizontal line marks all of ROINTE's products to remind the consumer of the obligation to separate them on disposal.

The consumer should contact the local authority or original point of sale to learn more about the correct disposal of this product.

5. GUARANTEE

In this section, we hereby describe the guarantee conditions which the buyer acquires on buying a new radiator of Rointe brand. These conditions comply with all the rights construed in the national legislation in force, as well as any additional rights and guarantees which are offered by Rointe brand.

5.1. Any incidence that you might detect in your Rointe radiator, can be seen to by the product seller or quickly by the manufacturer. Rointe provides a contact telephone for any technical support 01432 59 8024 or the following email address [e-mail], through which we will instruct you on how to solve the incidence. You will need to state the product reference (located on the label indicating product features), series number, date of purchase and the type of incidence at hand when contacting us so that we may improve the guarantee. In addition, please attach a copy of the product invoice.

5.2. Rointe guarantees that there are no material defects of design or manufacture at the time of original acquisition and guarantees for a period of 120 months for aluminium and sealing and 24 months for any electronic and electrical components.
5.3. If during the guarantee period, the product does not work correctly under normal use, and any design, material or manufacturing defect is found, ROINTE, will repair or substitute the radiator, as it may see fit, in accordance with the terms and conditions established, as follows:
5.3.1. The guarantee is only applicable if the original guarantee is issued by the seller and when the said guarantee is filled in correctly including product reference, series number (marked on the product's label indicating technical features), purchase date and the seller's stamp.

ROINTE reserves the right to reject the guarantee service when this information has been removed or modified after the original product purchase.

KYROS

5.3.2. The guarantee only applies to those cases that concern material, design and manufacturing defects, and under no circumstances covers damage to the radiator for the following reasons:

a) Incorrect use of the product, i.e. used for other purposes that are not construed as its normal use or for not respecting the instructions of use and maintenance given by Rointe, as well as incorrect installation or use of the product that may not comply with the current technical standards of safety.
b) Any unauthorised repairs carried out by unauthorised technicians or opening of the radiator by unauthorised people.
c] Any accidents that are deemed outside the control of Rointe, such as lightening, fires, floods, public disorders, etc.,

5.3.3. Any repairs or substitutions that are included in this guarantee do not allow any additions or new periods of guarantee.
5.3.4. Any repairs or substitutions covered under this guarantee must be parts that are functionally equivalent. The defective parts or parts removed or replaced shall become the property of Rointe.
5.4. The technical service of Rointe will advise you if you need to buy any parts not covered under the guarantee or out of guarantee.
5.5. This guarantee does not affect the buyer's legal rights stipulated in the current national legislation, neither affects those rights against the distributor or installer that could come forth in compliance with the purchase contract.
5.6. In the absence of a national legal legislation applicable, this guarantee shall prevail and may be construed as the buyer's only protection. Rointe, its offices, distributors and installers may not be held responsible for any accidental damage that emerges due to infringement of any rules implicitly related to this product.

MODEL	NO. OF ELEM.	POWER	TENSION	HEIGHT	WIDTH	DEPTH	INST. DEPTH	WEIGHT
KRI0330RAD2	3	330 W	230V~	580 mm	350 mm	98 mm	120 mm	10 kg
KRI0550RAD2	5	550 W	230V~	580 mm	520 mm	98 mm	120 mm	14 kg
KRI0770RAD2	7	770 W	230V~	580 mm	680 mm	98 mm	120 mm	18 kg
KRI0990RAD2	9	990 W	230V~	580 mm	840 mm	98 mm	120 mm	22 kg
KRI1210RAD2	11	1,210 W	230V~	580 mm	1,010 mm	98 mm	120 mm	26 kg
KRI1430RAD2	13	1,430 W	230V~	580 mm	1,180 mm	98 mm	120 mm	30 kg
KRI1600RAD2	15	1,600 W	230V~	580 mm	1,330 mm	98 mm	120 mm	34 kg

CERTIFICATE OF GUARANTEE

Cut along the dotted line

In the event of detecting any defect in the product within the period of guarantee, you must fill in the following Guarantee Certificate and send it to us stamped together with a copy of the sales invoice via email [e-mail] or to the following postal address: INDUSTRIAS ROYAL TERMIC, S.L., C/E, Parcela 43, 30140 Santomera (Murcia, Spain).

For new constructions, it is essential that you attach the Certificate of First Occupation.

CERTIFICATE OF GUARANTEE
REFERENCE:	N° SERIES:
USER:
HOME ADDRESS:
TOWN:	POSTCODE:
PROVINCE:	COUNTRY:
TELEPHONE:	SELLER'S STAMP:
EMAIL:	PURCHASE DATE:

NB: This certificate of Guarantee must be filled in fully in order to obtain guarantee rights. The date of purchase and seller's stamp are compulsory. Please, attach a copy of your sales invoices. In addition, for new constructions include the Certificate of First Occupation.
