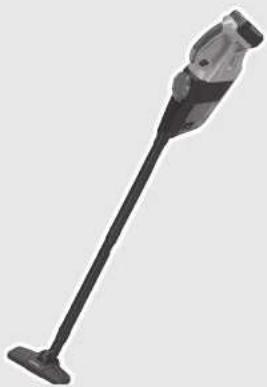

USER MANUAL GAS 18V1 Professional BOSCH

OBJ_BUCH-3178-002.book Page 2 Monday, September 25, 2017 2:16 PM| 3 Bosch Power Tools 1 609 92A 3TE | (25.9.17)

OBJ_BUCH-3178-002.book Page 4 Monday, September 25, 2017 2:16 PM| 5 Bosch Power Tools 1 609 92A 3TE | (25.9.17)

OBJ_BUCH-3178-002.book Page 5 Monday, September 25, 2017 2:16 PM1 609 92A 3TE | (25.9.17) Bosch Power Tools 6 |

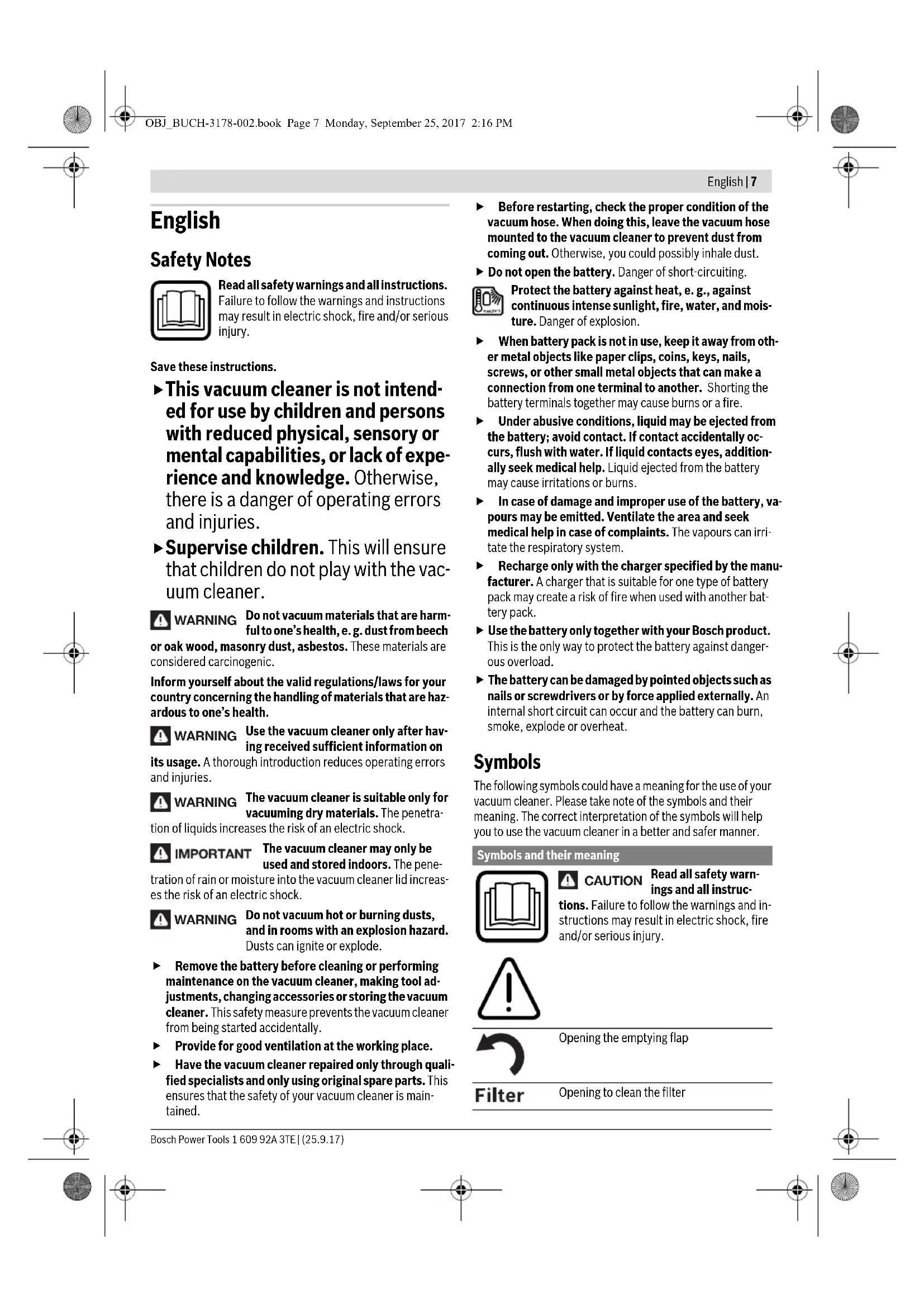

OBJ_BUCH-3178-002.book Page 6 Monday, September 25, 2017 2:16 PMEnglish | 7 Bosch Power Tools 1 609 92A 3TE | (25.9.17) English Safety Notes Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save these instructions. This vacuum cleaner is not intend- ed for use by children and persons with reduced physical, sensory or mental capabilities, or lack of expe- rience and knowledge. Otherwise, there is a danger of operating errors and injuries. Supervise children. This will ensure that children do not play with the vac- uum cleaner. Do not vacuum materials that are harm- ful to one’s health, e. g. dust from beech or oak wood, masonry dust, asbestos. These materials are considered carcinogenic. Inform yourself about the valid regulations/laws for your country concerning the handling of materials that are haz- ardous to one’s health. Use the vacuum cleaner only after hav- ing received sufficient information on its usage. A thorough introduction reduces operating errors and injuries. The vacuum cleaner is suitable only for vacuuming dry materials. The penetra- tion of liquids increases the risk of an electric shock. The vacuum cleaner may only be used and stored indoors. The pene- tration of rain or moisture into the vacuum cleaner lid increas- es the risk of an electric shock. Do not vacuum hot or burning dusts, and in rooms with an explosion hazard. Dusts can ignite or explode. Remove the battery before cleaning or performing maintenance on the vacuum cleaner, making tool ad- justments, changing accessories or storing the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally. Provide for good ventilation at the working place. Have the vacuum cleaner repaired only through quali- fied specialists and only using original spare parts. This ensures that the safety of your vacuum cleaner is main- tained. Before restarting, check the proper condition of the vacuum hose. When doing this, leave the vacuum hose mounted to the vacuum cleaner to prevent dust from coming out. Otherwise, you could possibly inhale dust. Do not open the battery. Danger of short-circuiting. Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and mois- ture. Danger of explosion. When battery pack is not in use, keep it away from oth- er metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addition- ally seek medical help. Liquid ejected from the battery may cause irritations or burns. In case of damage and improper use of the battery, va- pours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irri- tate the respiratory system. Recharge only with the charger specified by the manu- facturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another bat- tery pack. Use the battery only together with your Bosch product. This is the only way to protect the battery against danger- ous overload. The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat. Symbols The following symbols could have a meaning for the use of your vacuum cleaner. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the vacuum cleaner in a better and safer manner. WARNING WARNING WARNING WARNING Symbols and their meaning Read all safety warn- ings and all instruc- tions. Failure to follow the warnings and in- structions may result in electric shock, fire and/or serious injury. Opening the emptying flap Opening to clean the filter CAUTION OBJ_BUCH-3178-002.book Page 7 Monday, September 25, 2017 2:16 PM8 | English 1 609 92A 3TE | (25.9.17) Bosch Power Tools Product Description and Specifica- tions Intended Use The vacuum cleaner is intended for vacuuming dry materials that are not harmful to one’s health. Use the vacuum cleaner only when you fully understand and can perform all functions without limitation, or have received appropriate instructions. Rotational Airflow The bagless filter system removes the need to use dust bags. Dirt is collected on the inside wall of the container. Product Features The numbering of the product features refers to the illustra- tion of the vacuum cleaner on the graphics page. 1 Coarse dirt filter 2 Release button for dust cup 3 On/Off button 4 Handle 5 Battery pack* 6 Motor housing 7 Dust cup 8 Emptying flap release button 9 Emptying flap 10 Extension tube 11 Floor nozzle 12 Battery port 13 Battery unlocking button 14 Crevice nozzle 15 Flexible extension tube 16 Filter grips 17 Filter 18 Rotational Airflow unit with Filter 19 Filter locking tab 20 Wall bracket* *Accessories shown or described are not part of the standard de- livery scope of the product. A complete overview of accessories can be found in our accessories program. Technical Data Assembly Battery Charging Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lith- ium-ion battery pack used in your vacuum cleaner. Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time. The battery must be removed from the vacuum cleaner to charge it. The lithium-ion battery can be charged at any time without re- ducing its service life. Interrupting the charging procedure does not damage the battery. The lithium-ion battery is protected against deep discharging by the “Electronic Cell Protection (ECP)”. When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates. Following the automatic shut-off of the vacuum clean- er, do not continue to press the On/Off button. The bat- tery can be damaged. The battery is equipped with a NTC temperature control which allows charging only within a temperature range of be- tween 0 °C and 45 °C. A long battery service life is achieved in this manner. A significantly reduced working period after charging indi- cates that the battery is used and must be replaced. Observe the notes for disposal. Battery Insertion/Removal (see figures A1 – A2) Do not use force to insert the battery. The battery is de- signed in such a way that it can only be inserted into the vacuum cleaner when it is in the right position. – Slide the battery pack 5 all the way into the battery port

– To remove the battery 5, press the unlocking button 13 on the battery and pull it out of the battery bay 12. Cordless dry vacuum cleaner GAS 18V-1 Article number 3 601 JC6 2.. Container volume (gross) l0.7 Vacuum, max.

l/s 10 Weight according to EPTA- Procedure 01:2014 kg 1.3 Technical Data varies depending on filter used.*depending on the battery pack being used** limited performance at temperatures <0 °C Permitted ambient temperature – during charging – during operation

Recommended chargers GAL 18... GAL 18... W Cordless dry vacuum cleaner GAS 18V-1 Technical Data varies depending on filter used.*depending on the battery pack being used** limited performance at temperatures <0 °C OBJ_BUCH-3178-002.book Page 8 Monday, September 25, 2017 2:16 PMEnglish | 9 Bosch Power Tools 1 609 92A 3TE | (25.9.17) Mounting VAC Accessories (see figure B) Remove the battery before cleaning or performing maintenance on the vacuum cleaner, making tool ad- justments, changing accessories or storing the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally. The vacuum cleaner accessories can be connected directly to the dust cup 7. The combination possibilities of the various vacuum cleaner accessories can be viewed in the figure. – Connect the vacuum cleaner accessories firmly to the con- nection at the dust cup 7 and in to each other. Operation Remove the battery before cleaning or performing maintenance on the vacuum cleaner, making tool ad- justments, changing accessories or storing the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally. Starting Operation Make sure that the filters are fitted securely before vacuuming. Only use an undamaged filter (no cracks, small holes, etc.). Replace a damaged filter immediately. Switching On and Off To save energy, only switch the vacuum cleaner on when us- ing it. –To switch on the vacuum cleaner, press the On/Off button

–To switch off the vacuum cleaner, press the On/Off button 3 again. Maintenance and Service Maintenance and Cleaning Remove the battery before cleaning or performing maintenance on the vacuum cleaner, making tool ad- justments, changing accessories or storing the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally. For safe and proper working, always keep the vacuum cleaner and ventilation slots clean. – Clean the vacuum cleaner housing from time to time using a moist cloth. – Clean soiled charger contacts using a dry cloth. Emptying the Dust Box (see figure C) To maintain the optimum performance of the vacuum cleaner, clean the dust cup 7 after each use. – Hold the vacuum cleaner over a suitable waste bin. – Press the release button 8 to open the emptying flap 9. –Shake out the dust container 7. –Close the emptying flap 9 again (you should hear it click in- to place). – Clean the coarse dirt filter 1 (see “Emptying the coarse dirt filter”, page 9) if required. If necessary, clean the filter (see “Cleaning the Filter”, page 9). Emptying the coarse dirt filter (see figures D1 – D2) – Turn the coarse dirt filter 1 as far as it will go in the direc- tion of rotation “ ” and remove it from the dust contain- er 7. – Shake out the coarse dirt filter 1 and the dust container 7 over a suitable waste bin. – Place the coarse dirt filter 1 in the dust container 7 and turn it as far as it will go in the direction of rotation “ ”. Cleaning the rotational airflow unit with filter (see figures E1–E3) – Hold the vacuum cleaner down slightly so that dust cannot fall out of the dust container when the vacuum cleaner is opened. – Press release button 2 and remove the dust cup 7 from the motor housing 6. – Hold onto the filter grips 16 and pull the rotational airflow unit with filter 18 out of the dust container 7. – Shake out the the dust container 7 and the rotational air- flow unit 18 over a suitable waste bin. – Put the rotational airflow unit filter 18 back in the dust con- tainer 7. Cleaning the Filter (see figures F1 – F2) – Push the locking tab 19 up and remove the filter 17. – Gently tap the filter 17 against a solid surface to loosen the dust. – Assembly is carried out in reverse order. – Afterwards, hang the dust cup at the bottom into the motor housing, apply light pressure until the dust cup can be heard to engage. Storage – Optionally, use the wall bracket 20 for the space-saving storage of the vacuum cleaner and its accessories (see fig- ure G). Malfunctions In the case of insufficient vacuuming performance, check the following: – Is the dust cup 7 full? ▷ See “Emptying the Dust Box”, page 9. – Is the coarse dirt filter 1 clogged with dust? ▷ See “Emptying the coarse dirt filter”, page 9. – Is the filter 17 clogged with dust? ▷ See “Cleaning the Filter”, page 9. – Is the capacity of the battery pack too low? ▷ See “Battery Charging”, page 8. Regularly emptying the dust container 7 and cleaning the fil- ters will ensure optimum suction power. If the vacuuming performance is not achieved thereafter, take the vacuum cleaner to customer service. OBJ_BUCH-3178-002.book Page 9 Monday, September 25, 2017 2:16 PM10 | English 1 609 92A 3TE | (25.9.17) Bosch Power Tools After-sales Service and Application Service Our after-sales service responds to your questions concern- ing maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can al- so be found under: www.bosch-pt.com Bosch’s application service team will gladly answer questions concerning our products and their accessories. In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product. Cambodia Robert Bosch (Cambodia) Co., Ltd Unit 8BC, GT Tower, 08th Floor, Street 169, Czechoslovakia Blvd, Sangkat Veal Vong Khan 7 Makara, Phnom Penh VAT TIN: 100 169 511 Tel.: +855 23 900 685 Tel.: +855 23 900 660 www.bosch.com.kh People’s Republic of China China Mainland Bosch Power Tools (China) Co., Ltd. 567, Bin Kang Road Bin Jiang District 310052 Hangzhou, P.R.China Tel.: 4008268484 Fax: (0571) 87774502 E-Mail: contact.ptcn@cn.bosch.com www.bosch-pt.com.cn HK and Macau Special Administrative Regions Robert Bosch Co. Ltd. 21st Floor, 625 King’s Road North Point, Hong Kong Customer Service Hotline: +852 2101 0235 Fax: +852 2590 9762 E-Mail: info@hk.bosch.com www.bosch-pt.com.hk India Bosch Service Center 69, Habibullah Road, (Next to PSBB School), T. Nagar Chennai–600077 Phone: (044) 64561816 Bosch Service Center Rishyamook 85A, Panchkuin Road New Delhi–110001 Phone: (011) 43166190 Bosch Service Center 79, Crystal Bldg., Dr. Annie Besant Road, Worli Mumbai–400018 Phone: (022) 39569936 / (022 )39569959 / (022) 39569967 / (022) 24952071 Indonesia PT Robert Bosch Palma Tower 10

OBJ_BUCH-3178-002.book Page 35 Monday, September 25, 2017 2:16 PM36 | 1 609 92A 3TE | (25.9.17) Bosch Power Tools

18 Rotational Airflow

"Electronic Cell Protection (ECP)" Li-ion

– 16 Rotational Airflow

– 7 Rotational Airflow

– Rotational Airflow 18

Central Motors & Equipment LLC 1984 :

“Electronic Cell Protection

Rotational Airflow 18
