Arancia 90.307 - Juicer Beper - Free user manual and instructions

Brand	Beper
Model	Arancia 90.307
Appliance type	Juice extractor (citrus press)
Power supply	220-240 V, 50/60 Hz
Power	40 W
Dimensions (L x W x H)	Approx. 20 x 20 x 30 cm
Weight	Approx. 1.2 kg
Tank capacity	Approx. 0.5 L
Material	Plastic
Features	Two cones (large and small), clockwise and counterclockwise rotation, auto-stop when releasing pressure
Cordless operation	No (with power cord)
Continuous use	15 seconds maximum, then let it cool for a few minutes
Care and cleaning	Removable parts washable with warm soapy water; motor base wiped with a damp cloth; do not put in dishwasher
Safety	Do not immerse motor base; do not use near water or flammable materials; unplug before cleaning; do not leave children unattended
Spare parts and repairability	Repair exclusively by an authorized Beper service center; use original parts
Warranty	24 months
Included accessories	Lid, first cone, second cone, pulp filter, drip tray with spout, juice container, two rotation pins

Frequently Asked Questions - Arancia 90.307 Beper

How long can I use the extractor continuously?

Do not use the appliance for more than 15 seconds without a break. Wait a few minutes before restarting to avoid overheating.

How to clean the extractor parts?

Wash all removable parts with warm water and dish soap. Do not put them in the dishwasher. The motor base should only be cleaned with a damp cloth.

Can I immerse the motor base in water?

No, never immerse the motor base in water or any other liquid. This could damage the appliance and pose an electrical risk.

Why won't my extractor turn on?

The appliance turns on automatically when you press a halved citrus fruit onto the cone. Check that the plug is connected and the cone is properly inserted.

How to change the rotation direction?

The rotation direction can be clockwise or counterclockwise for better juicing. Simply turn the cone the other way or refer to the manual for the exact operation.

What types of citrus fruits can I use?

The extractor is designed for all citrus fruits: oranges, lemons, grapefruits, etc. Use the large cone for large fruits and the small one for smaller ones.

Can I use the appliance outdoors?

No, do not use the appliance outdoors. It should be used indoors, on a stable surface and away from water.

What to do if the power cord is damaged?

If the cable is damaged, have it replaced only by an authorized Beper service center to avoid any danger.

Are the parts dishwasher safe?

No, the removable parts should not be put in the dishwasher. Wash them by hand with warm water and soap.

Where can I get spare parts?

Contact an authorized Beper service center or email support at [e-mail] to find the nearest retailer.

USER MANUAL Arancia 90.307 Beper

MANUEL D'INSTRUCTIONS

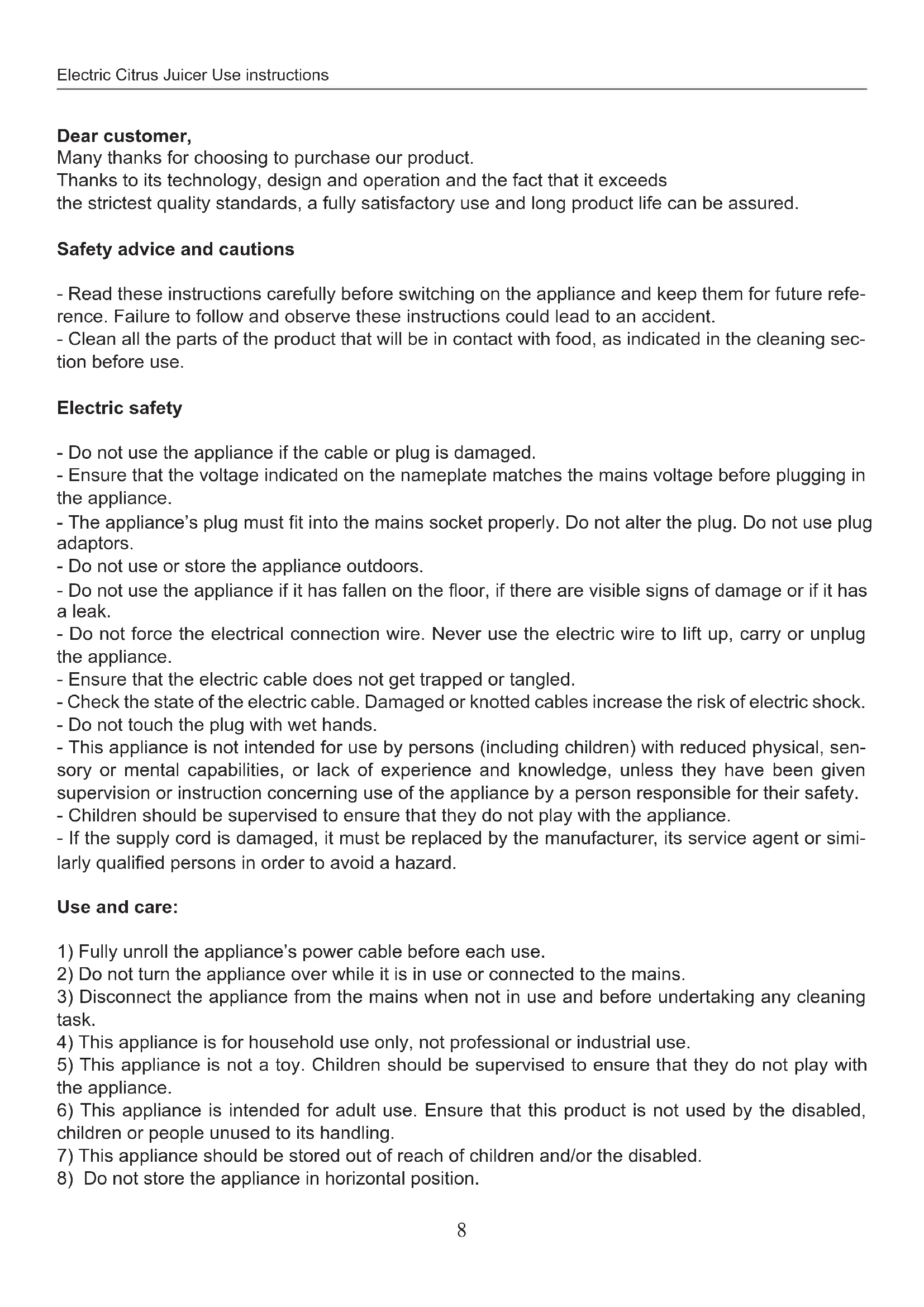

Many thanks for choosing to purchase our product.

Thanks to its technology, design and operation and the fact that it exceeds

the strictest quality standards, a fully satisfactory use and long product life can be assured.

Safety advice and cautions

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section before use.

Electric safety

• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not use or store the appliance outdoors.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not force the electrical connection wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Ensure that the electric cable does not get trapped or tangled.
• Check the state of the electric cable. Damaged or knotted cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Use and care:

1) Fully unroll the appliance's power cable before each use.
2) Do not turn the appliance over while it is in use or connected to the mains.
3) Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
4) This appliance is for household use only, not professional or industrial use.
5) This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
6) This appliance is intended for adult use. Ensure that this product is not used by the disabled, children or people unused to its handling.
7) This appliance should be stored out of reach of children and/or the disabled.
8) Do not store the appliance in horizontal position.

9) Store the appliance in a dry place, free from dust and out of direct sunlight.
10) Never leave the appliance unattended while in use.
11) Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION Fig. 1

1. Protective cover
2. First Cone
3. Second Cone
   4.Filter
4. Juice dish with spout
   6.Jug
5. Add Axes
6. Transmission axes
7. Motor base

Instructions for use

1) Unroll the cord completely before plugging in.
2) Connect the appliance to the mains.
3) Cut the citrus fruit/s to be squeezed in half.
4) Place the glass at the appliance's juice exit.

If you prefer to drop the juice into the bowl of the juicer and then pour the juicer once pressed, insert the filter directly above the container of juice, omitting juice dish bowl with spout
5) Turn on the appliance by pushing down on the piece of citrus fruit, once it has been placed on the juicing cone.
6) To stop the appliance, simply stop applying pressure to the cone.
7) Remove both the cone and the filter to empty the jug.
8) Pour juice out of the jug and into glasses to serve directly.
9) If you process a large quantity of fruit, you must periodically clean the filter and remove the remains of the pulp.

Cleaning

• Unplug the appliance from the mains and let it cool before starting any cleaning.
• Except for the power unit and the mains connection, all the parts can be cleaned with detergent and water or in washing up liquid. Rinse thoroughly to remove all traces of detergent.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
• It is advisable to clean the appliance regularly and remove any food remains.
• The following parts can be cleaned in the dishwasher: Protective cover, Cone, Filter, Jug

TECHNICAL DATA

Power: 40W

Power supply: 220-240V 50 / 60Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

GUARANTEE CERTIFICATE

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

Guarantee conditions

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• Repairs are professionally carried out by qualified persons who are appointed by the supplier.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) is excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

Technical assistance

Even after the guarantee period we will always pay attention to repairs for defected appliances. For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

CONTACT YOUR DISTRIBUTOR IN YOUR COUNTRY OR AFTER SALES DEPARTMENT

BEPER. E-MAIL [e-mail]

WHICH WILL FORWARD YOUR ENQUIRIES TO YOUR DISTRIBUTOR.
