USER MANUAL 90.424 Beper

For further information and/or for instructions for use in other languages, please visit: beper.com

AVVERTENZE GENERALI

LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPARECCHIO.

Whenever you use electric appliances, take all the precautionary measures explained below:

• This appliance is for domestic use only and must not be used for commercial or industrial purposes.
• Carefully read these instructions.
• Ensure that the electrical voltage of the appliance corresponds with that of your electric network.
• Never immerse the motor base in water or other liquids as to avoid electric shocks.
• This appliance MUST NOT BE USED BY CHILDREN, keep out of the reach of children.
• Always unplug the appliance when it is not in use and before removing its components or cleaning it. Use the special dish-press only.
  Assure you that the centrifuge cap is in its own seat and the blocking tongues have been coupled before you turn on the motor.

Do not open the locking tabs while the motor is running.
- REMEMBER: if the lid locking tabs and the pulp container are not correctly fit, the centrifuge will not start. In this case, the motor stays idle even if the switch is turned to ON.
- When you have finished using the appliance, press the switch.
- Assure you that the motor is completely still before you open the device and the plug is not connected to the current-tap
- Always use the presser to push the food to be centrifuged, never use your fingers. If the appliance is malfunctioning, turn it off immediately, unplug, clean the various components and apply to an authorized Technical Assistance Center.
- NOT USE THE DEVICE IF THE WRAPPING,THE CLOSING TONGUES,THE ELECTRIC CABLE OR THE PLUG TURN OUT TO BE DAMAGED. IN THIS CASE TAKE THIS TO THE NEAREST AUTHORIZED ASSISTANCE CENTRE
- If the feeding cable is damaged, it must be substituted by the maker or by its technical assistance service or by operators with a similar qualification, in order to prevent every risk.
- Using non-original or unauthorized attachments may prejudice the safety and functioning of this ARIETE appliance.
- Not use the device if the rotating cylinder turns to be damaged

• Do not use the appliance outdoors.
• Do not leave the cord hanging down the table edge or the supporting surface. Never rest the cable or the appliance on hot surfaces.
• Never leave the centrifuge unattended while it is functioning. Disconnect the plug after every use.
• The blades of the centrifugal filter are sharp! Handle with care.
• This appliance is in conformity with directive 89/336 EEC relevant to electromagnetic compatibility.
• Not leave the packing elements within children's reach because they are potential source of danger.
• As you decide to swallow this device as a waste, we please you to make it inoperative cutting the feeding cable. Moreover we please you to make innocuous those parts of device susceptible to be dangerous,

especially for those children which could use the device as their games

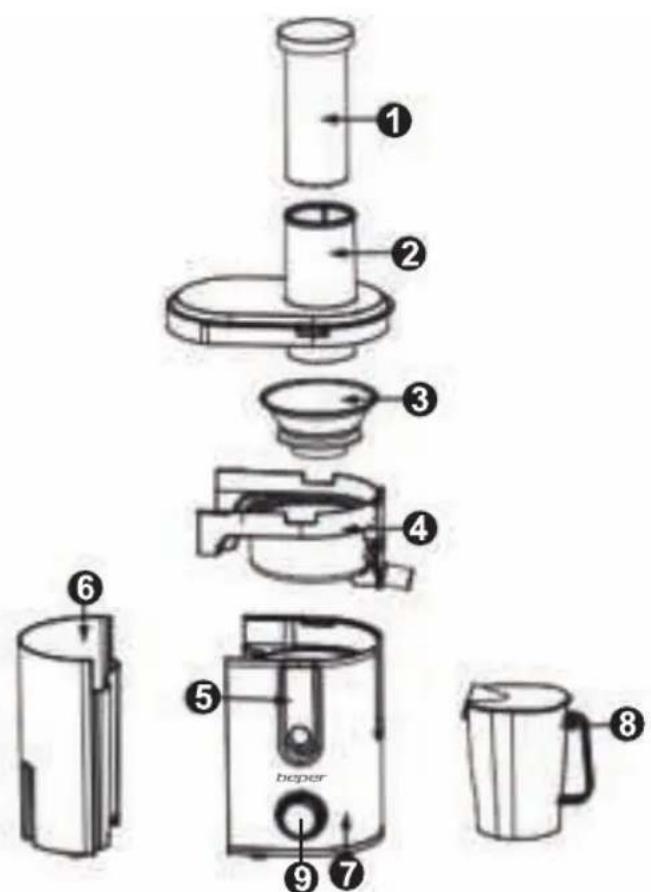

DESCRIPTION OF THE COMPONENTS

1. Pushing bar
2. Transparent cover
3. Juicing net
   4.Middle ring
4. Handle
5. Residue barrel
6. Main machine
7. Juicer Jug
8. Knob

FIRSTUSE:

1 For the juicer with large diameter, entire apple or pear can be put in for juicing, no cutting apart needed, easy and quick.

1. This machine is set with safety unit, when the handle does not fasten the cover or the cutter seat is not fastened, the motor cannot turn, so as to ensure safety for the user.
2. In order to avoid damage, before using, first check power supply for compliance with rated voltage
3. Clean all parts able to dissasable in warm and soaping water. Don't put in the dishwasher.

INSTRUCTION FOR USE:

1Before using please confirm the knob of the main machine is on 0.
2 Before juicing, first confirm juicing net and rotor clutched in position, and no hard contact between juicing net cutter and transparent cover. Put the transparent cover on, put the handle into the cover slot, then turn on the machine.
3. Turn on power supply, press switch to let the machine run no-load for 5 sec. Put prepared vegetable or fruit into feed port of the juicer, press with the pushing bar, evenly, hard and slowly.

IMPORTANT: AVOID USING HANDS TO BOOST FOOD INSIDE. USE ONLY THE PUSHING BAR. DRINK THE JUICE WITHIN 24 HOURS.

OPERATING TIME:

The item has a special knob with 3 different levels (0, I, II)

0=stop

I=low speed

II=high speed

After operating for 1min, stop for 1min, then use again. After the above operation is performed for three times, stop for 15 min, do not operate until the motor is cooled.

Switch off the item after use and place the knob on 0.

HOW TO CLEAN THE CENTRIFuge

Ensure that the appliance is unplugged.

Dismantle the centrifuge and wash every part in soaping water, except for the basis of the motor. The centrifugal filter is a very delicate and sharp attachment and must be handled with care; to clean, rinse it under running water using a non metal brush; DO NOT BANG IT TO REMOVE FOOD RESIDUALS, IT MAY GET DAMAGED AND BECOME DANGEROUS WHEN USED AGAIN; IMMEDIATELY REPLACE IT IN THE CASE IT GETS DAMAGED OR WORN. WE SUGGEST IT BE REPLACED EVERY 2 YEARS IN THE CASE THAT THE CENTrifuge IS USED DAILY. DO NOT WASH THE FILTER IN A DISHWASHER.

The plastic parts of the appliance shown in the figure may be washed in hot water and washing-up liquid or in the top part of the dishwasher.

Important! Never immerse the motor base in water or other liquids, clean with a wet cloth.

Such vegetables as carrots and chards could stain the plastic parts of the device. In order to remove any possible stains you must use the vegetable oil.

TECHNICAL DATA:

Power 800W

Power supply: 220 - 240V 50 / 60Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

GUARANTEE CERTIFICATE

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

Guarantee conditions

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• The appliance has not been tampered with, otherwise it is not maintainable.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

Technical assistance

Even after the guarantee period we will always pay attention to repairs for defected appliances. For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

PRECAUTIONS GENÉRALES LIRE CES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL

Assistance technique
