BP.720 - Juicer Beper - Free user manual and instructions

USER MANUAL BP.720 Beper

White Pomarola beper electrician with a glass lid and handle, no visible text or symbols on the device itself.

ITALIANO pag. 3

ENGLISH pag. 7

FRANÇAIS pag. 11

DEUTSCH pag. 15

ESPAÑOL pag. 19

ΕΛΛΗΝΙΚΗ pag. 23

ROMÂNĂ pag. 27

For further information and/or for instructions for use in other languages, please visit: beper.com

Fig.A

A 11 10 9 8 7 6 5 3 4 2 12 13

Fig.B

1 2 3

AVVERTENZE GENERALI

LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPAREC-CHIO.

ASSEMBLAGGIO: (FIG. B, 1-2-3)

GENERAL SAFETY ADVICE

READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE FIRST USE OF THE APPLIANCE.

Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.

Remove the packing and make sure that the appliance is intact, with special attention to the supply cable. The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources.

It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.

Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.

If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.

Never pull the supply cord to unplug the appliance.

Make sure that the supply cord never comes into contact with hot or cutting surfaces

Do not use this appliance if the supply cord is damaged. In case of damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Only connect this appliance on alternating current

Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.

This appliance is to be destined to its special purpose only.

Any other use is to be considered as improper and thus dangerous.

The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.

To avoid any heating risk, it is recommended to unroll completely the supply cord and to unplug the appliance, when not used.

Before cleaning, always unplug the appliance.

To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.

Do not hold the appliance with wet hands or feet.

Do not hold the appliance with naked feet.

Do not expose the appliance to atmospheric agents such as rain, wind, snow, hail.

Do not use the appliance near explosives, highly flammable materials, gases, burning flames, heaters.

Do not allow children, disabled people or every people without experience or technical ability to use the appliance if they are not properly watched over. Close supervision is necessary when any appliance used by or near children.

Make sure that children do not play with this appliance.

If you decide not to use the appliance any longer, make it unserviceable by simply cutting the supply cable after disconnecting the plug from the socket.

ALSO MAKE ANY DANGEROUS PARTS UNSERVICE-ABLE, ESPECIALLY FOR CHILDREN WHO COULD PLAY WITH THE APPLIANCE.

DESCRIPTION OF THE PRODUCT: Fig.A

1. Switch/Reverse button
2. Gasket
3. Body
4. Auger
5. Fasten button
6. Cover locking ring
7. Working tube inlet
8. Adjustment nut
9. Food pusher
10. Filter holder
11. Plate
12. Filter
13. Working tube

INTRODUCTION:

This appliance is equipped with a thermostat system. This system will automatically cut off the power supply to the appliance in case of overheating.

If you appliance suddenly stops running proceed as follows:

1. Switch off the appliance.
2. Unplug from the socket.
3. Let the appliance cool down for 60 minutes.
4. Put the mains plug in the socket.
5. Switch the appliance on again.

CAUTION: In order to avoid a hazardous situation, this appliance must never be connected to a time switch.

Before cleaning and /or assembling the appliance, switch the appliance off and remove the plug from the socket.

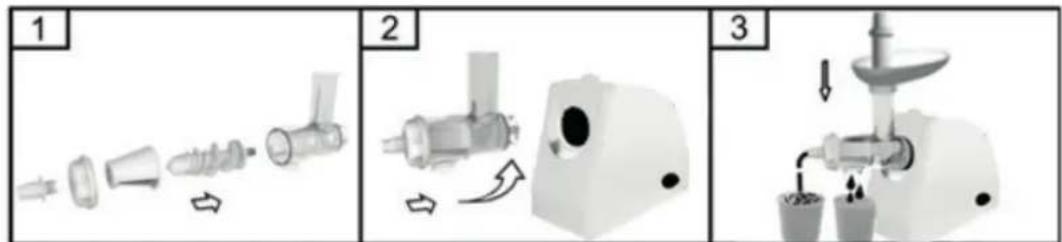

ASSEMBLING: (FIG. B, 1-2-3)

Place the auger into the working tube, long end first, and turn to feed the auger slightly until it is set into the working tube.(fig.1)

Place the filter into the tube around to the auger. (fig.1) Make sure that the metal part is facing downwards.

Place the cover locking ring and the adjustment nut into the working tube, and slightly turn counterclockwise.

Insert the working tube so composed in the working tube inlet, by pressing the fasten button and then turning it slightly counterclockwise to fasten it to the body.

Put the plate on the top of the working tube.(fig.3)

Put a cup under the adjustment nut to collect the tomato juice, and a cup under the working tube for tomato sediment, as shown on the image.(fig.3)

USE:

Wash all part as suggested before the first use, and always immediately after each use.

Insert the plug into the socket and press the switch button on.

Place the tomatoes inside the tray and press them with the food pusher.

Don't press strongly

Don't fill the tray too much

CAUTION: USE ONLY FOOD PUSHER to press the tomatoes.

CLEANING:

Remove any remaining part of tomatoes. Wash all accessories with warm water and some soap than dry them carefully. Clean the body of the appliance with a damp cloth than dry them carefully. Never use solvent or alcoholic solution that may cause damages to the appliance. Never immerse the appliance into the water.

NEVER USE WASHINGMACHINE.

TECHINCAL DATA:

Power: 300W

Power supply: 220-240V \~ 50/60Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

GUARANTEE CERTIFICATE

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

GUARANTEE CONDITIONS

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• The appliance has not been tampered with, otherwise it is not maintainable.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

TECHNICAL ASSISTANCE

Even after the guarantee period we will always pay attention to repairs for defected appliances.

For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

CONTACT YOUR DISTRIBUTOR IN YOUR COUNTRY OR ATER SALES DEPARTMENT BEPER. E-MAIL [e-mail] WHICH WILL FORWARD YOUR ENQUIRIES TO YOUR DISTRIBUTOR.
