USER MANUAL P206VEN260 Beper
For further information and/or for instructions for use in other languages, please visit: beper.com
Fig. A
Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.
Remove the packing and make sure that the appliance is intact, with special attention to the supply cable.
The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources. It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.
The appliance can be damaged if the voltage is not correct.
If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.
Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.
Do not use the appliance if the cable or the plug shows any damages. Do not use the appliance after a possible irregular working. In this case, switch it off and do not break it open. Refer to an authorized Beper after-sale service for repair and require original spare parts only. Failing to follow these instructions may impair the safety of your appliance.
This appliance is to be destined to its special purpose only. Any other use is to be considered as improper and thus dangerous. The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.
This appliance is for household use only.
To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.
Do not use the appliance near explosives, highly flammable materials, gases or burning flames.
Do not allow children, disabled people or every people without experience or technical ability to use the appliance if they are not properly watched over. Close supervision is necessary when any appliance used by or near children.
Some warnings
Never insert foreign objects, such as fingers, pencil etc. through the grills when this circulator is running.
Always unplug the circulator when moving from one location to another, when removing grills or for cleaning.
Do not immerse this product, plug or cord in water and/or other liquids.
Do not allow the power supply or power cord to come in contact with water or wet locations.
Do not operate any product with a damaged cord or plug or after the product shows malfunctions or has been dropped or damaged in any manner, contact the seller.
Do not operate in the presence of explosive and/or flammable fumes.
Do not use this circulator outdoors or where there are sources of water.
Never locate product where it may fall into a bathtub, swimming pool or other water container.
Place this circulator on a flat, stable surface.
Do not use this circulator near curtains, plants, or where other objects can become caught in the blades.
To disconnect, grip plug and pull from wall outlet. Never yank on cord. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from where it will not be tripped over. To avoid a tripping hazard, safely coil/store the power cord.
If you notice any malfunction, such as an unusual noise from the circulator, turn the circulator off and unplug it immediately.
In order to ensure your children's safety, please keep all packaging (plastic bags, boxes,
polystyrene etc.) out of their reach.
Use this circulator only for intended household use as described in this manual. Any
other use not recommended by the manufacturer are forbidden.

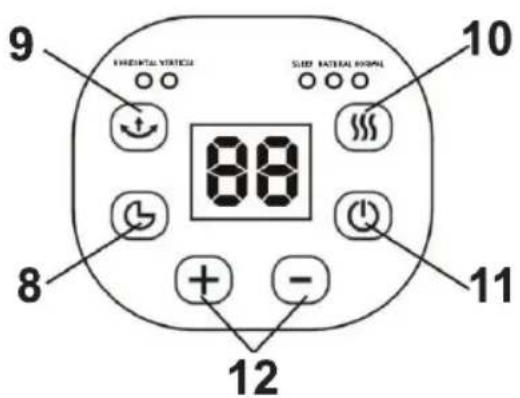

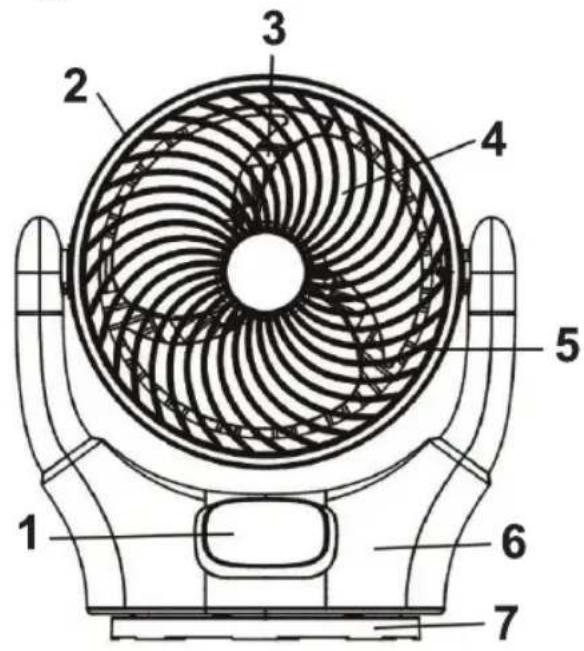

Description of the product and control panel Fig.A
- Control panel
- Fan head housing
- Recessed handle (on the back)
- Blade
- Grill
- Main Body
- Oscillating base
- Timer button
- Swing button
- Mode button
- On/Off button
- Speed setting buttons
Operating instructions
Remove all packaging materials from your air circulator. The air circulator does not require assembling. Inspect the product, if you notice any damage, contact the seller. Never operate a product with a damaged cord or plug. Place the fan on a dry, flat and stable surface.
Plug in and the appliance will be in standby mode.
The appliance may be operated by the touch-sensitive buttons on the control panel or by the
Supplied remote control.
Press on/off button once to switch on the appliance, the appliance starts running at the 6th speed.
Press “+” or “-” button to select your desired speed between 1-12. Led indicator lights will display the corresponding wind speed.
Press timer button to activate timer, the time can be set from 1 to 12 hours. Led indicator lights will display the corresponding set time. The circulator will stop automatically after the set time has expired.
Press swing button once to activate the horizontal swing function. Press the button again to stop horizontal swing and activate the vertical swing function. Press the button three times to activate both horizontal and vertical swing simultaneously. Press four times to stop the swing function.
Warning: do not tilt the fan head by force for the potential damage.
By pressing the mode button, the fan will cycle through different patterns of wind modes.
Normal wind: the fan is operating in normal mode, at constant speed.
Natural wind: the fan is simulating a natural wind by cycling through all the speeds.
Sleep wind: the fan decreases from the setting high speed to low speed every half hour, and finally it sets to run at low speed until it is turned off.
Always unplug the circulator from the power socket when not in use, or if it will be left unattended.
Warning: the product is equipped with an handle on the back. To move the product, hold it firmly both by the handle and by the main body in order to avoid breaking the oscillation gears.
Remote controller instruction
The remote control includes one cr2025 battery. Battery comes pre-installed.
Pull the plastic insulation film out from the backside of the remote control before first use.
The remote control functions are the same as the control panel on the circulator. Follow the same instructions above to operate the fan remotely.
Note: the remote control must be pointed towards the receiver on the fan in order to work.
Please take out the battery in case of no use for long time.
Warning: keep new and used batteries away from children. The remote control supplied with this product contains a button cell battery. Leaking or damaged batteries can cause burns on contact with skin. The battery could potentially be a choking hazard for children. If the button cell battery is swallowed can cause severe internal burns in just 2 hours and can lead to death. If you think the battery may have been swallowed or placed inside any part of the body seek immediate medical attention. Do not dispose batteries in fire. Batteries may explode or leak.
Maintenance and storage
Always unplug the unit before cleaning.
To keep the circulator clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth.
Caution: do not let liquid enter the circulator.
Do not use alcohol, gasoline, abrasive powders, furniture polish, or rough brusher to clean the circulator. This may cause damage or deterioration to the surface of the circulator.
Do not immerse the circulator in water.
Wait until the unit is completely dry before use or before store it.
Store the circulator in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packing to repack the unit.
Technical data
Power: 25W
Power supply: 220-240\~50/60Hz
For any improvement reasons, beper reserves the right to modify or improve the product without any notice.
The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.
GUARANTEE CERTIFICATE
This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.
The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance
For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.
GUARANTEE CONDITIONS
If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:
- The appliance has been used properly and for the purpose for which it has been intended.
- The appliance has not been tampered with, otherwise it is not maintainable.
- The purchase receipt shall be presented.
- The appliance showing a fair wear and tear shall not be covered by this guarantee.
Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.
For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge. In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product Contact your distributor in your country or after sales department beper.
E-mail assistenza@beper.com which will forward your enquiries to your distributor.
