VE.118 - Fan Beper - Free user manual and instructions

Product type	Pedestal fan
Brand	Beper
Model	VE.118
Category	Fan
Power supply	220-240 V ~ 50 Hz
Power	40 W
Number of speeds	3 (low, medium, high)
Oscillation function	Yes
Adjustable tilt	Yes (click positions)
Adjustable height	Yes (telescopic tube)
Control type	Buttons on control panel
Assembly required	Yes (instructions provided)
Cleaning	Soft cloth, no alcohol or chemicals
Storage	Dry, clean place, original packaging
Warranty	24 months (material or manufacturing defects)
Safety instructions	Do not immerse, do not cover, unplug before cleaning
Repairability	Technical assistance via retailer or authorized Beper center
Environmental information	Recycling according to directive 2011/65/EU

Frequently Asked Questions - VE.118 Beper

How to assemble the VE.118 fan?

Place the base on the floor, insert the telescopic tube and secure it with 4 screws. Add the cover disc, then the motor body. Fix the rear grille, the fan blades, the fixing ring, then the front grille. Tighten all components firmly.

How to adjust the speed?

Use the control panel buttons: position 0 to turn off, 1 for low speed, 2 for medium, 3 for high.

How to tilt the fan head?

Turn off the fan, hold the motor body and tilt the head to the desired position. A click indicates engagement. Do not force after a blockage.

Does the fan oscillate?

Yes, the fan has an oscillation function via the oscillation pivot (not detailed, but present on the diagram).

How to clean the fan?

Unplug it. Use a soft cloth moistened with water. Do not use alcohol, thinners, or abrasive products. Do not spray liquid on the appliance.

What to do if the fan does not turn on?

Check the power supply and cable integrity. Make sure the socket works. If the problem persists, contact an authorized Beper center.

Can I use the fan outdoors?

No, the appliance is not designed for outdoor use. Do not expose it to rain, sun, or excessive humidity.

What is the power of the fan?

The power is 40 W, with a power supply of 220-240 V ~ 50 Hz.

How to store the fan in winter?

Clean it, unplug it, put it back in its original packaging and store it in a dry, clean place.

Does the warranty cover accidental damage?

No, the 24-month warranty does not cover damage due to a fall, incorrect installation, unauthorized repairs, improper maintenance, or normal wear and tear.

USER MANUAL VE.118 Beper

Modern office desk lamp with a golden handle and circular display (no visible text or symbols)

Cod.: VE.118

ITALIANO pag. 4

ENGLISH pag. 8

FRANÇAIS pag. 12

DEUTSCH pag. 17

ESPAÑOL pag. 21

ΕΛΛΗΝΙΚΗ pag. 26

ROMÂNĂ pag. 30

For further information and/or for instructions for use in other languages, please visit: beper.com

Fig.A

1 4 2 6 5 3 9 8 10 11 7 13 12

Fig.B

AVVERTENZE GENERALI

LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPAREC-CHIO.

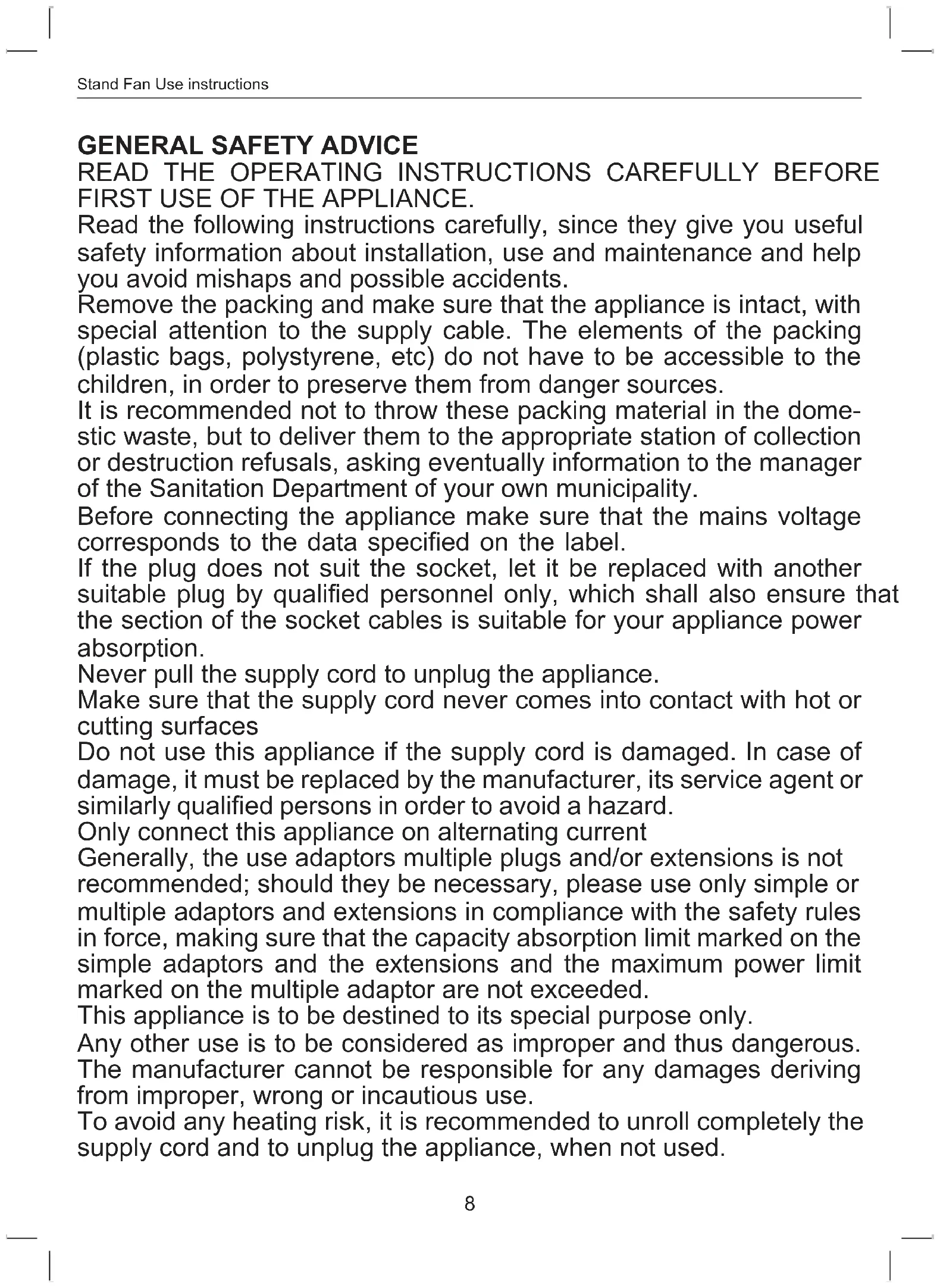

GENERAL SAFETY ADVICE

READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE FIRST USE OF THE APPLIANCE.

Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.

Remove the packing and make sure that the appliance is intact, with special attention to the supply cable. The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources.

It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.

Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.

If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.

Never pull the supply cord to unplug the appliance.

Make sure that the supply cord never comes into contact with hot or cutting surfaces

Do not use this appliance if the supply cord is damaged. In case of damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Only connect this appliance on alternating current

Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.

This appliance is to be destined to its special purpose only.

Any other use is to be considered as improper and thus dangerous.

The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.

To avoid any heating risk, it is recommended to unroll completely the supply cord and to unplug the appliance, when not used.

Before cleaning, always unplug the appliance.

To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.

Do not hold the appliance with wet hands or feet.

Do not hold the appliance with naked feet.

Do not expose the appliance to atmospheric agents such as rain, wind, snow, hail.

Do not use the appliance near explosives, highly flammable materials, gases, burning flames, heaters.

Do not allow children, disabled people or every people without experience or technical ability to use the appliance if they are not properly watched over. Close supervision is necessary when any appliance used by or near children.

Make sure that children do not play with this appliance.

If you decide not to use the appliance any longer, make it unserviceable by simply cutting the supply cable after disconnecting the plug from the socket.

ALSO MAKE ANY DANGEROUS PARTS UNSERVICE-ABLE, ESPECIALLY FOR CHILDREN WHO COULD PLAY WITH THE APPLIANCE.

USE INSTRUCTIONS

Do not plug the supply cord before assembly every the parts of the fan.

Before using, check the integrity of the supply cord and eventually remove possible nodes.

Place the fan on a flat and stable surface in a dry place.

Keep away to a reasonable distance the fan from walls, doors, windows or every object that could avoid the appliance to work in the correct way.

Do not cover the body or grid of the fan when the appliance is working.

Do not plug objects into the grid or inside the appliance.

Do not pull on the supply cord to unplug the appliance.

After using the fan, unplug the cord supply.

If the fan must be stored for a long period or non-used, replace the fan in the original packaging in a dry place. For every next use, check that the fan is clean and that the blades turn in the correct way (motor off).

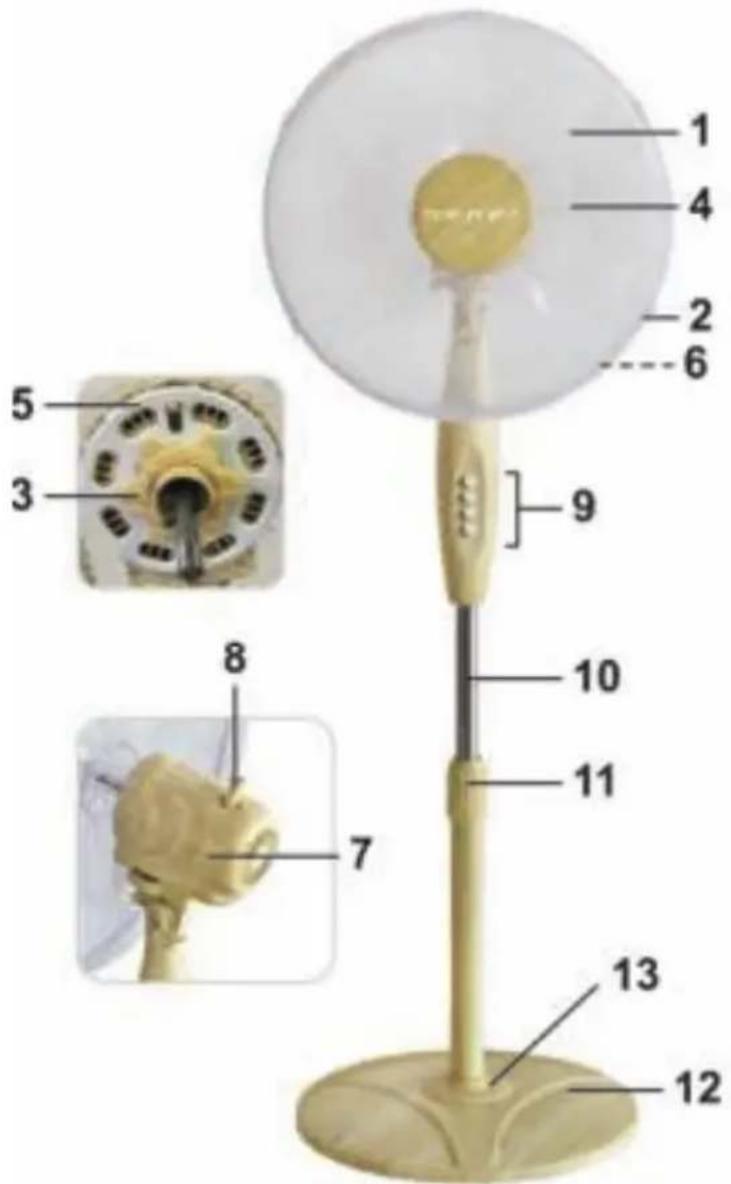

PRODUCT AND ACCESSORIES Fig.A

1. Front grid
2. Grid locking hooks
3. Nut blades
4. Blades
5. Rear grid nut
6. Rear grid
7. Motor
8. Swing button
9. Control panels
10. Telescopic tube
11. High adjustment nut
12. Base
13. Screw-cover plate

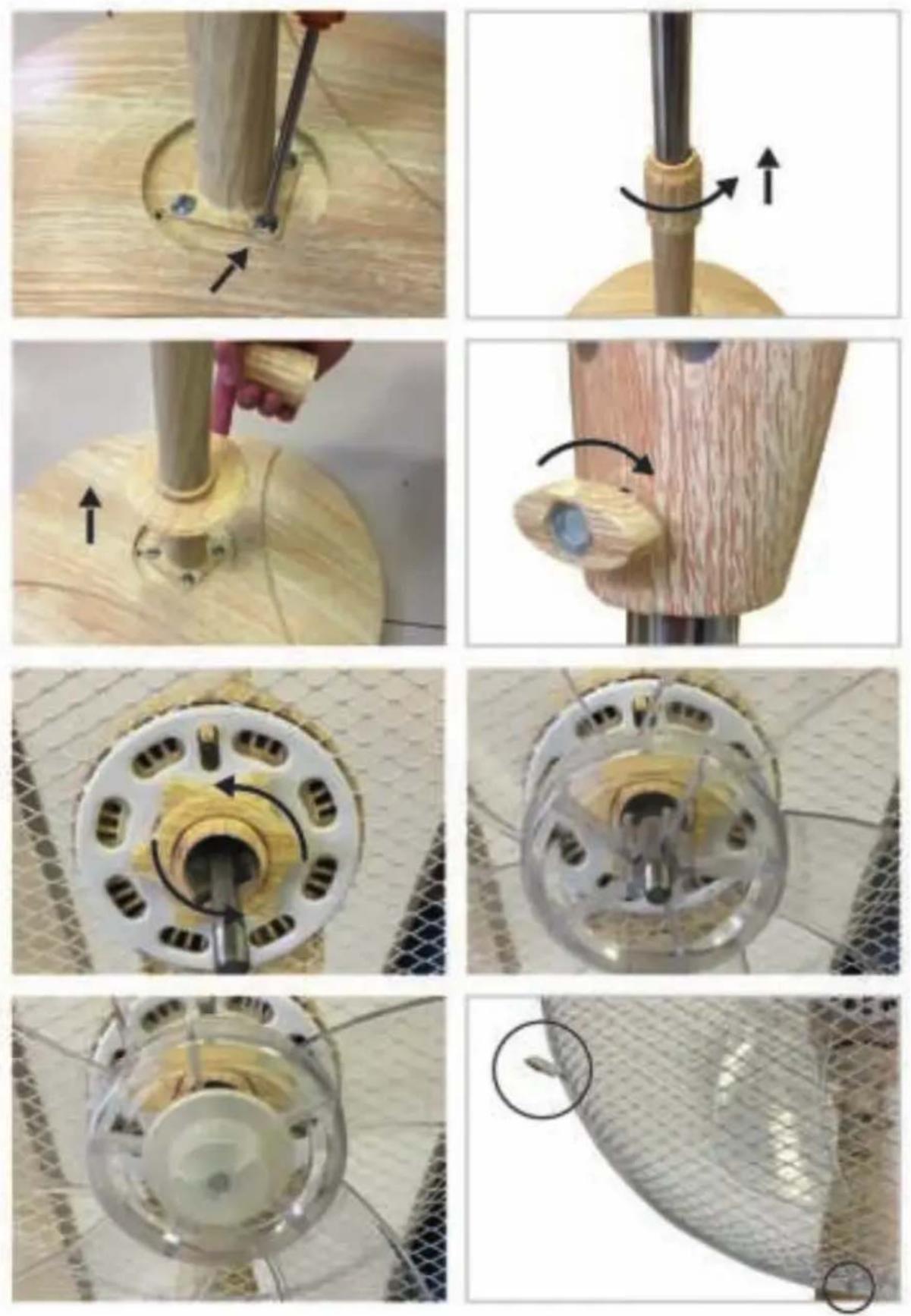

FAN ASSEMBLY Fig.B

1. Place the base on the floor.
2. Insert the telescopic tube on the base and assure with the 4 screws.
3. Loosen and remove the high adjustment nut.
4. Insert the screw-cover plate on telescopic tube than relocate the high adjustment nut.
5. Insert the motor on the telescopic tube and fix it with the appropriate screw.
6. Insert the back grid, making sure to match the holes with the pins.
7. Fix the back grid with the appropriate nut.
8. Insert the blades.
9. Fix the blades with the appropriate ring, turning counterclockwise.
10. Fix the front disc to the front grid.
11. Insert the front grid and fix it with the appropriate locking hooks and screw.

Important: Firmly weld all components to ensure good stability of the fan, otherwise it could oscillate dangerously.

SPEED SELECTION

Choose the speed desired pressing on the buttons of the control panels.

Position 0 the fan switch off.

Position 1 low speed.

Position 2 medium speed.

Position 3 high speed.

HEAD INCLINATION

It is possible to choose various positions and change the air flow swing.

Before changing it, switch off the fan.

Take the motor body and change the inclination of the fan as desired, by snap.

Attention : Do not try to force the inclination in order to avoid any failure.

SWING

It is possible to activate or disconnect the swing of the fan, by touching appropriate button. Swing allow to provide the air uniformly.

To activate the swing push the button down until completely blocked; the head fan turns automatically from right to left.

To disconnect the swing raise the button completely.

CLEANING

Before cleaning, switch off and unplug the fan.

For cleaning use a soft cloth, that may be softly wet.

Do not use alcohol or chemical substances, or any detergent that could damage this appliance.

Do not allow water or other liquids to penetrate in the fan, in order to protect it.

After cleaning, dry every parts before using the appliance.

During the winter and when not used, keep this appliance in a dry and clean place.

TECHNICAL DATA

Power : 40W

Power supply.: 220-240V\~50H

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

GUARANTEE CERTIFICATE

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

GUARANTEE CONDITIONS

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

- The appliance has been used properly and for the purpose for which it has been intended.

- The appliance has not been tampered with, otherwise it is not maintainable.

- The purchase receipt shall be presented.

- The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

TECHNICAL ASSISTANCE

Even after the guarantee period we will always pay attention to repairs for defected appliances.

For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

CONTACT YOUR DISTRIBUTOR IN YOUR COUNTRY OR ATER SALES DEPARTMENT BEPER. E-MAIL [e-mail] WHICH WILL FORWARD YOUR ENQUIRIES TO YOUR DISTRIBUTOR.
