USER MANUAL JSM1026 Ferm
Thank you for buying this Ferm product.
By doing so you now have an excellent product, delivered by one of Europe's leading suppliers.
All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

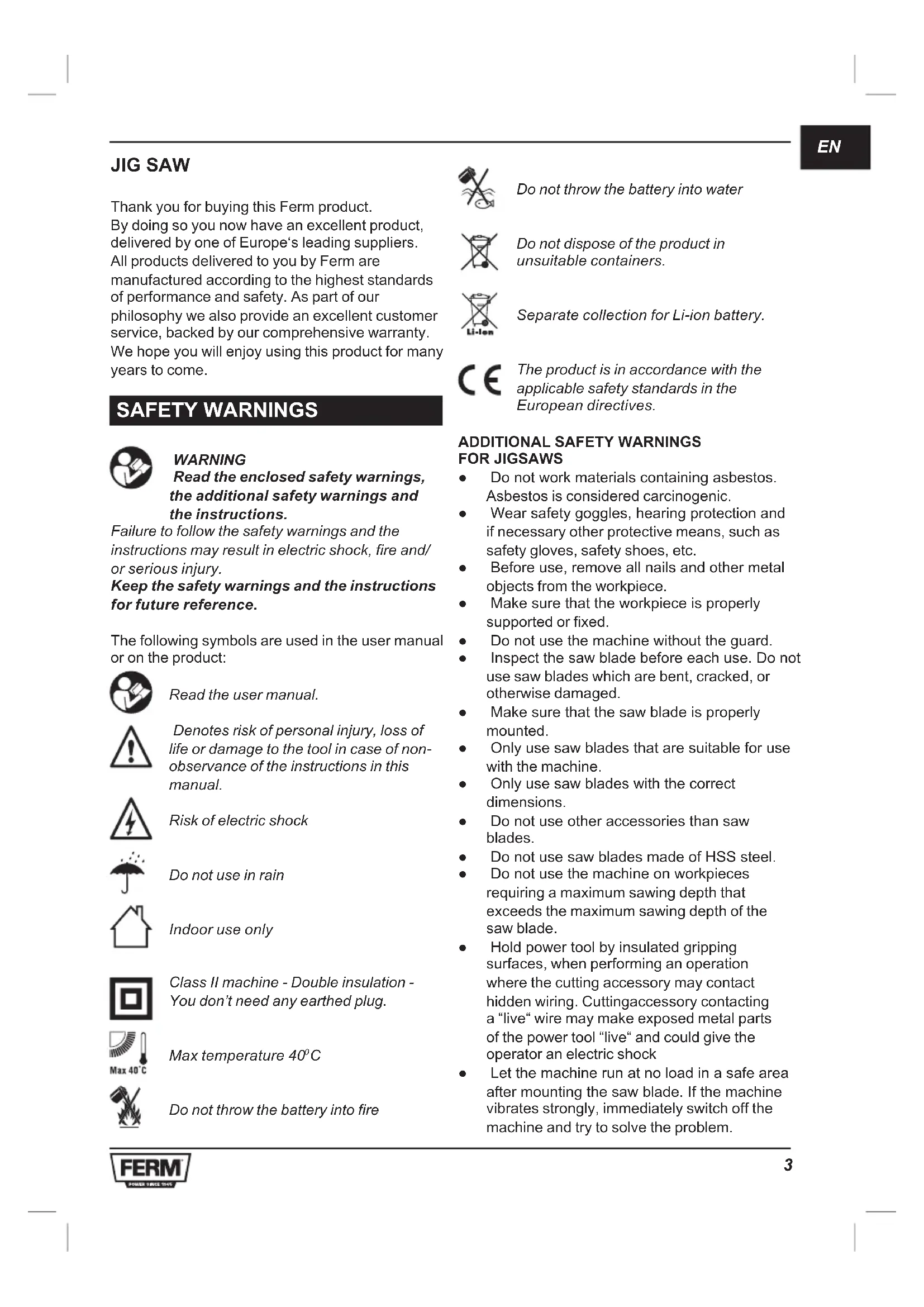

SAFETYWARNINGS
WARNING
Read the enclosed safety warnings, the additional safety warnings and the instructions.
Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury.
Keep the safety warnings and the instructions for future reference.
The following symbols are used in the user manual or on the product:
Read the user manual.
Denotes risk of personal injury, loss of life or damage to the tool in case of non-observation of the instructions in this manual.
Risk of electric shock
Do not use in rain
Indoor use only
Class II machine - Double insulation - You don't need any earthed plug.
Max temperature 40^
Do not throw the battery into fire.
Do not throw the battery into water
Do not dispose of the product in unsuitable containers.
Separate collection for Li-ion battery.
The product is in accordance with the applicable safety standards in the European directives.
ADDITIONAL SAFETY WARNINGS FOR JIGSAWS
- Do not work materials containing asbestos. Asbestos is considered carcinogenic.
- Wear safety goggles, hearing protection and if necessary other protective means, such as safety gloves, safety shoes, etc.
Before use, remove all nails and other metal objects from the workpiece.
Make sure that the workpiece is properly supported or fixed. - Do not use the machine without the guard.
- Inspect the saw blade before each use. Do not use saw blades which are bent, cracked, or otherwise damaged.
Make sure that the saw blade is properly mounted.
Only use saw blades that are suitable for use with the machine.
Only use saw blades with the correct dimensions. - Do not use other accessories than saw blades.
- Do not use saw blades made of HSS steel.
- Do not use the machine on workpieces requiring a maximum sawing depth that exceeds the maximum sawing depth of the saw blade.
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cuttingaccessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock - Let the machine run at no load in a safe area after mounting the saw blade. If the machine vibrates strongly, immediately switch off the machine and try to solve the problem.
Battery tool use and care
a)Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
For the charger
Intended use
Charge only CDA1094 type rechargeable battery packs. Other types of batteries may burst causing personal injury and damage.
a)The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
b) Children being supervised not to play with the appliance
c) Do not recharging non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!
Kickback
Kickback is the upward and backward movement of the saw blade when the saw blade unexpectedly touches an object.
Securely hold the machine during use.
Keep your attention focused on the operation.
Kickback is usually caused by:
- unintentionally touching hard objects or materials with the rotating saw blade;
a blunt saw blade;
- a saw blade that is not properly mounted;
- sawing into a previous cut;
- a lack of attention to the operation;
an instable stance.
ELECTRICAL SAFETY
Always check that the voltage of the power supply corresponds to the voltage on the rating plate.
- Do not use the machine if the mains cable or the mains plug is damaged.
- Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5mm^2 . If you use a extension cable reel, always fully unroll the cable.
TECHNICAL DATA
| Charger CDA1095 | |
| Input of charger 100-240V~ 50/60Hz 15W | |
| Output of charger 13,5V d.c. 400mA | |
| Rechargeable battery 12 V Li-ion 1.5 Ah | |
| Battery charging time 3-5 hours | |
| No-load speed 2100 min | -1 |
| Max. sawing depth (wood) 25 mm | |
| Max. sawing stroke | 13 mm |
| Weight | 0.89 kg |
NOISE AND VIBRATION
| Sound pressure (Lwa) | 70 dB(A) |
| Acoustic power (Lwa) | 81 dB(A) |
| Uncertainty (K) | 3 dB(A) |
| Vibration (wood) | 3.33 m/s2 |
| Vibration (metal) | 3.98 m/s2 |
| Uncertainty (K) | 1.5 m/s2 |
Vibration level
The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of
exposure to vibration when using the tool for the applications mentioned
using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
- the times when the tool is switched off or when it is running but not actually doing the job, may signifi cantly reduce the exposure level
Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns
DESCRIPTION (FIG. A)
Your jigsaw has been designed for sawing wood, metal, plastics, ceramics, rubber, etc. to any required size and in any required shape.
- On/off switch
- Lock off button
- Saw blade holder
- Saw shoe
ASSEMBLY
Before assembly, always switch off the machine
The battery must be charged before firstuse. Removing the battery from the machine
- Push the battery unlock buttons and pull the battery out of the machine
Inserting the battery into the machine Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.
- Insert the battery (2) into the base of the machine
- Push the battery further forward until it clicks into place.
Charging the battery (with the charger)
Plug the charger plug into an electrical outlet and wait for a while. The LED indicator will lighten up and show the charging status.
LED Charger status
Red Battery charging in progress
Green Battery charging finished, battery fully charged
Fully charging the 1.5Ah battery may take up to 240 minutes.
After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.
When the machine is not being used over a longer period of time it is best to store
Mounting and removing the saw blade (fig. B)
Refer to the table below to select the required saw blade.
Saw blade Material
Coarse Wood
Medium Wood
Fine Steel, aluminium, plastic
Very fine Wood (curves)
Do not attempt to remove the guard from the machine.
Fitting a saw blade
Fig.B
The machine is equipped with a quick fit system.
- Turn the clamping ring (13) of the saw blade holder as far to the left as possible and hold it there.
- Place the saw blade in the blade holder.
Let go of the clamping ring.
Make sure when changing the saw blade that the blade holder is free of material debris (such as splinters of wood or metal).
Before use, always check that the saw blade is securely fixed.
Removing the saw blade
- Turn the clamping ring of the saw blade holder as far to the left as possible and hold it there.
- Remove the saw blade from its holder.
Let go of the clamping ring.
EN
USE
Switching on and off
- Move to lock bar to left/right and press the main trigger to start the machine
- To switch off the machine, release the on/off switch (1).
Hints for optimum use
- Clamp the workpiece. Use a clamping device for small workpieces.
- Draw a line to define the direction in which to guide the saw blade.
- Firmly hold the machine by the grip.
- Switch on the machine.
Wait until the machine has reached full speed. - Place the saw shoe on the workpiece.
- Slowly move the machine along the pre-drawn line, firmly pressing the saw shoe against the workpiece.
- Do not apply too much pressure on the machine. Let the machine do the work.
- Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.
WARRANTY
Consult the enclosed warranty terms.
ENVIRONMENT
Disposal
The product, the accessories, and the packaging must be sorted for environmentally friendly recycling.
Only for EC countries
Do not dispose of power tools into domestic waste.
According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.
CLEANING AND
MAINTENANCE
Before cleaning and maintenance, always switch off the machine and remove the battery from the machine
Regularly clean the housing with a soft cloth.
- Keep the ventilation slots free from dust and dirt. If necessary, use a soft, moist cloth to remove dust and dirt from the ventilation slots.
Regularly clean the saw blade to avoid inaccuracies during use.
Replacing the saw blade
Worn or damaged saw blades must be replaced immediately.
Only use sharp and undamaged saw blades.
STICHSAGE
BESCHRIJVING (FIG. A)
DECLARATION OF CONFORMITY JSM1026 - JIG SAW
(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
Position Description No.
| 101387 | Switch 3 |
| 101388 | motor, gear & bearing 6, 24, 25 |
| 101389 | reciprocating rod complete 9..11 |
| 101390 | Drive shaft complete 12..19 |
| 101391 | Small gear set 20..23 |
| 101392 | Motor bearing |
| CDA1095 | Charger |
| CDA1094 | Battery 12V 1.5Ah |
