RECIPROCATING SAW

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive Warranty. We hope you will enjoy using this product for many years to come.

The numbers in the text refer to the diagrams on page 2

d the operating instructions carefully before using this device. Familiarize yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Contents

1. Machineinformation
2. Safetyinstructions
3. Mounting accessories
4. Operation
5. Service & maintenance

1. MACHINE INFORMATION

Technical specifications

Mains voltage 230-240 V\~

Frequency 50 Hz

Power input 710 W

No-load speed 0-2700/min

Saw stroke 22 mm

Max. saw capacity wood 115 mm

Max. saw capacity plastic 115 mm

Max. saw capacity steel 5 mm

Weight 2.5 kg

LpA (sound pressure level) 86 + 3 dB(A)

LwA (sound power level) 97 + 3 dB(A)

Vibration 5,29 + 1.5 m/s ^4

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Contents of packing

1 Reciprocatingsaw
1 Saw blade for wood 230mm 3TPI
1 Saw blade for wood 150mm 6TPI
1 Saw blade for steel 150mm bi-metal 18TPI
1 Hexagonalkey
1 Set carbon brushes
1 Operatinginstructions
1 Safetyinstructions
1 Warrantycard

Check the appliance, any loose parts and accessories for damage caused during transport.

Product information

Fig. A

1. Footplate
   2.Sawbuckle
2. On/Offswitch
3. Lock on knob
4. Footplate mounting screws
5. Carbon brush holder

2. SAFETY INSTRUCTIONS

Explanation of the symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

Wear a dust mask. Working with wood, metals and other materials may produce dust that is harmful to health. Do not work with material containing asbestos!

The number of revolution of the machine can be electronically set.

Safety instructions

The machine must not be damp and must not be operated in a wet environment. Wear protective gloves and sturdy footwear.

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.

Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

Do not saw materials containing asbestos!!!

• Wear protective goggles when working with materials which produce large amounts of chips.
• Wear a protective mask when sawing other fibrous materials.
• Remove adjusting keys and wrenches before turning the tool on.
• Secure your workpiece with clamps.
• Move machine towards the workpiece only when switched on.
• Always hold machine with both hands and ensure that you have a safe footing while working.
• The machine may be operated only with the foot plate mounted. When sawing, the foot plate must always rest on the workpiece.
• Incorrect handling may damage the machine. Therefore always comply with the following instructions.

• Use only sharp saw blades in perfect condition; replace cracked, distorted or blunt saw blades immediately.

• Machine should only be switched on with blade installed

• Do not attempt to stop the saw blade with lateral pressure after switching off.
• Only use genuine accessories.

3. MOUNTING ACCESSORIES

Fitting a saw blade

Fig. B

The machine is equipped with a quick fit system.

• Turn the clamping ring (2) of the saw blade holder as far to the left as possible and hold it there.
• Place the saw blade in the blade holder.
• Let go of the clamping ring.
• Make sure when changing the saw blade that the blade holder is free of material debris (such as splinters of wood or metal).
• Before use, always check that the saw blade is securely fixed.

Removing the saw blade

• Turn the clamping ring of the saw blade holder as far to the left as possible and hold it there.
• Remove the saw blade from its holder.
• Let go of the clamping ring.

Adjustment of the guide shoe

Fig. A

When the blade loses its sharpness at some sections of it's cutting edge, reposition the foot plate to use a sharp, unused portion of its cutting edge. Besides this, the foot plate can also be used for adjusting maximum saw depth, especially useful when sawing in hollow walls.

- The footplate can be extended by loosening the two footplate mounting screws (5) using the 4 mm hexagon key and then pulling the footplate out to the required length.

Ensure the footplate adjustment screws are secure before resuming work.

4. OPERATION

Always follow the safety notes and the relevant safety code.

Make sure that the saw blade does not rest on or touch any objects when the machine is switched on.

Switching on and off

Fig. A

• To switch on the machine, press the on/off switch (3).
• To switch the machine to continuous mode, keep the on/off switch (3) pressed and simultaneously press the lock-on button (4).
• To switch off the machine, release the on/off switch (3).

Sawing tips

• Adjust saw blade and stroke rate to suit the material to be processed. For right radius curves it is best to use a narrow saw blade. Apply coolant or lubricant to deal with the fluttering produced along the cut line when sawing metal.
• Check wood, chip boards, building materials etc, for foreign bodies (nails, screws etc.), before sawing and remove them, if necessary.
• Clamp material well. Do not support the workpiece with hand or foot. Do not touch objects or the floor with the saw running (danger of backlash).
• Put the footplate on the surface of the workpiece, and saw through it with constant contact pressure or feed. If the saw blade seizes switch the machine off immediately. Spread the gap with a suitable tool and pull out the saw blade.
• After finishing work, switch off the machine and only put down after it has come to a complete standstill.

Plunge cutting

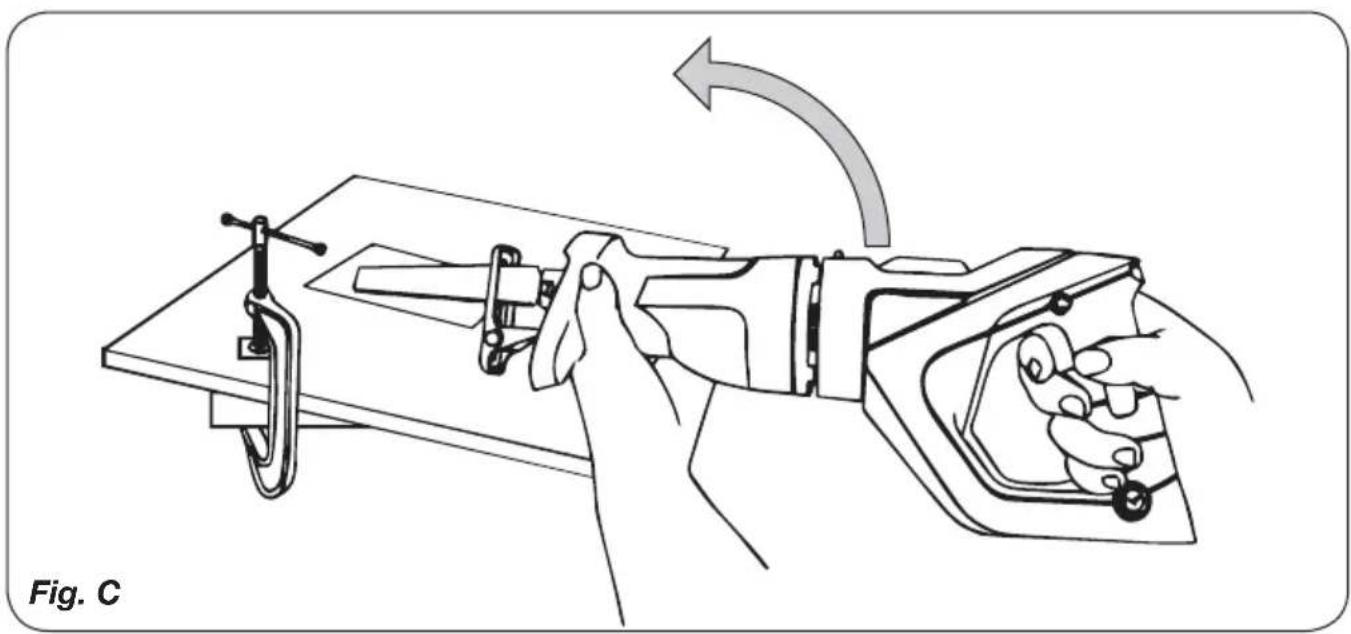

Fig. C

• Plunge cutting may only be used on soft materials such as wood, aerated concrete, gypsum plaster boards, etc.
• However, this requires a certain practise and is only possible with short saw blades.

• Place the saw onto the workpiece and switch it on.

• Ensure that the bottom edge of the footplate rests on the workpiece surface as shown.

• Slowly saw into the workpiece at an angle, moving the saw to a vertical position and continue to saw along the cutting line.
• Switch the saw off and lift off the workpiece when the work is complete.

Flush sawing

• Elastic bi-metal saw blades allow you to saw protruding objects (e.g, water pipes, iron bars, etc,) nearby the wall.
• Apply the saw blade directly to the wall and bend slightly so that the footplate rests against the wall.
• Switch the machine on and saw off the workpiece keeping constant lateral pressure against the wall.

5. SERVICE & MAINTENANCE

Make sure that the machine is not live when carrying out maintenance work on the motor.

The machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Cleaning

Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Lubrication

The machine requires no additional lubrication.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

Checking and replacing the carbon brushes

Fig. A

The carbon brushes must be checked regularly. If the carbon brushes are worn, the machine will start to run unevenly.

Only use the correct type of carbon brushes.

• Remove the carbon brush holders (6) using a screwdriver.
• Clean the carbon brushes.
• In case of wear, replace both carbon brushes at the same time.
• Mount the carbon brush holders (6) using a screwdriver.
• After mounting the new carbon brushes, let the machine run at no load for 15 minutes.

ENVIRONMENT

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material.

Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

The warranty conditions can be found on the separately enclosed warranty card.

SÄBELSÄGE

1. MACHINEINFORMATIE

Technische specificaties

5. SERVICE OG VEDLIKEHOLD

The number of revolution of the machine can be electronically set.

DECLARATION OF CONFORMITY RSM1018 - RECIPROCATING SAW

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Paramento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes měrtékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrnící 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CZ) Na naši vlastní zodpovědnost prohlašujerne, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.

(SK) Výhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcímí normami a predpísmí: Je v súlade s normou 2011/65/EÚ Európske hova parlamento a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2001/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisilmdami visą atsakomybę deklaruojame, kad śis gaminys atitinka żemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje jrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņa un atbilst sekojošiem stand-artiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu urmăloarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronicne.
(HR) Izjavljujemo pod vlastitom odgovornošu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8.juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляємо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότυπα: συμμορφώνεται με την Οδηγία 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου της 8ης Ιουνίου 2011 για τον περιορισμό της χρήσης ορισμένων επικινδύνων ουσιών σε ηλεκτρικό και ηλεκτρονικό εξοπλισμό.
(AR) قيلىاتلا ساميچ روتلاو ريپياعبلا عم قفابتىي چتنملا اذنّا آندج و انتيولوئىسم علەع نلەن
(TR) Tek sorumlusu biz olarak bu ürünün aşağıdaki standart ve yönergelere uygun olduğunu beyan ederiz.

EN 55014-1, EN 55014-2, EN 60745-1, EN 60745-2-11, EN 61000-3-2, EN 61000-3-3

2006/42/EC, 2011/65/EU, 2004/108/EC, 2012/19/EU, 2006/95/EC

Zwolle, 01-03-2015

H.G.FRosberg

CEO FERM B.V.

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

FERM B.V. - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands
