GUC3CDHD - Other computer accessories IOGEAR - Free user manual and instructions

Product Type	USB-C Docking Station
Brand	IOGEAR
Model	GUC3CDHD
Dimensions	Approximately 10 x 5 x 1.5 cm
Weight	Approximately 50 g
Power Supply	USB-C Power Delivery (recommended power adapter >30W, LPS certified)
Ports	1x USB-C PD (input), 1x USB-C host, 1x HDMI, 1x USB-A 3.1 Gen 1, 1x USB-A 2.0
Maximum HDMI Resolution	4K at 30 Hz (Windows/Mac), 1080p (Android/Nintendo Switch)
System Compatibility	Windows 10, Mac OS X 10.12+, Android 8+, iOS 12.1+ (iPad Pro 2018+)
Features	Charging (5V/9V/15V/20V), Nintendo Switch Gaming mode, port expansion
Package Contents	Docking station, USB-C cable, quick start guide, warranty card
Warranty	1 year limited
Certifications	FCC, CE
Maintenance	Clean with a soft dry cloth. Do not use liquid products.
Safety	Use an LPS certified adapter. Follow FCC warnings.
Spare Parts	No detachable parts. Contact IOGEAR support for any issues.
Manufacturer	IOGEAR
Website	www.iogear.com

Frequently Asked Questions - GUC3CDHD IOGEAR

What operating systems are compatible with the GUC3CDHD?

The GUC3CDHD is compatible with Windows 10 (32/64-bit), Mac OS X 10.12 and above, Android 8 and above (with DP Alt support via USB-C), and iOS 12.1+ (iPad Pro 2018+). For a better HID experience, iPadOS 13+ is recommended.

Can I use this docking station with a Nintendo Switch?

Yes, the GUC3CDHD supports the Nintendo Switch. Follow the specific steps: connect the Switch's original power adapter to the power port, then plug the USB-C cable into the Switch. Use Gaming mode for an optimal experience.

What maximum resolution can I get via HDMI?

On Windows and Mac OS, you can get up to 4K at 30 Hz. On Android and Nintendo Switch, the resolution is limited to 1080p.

Does the station charge my laptop?

Yes, via the USB-C PD port (Power Delivery). The station supports voltages 5V, 9V, 15V, and 20V. Use an LPS certified power adapter of at least 30W for optimal charging.

Can I connect a mouse and keyboard at the same time?

Yes, the station has one USB-A 3.1 Gen 1 port and one USB-A 2.0 port to connect peripherals such as a mouse, keyboard, or other accessories.

How do I install the docking station?

1. Turn on the host (PC/Mac/Android). Plug the power into the power port. 2. Connect external peripherals to the appropriate ports. 3. Connect the HDMI display. 4. Connect the USB-C cable between the host and the host port of the GUC3CDHD. The screen may flicker during recognition.

What should I do if the external monitor does not work?

If the screen remains black, disconnect and reconnect the USB-C cable from the host device. For Nintendo Switch, press the Home button on the console. Also check that the power is properly connected.

Is the docking station compatible with iPads?

Yes, it is compatible with the iPad Pro 2018 and later models running iOS 12.1+. For a better experience, update to iPadOS 13 or later.

Can I use a non-certified power adapter?

It is strongly recommended to use an LPS (Limited Power Source) certified power adapter of at least 30W. Using a non-certified adapter may cause safety risks or reduced performance.

Where can I find technical support?

For assistance, visit the IOGEAR website: www.iogear.com/support. You will find product information, online technical support, and warranty conditions.

USER MANUAL GUC3CDHD IOGEAR

Dock Pro 60 USB-C 4K Station with Game+ Mode

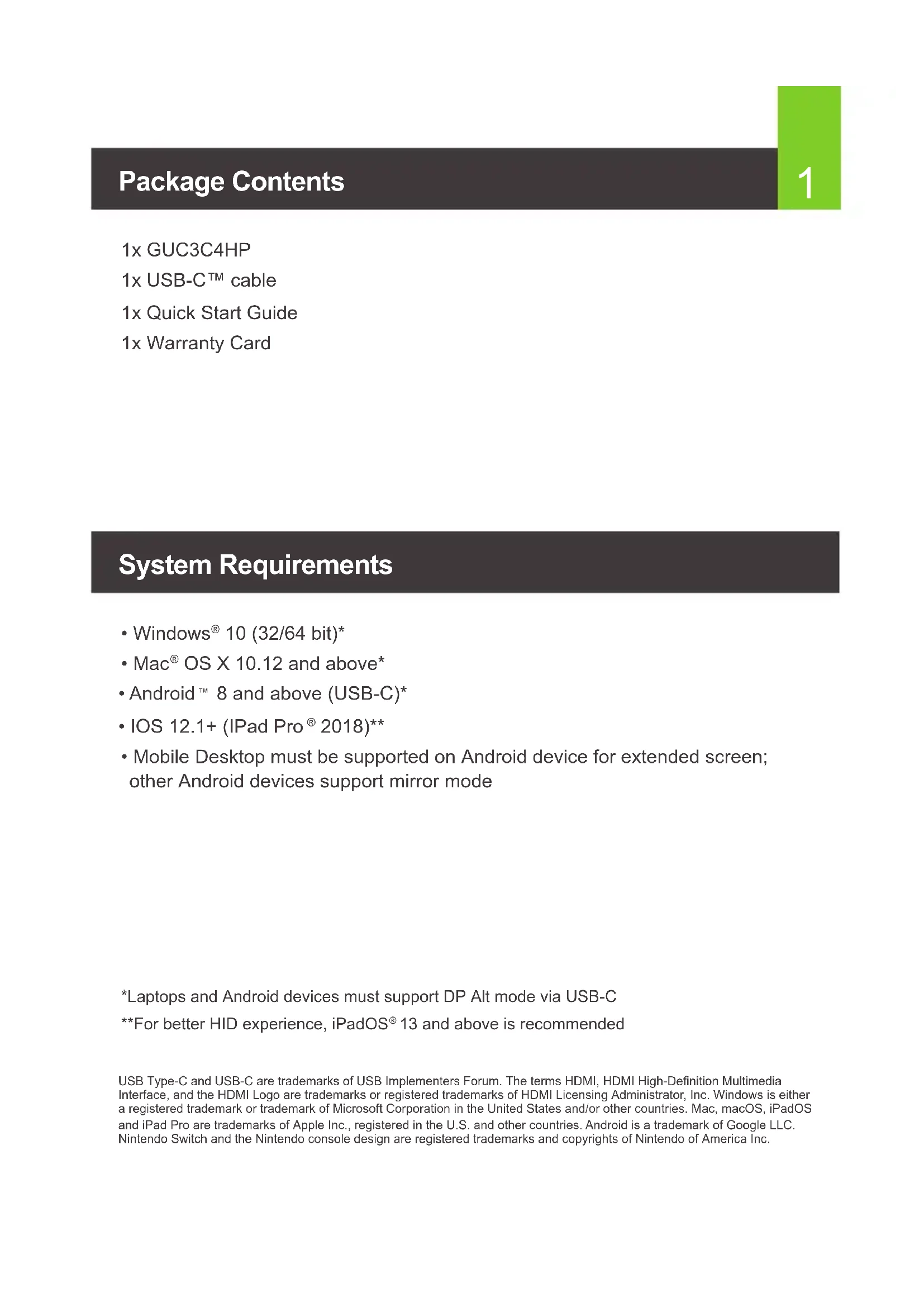

• Windows® 10 (32/64 bit)
  Mac OS X 10.12 and above
  Android 8 and above (USB-C)*
• IOS 12.1+ (IPad Pro® 2018)**
• Mobile Desktop must be supported on Android device for extended screen; other Android devices support mirror mode

*Laptops and Android devices must support DP Alt mode via USB-C

**For better HID experience, iPadOS® 13 and above is recommended

USB Type-C and USB-C are trademarks of USB Implementers Forum. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Mac, macOS, iPadOS and iPad Pro are trademarks of Apple Inc., registered in the U.S. and other countries. Android is a trademark of Google LLC. Nintendo Switch and the Nintendo console design are registered trademarks and copyrights of Nintendo of America Inc.

Product Overview

2

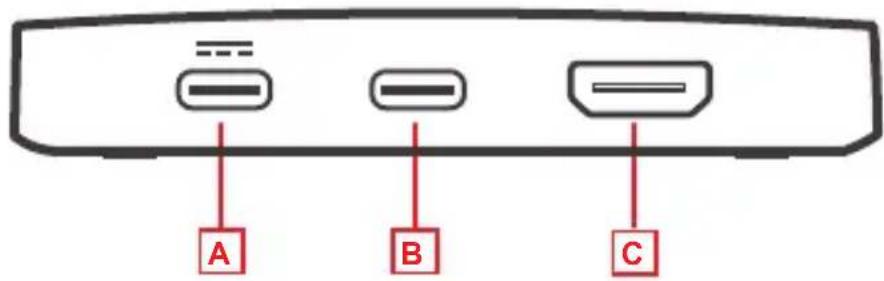

A. USB-C port (Power Delivery Pass-Through)
B. USB-C port for the host
C. HDMI^TM port (up to 4K)

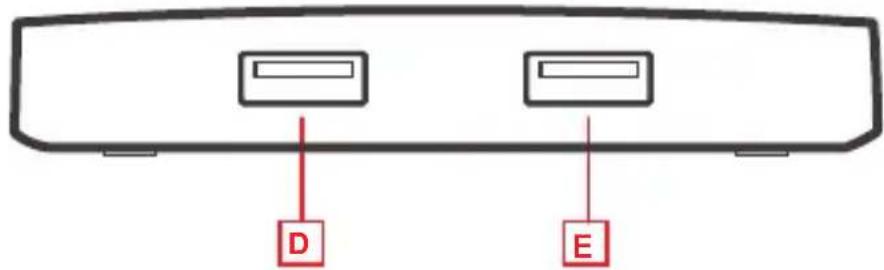

D. USB-A 3.1 Gen 1 port for Keyboard, mouse or peripherals**
E. USB-A 2.0 port for Keyboard, mouse or peripherals****

Front

Back

Supports USB-C PD charging at 5V, 9V, 15V, 20V output. Please use Limited Power Source (LPS) certified USB-C PD Power Adapter. For mobile device charging, over 30Watt is recommended
*4K@30Hz for Windows/Mac OS, 1080P for Android Smartphone and USB-C Game Console
*** Supports max. 5V, 0.7A output
*** Supports max. 5V, 0.3A output

Hardware Installation

Please follow steps below to ensure the optimal performance:

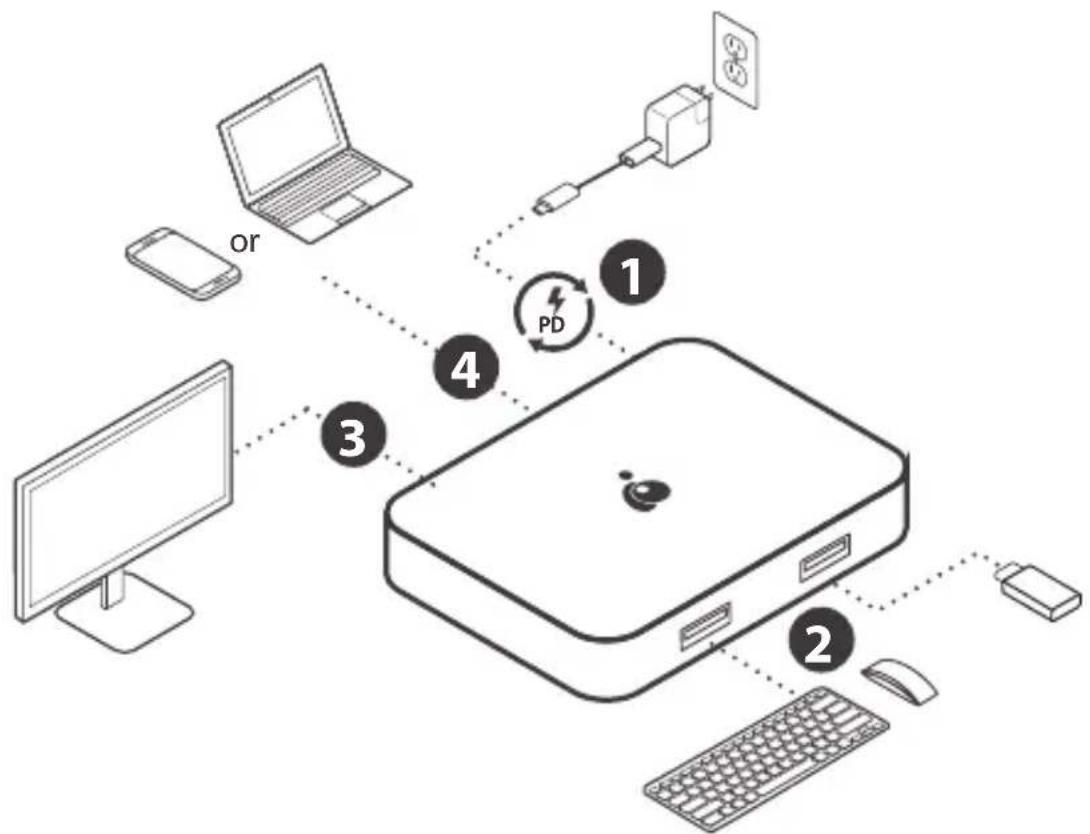

Android/Windows/Mac Installation

STEP 1 Turn on host computer/Smartphone. Connect power supply to Power Delivery Pass-Through port.

STEP 2 Connect external devices to appropriate ports as needed. (refer to product overview for ports call out)

STEP3 Connect external HDMI display to HDMI port.

STEP 4 Connect USB-C cable to host USB-C port on GUC3C4HP. Connect other end of USB-C cable to host device (PC/MAC/Android). The screen may flicker when recognizing the new devices.

Nintendo Switch® Installation

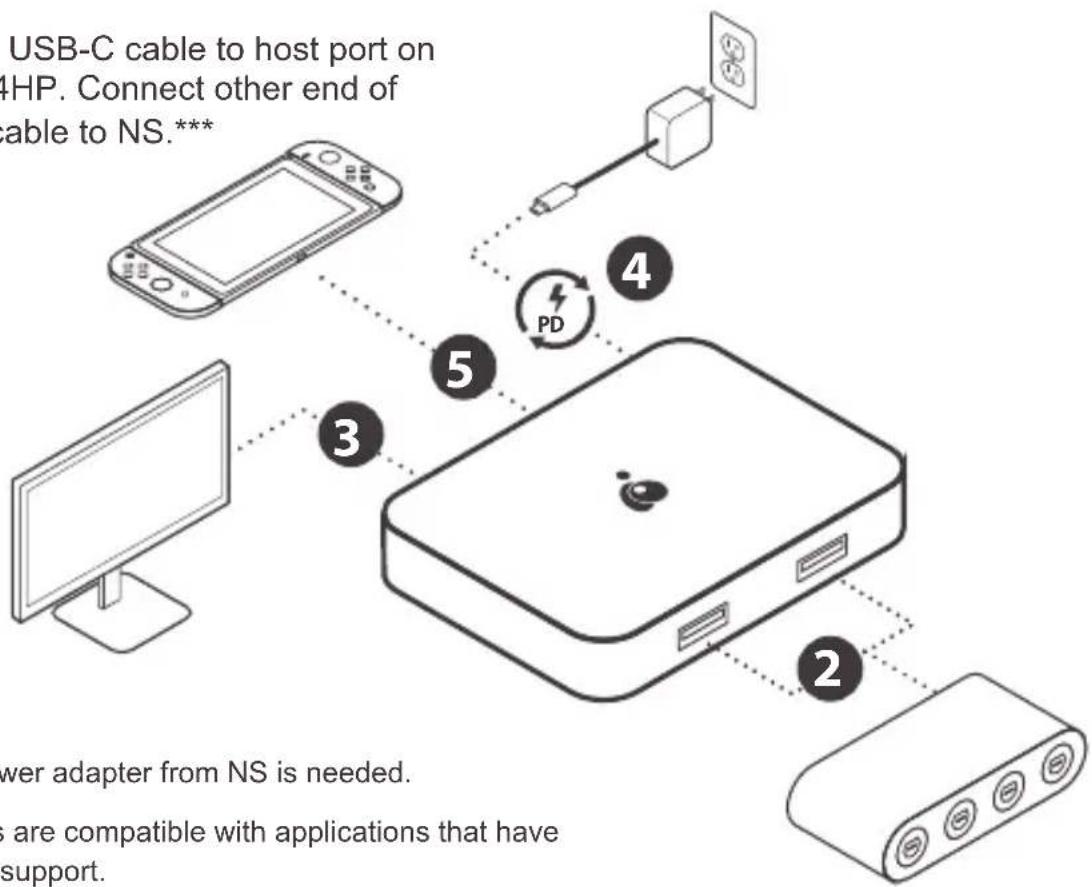

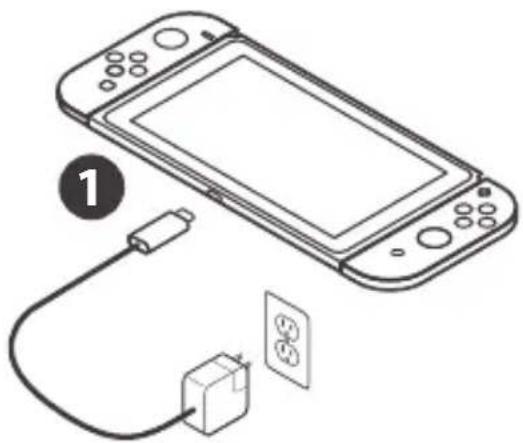

STEP1

Connect Nitendo Switch USB-C power adapter directly to the NS(Nintendo Switch) to initiate charging.

STEP2

Connect other USB peripherals to their respective ports.**

STEP3

Connect HDMI display to GUC3C4HP.

STEP4

Disconnect NS power adapter from NS. Connect NS power adapter to Power Delivery Pass-Through port on GUC3C4HP.

STEP5

Connect USB-C cable to host port on GUC3C4HP. Connect other end of USB-C cable to NS.***

*Original power adapter from NS is needed.

**Keyboards are compatible with applications that have keyboard support.

***If initially no video is detected, disconnect and reconnect USB-C cable from NS or press the home button on the console.

Limited Warranty

Warranty Information

This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information

Product Model

Serial Number

Contact

WE'RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support

IOGEAR

iogear.custhelp.com

[e-mail]

www.iogear.com
