USER MANUAL DML186 MAKITA

GB L.E.D. Flash light Instruction manual

F Lampe Bracelet à L.E.D. Manuel d'instructions
D Akku- L.E.D.- Lampe Betriebsanleitung
I Torcia elettrica a LED Istruzioni per l'uso
NL LED-zaklamp Gebruiksaanwijzing
E Linterna Luminiscente Manual de instructaciones

DML146
DML186

1

2

3

4

5

ENGLISH (Original instructions)

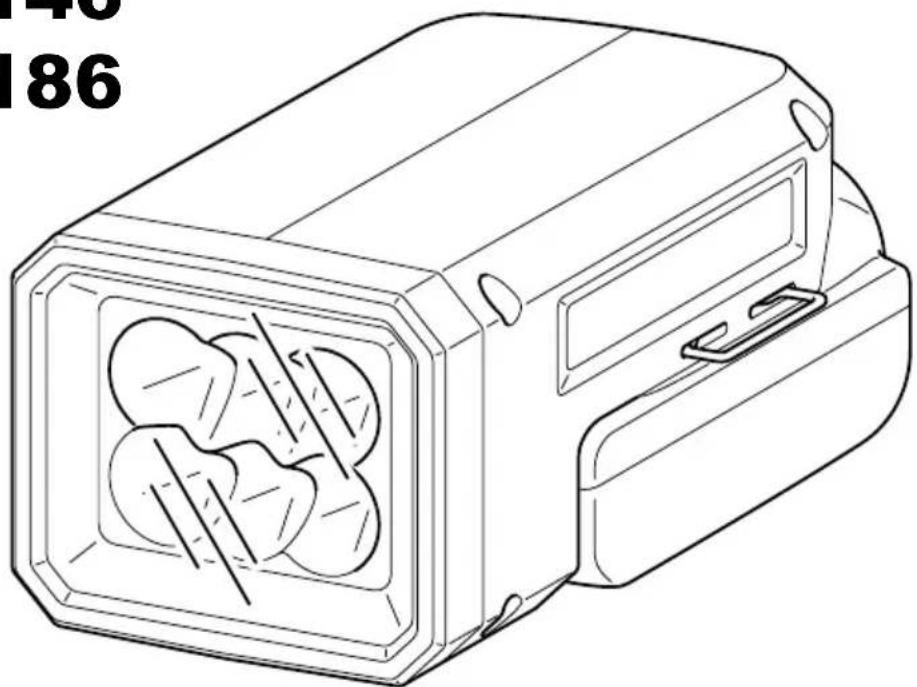

Explanation of general view

1. Red part

2. Check button

3. Velcro section

4. Button

5. Switch

6. Ring

7. Battery cartridge

8. Light

9. Indicator lamps

10. Band

SPECIFICATIONS

Model DML146 DML186
Power source D.C. 14.4 V	D.C. 18.0 V
LED 0.6 W
Operating time (Approx.)	BL1415 25 hours	BL1815 25 hours
	BL1415N 30 hours	BL1815N 30 hours
	-		BL1820/BL1820B	35 hours
	BL1430/BL1430B	50 hours	BL1830/BL1830B	50 hours
	BL1440 75 hours	BL1840/BL1840B	75 hours
	BL1450 95 hours	BL1850/BL1850B	95 hours
	BL1460B	103 hours	-
	-		BL1860B	114 hours
Dimensions (without battery)	133 mm (L) x 81 mm (W) x 60 mm (H)
Net weight (with battery)	BL1415/BL1415N	0.46 kg	BL1815/BL1815N/ BL1820/BL1820B	0.51 kg
	BL1430/BL1430B/ BL1440/BL1450/ BL1460B	0.65 kg	BL1830/BL1830B/ BL1840/BL1840B/ BL1850/BL1850B/ BL1860B	0.76 kg

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
  Weight, with battery cartridge, according to EPTA-Procedure 01/2003

Symbols

The following show the symbols used for the equipment.

Be sure that you understand their meaning before use.

Read instruction manual.

DOUBLE INSULATION.

Indoor use only

Ready to charge

Charging.

Charging complete

Delay charge (too hot battery)

Defective battery.

Do not destroy battery by fire.

Do not expose battery to water or rain.

Do not short batteries.

Always recycle batteries.

Only for EU countries

Due to the presence of hazardous components in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health.

Do not dispose of electrical and electronic appliances or batteries with household waste!

In accordance with the European

Directive on waste electrical and electronic equipment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste

electrical equipment, batteries and accumulators should be stored separately and delivered to a separate collection point for municipal waste, operating in accordance with the regulations on environmental protection. This is indicated by the symbol of the crossed-out wheeled bin placed on the equipment.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:

READ ALL INSTRUCTIONS.

1. Read this instruction manual and the charger instruction manual carefully before use.
2. This light is not waterproof. Do not use it in damp or wet locations. Do not expose it to rain or snow. Do not wash it in water.
3. A short-circuit can cause a large current flow, overheating, possible burns and even a breakdown.

(1) Do not touch the inside of the light with tweezers, metal tools, etc.
(2) Do not touch the battery terminals with any conductive material.
(3) Avoid storing the battery cartridge in a container with any metal objects such as nails, coins, etc.

1. Never expose the battery cartridge to flames, fire or great heat. Breakage may cause release of injurious material.
2. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. Be careful not to drop, shake or strike battery.
5. When the tool is not in use, always switch off and remove the battery cartridge from the tool.
6. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50^ (122^) .
7. Do not give the tool a shock by dropping, striking, etc.
8. Do not expose the light to eyes continuously. It may hurt them.
9. Do not cover or clog the lit tool with cloth or carton, etc. It may create a risk of fire.
10. Do not disassemble the charger or battery cartridge; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
11. If any problem develops, consult your nearest Makita Service Center or dealer. To maintain product safety and reliability, repairs, maintenance or adjustment should be carried out by Makita Authorized Service Center.

SAVE THESE INSTRUCTIONS.

FUNCTIONAL DESCRIPTION

CAUTION:

1. SAVE THESE INSTRUCTIONS - This manual contains important safety and operating instructions for battery charger.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
3. CAUTION - To reduce risk of injury, charge only MAKITA rechargeable batteries. Other types of batteries may burst causing personal injury and damage.
4. Non-rechargeable batteries cannot be charged with this battery charger.
5. Use a power source with the voltage specified on the nameplate of the charger.
6. Do not charge the battery cartridge in presence of flammable liquids or gases.
7. Do not expose charger to rain or snow.
8. Never carry charger by cord or yank it to disconnect from receptacle.
9. After charging or before attempting any maintenance or cleaning, unplug the charger from the power source. Pull by plug rather than cord whenever disconnecting charger.
10. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
11. Do not operate charger with damaged cord or plug - replace them immediately.
12. Do not operate or disassemble charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman. Incorrect use or reassembly may result in a risk of electric shock or fire.
13. The battery charger is not intended for use by young children or infirm persons without supervision.
14. Young children should be supervised to ensure that they do not play with the battery charger.
15. Do not charge battery cartridge when temperature is BELOW 10^ (50^) or ABOVE 40^ (104^) .
16. Do not attempt to use a step-up transformer, an engine generator or DC power receptacle.

Charging

Charge the battery cartridge with the Makita charger before use.

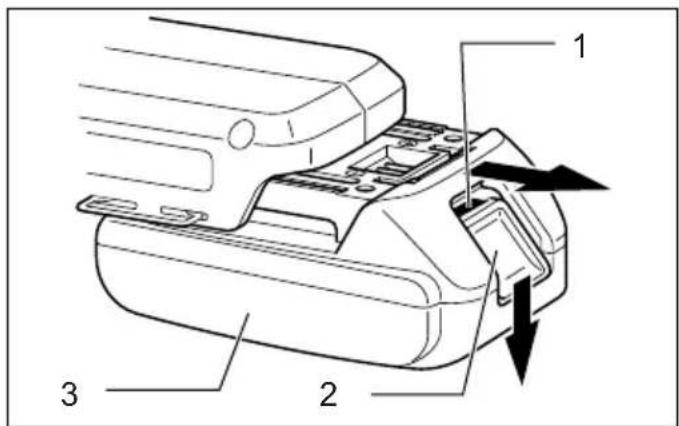

Installing or removing battery cartridge (Fig. 1)

• Always switch off the tool before insertion or removal of the battery cartridge.
• To remove the battery cartridge, withdraw it from the tool while sliding the button on the front of the cartridge.

• To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red part on the upper side of the button, it is not locked completely. Insert it fully until the red part cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

• Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

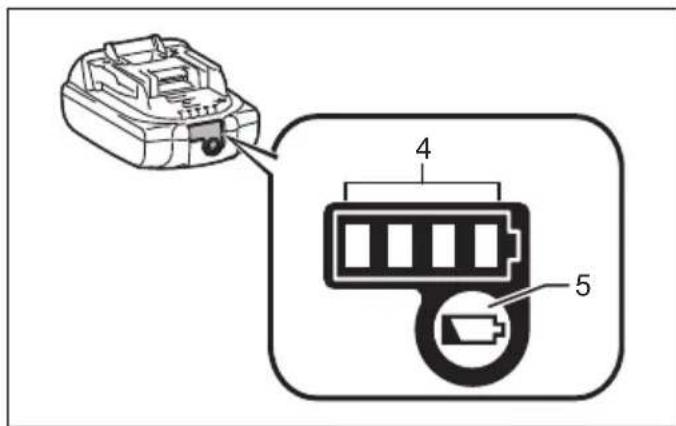

Indicating the remaining battery capacity

(Only for battery cartridges with "B" at the end of the model number.) (Fig. 2)

Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for few seconds.

Indicator lamps			Remaining capacity
Lighted Off Blinking
			75% to 100%
			50% to 75%
			25% to 50%
			0% to 25%
			Charge the battery.
			The battery may have malfunctioned.

015658

NOTE:

• Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

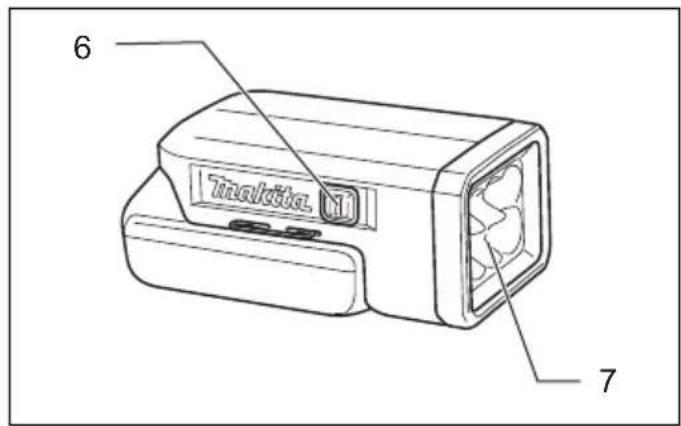

Lighting up the lamp (Fig. 3)

CAUTION:

• Do not look in the light or see the source of light directly.
• Push the switch to light up the light. To turn off, push the switch again.

NOTE:

• When remaining battery capacity becomes lower, light turns off automatically. So you should charge the battery cartridge soon.
• Operating time may be shortened according to environments and battery conditions.

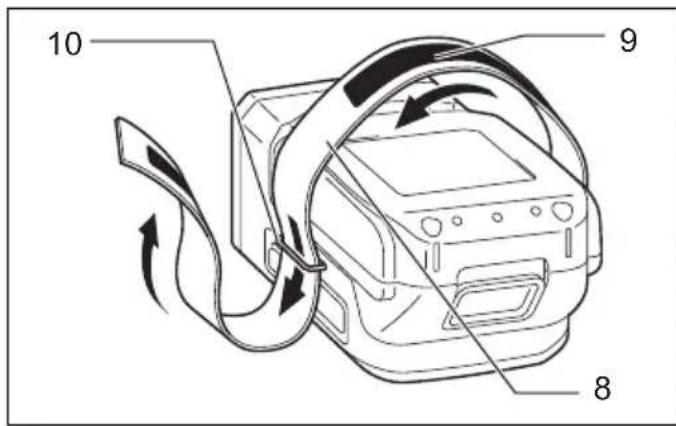

Installing the band (Fig. 4)

Insert the band through the rings of the unit and install it with its Velcro surface facing outward in order shown in the figure.

OPERATION

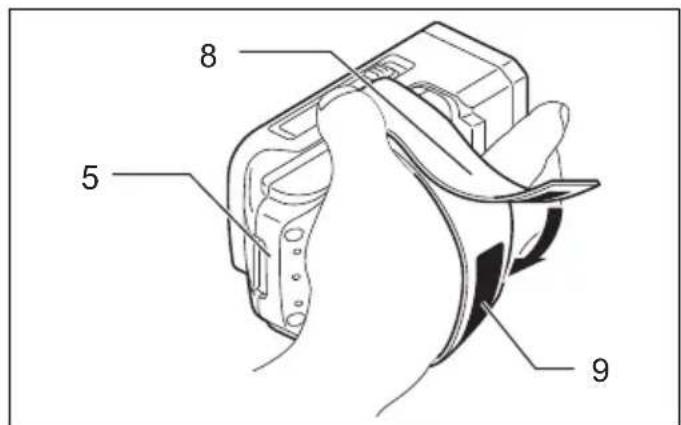

How to use (Fig. 5)

CAUTION:

Fasten the band so that flashlight and a band are tightly secured.

Install the battery cartridge.

Slide fingers through the band and grip the unit as shown in the figure.

Adjust the length of the band and then secure it in Velcro section.

Operate the switch with a thumb.

MAINTENANCE

CAUTION:

To maintain product safety and reliability, repairs, maintenance or adjustment should be carried out by a Makita Authorized Service Center.

CAUTION:

Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

OPTIONAL ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Battery Charger
• Battery Cartridge

NOTE:

• Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.
