Brand	AEG
Model	KM4100
Product type	Food processor
Bowl material	Stainless steel
Bowl capacity	Not specified (standard use for dough: 6-16 dl of flour)
Speeds	10 positions (1 to 10) + stop (OFF)
Included accessories	Wire whisk, flat beater, dough hook, accessory adapter, stainless steel bowl
Optional accessories	SoftEdgeBeater™, PerfectRiseLid™, meat grinder, slicer/grater
Main functions	Whisking, mixing, kneading, grinding (with accessories), slicing/grating (with accessories)
Power	Not specified
Power supply	Mains electricity (voltage and frequency according to nameplate)
Weight	Not specified
Dimensions (L x W x H)	Not specified
Maintenance and cleaning	Bowl, flat beater, hook, SoftEdgeBeater™, PerfectRiseLid™ dishwasher safe; wire whisk, grinder, slicer hand wash; motor cleaned with damp cloth
Safety	Automatic stop if selector activated before plugging; operating light; do not immerse motor; keep hands away from moving parts
Spare parts and repairability	AEG recommended accessories and spare parts; repair by manufacturer or qualified technician
General information	Household use only; do not mix paint; max liquid temperature 90°C

Frequently Asked Questions - KM4100 AEG

How do I install the bowl on the KM4100 food processor?

Place the stainless steel bowl on the fixing plate, then turn it clockwise until it locks. Make sure the motor arm is lowered before using the appliance.

Which accessories are dishwasher safe?

The bowl, flat beater, dough hook, SoftEdgeBeater™ and PerfectRiseLid™ can be washed in the dishwasher. The wire whisk, meat grinder and slicer/grater must be hand washed.

The motor does not start, what should I do?

First check that the appliance is properly plugged in. If the speed selector was already in a position before plugging in, the lights flash; set the selector to OFF then select the desired speed again.

How do I adjust the height of the accessory attachment shaft?

Unplug the appliance, tilt the motor arm back. Use a flat screwdriver: turn counterclockwise to raise the shaft, clockwise to lower it. The flat beater should not touch the bottom of the bowl.

Can I use the food processor to knead bread dough?

Yes, with the dough hook. Respect the maximum quantities (e.g. 16 dl of flour for pizza dough) and do not exceed speed 2. Use the PerfectRiseLid™ to let the dough rise.

How do I use the meat grinder?

Assemble the grinding screw, blade and die in the holder. Attach the grinder to the accessory adapter. Cut the meat into pieces, place it on the tray and use the pusher. Set speed to 6-8. Never put your fingers in the chute.

What does the flashing of the lights mean?

If the lights (blue LED of the selector and operating light) flash, this indicates that the speed selector was left activated before plugging in. Set the selector to OFF then select the desired speed.

The food processor vibrates or moves during use, is this normal?

This can happen with heavy loads (thick dough, cheese). Remove half of the mixture and proceed in two batches. Also check that the rubber feet are clean and dry.

How do I clean the motor of the food processor?

Clean the motor unit with a damp cloth. Never immerse the motor in water or use abrasive cleaners.

What accessories are recommended for creamy results?

The SoftEdgeBeater™ is ideal for toppings and creamy mixtures: its silicone edges scrape the sides of the bowl. For heavy doughs, use the dough hook.

USER MANUAL KM4100 AEG

Exterior view of a modern AEG stand mixer with control panel and metal bowl (no text or symbols visible)

GB INSTRUCTION BOOK

Labeled diagram of a kitchen appliance with component labels such as fan, keyboard, and dish, likely for assembly or manufacturing documentation.

Illustration of a shoe and a speaker with a magnified circle showing a speaker symbol (no text or labels)

Close-up of a black Kiosk with a magnified inset showing internal components (no text or symbols visible)

Illustration of a kitchen mixer with a magnified inset showing the mixing process (no text or symbols)

Illustration of a kitchen mixer blending liquid into a bowl with a whisk (no text or symbols)

Illustration of a kitchen mixer blending liquid into a bowl, with an inset showing the process (no text or symbols)

Illustration of a kitchen mixer with a magnified inset showing the rotating knob (no text or symbols)

www.aeg.com

Black and white photo of a modern kitchen mixer with a side fan (no visible text or symbols)

Illustration of a kitchen mixer and its corresponding mechanical component (no text or symbols)

Illustration of a kitchen mixer with a bowl and handle (no text or symbols)

3D rendered mechanical component with curved surfaces and a central shaft (no text or symbols)

3D rendering of a mechanical component with a lid and base, no visible text or symbols

Close-up of a black industrial machine component with metallic joints and a flat top (no visible text or symbols)

Illustration of a kitchen mixer with a bowl and handle (no text or symbols)

Close-up of a microscope with a tool inserted, showing a curved arrow indicating motion (no text or symbols present)

15 E D C B A

Mechanical assembly diagram showing a tool interacting with a motor, labeled with parts 1 and 2 (no text or symbols beyond labels)

Mechanical kitchen tool with a downward arrow indicating compression or disassembly (no text or symbols visible)

18 1 2

Mechanical assembly diagram showing a pipe fitting and valve mechanism (no text or symbols)

Mechanical device with a downward arrow indicating compression or disassembly (no text or symbols visible)

Black-and-white photo showing a pair of footwear and a kitchen utensil (no text or symbols visible)

www.aeg.com

Simple 3D illustration of a rectangular block with a black X mark, no text or symbols present

CONTENTS

ENGLISH 6

DEUTSCH 12

ESPAÑOL 24

FRANÇAIS 36

ΕΛΛΗΝΙΚΑ 41

NEDERLANDS 49

PORTUGUÊS 55

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy accessories and consumables for www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

- Model Number

- PNC number

- Serial number

The information can be found on the rating plate.

ENGLISH

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS

A. Motor head (tiltable)
B. Speed selector
C. Housing
D. Tilt head locking lever
E. Working light
F. Attachment hub
G. Attachment shaft
H. Stainless steel bowl
I. Bowl clamping plate
J. Non-slip feet

K. Power cord
L. Wire whip
M. Coated flat beater
N. SoftEdgeBeater™*
O. Coated dough hook
P. Meat grinder*
Q. Slicer/Shredder*
R. PerfectRiseLid™

* Certain models only

Pictures pages 2-4

GETTING STARTED

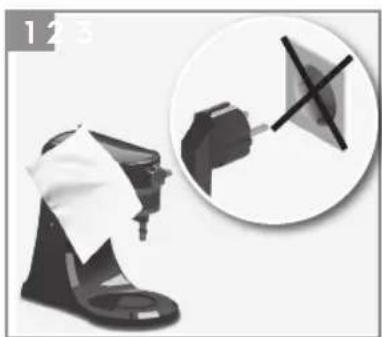

Before using the appliance for the first time: Unplug the appliance. The Wire whip, Meat grinder* and Slicer/Shredder* should only be washed by hand in warm soapy water. The bowl, Flat beater, Dough hook, SoftEdgeBeater*** and PerfectRiseLid™* are dishwasher-proof. Clean the motor unit with a damp cloth.

Caution: Never immerse the motor unit in water! Let all parts dry thoroughly.

2 Place the appliance on a flat surface. Tilting the Motor head up: Move the Tilt head locking lever to "Unlocked" with one hand, tilt the Motor head up with the other hand. Once in up position it locks. Warning: Keep fingers and hands away from areas with movable parts.
3 Move Speed selector to "OFF". Place the Stainless steel bowl on the bowl clamping plate. Move the bowl clockwise to lock into position. Warning: Never operate appliance with the attachments wire whip, Flat beater, Dough hook or SoftEdgeBeater™ unless the bowl is in place, and the motor head is down.

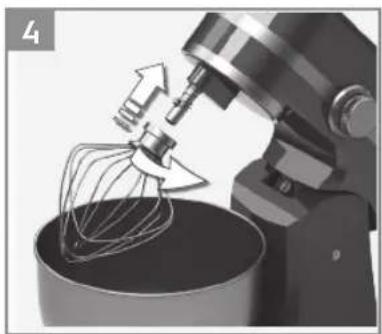

4 Place an attachment on the Attachment shaft: Align the slot at the top of the attachment with the pin on the Attachment shaft. Push the attachment up and turn it counterclockwise until the pin is locked into position. To remove the attachment, move it clockwise and pull off.

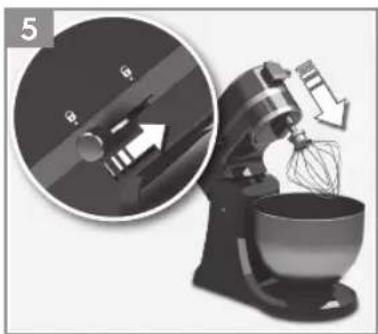

5 Tilting the Motor head down: Move the Tilt head locking lever to "Unlocked" with one hand, tilt the Motor head down with the other hand. Insert the plug in the main socket.

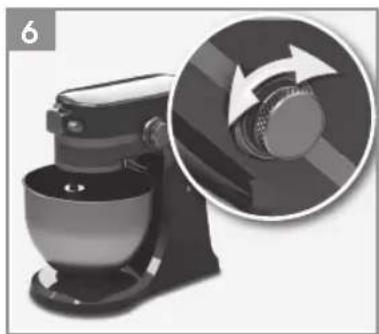

6 Move the Speed selector from "OFF" to desired speed (1-10). Once mixing is complete, turn the Speed selector to "OFF" and unplug the appliance.
7 Work light and Power indicator light: If the appliance is plugged in and a speed is selected, a blue LED lights up around the Speed selector. A working light will also light up over the working area. If the Speed selector is moved to "OFF", the working light will automatically shut off after 3 min.
8 Note: If the Speed selector is already turned on before the appliance is plugged in, both the blue Speed selector LED light and the Working light will flash OFF and ON to let you know the Speed selector has been left on. Turn the Speed selector to "OFF" and the lights will stop flashing. Then resume operating normally.

OTHER FUNCTIONS

9 How to use the coated SoftEdgeBeater™ * tool:

The SoftEdgeBeater™ is perfect for creamy mixtures and toppings.

The silicone edges of the beater, gently wipes the sides on the bowl helping to incorporate all the ingredients in the mixture and to ensure even consistency throughout the mixing process.

10 Note: Do not use the coated SoftEdgeBeater™ with heavy mixtures such as dough, use the dough hook tool instead. For hard ingredients like dry fruits, shells or bones use the coated flat beater instead.

11 How to use the PerfectRiseLid ^TM *:

The PerfectRiseLid™ isolates and helps to build up the humid environment for the dough to rise in proper condition.

www.aeg.com

Covering the bowl with the PerfectRiseLid™ keeps the dough from drying out, preventing the formation of a crust on the surface of the dough, which inhibits the proper rising of the dough which results in a poorer baking result.

12 Attachment hub: The appliance comes with a built in multipurpose Attachment hub. Read and carefully follow the instructions that comes with each attachment for correct and safe use.

13 Adjusting the Attachment shaft: The appliance is adjusted at the factory so that the Flat Beater clears the bottom of the Bowl. If the Flat Beater hits the bottom of the Bowl or is too far away from the sides, you can adjust it correctly. See 14 for further instructions.

14 Turn the Speed selector to "OFF" and unplug the appliance. Tilt the Motor head back. Use a slotted point Head screwdriver to adjust the screw. Turn counter clockwise to raise the Attachment shaft, turn clockwise to lower it.

HOW TO USE THE MEAT GRINDER\*

15 Insert the grind screw (B) into the grinder housing (A). Place the knife (C) over the square shaft at the end of the grind screw. Place the grinding plate (D) (medium or coarse) over the knife. Tighten the ring (E) by hand until the meat grinder is secured.

Note: Do not over tighten the ring.

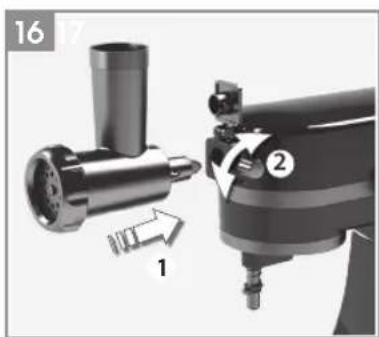

16 Open the Attachment hub lid on the Stand mixer. Fit the Power shaft of the attachment in the Attachment hub socket on the Stand mixer. Rotate the attachment back and forth if necessary. Tighten the Attachment hub knob until the attachment is fully fastened.

Caution: Before attaching accessories turn off the appliance and unplug it.

17 Place the food tray over the grinder housing. Cut raw meat into small pieces and place it on the food tray. Plug in the appliance and turn the speed selector to desired speed (recommended speed: 6-8). Feed the meat into the feed chute by using the pusher.

Caution: Do not put your fingers or other utensils in the feed chute.

Note: Meat should not contain bones, muscles or skin.

HOW TO USE THE SLICER/SHREDDER\*

18 How to use the Slicer/Shredder: Choose a Slicer or a Shredder knife (Medium or Course). Insert the shaft (square end) of the selected Knife into the Slicer/Shredder housing so the shaft fits into square hub socket. Secure the Knife by pulling the Locking handle downwards.

Caution: The blades and inserts are very sharp!

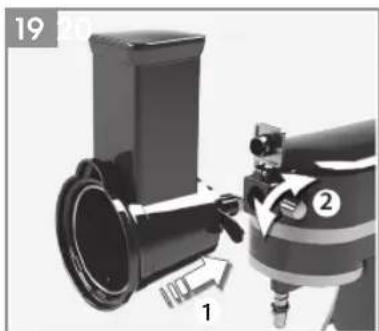

19 Assemble the Slicer/Shredder in the Attachment hub. Place a container under the attachment. Cut the food into small pieces. Plug in the appliance and turn the Speed selector to desired speed (recommended speed: 8).

20 Feed the food into the Feed chute by using the Pusher. When finished using your attachment, turn off the appliance and unplug it. Close the Attachment hub lid and tighten the Attachment hub knob.

CLEANING AND CARE

21 Unplug the appliance. We recommend that the wire whip, meat grinder* and slicer/shredder* is washed by hand in warm soapy water.

The bowl, Flat beater, Dough hook, SoftEdgeBeater™* and PerfectRiseLid™* are dishwasher-proof.

Clean the motor unit with a damp cloth. Caution: Never immerse the motor unit in water! Let all parts dry thoroughly.

22 Do not use abrasive cleaners or scouring pads when cleaning the appliance.

Enjoy your new AEG product!

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
  • Always place the appliance on a flat, level surface.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
  • Appliance is for indoor use only.
• Do not immerse the appliance, cord or plug in water or any other liquid.
• Do not let cord hang over edge of table or counter, do not let cord contact hot surface, including the stove.
• Never use accessories or parts made by other manufactures not recommended or sold; may cause a risk of injury to persons.
  • Make sure the motor has completely stopped before disassembling and cleaning.
• Avoid contact with moving parts. Contact could result in injury! Do not use other tools or utensils during the appliance usage.
• Do not leave this product out of your sight when it is running.
• Ensure all loose matters and your clothes/accessories are kept away while using this product.
• Never process boiling liquids (max 90^ ).
• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Never operate appliance with the attachments wire whip, flat beater or dough hook unless the bowl is in place.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The motor slows down during operation.	Amount of dough may exceed maximum capacity. Remove half and process in two batches.
	Dough may be too wet, it sticks onto the side of the bowl.	Add more flour, 1 tablespoon at a time until the motor speeds up. Process until dough cleans the side of the bowl.
The motor does not work. The appliance is not connected to the mains. Make sure to plug in the appliance before operation.
The appliance vibrates/moves during operation.	The rubber feet are wet. Make sure the rubber feet at the bottom of the unit are clean and dry.
	It is normal for heavy loads (e.g heavy dough, cheese).	Remove half and process in two batches.
The attachment scrapes the Stainless steel bowl during operation.	The height of the attachment shaft is incorrect. Adjust the height of the attachment shaft.
The Working light and Power indicator light flashes on and off.	The Speed selector has been left turned on. Turn the Speed selector to “Arrest”.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.

RECIPES

WHISKING FUNCTION QUANITITIES AND PROCESSING TIMES
Ingredients Quantity Unit Time Speed
Cream 21~61 dL 60~80s 8~10
Egg-white 12~2.4 dL			At least 100s 8~10
Method
Use the wire whip tool.

BEATING FUNCTION QUANTITIES AND PROCESSING TIMES (MIXING LIGHT DOUGH (E.G: CAKE DOUGH))
Recipe Ingredients Quantity Unit Time Speed
Cake sponge	Flour	6,0 dL		200~230s	Medium setting(5~6setting)
	Margarine	1,5	dL
	Sugar	1,7	dL
	Baking powder	1,0	tsp
Chocolate cake	Flour	8,0 dL		300~360s	Medium setting(4~6setting)
	Egg 4,0 pcs
	Butter	2,0 dL
	Sugar	1,7	dL
	Vanilla Sugar	2,0	tsp
	Sour cream 1,0 dL
	Nougat raw mixture	100	g
	Baking soda	3,0	tsp
	Method
	The butter should be soft not hard. Stir the soft butter with sugar until creamy. Add the eggs one after another. While stirring, add the sour cream and vanilla sugar. Finally stir in the flour together with baking soda.Note: Use the SoftEdgeBeaterTM* tool for creamier results.
Butter Cake	Flour	3,0	dL	200~230s	Medium setting(4~6setting)
	Margarine	1,5	dL
	Sugar	1,7	dL
	Fresh egg	3	pcs
	Baking powder	1,0	tsp
	Method
	Place all ingredients in the bowl, and mix them, till it is ready.Note: Use the SoftEdgeBeaterTM* tool for creamier results.
Chocolate butter cream frosting	Semi-sweet chocolate chips	2,3	dL	200~230s	Medium setting(4~6setting)
	Butter, softened	1,15 dL
	Sifted confectioners' sugar	4,6	dL
	Milk	5	tsp
	Vanilla extract	0,5	tsp
	Method
	Melt chocolate chips over hot water; stir until smooth. Set aside; cool 15 minutes.We recommend to use the SoftEdgeBeaterTM* tool instead of the coated flat beater tool.In large bowl, beat butter until creamy. Gradually add confectioners' sugar, alternately with milk. Add melted chocolate and vanilla; beat until smooth.

HOOKS FUNCTION QUANTITIES AND PROCESSING TIMES

Recipe Ingredients Quantity Unit Time Speed
Yeast dough*(bread)min.Quantities	Flour 6,0 dL			350-380s	Low setting(max. 2 setting)
	Water 2,0 dL
	Sugar 24 dL
	Margarline 1,0 tbs
	Salt 1,0 tsp
	Dry Yeast 2,0 tsp
	Method
	Assemble the coated dough hook to mix the ingredients.Place all the ingredients into the bowl and knead until satisfactory.Cover the bowl with thePerfectRiseLidTM*and let it rise.
Yeast dough*(Pizza dough) max quantities	Wheat flour 16,0 dL			At least 480s	Low setting(max. 2 setting)
	Water 4,0 dL
	Oil	1,0 dL
	Fresh egg	2,0 pcs
	Salt 3,0 tsp
	Sugar 2,0 tsp
	Dry Yeast 1,0 tbs
	Method
	1. In a container mix half of the yeast with the salt and the sugar and set aside;2. In the bowl add the remaining yeast with the water and the oil;3. This dough should be mixed with a whire whip tool, at minimum speed until a smooth mixture is obtained;4. Add into the bowl the fresh eggs and the preparation set aside in point 1 (the yeast mixed with salt and sugar).The speed should be increased to medium.5. Add half of the flour gradually. When the dough acquires a bigger volume and consistency change the tool to the coated dough hook tool.6. Add the rest of the flour and continue mixing. At this point you will need to monitor the input power of the machine, so that it doesn't exceed setting 2The dough should be mixed until it releases completely from the interior surface of the bowl.7. Cover the bowl with thePerfectRiseLidTM*and let it rise.

*Do not exceed Speed 2 when preparing yeast dough. This may damage the machine.

DEUTSCH

J. Anti-slip pootjes

K. Stroomkabel

L. Garde

M. Gecoate platte klopper

N. SoftEdgeBeater™*

O. Gecoate deeghaak

P. Vleesmolen*

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

GB DE AR ES FA FR GR NL PT

www.aeg.com

AEG

CONSUMABLES & ACCESSORIES

www.aeg.com/shop

Express Slicer & Grater

Ref: AUM ES

PNC: 900167704/7

Pasta Roller

Ref: AUM PR

PNC: 900167751/8

Meat Grinder

Ref: AUM MG

PNC: 900167703/9

Spaghetti Cutter

Ref: AUM PSC

PNC: 900167752/6

Tagliatelle Cutter

Ref: AUM PTC

PNC: 900167753/4

Burger Press

Ref: AHP 01

PNC: 900168341/7
