ZHC6235X - Basket ZANUSSI - Free user manual and instructions

Product type	Cooker hood
Brand	Zanussi
Model	ZHC6235X
Width (estimated)	60 cm
Power supply	230 V, 50 Hz (check rating plate)
Motor power	Not specified in the manual
Number of speeds	3 suction speeds
Lighting	Integrated LED lighting
Extraction types	Exhaust (external evacuation) or recirculation (internal recycling)
Grease filter	Dishwasher safe; monthly cleaning recommended
Charcoal filter (type 20)	Washable every 2 months; replace the pad every 3 years
Charcoal filter (type 15)	Non-washable; replace every 4 months max
Minimum safety distance (electric hob)	50 cm
Minimum safety distance (gas/mixed hob)	65 cm
LED consumption	Up to 90% energy saving compared to traditional bulbs
Noise level	Not specified in the manual
Weight	Not specified in the manual
Manufacturer warranty	Refer to the general terms and conditions of sale
After-sales service	Contact the approved technical assistance service

Frequently Asked Questions - ZHC6235X ZANUSSI

How to clean the grease filters?

The grease filters must be cleaned once a month. Use a non-aggressive detergent, by hand or in the dishwasher at low temperature and short cycle. Dishwashing may cause discoloration but does not affect efficiency.

When to replace the charcoal filter?

For the type 15 charcoal filter (non-washable), replace it every 4 months maximum. For type 20 (washable), clean it every 2 months with hot water or in the dishwasher at 65°C, then dry in the oven for 10 minutes at 100°C. Replace the pad every 3 years.

Can I use the hood without the filters?

No, never use the hood without the filters in place. This could damage the motor and pose a fire risk.

How to adjust the suction speed?

Use buttons 3 (minimum), 4 (medium) and 5 (maximum) on the control panel. The maximum speed is recommended for intense vapors. Turn on the hood 5 minutes before cooking and let it run for 15 minutes after.

What is the minimum distance between the hood and the hob?

The minimum distance is 50 cm for electric hobs and 65 cm for gas or mixed hobs. Follow the hob manufacturer's instructions if a greater distance is specified.

What to do in case of lighting failure?

The lighting is LED. To replace it, contact the approved technical assistance service. Do not look directly at the LED light.

Can I use the hood in recirculation mode without an external exhaust duct?

Yes, the hood can operate in filtering mode with an activated charcoal filter to recirculate the air. Make sure the appropriate filter is installed.

How to connect the hood electrically?

The voltage must match that on the rating plate. If a plug is present, connect it to an accessible wall socket. Otherwise, call a qualified electrician for direct connection with a standard circuit breaker.

Can I cleanup the hood with alcohol or abrasive products?

No, never use alcohol or abrasive products. Use a damp cloth with a neutral liquid detergent. Alcohol can damage the surface.

Can the hood be used by children?

Children under 8 years old or without supervision should not use the hood. Persons with reduced capabilities should be supervised or have received safety instructions.

USER MANUAL ZHC6235X ZANUSSI

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

This appliance can be used by children aged from 8 years and above and per sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user main tenance shall not be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual.

Failure to follow the instruc tions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances. When connecting the hood to the electrical network, only certified electrical adaptors are allowed and not power strips.

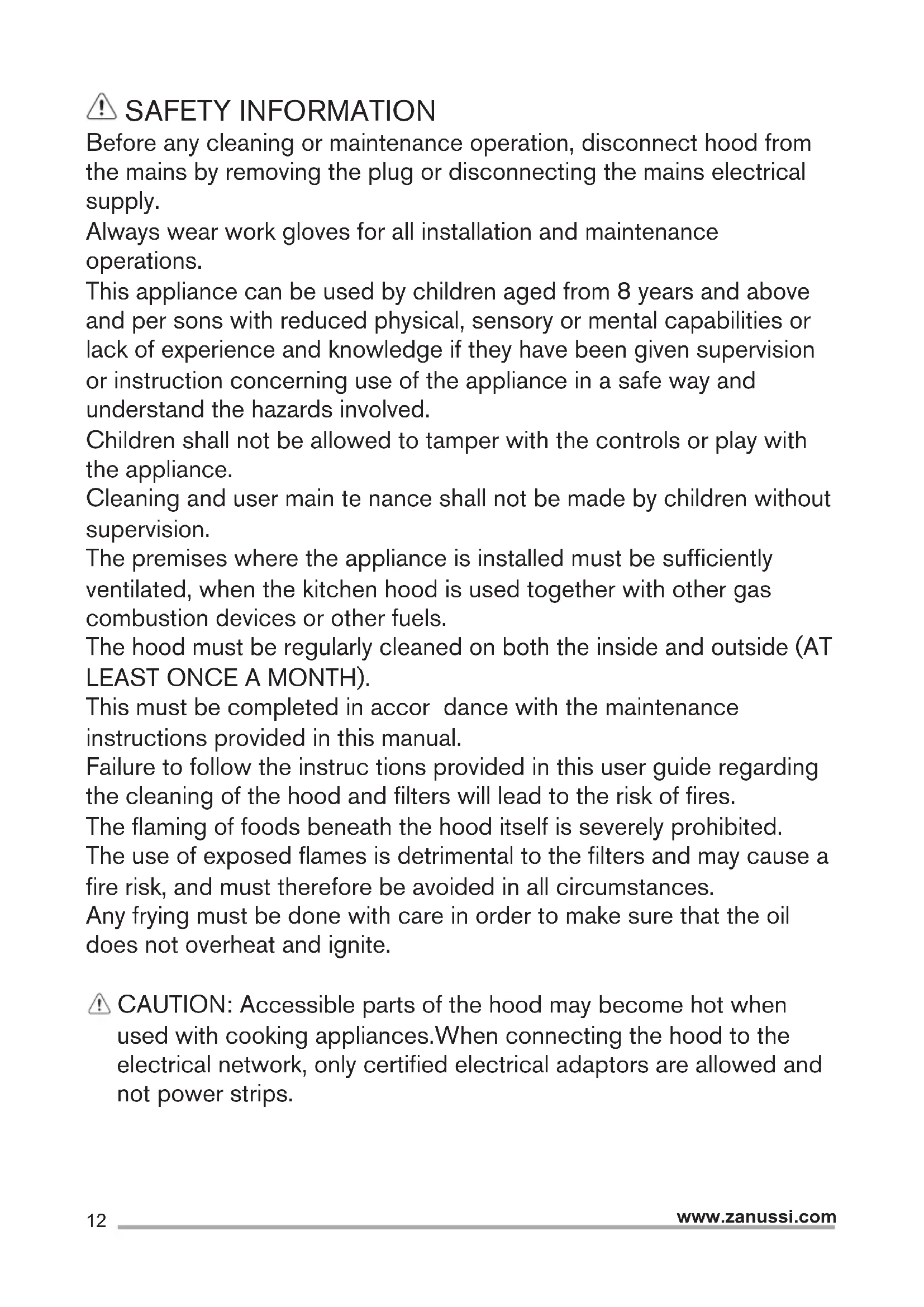

SAFETY INSTRUCTIONS

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol

. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

USE

The hood is designed to be used either for

exhausting or filter version.

INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

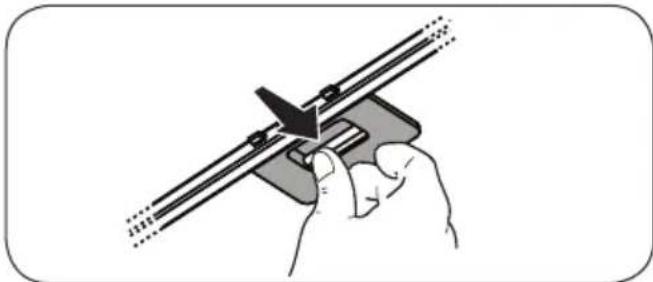

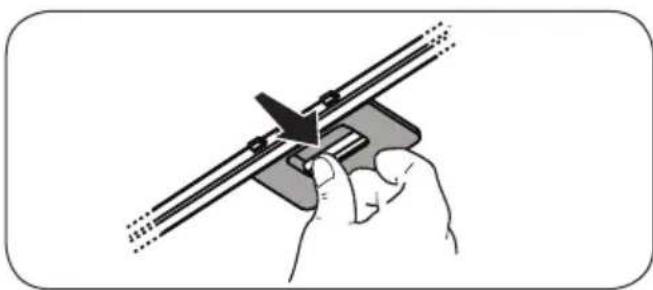

Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

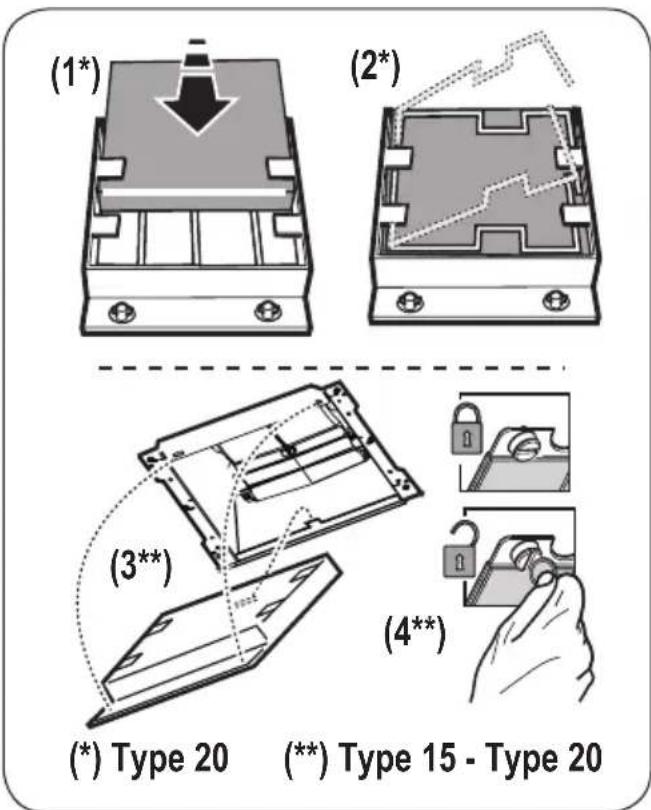

Charcoal filter - Type 20 LONG LIFE - Washable activated charcoal filter

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65^ (if the dishwasher is used, select the full cycle function and leave dishes out). Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100^ to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

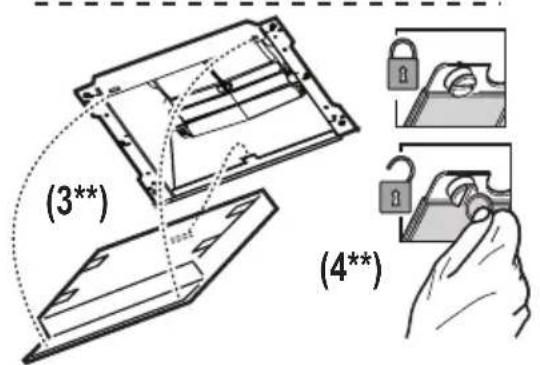

Type 15 - NON-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months. The charcoal filter may NOT be washed or regenerated.

CONTROLS

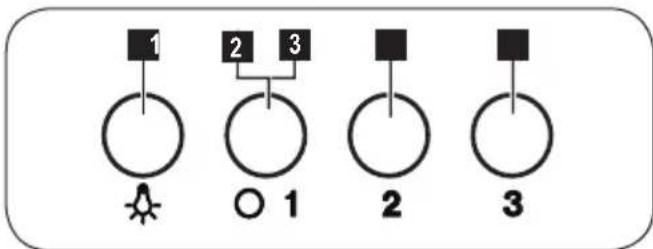

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

1. ON/OFF lighting
2. OFF motors
   3.-4.-5. Minimum suction power (3.), medium (4.), maximum (5.).

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

LIGHTING

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

Caution! Do not look directly into the LED light.

For replacement, contact the technical service.
