USER MANUAL E2641 BONECO

Instructions for use (9-12)

Congratulations on choosing the evaporator evaporator BONECO E2641!

General information

Did you know that dry room air:
- Dries out the mucous membranes, and also causes chapped lips and stinging eyes?
Encourages infections and illnesses of the respiratory system?
Causes weariness, tiredness and poor concentration? Stresses household pets and house plants?
- Encourages the formation of dust and the electrostatic charging of textiles made of synthetic fibers, as well as carpets and plastic flooring?
- Damages wooden furniture and especially parquet floors?
- Causes musical instruments to go out of tune?

A comfortable indoor atmosphere is achieved at a relative humidity of between 40 and 60% . Air humidification is especially sensible in winter, but does not replace the regular airing of living spaces.

Safety instructions

• Read the operating instructions carefully before using the appliance and keep them in a safe place for later reference.

• Connect the unit only to an AC supply with a voltage that agrees with the rating label.
  Only use the appliance indoors and within the parameters stated in the technical specifications. Using the appliance for a purpose for which it is not intended could pose a serious hazard to health and life.
  Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are in the vicinity of the appliance.

• Persons who are unfamiliar with the operating instructions, as well as children and persons under the influence of medication, alcohol or drugs are not permitted to operate the appliance, or are only permitted to operate it under supervision.

• Never use the appliance if there is any damage to the appliance or cable, after malfunction has occurred, after the appliance has been dropped or damaged in any other way.
  Only operate the appliance when it is completely assembled.
• Repairs to electrical appliances may only be carried out by qualified service engineers. Improper repair work can pose a considerable hazard to the user.
• Never pull the plug from the mains socket by the cable or with wet hands.
  Always place the appliance on a dry, level surface. We do not accept any liability for damages due to the incorrect placement of the unit.
• Position the appliance where it cannot be easily knocked over.
• Do not run the power cord under a carpet or other objects. Position the appliance so that you will not trip over the cord.
• Do not use the appliance in areas where combustible materials, gases or vapours are present.
• Do not insert foreign objects in the device.
• Do not block the air intake or mist outlet.
• Do not sit, stand or place any heavy objects on the appliance.
• Warning: the surfaces of the device become hot during operation.
  The power cable must not be left lying on the device or allowed to come into contact with the front grille.
  Ignoring this advice may lead to fire or a short circuit.
• Do not use extension cables.

• Use connection cables with a minimum current rating of 10 A only.
  The device is not splash-resistant.

• The device must not be placed on hot surfaces or near naked flames. Maintain a minimum safe distance of 50~cm .
  The device must only be used in private residences, in dry rooms.

• Never immerse the device or cable in water or other liquids. Ignoring this advice may lead to injury, fire or electrocution.
• Use original replacement parts only.
  Before cleaning the device, remove the plug from the mains and allow it to cool fully.
• Use the device only in dry living spaces of up to 50 m² (or 125 m²) in size.
• Never move the device while in operation.
• The plastics used in humidifiers age with time and may become fragile. Safety can then no longer be guaranteed and the device must not be used.
• Keep the instructions in a safe place and ensure that they are passed to any subsequent users.
• No responsibility is accepted for damage caused through disregard of these instructions.

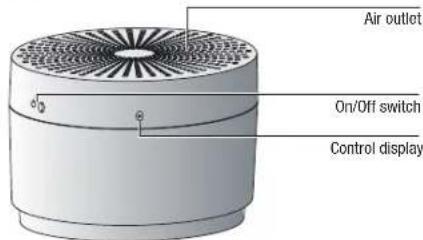

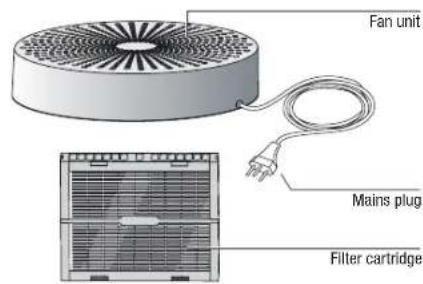

Description of the appliance Choosing a location

Front

Back

Before you position the device, please consider the following points:
- Never position the device directly beneath a power socket.
- Ensure that the device is stable and that no one can trip over the power cable.
- Do not position the device on surfaces sensitive to water.
- Do not cover the device and ensure that it is not in close proximity to furniture, walls or curtains.
- Ensure that it is not possible for children to play with the device.

Filling up the water

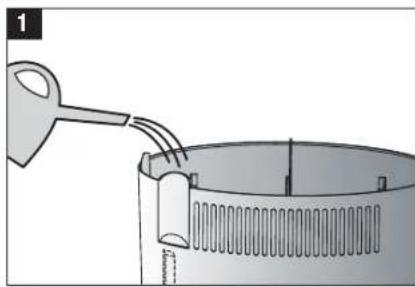

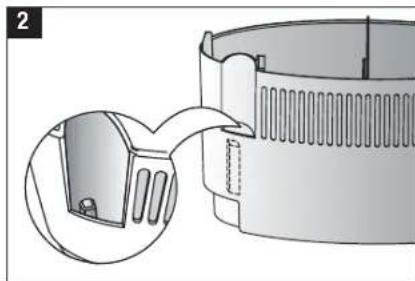

• Pour untreated tap water into the rear, left-hand opening in the water container (2). There is a water level indicator in the opening. Do not fill past the maximum limit (max. 3.5 litres).
• Do not add scents etc. to the water.

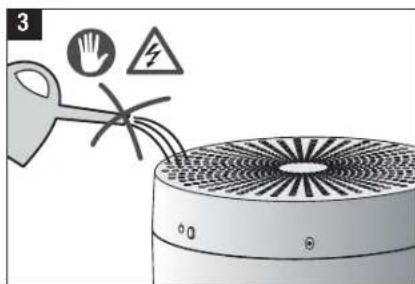

Never pour water into the air intake or air exhaust at the top (danger of causing a short circuit) (3).

Start-up

• Insert plug into mains socket (230 V).
• Use the On/Off switch to turn the device on (the red LED is then illuminated).

After use

• Use the On/Off switch to turn the device off.
• Remove the plug from the mains.
• Pour out any remaining water and rinse the water container.

Cleaning

You must clean the device regularly to ensure that it operates smoothly and hygienically. It should be cleaned and maintained at regular intervals:

• Weekly: clean housing components.
• Every 2 to 3 months: change filter cartridge.
• Annually: clean device after heating season.

The humidifier can be opened for cleaning with a minimum of effort and without the aid of tools:

• Turn off the device and remove the plug from the mains.
• Lift the upper part of the housing with the power cable to remove it. Never immerse this in water.
• Remove the filter cartridge. Deposits in the air and water build up and contaminate the filter evaporator cartridge while the device is in operation. The white deposits are caused by limescale and not mould. It is therefore recommended to replace them approximately every 2 to 3 months.

Replace the filter cartridge sooner if:

It emits odour.
- It is heavily contaminated or there is a lot of limescale build-up (if your water is particularly hard for example).
- Humidification performance is clearly impaired (if your water is particularly hard for example).
- Remove residues from the base of the housing and clean it. You can use a timescale remover such as CalcOff to remove timescale and mineral deposits.
Once or twice a year, use a damp cloth to wipe clean the bottom of the ventilator unit.

Warning

Always clean the humidifier if it has not been used for more than a week.

• Switch the device off and remove the plug from the mains before carrying out maintenance and after each use.
• Never immerse the device in water (ignoring this advice may lead to a short circuit). Use only a damp cloth to clean it, and dry it thoroughly afterwards. Always remove the plug from the mains beforehand.
• Ensure that there is no heavy build-up of dust around the air intake and air exhaust grilles (fire hazard) and clean them occasionally with a dry brush or vacuum cleaner.

Notes on how a humidifier works

The drier the air in a room is, the more moisture is emitted by the device. The self-regulating principle between the air in a room and the humidifier prevents excessive humidity. As such, the relative humidity varies between approx. 45 and 60% .
- If extra humidity is required for larger rooms, the humidifier can be placed close to a radiator (do not exceed 50^ ).
- It is recommended to use a humidistat to monitor humidity.
- Humidity is heavily restricted by circulating air (for example, in rooms with poorly sealed/open windows or in elevated rooms).
- Please note that humidity increases as air temperature rises and this can cause unwanted condensation in some areas.

Recommended values for humidity in living space

Room temperature	Relative Humidity
18 °C	50 %
20 °C	45 %
22 °C	40 %

Storing the appliance for extended periods

Clean the appliance as described earlier and allow to dry thoroughly. Preferably store the appliance in its original box, in a dry place away from high temperatures.

Disposal

Return your worn out unit to your dealer for proper disposal. You can obtain information on other ways to dispose of the unit from your local district or town council.

Warranty

The warranty conditions are defined by our representative in the country of sale. Please contact your dealer if, despite strict quality control, your appliance becomes defective. You must present your original receipt when making a claim under the warranty.

Technical specifications

Mains voltage 230 V / 50 Hz
Power consumption 8 W
Humidity output 250 g/h
Suitable for rooms up to 50 m	2/125 m²
Water capacity 3.5 liter
Dimensions 350 x 190 x 255 mm
Weight (empty) 1.6 kg
Operating noise level 31 dB(A)

Spare parts

Spare parts can be obtained from your specialist dealer and installed in the appliance yourself. Only original manufacturer's parts may be used. All other repairs must be carried out by a specialist or customer service. This also applies to a defective mains cable.
