USER MANUAL Cyclonic CONRAD

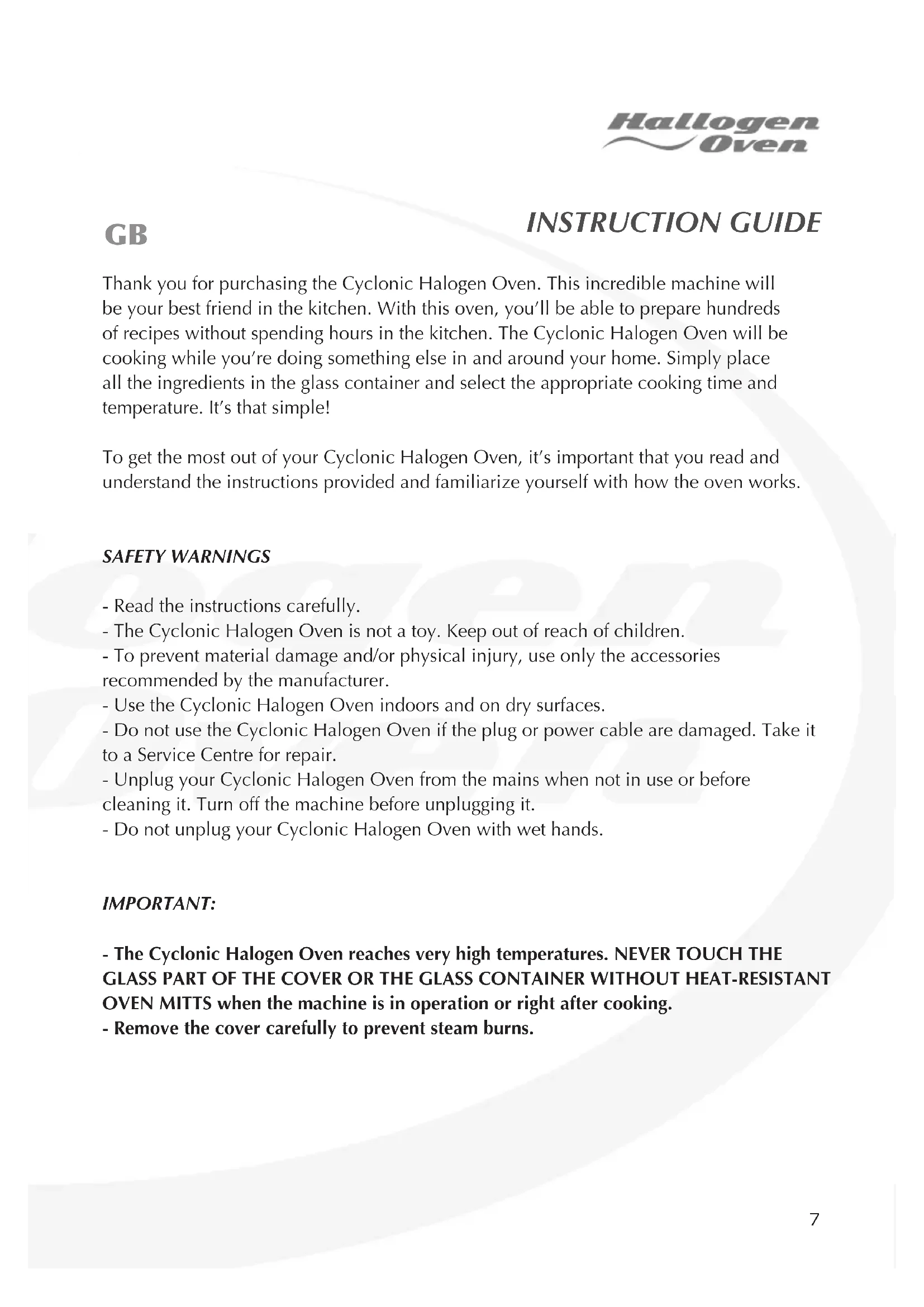

Thank you for purchasing the Cyclonic Halogen Oven. This incredible machine will be your best friend in the kitchen. With this oven, you'll be able to prepare hundreds of recipes without spending hours in the kitchen. The Cyclonic Halogen Oven will be cooking while you're doing something else in and around your home. Simply place all the ingredients in the glass container and select the appropriate cooking time and temperature. It's that simple!

To get the most out of your Cyclonic Halogen Oven, it's important that you read and understand the instructions provided and familiarize yourself with how the oven works.

SAFETYWARNINGS

• Read the instructions carefully.

• The Cyclonic Halogen Oven is not a toy. Keep out of reach of children.

• To prevent material damage and/or physical injury, use only the accessories recommended by the manufacturer.

• Use the Cyclonic Halogen Oven indoors and on dry surfaces.

• Do not use the Cyclonic Halogen Oven if the plug or power cable are damaged. Take it to a Service Centre for repair.

• Unplug your Cyclonic Halogen Oven from the mains when not in use or before cleaning it. Turn off the machine before unplugging it.

• Do not unplug your Cyclonic Halogen Oven with wet hands.

IMPORTANT:

• The Cyclonic Halogen Oven reaches very high temperatures. NEVER TOUCH THE GLASS PART OF THE COVER OR THE GLASS CONTAINER WITHOUT HEAT-RESISTANT OVEN MITTS when the machine is in operation or right after cooking.

• Remove the cover carefully to prevent steam burns.

GB

The Cyclonic Halogen Oven is a real cooking revolution. With this oven, you'll be able to roast, bake, brown, heat and defrost your food in record time. You'll be able to cook meat, fish, vegetables and other foods. The Cyclonic Halogen Oven is widely used by professionals. One of its main features is its heat-circulating system, which enables fast, even cooking that uses less energy.

• Before using your Cyclonic Halogen Oven for the first time, let it operate empty for 10 minutes at 200^ .
• Do not worry if you notice a burning smell, as this is completely normal.
• Clean the inside of the glass container with a damp sponge or cloth. Make sure that the surface is clean.
• Place the stainless-steel tray under the glass container and put the ingredients inside.
• Place the cover on the glass container and make sure that the edges fit together.
• Plug the oven into the mains.
• As a safety feature, the device will not function unless the handle on top of the cover is down.
• Set the timer to the desired cooking time.
• Set the thermostat to the desired temperature.

Consult the following table for the appropriate cooking times and temperatures for different kinds of food:

FOOD

COOKING TIME*

TEMPERATURE

Poultry 30 - 40 min 180 - 200 °C

Veal 25-30 min 180-200°C

Pork 15 - 20 min 180 - 200°C

Beef 15 - 20 min 200 - 220°C

Lamb 20-25min 180-200°C

Toast 8-10min 120-140°C

Potatoes 12 - 15 min 180 - 200°C

Rice 15 - 20 min 150 - 180°C

Shellfish 10 - 12 min 140 - 160°C

• These cooking times are approximate.

GB

COOKING METHOD TEMPERATURE

Simmer / Slow cook 120 - 140°C

Reheat 160^

Steam 170°C

Normal cooking 170^ C

Toast 180^

Roast 200^

Preheat (10 - 13 min) 180^

Barbecue/Grill 220°C

Broil 240^

MAINTENANCE

• Make sure that the Cyclonic Halogen Oven is unplugged from the mains before cleaning it.
• WARNING: NEVER IMMERSE THE COVER IN WATER.
• Clean the exterior of the oven with a damp sponge or soft cloth.
• Clean the interior of the oven with a dry cloth.
• The accessories provided are dishwasher safe.
• The glass container is also dishwasher safe, but hand-washing is recommended.

TECHNICAL CHARACTERISTICS:

• Power: 1400 W, 220 V/240 V, 50 Hz / 60 Hz
• Capacity: 12 litres
• Cooking temperature: 65^ to 250^
• Timer: 1 to 60 minutes
• Gross Weight: 7,3 Kg
  -Net Weight:6,5Kg

GB

VERY IMPORTANT

• Do not pour liquid into the glass container until it has cooled.
• To prevent burns, never touch the glass container while the oven is in use.
• To prevent burns, always use the handle to lift the cover.
• Always unplug the oven from the mains after use.
• To avoid electric shock, do not immerse the power adapter in water or other liquids.
• To avoid short-circuiting, always plug the oven into an earthed, 220/240V power outlet.
• Never unplug the oven by pulling on the cable.
• Keep out of reach of children.
• Never disassemble the oven. For repairs, take it to the Customer Service Department of the distributor where you bought the product.
• Do not leave food inside the oven.

HOW TO DISPOSE OF MATERIALS

This symbol indicates that you must seek information and follow local regulations regarding the disposal of this kind of product.

Do not dispose of this product the way you would dispose of general household waste. Dispose of this product in accordance with relevant local regulations.

Electrical and electronic products contain hazardous substances that can harm the environment and human health. They should be recycled.
