USER MANUAL SBLL 5 A1 SILVERCREST

Operation and safety notes

FR BE

ENCEINTE D'EXTÉRIEUR BLUETOOTH®

GB/IE Operation and safety notes Page 11

GEFAHR! EXPLOSIONSGEFAHR!

TRAGEN SIE SCHUTZHANDSCHUHE!

Warnings and symbols used 12

Trademark notices. 13

Safety instructions. 13

Scope of delivery. 15

Description of parts. 15

Technical data 16

Before use. 16

Operation. 16

Storage when not in use 17

Cleaning 17

Disposal. 17

Simplified EU declaration of conformity 18

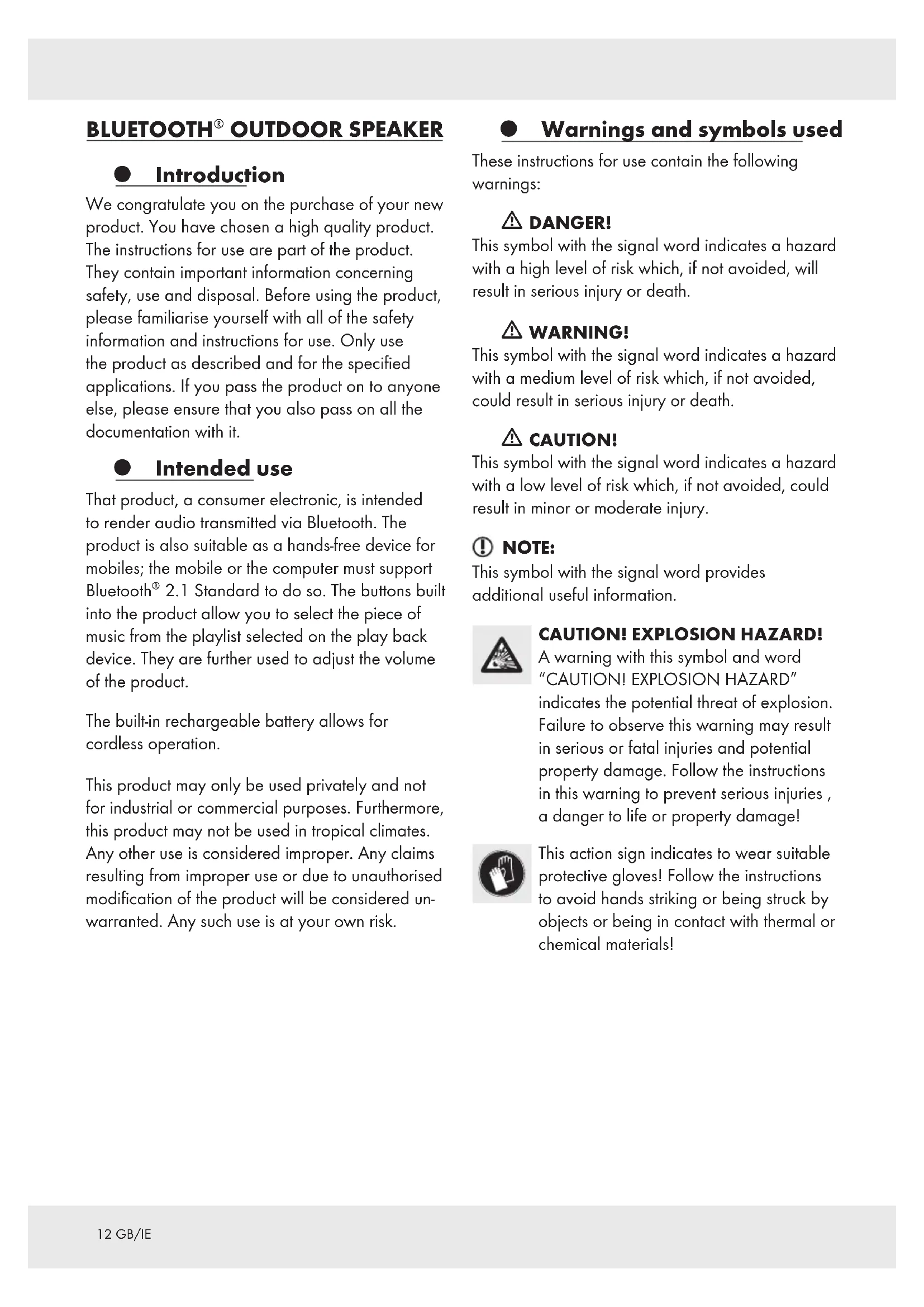

BLUETOOTH® OUTDOOR SPEAKER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

That product, a consumer electronic, is intended to render audio transmitted via Bluetooth. The product is also suitable as a hands-free device for mobiles; the mobile or the computer must support Bluetooth® 2.1 Standard to do so. The buttons built into the product allow you to select the piece of music from the playlist selected on the play back device. They are further used to adjust the volume of the product.

The built-in rechargeable battery allows for cordless operation.

This product may only be used privately and not for industrial or commercial purposes. Furthermore, this product may not be used in tropical climates. Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the product will be considered unwarranted. Any such use is at your own risk.

-Warnings and symbols used

These instructions for use contain the following warnings:

DANGER!

This symbol with the signal word indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.

WARNING!

This symbol with the signal word indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death.

CAUTION!

This symbol with the signal word indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTE:

This symbol with the signal word provides additional useful information.

CAUTION! EXPLOSION HAZARD!

A warning with this symbol and word "CAUTION! EXPLOSION HAZARD" indicates the potential threat of explosion. Failure to observe this warning may result in serious or fatal injuries and potential property damage. Follow the instructions in this warning to prevent serious injuries, a danger to life or property damage!

This action sign indicates to wear suitable protective gloves! Follow the instructions to avoid hands striking or being struck by objects or being in contact with thermal or chemical materials!

Trademark notices

串 registered trademark of USB Implementers Forum, Inc.
The Bluetooth mark and logos are registered trademarks of Bluetooth SIG, Inc. and any use of such marks by OWIM GmbH & Co. KG is under license.

The SilverCrest trademark and trade name is the property of their respective owners.
Any other names and products may be trademarks or registered trademarks of their respective owners.
The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

Safety instructions

Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

DANGER! RISK OF SUFFOCATION!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision. The product is not a toy.

RISK OF PROPERTY DAMAGE

This product does not contain any parts which can be serviced by the user. The rechargeable battery cannot be replaced.
- Do not place burning candles or other open fire on or next to the product.
Check the product before every use! Discontinue use if any damage to the product or the charging cable is detected!
If you notice smoke or unusual noise or odour, switch the product off immediately and remove the USB cable.
Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again to prevent short circuits!
- Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!
Do not throw the product into fire and do not expose to high temperatures.

DANGER

Do not try to open the product! It has no internal parts requiring maintenance.

DANGER! Radio interference

• Switch the product off on aeroplanes, in hospitals, service rooms, or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics.
• Keep the product at least 20~cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers.
  The radio waves transmitted could cause interference in hearing aids.
• Do not place the product near flammable gases or potentially explosives areas (e.g. paint shops) with the wireless components on, as the radio waves emitted can cause explosions and fire.
  The range of the radio waves varies by environmental conditions. In the event of wireless data transmission, unauthorised third parties receiving the data cannot be excluded.

DANGER! RISK OF EXPLOSION!

The product must not be thrown into a fire because the built-in battery may explode.

Safety instructions for built-in rechargeable batteries

• Never open the product, repairs may only be carried out by qualified personnel.

DANGER! RISK OF EXPLOSION!

The product must not be thrown into a fire because the built-in battery may explode.

• Avoid extreme environmental conditions and temperatures, which could affect rechargeable batteries, e.g. radiators / direct sunlight.
  If rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
• Do not cover the product during operation or charging. Otherwise the product can be heated.
  This product contains a rechargeable battery, which can lead to fire, explosion or leakage of hazardous substances in case of incorrect application.

WARNING! Ensure that

no direct heat sources (e.g. heating) can affect the product.
the product is not exposed to bright artificial light.
any contact with splashed and dripping water and corrosive liquids is avoided and the product are not operated in the vicinity of water. In particular, the product should never be submerged in liquid; do not place any vessels filled with liquid, for example, vases or drinks, on or near the product.
the product is not used in the immediate vicinity of magnetic fields (e.g. speakers).
no fire sources (e.g. burning candles) are placed on or near the product.
no foreign objects penetrate the product.

the product is never subjected to extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the product were subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the product have reached ambient temperature before use.
the product is never subjected to excessive shocks and vibrations.
when using an optional USB power supply, its operating instructions are observed.
connected cables are always laid in such a manner that nobody can step on them or trip over them. There is a risk of injury.
no objects are placed on a connected cable and cables are not connected over sharp edges because they could be damaged otherwise.
The OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the product. The OWIM GmbH & Co KG further assumes no liability for using or replacing cables and products not distributed by OWIM. The user of the product is fully responsible for correcting interference caused by such unauthorised modification of the product, as well as replacement of such products.
This product contains a rechargeable battery, which can lead to fire, explosion or leakage of hazardous substances in case of incorrect application.

CAUTION! EXPLOSION HAZARD!

Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result. Never throw batteries / rechargeable batteries into fire or water. Do not exert mechanical loads to batteries / rechargeable batteries

Risk of batteries / rechargeable batteries leakage

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
• Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

This product has a built-in rechargeable battery which cannot be replaced by the user.

This product contains a rechargeable battery which cannot be removed. The removal or replacement of the rechargeable battery may only be carried out by the manufacturer or his customer service or by a similarly qualified person in order to avoid hazards. When disposing of the product, it should be noted that this product contains a rechargeable battery.

Do not cover the product during operation or charging. Otherwise the product can be heated.

The ingress protection of this product is

IPX7: Protection against the effects of temporary immersion in water for up to 30 minutes.

Scope of delivery

1 Bluetooth® outdoor speaker
1 Micro-USB charging cable
1 3.5mm audio cable
1 Lanyard
1 Instructions for use

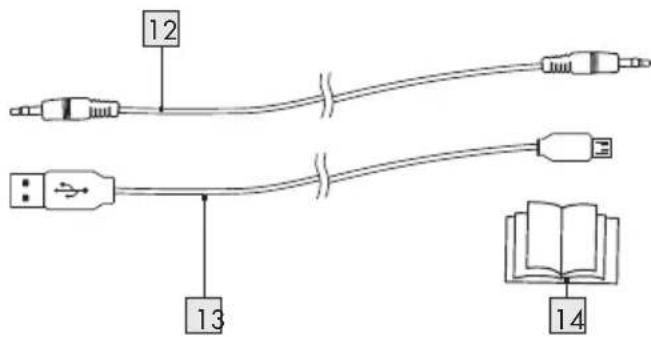

Description of parts

按钮

Hutton

Volume - button

Volume + button

Lanyard

Red LED

Blue LED

NFC position

reset all settings

AUX IN jack

USB charging jack

Audio cable

Micro-USB cable

Instructions for use

Technical data

Rechargeable battery type: Lithium Polymer

Battery capacity: 3.7 V, 1300 mAh

Output power: 5 W (RMS)

Bluetooth® version: 2.1

Bluetooth device name: SBLL 5 A1

Operation distance: approx. 10m

Frequency response: 100Hz to 20kHz

Impedance: 4 Ω

Degree of protection: IPX7 (protection

against the effects of temporary immersion in water for up to 30 minutes)

Charging time: 3 hours

Operation time: 5 hours

(at 70% volume)

Frequency band: 2402 - 2480 MHz

Max. transmitted power: 10 dBm

The specification and design may be changed without notification

Before use

① NOTES:

All parts have to be unpacked and the packaging material has to be removed completely.
Before use, verify the package contents are complete and undamaged!

Charging

This product is equipped with a built-in rechargeable Lithium Polymer battery. Fully charge the product before use.
Connect the micro-USB cable 13 with the USB charging jack 11 and the USB port of a PC or a suitable USB charging power source.
The operating time for the product is 5 hours - medium volume level (70% volume).

① NOTES:

The red LED 6 lights up when charging and goes out once charging is completed. The charging time takes approx. 3 hours.
When the battery is low the voice prompt says "Battery low" every 5 minutes to prompt charging. If the product does not get recharged after 15 minutes, the product is switching off and the voice prompt says "Power off".
Once charging is complete, disconnect the micro-USB cable 13 from the power source.

Operation

Bluetooth connection

Switching on: Press and hold until the blue LED flashes. The voice prompt says "Power on". The blue LED flashes slowly.
The voice prompt says "Pairing...". The blue LED flashes 7 quickly. The product has entered into pairing mode.
Activate Bluetooth® on your Bluetooth® device.
Search for the products' Bluetooth name SBLL 5 A1 to enable pairing. When a connection is established, the voice prompt says "Your device is connected" and the blue LED lights continuously.
Playing music: Press to play / pause music.
Increasing/decreasing volume: Press or press and hold +4 or -3.

① NOTE:

A signal tone will sound when the maximum/ minimum volume level has been reached.
Switching off: Press and hold ① The voice prompt says "Power off".

① NOTES:

The product automatically connects with devices it has already been paired with before.
Once paired, the product automatically switches off after 15 minutes if the product is not playing.
When disconnecting the product after pairing, the voice prompt says "Your device is disconnected". The blue LED 7 flashes quickly.

NFC

Activate the NFC function on the phone and put the phone close to the NFC position 8.
Follow the instructions of the phone to connect the phone with the product via NFC function.
After successful pairing, the voice prompt says "Your device is connected".

AUX/LINE-IN connection

Connect the audio with the AUX IN jack 10 and your device. The red LED 6 lights up.

① NOTE:

While playing music, Bluetooth connection has a higher priority over the line-in connection.

Reset

If the product should be malfunctioning, reset the product.
Use a pointy tool, such as a toothpick, and push the reset button.

Storage when not in use

Store the product in a dry location from dust, protected from direct sunlight.
The rechargeable battery has to be charged periodically.

- Cleaning

• Switch the product off, remove all plugs before cleaning!
  No acid, chafing or solvent cleaning agents should be used or the product can be damaged.
  Only clean the outside of the product using aThis disposal is free of charge to you. Protect the soft, dry cloth! environment and dispose properly.
  ■ At persistent soiling, a mild cleaning agent can be used. Please contact your local waste management company or the city / municipal administration for more information.
  Please contact your local waste management company or the city / municipal administration for more information.

It is necessary to repair the product if they have been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the device or if the product has been exposed to rain or moisture.
Repair work is also required if the device is not working properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, turn the product off immediately. In such cases, the product should not be used until they have been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the product.

Only use a clean, dry cloth for cleaning the product and never use any corrosive liquids. Use a slightly moistened cloth and a mild cleaning agent to remove stubborn dirt.

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this device is subject to Directive 2012/19/EU. This directive states at the end of the life this device must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

Think about the environment and your personal health. Dispose empty batteries in separate collecting boxes. These can be found in many public buildings or in shops where batteries are sold.

Improper disposal of batteries can harm the environment!

Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection site.

Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, declares that the product BLUETOOTH® OUTDOOR SPEAKER HG03081 is in compliance with Directives 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com
