USER MANUAL PAS 7.2 A1 PARKSIDE

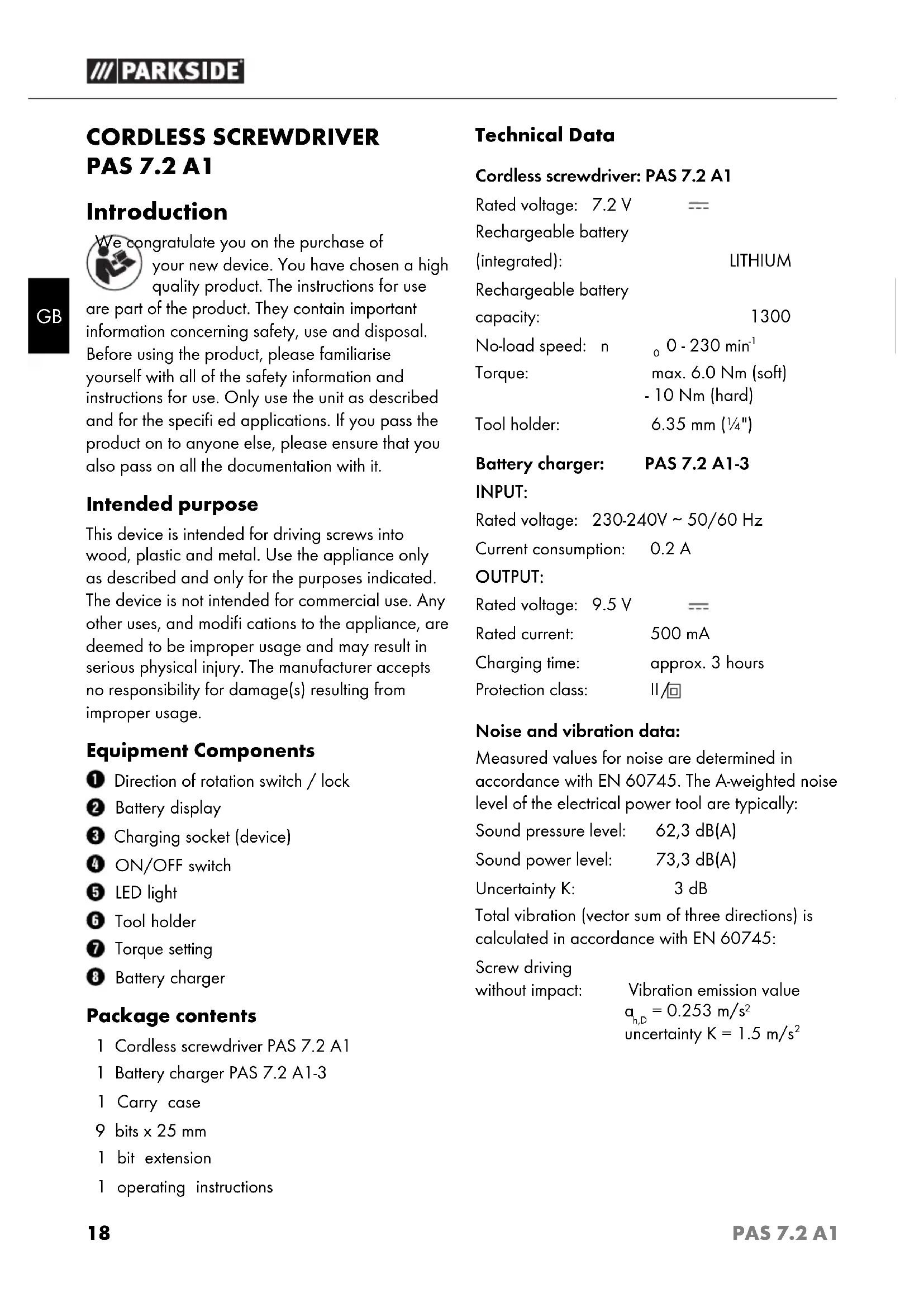

CORDLESS SCREWDRIVER PAS 7.2 A1 Introduction We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specifi ed applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Intended purpose This device is intended for driving screws into wood, plastic and metal. Use the appliance only as described and only for the purposes indicated. The device is not intended for commercial use. Any other uses, and modifi cations to the appliance, are deemed to be improper usage and may result in serious physical injury. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. Equipment Components Direction of rotation switch / lock Battery display Charging socket (device) ON/OFF switch LED light Tool holder Torque setting Battery charger Package contents 1 Cordless screwdriver PAS 7.2 A1 1 Battery charger PAS 7.2 A1-3 1 Carry case 9 bits x 25 mm 1 bit extension 1 operating instructions Technical Data Cordless screwdriver: PAS 7.2 A1 Rated voltage: 7.2 V Rechargeable battery (integrated): LITHIUM Rechargeable battery capacity: 1300 mAh No-load speed: n

Torque: max. 6.0 Nm (soft) - 10 Nm (hard) Tool holder: 6.35 mm (¼") Battery charger: PAS 7.2 A1-3 INPUT: Rated voltage: 230-240V ∼ 50/60 Hz Current consumption: 0.2 A OUTPUT: Rated voltage: 9.5 V Rated current: 500 mA Charging time: approx. 3 hours Protection class: II / Noise and vibration data: Measured values for noise are determined in accordance with EN 60745. The A-weighted noise level of the electrical power tool are typically: Sound pressure level: 62,3 dB(A) Sound power level: 73,3 dB(A) Uncertainty K: 3 dB Total vibration (vector sum of three directions) is calculated in accordance with EN 60745: Screw driving without impact: Vibration emission value

WARNING! The vibration level specifi ed in these instructions has been measured in accordance with the standardised measuring procedure specifi ed in EN 60745 and can be used to make equipment comparisons. The specifi ed vibration emis- sion value can also be used to make an initial exposure estimate. The vibration level varies in accordance with the use of the power tool and may be higher than the value specifi ed in these instructions in some cases. It is easy to underes- timate the vibration load if the electrical power tool is used regularly in a certain manner. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General Power Tool Safety Warnings WARNING! ► Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl am- mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or ground- ed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. IB_95883_PAS7.2A1_LB2.indb 19IB_95883_PAS7.2A1_LB2.indb 19 26.02.14 08:4126.02.14 08:4120 PAS 7.2 A1

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, tak- ing into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

5. Use and handling of the cordless

electrical power tool a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fi re if other types of rechargeable battery units are used. b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fi re. c) When they are not being used, store recharge- able battery units away from paperclips, coins, keys. nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fi re. d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fl uid. If contact occurs, fl ush the aff ected area with water. Seek addi- tional medical help if any of the fl uid gets into your eyes. Escaping battery fl uid may cause skin irritation or burns. CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries!

Safety instructions specifi cally for cordless screwdrivers ■ Immobilise the workpiece securely. A workpiece that is held in place with a clamp/ vice can be worked much more safely than a workpiece held with the hand. ■ Hold the power tool fi rmly. When tightening or loosening screws, a high reaction moment can quickly occur. ■ Switch off the power tool immediately if the tool being used gets blocked. Be prepared for high reaction moments as these can cause kick-back. ■ Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. ■ When working on the appliance, as well as during transport and storage, always place the rotation direction switch in the middle position (locked). This will prevent unintentional activation of the device. ■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabili- ties or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised. Original accessories/additional equipment ■ Use only the additional equipment and acces- sories detailed in the operating instructions. The use of tools and accessories other than those recommended in the operating instruc- tions could lead to an increased risk of personal injury for you. Before fi rst use Charging the rechargeable battery on the device (see Fig. C) NOTE

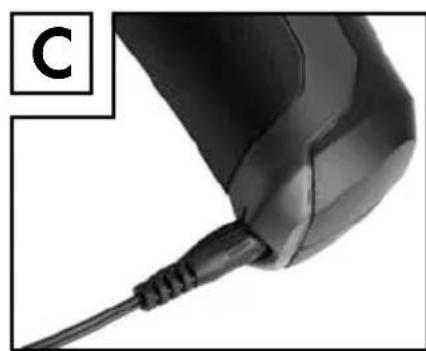

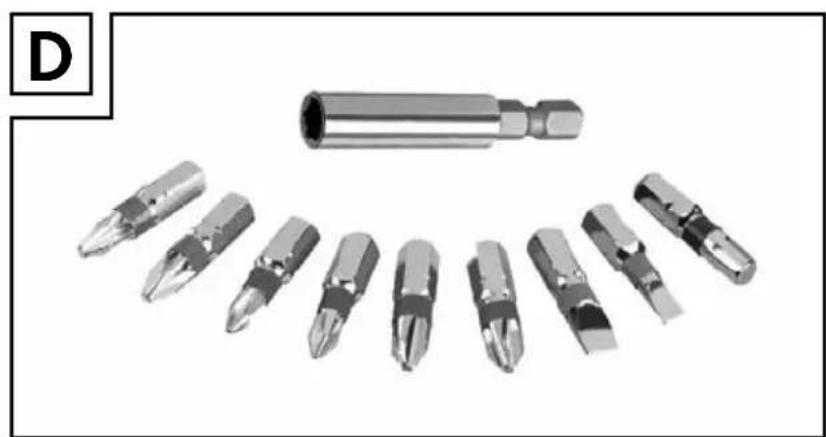

The battery is supplied partially charged. Before fi rst use, charge the battery for at least 3 hours. Li-ion batteries can be charged at any time without adversely aff ecting their service life. Interruption of the charging process will not damage the battery. Starting the charging process: ♦ Connect the Battery charger to a 230 V ∼ 50 Hz mains socket. ♦ Connect the Battery charger to the charging socket on the device . The rechargeable battery is charged when all three LEDs in the battery display are lit. LED indications: red: beginning charging process red/ orange: battery partly charged red/ orange / green: battery charged Ending the charging process: ♦ Disconnect the Battery charger from the mains socket. ♦ Disconnect the Battery charger from the charging socket on the device . Changing the bits / screwdriver bits inserts Insertion: ♦ Insert the bit directly into the tool holder . Removal: ♦ Pull out the bit out of the tool holder . IB_95883_PAS7.2A1_LB2.indb 21IB_95883_PAS7.2A1_LB2.indb 21 26.02.14 08:4126.02.14 08:4122 PAS 7.2 A1

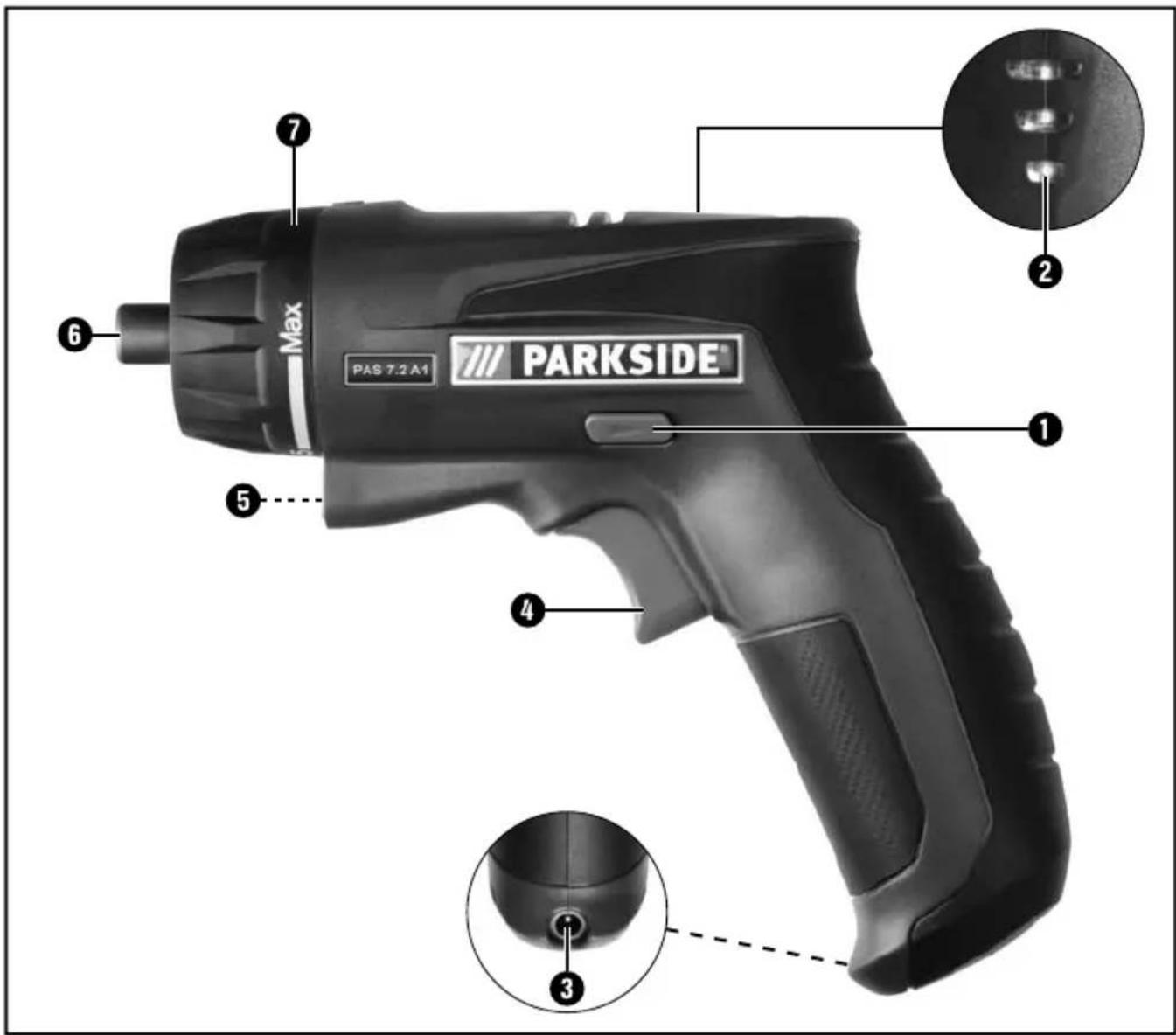

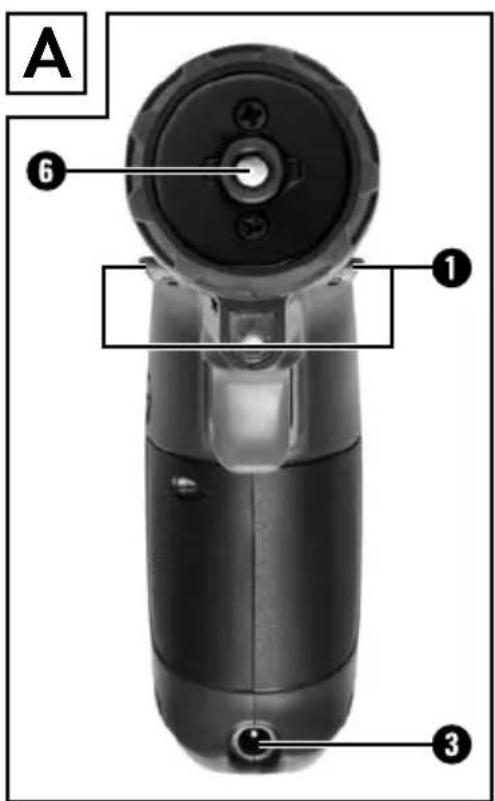

Preparing the tool for use Switching on / off the cordless screw- driver Switching on: ♦ To start the appliance squeeze on the ON /OFF switch and then keep it pressed down. Switching off : ♦ To stop the appliance, release the ON / OFF switch . Changing the direction of rotation Clockwise: ♦ Slide the direction of rotation switch to the left. ♦ Press the ON / OFF switch . You can now screw in the screws. Anti-clockwise: ♦ Slide the direction of rotation switch to the right. ♦ Press the ON / OFF switch . You can now screw out the screws. Lock: ♦ Slide the direction of rotation switch into the middle position. The ON / OFF switch is now locked. Adjusting the speed The ON / OFF switch has a variable speed control. Lightly pressing the ON / OFF switch will result in a low speed. Increasing the pressure will increase the speed. Switching LED light on / off Switching on: ♦ Press and hold the ON / OFF switch . Switching off : ♦ Release the ON/OFF switch . Torque setting The torque for a specifi c screw size can be set using the torque setting . The required torque is depend- ent on an number of factors: - the type and hardness of the material being worked. - the type and length of the screws being used. - the demands being put on the screw joint. When the set torque is reached, this is indicated by the actuation of the clutch. Battery indicator During use the battery LED indicates the remain- ing charge: red/ orange / green: maximum charge / power red/ orange: medium charge / power red: low charge - recharge battery Tips and tricks Screw bits are designated with their dimensions and their shape. If you are unsure, always try the particular screw bit out to see whether it sits in the screw head without any free play. Maintenance and cleaning DANGER OF ELECTRIC SHOCK! Pull the Battery charger out of the mains socket before carrying out any cleaning of the device. The cordless screwdriver is maintenance-free. ■ Always keep the device clean, dry and free of oil or grease. ■ Do not allow any liquids to enter the device. ■ Use a cloth to clean the housing. Never use petrol, solvents or cleaning agents that might attack plastic. IB_95883_PAS7.2A1_LB2.indb 22IB_95883_PAS7.2A1_LB2.indb 22 26.02.14 08:4126.02.14 08:4123 PAS 7.2 A1

Warranty The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticu- lously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured. The warranty covers only claims for material and maufacturing defects, but not for transport dam- age, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended by repairs made under war- ranty. This applies to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the ap- pliance, at the latest, two days after the purchase date. Repairs made after the expiration of the war- ranty period are subject to payment. Service WARNING! ► Have your device repaired at the service centre or by qualifi ed specialist personnel using origi- nal manufacturer parts only. This will ensure that your device remains safe to use. ► If the plug or lead needs to be replaced, always have the replacement carried out by the manu- facturer or its service centre. This will ensure that your device remains safe to use. Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk IAN 95883 Hotline availability: Monday to Friday 08:00 - 20:00 (CET) Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com Disposal The packaging is made from environmen- tally friendly material and can be disposed of at your local recycling plant. Do not dispose of power tools in your normal domestic waste! European Directive 2012/19/EU requires that worn-out power tools are collected separately and fed into an environmentally compatible recycling process. Do not dispose of batteries in your normal domestic waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to the existing collection facilities. Please consult your local authorities regarding suitable disposal of worn-out power tools/battery packs. IB_95883_PAS7.2A1_LB2.indb 23IB_95883_PAS7.2A1_LB2.indb 23 26.02.14 08:4126.02.14 08:4124 PAS 7.2 A1
