PDSSA 18 A1 - Screwdriver PARKSIDE - Free user manual and instructions

Product type	Cordless impact screwdriver
Brand	PARKSIDE
Model	PDSSA 18 A1
Rated voltage	18 V=
No-load speed	0-2800 min⁻¹
Rated impact frequency	0-3600 min⁻¹
Max. tightening torque (hard screwdriving)	180 Nm (according to ISO 5393)
Tool holder	1/4" (hexagonal socket)
Weight (without charger)	1.54 kg
Sound pressure level	68.72 dB(A), K=3 dB
Guaranteed sound power level	83 dB(A)
Vibration (total value)	2.455 m/s², K=1.5 m/s²
Battery type	Li-Ion, 18 V, 1.5 Ah (model PAP18-1.5A1)
Number of battery cells	5
Charging time	Approx. 1 hour
Charger	Model JLH-H15O-18, input 100-240 V~, output 18 V=1500 mA, protection class II
Delivery contents	Screwdriver, belt clip, charger, battery, bit holder, 1/4" square adapter
Intended use	Screwing and unscrewing screws, tightening and loosening nuts
Rotation direction	Reversible (right/left) with central lock
Lighting	Integrated LED work light
Belt attachment	Removable belt clip (mount on right or left)
Warranty	3 years

Frequently Asked Questions - PDSSA 18 A1 PARKSIDE

How to charge the battery of the Parkside PDSSA 18 A1 screwdriver?

To charge the battery, remove it from the device by pressing the release button. Insert it into the charger JLH-H15O-18 and plug the charger into a mains socket. The red LED indicates charging in progress, the green LED indicates that the battery is charged. The charging time is approximately 1 hour. After charging, unplug the charger and remove the battery.

How to install and remove the battery?

To remove the battery, press the release button (A11) on the battery and pull it out. To insert it, push the battery into the device's guide rail until you hear a click. Ensure it is securely engaged before using the device.

How to change the rotation direction of the screwdriver?

Use the rotation direction switch (A3) located above the trigger. Push it to the left for clockwise rotation (tightening), to the right for counterclockwise rotation (loosening). The central position locks the device to prevent accidental start. Only switch when the device is at a standstill.

How to use the tool holder (chuck)?

Pull the locking sleeve (A2) forward, insert the bit or insertion tool fully into the tool holder (A1), then release the sleeve. Check the fixation by pulling on the tool. For short 25 mm bits, use the supplied bit holder (A15). The holder is of 1/4" hexagonal socket type.

What to do if the battery does not charge?

First check the charger indicators. If the red and green LEDs flash, the battery is defective. If both are continuously on, the battery is too cold or too hot – allow it to return to room temperature. If the green LED flashes without a battery, the charger is ready. Ensure the battery is clean and dry. If the problem persists, contact customer service.

How to clean the Parkside screwdriver?

Before any cleaning, remove the battery. Clean the ventilation slots, housing, and handles with a damp cloth or brush. Never use aggressive cleaning agents or solvents. Do not immerse the device in water or spray it. The charger must be disconnected before cleaning.

Can I use batteries other than the one supplied?

It is recommended to use only compatible Parkside original batteries, such as model PAP18-1.5A1 (1.5 Ah) or PAP18-2.6A1 (2.6 Ah). Never use non-rechargeable batteries. Using other batteries can damage the device and void the warranty.

What is the warranty period and how to use it?

The warranty is 3 years from the date of purchase. Keep the receipt and the article number (IAN 104449). In case of defect, first contact customer service (phone [phone] in France). They will guide you. You must return the device clean and well packed with the proof of purchase.

How to adjust the rotation speed?

The speed is continuously variable depending on the pressure on the on/off switch (A12). The harder you press, the higher the speed and tightening torque. The LED light turns on automatically. There is no separate speed setting; it is proportional to the pressure.

What to do in case of device failure?

If the device does not work properly, first check the battery charge status. Ensure the rotation direction switch is not in the locked position. For any unresolved issues, contact Parkside customer service. Do not attempt to repair the device yourself; entrust it to a qualified professional. Use only original spare parts.

USER MANUAL PDSSA 18 A1 PARKSIDE

VISSEUSEÀCHOCS SANS FIL PDSSA 18 A1

FR

VISSEUSEÀCHOCS SANS FIL

Translation of the original instructions

DE AT CH

AKKU-DREHSCHLAGSCHRAUBER

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Translation of the original instructions Page 34

Sommaire

Introduction 4

Extent of the delivery 35

Overview 35

Functional description 35

Technical data 35

Safety instructions 36

Symbols and icons 36

Symbols on the appliance 36

Symbols on the battery 36

Symbols on the recharger 36

General safety instructions for power tools 37

Charging the battery 41

Removing / inserting the battery .... 42

Recharging the battery 42

Used batteries 42

Checking the battery charge level ... 42

Assembling 42

Attaching the belt clip 42

Operation 43

1. Direction switch 43

2. Using the tool holder 43

3. Switching on/off 43

Cleaning and maintenance ....43

Cleaning 43

Maintenance 44

Storage 44

Disposal and protection of the environment 44

Guarantee 44

Repair Service 45

Service-Center 46

Importer 46

Replacement parts/accessories ...47

Translation of the original EC declaration of conformity .53

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The device is designed for inserting and releasing bolts as well as tightening and releasing nuts. The appliance must only be used by adults. Young people aged 16 and over may only use the trimmer under adult supervision.

The user or operator is responsible for accidents causing injury to other people or damage to property.

The manufacturer cannot be held liable for damage when the trimmer is not used in conformity with its intended purpose or due to incorrect operation.

General description Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Cordless impact screwdriver
• Belt clip with screw
• Battery-charger
• Battery
• Bit holder
• Adapter for 1/4'' square
• Translation of the original instructions for use

The illustrations are on the front fold-out page.

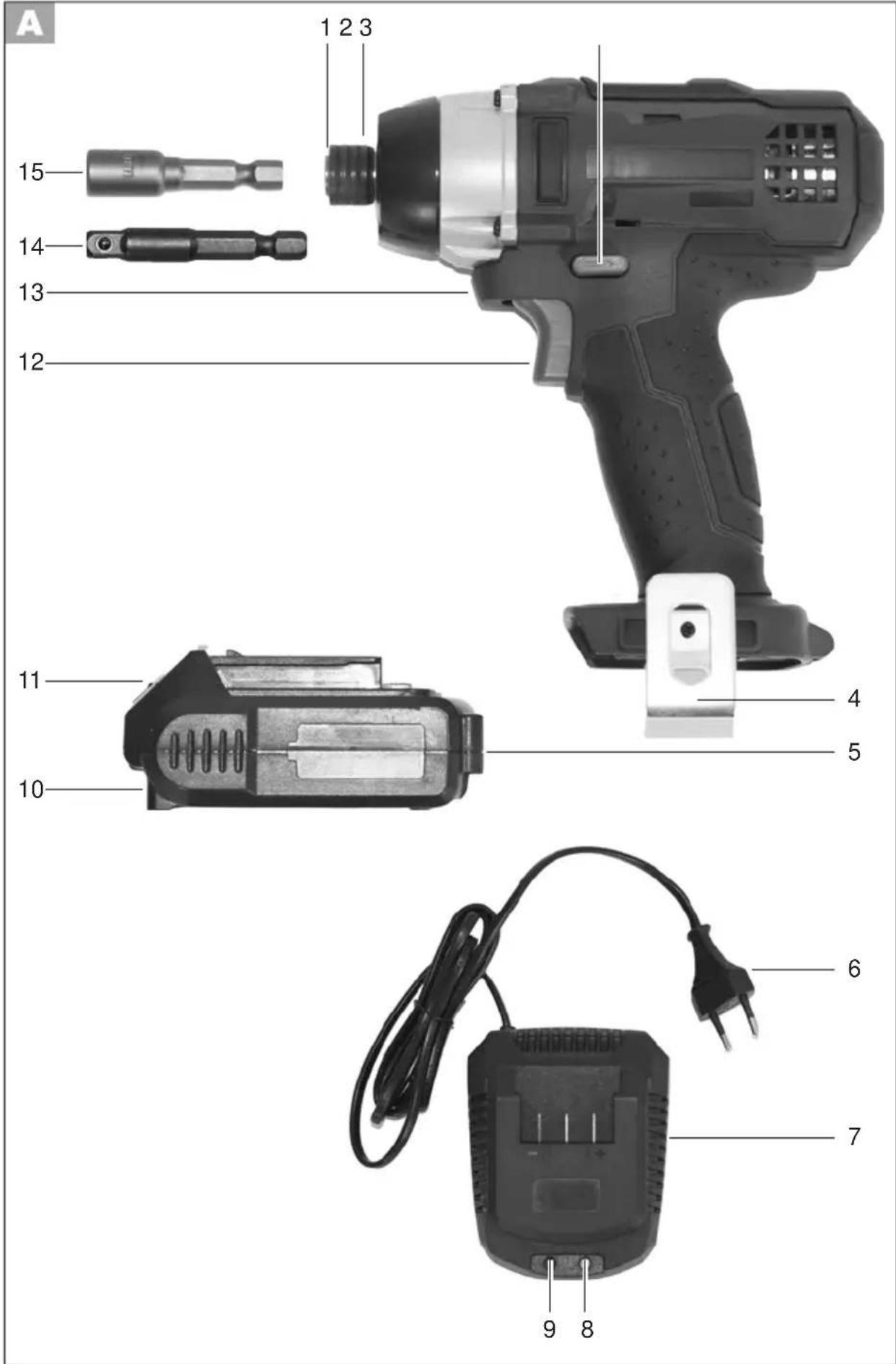

Overview

1 Tool holder
2 Locking sleeve
3 Direction of rotation switch
4 Belt clip
5 Battery Indicator
6 Charger power supply cord
7 Charger
8 Green LED
9 Red LED
10 Battery
11 Battery release button
12 On/off switch
13 LED working light
14 Adapter for 1 / 4'' square
15 Bit holder

Functional description

The cordless impact screwdriver has clockwise/anticlockwise rotation, a 1 / 4'' hexagon socket bit holder and an LED work light.

The rotary impact function of the device converts the force of the motor into uniform rotary impacts. The striking mechanism switches on when tightening and loosening materials.

The battery included in the scope of delivery can also be used for the cordless reciprocating saw PSSA 18 A1 and the cordless angular grinder

PWSA 18 A1.

Technical data

Appliance

Motor voltage. 18 V

ldling speed 0-2800 min

Nominal impact rate .0-3600 min

max. torque for hard screw-driving

applications according to ISO 5393 180 Nm

Tool holder 1/4"

Weight (without battery charger) 1.54kg Sound power level

(L_pA) 68.72 dB (A), K_pA = 3 dB

Sound power level (L_WA)

Guaranteed 83 dB (A)

Measured.....79.72 dB (A); K_WA = 3 dB

Vibration (a_h) ... 2.455 m/s ^2 , K= 1.5 m/3

Battery (Li-Ion) .PAP18-1,5A1

Number of battery cells 5

Nominal voltage 18 V=

Capacity 1,5 Ah

Charging time ca. 1 h

Recharger ... JLH-H15O-18

Nominal consumption 40 W

Uptake voltage/Input

100-240 V\~, 50-60 Hz

Voltage output/Output

18V=1500mA

Protection class

Protection category

IPXO Symbols on the appliance:

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

Technical and optical changes may be undertaken in the course of further development without notice. All dimensions, references and information in this instruction manual are therefore not guaranteed. Legal claims made on the basis of the instruction manual can therefore not be considered as valid.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Safety instructions

Ensure that the safety instructions are observed when operating the appliance.

Symbols and icons

Symbols on the appliance:

Carefully read these Operating Instructions.

Electrical appliances must not be disposed of with the domestic waste.

Symbols on the battery:

Do not dispose of batteries in household waste, fire or water.

Do not subject the battery to strong sunlight over long periods and do not leave it on a heater (max. 45^ ).

Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner.

Symbols on the recharger:

Warning!

Before using for the first time, carefully read through the user manual

The recharger is for indoor use only.

Miniature fuse

Protection class II

Electrical appliances must not be disposed of with the domestic waste.

Green LED lights flashes without battery

Charger ready

Green LED lights up

Battery such alleged charged Red LED lights up Battery charging

Green LED flashes with battery

Battery has to be charged in advance for 30 minutes before charging starts

Red and green LED flashes Battery defect

Red and green LED lights up

Battery too cold or too warm.

Battery can not be charged

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

General safety instructions for power tools

WARNING! Read all safety directions and instructions.

Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

GB

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-slip safety shoes, hard hat, or

hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Hold the device by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring or its own cord.

Contact with a live wire can also cause a charge in metal parts of the device and result in an electric shock.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES
a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.
b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.
c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.
d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.
6) SERVICE

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

7) SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS
a) Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.

GB

b) Recharge the batteries indoors only because the battery charger is designed for indoor use only.
c) To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.
d) Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.
e) Allow a hot battery to cool before charging.
f) Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.
g) Do not use non-rechargeable batteries!
8) CORRECT HANDLING OF THE BATTERY CHARGER

• This device can be used by children aged 8 and over and by people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge, if they are supervised or have been instructed regarding safe use of the device and understand the resulting risks. Children are not permitted to play with the device. Cleaning and user maintenance are not to be undertaken by children without supervision.
• Keep the equipment away from children and pets. Children should be supervised in order to ensure that they do not play with the equipment.
• To charge the battery, use only the charger supplied.

Risk of fire and explosion. This ensures that the safety of the device is maintained.

• Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.
• Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.
• Disconnect the charger from the mains before closing or opening connection to the battery / power tool / device.
• Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.
• Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.
• Avoid mechanical damage to the charger. This can result in internal short circuits.
• Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.
• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
• The battery of the appliance is not fully charged at the time of delivery. It therefore needs to be fully recharged before you use it for the first time. For the first

recharge cycle we recommend that you charge the battery for about 1 hour. Slot the battery into the base and plug the battery charger into a mains outlet.

• When the battery is fully charged, unplug the charger from the mains and from the appliance. Charging time is approx. 1 hour.
• Do not charge the battery continuously since this may damage the battery cells. Note: Repeatedly charging small capacities may damage the battery cells. Recharge the battery only if the appliance is becoming slow.
• Do not use the charger to charge non-rechargeable batteries.

9) RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Charging the battery

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only.

Prior to attaching the charger, check that the battery's outer surface is clean and dry.

There is a risk of injury due to electric shock.

Only use the original charger from the package to charge the battery. Mind not to charge the appliance for more than 1 hour at a time. If you do, the battery and the appliance may be damaged and longer charging times would be a waste of energy. Excessive charging will void the warranty.

• Charge the battery before the first time of use. Do not briefly charge the battery several time in a row.
• Recharge the battery when you notice that the appliance is becoming slower.
• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM spare battery available from our Customer Service.
  Always take heed of the applicable safety instructions as well as the en

vironmental protection regulations and information.

• The warranty excludes all defects caused by improper handling.

Removing / inserting the battery

1. To remove the battery (10) A from the appliance, press the release button (A11) on the battery and pull out the battery.
2. To insert the battery ( A 10), place it on the guide track and push it back into the appliance. It will audibly snap in.

Recharging the battery

1. Remove the battery ( 10) from the appliance.
2. Inser the battery (A10) in the charging compartment of the battery charger (A7).
3. Plug the battery charger ( A7) into a mains outlet.
4. When the battery is fully re-charged unplug the battery charger (A7) from the mains.
5. Pull the battery ( A10)out of the battery charger (A7).

Green LED lights flashes without battery

Charger ready

Green LED lights up

Battery such alleged charged

Red LED lights up Battery charging

Green LED flashes with battery

Battery has to be charged in advance for 30 minutes before charging starts

Red and green LED flashes Battery defect

Red and green LED lights up

Battery too cold or too warm.

Battery can not be charged

Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see "Cleaning and Maintenance").

Checking the battery charge level

The battery's charge level (5) is indicated by the charge state indicator (A 10).

Press the activation button battery indicator on the battery.

The LEDs indicate the battery's charge level.

red-yellow-green = Battery fully charged red and yellow = Battery half charged red = Battery needs to be charged

Assembling

Attaching the belt clip

Attach the belt clip (A4) either to the right or left-hand side of the base of the device. The belt clip (A4) fits into the recess in the housing. Fasten the belt clip (A4) with the screw supplied.

Operation

1. Direction switch

You can toggle between right and left rotation by pushing the direction of rotation switch (A 3).

If you move the direction switch (A3) to the middle position, the device is secured against being switched on. You can continue using the LED lamp when the switch lock is activated. To do so, press the on/off switch.

The direction changed may only be performed in standstill mode!

2. Using the tool holder

Pull the locking sleeve (2) forward and push the bit insert as far as it will go into the tool holder (A1). Release the locking sleeve (A2) again; the bit insert is fixed in place. Check that the bit insert is locked in the tool holder by pulling on it.

The tool holder is not suitable for short 25mm bits! Use the bit holder (A15) supplied for short bits.

3. Switching on/off

By using the on/off switch (A12) you can progressively control the speed. The LED work light (A13) is automatically turned on. The further you push the on/off switch, the higher the speed and tightening torque. To turn it off, release the on-off button.

When you move the direction switch A3) to the middle position, the device is secured against being switched on. In this position, the LED work light (13) can still be used.

The tightening torque depends on the selected speed and impact duration.

The tightening torque actually achieved must be checked in all cases with a torque wrench!

Cleaning and maintenance

Contact our Service Centre about repairs and servicing not described in this manual. Only use OEM parts. Risk of injury!

Turn off the appliance and, before doing any servicing, remove the battery.

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

Cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

• Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush.
  Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.

Maintenance

The appliance cleaner is maintenance free.

Storage

• Store the trimmer in a dry place well out of reach of children.
• In order to keep the battery well charged, avoid exposing the appliance to extreme heat or cold in storage.
• Remove the battery before storing the unit for longer periods of time.

Disposal and protection of the environment

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Machines do not belong with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.

• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.

• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.
  Defective units returned to us will be disposed of for free.

Guarantee

Dear Customer,
This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. filters or attachments) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and item number (IAN 104449) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 104449

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Replacement parts/accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" Page 46). Please have the order number mentioned below ready.

Pos. Description ....Order No.

4 Belt clip 91104110
7 Charger 80001082
10 Battery 18V / 1,5 Ah . 80001161

14 Adapter for 1 / 4'' square 91104111

15 Bit holder 91104112

We recommend using the battery only with the battery charger supplied.

Translation of the original EC declaration of conformity
We hereby confirm that the Cordless impact screwdriver Design Series PDSSA 18 A1 Serial Number 2015020000001 - 201503045000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EG 2004/108/EG 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012 EN 60335-2-29:2004+A2:2010 EN 60745-1:2009+A11:2010 EN 60745-2-2:2010 EN 62233:2008 EN 55014-1:2006+A2:2011 EN 55014-2:1997+A2:2008 EN 61000-3-2:2006+A2:2009 EN 61000-3-3:2013
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim, 27.03.2015 Germany	Volker Lappas Documentation Representative

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

GRIZZLY TOOLS GMBH & CO. KG

Last Information Update: 02/2015

Ident.-No.: 72035800022015-2
