USER MANUAL SSB 90 A1 SILVERCREST

Black and white photo of a Silver Crest coffee stand with fruit toppings and decorative knobs (no text or symbols visible)

www.lidl-service.com

CHOCOLATE FOUNTAIN SSB 90 A1

GB IE

CHOCOLATE FOUNTAIN

Operating instructions

SE

CHOKLADFONTÄN

Bruksanvisning

FR BE

FONTAINE À CHOCOLAT

Mode d'emploi

DE AT CH

SCHOKOLADEN-BRUNNEN

Bedienungsanleitung

FI

SUKLAALÄHDE

Käyttöohje

DK

CHOKOLADEBR∅ND

ID: SSB 90 A1_14_V1.5

Overview / Yleiskatsaus / Översikt / Oversigt / Aperçu de l'appareil Overzicht / Übersicht

1 2 3 13 12 4 5 11 10 6 7 8 9

A 8 14

B 15

Contents

1. Overview 2
2. Intended purpose 3
3. Safety information .... 3
4. Items supplied 5
5. Which chocolate? 5
6. How to use .... 6

6.1 First steps.... 6
6.2 Assembly 6

1. Operation 6
2. Cleaning 7
3. Storage 7
4. Disposal 7
5. Troubleshooting 8
6. Technical specifications .... 8
7. Warranty of the HOYER Handel GmbH 9

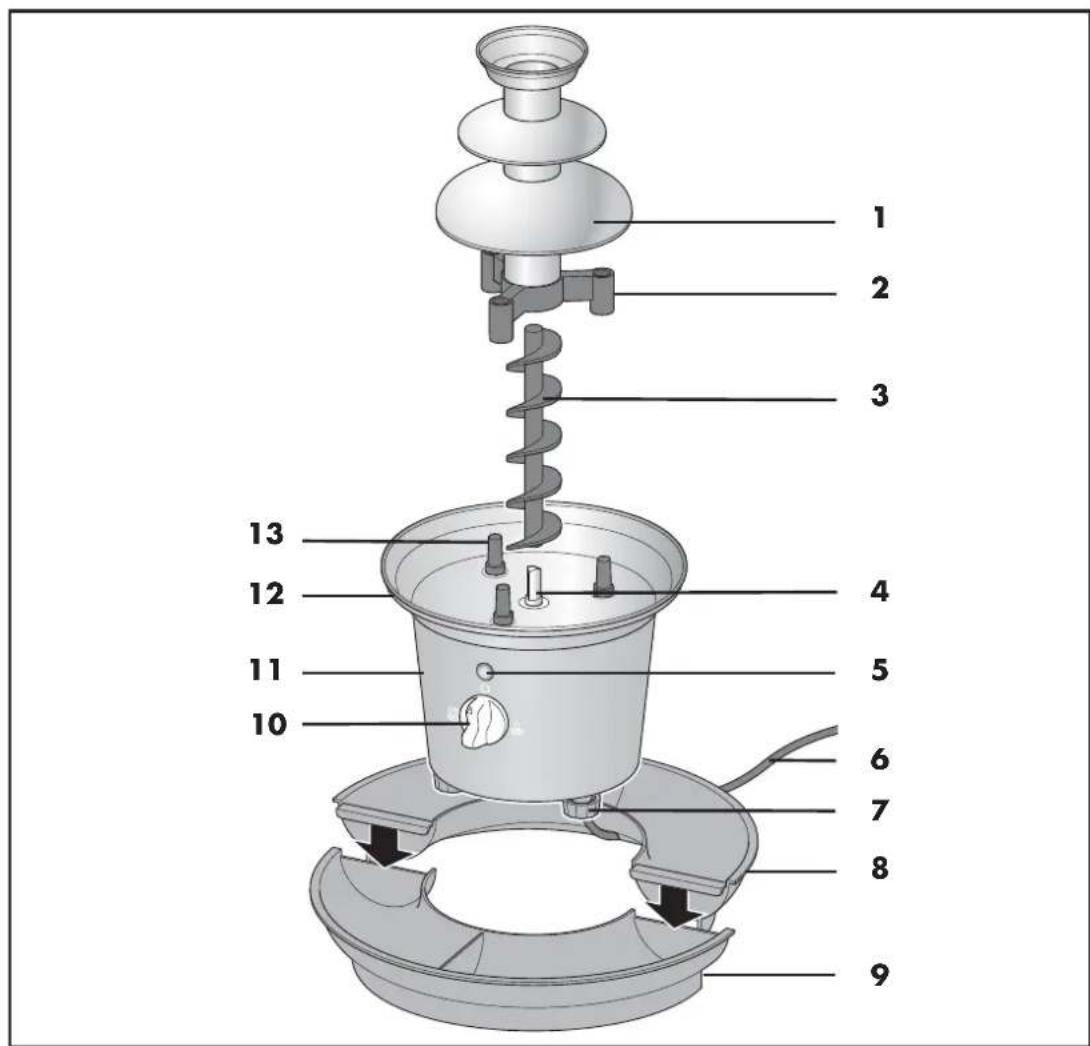

1. Overview

1 Cascade element
2 Feet of the cascade element
3 Screw conveyor
4 Axis
5 Control lamp
6 Power cable (with mains plug)
7 Foot (2 x adjustable / 1x fixed)
8 Basin part (with opening for power cable)
9 Basin part
10 Function switch

○ Device is switched off
Heating and conveying
Heating

11 Base station
12 Bowl
13 Pins on which the cascade element is placed

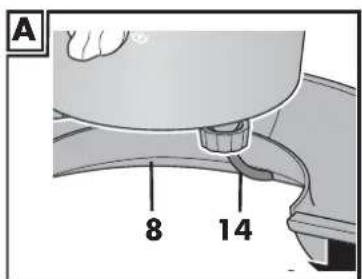

14 Indentation for power cable

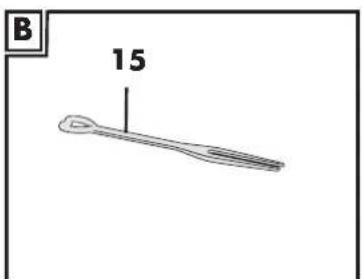

15 Fork

2 GB

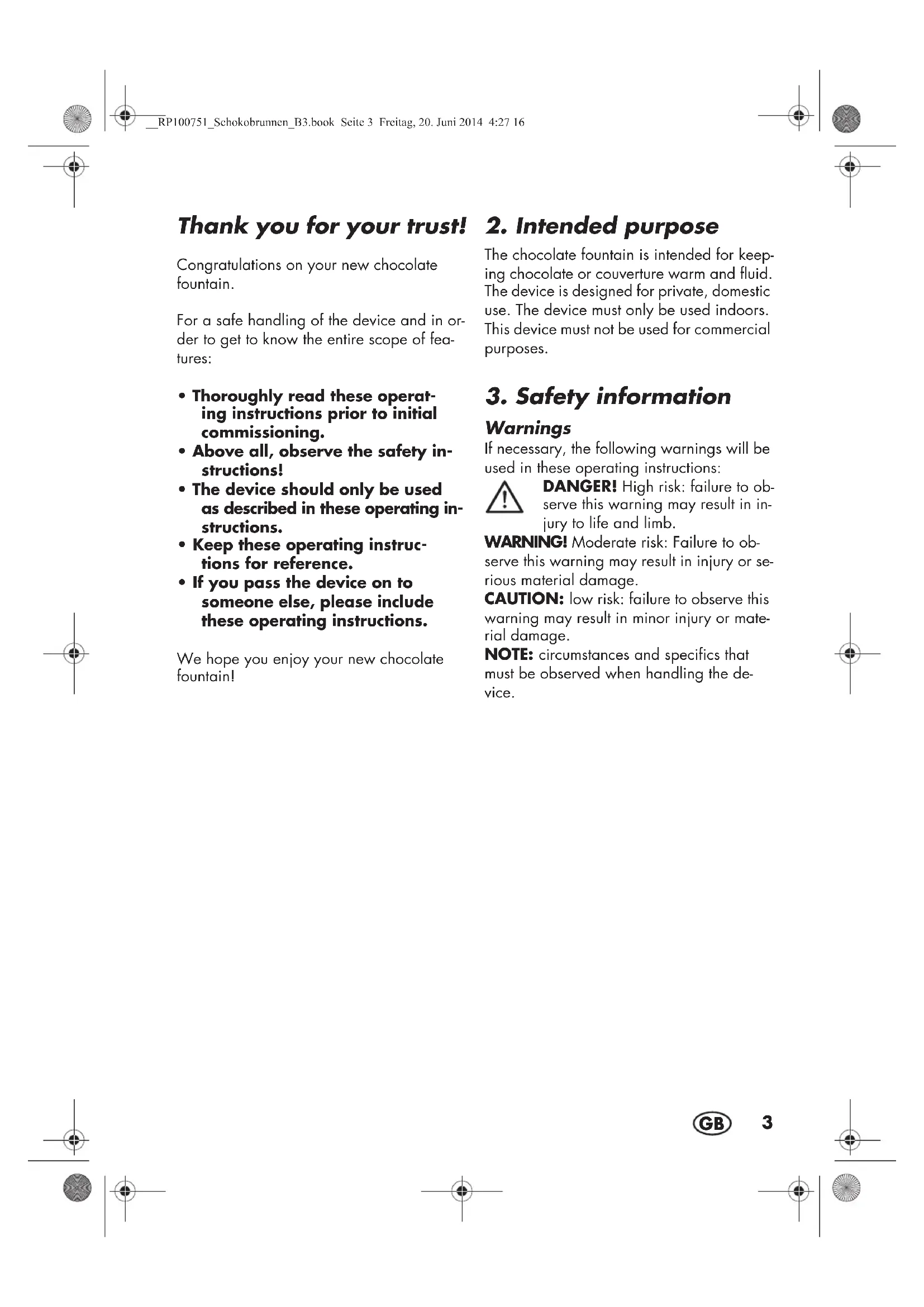

Thank you for your trust!

Congratulations on your new chocolate fountain.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
- Above all, observe the safety instructions!
• The device should only be used as described in these operating instructions.
- Keep these operating instructions for reference.
- If you pass the device on to someone else, please include these operating instructions.

We hope you enjoy your new chocolate fountain!

2. Intended purpose

The chocolate fountain is intended for keeping chocolate or couverture warm and fluid. The device is designed for private, domestic use. The device must only be used indoors. This device must not be used for commercial purposes.

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: Failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

• This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting danger. Children must not play with the device. Cleaning and user maintenance must not be performed by children unless they are older than 8 years and supervised.
• Keep children under the age of 8 away from the device and the power cable.
• Once chocolate has been melted it must not be put into storage and reused. It may contain pathogenic germs then.
• This device is not intended to be operated using an external timer clock or a separate remote control system.
• Clean the bowl of the base station and the forks with hot water and detergent. All other parts can be cleaned in the dish washer.

!

DANGER for children

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: There is a risk of suffocation.
• Please ensure that children are not able to pull the device down from the work surface with the power cable.

4

DANGER! Risk of electric shock due to moisture

• Do not immerse the base station, the power cable or the mains plug in water or any other liquid.
• If liquid gets into the device, remove the mains plug immediately. Have the device checked before reusing.

4

DANGER! Risk of electric shock

- Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate.

The wall socket must continue to be easily accessible after the device is plugged in.

• Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device.
• The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.
• When using the device, ensure that the power cable cannot be trapped or crushed.
• When removing the mains plug from the wall socket, always pull the plug and never the cable.
• Disconnect the mains plug from the wall socket, ... ... if there is a fault, ... when you are not using the device, ... before you clean the device and ... during thunderstorms.

4

GB

• Do not use the device if there is visible damage to the device or the power cable.
• If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.

WARNING! Risk of injury through burning!

• Wait for the bowl of the base station to cool down before cleaning.
• Do not move the device if it contains liquid chocolate.

WARNING! Risk of material damage

• Ensure that no solid elements (fruit, hard chocolate) block the screw conveyor. If this does occur, immediately switch off the device, as the motor may be damaged.
• Melted chocolate must not be poured down a toilet or sink. It immediately hardens there and leads to blockages.
• Do not use any astringent or abrasive cleaning agents.
• The device is fitted with non-slip plastic feet. As furniture is coated with a wide array of varnishes and synthetics, and is also treated with different care products, it cannot be fully ruled out that some of these materials contain ingredients that could attack and soften the non-slip plastic feet. If necessary, place a non-slip mat under the device.
• Use the original accessories only.
• Working with liquid chocolate can easily cause a mess. Ensure that you work on a surface which is easy to clean.

4. Items supplied

1 Base station 11
1 Cascade element 1
1 Screw conveyor 3
2 B a s i n h a l v e s 8,9
10 Forks 15
1 Operating Instructions

5. Which chocolate?

• Generally you can use any chocolate which does not contain solid pieces (nuts, brittle).
• A higher cocoa butter content in chocolate leads to better flow properties.
  • Chocolate with high cocoa content (above 60 %) does not flow well.
• If the chocolate is not fluid enough, add tasteless vegetable oil. Mix the vegetable oil and chocolate thoroughly.

Chocolate fountain chocolate

This chocolate has such a high cocoa butter content that its flow properties are ideal. You can find this chocolate in specialist or online shops.

Couverture

Couverture is suitable, as it usually contains significantly more cocoa butter than normal chocolate. Occasionally couverture has to be made more fluid with vegetable oil.

Regular chocolate

You can also use normal chocolate. Occasionally normal chocolate has to be made more fluid with vegetable oil.

6. How to use

6.1 First steps

• Remove all packing material.
• Check to ensure that all parts are present and undamaged.
• Clean all parts which come into contact with food (see "Cleaning" on page 7).

6.2 Assembly

1. Place the base station 11 on a dry, level, non-slip surface. The work surface should be easy to clean.

NOTE: if the base station 11 is tilted, adjust it by turning the adjusting screws on the feet 7 to make it stand level.

1. Place the basin parts 8 / 9 for the fruit around the base station 11. The power cable 6 must be lead through the opening 14 of the basin part 8. Connect the basin parts by pressing the ends of the basin 8 onto the ends of the other basin 9.
2. Stick the screw conveyor 3 with the suitable opening facing downwards onto the axis 4.
3. Position the cascade element 1 in the bowl 12 in a way that the openings on the feet 2 fit onto the three pins 13.
4. Insert the mains plug 6 into a wall socket corresponding to the specifications of the rating plate.

7. Operation

WARNING

- Ensure that no solid elements (e.g. fruit, hard chocolate) block the screw conveyor or 3. If this does occur, immediately switch off the device, as the motor may be damaged.

NOTES:

• Melt the chocolate before adding it to the chocolate fountain. Melting it in the fountain takes too long.
  • The maximum filling volume is 450 ml.

• Heat the pure chocolate. For one batch approx. 450 g. This is ideally done in a water bath or in the microwave. When heating in a normal pan, ensure that you are only working at low temperatures to prevent the chocolate from burning.

• In the case that the melted chocolate does not seem fluid enough, add vegetable oil until the desired consistency has been achieved and mix thoroughly.
• Check whether the chocolate has melted completely. No solid parts must remain.
• Turn the function switch 10 on the device to 📁The control lamp 5 lights up. The bowl 12 is now being heated to keep the chocolate fluid after pouring it in. Wait approx. 2-3 minutes before pouring in the chocolate.
• Place the food items you want to cover in chocolate into the basin 8 / 9.
• Pour the chocolate into the bowl 12. If necessary, use a rubber spatula.
• Turn the function switch 10 on the device to ⒶThe screw conveyor 3 starts to turn and conveys the chocolate upwards. There, it runs over the tip and then over the cascade 1 back down into the bowl 12.

1. Hold fruit, biscuits or other food into the liquid chocolate. Ideally, use the supplied forks 15 or your own spikes or forks.

2. Once you are finished, set the function switch 10 to 0, in order to switch off the device.

3. Wait 2 - 3 minutes until the bowl 12 has cooled down, but the remaining chocolate is still fluid.

Then start with the cleaning, as this is significantly easier while the chocolate is still fluid.

8. Cleaning

DANGER! Risk of electric shock!

- Pull the mains plug 6 out of the wall socket before you clean the device.

- Do not immerse the base station 11, the power cable or the mains plug 6 in water or any other liquid.

WARNING! Risk of injury through burning!

Allow the device to cool down before cleaning.

WARNING! Risk of material damage!

- Melted chocolate must not be poured down a toilet or sink. It immediately hardens there and leads to blockages.

- Do not use any astringent or abrasive cleaning agents.

- Clean all surfaces and the power cable 6 with a slightly moistened cloth.

Dishwasher

- Put the cascade element 1, the screw conveyor 3 and the basin 8 / 9 into the dish washer.

Cleaning by hand

- Wash the forks 15 by hand with detergent.

1. Wipe the remaining chocolate out of the bowl 12 with kitchen paper.

2. Add hot water and some detergent into the bowl 12.

3. Clean the bowl 12 with a sponge or a brush.

4. Drain the water.

5. Repeat the cleaning process, if the bowl is not properly clean.

6. Add clear water to the bowl 12 and remove any soap residue. Drain the water.

7. Dry the bowl 12 thoroughly before storing away.

9. Storage

DANGER for children!

Keep the device out of the reach of children.

- Select a location where neither high temperatures nor moisture can affect the device.

10. Disposal

The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the

product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

11. Troubleshooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock! Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes/Action
Chocolate is only becoming fluid very slowly.	The chocolate must be added to the bowl in a fluid state. The chocolate fountain keeps it fluid.
Chocolate is dripping, but not flowing.	The chocolate is too thick. Make more fluid by adding some vegetable oil.
Chocolate is not flowing evenly over the cascade 1.	Level the base station 1 using the adjusting screws on the feet 7.

Fault	Possible causes/Action
No function	Has the device been connected to the power supply?Check the connection.
The device is rocking.	Level the base station 11 using the adjusting screws on the feet 7.Have solid elements (e.g. nuts, fruit pieces, hard chocolate) found their way onto the screw conveyor 3?Switch off the device immediately.

12. Technical specifications

Model: SSB 90 A1
Mains voltage: 2	20-240 V ~ 50 Hz
Protection class: I
Power rating: Max. 70-90 W

CE Subject to technical modification.

13. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects. This warranty does not include product parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number
  IAN: 100751 and the purchase receipt as a purchase verification for all inquiries.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail]

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail]

IAN: 100751

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.
