USER MANUAL HG00496A SILVERCREST

Operation and Safety Notes

NL BE

KEUKENWEEGSCHAAL

GB/IEOperation and Safety NotesPage 30

LCD-Anzeige (Abb. C):

Intended use Page 32

Description of parts.. Page 32

Technical data Page 33

Scope of delivery.. Page 33

Safety notices Page 34

General Safety Instructions......Page 34

Safety instructions for batteries / rechargeable batteries.. Page 38

Before first use... Page 43

Replacing the battery... Page 43

Operation 44

Weighing Page 44

Incremental weighing.. Page 45

Changing the measuring unit... Page 46

Switching off Page 47

Troubleshooting Page 47

Cleaning and care... Page 48

Disposal.. Page 48

Warranty .Page 51

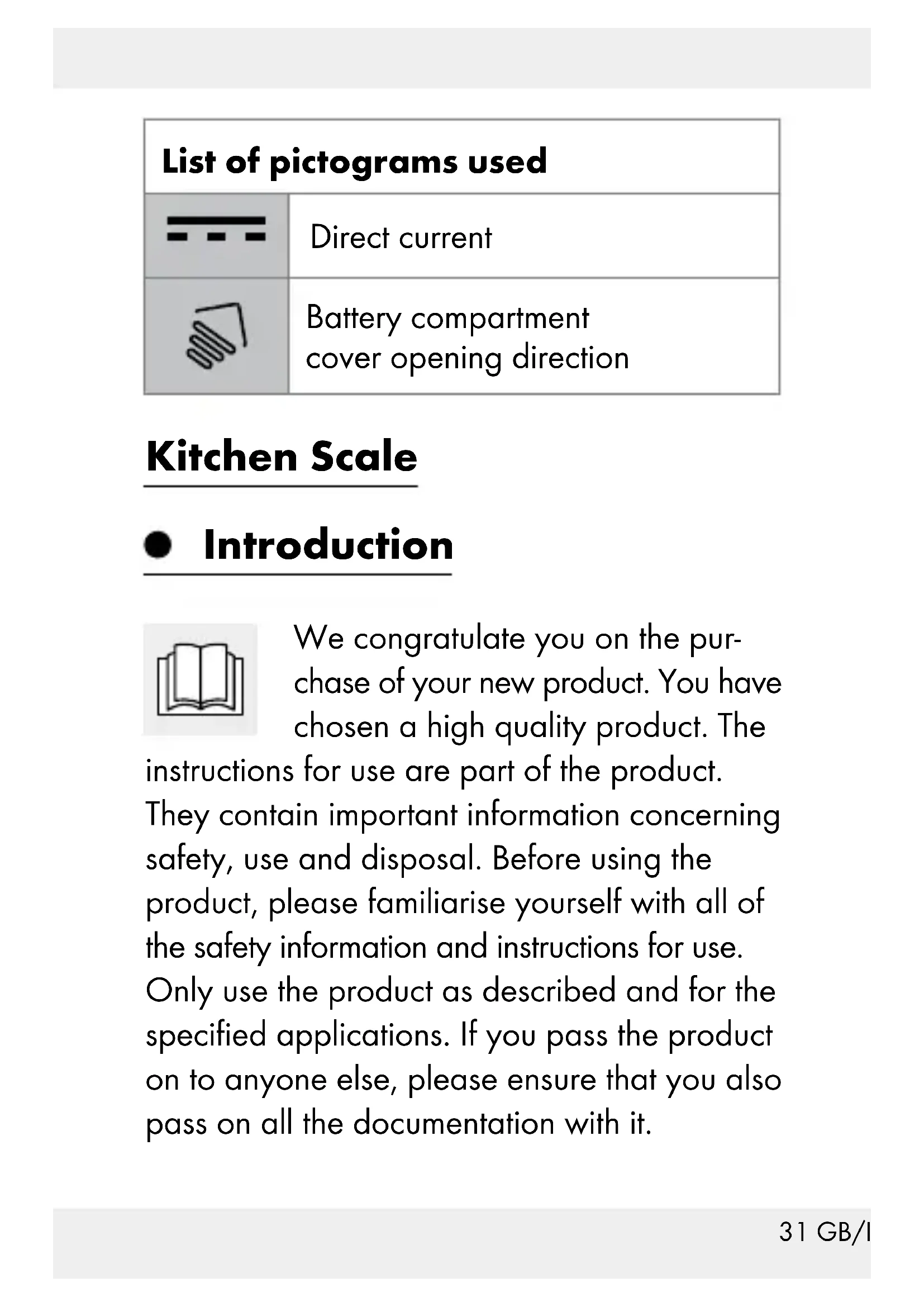

List of pictograms used
	Direct current
	Battery compartment cover opening direction

Kitchen Scale

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The

instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is designed to weigh out and tare quantities of food. The product is not intended to be in contact with food. The product is designed only for use in private household and must not be used in medicinal or commercial areas. The manufacturer is not liable to damage caused by improper use.

Description of parts

Kitchen scale (Figs. A+B):

1 Effective weighing area
2 Button
3 LC display
4 Battery compartment

LC display (Fig. C):

5 "T" symbol
6 "0" symbol
7 Numerical display
Unit display
9 Minus symbol

Technical data

Max. measuring range: 5000g / 11lb

Graduation: 1 ~g / 0 lb: 0.1 oz

Battery: button cell, type

$$ \mathsf {C R 2 0 3 2}, $$

$$ 1 \times 3 V = - $$

Rated current: 10 ~mA

Model numbers: HG02513A: Red

HG02513B: Grey

- Scope of delivery

Check that all the items are present and that the product and all its parts have no defects immediately after unpacking. Do not under any circumstances use the product if the package contents are incomplete.

1 Kitchen scale
1 Battery (preinstalled)
1 Set of instructions for use

Container is not included with the product

Safety notices

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

General Safety Instructions

WARNING!

DANGER OF

DEATH AND ACCIDENTS

FOR TODDLERS AND

CHILDREN! Never leave

children unsupervised with

the packaging material. The

packaging material repre. sents a danger of suffoca tion. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall

not play with the product.

Cleaning and user maintenance shall not be made by children without supervision.

CAUTION! RISK OF INJURY! Do not

place more than 5kg on the product. This could damage the product.

Do not expose the product to

• extreme temperatures,
• direct sunlight
• magnetic fields,
• moisture.

These can damage the product

This product has delicate electronic components. This

means that if it is placed near an object that transmits radio signals, it could cause interference. This could be, for example, mobile telephones, walkie talkies, CB radios, remote controls and microwaves. If the display indicates a problem, move such objects away from it.

Electromagnetic interference/ high-frequency emissions can lead to the product failing. In cases of the product failing to work, remove the battery for a short while and then replace it. Do this as described

in the "Replacing the battery" section.

Check the product for damage before use. Never use a damaged product.
The product is not intended to be in contact with food.

Safetyinstructions for batteries/re-chargeable batteries

DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally

swallowed seek immediate medical attention.

DANGER OF EXPOSION! Never

recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries/rechargeable batteries

Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTEC-TIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.

Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery / rechargeable battery!
Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery/rechargeable battery and the product.
Clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!
Remove exhausted batteries / rechargeable batteries from the product immediately.

Before first use

Remove all packaging materials from the product.
Remove the insulating strip from the battery compartment 4.

- Replacing the battery

Turn the product over and place it on a soft. underlay to avoid scratching the surface.
Loosen the screw located at the cover of the battery compartment 4 on the back of the product.
Open the cover of the battery compartment 4.
Remove the used battery, if present.
Insert a battery (as specified in section "Technical data") in the battery compartment 4.

Note: Make sure you insert the battery with the correct polarity. This is indicated in the battery compartment 4.

• Close the cover of the battery compartment
• 4 and tighten the screw.

Operation

Note: The product is not intended to be in contact with food. Always use transparent container having a flat bottom surface with diameter not more than 12 cm so that the LC display 3 is not covered. A container is not included with the product.

Weighing

Set the product on a solid, lever and flat surface to weigh.
Spread the product in a 90^ angle (see fig. A).
Place a container on the effective weighing area 1 of the product.
Press the button 2 to switch on the product. The LC display 3 will show all displays for approx. 3 seconds.
During this time the weighing equipment on the product is calibrating. Afterwards the numerical display will show zero reading. The unit display will show the

last unit previously selected. At the same time ^ symbol 6 will appear.

Note: if an object (e.g. a key) is already on the effective weighing area 1 while switching on, the numerical display 7 will still show zero reading.

Note: Zero reading means either 0 in g or 0:00.0 in lb:oz.

Note: The ^ symbol 6 is only displayed when the product is switched on or when after taring the same weight burdens on the product as at switching on the product.

Place the item you wish to weigh inside the container. The numerical display will show the weight of the item you are weighing.

Incrementalweighing

Pressbutton 2 when same and other items being weighed inside the container. The numerical display 7 will change from the reading to zero reading. The _T^ symbol 5 will appear.

Now add another item to weigh inside the container. The numerical display 7 will show the weight of the newly added item.
If you remove the item added to the product, the numerical display will again show zero reading.
If you remove all items from the product, the LC display 3 will show a negative value indicated by the minus symbol 9.
Then press the button 2, and the T" symbol 5 will disappear. O" symbol 6 will appear and the numerical display 7 shows zero reading.
Important! Be sure never to add more than 5 ~kg to the effective weighing area 1 . Overloading the product can damage it.

- Changing the measuring unit

The product will display the weight in the official European measuring unit „g“ (grams), as well as the traditional unit of weight „lb:oz“ (pound: ounce, 1lb = 16 oz ≈ 453.59 g).

To switch the unit of measure, holding the button 2 for approx. 3 seconds.

- Switching off

Note: The product can only be turned off manually if the „0“ symbol 6 appears.

To switch off the product, press the button 2 under no weighing (when numerical display showing zero reading). If no weight is detected on the effective weighing area 1 for 2 minutes and no button 2 is pressed, the product will automatically switch off.

- Troubleshooting

= Fault
=Cause
O = Solution
=rr
The product is overloaded.
O = Remove the overload.

The batteries are too weak to weigh. You cannot operate the product.
O = Replace the battery (see section "Replacing the battery").

- Cleaning and care

• Never immerse the product in water or other liquids. This can damage the product.
  Clean the product with a slightly dampened, fluff-free cloth. To remove more stubborn dirt, you can also dampen the cloth with a weak soap solution.
  To store, fold up the product.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours

can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste.

They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover

product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
