GB Usage and safety instructions

Table of contents

Table of contents. 75

Introduction 77

Intended use. 77

Scope of delivery 77

Features 78

Technical specifications 79

Important safety information important safety information. 79 -

Chest belt. 80

Setup. 82

Light. 83

Important notes on the operation of the heart rate monitor -83

Time and basic settings (ZEIT/TIME) -83

Alarm (ALARM) -84

Timer (TIMER) max. 23:59:00. -85

Stop watch (ST-UHR/CHRONO) 85

Memory feature (ANSICHT DATEN/DATA RECALL) 85

Heart rate measurement (PULS/HRM) -86

Timer (TIMER) 86

Memory feature (SPEICHER/MEMORY) 86

Target heart rate (ZONE) -87

Calories, fat burn and BMI (KALORIEN/ CALORIE) 88

Pedometer (PEDO) -88

Fitness (FITNESS NIVEAU/FITNESS LEVEL) -88

Step counter (PEDO) 89

Speed alarm (ZONE) -89

Notes on calibration 90

Odometer (GESAMT-DIST/ODOMETER) 91

Pedometer(SCHRITTE/STEP) -91

Calories, fat burn and BMI (KALORIEN/ CALORIE) 91

-75-

GB

Heart rate (PULS/HRM) 92

Timer (TIMER) -92

Distance (DISTANZ/DISTANCE) -92

Average speed(DURCH-GESCHW/AVG SPEED) 92

Maximum speed(MAX GESCHW/MAX SPEED) 92

Troubleshooting. 93

Replacing the watch battery. 93

Battery low indicator. 94

Water resistance. 94

Water resistance of the chest belt. 94

Cleaning instructions 95

Disposal of the electronic appliance. 95

Disposal of the batteries. 95

Declaration of conformity. 95

digi-tech gmbh warranty 95

Warranty conditions 96

Warranty period and defects liability 96

Scope of the warranty. 96

Warranty claim procedure. 97

Service 98

Supplier. 98

-76-

GB

Heart Rate Monitor

Introduction

Congratulations on the purchase of your new heart rate monitor. You have chosen a high quality product. The instruction manual is part of the product- it contains important information about safety, use and disposal. Read the manual with all usage and safety notes before using the watch. Only use the watch in the intended way and for the intended applications.

If the watch is given to someone else, include all documentation with the heart rate watch with chest belt.

Intended use

This heart rate monitor is intended for time display and the described additional features. Any other use or modification of the heart rate monitor does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use.

Scope of delivery

Please note: Check the scope of delivery after purchase. Please ensure that all parts are included and undamaged.

Heart rate monitor incl. battery (CR2032)
- Chest belt incl. battery (CR2032)
- Bicycle holder

-77-

Features

Heart rate measurement

• Alarm for maximum heart rate
  Target heart rate training with timer and alarm (Health, Fitness, Performance and user defined)
  Max. heart rate, min. heart rate and average heart rate

Calorie features

• Calories and fat burned during training
• BMI-calculation
  Fitness Level

Stop watch

1/100 seconds with 99 lap times

Pedometer

Countdown timer

Time features

Time
Calendar
Alarm
- Hourly chime
Second time zone

Other

• Back light

-78-

Technical specifications

Heart rate monitor

Operating temperature 0-50°C
Dimensions 4,3 x 5,3 x 1,5 cm
Display 2,4 x 1,9 cm
Weight 47g
Battery CR 2032/3V

Chest belt

Operating temperature 0-50°C
Dimensions 7 x 3,3 x 1,2 cm
Frequency 110 kHz
Weight 52g
Battery CR 2032/3V

Important safety information

ATTENTION: Consult your doctor before you begin any training program. Your doctor can help you choose the proper training intensity and heart rate guidelines for your exercises.

This heart rate monitor is not a medical device and should only be used as a guide for your training.

- Batteries

Insert the batteries/rechargeable batteries in the correct polarity. Don't try to recharge non-rechargeable batteries and under no circumstances throw them into fire. Danger of explosion.

Do not use unequal batteries (old and new, Alkaline and carbon, etc.) simultaneously. If you will not use the device for a long time, remove the batteries

-79.

GB

and store the device in a dry and dust-free place. Improper use of batteries may cause an explosion or leakage. If the batteries have leaked, use gloves and clean the heart rate monitor thoroughly with a dry cloth.

Batteries/rechargeable batteries can be life threatening when swallowed. Store the batteries where they cannot be reached by small children. If a battery is swallowed, medical aid must be sought immediately.

- Heart rate monitor should not be in the hands of children

Never let children use electrical devices unsupervised. Children can't always recognize the possible dangers properly. Batteries/rechargeable batteries can be life threatening when swallowed. Store the batteries where they cannot be reached by small children. If a battery is swallowed, medical aid must be sought immediately.

Also keep the packaging foils away from children. Danger of suffocation.

Chest belt

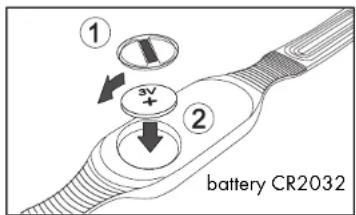

Inserting the batteries into the chest belt

Use a coin to unscrew the battery cover on the back side of the chest belt and insert the 3V battery with the (+) sign facing up. Screw the battery compartment cover back into the case.

-80-

GB

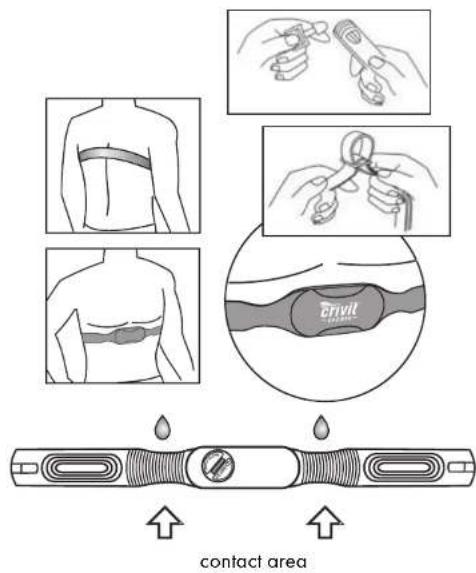

Wearing the chest belt

Adjust the chest belt so that it fits snugly directly below the chest muscles. Moisten the contact areas with water or ECG gel (ECG gel can be purchased at a pharmacy). Ensure that the contact areas constantly remain in skin contact. Position the chest belt as per the following illustration.

Please ensure that the chest belt is seated properly. When you have exhaled completely the chest belt should still have very slight tension pressing it to your chest.

High voltage power lines, Trains or moving vehicular traffic may interfere with the heart rate measurement. Please consider this when planning your exercise route.

-81-

Setup

Remove the protective film from the display and press MODE, SEL or SET.

Now select English or German language by pressing SEL and confirm your setting by pressing SET. Select the unit KM-KG or Miles/pounds (M-LB) in the same way. Complete the setting procedure by pressing MODE.

The watch can be reset by pressing and holding SET and SEL together. Only after resetting the watch the other language can be selected.

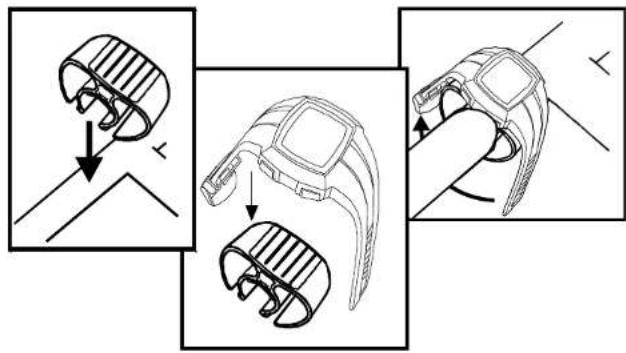

Using the bicycle holder

The included bicycle holder can be used to attach the heart rate monitor to the handlebar of a bicycle. Press the bicycle holder onto the top of the handlebar. Handlebars with an especially large diameter may require the use of additional force to snap on the bicycle holder. The heart rate monitor can now be attached to the bicycle holder in the same way that you would attach it to your wrist. The maximum range of 60cm between the heart rate monitor and the chest belt should not be exceeded.

Please note that the pedometer features of the heart rate monitor (distance, speed etc.) will not be functional while the watch is mounted on the bicycle holder.

-82-

Light

Briefly press LIGHT to temporarily activate the light.

Important notes on the operation of the heart rate monitor

The watch has 4 different modes of operation.

Press MODE to select the mode of operation of the watch.

The order of the modes is as follows:

time and basic settings (ZEIT/TIME)

stop watch (ST-UHR/CHRONO)

heart rate (PULS/HRM)

pedometer (PEDO)

Each mode of operation may have several subfeatures.

The subfeatures can always be accessed by pressing SEL.

Speed setting

When setting numerical values, press and hold SEL to use the speed setting feature.

Time and basic settings (ZEIT/TIME)

Press MODE to select the (ZEIT/TIME) feature before proceeding.

The subfeatures of the time mode can be accessed by pressing SEL.

time and basic settings (ZEIT/TIME) > alarm (ALARM) > timer (TIMER)

Press and hold SET for 3 seconds to access setting mode.

The display will show EINSTELLEN/HOLD TO SET and the 12 or 24 hour selection will blink on the display.

-83-

Press SEL to select a setting and confirm your setting by pressing SET. Set the seconds, minutes, hours, year, month and day in the same way.

Now the basic settings will follow. First the year of the birthday setting will appear (GEB-TAG/BIRTHDAY).

Press SEL to set the year and press SET to confirm your setting. Set the month and day in the same way.

Now the weight display will appear (GEWICHT/WEIGHT). Set the digits of your weight by pressing SEL and confirm each digit by pressing SET.

Now the height display will appear (GROESSE/HEIGHT). Set each digit of your height by pressing SEL and confirm each digit by pressing SET.

Exit setting mode by pressing MODE.

Second lime zone

Press and hold SEL for 3 seconds. The watch will switch to the second time zone display and T2 will appear on the display. Setting the second time zone can be accomplished in the same way as described in the previous paragraph.

Press and hold SEL for 3 seconds to return to normal time mode.

Alarm (ALARM)

Press and hold SET for 3 seconds to enter setting mode.

EINSTellen/ HOLD TO SET will appear on the display and the minutes of the alarm time will blink.

Press SEL to set the minutes and press SET to confirm your setting. Set the hours in the same way.

You may optionally set the month and day as well.

If neither month nor day are set the alarm will sound daily. If the day is set, the alarm will sound monthly. If both the month and the day are set the alarm will sound only at the set date.

The hourly chime setting will now appear on the display (STDALARM/CHIME).

Press SEL to select the setting and confirm your selection by pressing SET. (EIN/ON=on, AUS/OFF=off).

If the chime is activated, the bell symbol will appear and the watch will chime at the beginning of every hour.

-84-

Exit setting mode by pressing MODE.The alarm can be activated or deactivated by pressing SET. If the alarm is activated the alarm symbol will appear. When the alarm sounds, press SET, SEL or MODE to stop the alarm.

Timer (TIMER) max. 23:59:00

Press and hold SET for 3 seconds to enter setting mode.

The minutes of the timer time will blink on the display.

Press SEL to set minutes of the timer time and confirm your setting by pressing SET.

Set the hours in the same way.

Now the additional settings for the timer will follow. Press SEL to select the desired mode:

Cd r After reaching 0:00 the timer will count the set time again.

Cd U After reaching 0:00 the timer will count forward

Cd S After reaching 0:00 the timer will stop

Exit setting mode by pressing MODE.

The timer can be started or stopped by pressing SET.

Press and hold SET to reset the timer.

After the timer time is up an alarm will sound.

Stop watch (ST-UHR/CHRONO)

Press MODE to select the (ST-UHR/CHRONO) feature before proceeding.

Press SET to start or stop the stop watch. Press SEL while the stop watch is running to record a lap time. Up to 99 laps can be recorded.

Press and hold SET to reset the stop watch.

Memory feature (ANSICHT DATEN/DATA RECALL)

Press SEL while the stop watch is stopped to display the fastest lap on the display. Press SET to display the other lap times.

Please note: The memory feature can only be used if at least one lap time was recorded.

-85-

GB

Heart rate measurement (PULS/HRM)

The subfeatures of the heart rate measurement can only be used when the chest belt is connected.

Press MODE to select the (PULS/HRM) feature before proceeding.

Press SEL to access the subfeatures of the heart rate watch.

Timer (TIMER) > Memory feature (SPEICHER/MEMORY) > target heart rate

(ZONE) > calories burned, fat burned and BMI (KALORIEN/ CALORIE) >

pedometer (PEDO) > fitness (FITNESS NIVEAU/ FITNESS LEVEL)

In the middle row of the display the heart rate is shown while wearing the chest belt. If the signal is received from the chest belt the heart symbol will flash.

To the right of the heart rate in percent of the maximum heart rate is shown. The maximum heart rate is calculated by evaluating your age, weight and height.

Timer(TIMER)

The bottom row of the display will show the elapsed training time. The middle row will show your heart rate and the heart rate in percent of the maximum heart rate. The timer will start automatically when the chest belt starts measuring the heart rate. The timer will continue counting the time if the feature mode of the watch is changed.

Press SET to select the timer mode:

TIMER total training time

training time in heart rate target zone

Training time with heart rate over target zone

Training time with heart rate below target zone

Press and hold SET to reset the training time.

Memory feature (SPEICHER/MEMORY)

The stored values are shown in the bottom row of the display.

-86-

GB

HI (O) maximum heart rate during training
LO (U) minimum heart rate during training
AV (D) average heart rate during training

Press and hold SET to reset the stored values.

Target heart rate (ZONE)

The bottom row of the display will show the lower and upper limit value of the target zone.

The selected training type is shown on the top row of the display.

L-U user defined

1 Health (50-65% of maximum heart rate)
2 Fitness (65-80% of maximum heart rate)
3 Performance (80-95% of maximum heart rate)

Press and hold SET for 3 seconds to enter setting mode.

Select the training type by pressing SEL. If "U" is selected (user defined) the lower and upper limits can be set. Press SET. The display will show the lower limit.

Set the value by pressing SEL and confirm your setting by pressing SET.

Set the upper limit in the same way.

Exit setting mode by pressing MODE.

Press and hold SEL to activate the heart rate alarm. When the heart rate alarm is activated, the alarm symbol will appear on and an alarm will sound when the measured heart rate is not within the set zone "BEEP-BEEP...BEEP-BEEP...BEEP-BEEP".

If the measured heart rate is at or above 99% of the maximum heart rate the max. heart rate alarm will sound. "BEEP-BEEP-BEEP-BEEP-BEEP". The max. heart alarm is independent of the training zone and the heart rate alarm of the training zone.

-87-

GB

Calories, fat burn and BMI (KALORIEN/ CALORIE)

The lower row will show the burned calories in kcal (KALORIEN/CALORIE). Press SET to switch to the display of fat burn in gram (FETT/FAT BURN) or to the display of your BMI (Body Mass Index).

In the display for calorie burn or fat burn the values can be reset by pressing and holding SET.

Note: To increase the accuracy of the calorie and fat burn displays your age and weight must be set correctly.

Note: The counter for fat burn is only activated while your heart rate is above 120 beats per minute.

Notes on the BMI

The BMI is a statistical measurement that can be used to judge a persons weight. For adults, a value between 18.5 and 25 is considered normal. Values below 18.5 are considered "underweight". Values above 25 are considered "overweight". Values above 30 are considered "Obese".

The BMI is only a coarse guideline because it does not take a persons body type and body composition into consideration.

Pedometer (PEDO)

START appears on the display. Press SET to start the pedometer. The speed (PEDO) or the travelled distance (DISTANZ/DISTANCE) will appear in the lower row of the display. Press SET to switch between speed and distance.

Fitness (FITNESS NIVEAU/FITNESS LEVEL)

After your training, immediately press SET. A 5 minute countdown will start (cool down phase).

The bar will show the remaining time. On the left side of the display the heart rate at the beginning of cool down is shown. On the right side of the display the current heart rate is shown. The countdown time is shown on the bottom row of the display.

-88-

GB

After 5 minutes your fitness level will appear.

Fitness level Heart rate

6(-) >130
5 130-120
4.120-110
3 110-105
2 105-100
1(+) <100

Step counter (PEDO)

Press MODE to select the (PEDO) feature before proceeding.

Press SEL to select the subfeatures of the pedometer.

calibration and speed alarm (ZONE) > total distance (GESAMT-

DIST/ODOMETER) > step counter (SCHRITTE/STEP) > calorie burn, fat burn and BMI (KALORIEN/CALORIE) > heart rate (PULS/HRM) > timer (TIMER) > distance (DISTANZ/DISTANCE) > average speed (DURCH-GESCW/AVG SPEED) > maximum speed (MAX GESHW/MAX SPEED)

The current speed is shown on the middle row of the display.

IMPORTANT: The pedometer can be stopped or started by pressing SET. When the pedometer is active an animated figure will move in the top left of the display.

Speed alarm (ZONE)

In the lower part of the display to lower and upper limits for the target speed are shown. The current speed will appear in the middle row. The speed alarm can be activated or deactivated by pressing and holding SEL. If the alarm is activated the alarm symbol will appear.

-89-

Notes on calibration

A calibration for walking and running should always be performed. If you intend to use the watch for walking only, then the watch must still be calibrated for walking and running. In this case calibrate running as "fast walking".

If the pedometer is not calibrated it will use standard presets and the values shown during your training may deviate strongly.

During the calibration phase the watch will record your personal movement profile. The more evenly you move and the longer the recording time is, the better the results will be during your training.

The calibration will allow the watch to automatically recognize if you are walking or running, and adjust the displayed values accordingly.

The displayed values will be more exact if you move with the same rhythm and speed as during the calibration.

During training, wear the watch on the same wrist as during calibration.

Calibration of the pedometer and setting the speed alarm (ZONE)

If necessary, press SET to stop a running pedometer measurement.

Press and hold SET for 3 seconds to enter setting mode.

The lower limit of the speed zone (UNTERES LIMIT/LOWER LIMIT) will blink on the display. Set the lower limit by pressing SEL and confirm your setting by pressing SET.

Set the upper limit (OBERES LIMIT/UPPER LIMIT) in the same way.

The calibration for running will now appear on the display "KALIBR.

LAUFEN/CALI FOR RUNNING". Select "JA/YES" by pressing SEL and confirm your selection by pressing SET.

Now set the length of your calibration track (0.1 to 1 km). Confirm your setting by pressing SET.

Now press SET and run the entire length of the calibration track. After completing the run press SET.

-90

If the calibration was successful "KALIBR OK! SPEICH / CALI OK! SAVE" will appear. If the calibration was unsuccessful "KALIBR. FEHLER / CALI FAILED" will appear. In this case please repeat the calibration process.

"KALIBR. GEHEN / CALI FOR WALKING" will now appear on the display.

Complete the calibration for walking in the same way as the calibration for running.

The calibration can be aborted by pressing MODE.

Exit setting mode by pressing MODE.

Odometer(GESAMT-DIST/ODOMETER)

The bottom row of the display will show the total covered distance. The value can be reset by pressing and holding SET.

Pedometer (SCHRITTE/STEP)

The bottom row of the display will show the step count. The value can be reset by pressing and holding SET.

Calories, fat burn and BMI (KALORIEN/ CALORIE)

The lower row will show the burned calories in kcal (KALORIEN/CALORIE). Press SET to switch to the display of fat burn in gram (FETT/FAT BURN) or to the display of your BMI (Body Mass Index).

In the display for calorie burn or fat burn the values can be reset by pressing and holding SET.

Note: To increase the accuracy of the calorie and fat burn displays your age and weight must be set correctly.

Note: The counter for fat burn is only activated while your heart rate is above 120 beats per minute.

-91-

GB

Notes on the BMI

The BMI is a statistical measurement that can be used to judge a persons weight. For adults, a value between 18.5 and 25 is considered normal. Values below 18.5 are considered "underweight". Values above 25 are considered "overweight". Values above 30 are considered "Obese".

The BMI is only a coarse guideline because it does not take a persons body type and body composition into consideration.

Heart rate (PULS/HRM)

If the chest belt is worn the current heart rate will appear on the bottom row of the display.

Timer (TIMER)

The bottom row of the display will show the elapsed time. The value can be reset by pressing and holding SET.

Distance (DISTANZ/DISTANCE)

The bottom row of the display will show the covered distance. The value can be reset by pressing and holding SET.

Average speed (DURCH-GESCHW/AVG SPEED)

The bottom row of the display will show the average speed. The value can be reset by pressing and holding SET.

Maximum speed (MAX GESCHW/MAX SPEED)

The bottom row of the display will show the maximum speed. The value can be reset by pressing and holding SET.

-92-

GB

Troubleshooting

The distance measurements are very imprecise

The watch uses the step length measured during calibration to estimate the traveled distance.

Recalibrate the step counter. Calibrate it for walking and for running and use extra care during the calibration.

Running on uneven surfaces may also result in bad calibration.

The heart rate is not shown or is shown incorrectly

Make sure the chest belt is positioned correctly and fits well

Your skin should not be too dry or too cold.

The contact areas can be slightly moistened to improve function

Electromagnetic interference may have an adverse effect on reception The distance between watch and chest belt must be under 60cm

Other heart rate measuring devices within a 2m range may also cause interference.

Wireless bicycle computers may cause interference

The batteries may be low and require replacing

The display is unreadable / the light does not work

Replace the batteries

Replacing the watch battery

The battery replacement can be performed by a watch maker in addition to a water resistance test. To replace the battery yourself, please read the following instructions first:

Remove the screws (1, 2, 3 and 4) from the back side of the watch with a small Phillips screwdriver. Remove the caseback and the battery sticker. Use a small, flat tool to open the latch (5) of the battery holder. Remove the battery and insert a fresh 3V CR2032 battery with the (+) terminal facing upwards. Ensure that the gasket (6) is seated correctly. Close the latch of the battery holder. Replace the battery sticker and the caseback and replace the screws.

-93-

GB

Battery low indicator

If the battery voltage on the chest belt battery drops below the voltage required for normal operation, "TXGURT/TXBELT" and "LO BAT/BATT" will appear on the display. Replace the battery of the chest belt as described in the chapter "Chest belt".

Water resistance

Water resistant up to 3 bar. The bar value specifies the atmospheric overpressure which is applied during testing (DIN 8310).

3 BAR	√	x	x	x
5 BAR	√	√	x	x
10 BAR	√	√	√	x
20 BAR	√	√	√	√

Water resistance of the chest belt

Water resistance according to IEC 60529 IPx7:30m

-94

GB

Cleaning instructions

Clean the heart rate monitor with a soft, dry and lint-free cloth. A glasses cleaning cloth is ideal.

After each use, clean the chest belt and the watch strap with a sponge and lukewarm mild soap water. Dry all parts with a towel and hang the chest belt to dry. Sweat and contaminants are detrimental to the function of the sensor.

Disposal of the electronic appliance

This heart rate monitor may not be disposed of with normal household waste. Disposc of the unit at an approved disposal facility or at your local recycling centre. Please observe the current rules and regulations disposing of the appliance. Contact the disposal system if in doubt.

Disposal of the batteries

Please dispose of your batteries properly in containers especially set up at retailers. Batteries do not belong in household waste. Dispose of the batteries at an approved disposal facility or at your local recycling centre. Contact the disposal system if in doubt.

Declaration of conformity

If used as intended this product conforms to the basic standards of 3 and the other relevant provisions of the FTEG (Section 3 of the R&TTE directive).

You can request the declaration of conformity here:

[e-mail]

digi-tech gmbh warranty

This heart rate monitor includes a 3 year warranty starting on the day of purchase. In case of defects of this heart rate monitor you have, by law, certain rights regarding the vendor of the watch. These rights are not changed by the warranty which is described in the following paragraphs.

-95-

Warranty conditions

The warranty duration starts on the date of purchase. Please keep the original receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the heart rate monitor within 3 years, the heart rate monitor will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the watch and the receipt can be made available to us along with a short written description of the defect and when it occurred. If the defect is covered by the warranty, you will receive the repaired heart rate monitor or a new heart rate monitor. Repair or replacement does not cause the warranty period to restart.

Warranty period and defects liability

The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period.

Scope of the warranty

The heart rate monitor was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are damaged. Examples include Switches, Batteries or parts made of glass.

This warranty becomes void if the heart rate monitor is damaged, is not used in the recommended way or is improperly repaired.

For proper use of the heart rate monitor all instructions in this manual must be adhered to exactly. Use of the heart rate monitor in a way that is discouraged in the manual must be avoided.

The heart rate monitor not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centers will void the warranty.

-96-

Warranty claim procedure

To ensure that your call is processed in a fast and efficient manner please note the following directions:

• Have your receipt (as proof of purchase) and the article number (94528) handy.
• The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the back side or bottom side of the case.
• In case defects occur, please first contact the service center (see below) by phone or email.

Visit www.lidl-service.com to download this and many other manuals, product videos and software.

-97.

Service

Please note that the following address is not a service address.

Please first contact the service address (see above).

Name: digi-tech gmbh

Street: Valterweg 27A

Town:Eppstein 65817

Country: Germany

-98-

digi-tech gmbh

Valterweg 27A

D-65817 Eppstein
