Product type	CPL (Powerline) kit with dual-band WiFi
Brand	TP-Link
Model	TL-WPA8630KIT
Dimensions (each adapter)	Approximately 10.5 x 6 x 3.5 cm
Weight (each adapter)	Approximately 150 g
Power supply	100-240 V AC, 50/60 Hz
Main functions	Data transmission via electrical current, WiFi 2.4 GHz and 5 GHz, Gigabit Ethernet port, Pair button, WPS compatibility, G.hn technology
Maximum CPL speed	Up to 1000 Mbps (theoretical speed)
WiFi speed	Up to 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
Ethernet ports	1 Gigabit port per adapter
Buttons	Pair, WPS/WiFi, Reset
LED indicators	Power, CPL, Ethernet, WiFi (2.4G and 5G)
Installation	Plug & Play, pairing via Pair button, WiFi copying via WPS
CPL network security	AES 128-bit encryption, Pair button to secure
WiFi security	WPA/WPA2-PSK, WPS
Maintenance and cleaning	Clean with a soft dry cloth. Do not use abrasive products or solvents. Unplug before cleaning.
Safety instructions	Do not plug into a power strip, plug directly into a wall outlet. Do not use in a humid environment. Do not disassemble the device.
Spare parts and repairability	No spare parts available. Device not user-repairable. Contact technical support in case of failure.
Warranty	2 years (subject to general conditions)
Compatibility	Compatible with all standard routers. G.hn CPLs are not compatible with HomePlug AV/AV2 CPLs.
Kit contents	1 CPL adapter, 1 WiFi extender, 2 Ethernet cables, quick installation guide
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% RH (non-condensing)

Frequently Asked Questions - TLWPA8630KIT TP-LINK

How do I reset my CPL adapter?

Press and hold the Reset button (using a pointed object) on the powered device until all LEDs turn off and then turn back on. The reset is then complete.

Why don't I have internet access via my CPL network?

Check that all CPLs are on the same electrical panel. Ensure that the CPL LEDs are solid green. Check Ethernet connections and that your internet connection works directly on the router.

What should I do if a CPL extender does not reconnect after moving it?

Make sure all devices are on the same electrical panel. Re-pair it with another CPL using the Pair button. Keep devices away from interference sources (dryer, air conditioner, etc.).

How do I add a new CPL adapter to my existing network?

Plug the new adapter into a wall outlet on the same electrical panel. Within 2 minutes, press the Pair button on the existing adapter and then on the new one for 1 second. The CPL LED flashes and then turns solid green.

How do I copy the Wi-Fi settings from my router to the CPL extender?

Place the extender near the router. Press the WPS button on the router, then within 2 minutes press and hold the Wi-Fi button on the extender for 1 second. The Wi-Fi LEDs flash quickly and then stay on.

Can I use a power strip to plug in the CPL adapters?

No, it is not recommended to plug CPL adapters into a power strip. Plug them directly into a wall outlet to avoid interference. Power strips can be plugged into the pass-through socket of the adapters.

How do I synchronize Wi-Fi settings between multiple CPL extenders?

Plug the new extenders into wall outlets and associate them with the CPL network via the Pair button. Wi-Fi settings are automatically synchronized from the existing extender.

What should I do if the CPL LED remains red or orange?

The LED indicates a poor connection. Make sure the adapters are on the same electrical panel and move them closer if possible. Re-pair the devices using the Pair button.

Can I configure Wi-Fi settings without using WPS?

Yes, you can configure settings via the extender's web interface or via the tpPLC app (available for iOS and Android).

What is the maximum speed of this CPL kit?

The maximum theoretical CPL speed can reach 1000 Mbps. However, actual speed depends on the quality of the electrical installation and distance.

USER MANUAL TLWPA8630KIT TP-LINK

Quick Installation Guide

Powerline Extender

For technical support, replacement services, user guides and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2025 TP-Link 7106512031 REV2.3.2

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

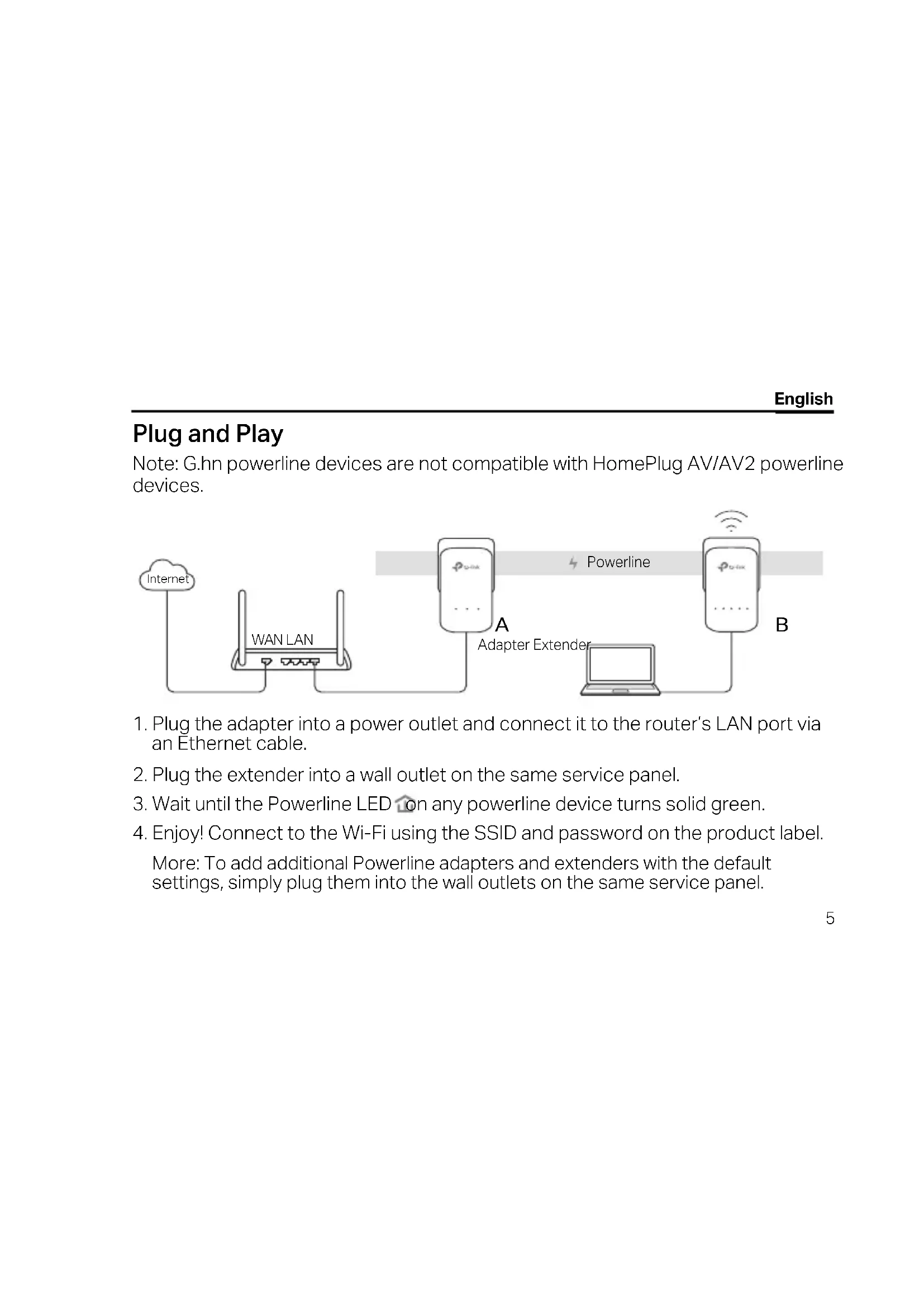

Plug and Play

Deutsch

Note: G.hn powerline devices are not compatible with HomePlug AV/AV2 powerline devices.

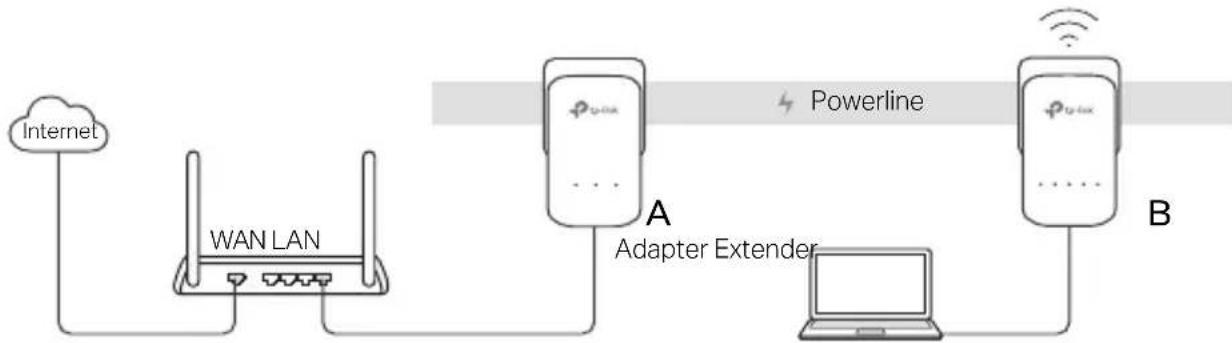


1. Plug the adapter into a power outlet and connect it to the router's LAN port via an Ethernet cable.
2. Plug the extender into a wall outlet on the same service panel.
3. Wait until the Powerline LED on any powerline device turns solid green.
4. Enjoy! Connect to the Wi-Fi using the SSID and password on the product label.
   More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same service panel.

English

Secure the Powerline Network with the Pair Button

Within 2 minutes, press the Pair button on the powerline devices for 1 second. The Powerline LED starts blinking. When the Powerline LED turns solid green, it's done.

Attention

- Plug the powerline devices directly into the wall outlets but not the power strips.

- For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Copy Wi-Fi Settings from Router to Extender

If your router supports WPS, you can follow the steps below to automatically copy the router's Wi-Fi settings (SSID and password) to the powerline extender.

1. Plug in the powerline extender near your router. Press the WPS button on your router.

2. Within 2 minutes, press the Wi-Fi button on the extender for 1 second.

3. When the 2.4GHz Wi-Fi LED 🏠 and 5GHz Wi-Fi LED 🔊 on the extender blink quickly for 3 seconds, and then stay on, it's done!

English

* 5GHz Wi-Fi is not available on single-band products. For multiple-band products, the powerline extender copies by default both 2.4GHz and 5GHz wireless settings at the same time. If it fails to copy both, your router may be only able to clone one band at a time. Please check your router's manual for support.

Sync Wi-Fi Settings to More Extenders

If you have more extenders, simply plug in and pair each one with the existing adapter to join the network. Then the Wi-Fi settings will automatically sync from the existing extender to the new ones.

Note: The wireless settings can also be configured through the powerline extender's web interface or through the tpPLC app. You can download the app from the App Store or Google Play, or simply scan the QR code.

English

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline extender?

A. With the extender powered on, press and hold the Reset button (use a pin if it is a hole) until all LEDs turn off. When all LEDs turn on again, the reset process is complete.
Q2. How to troubleshoot if there is no internet connection in my powerline network?
A1. Make sure all adapters and extenders are on the same service panel.
A2. Make sure all Powerline LEDs are solid green. If not, pair your adapters and extenders again.
A3. Make sure all hardware connections are correctly and securely connected.
A4. Check if you have an internet connection by connecting the computer directly to the modem or router.
Q3. What can I do if a successfully-paired extender does not reconnect after being relocated?
A1. Make sure all powerline devices are on the same service panel.
A2. Pair it again with another adapter or extender, and make sure the Powerline LED is solid green before relocating it.
A3. Check for possible interference, such as washers, air conditioners or other household appliances that may be too close to one of the powerline adapters or extenders.

Conectar y usar

Ελληνικά

Français

Português

FAQ (Perguntas Frequentes)

Suomi

Nederlands

Svenska

Norsk

Dansk

• TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
  • The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
